INFINITI M35 2006 Factory Service Manual

AT-292
OVERHAUL
Revision: 2006 January2006 M35/M45

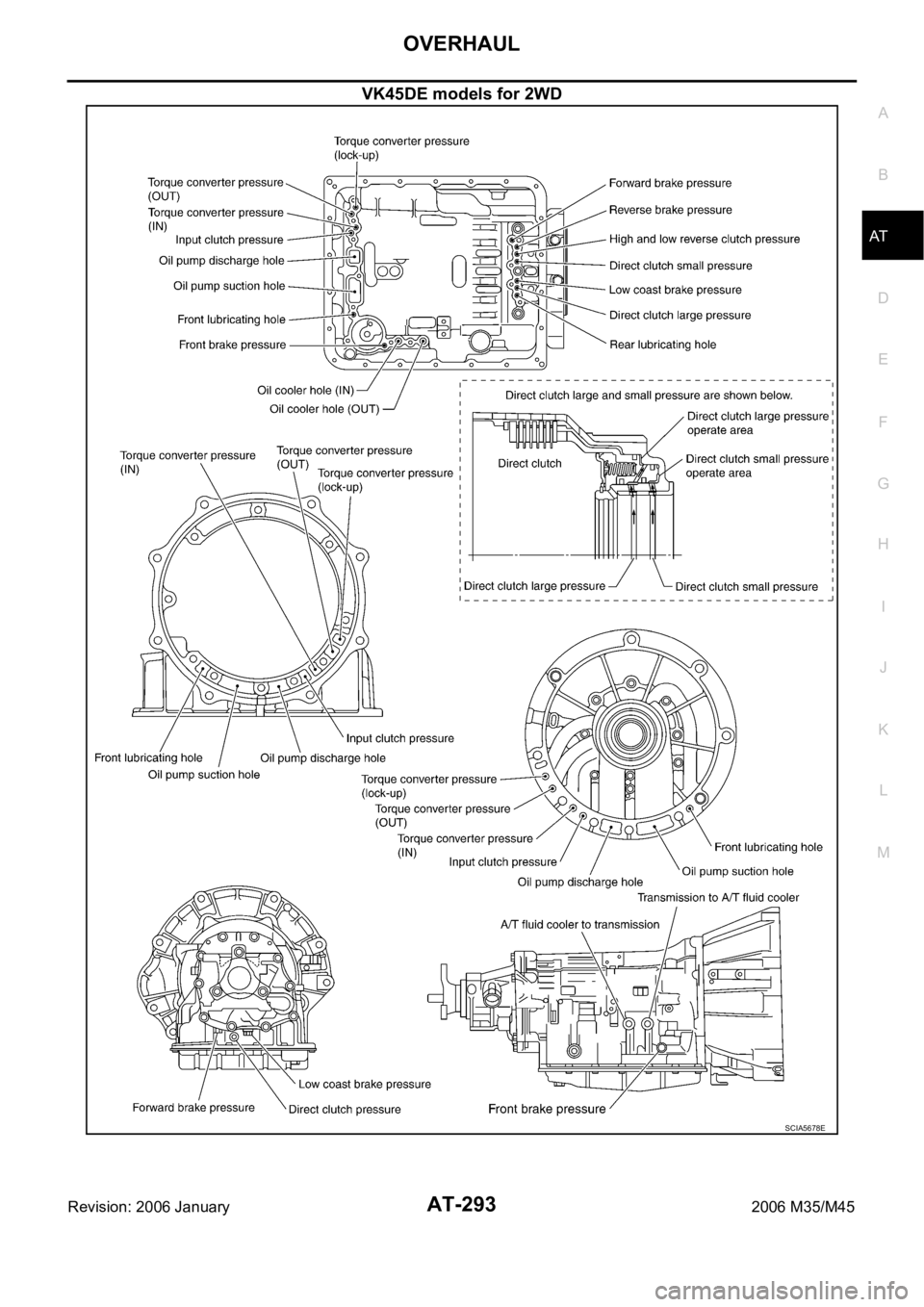

Oil ChannelNCS001R1
VQ35DE models for 2WD
SCIA5185E

OVERHAUL
AT-293
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
VK45DE models for 2WD
SCIA5678E

AT-294
OVERHAUL
Revision: 2006 January2006 M35/M45
AW D m o d e l s
SCIA5189E

OVERHAUL
AT-295
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45

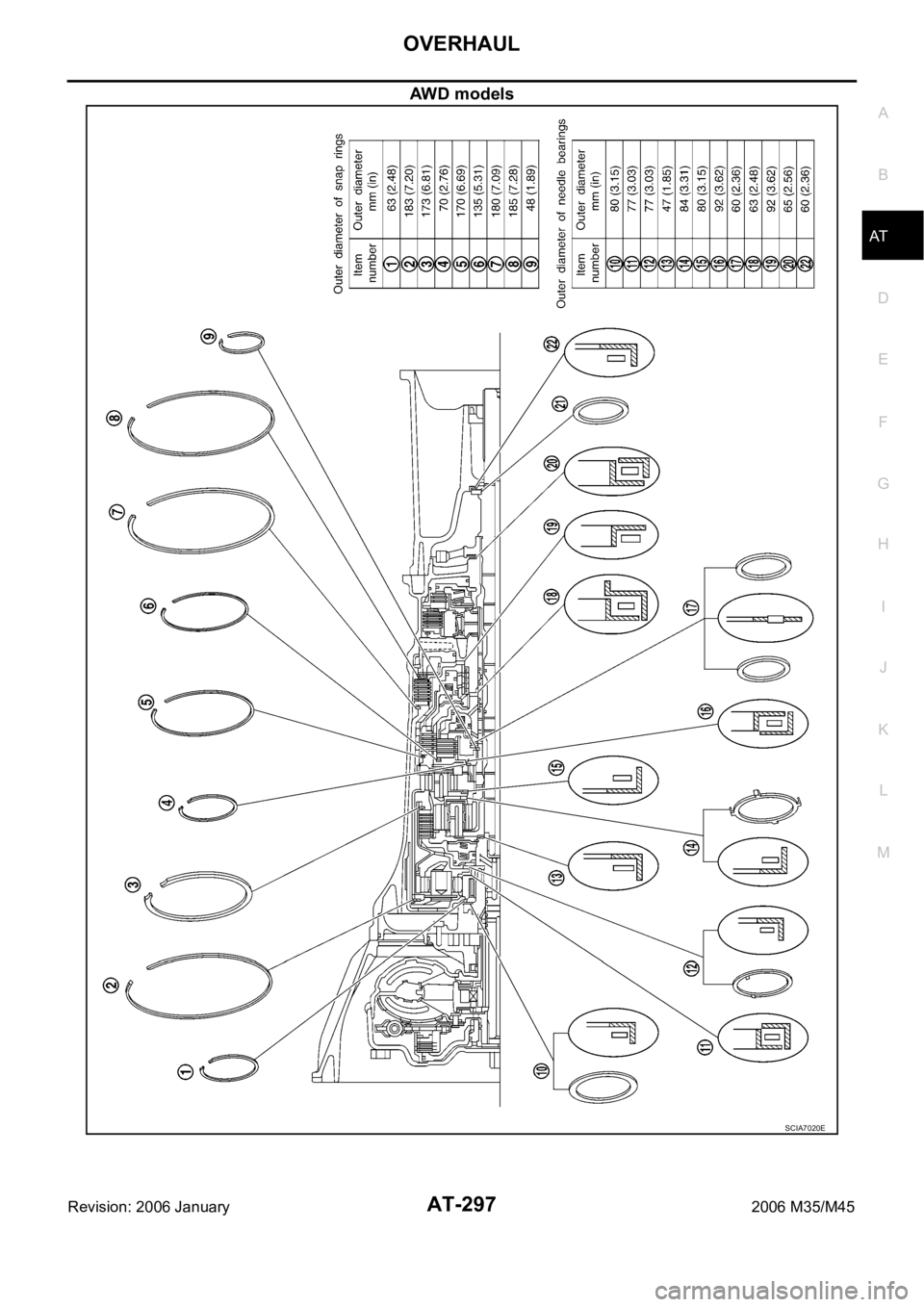

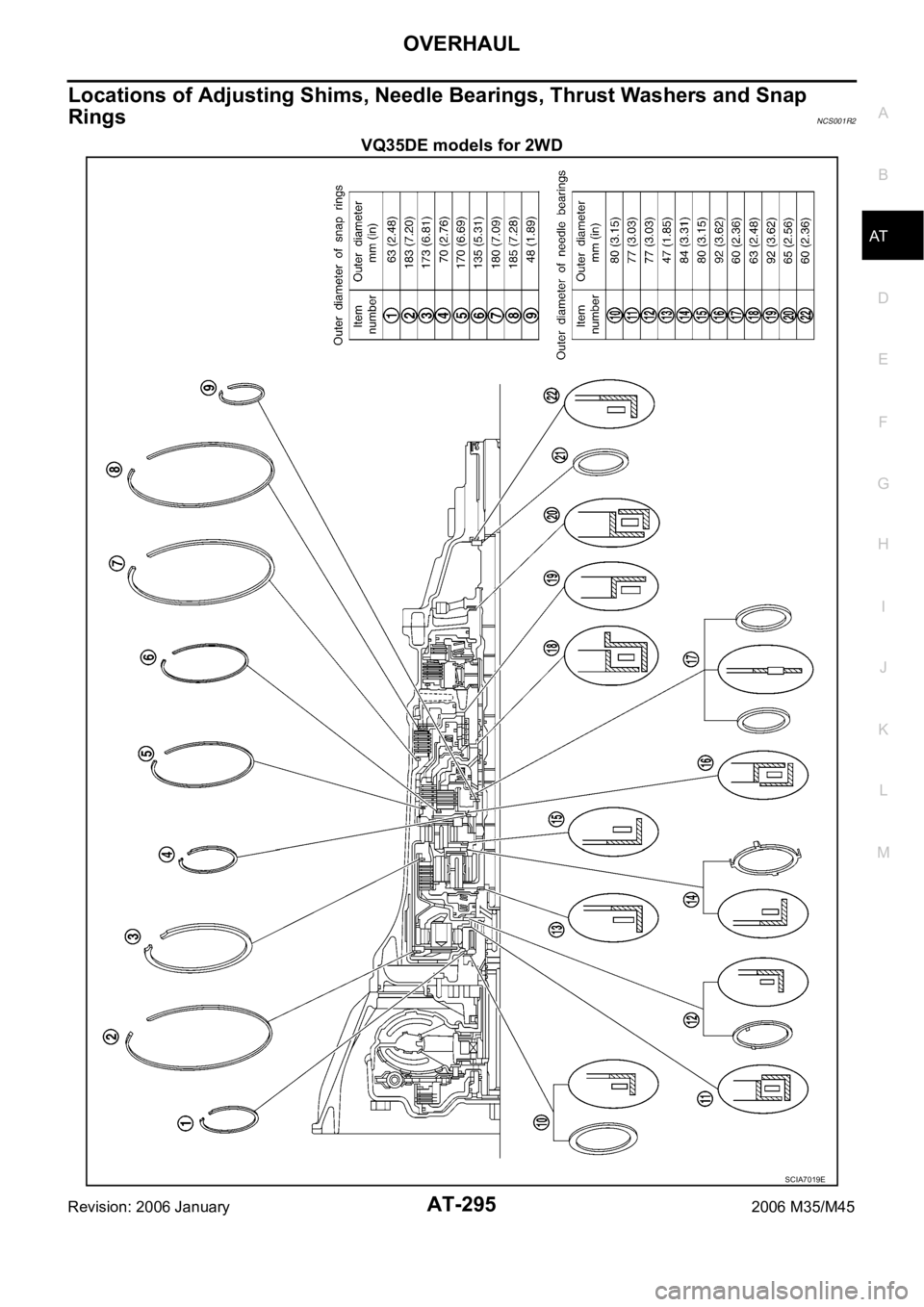

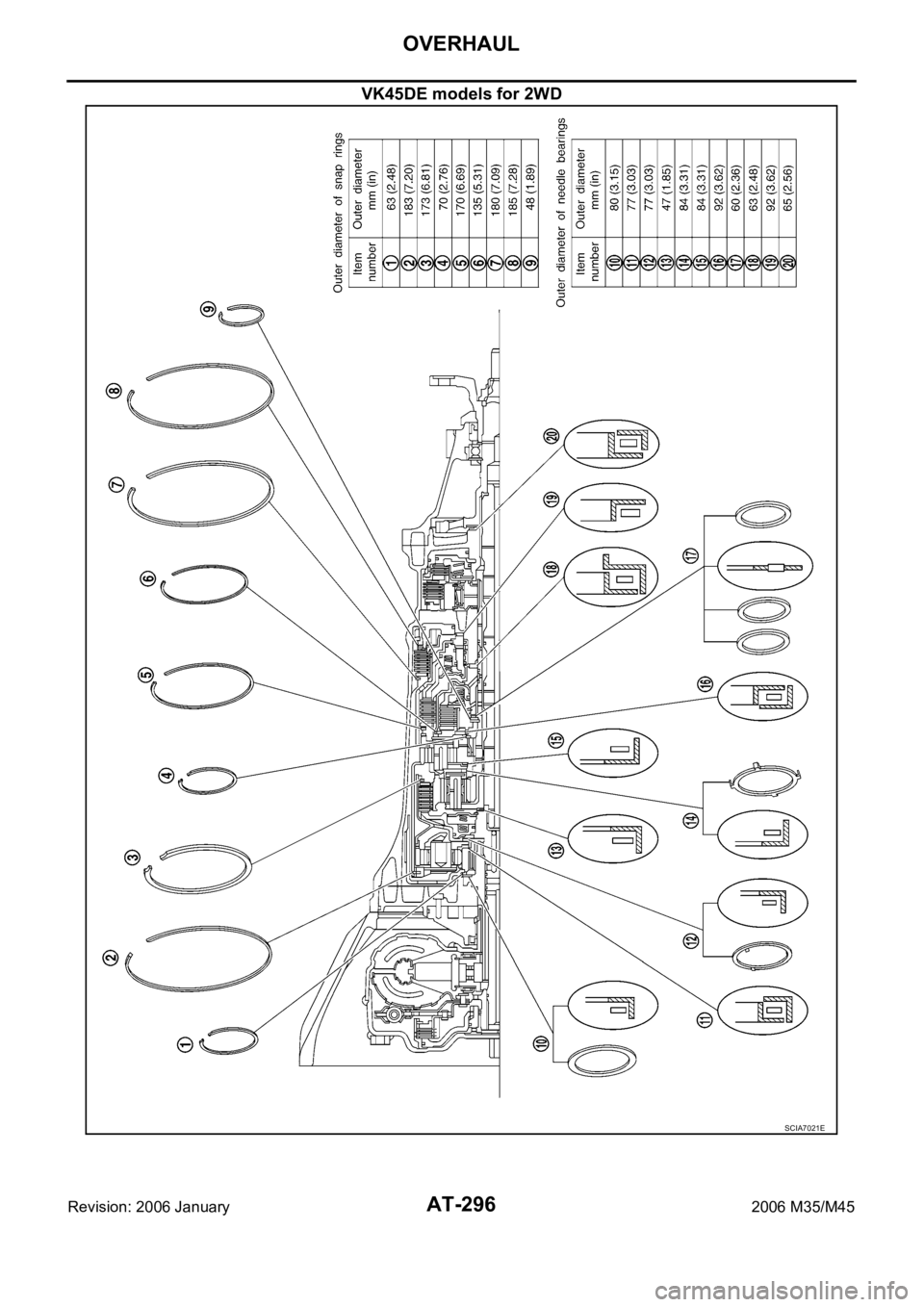

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings
NCS001R2
VQ35DE models for 2WD
SCIA7019E

AT-296
OVERHAUL
Revision: 2006 January2006 M35/M45
VK45DE models for 2WD
SCIA7021E

OVERHAUL
AT-297
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
AWD models
SCIA7020E

AT-298
DISASSEMBLY
Revision: 2006 January2006 M35/M45
DISASSEMBLYPFP:31020
DisassemblyNCS001R3
CAUTION:
Do not disassemble parts behind Drum Support. Refer to AT- 1 7 , "
Cross-Sectional View (VQ35DE Mod-
els for 2WD)" , AT- 1 8 , "Cross-Sectional View (VK45DE Models for 2WD)" , AT- 1 9 , "Cross-Sectional
View (AWD Models)" .
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turing while
pulling straight out.
3. Check torque converter one-way clutch using a check tool as
shown at figure.
a. Insert a check tool into the groove of bearing support built into
one-way clutch outer race.
b. When fixing bearing support with a check tool, rotate one-way
clutch spline using a screwdriver.
c. Make sure that inner race rotates clockwise only. If not, replace
torque converter assembly.
4. Remove converter housing from transmission case.
CAUTION:
Be careful not to scratch converter housing.
SCIA5010E
SCIA3171E
SCIA4634E

DISASSEMBLY
AT-299
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
5. Remove O-ring from input clutch assembly.
6. Remove tightening bolts for oil pump assembly and transmis-
sion case.
7. Attach the sliding hammers to oil pump assembly and extract it
evenly from transmission case.
CAUTION:
Fully tighten the sliding hammer screws.
Make sure that bearing race is installed to the oil pump
assembly edge surface.
8. Remove O-ring from oil pump assembly.
SCIA5011E
SCIA2300E
SCIA5474E
SCIA5172E

AT-300
DISASSEMBLY
Revision: 2006 January2006 M35/M45
9. Remove bearing race from oil pump assembly.
10. Remove needle bearing from front sun gear.
11. Remove front sun gear assembly from front carrier assembly.
NOTE:
Remove front sun gear by rotating left/right.
12. Remove seal rings from input clutch assembly.
13. Remove front carrier assembly from rear carrier assembly. (With
input clutch assembly and rear internal gear.)
CAUTION:
Be careful to remove it with needle bearing.
SCIA6529E
SCIA2808E
SCIA5014E
SCIA2470E
SCIA5015E

DISASSEMBLY
AT-301
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
14. Loosen lock nut and remove band servo anchor end pin from
transmission case.
15. Remove brake band from transmission case.
To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.
Check brake band facing for damage, cracks, wear or
burns.
16. Remove mid carrier assembly and rear carrier assembly as a
unit.
17. Remove mid carrier assembly from rear carrier assembly.
SCIA6512E
SCIA2580E
SAT655
SCIA5017E
SCIA5697E
