INFINITI M35 2006 Factory Service Manual

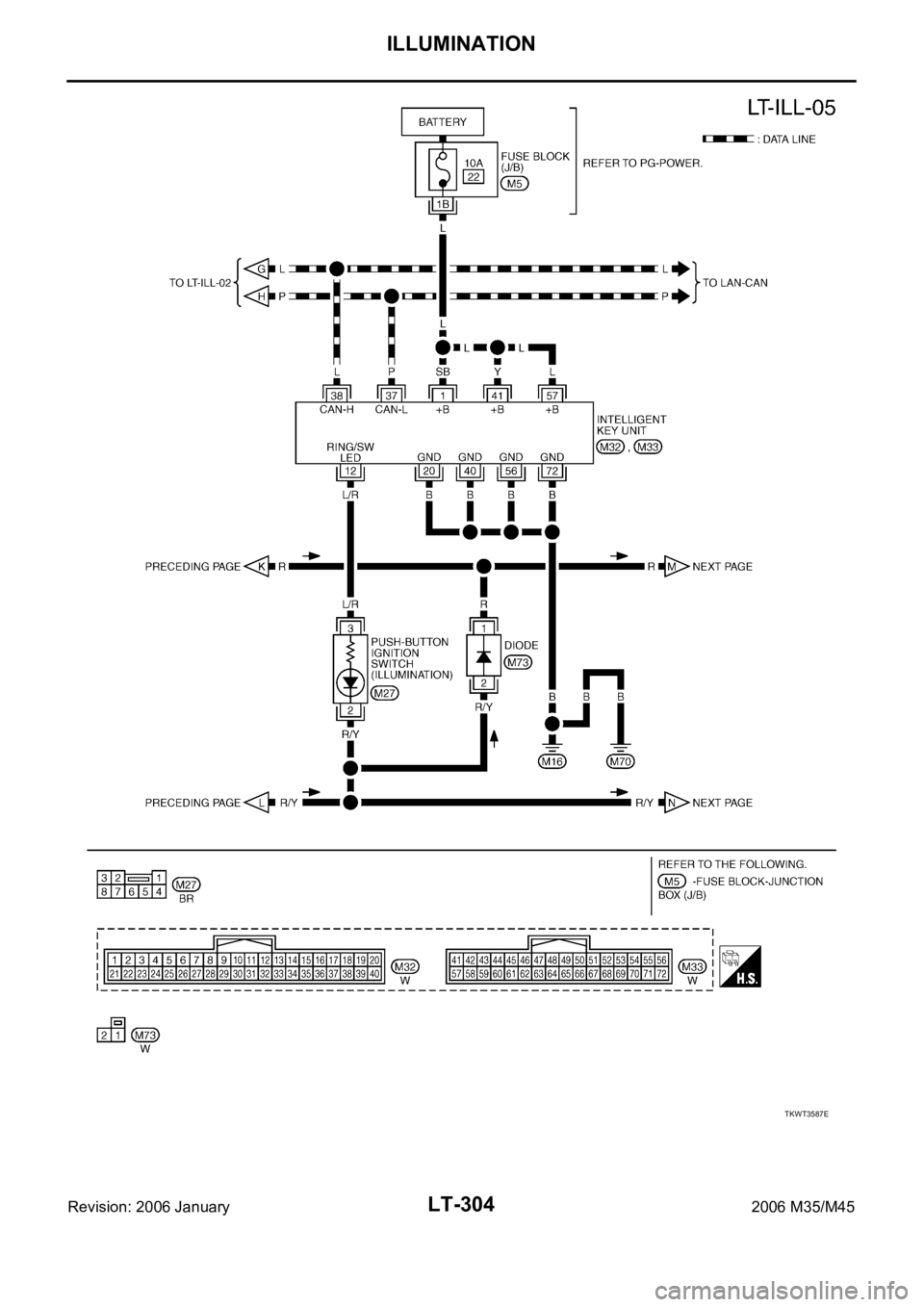

LT-304
ILLUMINATION
Revision: 2006 January2006 M35/M45
TKWT3587E

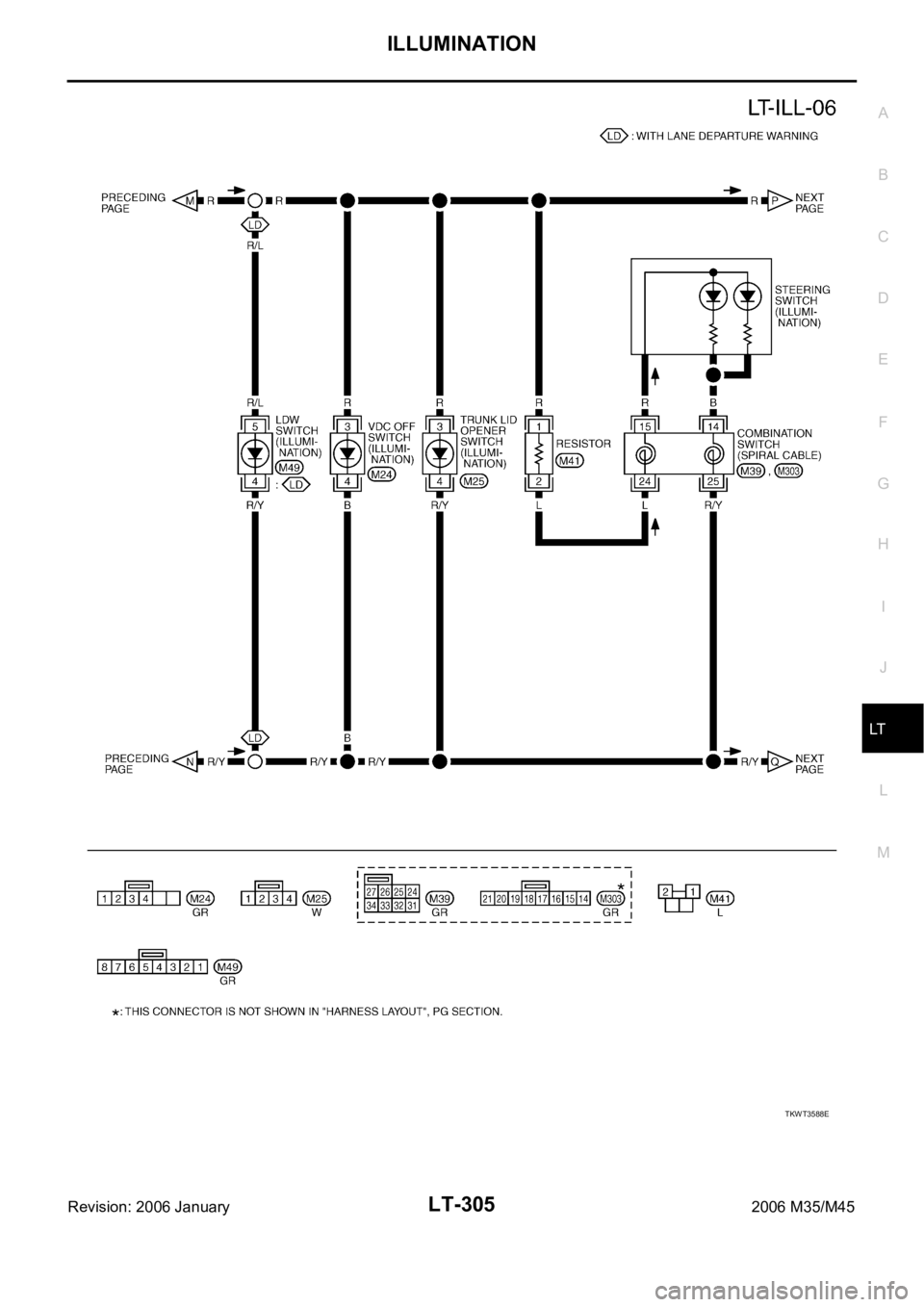

ILLUMINATION
LT-305
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 January2006 M35/M45
TKWT3588E

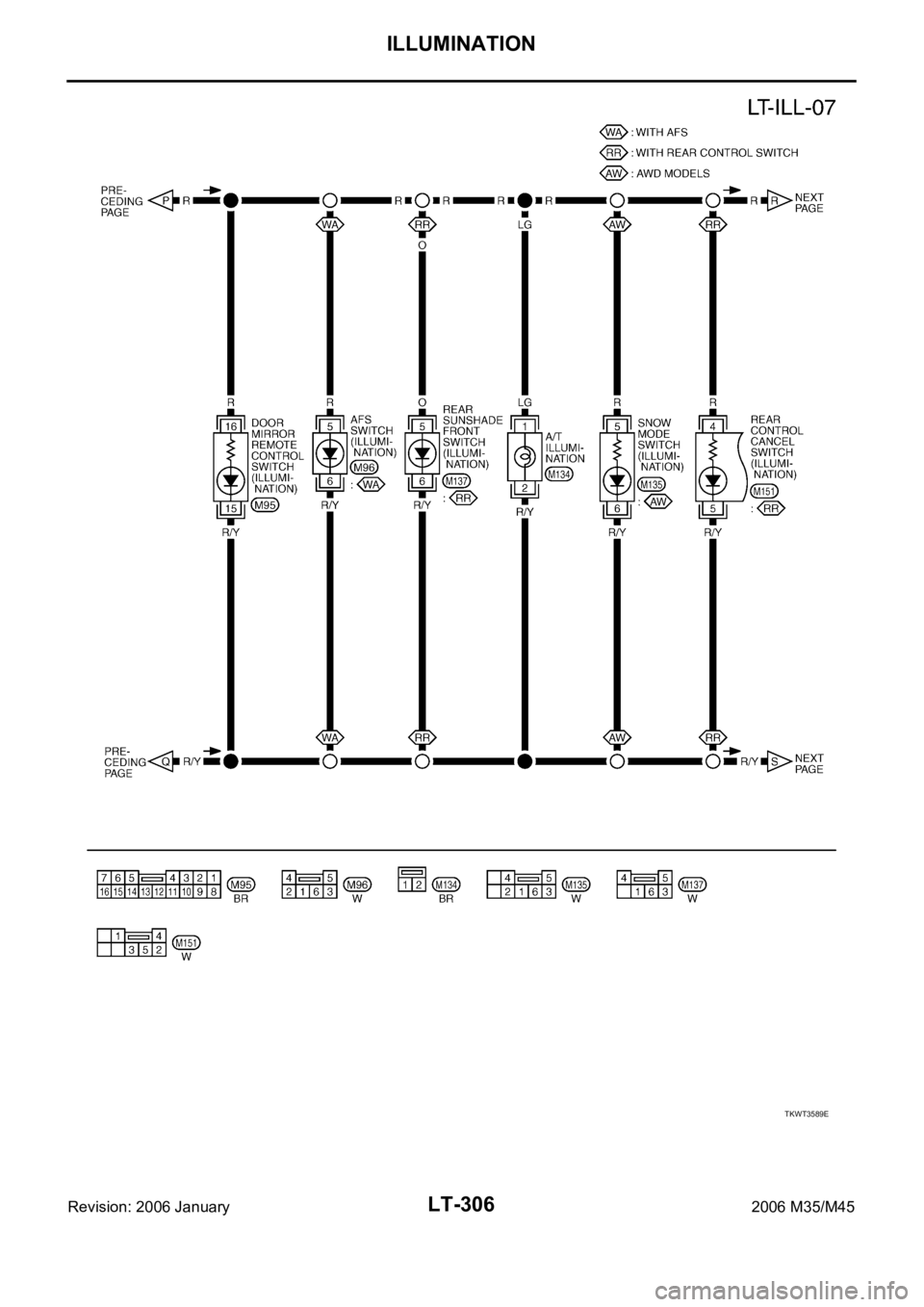

LT-306
ILLUMINATION
Revision: 2006 January2006 M35/M45
TKWT3589E

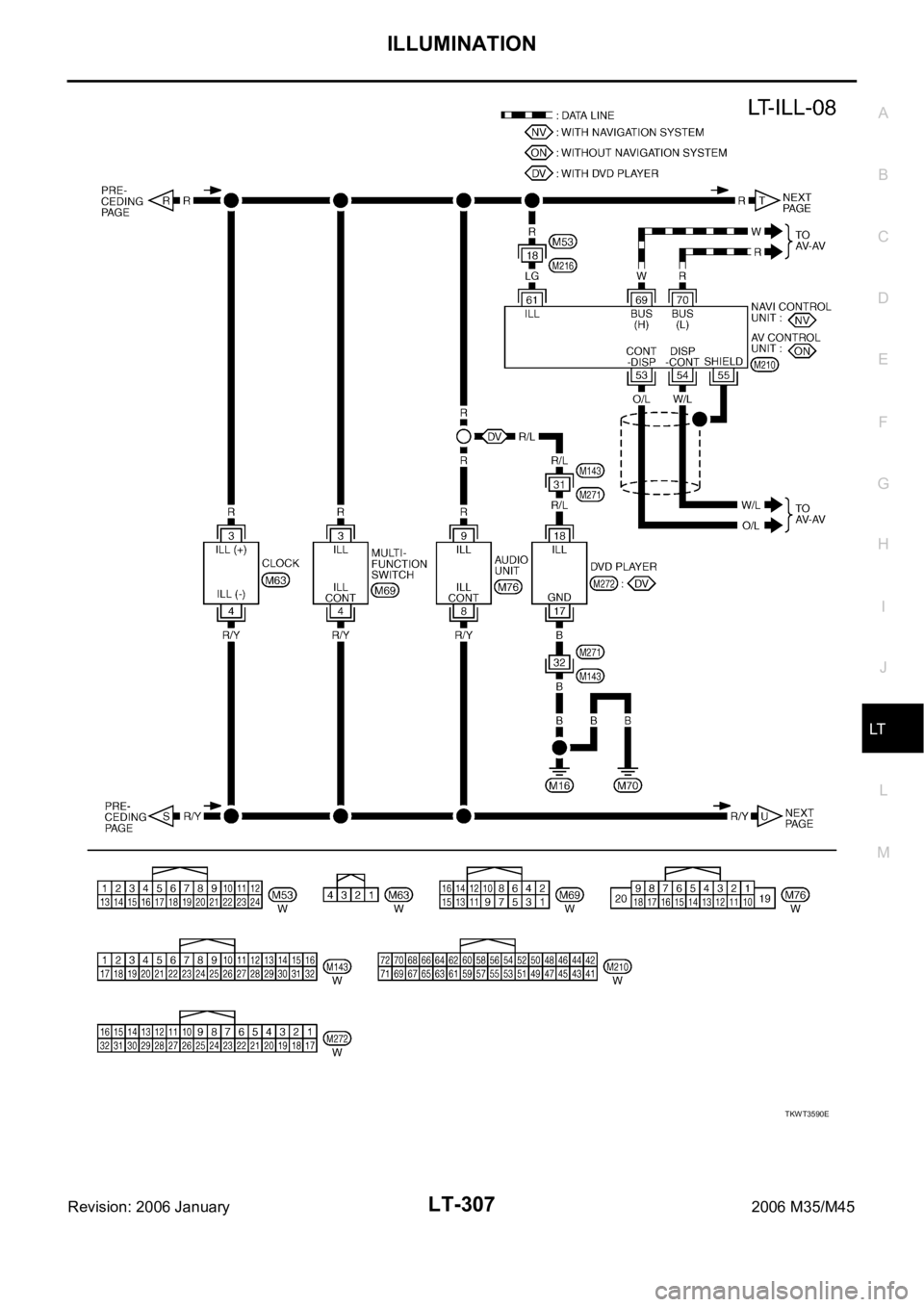

ILLUMINATION
LT-307
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 January2006 M35/M45
TKWT3590E

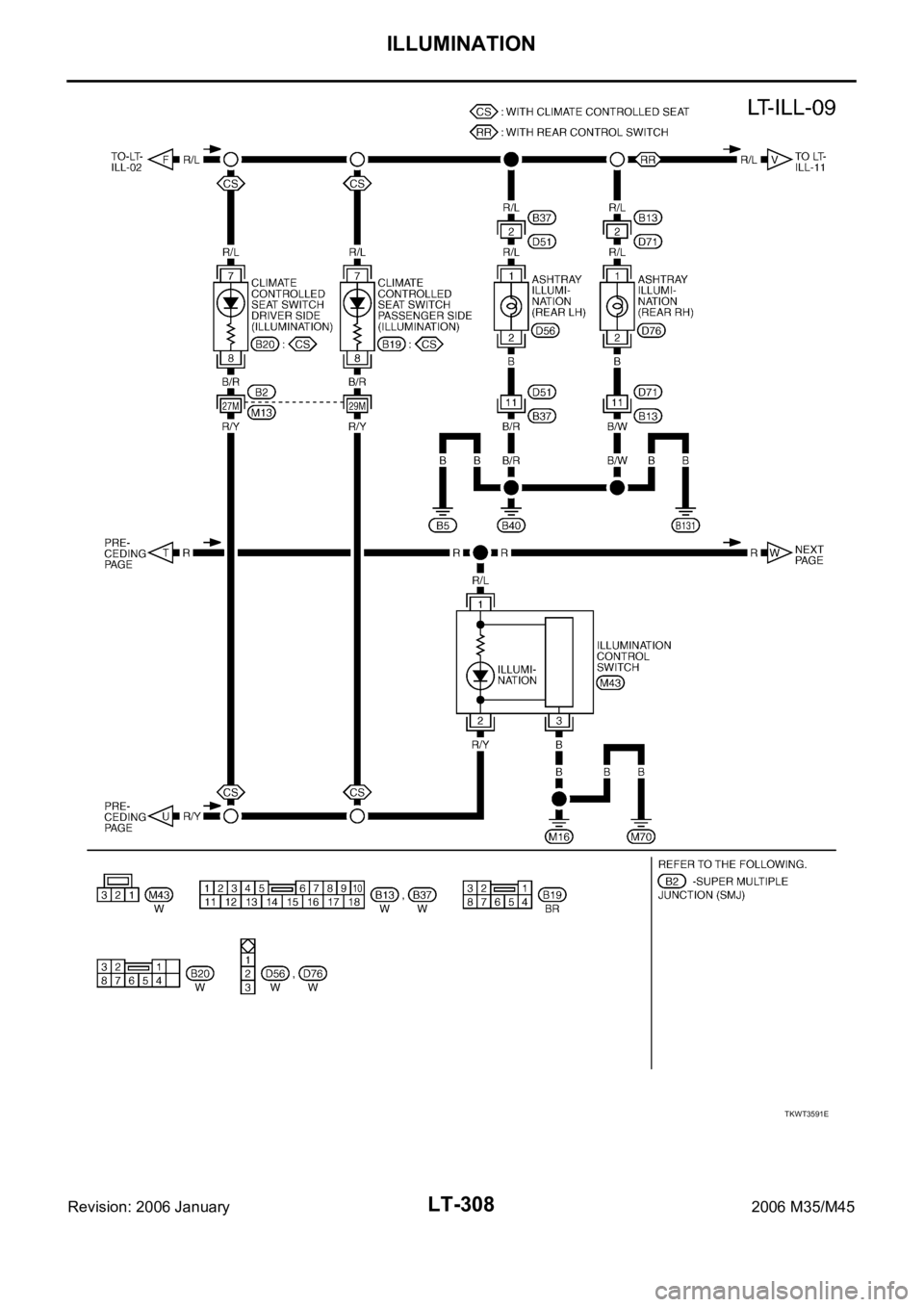

LT-308
ILLUMINATION
Revision: 2006 January2006 M35/M45
TKWT3591E

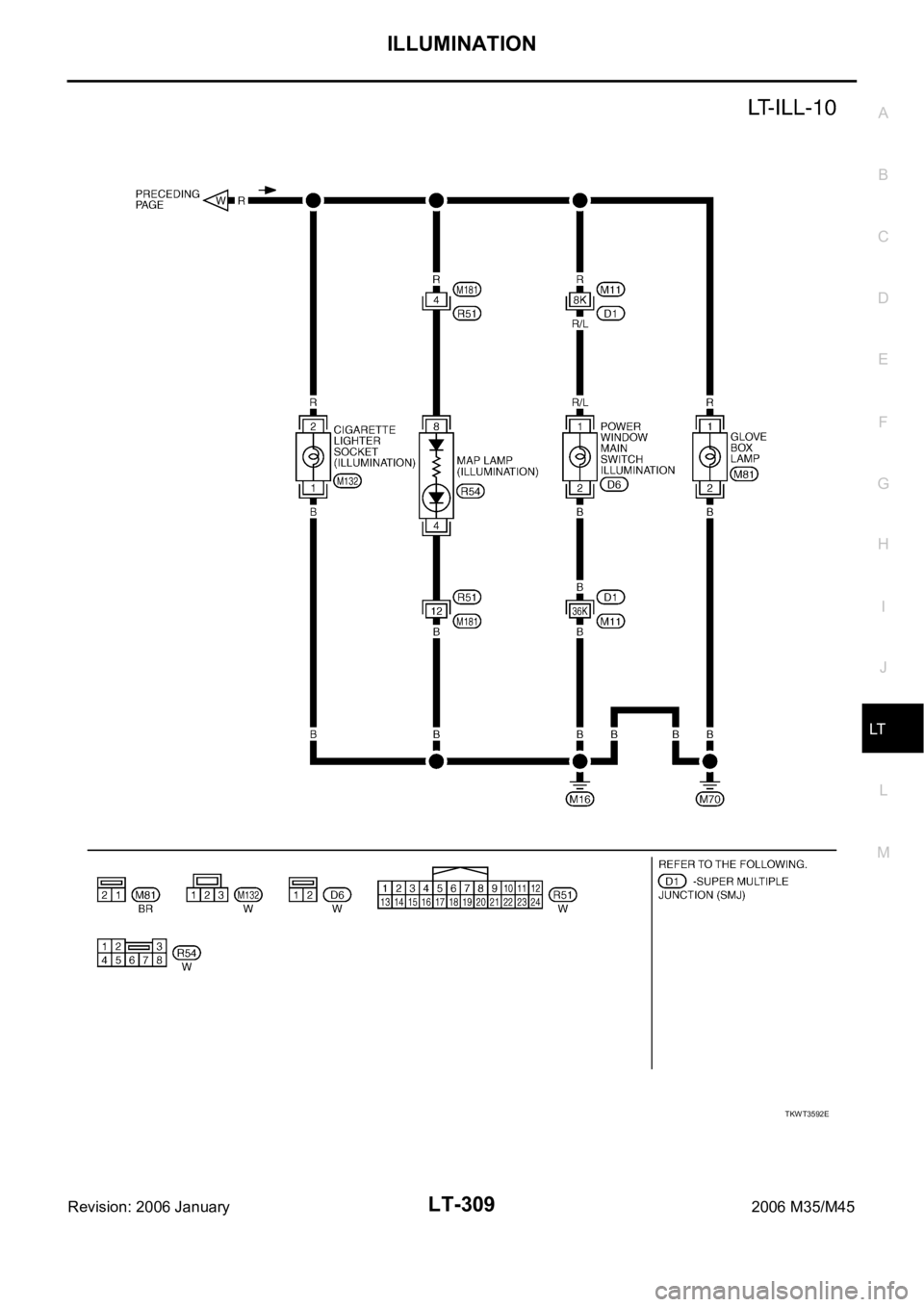

ILLUMINATION
LT-309
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 January2006 M35/M45
TKWT3592E

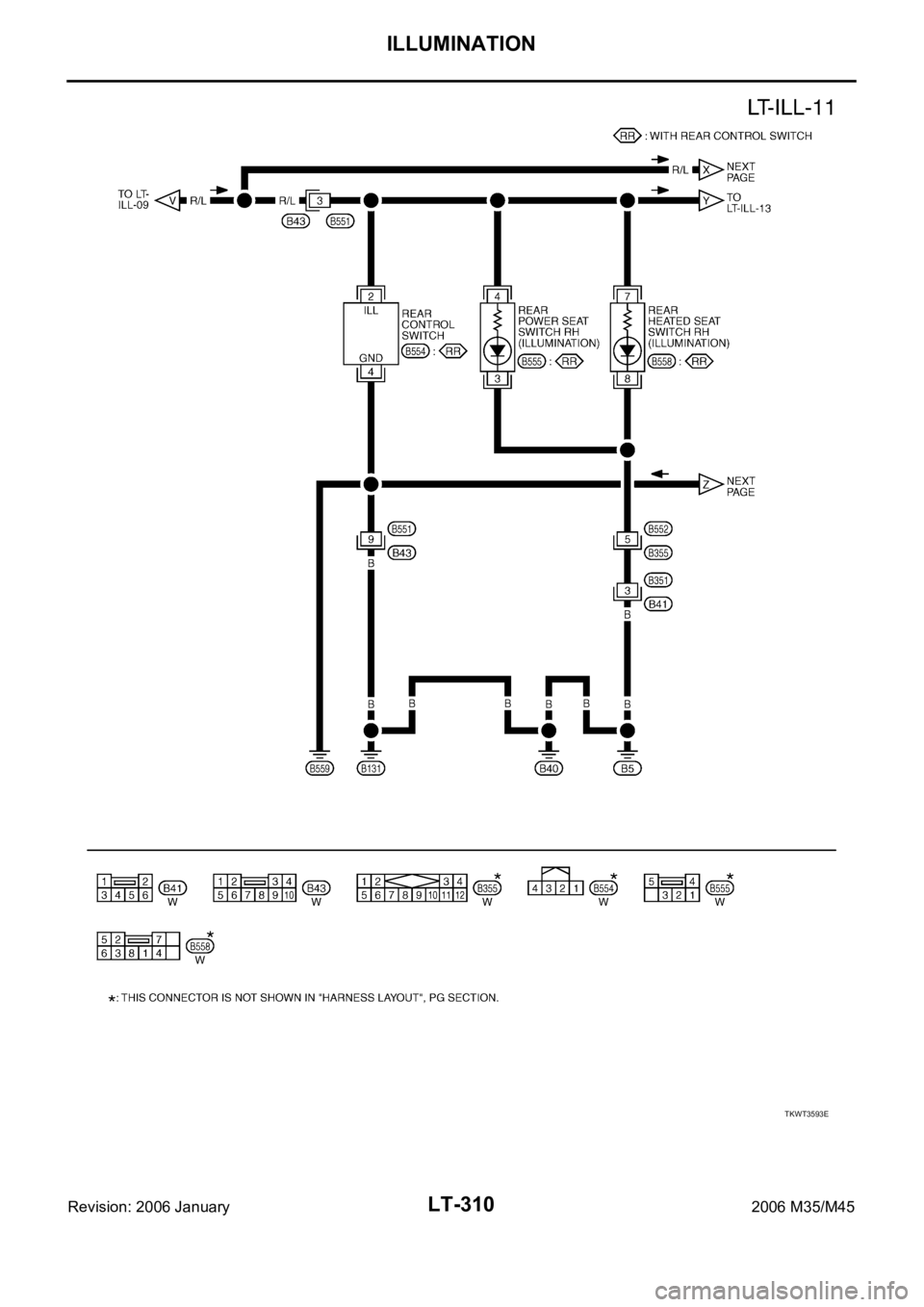

LT-310
ILLUMINATION
Revision: 2006 January2006 M35/M45
TKWT3593E

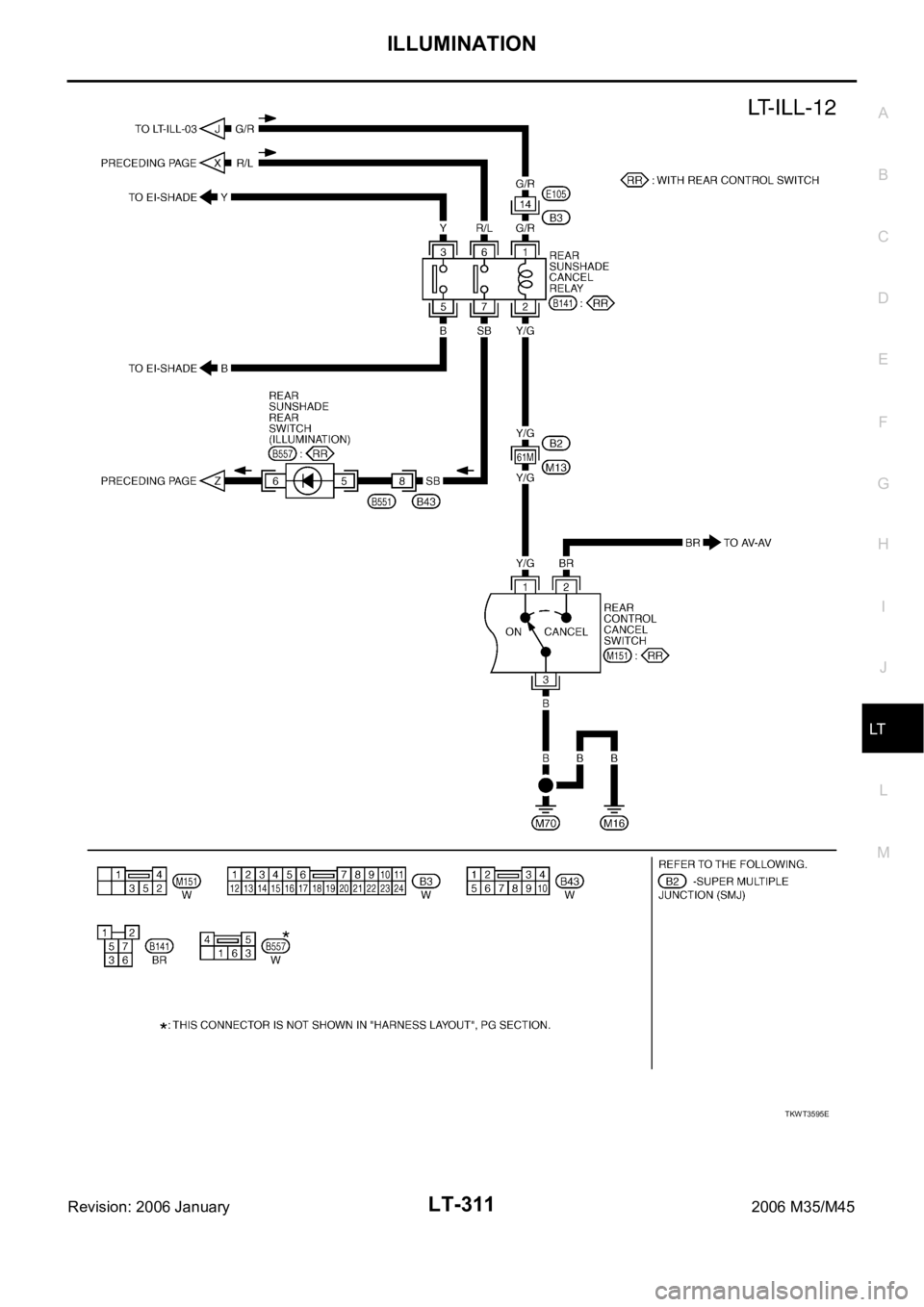

ILLUMINATION
LT-311
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 January2006 M35/M45
TKWT3595E

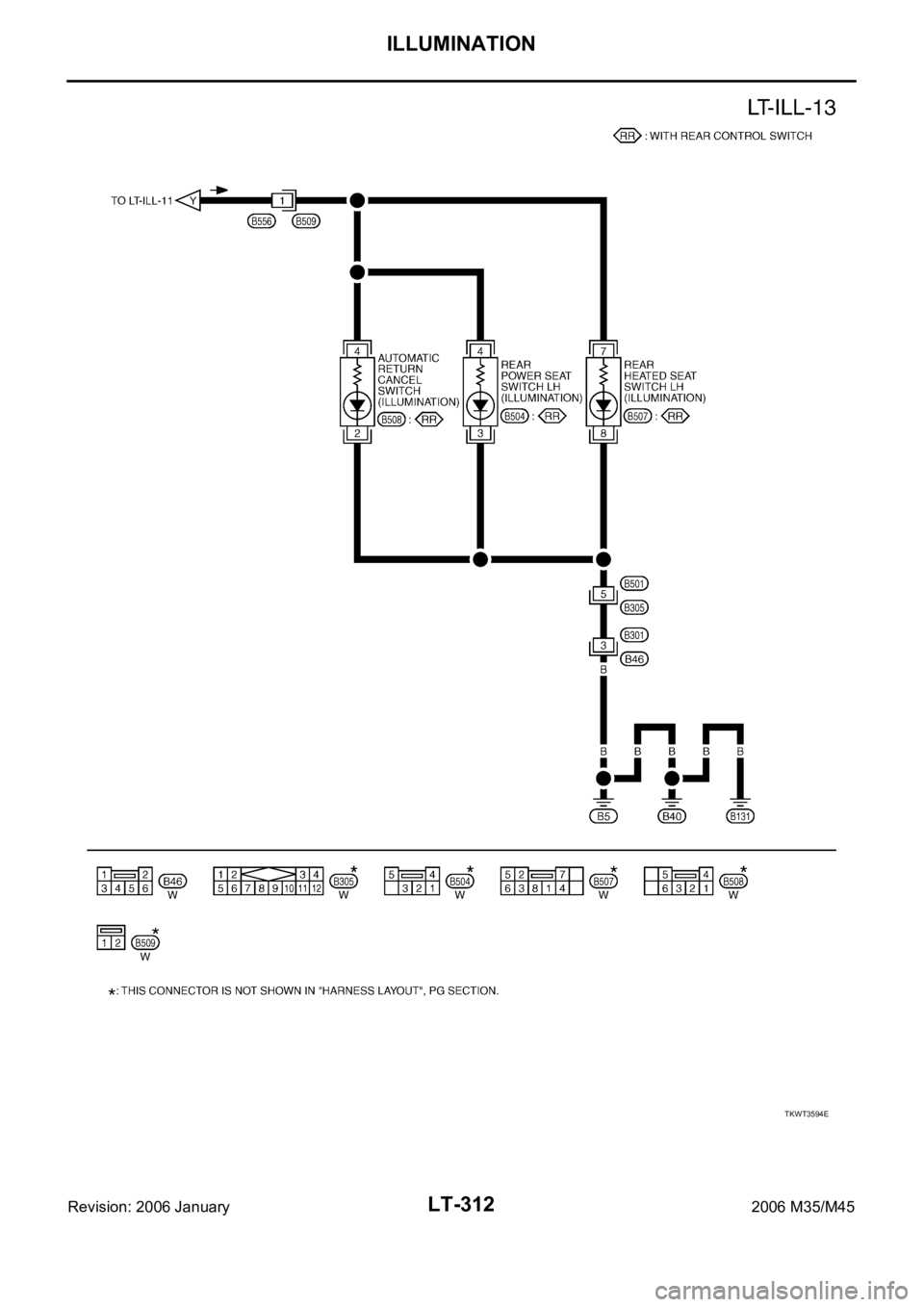

LT-312
ILLUMINATION
Revision: 2006 January2006 M35/M45
TKWT3594E

ILLUMINATION
LT-313
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 January2006 M35/M45
Glove Box LampNKS003TM
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal
1. Remove glove box cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn globe box lamp bulb socket (1) counterclockwise and
unlock it.
3. Remove bulb (2).
Installation
Installation is the reverse order of removal.
Cigarette Lighter IlluminationNKS003TN
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal
1. Remove A/T console finisher. Refer to IP-11, "Removal and Installation of Instrument Panel & Pad" .
2. Remove screws (A).
3. Use a screwdriver to undo hooks, remove bulb sockets (1).
4. Remove bulb (2).
Installation
Installation is the reverse order of removal.Glove box lamp : 12V - 1.4W
SKIB4206E
SKIB4207E
Front ashtray and cigarette lighter
illumination: 12V - 1.4W
SKIB4209E
