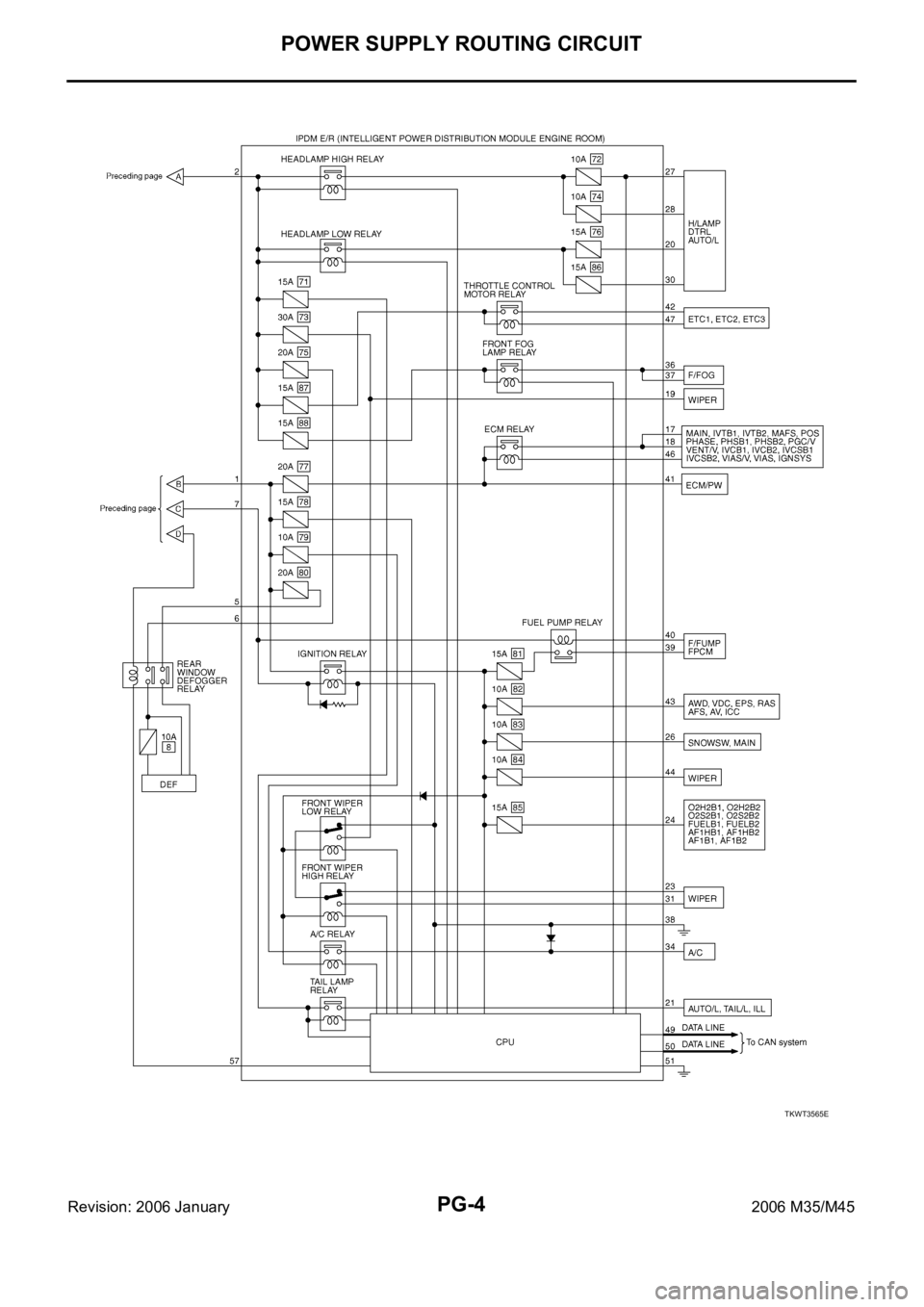

INFINITI M35 2006 Factory Service Manual PG-4 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 January2006 M35/M45 TKWT3565E

Page 4832 of 5621

INFINITI M35 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-5 C D E F G H I J L MA B PG Revision: 2006 January2006 M35/M45 Wiring Diagram — POWER —NKS004DY BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION TKWT3566E

Page 4833 of 5621

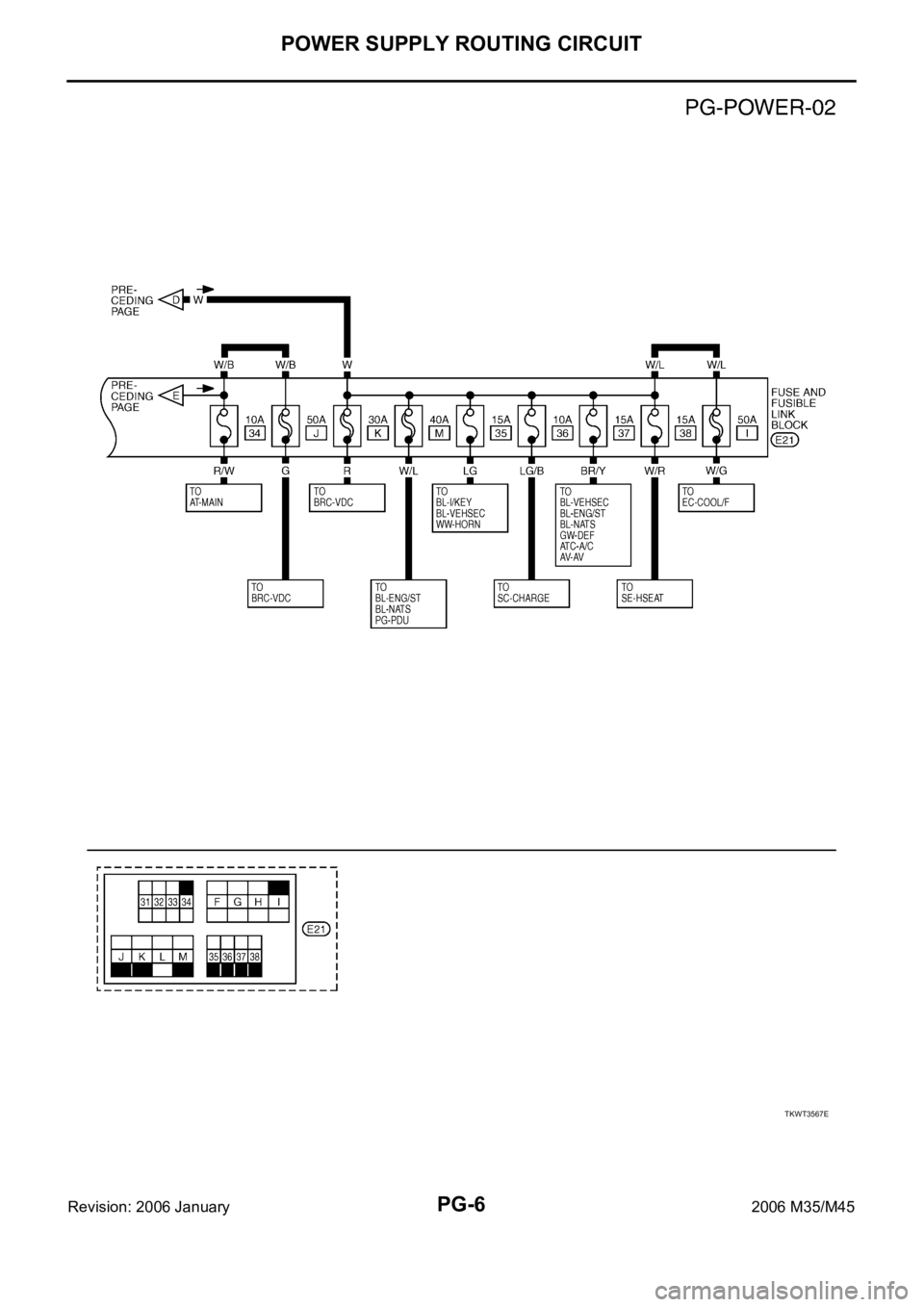

INFINITI M35 2006 Factory Service Manual PG-6 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 January2006 M35/M45 TKWT3567E

Page 4834 of 5621

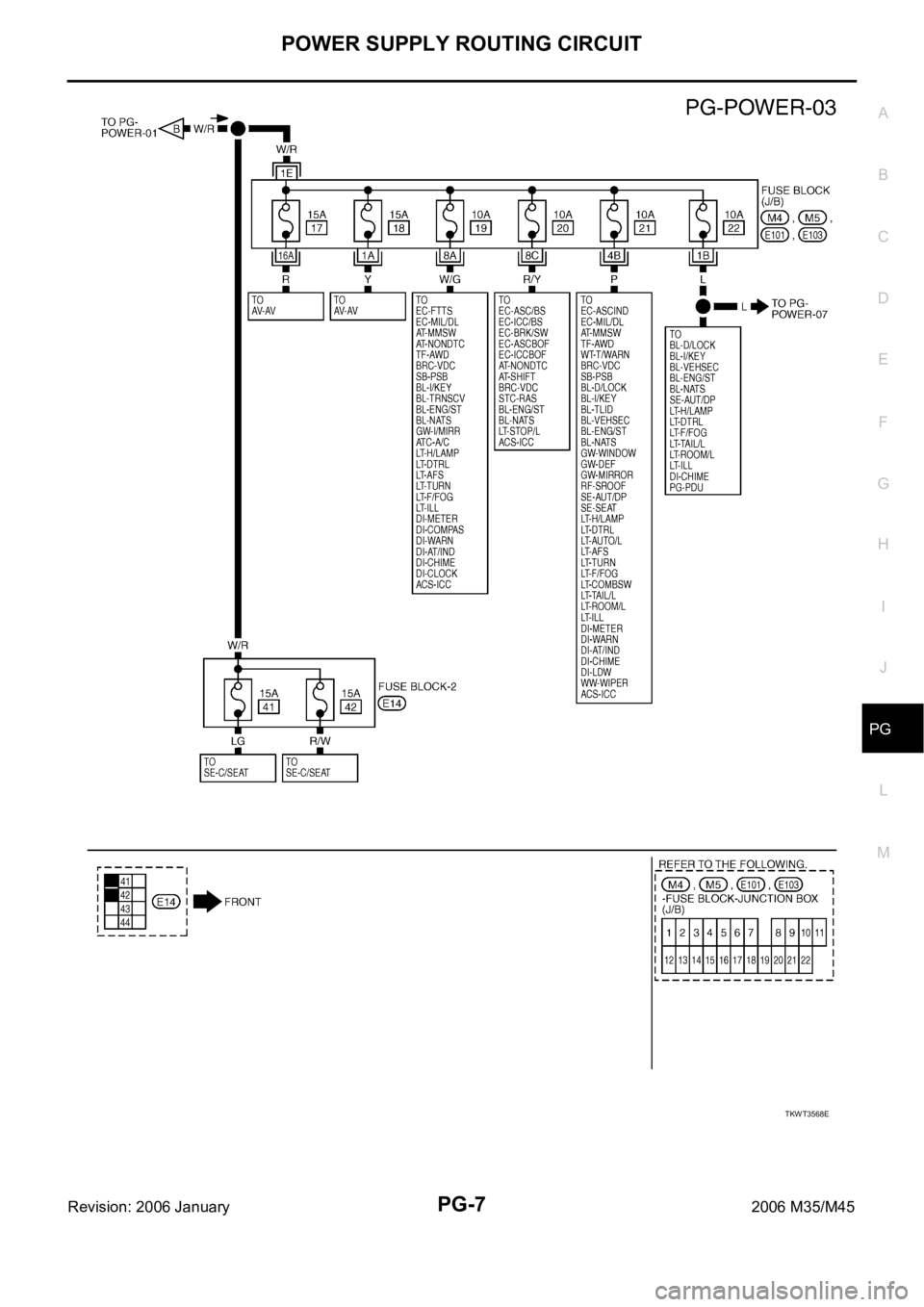

INFINITI M35 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-7 C D E F G H I J L MA B PG Revision: 2006 January2006 M35/M45 TKWT3568E

Page 4835 of 5621

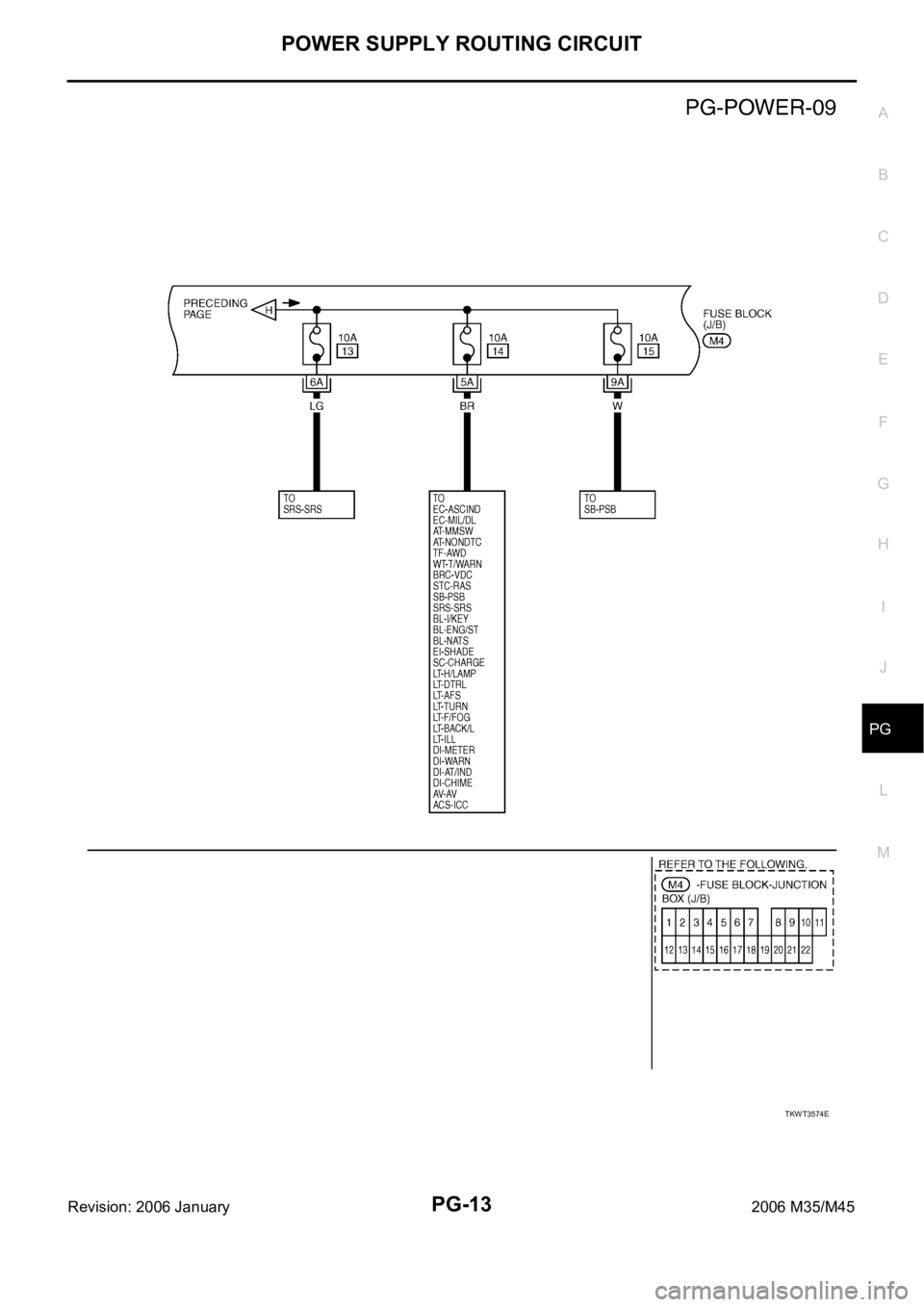

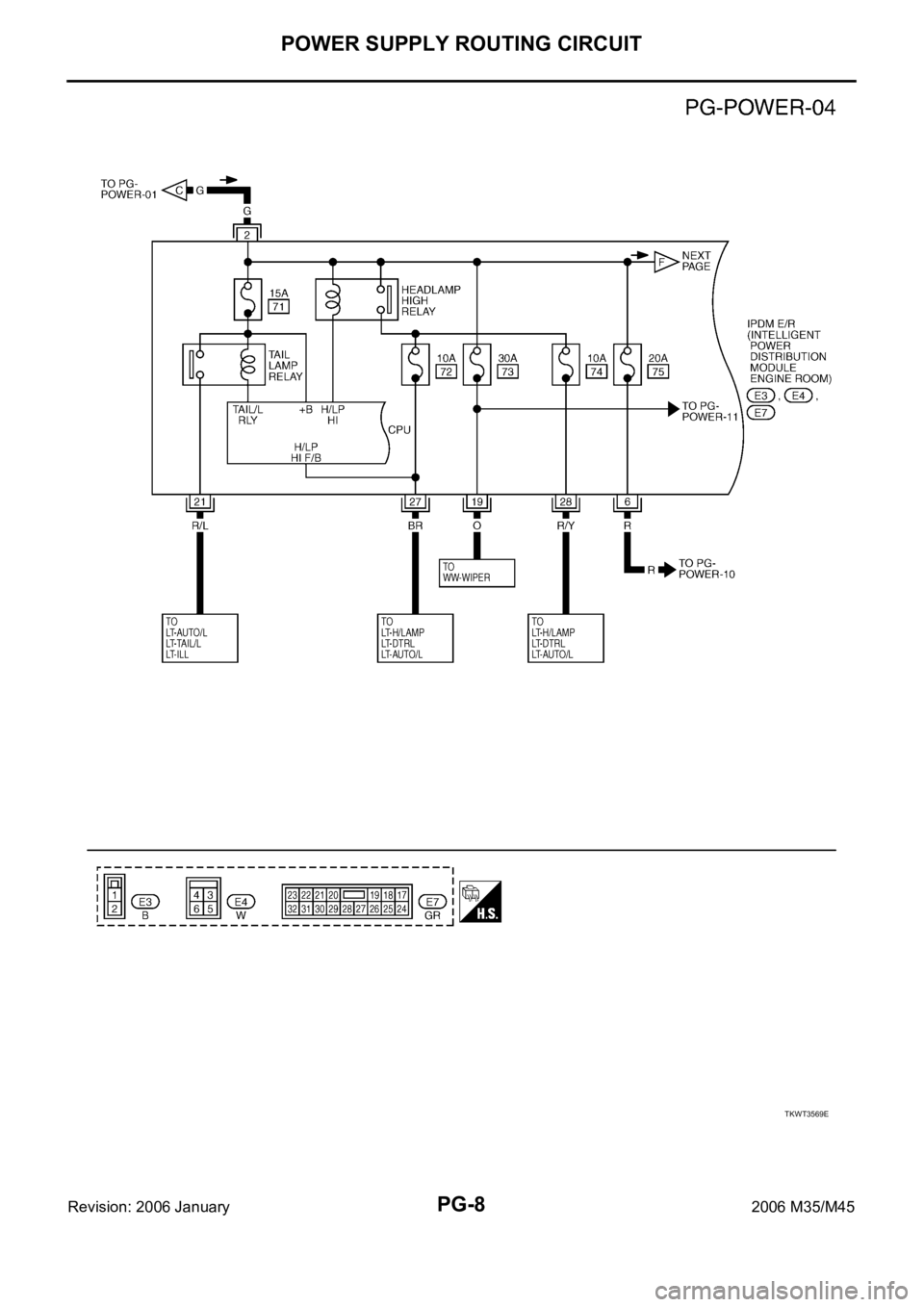

INFINITI M35 2006 Factory Service Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 January2006 M35/M45 TKWT3569E

Page 4836 of 5621

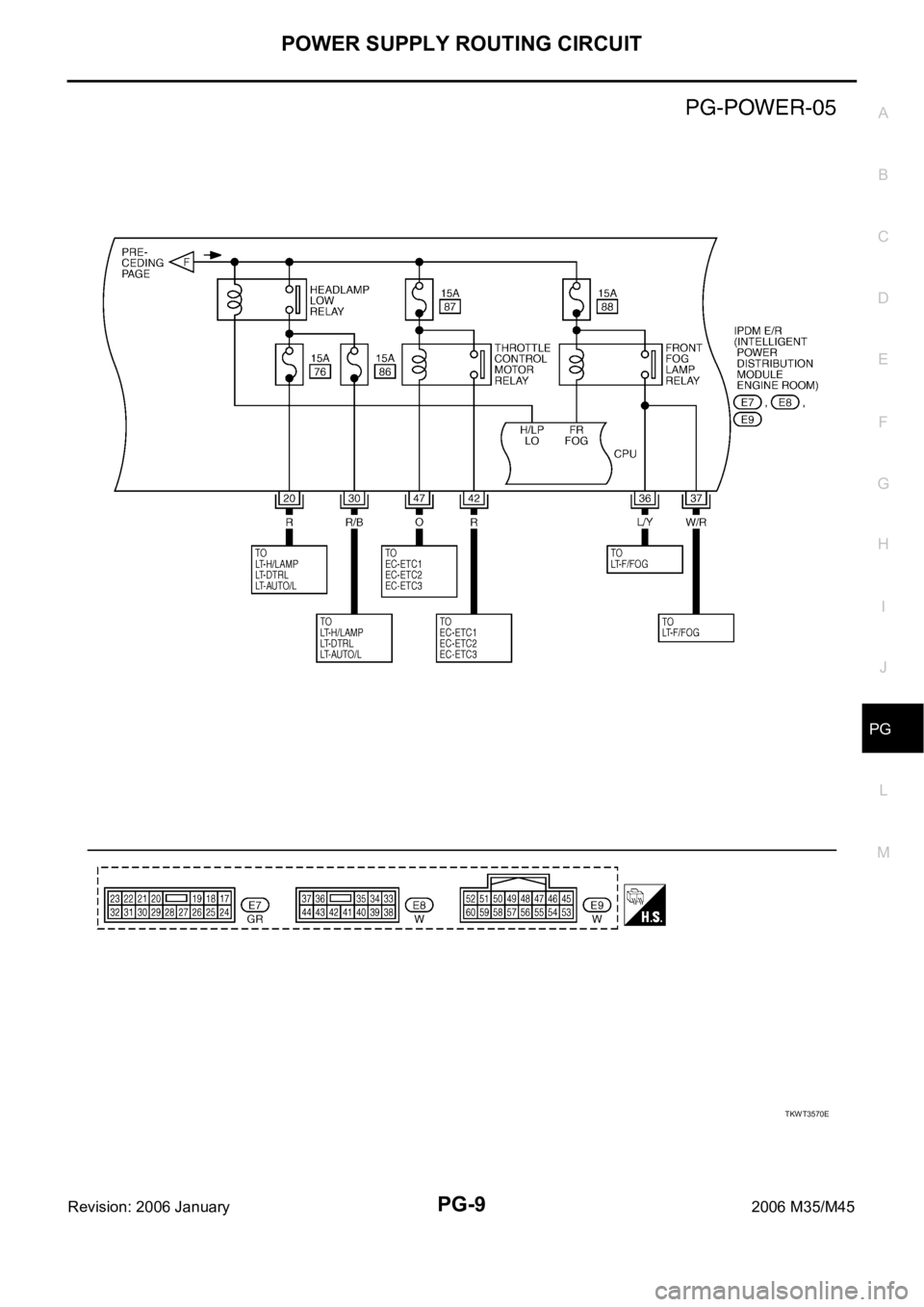

INFINITI M35 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-9 C D E F G H I J L MA B PG Revision: 2006 January2006 M35/M45 TKWT3570E

Page 4837 of 5621

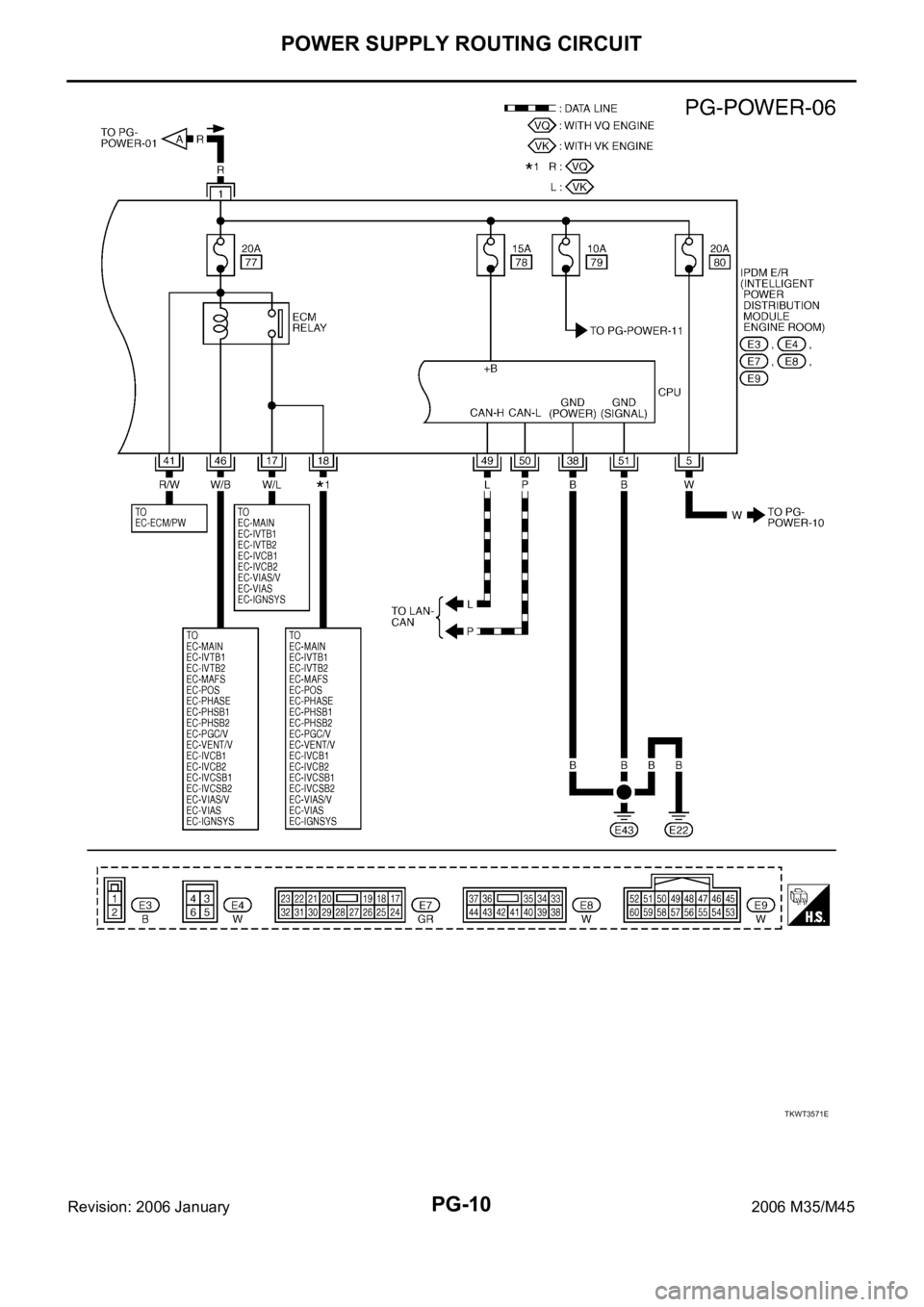

INFINITI M35 2006 Factory Service Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 January2006 M35/M45 TKWT3571E

Page 4838 of 5621

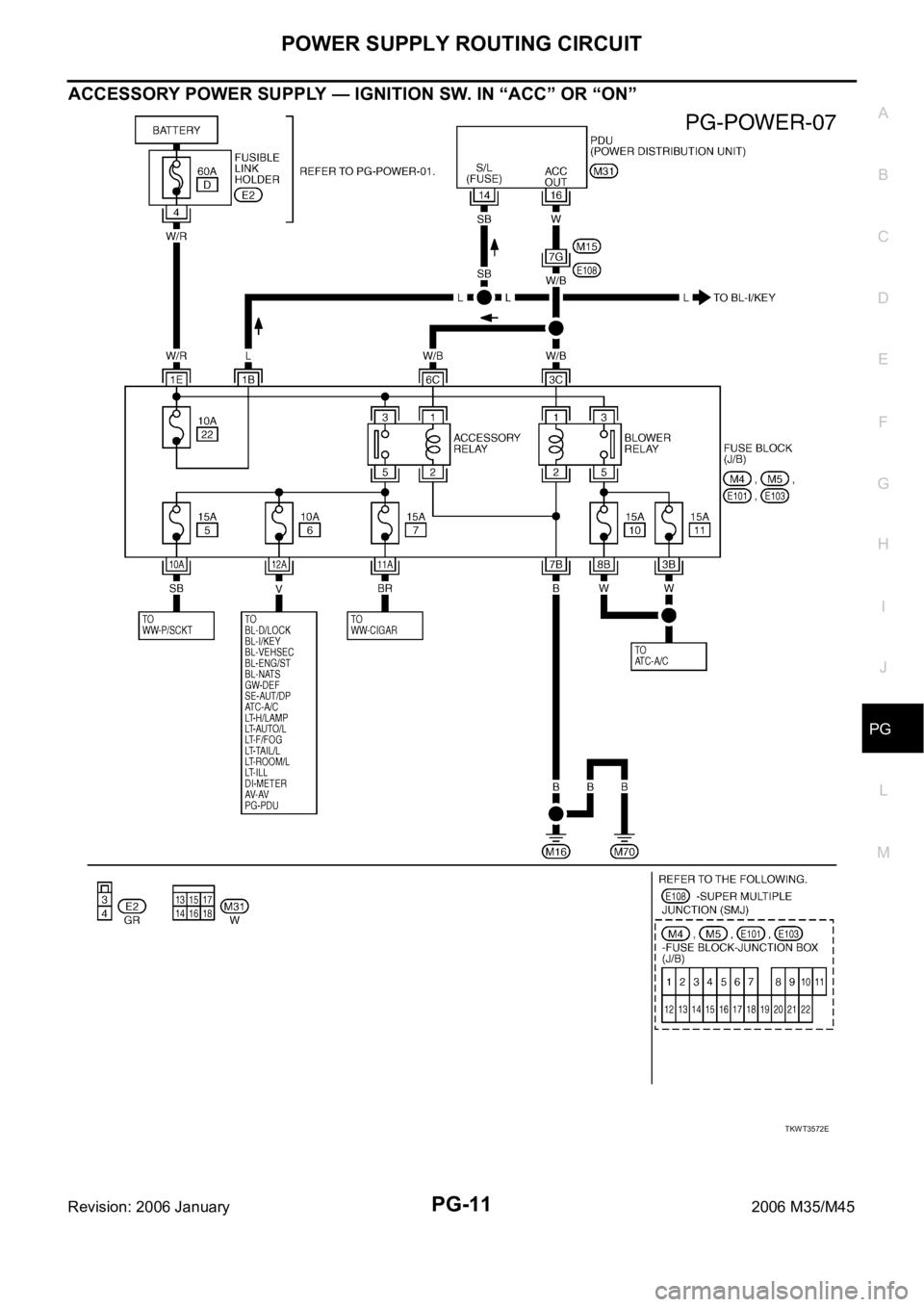

INFINITI M35 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-11 C D E F G H I J L MA B PG Revision: 2006 January2006 M35/M45 ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON” TKWT3572E

Page 4839 of 5621

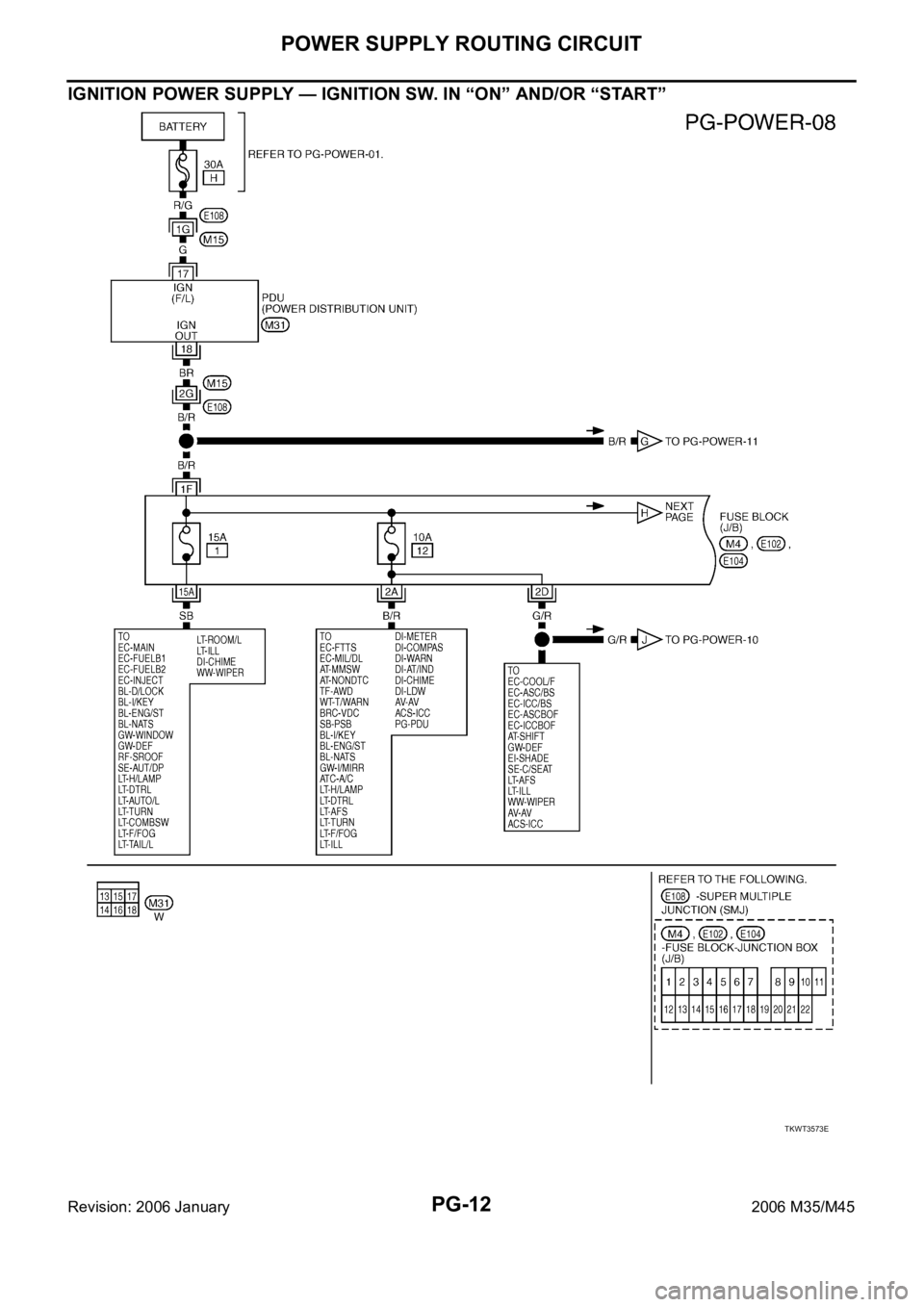

INFINITI M35 2006 Factory Service Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 January2006 M35/M45 IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START” TKWT3573E

Page 4840 of 5621

INFINITI M35 2006 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-13 C D E F G H I J L MA B PG Revision: 2006 January2006 M35/M45 TKWT3574E
