INFINITI M35 2006 Factory Service Manual

ATC-44
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
SchematicNJS000GG
TJWT0141E

TROUBLE DIAGNOSIS
ATC-45
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
TJWT0142E

ATC-46
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45

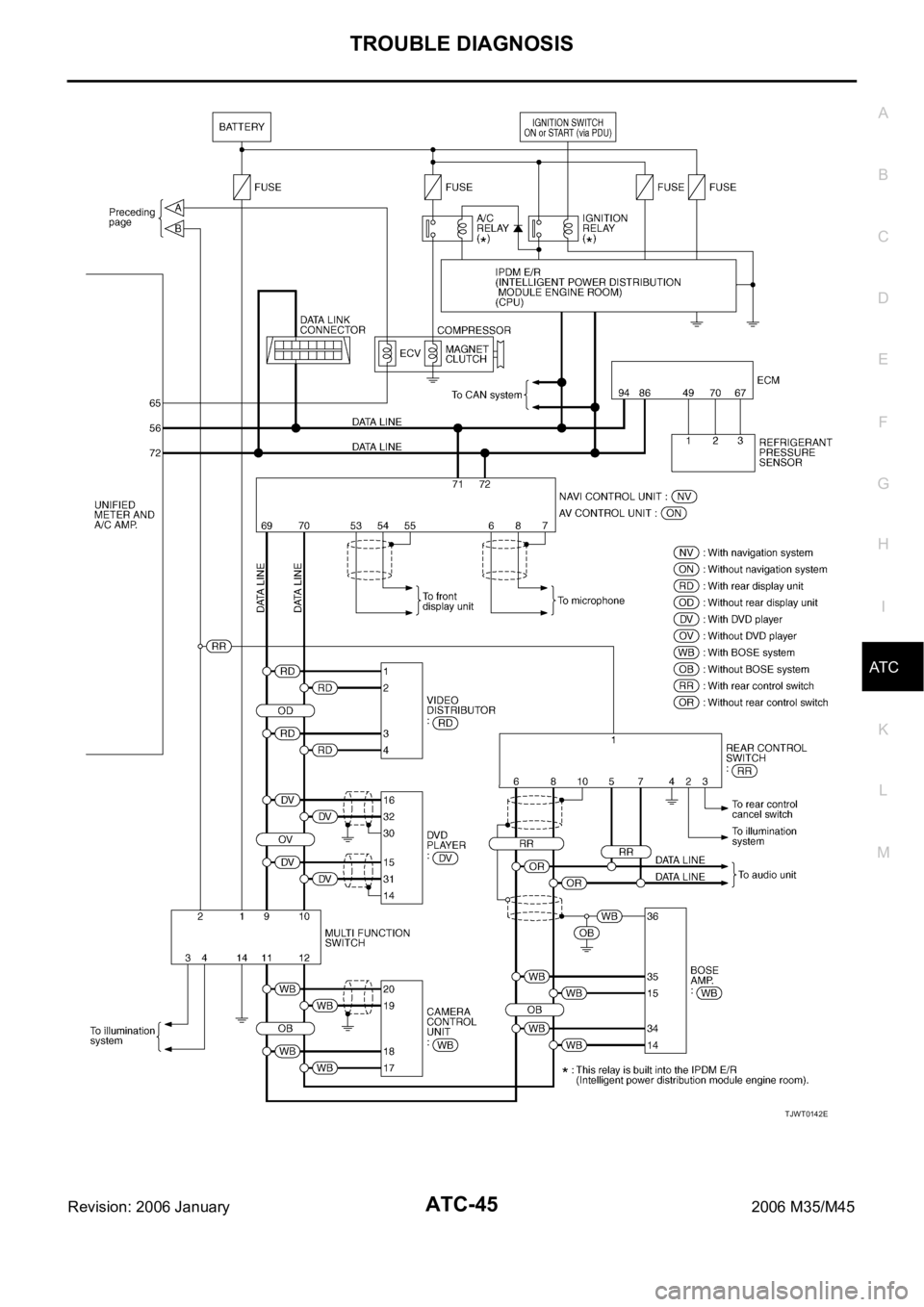

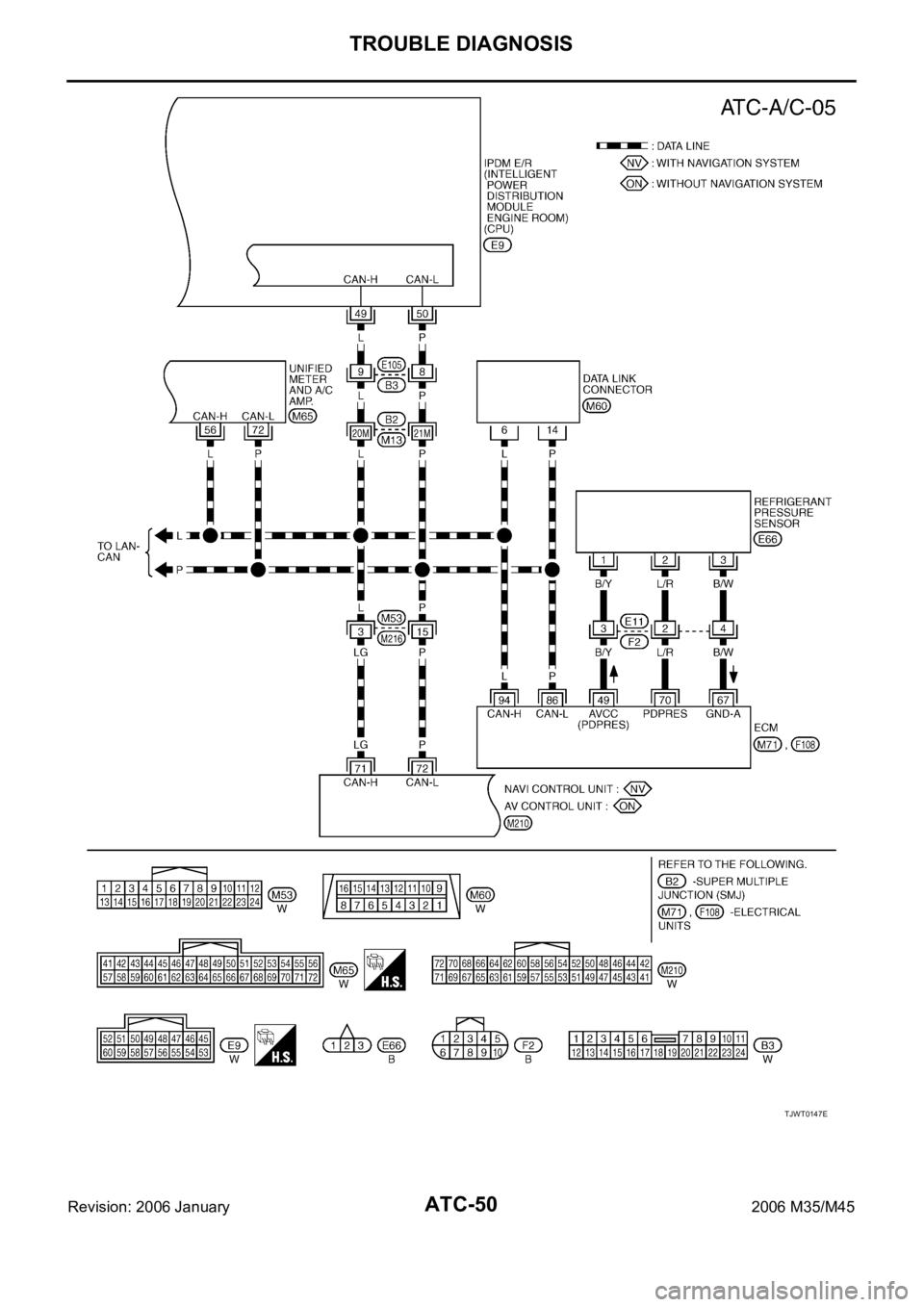

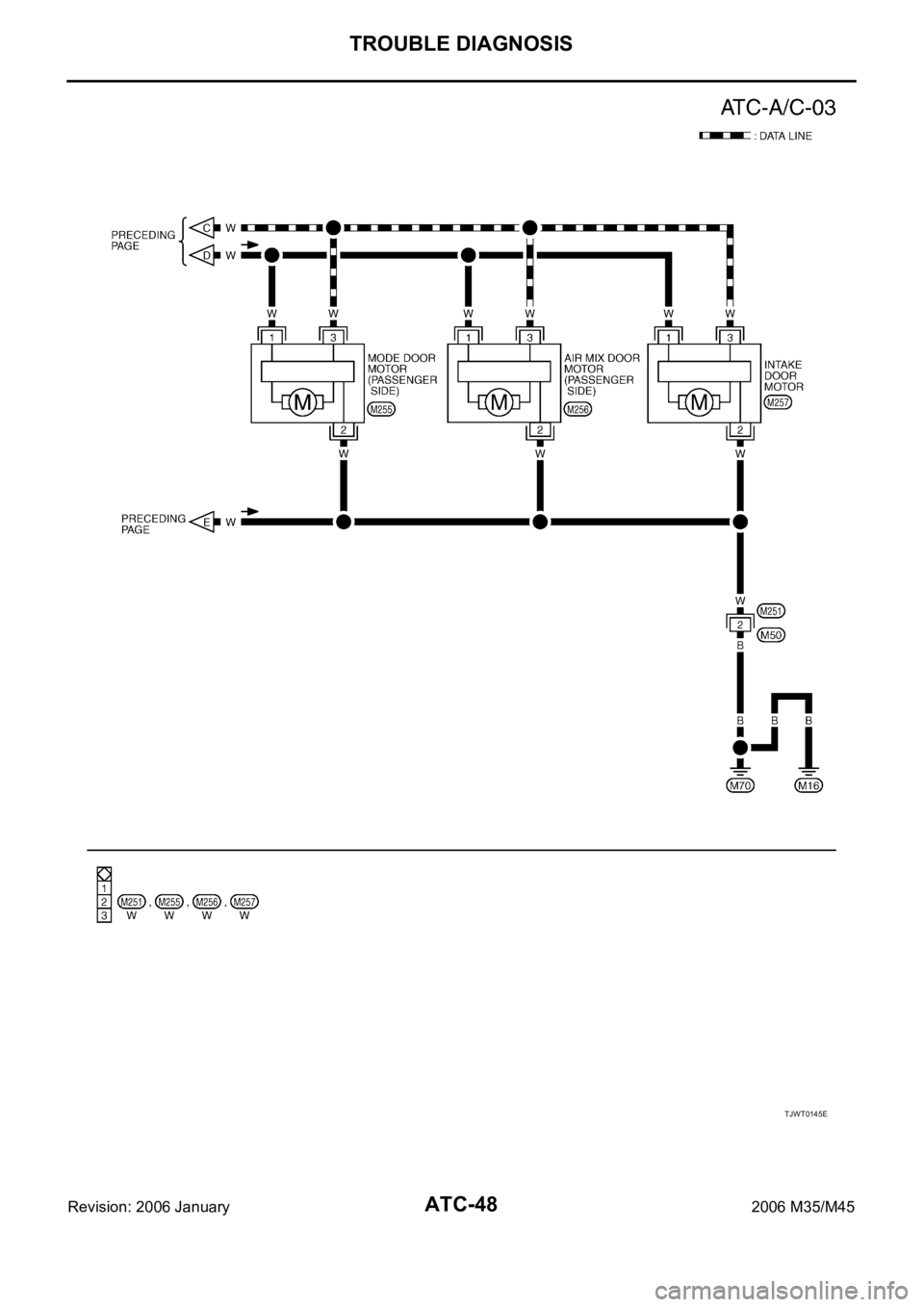

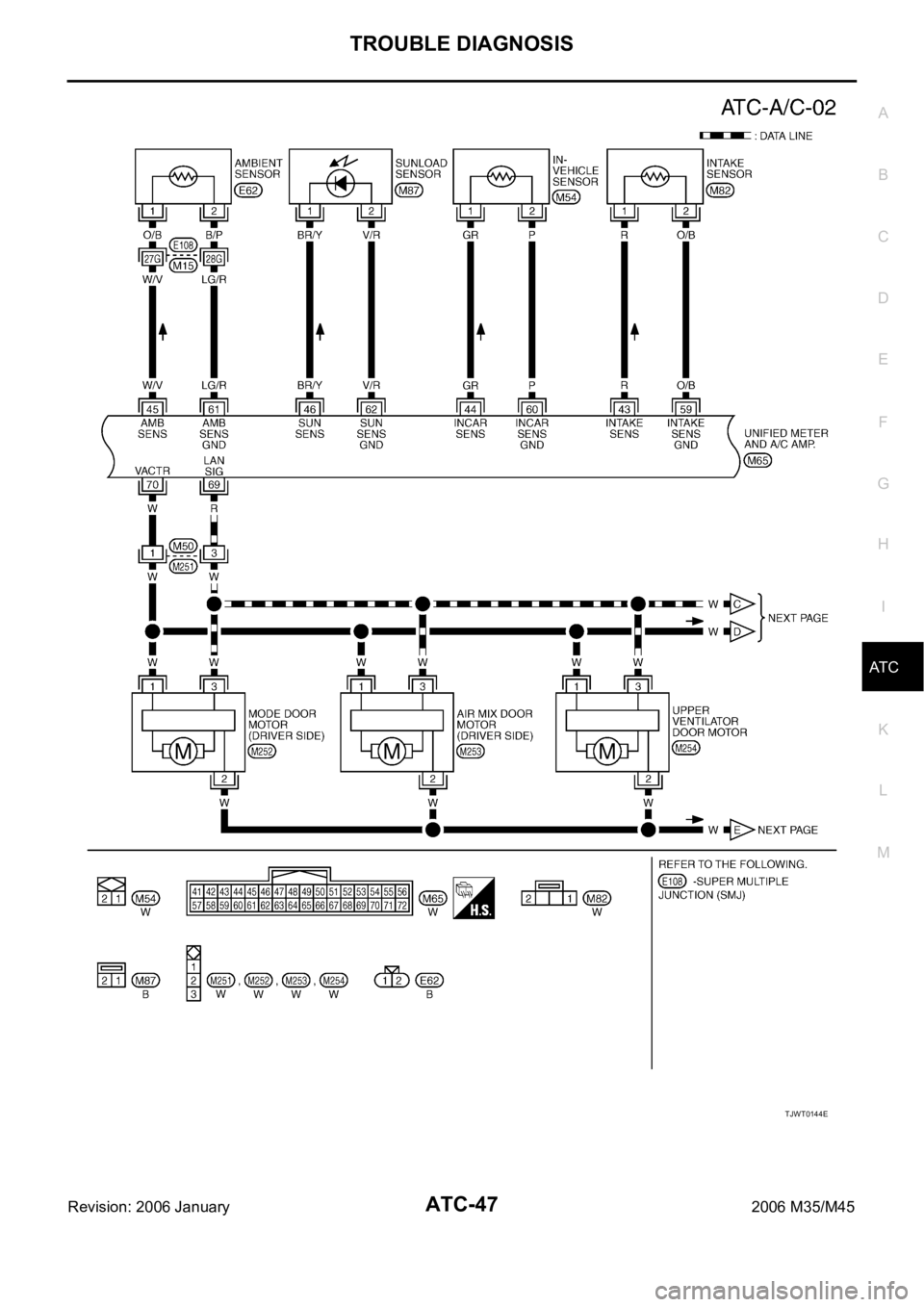

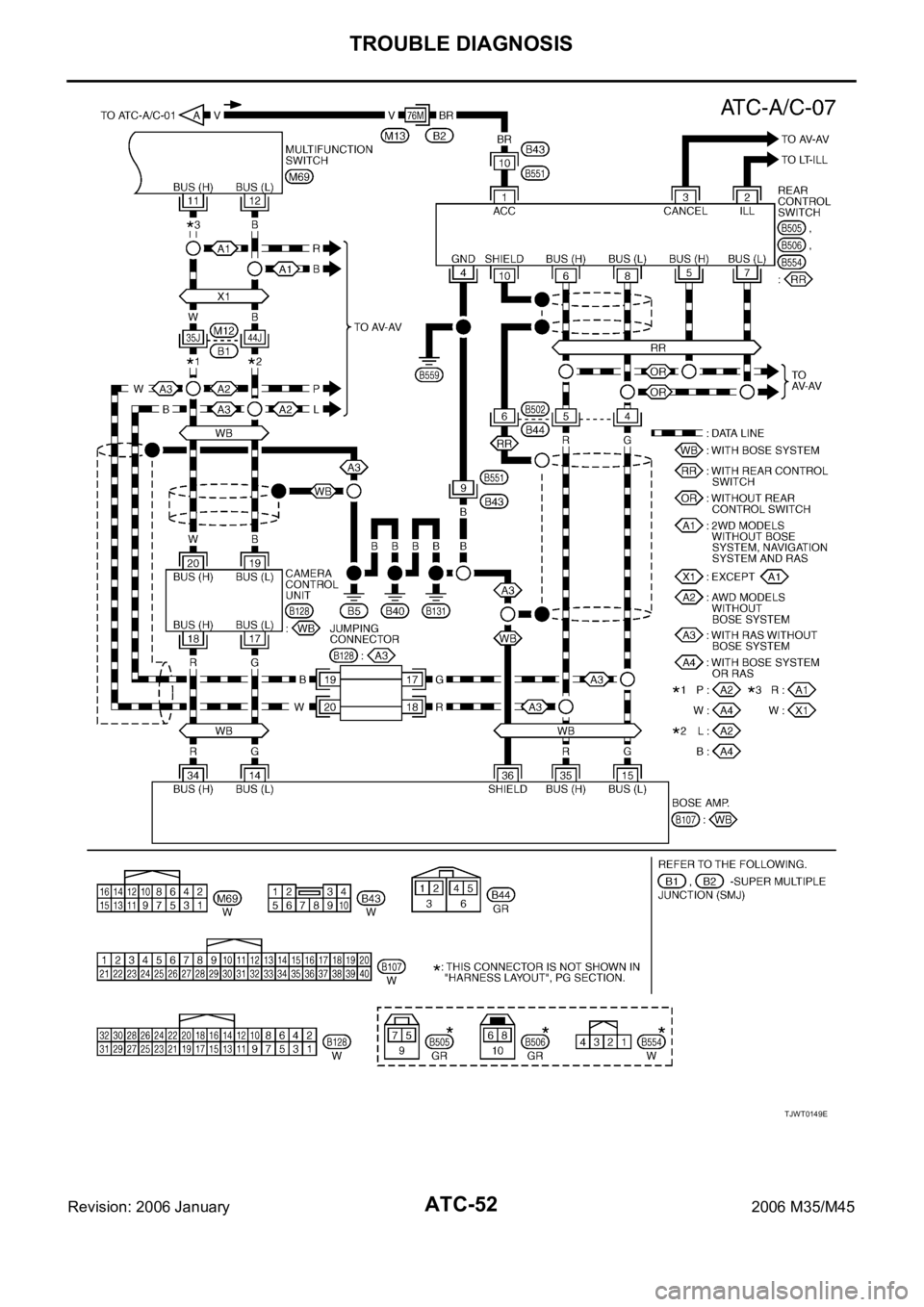

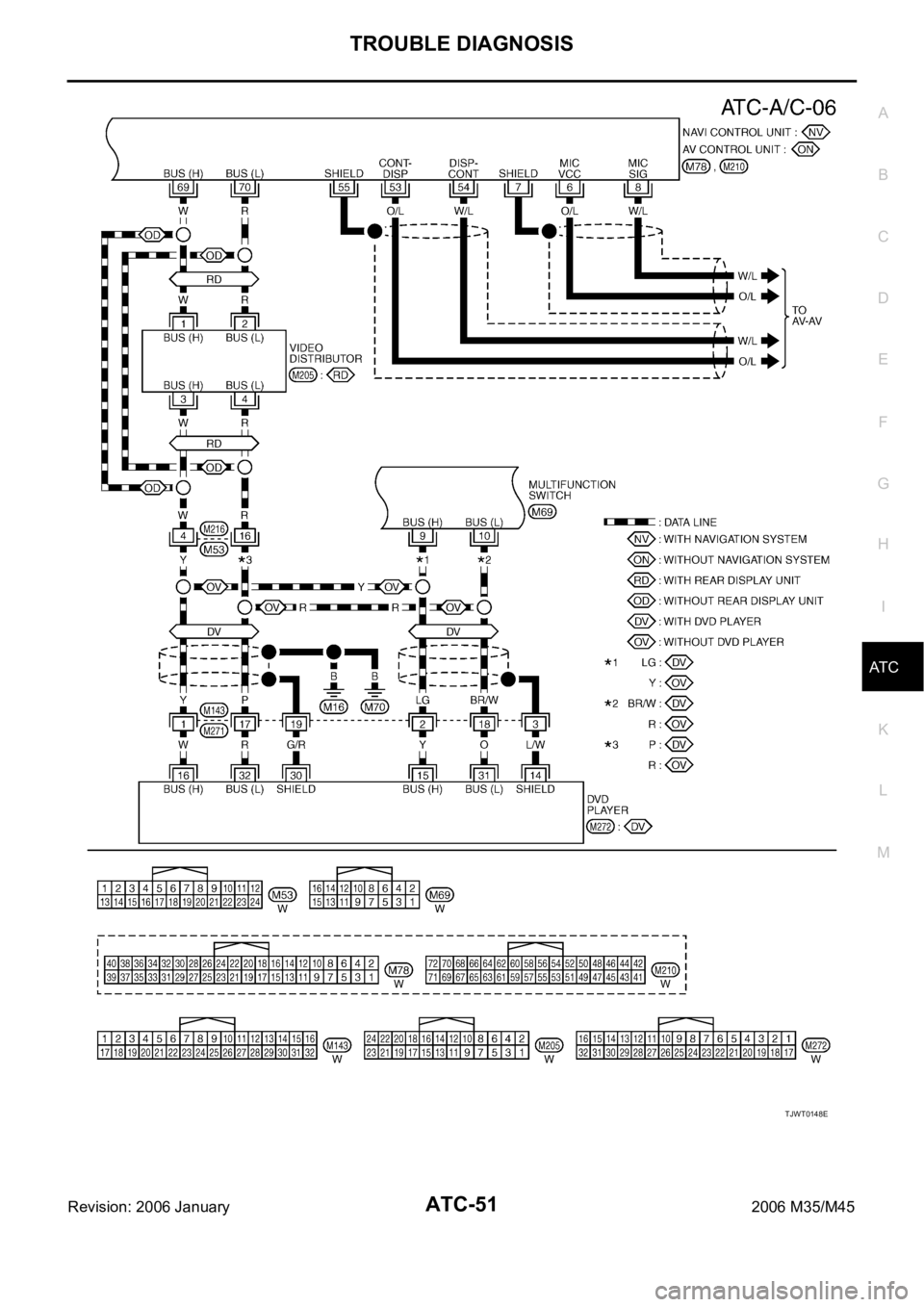

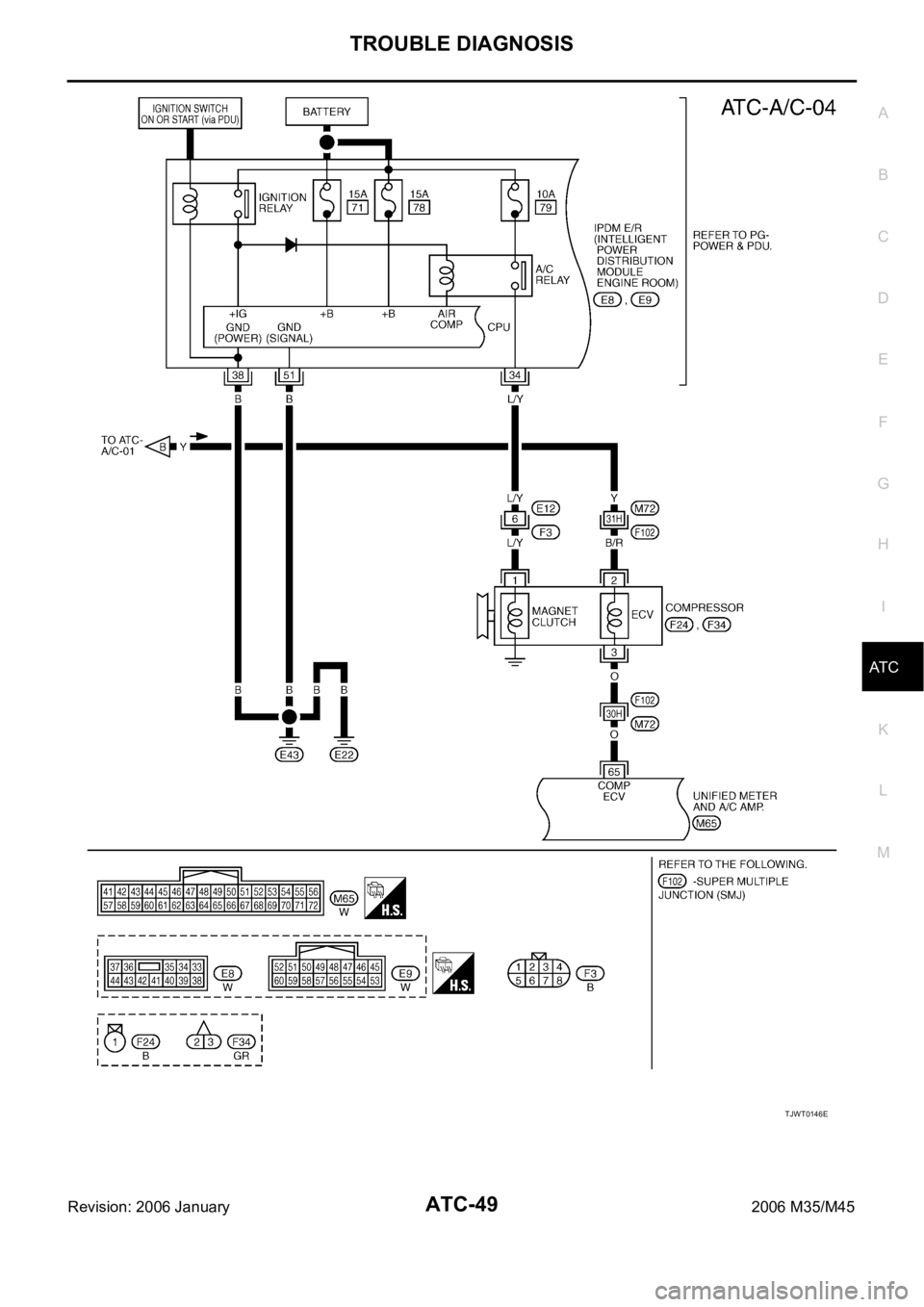

Wiring Diagram —A/C—NJS000GH
TJWT0143E

TROUBLE DIAGNOSIS
ATC-47
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
TJWT0144E

ATC-48
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
TJWT0145E

TROUBLE DIAGNOSIS
ATC-49
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
TJWT0146E

ATC-50
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
TJWT0147E

TROUBLE DIAGNOSIS
ATC-51
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
TJWT0148E

ATC-52
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
TJWT0149E

TROUBLE DIAGNOSIS
ATC-53
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
Auto Amp. Terminals and Reference ValueNJS000GI
Measure voltage between each terminal and ground by referring ter-
minals and reference value for unified meter and A/C amp.
PIN CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUE FOR UNIFIED METER AND A/C AMP.
RJIA4032E
RJIA4033E
Terminal
No.Wire
colorItemIgnition
switchConditionVoltage
(V)
38 L/Y Blower motor control signal ON Blower speed: 1st step
41 V Power supply from ACC ACC — Battery voltage
43 R Intake sensor — — —
44 GR In-vehicle sensor — — —
45 W/V Ambient sensor — — —
46 BR/Y Sunload sensor — — —
53 W/G Power supply from IGN ON — Battery voltage
54 W/G Power supply from BATT OFF — Battery voltage
55 B Ground ON — Approx. 0
56 L CAN-H — — —
59 O/B Intake sensor ground ON — Approx. 0
60 P In-vehicle sensor ground ON — Approx. 0
61 LG/R Ambient sensor ground ON — Approx. 0
62 V/R Sunload sensor ground ON — Approx. 0
SJIA1454J
