Magnet Clutch CircuitNJS000GU
SYMPTOM: Magnet clutch does not engage.

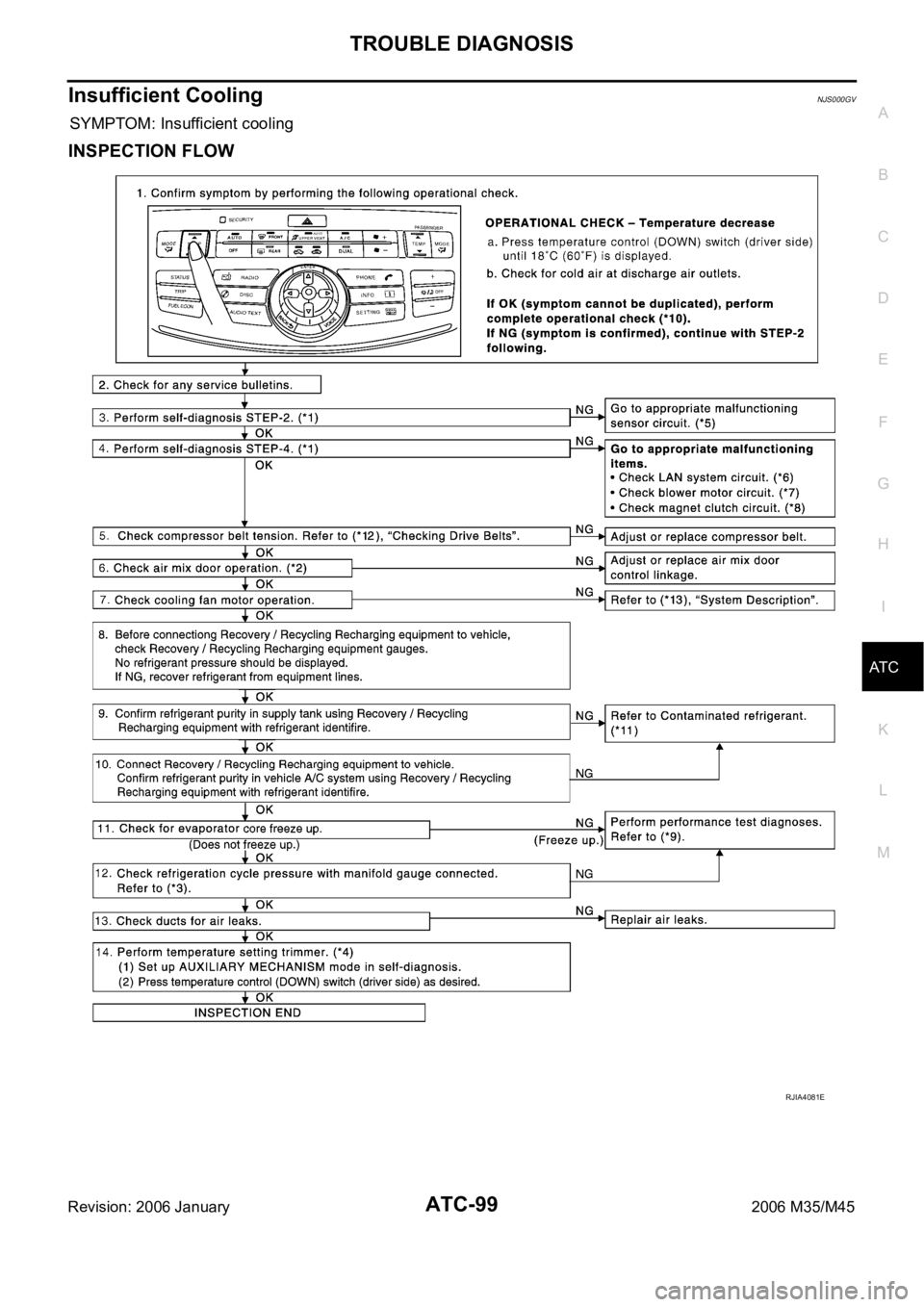

INSPECTION FLOW
*1ATC-122, "Intake Sensor Circuit"*2ATC-113, "Ambient Sensor Circuit"*3AT C - 5 6 , "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 13.
*4ATC-95, "
DIAGNOSIS PROCE-
DURE FOR MAGNET CLUTCH"
*5ATC-105, "TROUBLE DIAGNOSIS
FOR UNUSUAL PRESSURE"
*6AT C - 6 4 , "Operational Check"
*7ATC-56, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 2 to 6.*8ATC-41, "
SYMPTOM TABLE"
RJIA4077E

TROUBLE DIAGNOSIS
ATC-95
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45

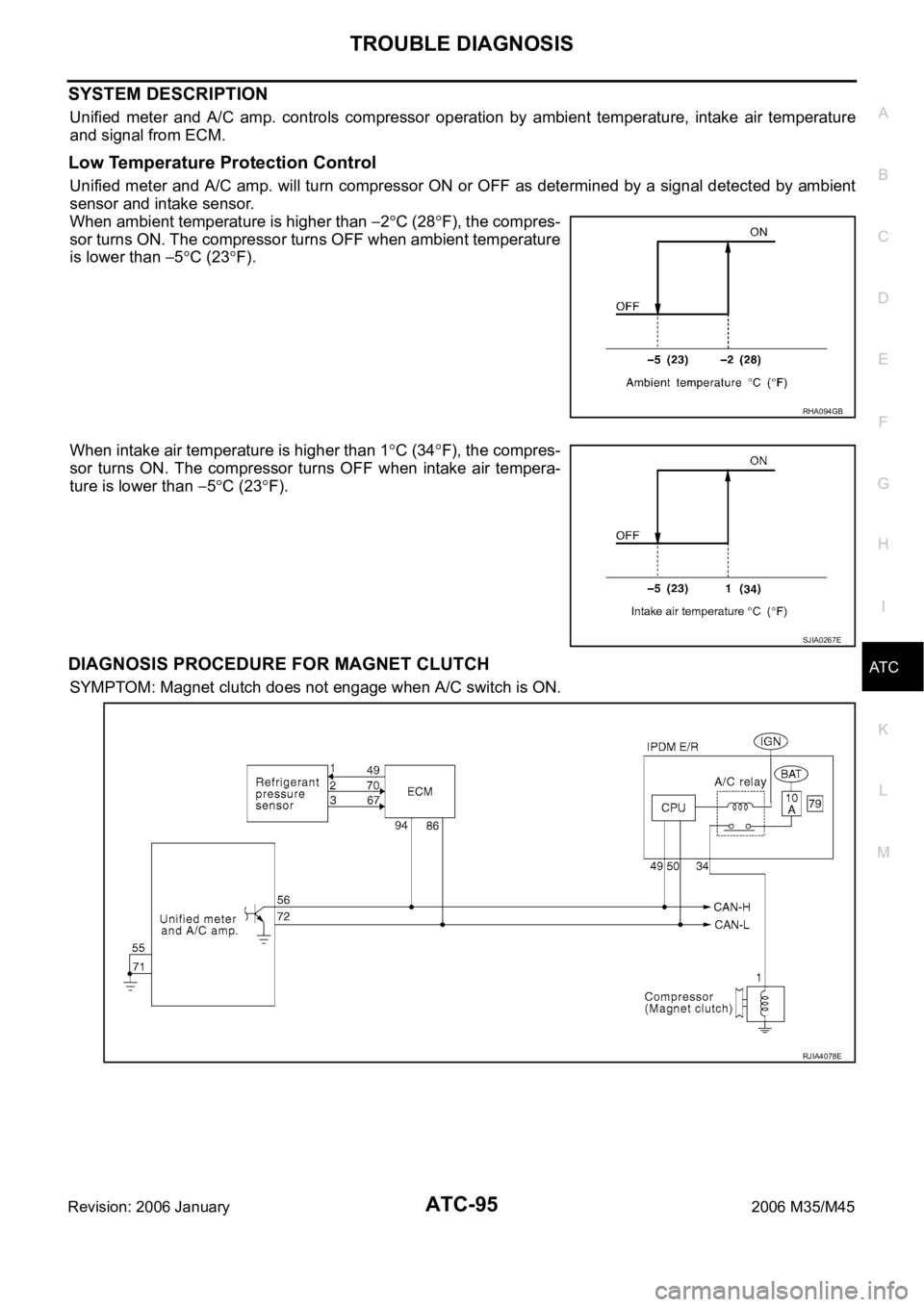

SYSTEM DESCRIPTION
Unified meter and A/C amp. controls compressor operation by ambient temperature, intake air temperature
and signal from ECM.
Low Temperature Protection Control
Unified meter and A/C amp. will turn compressor ON or OFF as determined by a signal detected by ambient
sensor and intake sensor.
When ambient temperature is higher than
2C (28F), the compres-
sor turns ON. The compressor turns OFF when ambient temperature
is lower than
5C (23F).
When intake air temperature is higher than 1
C (34F), the compres-
sor turns ON. The compressor turns OFF when intake air tempera-
ture is lower than
5C (23F).
DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH
SYMPTOM: Magnet clutch does not engage when A/C switch is ON.
RHA094GB
SJIA0267E
RJIA4078E

ATC-96
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
1. CHECK AMBIENT SENSOR AND INTAKE SENSOR CIRCUIT
Check ambient sensor and intake sensor. Refer to AT C - 5 6 , "
FUNCTION CONFIRMATION PROCEDURE" ,
see No. 9 and 11.
OK or NG
OK >> GO TO 2.
NG >>
Malfunctioning ambient sensor: Refer to AT C - 11 3 , "Ambient Sensor Circuit" .
Malfunctioning intake sensor: Refer to ATC-122, "Intake Sensor Circuit" .
2. PERFORM AUTO ACTIVE TEST
Refer to PG-24, "
Auto Active Test" .
Does the magnet clutch operate?
YES >>WITH CONSULT-II: GO TO 5.
WITHOUT CONSULT-II: GO TO 6.
NO >> Check 10A fuse (No. 79, located in IPDM E/R), and GO TO 3.
3. CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and compressor connector.
3. Check continuity between IPDM E/R harness connector E8 ter-
minal 34 and compressor harness connector F24 terminal 1.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MAGNET CLUTCH CIRCUIT
Check for operation sound when applying battery voltage direct cur-
rent to terminal.
OK or NG
OK >> 1. Replace IPDM E/R.
2. Go to self-diagnosis procedure AT C - 5 6 , "
FUNCTION
CONFIRMATION PROCEDURE" and perform self-
diagnosis STEP-4. Confirm that magnet clutch opera-
tion normal.
NG >> 1. Replace compressor.
2. Go to self-diagnosis procedure AT C - 5 6 , "
FUNCTION
CONFIRMATION PROCEDURE" and perform self-
diagnosis STEP-4. Confirm that magnet clutch operation normal.
34 – 1 : Continuity should exist.
RJIA4079E
RJIA2005E

TROUBLE DIAGNOSIS
ATC-97
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
5. CHECK BCM INPUT (COMPRESSOR ON) SIGNAL
Check compressor ON/OFF signal. Refer to AT C - 4 0 , "
CONSULT-II
Function (ECM)" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6. CHECK REFRIGERANT PRESSURE SENSOR
WITH CONSULT-II
1. Start the engine.
2. Check voltage of refrigerant pressure sensor. Refer to EC-149, "
CONSULT-II Reference Value in Data
Monitor" (VQ35DE) or EC-862, "CONSULT-II Reference Value in Data Monitor" (VK45DE).
WITHOUT CONSULT-II
1. Start the engine.
2. Check voltage between ECM harness connector F108 terminal
70 and ground.
OK or NG
OK >>WITH CONSULT-II: GO TO 7.
WITHOUT CONSULT-II: Repair harness or connector.
NG >> Refer to EC-692, "
REFRIGERANT PRESSURE SENSOR" (VQ35DE) or EC-1434, "REFRIGER-
ANT PRESSURE SENSOR" (VK45DE).
7. CHECK ECM INPUT (FAN ON) SIGNAL
Check FAN ON/OFF signal. Refer to AT C - 4 0 , "
CONSULT-II Function
(ECM)" .
OK or NG
OK >> GO TO 8.
NG >> Repair harness or connector.A/C SW ON : AIR COND SIG ON
A/C SW OFF : AIR COND SIG OFF
RJIA3646E
Terminals
Condition Voltage (+)
(
)
ECM
connectorTerminal
No.
F108 70 GroundA/C switch: ON
(Blower motor operates.)Approx. 1.0 -
4.0 V
PBIB1188E
FAN SW ON : HEATER FAN SW ON
FAN SW OFF : HEATER FAN SW OFF
RJIA3646E

ATC-98
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
8. CHECK CAN COMMUNICATION
Check CAN communication. Refer to EC-173, "
DTC U1000, U1001 CAN COMMUNICATION LINE"
(VQ35DE) or EC-886, "DTC U1000, U1001 CAN COMMUNICATION LINE" (VK45DE).
ECM – IPDM E/R
ECM – Unified meter and A/C amp.
OK or NG
OK >> Replace ECM.
NG >> Repair or replace malfunctioning part(s).
COMPONENT INSPECTION
Refrigerant Pressure Sensor
The refrigerant pressure sensor is attached to the liquid tank.
Make sure that the A/C refrigerant pressure and the sensor output
voltage are within the specified range as shown in the A/C operating
condition figure. Refer to EC-692, "
REFRIGERANT PRESSURE
SENSOR" (VQ35DE) or EC-1434, "REFRIGERANT PRESSURE
SENSOR" (VK45DE).
RJIA4080E
RJIA2954E

TROUBLE DIAGNOSIS
ATC-99
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
Insufficient CoolingNJS000GV
SYMPTOM: Insufficient cooling
INSPECTION FLOW
RJIA4081E

ATC-100
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
*1ATC-56, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 2 to 6.*2ATC-83, "
Air Mix Door Motor Circuit"*3ATC-103, "Test Reading
(VQ35DE)" or ATC-104, "Test
Reading (VK45DE)"
*4ATC-62, "AUXILIARY MECHA-
NISM: TEMPERATURE SETTING
TRIMMER"
*5ATC-56, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 13.*6ATC-70, "
LAN System Circuit"
*7ATC-89, "Blower Motor Circuit"*8ATC-94, "Magnet Clutch Circuit"*9ATC-101, "PERFORMANCE TEST
DIAGNOSIS"
*10ATC-64, "Operational Check"*11AT C - 7 , "CONTAMINATED REFRIG-
ERANT"
*12EM-15, "Checking Drive Belts"
(VQ35DE) or EM-174, "
Checking
Drive Belts" (VK45DE)
*13EC-512, "
SYSTEM DESCRIPTION"
(VQ35DE) or EC-1239, "
SYSTEM
DESCRIPTION" (VK45DE)

TROUBLE DIAGNOSIS
ATC-101
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
PERFORMANCE TEST DIAGNOSIS
*1ATC-103, "PERFORMANCE
CHART"
*2ATC-103, "PERFORMANCE
CHART"
*3ATC-105, "TROUBLE DIAGNOSIS
FOR UNUSUAL PRESSURE"
*4AT C - 8 3 , "Air Mix Door Motor Circuit"
SJIA1226E

ATC-102
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
*1ATC-157, "Check Disc to Pulley
Clearance"
*2ATC-89, "Blower Motor Circuit"*3EM-15, "Checking Drive Belts"
(VQ35DE) or EM-174, "
Checking
Drive Belts" (VK45DE)
SJIA1642E

TROUBLE DIAGNOSIS
ATC-103
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
PERFORMANCE CHART
Test Condition
Testing must be performed as follows:
Test Reading (VQ35DE)
Recirculating-to-discharge Air Temperature Table
Ambient Air Temperature-to-operating Pressure Table
Vehicle condition Indoors or in the shade (in a well-ventilated place)
Doors Closed
Door windows Open
Hood Open
TEMP. Max. COLD
Mode switch
(Ventilation) set
Intake switch
(Recirculation) set
Fan (blower) speedMax. speed set
Engine speed Idle speed
Operate the air conditioning system for 10 minutes before taking measurements.
Inside air (Recirculating air) at blower assembly inlet
Discharge air temperature at center ventilator
C (F) Relative humidity
%Air temperatureC (F)
50 - 6020 (68) 5.5 - 7.2 (42 - 45)
25 (77) 8.5 - 10.9 (47 - 52)
30 (86) 12.3 - 15.1 (54 - 59)
35 (95) 16.5 - 19.8 (62 - 68)
40 (104) 21.0 - 25.0 (70 - 77)
60 - 7020 (68) 7.2 - 9.0 (45 - 48)
25 (77) 10.9 - 13.4 (52 - 56)
30 (86) 15.1 - 18.0 (59 - 64)
35 (95) 19.8 - 23.0 (68 - 73)
40 (104) 25.0 - 29.0 (77 - 84)
Ambient air
High-pressure (Discharge side)
kPa (kg/cm
2 , psi)Low-pressure (Suction side)
kPa (kg/cm2 , psi) Relative humidity
%Air temperatureC (F)
50 - 7020 (68)733 - 895
(7.4 - 9.2, 106.3 - 129.8)180 - 220
(1.8 - 2.2, 26.1 - 31.9)
25 (77)838 - 1,025
(8.6 - 10.5, 121.5 - 148.6)210 - 257
(2.1 - 2.7, 30.5 - 37.3)
30 (86)985 - 1,204
(10.1 - 12.2, 142.8 - 174.6)239 - 293
(2.4 - 3.0, 34.7 - 42.5)
35 (95)1,115 - 1,363
(11.4 - 13.9, 161.7 - 197.6)270 - 330
(2.8 - 3.4, 39.2 - 47.9)
40 (104)1,294 - 1,581
(13.2 - 16.1, 187.6 - 229.2)331 - 405
(3.4 - 4.2, 48.0 - 58.7)
