TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: October 20052005 QX56

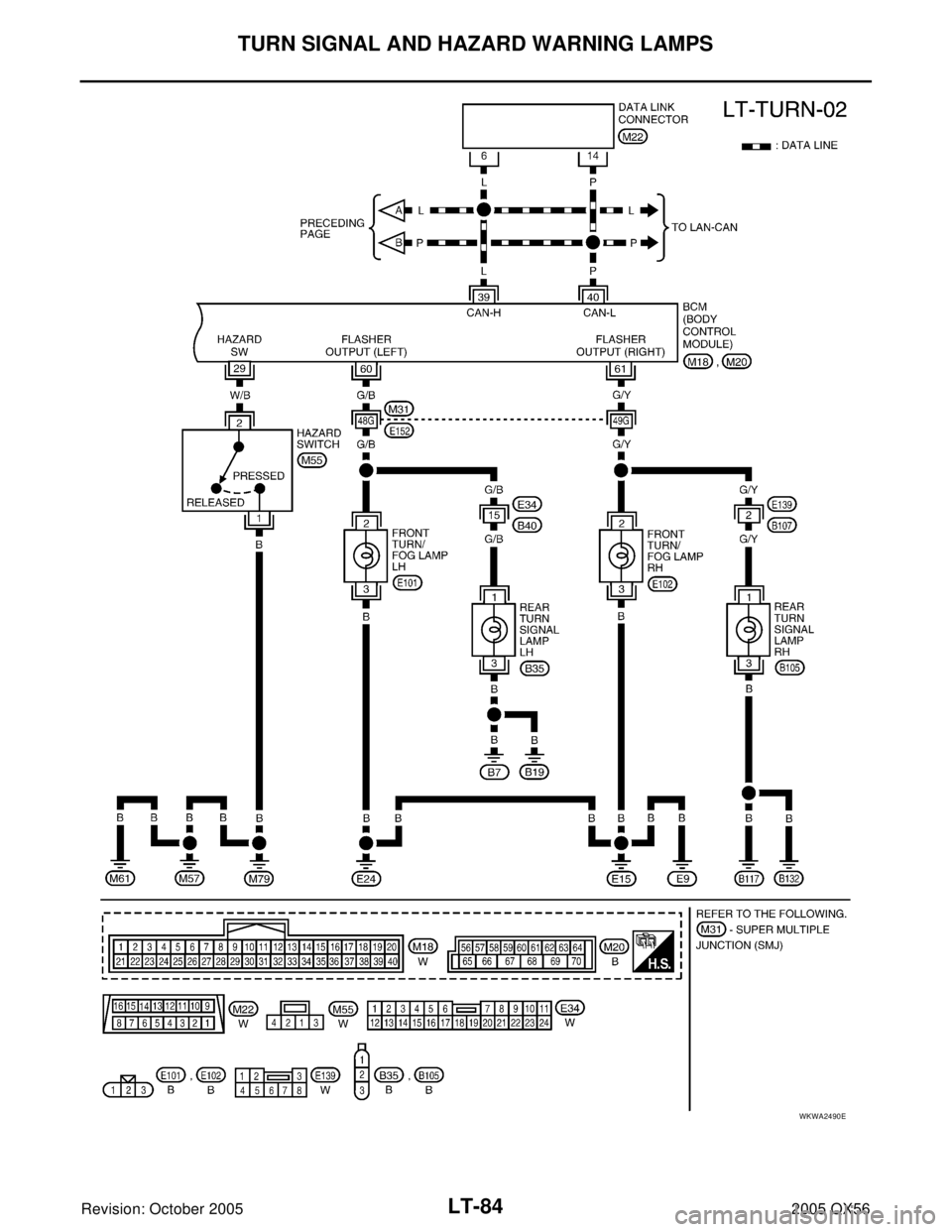

WKWA2490E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-85
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
Terminals and Reference Values for BCMEKS00B9T
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
2 SB Combination switch input 5 ONLighting, turn, wiper OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ONLighting, turn, wiper OFF
Wiper dial position 4
4 Y Combination switch input 3 ONLighting, turn, wiper OFF
Wiper dial position 4
5 G/B Combination switch input 2
ONLighting, turn, wiper OFF
Wiper dial position 4
6 V Combination switch input 1
29 W/B Hazard switch signal OFFHazard
switchON 0V
OFF 5V
32 R/G Combination switch output 5 ONLighting, turn, wiper OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ONLighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E

LT-86
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: October 20052005 QX56
How to Proceed With Trouble DiagnosisEKS00B9U
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT-80, "
System Description" .
3. Perform preliminary check. Refer to LT-87, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
34 L Combination switch output 3 ONLighting, turn, wiper OFF
Wiper dial position 4
35 O/B Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
60 G/B Turn signal (left) ONCombination
switchTurn left ON
61 G/Y Turn signal (right) ONCombination
switchTurn right ON
67 B Ground ON — 0V
70 W/B Battery power supply OFF — Battery voltage Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
SKIA5291E
SKIA5292E
SKIA3009J
SKIA3009J

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-87
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
Preliminary CheckEKS00B9V
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 8 3 , "
Wiring Diagram — TURN —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fus-
ible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> Inspection End.
NG >> Check ground circuit harness.
Unit Power source Fuse and fusible link No.
BCMBattery f
Ignition switch ON or START position 59
Terminals Ignition switch position
(+)
(–) OFF ACC ON
ConnectorTerminal
(Wire color)
M18 38 (W/L)
Ground0V 0VBattery
voltage
M20 70 (W/B)Battery
voltageBattery
voltageBattery
voltage
WKIA1436E
Terminals
Continuity
ConnectorTe r m i n a l
(Wire color)
M20 67 (B) Ground Yes
LIIA0915E

LT-88
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: October 20052005 QX56
CONSULT-II Function (BCM)EKS00B9W
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

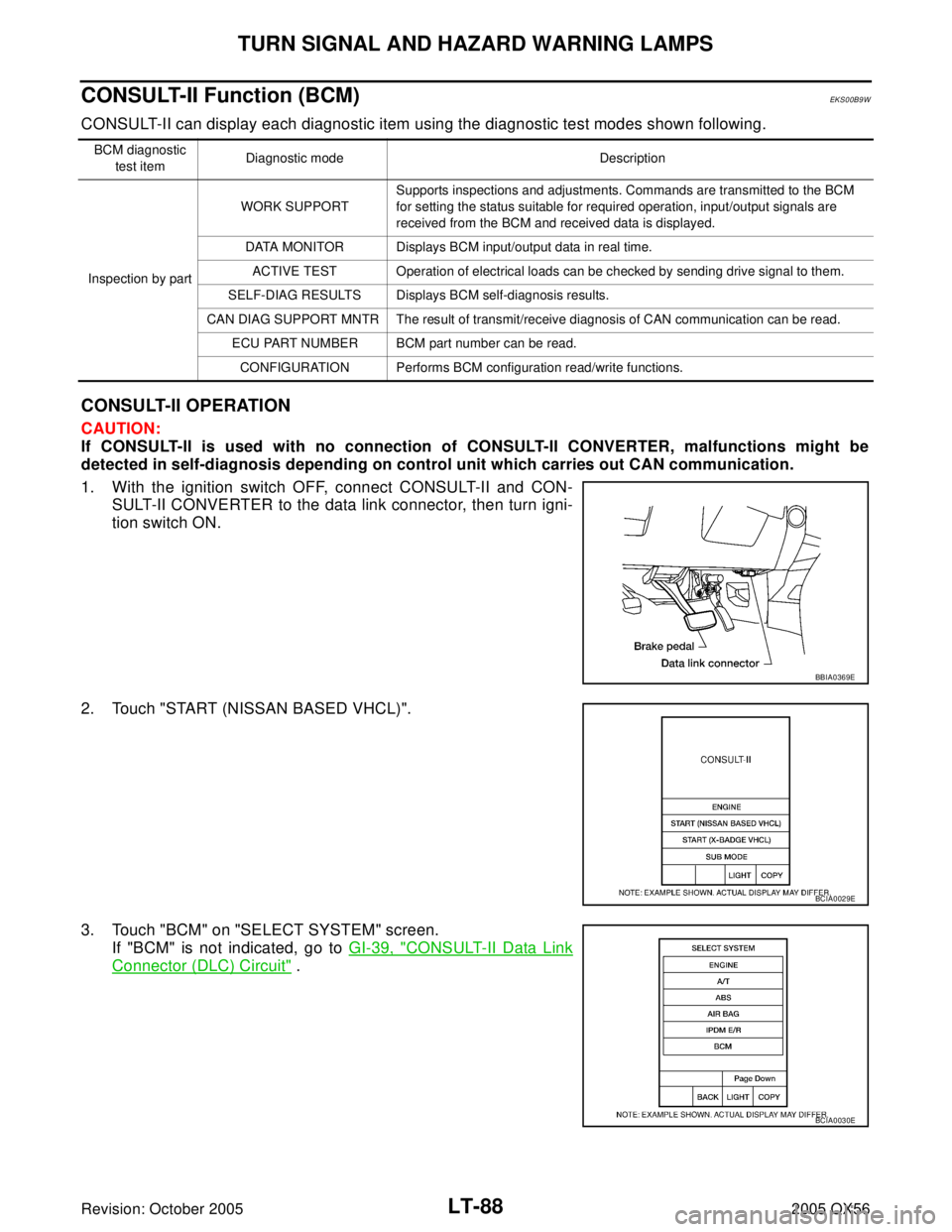

1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
4. Touch "FLASHER" on "SELECT TEST ITEM" screen.
DATA MONITOR
Operation Procedure
1. Touch "FLASHER" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "SELECT MONITOR ITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the items will be monitored.
6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch "STOP".
Display Item List
ACTIVE TEST
Operation Procedure
1. Touch "FLASHER" on "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching "BACK" or "OFF" deactivates the operation.
Display Item List
LKIA0183E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors the individual signal.
Monitor item Contents
IGN ON SW "ON/OFF" Displays "IGN position (ON)/OFF, ACC position (OFF)" judged from the ignition switch signal.
HAZARD SW "ON/OFF" Displays "Hazard ON (ON)/Hazard OFF (OFF)" status, determined from hazard switch signal.
TURN SIGNAL R "ON/OFF" Displays "Turn right (ON)/Other (OFF)" status, determined from lighting switch signal.
TURN SIGNAL L "ON/OFF" Displays "Turn left (ON)/Other (OFF)" status, determined from lighting switch signal.
BRAKE SW "ON/OFF" Displays status of stop lamp switch.
Test item Description
FLASHER (RH) Turn signal lamp (right) can be operated by any ON-OFF operations.
FLASHER (LH) Turn signal lamp (left) can be operated by any ON-OFF operations.

LT-90
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: October 20052005 QX56
Turn Signal Lamp Does Not OperateEKS00B9X
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select "BCM" on CONSULT-II. With "FLASHER" data monitor, make
sure "TURN SIGNAL R" and "TURN SIGNAL L" turns ON-OFF
linked with operation of lighting switch.
Without CONSULT-II
Refer to LT- 1 0 0 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check lighting switch. Refer to LT-100, "
Combination Switch Inspection" .
2. ACTIVE TEST
With CONSULT-II
1. Select "FLASHER" during active test. Refer to LT-89, "
ACTIVE
TEST" .
2. Make sure "FLASHER RH" and "FLASHER LH" operate.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.
3. CHECK TURN SIGNAL LAMPS CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front turn/fog lamp LH and RH
connectors.
3. Check continuity between BCM harness connector M20 terminal
60 (G/B) and front turn/fog lamp LH harness connector E101 ter-
minal 2 (G/B).
4. Check continuity between BCM harness connector M20 terminal
61 (G/Y) and front turn/fog lamp RH harness connector E102
terminal 2 (G/Y).
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.When lighting switch is in
TURN RH position: TURN SIGNAL R ON
When lighting switch is in
TURN LH position: TURN SIGNAL L ON
SKIA4499E
SKIA6190E
60 (G/B) - 2 (G/B) : Continuity should exist.
61 (G/Y) - 2 (G/Y) : Continuity should exist.
WKIA1890E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-91
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
4. CHECK GROUND
1. Check continuity between front turn/fog lamp LH harness con-
nector E101 terminal 3 (B) and ground.
2. Check continuity between front turn/fog lamp RH harness con-
nector E102 terminal 3 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK BULB
Check bulb standard of each turn signal lamp is correct. Refer to LT-170, "
Exterior Lamp" .
OK or NG
OK >> Replace BCM if turn signal lamps do not work after setting the connector again. Refer to BCS-20,
"Removal and Installation of BCM" .
NG >> Replace turn signal lamp bulb. Refer to LT- 3 1 , "
FRONT PARKING LAMP (INNER OR OUTER)" .
Rear Turn Signal Lamp Does Not OperateEKS00B9Y
1. CHECK BULB
Check bulb standard of each turn signal lamp is correct. Refer to LT-170, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-122, "
Bulb Replacement (Turn Signal)" .
2. CHECK TURN SIGNAL LAMPS CIRCUIT
1. Disconnect BCM connector and rear turn signal lamp connector.
2. Check continuity between BCM harness connector M20 terminal
61 (G/Y) and rear turn signal lamp RH harness connector B105
terminal 1 (G/Y).
3. Check continuity between BCM harness connector M20 terminal
60 (G/B) and rear turn signal lamp LH harness connector B35
terminal 1 (G/B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.3 (B) - Ground : Continuity should exist.
3 (B) - Ground : Continuity should exist.
WKIA1891E
61 (G/Y) - 1 (G/Y) : Continuity should exist.
60 (G/B) - 1 (G/B) : Continuity should exist.
WKIA1892E

LT-92
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: October 20052005 QX56
3. CHECK GROUND CIRCUIT
Check continuity between rear turn signal lamp harness connector
B35 LH and B105 RH terminal 3 (B) and ground.
OK or NG
OK >> Check rear turn signal lamp connector for proper con-
nection. Repair as necessary.
NG >> Repair harness or connector.
Hazard Warning Lamp Does Not Operate But Turn Signal Lamps OperateEKS00B9Z
1. CHECK BULB
Make sure bulb standard of each turn signal lamp is correct. Refer to LT-170, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT- 3 1 , "
FRONT PARKING LAMP (INNER OR OUTER)"
for front turn signal bulb. Refer to LT- 1 2 2 , "Bulb Replacement (Turn Signal)" for rear turn signal
bulb.
2. CHECK HAZARD SWITCH INPUT SIGNAL
With CONSULT-II
Select "BCM" on CONSULT-II. With "FLASHER" data monitor, make
sure "HAZARD SW" turns ON-OFF linked with operation of hazard
switch.
Without CONSULT-II
Check voltage between BCM harness connector M18 terminal 29
(W/B) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.3 (B) - Ground : Continuity should exist.
WKIA1893E
When hazard switch is in
ON position : HAZARD SW ON
SKIA4500E
Te r m i n a l s
ConditionVo ltag e
(Approx.) (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M18 29 (W/B) GroundHazard switch is ON 0V
Hazard switch is OFF 5V
WKIA1969E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-93
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
3. CHECK HAZARD SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and hazard switch connector.
3. Check continuity between BCM harness connector M18 terminal
29 (W/B) and hazard switch harness connector M55 terminal 2
(W/B).
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK GROUND
Check continuity between hazard switch harness connector M55 ter-
minal 1 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK HAZARD SWITCH
1. Disconnect hazard switch connector.
2. Check continuity of hazard switch.
OK or NG
OK >> Replace BCM if hazard warning lamps do not work after
setting the connector again. Refer to BCS-20, "
Removal
and Installation of BCM" .
NG >> Replace hazard switch. Refer to LT-96, "
Removal and Installation" .
Turn Signal Indicator Lamp Does Not OperateEKS00BA0
1. CHECK CAN COMMUNICATION SYSTEM
Check CAN communication. Refer to LAN-5, "
CAN COMMUNICATION" .
OK or NG
OK >> Replace combination meter. Refer to IP-13, "Combination Meter" .
NG >> Repair as necessary.29 (W/B) - 2 (W/B) : Continuity should exist.
WKIA1894E
1 (B) - Ground : Continuity should exist.
WKIA1895E
Te r m i n a l
Condition Continuity
Hazard switch
12Hazard switch is ON Yes
Hazard switch is OFF No
WKIA1896E
