INFINITI QX56 2006 Factory Service Manual
Manufacturer: INFINITI, Model Year: 2006, Model line: QX56, Model: INFINITI QX56 2006Pages: 3383, PDF Size: 51.76 MB

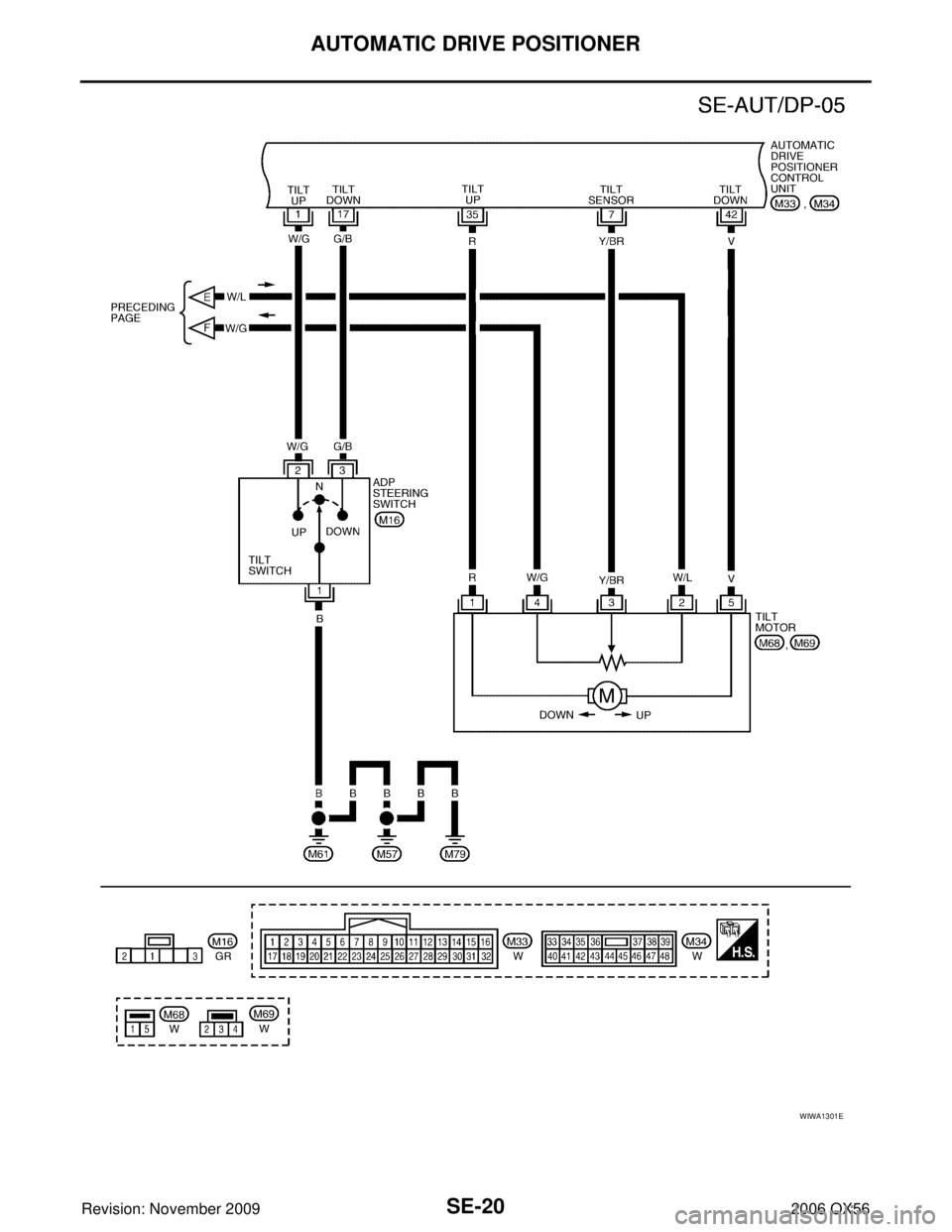

Page 2951 of 3383
SE-20
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
WIWA1301E

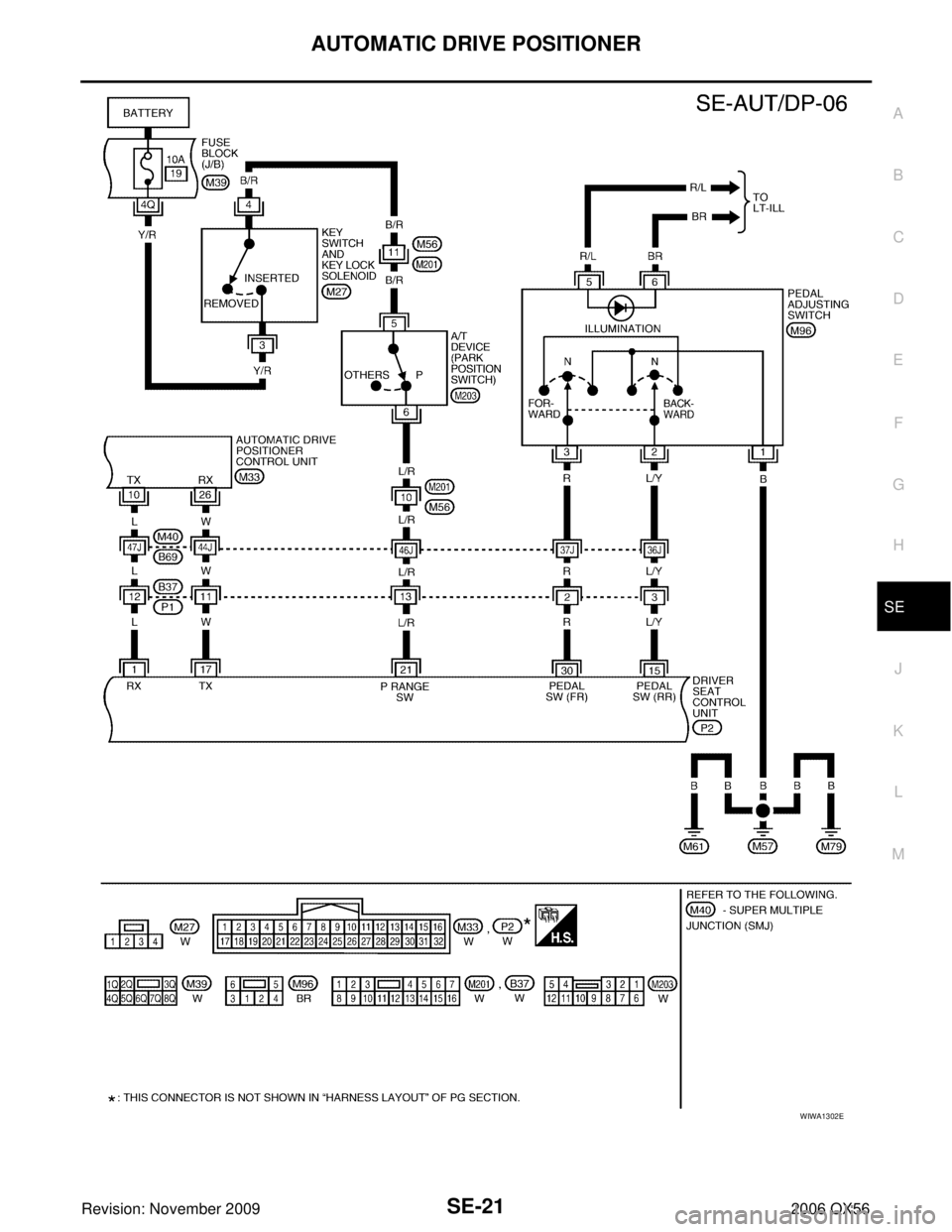

Page 2952 of 3383
AUTOMATIC DRIVE POSITIONERSE-21
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
WIWA1302E
Page 2953 of 3383
SE-22
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
LIWA0449E

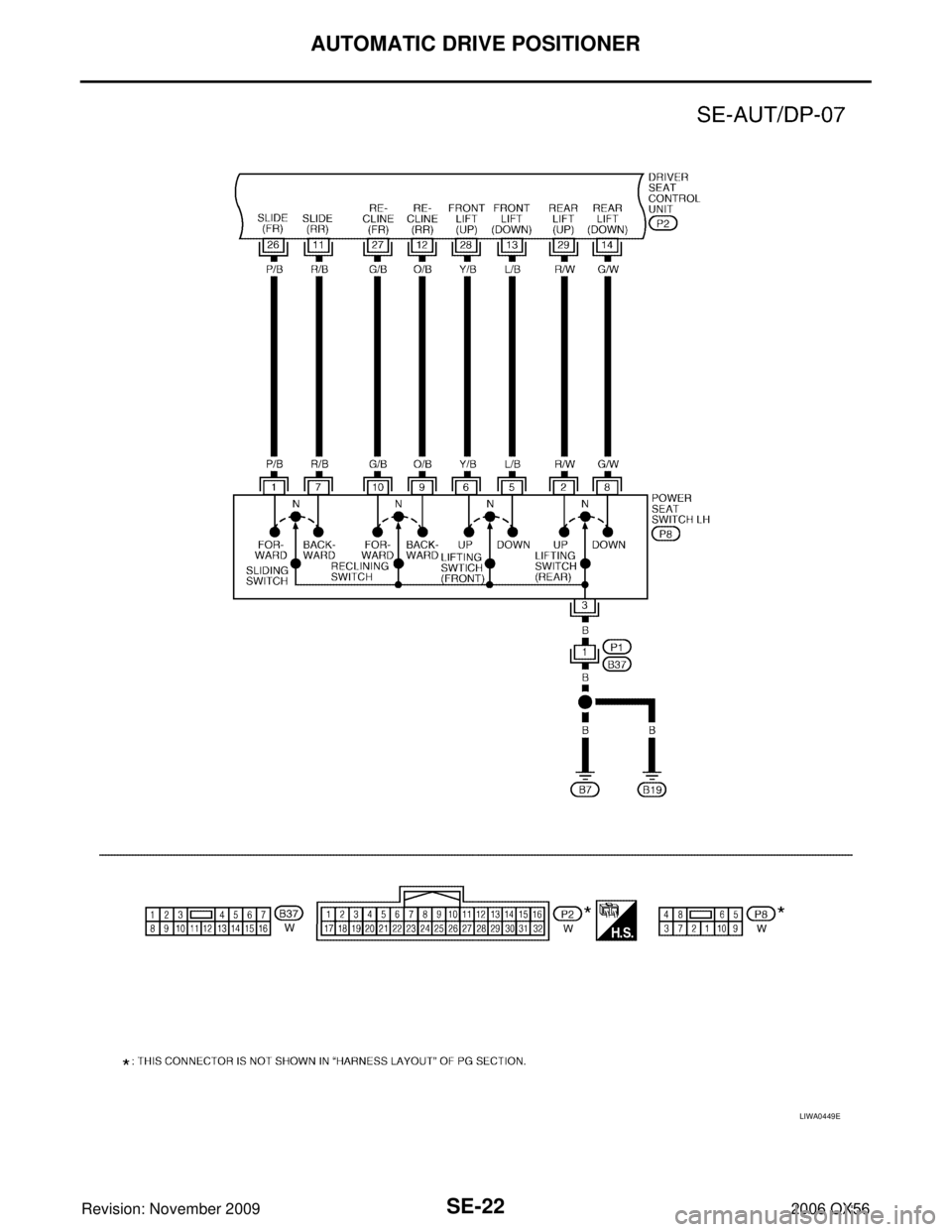

Page 2954 of 3383
AUTOMATIC DRIVE POSITIONERSE-23
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
LIWA0439E

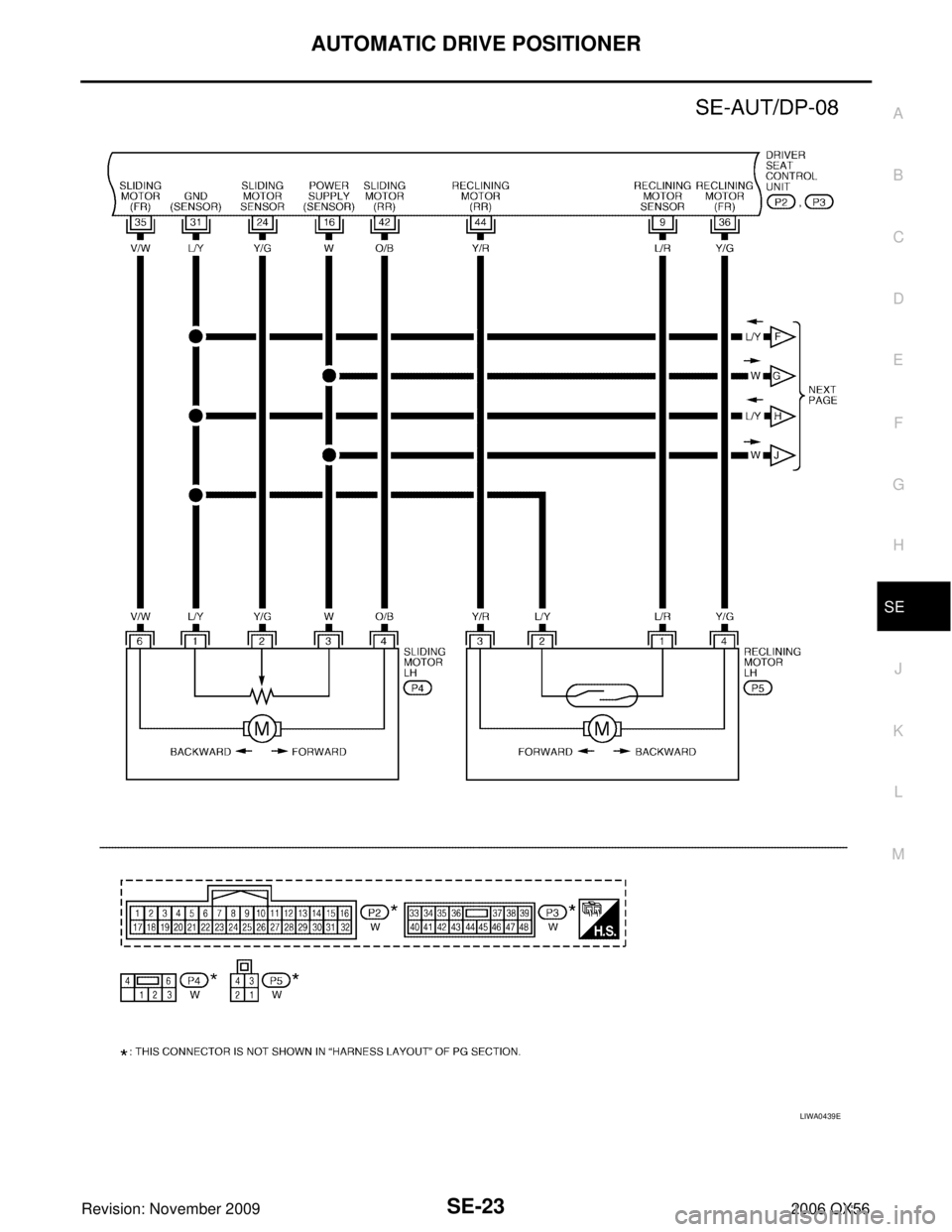

Page 2955 of 3383
SE-24
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
LIWA0440E

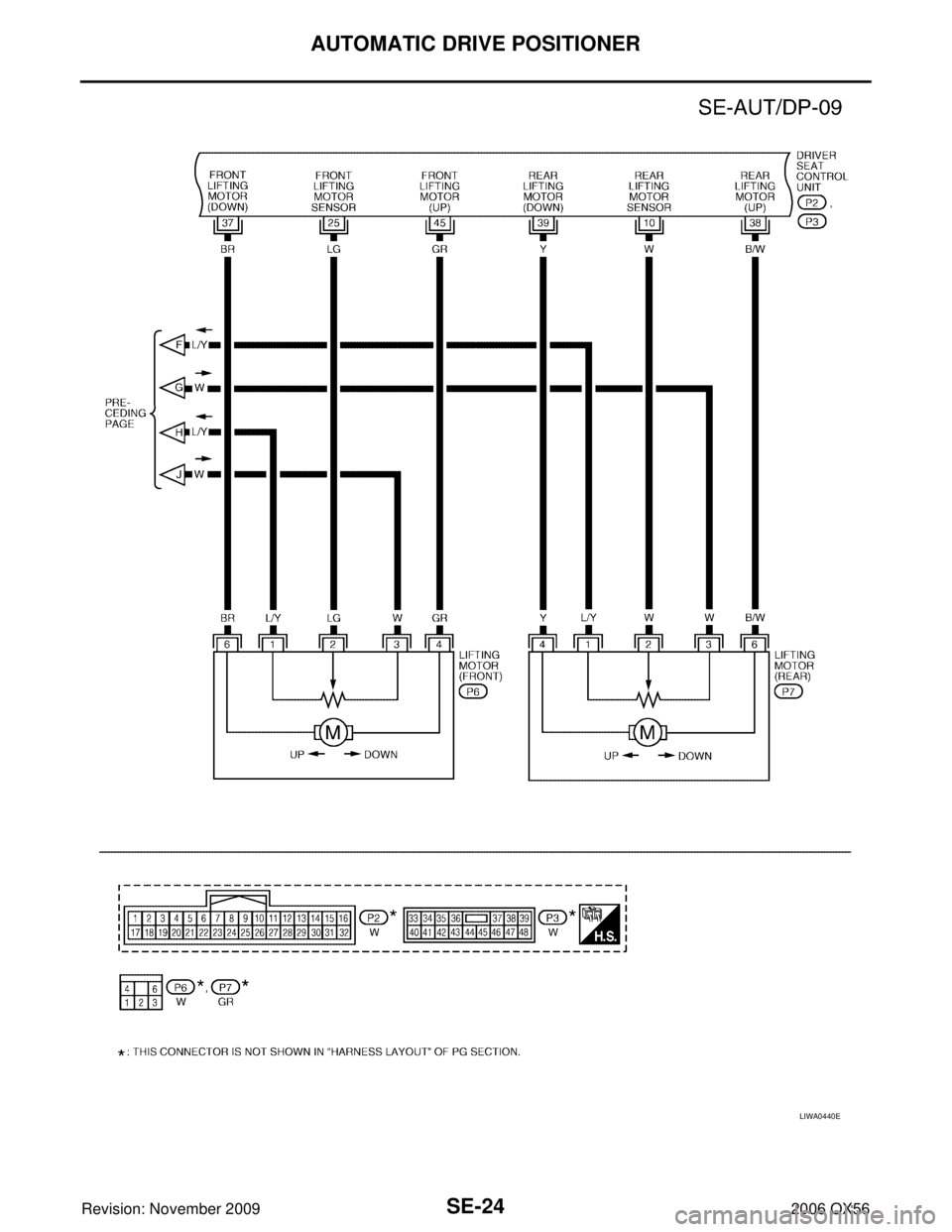

Page 2956 of 3383
AUTOMATIC DRIVE POSITIONERSE-25
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
WIWA1303E

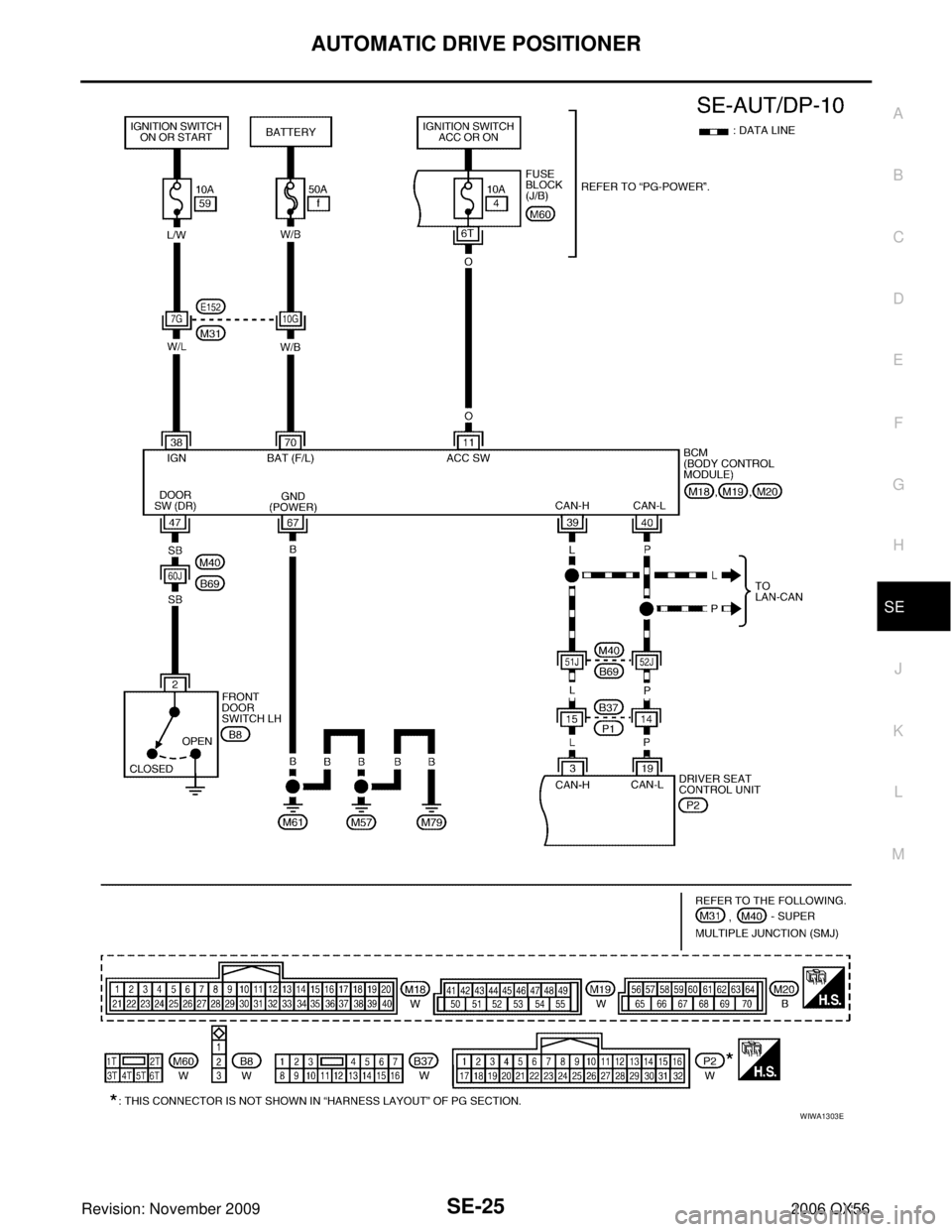

Page 2957 of 3383
SE-26
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
Terminals and Reference Values for BCMEIS004XJ
Terminals and Reference Values for Driver Seat Control UnitEIS004XK
Te r m i n a l Wire
Color Item
Condition Voltage (V)
(Approx.)
11 O Ignition switch (ACC or ON) Ignition switch (ACC or ON position) Battery voltage
38 W/L Ignition switch (ON or START) Ignition switch (ON or START posi-
tion)Battery voltage
39 L CAN-H ——
40 P CAN-L ——
47 SB Front door switch LH ON (Open) → OFF (Closed) 0 → Battery voltage
67 B Ground —0
70 W/B Battery power supply —Battery voltage
Te r m i n a lWire
Color Item
Condition Voltage (V)
(Approx.)
1 L UART LINE (RX) Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)
3LC AN -H ——
6 O Ignition switch (START) Ignition switch (START position) Battery voltage
9 L/R Reclining motor sensor signal ON (seat reclining motor opera-
tion)
Other than above
0 or 5
10 W Rear lifting motor sensor signal ON (rear lifting motor operation)
Other than above
0 or 5
11 R / B Sliding switch BACKWARD sig-
nal ON (seat sliding switch BACK-
WARD operation)
0
Other than above Battery voltage
12 O/B Reclining switch BACKWARD
signal ON (seat reclining switch BACK-
WARD operation)
0
Other than above Battery voltage
13 L/B Front lifting switch DOWN signal ON (front lifting switch DOWN
operation)
0
Other than above Battery voltage
PIIA4813E
SIIA0692J
SIIA0693J
Page 2958 of 3383
AUTOMATIC DRIVE POSITIONERSE-27
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
14 G/W Rear lifting switch DOWN signalON (rear lifting switch DOWN
operation)
0
Other than above Battery voltage
15 L/Y Pedal adjusting switch BACK-
WARD signal ON (pedal adjusting switch BACK-
WARD operation)
0
Other than above Battery voltage
16 W Seat sensor power Ignition switch ON 5
17 W UART LINE (TX) Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)
19 P CAN-L ——
21 L/R A/T device (park position switch)
signal A/T selector lever in P position
0
A/T selector lever in other than P
position with ignition key in ignition
cylinder Battery voltage
24 Y/G Seat sliding motor sensor signal ON (seat sliding motor operation)
Other than above
0 or 5
25 LG Front lifting motor sensor signal ON (front lifting motor operation)
Other than above.
0 or 5
26 P/B Seat sliding switch FORWARD
signal ON (seat sliding switch FOR-
WARD operation)
0
Other than above Battery voltage
27 G/B Seat reclining switch FOR-
WARD signal ON (seat reclining switch FOR-
WARD operation)
0
Other than above Battery voltage
28 Y/B Front lifting switch UP signal ON (front lifting switch UP opera-
tion)
0
Other than above Battery voltage
29 R/W Rear lifting switch UP signal ON (rear lifting switch UP opera-
tion)
0
Other than above Battery voltage
30 R Pedal adjusting switch FOR-
WARD signal ON (pedal adjusting switch FOR-
WARD operation)
0
Other than above Battery voltage
Terminal
Wire
Color Item
Condition Voltage (V)
(Approx.)
PIIA4814E
PIIA3277E
SIIA0691J
Page 2959 of 3383
SE-28
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
Terminals and Reference Values for Automatic Drive Positioner Control UnitEIS004XL
31 L/Y Sensor ground—0
32 B Ground —0
33 L/B Battery power supply —Battery voltage
35 V/W Sliding motor FORWARD out-
put signal Sliding switch FORWARD opera-
tion (Motor operated)
Battery voltage
Other than above 0
36 Y/G Reclining motor FORWARD out-
put signal Reclining switch FORWARD oper-
ation (Motor operated)
Battery voltage
Other than above 0
37 BR Front lifting motor DOWN output
signal Front lifting switch DOWN opera-
tion (Motor operated)
Battery voltage
Other than above 0
38 B/W Rear lifting motor UP output sig-
nal Rear end lifting switch UP opera-
tion (Motor operated)
Battery voltage
Other than above 0
39 Y Rear lifting motor DOWN output
signal Rear end lifting switch DOWN
operation (Motor operated)
Battery voltage
Other than above 0
40 Y/R Battery power supply —Battery voltage
42 O/B Sliding motor BACKWARD out-
put signal Sliding switch BACKWARD oper-
ation (Motor operated)
Battery voltage
Other than above 0
44 Y/R Reclining motor BACKWARD
output signal Reclining switch BACKWARD
operation (Motor operated)
Battery voltage
Other than above 0
45 GR Front lifting motor UP output sig-
nal Front lifting switch UP operation
(Motor operated)
Battery voltage
Other than above 0
48 B/W Ground — 0
Te r m i n a l
Wire
Color Item
Condition Voltage (V)
(Approx.)
Te r m i n a l Wire
Color Item
Condition Voltage (V)
(Approx.)
1 W/G ADP steering switch TILT UP ADP steering switch in UP position
0
Other than above 5
2 LG Changeover switch RH signal Changeover switch in RH position
0
Other than above 5
3 Y/B Mirror switch UP signal Mirror switch in UP position
0
Other than above 5
4 V/W Mirror switch LEFT signal Mirror switch in LEFT position
0
Other than above 5
5R/B Mirror sensor (RH vertical) sig-
nal Mirror motor RH is operated UP or
DOWN Changes between 3.4 (close to
peak) 0.6 (close to valley)
6L/Y Mirror sensor (LH vertical) sig-
nal Mirror motor LH is operated UP or
DOWN Changes between 3.4 (close to
peak) 0.6 (close to valley)
7 Y/BR Tilt sensor input Tilt position TOP
2
Tilt position BOTTOM 4
Page 2960 of 3383
AUTOMATIC DRIVE POSITIONERSE-29
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
8 BR/Y Pedal sensor input signalPedal position front end
0.5
Pedal position rear end 4.5
9 LG/B Seat memory switch 1 signal Memory switch 1 ON
0
Memory switch 1 OFF 5
10 L UART LINE (TX) Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)
12 P Seat memory switch indictor 1
signal Memory switch 1 ON
0
Memory switch 1 OFF Battery voltage
13 Y/G Seat memory switch indictor 2
signal Memory switch 2 ON
0
Memory switch 2 OFF Battery voltage
14 GR/R Mirror motor RH UP signal Mirror motor RH is operated UP
1.5 - Battery voltage
Other than above 0
15 V/R Mirror motor RH LEFT signal Mirror motor RH is operated LEFT
1.5 - Battery voltage
Other than above 0
16 O Mirror motor LH DOWN signal
Mirror motor LH is operated DOWN 1.5 - Battery voltage
Other than above
0
Mirror motor LH RIGHT signal Mirror motor LH is operated RIGHT 1.5 - Battery voltage
Other than above
0
17 G/B ADP steering switch TILT
DOWN ADP steering switch in DOWN posi-
tion
0
Other than above 5
18 BR/W Changeover switch LH signal Changeover switch in LH position
0
Other than above 5
19 SB Mirror switch DOWN signal Mirror switch in DOWN position
0
Other than above 5
20 GR Mirror switch RIGHT signal Mirror switch in RIGHT position
0
Other than above 5
21 L/W Mirror sensor (RH horizontal)
signal Mirror motor RH is operated LEFT
or RIGHT Changes between 3.4 (close to left
edge) 0.6 (close to right edge)
22 G Mirror sensor (LH horizontal)
signal Mirror motor LH is operated LEFT
or RIGHT Changes between 3.4 (close to left
edge) 0.6 (close to right edge)
24 G/O Seat memory set switch signal Set switch 1 ON
0
Set switch 1 OFF 5
25 P/L Seat memory switch 2 signal Memory switch 2 ON
0
Memory switch 2 OFF 5
26 W UART LINE (RX) Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)
Te r m i n a l
Wire
Color Item
Condition Voltage (V)
(Approx.)
PIIA4813E
PIIA4814E
