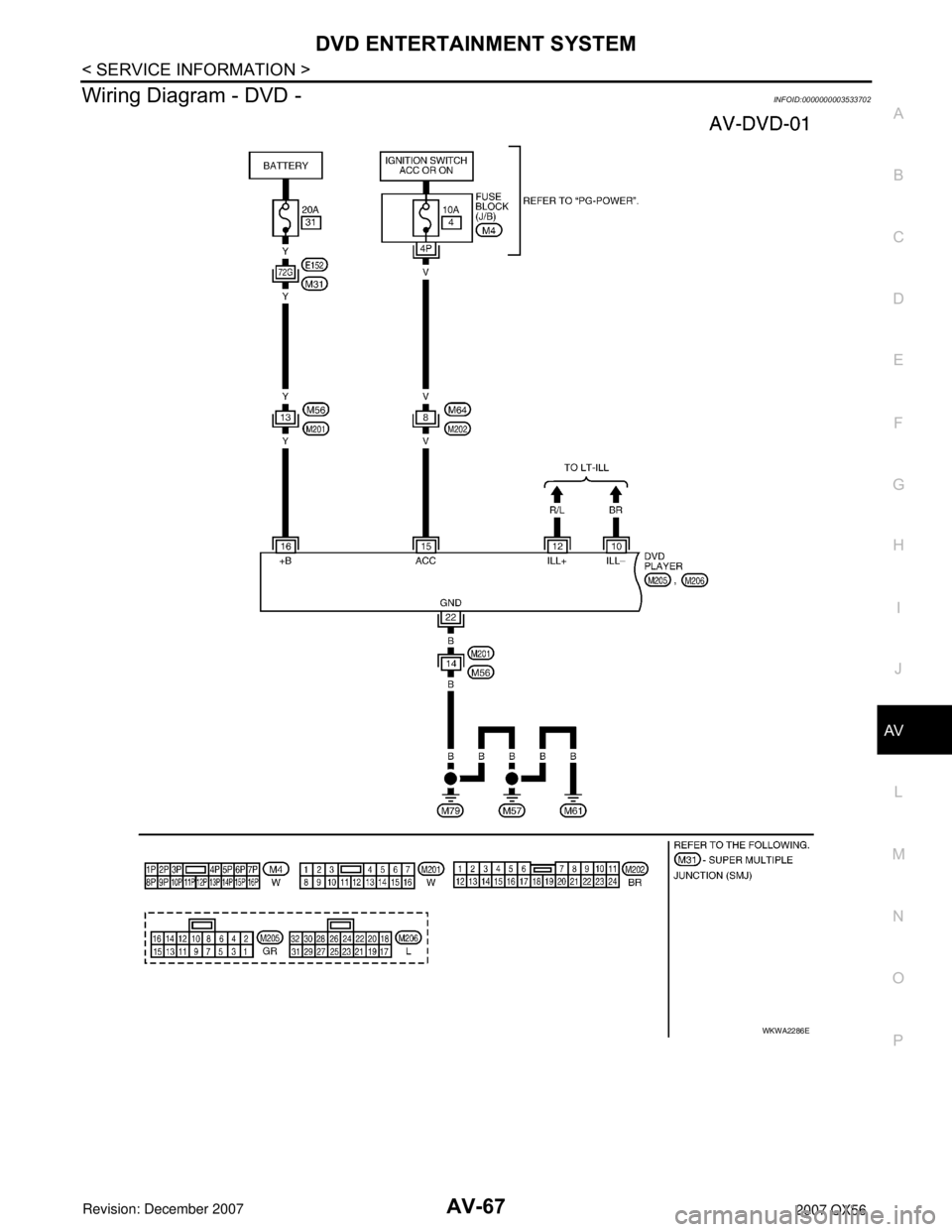

Wiring Diagram - DVD -INFOID:0000000003533702
WKWA2286E

AV-78
< SERVICE INFORMATION >
NAVIGATION SYSTEM
Wiring Diagram - NAVI -
INFOID:0000000003533710
WKWA3592E

AV-86
< SERVICE INFORMATION >
NAVIGATION SYSTEM
Wiring Diagram - COMM -
INFOID:0000000003533712
WKWA3600E

AV-100
< SERVICE INFORMATION >
NAVIGATION SYSTEM
7. On the “SELF DIAGNOSIS” screen, each unit name will be col-
ored according to the diagnosis result, as follows.
• If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.
8. Select a switch on the “SELF DIAGNOSIS” screen and com-
ments for the diagnosis results will be shown.
• When the switch is green, the following comment will be
shown. “Self-diagnosis was successful. Further diagnosis and
adjustments are recommended. Follow the “confirmation/
adjustment” menu or refer to the service manual.”
• When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details”.
• When the switch is red, the following comment will be shown.
“DCU is abnormal”.
SELF–DIAGNOSIS RESULT
Quick reference table
1. Select a malfunctioning diagnosis No. in the diagnosis result quick reference table.
2. Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to AV-86,
"Wiring Diagram - COMM -".
3. Turn the ignition switch OFF and perform self-diagnosis again.
*: DCU = Display control unit
CAUTION:
• When AV switch has a malfunction, you cannot start. Refer to AV-134, "
Unable to Operate All of AV
Switches (Unable to Start Self-Diagnosis)".
• When display unit has a malfunction, you cannot start. Refer to AV-132, "
Screen Is Not Shown".
Self-Diagnosis Codes
Green : Not malfunctioning.
Yellow : Cannot be judged by self-diagnosis results.
Red : Unit is malfunctioning.
Gray : Diagnosis has not been done.
WKIA1189E
SKIA4211E
Screen switch
Diagnosis No.
Switch color DCU* DISPLAY Audio unit NavigationGPS an-
tenna
Red×1
Gray×x2
xx 3
×××4
Diagnosis
No.Possible causeReference
page
1 Display control unit malfunction Refer to AV- 1 4 5
.
2 Display communication line between display control unit and display unit Refer to AV- 1 2 1
.
3Audio unit power supply and ground circuit
Audio communication line between display control unit and audio unitRefer to AV- 11 9
.
4NAVI control unit power supply and ground circuit
AV communication line between display control unit and NAVI control unitRefer to AV- 11 8
.

AV-102
< SERVICE INFORMATION >
NAVIGATION SYSTEM
6. On the “SELF DIAGNOSIS” screen, each unit name will be col-
ored according to the diagnosis result, as follows.
• If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.
7. Select a switch on the “SELF DIAGNOSIS” screen and com-
ments for the diagnosis results will be shown.
• When the switch is green, the following comment will be
shown. “Connection is normal. Please refer to the Confirma-
tion / Adjustment function or service manual for more detailed
diagnosis information."
• When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details”.
• When the switch is red, the following comment will be shown.
“Center Control Unit is abnormal”.
• When the switch is gray, the following comment will be shown.
“Self-diagnosis for DVD-ROM DRIVER of NAVI was not conducted because no DVD-ROM was avail-
able.”
SELF–DIAGNOSIS RESULT
Quick reference table
1. Select an malfunctioning diagnosis No. in the diagnosis result quick reference table.
2. Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to AV-86,
"Wiring Diagram - COMM -".
3. Turn the ignition switch OFF and perform self-diagnosis again.
*: Center Control unit = NAVI control unit
CAUTION:
• When AV switch has a malfunction, you cannot start. Refer to AV-134, "
Unable to Operate All of AV
Switches (Unable to Start Self-Diagnosis)".
• When display unit has a malfunction, you cannot start. Refer to AV-132, "
Screen Is Not Shown".
Self-diagnosis codes
Green : Not malfunctioning.
Yellow : Cannot be judged by self-diagnosis results.
Red : Unit is malfunctioning.
Gray : Diagnosis has not been done.
WKIA4441E
WKIA4442E
Screen switch
Diagnosis No.
Switch color Center control unit* GPS antenna
Red×1
Gray×2
Ye l l o w×3
×4
××5
Diagnosis
No.Possible causeReference
page
1 NAVI control unit malfunction.Refer to
AV- 1 4 5
2 No map DVD-ROM is inserted in the NAVI control unit.Refer to
AV- 1 2 3
