diagram INFINITI QX56 2007 Factory Workshop Manual

BL-86
< SERVICE INFORMATION >
AUTOMATIC BACK DOOR SYSTEM
Wiring Diagram - B/CLOS -
INFOID:0000000003532959
WIWA2050E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-119
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Wiring Diagram - NATS -INFOID:0000000003532990
Terminal and Reference Value for BCMINFOID:0000000003532991
Refer to BCS-11, "Terminal and Reference Value for BCM".
CONSULT-IIINFOID:0000000003532992
CONSULT-II START PROCEDURE
WIWA1233E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-125
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Non self-diagnosis related item
*: CONSULT-II self-diagnostic results display screen “no malfunction is detected”.
DIAGNOSTIC SYSTEM DIAGRAM
Diagnosis Procedure 1INFOID:0000000003532995
Self-diagnostic results:
“CHAIN OF ECM-IMMU” displayed on CONSULT-II screen
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, then perform the trouble diagno-
sis of malfunction system indicated “SELF-DIAG RESULTS” of “BCM”. Refer to BL-119, "
CONSULT-II".
1.CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “CHAIN OF ECM-IMMU”
displayed on CONSULT-II screen.
NOTE:
In rare case, “CHAIN OF ECM-IMMU” might be stored during key
registration procedure, even if the system is not malfunctioning.
Is CONSULT-II screen displayed as above?
YES >> GO TO 2.
NO >> GO TO BL-123, "
Trouble Diagnosis".
2.CHECK POWER SUPPLY CIRCUIT FOR BCM
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check voltage between BCM connector M20 terminal 70 and ground.
SymptomDiagnostic Procedure
(Reference page)System
(Malfunctioning part or mode)Reference Part No. Of Illustra-
tion On System Diagram
Security indicator does not light
up*.PROCEDURE 6
(BL-131
)Combination meter (security in-
dictor lamp)—
Open circuit between fuse and
BCM—
BCM A
WIIA0550E
PIIA1260E

HOMELINK UNIVERSAL TRANSCEIVER
BL-133
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
HOMELINK UNIVERSAL TRANSCEIVER
Wiring Diagram - TRNSCV -INFOID:0000000003533002
Trouble DiagnosisINFOID:0000000003533003
DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.
WIWA0759E

BRC-1
BRAKES
C
D
E
G
H
I
J
K
L
M
SECTION BRC
A
B
BRC
N
O
P
CONTENTS
BRAKE CONTROL SYSTEM
VDC/TCS/ABS
SERVICE INFORMATION ............................
3
PRECAUTIONS ...................................................3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................
3
Precaution for Brake System ....................................3
Precaution When Using CONSULT-II .......................3
Precaution for Brake Control .....................................4
Precaution for CAN System ......................................4
PREPARATION ...................................................6
Special Service Tool .................................................6
Commercial Service Tool ..........................................6
SYSTEM DESCRIPTION .....................................7
System Component ...................................................7
ABS Function ............................................................8
EBD Function ............................................................8
TCS Function ............................................................8
VDC Function ............................................................8
Fail-Safe Function .....................................................8
Hydraulic Circuit Diagram .........................................9
CAN COMMUNICATION ....................................10
System Description .................................................10
TROUBLE DIAGNOSIS .....................................11
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ......................................................
11
Component Parts and Harness Connector Loca-
tion ..........................................................................
14
Schematic ...............................................................15
Wiring Diagram - VDC - ..........................................16
Basic Inspection ......................................................22
Warning Lamp and Indicator Timing .......................23
Control Unit Input/Output Signal Standard ..............23
CONSULT-II Function (ABS) ..................................26
TROUBLE DIAGNOSIS FOR SELF-DIAG-
NOSTIC ITEMS .................................................
34
Wheel Sensor System Inspection ............................34
Engine System Inspection .......................................35
ABS/TCS/VDC Control Unit Inspection ...................35
Steering Angle Sensor System ................................36
Yaw Rate/Side/Decel G Sensor System Inspec-
tion ...........................................................................
37
Solenoid and VDC Change-Over Valve System
Inspection ................................................................
38
Actuator Motor, Motor Relay, and Circuit Inspec-
tion ...........................................................................
39
Stop Lamp Switch System Inspection .....................40
ABS/TCS/VDC Control Unit Power and Ground
Systems Inspection .................................................
41
Brake Fluid Level Switch System Inspection ...........42
Active Booster System Inspection ...........................43
Delta Stroke Sensor System Inspection ..................44
Pressure Sensor System Inspection .......................45
Steering Angle Sensor Safe Mode Inspection .........47
CAN Communication System Inspection .................48
ICC System Inspection ............................................48
Inspection for Self-Diagnosis Result "ST ANG
SEN SIGNAL" ..........................................................
48
Inspection for Self-Diagnosis Result "DECEL G
SEN SET" ................................................................
49
TROUBLE DIAGNOSES FOR SYMPTOMS .....50
ABS Works Frequently ............................................50
Unexpected Pedal Action ........................................50
Long Stopping Distance ..........................................51
ABS Does Not Work ................................................51
Pedal Vibration or ABS Operation Noise .................51
Vehicle Jerks During TCS/VDC Activation ..............52
Component Inspection .............................................53
ON-VEHICLE SERVICE ....................................54
Adjustment of Steering Angle Sensor Neutral Po-
sition ........................................................................
54
Calibration of Decel G Sensor .................................54

SYSTEM DESCRIPTION
BRC-9
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicator lamp and SLIP
indicator lamp will turn on. In case of an electrical malfunction with the EBD system, the BRAKE warning lamp,
ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp will turn on.
The system will revert to one of the following conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of
vehicles without ABS/TCS/VDC system.
2. For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same
as the condition of vehicles without ABS/TCS/VDC or EBD system.
VDC/TCS SYSTEM
In case of TCS/VDC system malfunction, the VDC OFF indicator lamp and SLIP indicator lamp are turned on
and the condition of the vehicle is the same as the condition of vehicles without TCS/VDC system. In case of
an electrical malfunction with the TCS/VDC system, the ABS control continues to operate normally without
TCS/VDC control.
ACTIVE BOOSTER
The active brake booster consists of a vacuum booster, an active booster control group and a delta stroke
sensor. In case of brake booster system malfunction due to loss of vacuum, the delta stroke sensor will signal
the ABS actuator and electric unit (control unit) that a booster failure has occurred. The active booster then
applies supplemental force to the master cylinder relative to the amount of force exerted on the brake pedal.
Hydraulic Circuit DiagramINFOID:0000000003532774
WFIA0187E

BRC-16
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Wiring Diagram - VDC -
INFOID:0000000003532779
WFWA0314E

DI-1
ELECTRICAL
C
DE
F
G H
I
J
L
M
SECTION DI
A
B
DI
N
O P
CONTENTS
DRIVER INFORMATION SYSTEM
SERVICE INFORMATION .. ..........................3
PRECAUTION ................................................ .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
PREPARATION ...................................................4
Commercial Service Tool .................................... ......4
COMBINATION METERS ...................................5
Component Parts and Harness Connector Loca-
tion ...................................................................... ......
5
System Description ...................................................5
Arrangement of Combination Meter ..........................7
Internal Circuit ...........................................................8

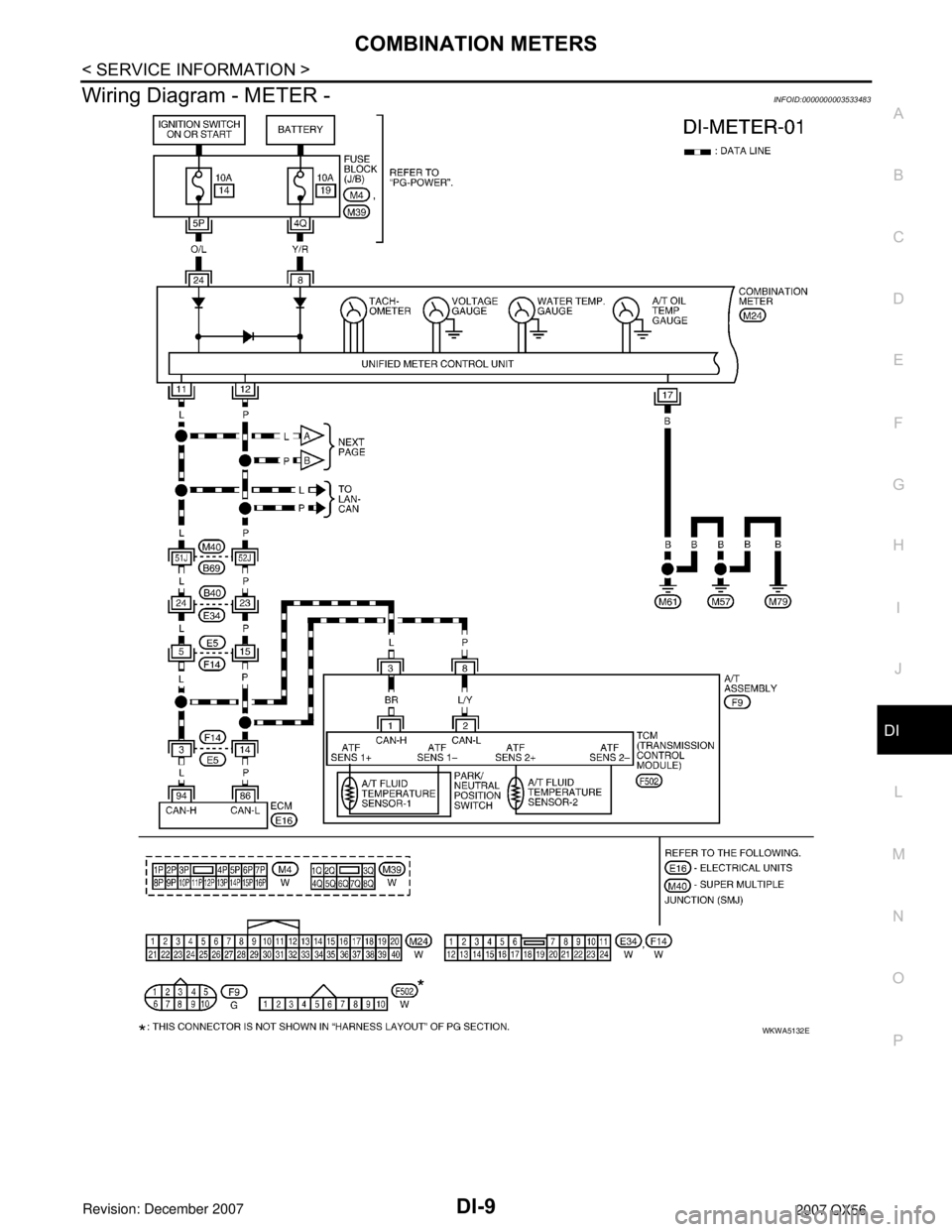

Wiring Diagram - METER - .......................................9
Combination Meter Harness Connector Terminal
Layout .....................................................................
11
Terminal and Reference Value for Combination
Meter .......................................................................
11
Self-Diagnosis Mode of Combination Meter ........ ....12
How to Proceed with Trouble Diagnosis ............. ....15
Preliminary Check ...................................................15
Symptom Chart .......................................................16
Power Supply and Ground Circuit Inspection .........16
Vehicle Speed Signal Inspection .............................17
Engine Oil Pressure Signal Inspection ....................17
Water Temperature Signal Inspection .....................18
Engine Speed Signal Inspection ......................... ....18
Fuel Level Sensor Unit Inspection ...................... ....18
Fuel Gauge Fluctuates, Indicates Wrong Value, or
Varies .................................................................. ....
20
Fuel Gauge Does Not Move to Full-position ...........20
Electrical Component Inspection ......................... ....21
Removal and Installation of Combination Meter .....21
COMPASS AND THERMOMETER ................ ....22
System Description ............................................. ....22
Wiring Diagram - COMPAS - ..................................23
Trouble Diagnosis ............................................... ....23
Calibration Procedure for Compass .................... ....24
WARNING LAMPS ............................................26
Schematic ............................................................ ....26
Wiring Diagram - WARN - .......................................27
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON) .......................................................... ....
32
Oil Pressure Warning Lamp Does Not Turn Off
(Oil Pressure Is Normal) ...................................... ....
33
A/T INDICATOR ................................................34
Wiring Diagram - AT/IND - .......................................34
A/T Indicator Does Not Illuminate ............................34
WARNING CHIME .............................................36
Component Parts and Harness Connector Loca-
tion ....................................................................... ....
36
System Description ..................................................36
CAN Communication System Description ...............37
Wiring Diagram - CHIME - .......................................38
Terminal and Reference Value for BCM ..................39
Terminal and Reference Value for Combination
Meter ................................................................... ....
39
How to Proceed with Trouble Diagnosis ..................40
Preliminary Check ............................................... ....40
CONSULT-II Function (BCM) ..................................40
All Warning Chimes Do Not Operate .......................41
Key Warning Chime and Light Warning Chime Do
Not Operate (Seat Belt Warning Chime Does Op-
erate) .......................................................................
41
Key Warning Chime Does Not Operate ...................42
Light Warning Chime Does Not Operate .................44
Seat Belt Warning Chime Does Not Operate ..........44
REAR SONAR SYSTEM ...................................46
Component Parts and Harness Connector Loca-
tion ....................................................................... ....
46
System Description ..................................................46
Wiring Diagram - SONAR - ......................................48
Sonar Control Unit Harness Connector Terminal
Layout ......................................................................
50

DI-2
Terminal and Reference Value for Sonar Control
Unit .........................................................................
50
How to Proceed with Trouble Diagnosis .................51
Pre-diagnosis Inspection ........................................51
Self-Diagnosis Function ..........................................51
Preliminary Check ..................................................53
Symptom Chart .......................................................54
Component Inspection ............................................55
Removal and Installation ........................................55
CLOCK ...............................................................56
Wiring Diagram - CLOCK - .................................. ...56
Removal and Installation of Clock ..........................56
REAR VIEW MONITOR .....................................58
Component Parts and Harness Connector Loca-
tion ....................................................................... ...
58
System Description .............................................. ...58
Schematic ...............................................................60
Wiring Diagram - R/VIEW - .....................................61
Rear View Camera Control Unit Harness Connec-
tor Terminal Layout .............................................. ...
64
Terminal and Reference Value for Rear View
Camera Control Unit ...............................................
64
CONSULT-II Function (REARVIEW CAMERA) ......64
Side Distance Guideline Correction ........................65
Power Supply and Ground Circuit Inspection .........67
Rear View Is Not Displayed with the A/T Selector
Lever in R Position ..................................................
67
Removal and Installation of Rear View Camera
Control Unit .......................................................... ...
71
Removal and Installation of Rear View Camera .....72

COMBINATION METERSDI-9
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
Wiring Diagram - METER -INFOID:0000000003533483
WKWA5132E
