INFINITI QX56 2010 Factory Service Manual

SN
SONAR SENSORSN-49
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M B A
O P

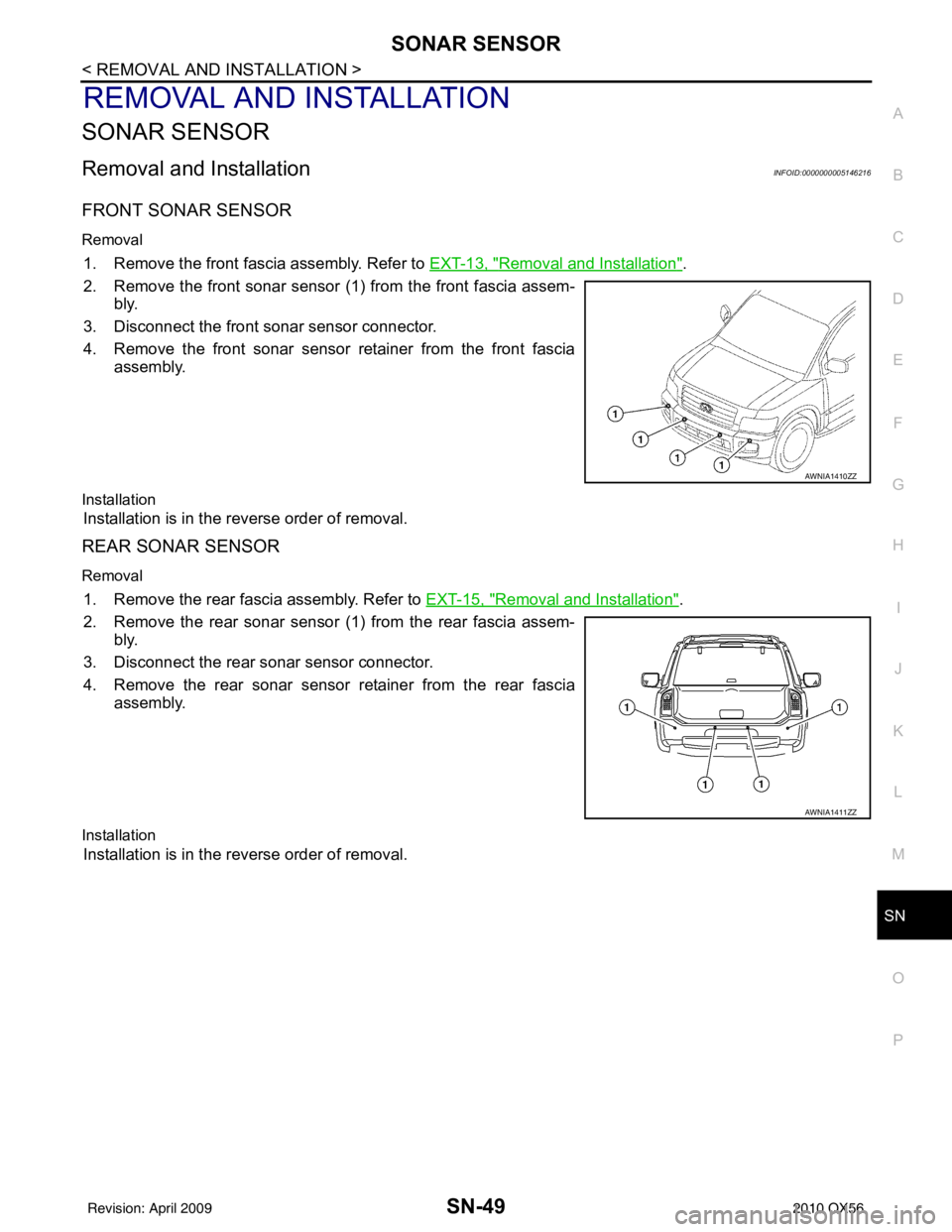

REMOVAL AND INSTALLATION
SONAR SENSOR
Removal and InstallationINFOID:0000000005146216
FRONT SONAR SENSOR
Removal
1. Remove the front fascia assembly. Refer to EXT-13, "Removal and Installation".
2. Remove the front sonar sensor (1) from the front fascia assem-
bly.
3. Disconnect the front s onar sensor connector.
4. Remove the front sonar sensor retainer from the front fascia assembly.
Installation
Installation is in the reverse order of removal.
REAR SONAR SENSOR
Removal
1. Remove the rear fascia assembly. Refer to EXT-15, "Removal and Installation".
2. Remove the rear sonar sensor (1) from the rear fascia assem- bly.
3. Disconnect the rear s onar sensor connector.
4. Remove the rear sonar sensor retainer from the rear fascia assembly.
Installation
Installation is in the reverse order of removal.
AWNIA1410ZZ
AWNIA1411ZZ
Revision: April 20092010 QX56

SN-50
< REMOVAL AND INSTALLATION >
SONAR CONTROL UNIT
SONAR CONTROL UNIT
Removal and InstallationINFOID:0000000005146217
Removal
1. Remove the luggage side finisher lower and upper LH. Refer to INT-19, "Removal and Installation".
2. Disconnect the sonar control unit electrical connectors.
3. Remove the bolt, then remove the sonar control unit. • Front and rear sonar control unit (1)
• Rear sonar control unit (1)
INSTALLATION
Installation is in the reverse order of removal.
AWNIA1412ZZ
AWNIA1901ZZ
Revision: April 20092010 QX56

SN
BUZZERSN-51
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M B A
O P
BUZZER
Removal and InstallationINFOID:0000000005146218
FRONT BUZZER
Removal
1. Remove the instrument panel upper cover. Refer to IP-11, "Exploded View".
2. Remove the two bolts (1), disconnect the connector (2) and remove the front buzzer.
Installation
Installation is in the reverse order of removal.
REAR BUZZER
NOTE:
Rear buzzer location used only for vehicles equipped with both front and rear sonar systems.
Removal
1. Partially remove the rear headliner. Refer to INT-17, "Removal and Installation".
2. Release the buzzer from the bracket, disconnect the connector and remove the buzzer.
Installation
Installation is in the reverse order of removal.
ALNIA0425ZZ
Revision: April 20092010 QX56

SR-1
RESTRAINTS
C
DE
F
G
I
J
K L
M
SECTION SR
A
B
SR
N
O P
CONTENTS
SRS AIRBAG
PRECAUTION ....... ........................................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for SRS "AIR BAG" and "SEAT BELT
PRE-TENSIONER" Service ......................................
2
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
2
Occupant Classification System Precaution .............3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tool ........................................... ......4
ON-VEHICLE REPAIR ..................................5
DRIVER AIR BAG MODULE .......................... .....5
Removal and Installation ...........................................5
SPIRAL CABLE ............................................. .....7
Removal and Installation ...........................................7
FRONT PASSENGER AIR BAG MODULE ......10
Removal and Installation ..................................... ....10
SIDE CURTAIN AIR BAG MODULE ................13
Removal and Installation .........................................13
CRASH ZONE SENSOR ...................................14
Removal and Installation ..................................... ....14
SIDE AIR BAG (SATELLITE) SENSOR ...........15
Removal and Installation .........................................15
FRONT SEAT BELT PRE-TENSIONER ...........16
Removal and Installation .........................................16
DIAGNOSIS SENSOR UNIT .............................17
Removal and Installation .........................................17
OCCUPANT CLASSIFICATION SYSTEM
CONTROL UNIT ................................................
19
Removal and Installation .........................................19
COLLISION DIAGNOSIS ..................................20
For Frontal Collision ................................................20
For Side and Rollover Collision ...............................21
Revision: April 20092010 QX56

SR-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000005250379
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery, and wait at least 3 minu tes before performing any service.
Precaution for SRS "AIR BAG" and "S EAT BELT PRE-TENSIONER" Service
INFOID:0000000005147754
• Do not use electrical test equipment to check SRS ci rcuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min- utes.
For approximately 3 minutes after the terminals are remov ed, it is still possible for the air bags and seat belt
pre-tensioners to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
• The air bag diagnosis sensor unit must always be installed with the arrow mark “ ⇐” pointing toward the front
of the vehicle for proper operation. Also check air bag diagnosis sensor unit for cracks, deformities or rust
before installation and replace as required.
• The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.
• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.
• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000005256816
NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
• Remove and install all control units after disconnecting both battery cables with the ignition knob in the ″LOCK ″ position.
Revision: April 20092010 QX56

PRECAUTIONSSR-3
< PRECAUTION >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS , an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of al l control units using CONSULT-III.
Occupant Classification System PrecautionINFOID:0000000005147755
Replace control unit and passenger front seat cushion as an assembly.
Revision: April 20092010 QX56

SR-4
< PREPARATION >
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000005147756
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool name Description
—
(J-42057-UPD)
Air bag key set
Part of kit (J-42057) Removing and installing air bag lock
LRS210
Revision: April 20092010 QX56

DRIVER AIR BAG MODULESR-5
< ON-VEHICLE REPAIR >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
ON-VEHICLE REPAIR
DRIVER AIR BAG MODULE
Removal and InstallationINFOID:0000000005147757
REMOVAL
CAUTION:
• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver air bag direct-connect harness connector is damaged, the spiral cable must be replaced.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at
least three minutes.
• When servicing the SRS, do not work from directly in front of air bag module.
1. Disconnect the negative and positive battery term inals, then wait at least three minutes.
2. Remove the left and right side bolts.
3. Lift the driver air bag module from the steering wheel.
4. Disconnect the air bag harness and horn connectors, then remove the driver air bag module. • For removal/installation of the direct-connect SRS connectors, refer to SRC-9, "
Direct-connect SRS
Component Connectors".
CAUTION:
• When servicing the SRS, do not work from directly in front of air bag module.
• Always place air bag module wi th pad side facing upward.
• Do not insert any foreign object s (screwdriver, etc.) into air
bag module or harness connectors.
• Do not disassemble air bag module.
• Do not use old bolts after removal; replace with new bolts.
• Do not expose the air bag mo dule to temperatures exceeding
90° C (194 °F).
1. Horn harness 2. Steering wheel hook3. Inflator harness
4. Side lids RH/LH 5. Driver air bag module6. Steering wheel
WHIA0159E
LHIA0052E
Revision: April 20092010 QX56

SR-6
< ON-VEHICLE REPAIR >
DRIVER AIR BAG MODULE
• Replace the air bag module if it has been dropped or sus-
tained an impact.
• Do not allow oil, grease or water to come in contact with the
air bag module.
INSTALLATION
Installation is in the reverse order of removal.
• If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer toSR-7, "
Removal and Installation".
• For removal/installation of the direct-connect SRS connectors, refer to SRC-9, "
Direct-connect SRS Compo-
nent Connectors".
• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to SRC-
13, "SRS Operation Check".
SBF814E
Revision: April 20092010 QX56

SPIRAL CABLESR-7
< ON-VEHICLE REPAIR >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
SPIRAL CABLE
Removal and InstallationINFOID:0000000005147758
REMOVAL
CAUTION:
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at
least three minutes.
• When servicing the SRS, do not work from directly in front of air bag module.
1. Disconnect both the negative and positive battery te rminals, then wait at least three minutes.
2. Remove the steering wheel. Refer to ST-18, "
Removal and Installation".
3. Remove the instrument lower panel LH. Refer to IP-14, "
Exploded View".
4. Remove the column cover upper and lower.
5. Remove wiper washer switch connector, then pinch the tabs at wiper and washer switch base and slide switch away from steer-
ing column to remove.
1. Steering wheel 2. Lighting and turn signal switch 3. Wiper and washer switch
4. Spiral cable 5. Driver air bag module connector 6. Column cover upper
7. Column assembly 8. Column cover lower9. Screw (Do not remove)
10. Screw A. Refer to ST-18, "
Removal and Instal-
lation"
AWHIA0141GB
LHIA0034E
Revision: April 20092010 QX56
