INFINITI QX56 2011 Factory Service Manual

DAS-316
< ECU DIAGNOSIS INFORMATION >[LDW & LDP]
LANE CAMERA UNIT
 If the vehicle is parked in direct sunlight under
high temperature conditions, the system may be deactivated
automatically. And the buzzer sounds and lane departure warning lamp (yellow) in the combination meter
will blinks.
 When interior temperature is reduced, the system will resume when dynamic driver assistance switch is
turned OFF and turned ON and the lane departure warning lamp (yellow) in the combination meter will stop
blinking.
DTC Inspection Priority ChartINFOID:0000000006223724
If multiple DTCs are detected simultaneously, chec k them one by one depending on the following DTC inspec-
tion priority chart.
DTC IndexINFOID:0000000006223725
× : Applicable
Priority Detected items (DTC)
1  U1000: CAN COMM CIRCUIT
 U1010: CONTROL UNIT (CAN)
2 C1A50: ADAS MALFUNCTION
3  C1B01: CAM AIMING INCMP
 C1B03: ABNRML TEMP DETECT
 U0104: ADAS CAN CIR1
 U0126: STRG SEN CAN CIR1
 U0405: ADAS CAN CIR2
 U0428: STRG SEN CAN CIR2
4 C1B00: CAMERA UNIT MALF
DTC Lane departure warning
lamp (yellow) Fail-safe Reference
C1A50 ADAS MALFUNCTION ON — DAS-381
C1B00 CAMERA UNIT MALF ON×DAS-361
C1B01 CAM AIMING INCMP ON ×DAS-363
C1B03 ABNRML TEMP DETECT Blink ×DAS-365
U0104 ADAS CAN CIR1 ON ×DAS-366
U0126 STRG SEN CAN CIR1 ON ×DAS-368
U0405 ADAS CAN CIR2 ON ×DAS-371
U0428 STRG SEN CAN CIR2 ON ×DAS-373
U1000 CAN COMM CIRCUIT ON ×DAS-374
U1010 CONTROL UNIT (CAN) ON ×DAS-376
Revision: 2010 May2011 QX56

DAS
DRIVER ASSISTANCE SYSTEMSDAS-317
< WIRING DIAGRAM > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
WIRING DIAGRAM
DRIVER ASSISTANCE SYSTEMS
Wiring DiagramINFOID:0000000006223726
JCOWM0352GB
Revision: 2010 May2011 QX56

DAS-318
< WIRING DIAGRAM >[LDW & LDP]
DRIVER ASSISTANCE SYSTEMS
JCOWM0353GB
Revision: 2010 May2011 QX56

DAS
DRIVER ASSISTANCE SYSTEMSDAS-319
< WIRING DIAGRAM > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0354GB
Revision: 2010 May2011 QX56

DAS-320
< WIRING DIAGRAM >[LDW & LDP]
DRIVER ASSISTANCE SYSTEMS
JCOWM0355GB
Revision: 2010 May2011 QX56

DAS
DRIVER ASSISTANCE SYSTEMSDAS-321
< WIRING DIAGRAM > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0356GB
Revision: 2010 May2011 QX56

DAS-322
< WIRING DIAGRAM >[LDW & LDP]
DRIVER ASSISTANCE SYSTEMS
JCOWM0357GB
Revision: 2010 May2011 QX56

DAS
DRIVER ASSISTANCE SYSTEMSDAS-323
< WIRING DIAGRAM > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0358GB
Revision: 2010 May2011 QX56

DAS-324
< WIRING DIAGRAM >[LDW & LDP]
DRIVER ASSISTANCE SYSTEMS
JCOWM0359GB
Revision: 2010 May2011 QX56

DAS
DRIVER ASSISTANCE SYSTEMSDAS-325
< WIRING DIAGRAM > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A

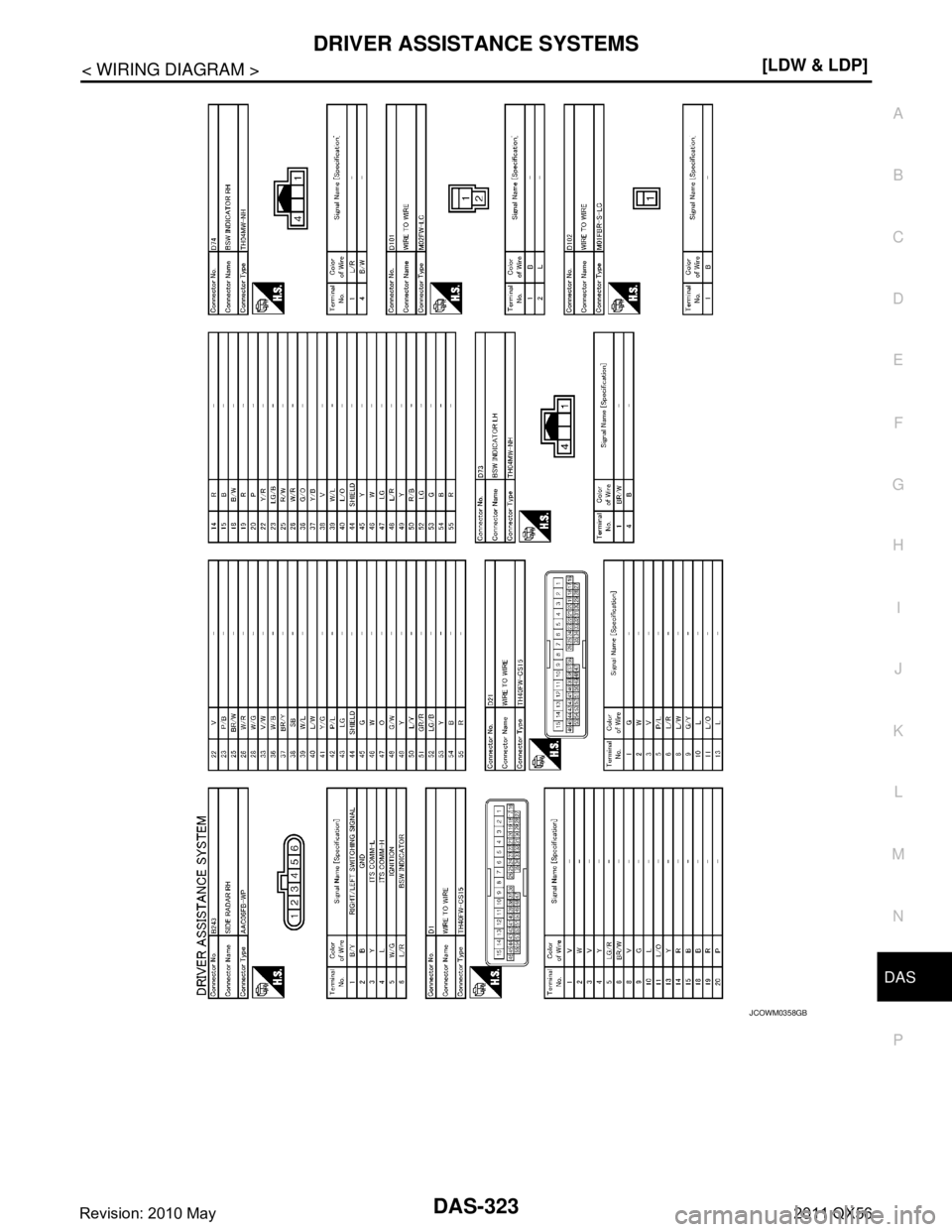

JCOWM0360GB
Revision: 2010 May2011 QX56
