WINDSHIELD GLASSGW-11
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
GW
N
O P
REMOVAL AND INSTALLATION
WINDSHIELD GLASS
Exploded ViewINFOID:0000000006220813
1. Windshield molding upper 2. Dam sealant rubber (upper, lower) 3. Windshield glass
4. Insulator 5. Clip 6. Inside mirror base
7. Rain sensor bracket 8. Wiper deicer harness connector 9. Roof assembly
10. Windshield molding upper fastener 11. Inside mirror cover 12. Headlining assembly
13. Front roof rail 14. Adhesive 15. Primer
16. Instrument panel 17. Cowl top cover 18. Front pillar finisher
19. Front pillar garnish : Clip
: Do not reuse
Unit : mm (in)
JMKIA5205GB
Revision: 2010 May2011 QX56

GW-12
< REMOVAL AND INSTALLATION >
WINDSHIELD GLASS
Removal and Installation
INFOID:0000000006220814
REMOVAL
1. Remove front pillar garnish (LH and RH). Refer to INT-14, "Removal and Installation".
2. Remove partially headlining (front edge). Refer to INT-29, "
Removal and Installation".
3. Disconnect inside mirror harness connector.
4. Remove rain sensor cover and then disconnect rain sensor harness connector. Refer to WW-72,
"Removal and Installation".
5. Remove drip molding. Refer to EXT-43, "
Removal and Installation".
6. Remove windshield molding upper using pliers. Refer to GW-11, "
Exploded View".
7. Remove front wiper arm (LH and RH). Refer to WW-66, "
Removal and Installation".
8. Remove cowl top cover. Refer to EXT-21, "
Removal and Installation".
9. Remove front fender cover (LH and RH). Refer to EXT-21, "
Exploded View".
10. Disconnect wiper deicer harness connector (with wiper deicer).
11. Remove front pillar finisher (LH and RH). Refer to EXT-40, "
Removal and Installation".
12. Apply protective tape around the windshield glas s to protect the painted surface from damage.
13. Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).
NOTE:
Mark the body and the glass with matching ma rks if the windshield glass is reused.
WARNING:
Always wear safety glasses and heavy gloves to prevent injury.
CAUTION:
 Never use a cutting knife or power cutting tool when the windshield glass is reused.
 Be careful not to scratch the glass when removing.
 Never set or stand the glass on its edge. Small chips may develop into cracks.
INSTALLATION
 The dam sealant rubber and insulator should be installed in position.
 Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro- vided with it.
 Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by
passenger room air pressure when all door windows are closed.
 The molding must be installed securely so that it is in position and leaves no clearance.
 Inform the customer that the vehicle should rema in stationary until the urethane adhesive has completely
cured (approximately 24 hours). Curing time varies with temperature and humidity.
WARNING:
 Keep heat and open flames away as primers and adhesive are flammable.
 The materials contained in the ki t are harmful if swallowed, and may irritate skin and eyes. Never let
them come in contact with the skin and eyes.
 Use in an open, well ventilated location. Never br eathe the vapors. They may be harmful if inhaled.
Move immediately to an area with fresh air if affected by vapor inhalation.
 Driving the vehicle before the urethane adhesive has completely cured may affect the performance
of the windshield in case of an accident.
CAUTION:
 Perform adjustment of front wiper arms stop location. Refer to WW-66, "
Adjustment".
PIIB5779E
Revision: 2010 May2011 QX56

FRONT DOOR GLASSGW-19
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
GW
N
O P
FRONT DOOR GLASS
Exploded ViewINFOID:0000000006220822
Removal and InstallationINFOID:0000000006220823
REMOVAL
1. Remove front door finisher. Refer to INT-14, "Removal and Installation".
2. Disconnect door mirror harness connector and remove the fixing clip.
3. Remove front door inside seal.
4. Remove front door pull handle bracket.
5. Remove front door speaker. Refer to AV-216, "
Removal and Installation".
6. Remove front door speaker bracket from front door panel.
7. Remove front door speaker harness from front door speaker bracket.
8. Remove front door glass sealing screen with a cutter tool. NOTE:
Cute the butyl-tape so that some parts of the butyl-t ape do not remain on the sealing screen, if the sealing
screen is reused.
9. Reconnect front power window main switch, and then operate the power window main switch to raise or lower front door glass until the mounting bolts can be seen.
10. Remove front door glass mounting bolts.
11. Hold securely front door glass and pull it out of the sa sh to remove the front door glass from inside or out-
side front door panel.
12. Remove front door glass run.
1. Front door panel 2. Front door glass run 3. Front door glass
4. Front door regulator 5. Front door power window motor 6. Front door pull handle bracket
7. Front door sealing screen 8. Front door lower sash 9. Grommet
10. Front door inside seal 11. Power window controller
JMKIA5208ZZ
Revision: 2010 May2011 QX56

REFRIGERANTHA-19
< BASIC INSPECTION >
C
DE
F
G H
J
K L
M A
B
HA
N
O P
Never look directly into UV lamp light source.
NOTE:
 For continuous operating time of UV lamp, fo llow the manufacturer operating instructions.
 Illuminate piping joints from different angles us ing UV lamp and check that there is no leakage.
 Use a mirror in area that is difficult to see to check refrigerant leakage.
 Refrigerant leakage from evaporator can be detected by soaking cotton swab or a similar material with
drain hose water and illuminating it using UV lamp.
 Dust, dirt, and packing materials adhesive used for condenser, evaporator, and other locations may flu- oresce. Be careful not to misidentify leakage.
5. Repair or replace parts where refrigerant leak age occurs and wipe off fluorescent leak detection dye.
NOTE:
Completely wipe off fluorescent leak detection dy e from gaps between parts, screw threads, and others
using a cotton swab or similar materials.
6. Use a UV lamp to check that no fluorescent leak detection dye remains after finishing work. WARNING:
Never look directly into UV lamp light source.
NOTE:
 For continuous operating time of UV lamp, fo llow the manufacturer operating instructions.
 Dust, dirt, and packing materials adhesive used for condenser, evaporator, and other locations may flu-
oresce. Be careful not to misidentify leakage.
CHECK REFRIGERANT LEAKAGE USIN G ELECTRICAL LEAK DETECTOR
WARNING:
Never check refrigerant leakage while the engine is running.
CAUTION:
Be careful of the following items so that in accurate checks or misidentifications are avoided.
 Never allow refrigerant vapor, shop chemical vapors, cigarette smoke, or others around the vehicle.
 Always check refrigerant leakage in a low air flow environment so that refrigerant may not disperse
when leakage occurs.
1. Stop the engine.
2. Connect recovery/recycling/recharging equipment or manifold gauge set to A/C service valve.
3. Check that A/C refrigerant pressure is 345 kPa (3.52 kg/cm
2, 50 psi) or more when temperature is 16 °C
(61 °F) or more. When pressure is lower than the spec ified value, recycle refrigerant completely and fill
refrigerant to the specified level.
NOTE:
Leakages may not be detected if A/C refri gerant pressure is 345 kPa (3.52 kg/cm
2, 50 psi) or less when
temperature is less than 16 °C (61 °F).
4. Clean area where refrigerant leakage check is per formed, and check refrigerant leakage along all sur-
faces of pipe connections and A/C system com ponents using electrical leak detector probe.
CAUTION:
 Continue checking when a leakage is found. Always continue and complete checking along all
pipe connections and A/C system co mponents for additional leakage.
 When a leakage is detected, clean leakage area using compressed air and check again.
 When checking leakage of cooling unit inside, al ways clean inside of drain hose so that the
probe surface may not be exposed to water or dirt.
NOTE:
 Always check leakage starting from high-pressure side and continue to low-pressure side.
 When checking leakage of cooling unit inside, operate blower fan motor for 15 minutes or more at the maximum fan speed while the engine is stopped, and then insert electrical leak detector probe into drain
hose and hold for 10 minutes or more.
 When disconnecting shut-off valve that is connected to A/C service valve, always evacuate remaining
refrigerant so that misidentification can be avoided.
5. Repair or replace parts where refrigerant leak age is detected. (Leakage is detected but leakage area is
unknown. GO TO 6.)
6. Start the engine and set A/C control in the following conditions.  A/C switch ON
 Air flow: VENT (ventilation)
 Intake door position: Recirculation
Revision: 2010 May2011 QX56

INL-2
LUGGAGE ROOM LAMP CIRCUIT ..................60
Description ........................................................... ...60
Diagnosis Procedure ..............................................60
STEP LAMP CIRCUIT .......................................62
Description ........................................................... ...62
Component Function Check ...................................62
Diagnosis Procedure ..............................................62
PUDDLE LAMP CIRCUIT ..................................64
Description ........................................................... ...64
Diagnosis Procedure ..............................................64
PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT ..............................................
65
Component Function Check ................................ ...65
Diagnosis Procedure ..............................................65
SYMPTOM DIAGNOSIS .............................67
INTERIOR LIGHTING SYSTEM SYMPTOMS ...67
Symptom Table ................................................... ...67
REMOVAL AND INSTALLATION ...............68
MAP LAMP ..................................................... ...68
Exploded View ..................................................... ...68
Removal and Installation ........................................68
Replacement ..........................................................68
VANITY MIRROR LAMP ...................................69
Exploded View ..................................................... ...69
Replacement ..........................................................69
GLOVE BOX LAMP ...........................................70
Exploded View ..................................................... ...70
Replacement ..........................................................70
FOOT LAMP ......................................................71
DRIVER SIDE ......................................................... ...71
DRIVER SIDE : Exploded View ..............................71
DRIVER SIDE : Replacement ................................71
PASSENGER SIDE ...................................................71
PASSENGER SIDE : Exploded View .....................71
PASSENGER SIDE : Replac ement ........................72
REAR FOOT LAMP ................................................ ...72
REAR FOOT LAMP : Exploded View .....................72
REAR FOOT LAMP : Removal and Installation ......72
STEP LAMP .......................................................74
Exploded View ..................................................... ...74
Removal and Installation .........................................74
Replacement ...........................................................74
MOOD LAMP .....................................................75
FRONT DOOR ARMREST ..................................... ...75
FRONT DOOR ARMREST : Exploded View ..........75
FRONT DOOR ARMREST : Replacement .............75
REAR DOOR ARMREST ....................................... ...75
REAR DOOR ARMREST : Exploded View .............75
REAR DOOR ARMREST : Replacement ...............76
PERSONAL LAMP ............................................77
Exploded View ..................................................... ...77
Removal and Installation .........................................77
Replacement ...........................................................78
PUDDLE LAMP .............................................. ...79
Exploded View ..................................................... ...79
Removal and Installation .........................................79
LUGGAGE ROOM LAMP ..................................81
Exploded View ..................................................... ...81
Removal and Installation .........................................81
Replacement ...........................................................81
SERVICE DATA AND SPECIFICATIONS
(SDS) .......... ................................................
82
SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................. ...
82
Bulb Specifications ............................................... ...82
Revision: 2010 May2011 QX56

INL-4
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000006216048
Component DescriptionINFOID:0000000006216049
1. BCMRefer to BCS-4, "
BODY CONTROL
SYSTEM : Componen t Parts Loca-
tion"
2. Personal lamp 3. Luggage room lamp
4. Remote keyless entry receiver Refer to DLK-11, "
DOOR LOCK
SYSTEM :
ComponentPartsLocation"
5. Back door lock assembly
(back door switch) 6. Automatic back door close switch
7. Door request switch 8. Door switch 9. Step lamp
10. Paddle lamp 11. Optical sensor 12. IPDM E/R Refer to PCS-4, "
Component Parts
Location"
13. Vanity mirror lamp 14. Combination meter 15. Combination switch
16. Front door lock assembly (driver
side) (door key cylinder switch, un-
lock sensor) 17. Door lock and unlock switch 18. Foot lamp
19. Push-button ignition switch 20. AV control unit Refer to AV- 9 , "
Component Parts Lo-
cation"
21. Map lamp
JMLIA0837ZZ
Part Description
BCM Controls the interior lighting system.
IPDM E/R Controls the integrated relay according to the request signal from BCM (via CAN com-
munication).
Remote keyless entry receiver Refer to DLK-12, "
DOOR LOCK SYSTEM : ComponentDescription".
AV control uni Receives the dimmer signal from BCM via CAN communication.
Optical sensor Refer to EXL-7, "
EXTERIOR LIGHTING SYSTEM : ComponentDescription".
Unlock sensor Detects door lock condition of driver side door.
Revision: 2010 May2011 QX56

SYSTEMINL-9
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

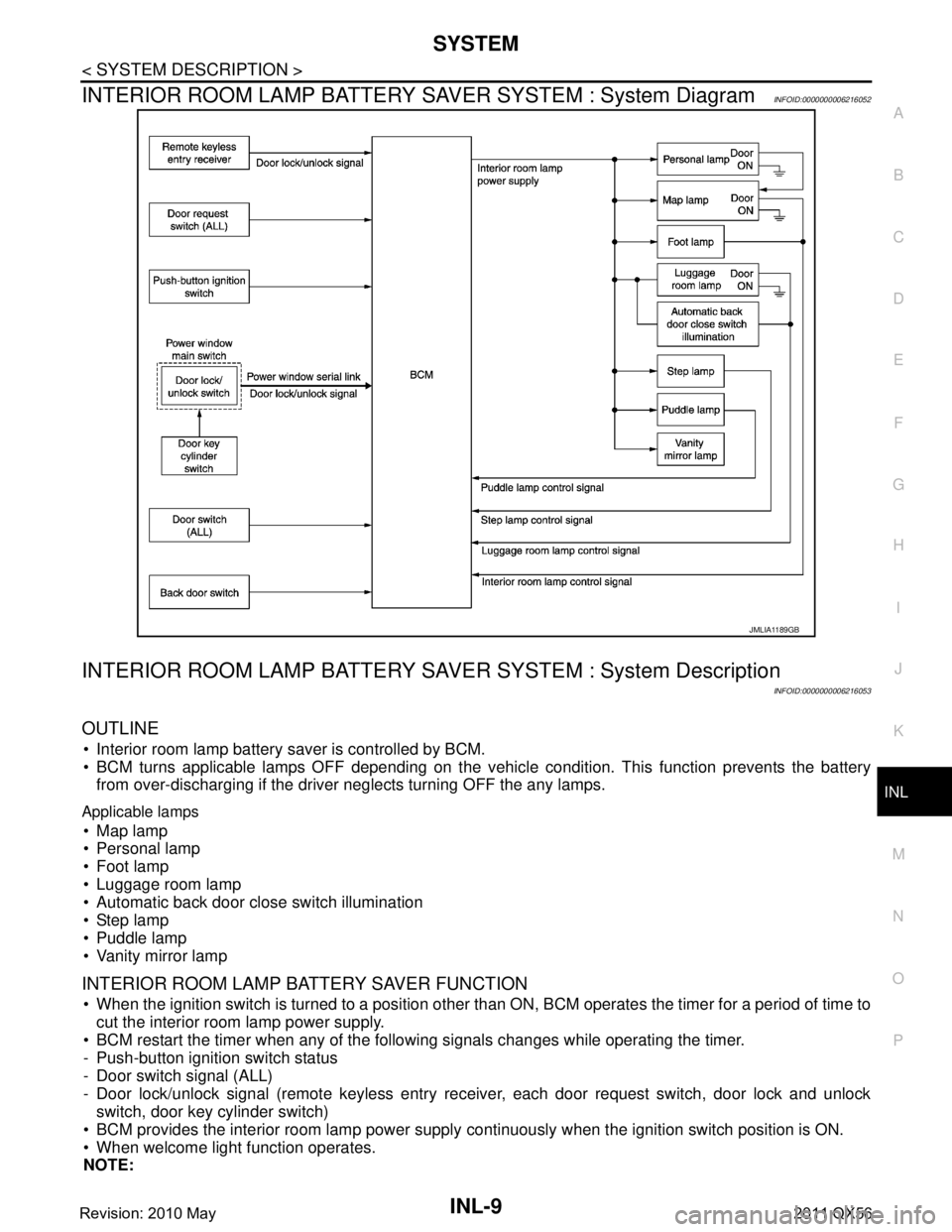

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM : System DiagramINFOID:0000000006216052
INTERIOR ROOM LAMP BATTERY SA VER SYSTEM : System Description
INFOID:0000000006216053
OUTLINE
 Interior room lamp battery saver is controlled by BCM.
 BCM turns applicable lamps OFF depending on the vehicle condition. This function prevents the battery
from over-discharging if the driver neglects turning OFF the any lamps.
Applicable lamps
 Map lamp
 Personal lamp
 Foot lamp
 Luggage room lamp
 Automatic back door close switch illumination
 Step lamp
 Puddle lamp
 Vanity mirror lamp
INTERIOR ROOM LAMP BATTERY SAVER FUNCTION
 When the ignition switch is turned to a position other than ON, BCM operates the timer for a period of time to
cut the interior room lamp power supply.
 BCM restart the timer when any of the following signals changes while operating the timer.
- Push-button ignition switch status
- Door switch signal (ALL)
- Door lock/unlock signal (remote keyless entry re ceiver, each door request switch, door lock and unlock
switch, door key cylinder switch)
 BCM provides the interior room lamp power supply continuously when the ignition switch position is ON.
 When welcome light function operates.
NOTE:
JMLIA1189GB
Revision: 2010 May2011 QX56

INL-56
< DTC/CIRCUIT DIAGNOSIS >
INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT
DTC/CIRCUIT DIAGNOSIS
INTERIOR ROOM LAMP PO WER SUPPLY CIRCUIT
DescriptionINFOID:0000000006216065
Provides the interior room lamp power supply. Also cu ts the power supply when the interior room lamp battery
saver activating.
Component Function CheckINFOID:0000000006216066
1.CHECK INTERIOR ROOM LAMP POWER SUPPLY FUNCTION
CONSULT-III ACTIVE TEST
1. Turn ignition switch ON.
2. Turn each interior room lamp ON.
- Personal lamp
- Map lamp
- Foot lamp
- Luggage room lamp
- Automatic back door close switch illumination
- Step lamp
- Puddle lamp
- Vanity mirror lamp
3. Select “BATTERY SAVER” of BCM (BATTERY SAVER) active test item.
4. With operating the test items, check t hat each interior room lamp turns ON/OFF.
Does the interior room lamp turn ON/OFF?
YES >> Interior room lamp power supply circuit is normal.
NO >> Refer to INL-56, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000006216067
1.CHECK INTERIOR ROOM LAMP POWER SUPPLY OUTPUT
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Disconnect the following connectors.
- Personal lamp
- Map lamp
- Foot lamp (both sides)
- Luggage room lamp
- Automatic back door close switch illumination
- Step lamp (ALL)
- Puddle lamp (both sides)
- Vanity mirror lamp (both sides)
3. Turn ignition switch ON.
4. Select “BATTERY SAVER” of BCM (BATTERY SAVER) active test item.
5. With operating the test item, check voltage between BCM harness connector and ground.
Is the inspection result normal?
Off : Interior room lamp OFF
On : Interior room lamp ON
BCM (–) Test item Vo l ta g e
(Approx.)
(+)
Connector Terminal
M70 56 Ground BATTERY SAVER Off 0 V
On 12 V
Revision: 2010 May2011 QX56

INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT
INL-57
< DTC/CIRCUIT DIAGNOSIS >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK INTERIOR ROOM LAMP POWER SUPPLY OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the BCM connector.
3. Check continuity between BCM harness connector and each interior room lamp harness connector.
Is the inspection result normal?
YES >> Check for internal short circuit of each interior room lamp.
NO >> Repair or replace harnesses.
3.CHECK INTERIOR ROOM LAMP POWER SUPPLY SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the BCM connector.
3. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-81, "Removal and Installation".
NO >> Repair or replace harnesses.
BCM Each interior room lamp Continuity
Connector Terminal Connector Terminal
M70 56 Personal lamp R21 3
Existed
Map lamp R18 8
Foot lamp
(driver side)
M89 1
Foot lamp
(passenger side) M90 2
Luggage room lamp B11 2
Automatic back door close switch D158 3
Ste p l am p
(driver side) D8 1
Ste p l am p
(passenger side) D29 1
Ste p l am p
(Rear LH) D66 1
Ste p l am p
(Rear RH) D46 1
Puddle lamp
(driver side) D3 2
Puddle lamp
(passenger side) D23 2
Vanity mirror lamp (driver side) R12 2
Vanity mirror la mp (passenger
side) R13 2
Foot lamp
(Rear LH) B479 65
Foot lamp
(Rear RH) B480 65
BCM
GroundContinuity
Connector Terminal
M70 56 Not existed
Revision: 2010 May2011 QX56

INTERIOR LIGHTING SYSTEM SYMPTOMSINL-67
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
SYMPTOM DIAGNOSIS
INTERIOR LIGHTING SYSTEM SYMPTOMS
Symptom TableINFOID:0000000006216080
CAUTION:
Perform the self-diagnosis with CONS ULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.
Symptom Possible cause Inspection item
All the following lamps do not turn ON.
Map lamp
Personal lamp
 Vanity mirror lamp
Foot lamp
Step lamp
 Puddle lamp
 Luggage room lamp
 Automatic back door close switch illumination  Harness between BCM and each
interior room lamp
BCM Interior room lamp
power supply cir-
cuit
Refer to INL-56, "
Component Func-
tion Check".
 Interior room lamp does not turn ON even though the door is open.
(It turns ON when turning the interior room
lamp ON.)
 Interior room lamp does not turn OFF even
though the door is closed.  Harness between BCM and each
door switch
 Harness between BCM and each
interior room lamp
BCM Door switch circuit
Refer to
DLK-117,
"ComponentFunctionCheck".
Interior room lamp control circuit
Refer to INL-58, "
Component Func-
tion Check".
Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.) —Check the interior room lamp setting.
Refer to
INL-14
.
 Puddle lamp does not turn ON even though the door is open.
 Puddle lamp does not turn OFF even though the door is closed.  Harness between BCM and each
door switch
 Harness between BCM and puddle lamp
BCM Door switch circuit
Refer to
DLK-117,
"ComponentFunctionCheck".
Puddle lamp circuit
Refer to INL-64, "
Diagnosis Proce-
dure".
 Luggage room lamp or automatic back door close switch illumination does not turn ON even
though the back door is open.
(It turns ON when turning the luggage room
lamp ON.)
 Luggage room lamp or automatic back door
close switch illumination does not turn OFF
even though the back door is closed.  Harness between BCM and back
door switch
 Harness between BCM and lug- gage room lamp
 Harness between BCM and auto- matic back door close switch
BCM Back door switch circuit
Refer to
DLK-120,
"ComponentFunctionCheck".
Luggage room lamp circuit
Refer to INL-60, "
Diagnosis Proce-
dure".
 Step lamps (ALL) do not turn ON.
 Step lamps (ALL) do not turn OFF.  Harness between BCM and each
step lamp
BCM Door switch circuit
Refer to
DLK-117,
"ComponentFunctionCheck".
Step lamp circuit
Refer to INL-62
.
Push-button ignition switch illumination does not
illuminate.  Harness between BCM and push-
button ignition switch
BCM Push-button ignition switch illumina-
tion circuit
Refer to
INL-65, "
Component Func-
tion Check".
Interior room lamp battery saver does not acti-
vate. BCMReplace BCM.
Refer to
BCS-81, "
Removal and In-
stallation".
Revision: 2010 May2011 QX56
