ISUZU AXIOM 2002 Service Repair Manual

6D3±19
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
Installation
1. Install generator assembly to the position.
2. Install generator assembly and tighten the fixing bolts
to the specified torque.
Torque:
M10 bolt: 41 N´m (30 Ib ft)
M8 bolt: 21 N´m (15 Ib ft)
3. Connect wiring harness connector and direct terminal
ªBº.4. Move drive belt tensioner to loose side using wrench,
then install drive belt to normal position.
5. Reconnect battery ground cable.
Disassembled View
066RW022
Legend
(1) Pulley Nut
(2) Pulley
(3) Front Cover Assembly
(4) Rotor Assembly
(5) Stator Assembly
(6) Through Bolt(7) Nut
(8) Terminal Insulator
(9) Rear Cover Assembly
(10) Rectifier
(11) Brush Holder Assembly
(12) Regulator Assembly

6D3±20
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
Disassembly
1. Remove the through bolt.
Insert the tip of a pry bar into the gaps between the
front cover and the stator core.
Pry apart and separate the front cover, rotor, the rear
cover and stator.
NOTE: Take care not to scratch or otherwise damage the
stator coil with pry bar.
F06RT021
2. Clamp the rotor in a vise and then remove the nut and
pulley.
3. Remove the rotor assembly from the front cover.
F06RT022
4. Remove the screws with bearing retainer from front
cover and remove bearing.
F06RT023
5. Remove the mounting nuts holding the ªBº terminal,
the diode, and the brush holder.
6. Separate the rear cover from the stator.
F06RT024

6D3±21
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
7. Remove bolts which secure stator terminal to rectifier
terminal, and remove stator.
066RS030
8. Remove Bolts which secure regulator, rectifier and
brush-holder, and separate these parts.
NOTE: Do not apply a shock or load to regulator, rectifier
and brush holder.
066RW025
Inspection and Repair
Repair or replace necessary parts if extreme wear or
damage is found during inspection.
Rotor Assembly
1. Check the face of the slip rings for contamination and
roughness. If found to be scored, dress with a fine
sandpaper (#500 ±600). If found to be contaminated,
clean with a cloth saturated with alcohol.
2. Measure the outside diameter of the slip rings.
Standard: 27mm (1.06in)
Limit: 26mm (1.02in)
066RS032
3. Check resistance between slip rings, and replace if
there is no continuity.
Standard: 3.75
or less
066RS033

6D3±22
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
4. Check for continuity between slip ring and rotor core.
In case of continuity, replace the rotor assembly.
066RS017
Stator Coil
1. Check for continuity across the stator coils. If no
continuity exists, replace the coils.
Resistance value at 20
C.
Standard: Approx. 0.07

066RS034
2. Check for continuity across one of the stator coils and
stator core. If a continuity exists, replace the coil.
Standard: More than 1M

066RS035
Brush
Measure the brush length.
Replace the brush if it exceeds the limit.
Standard: 18.0mm (0.709in)
Limit: 5.5mm (0.217in)
066RW024

6D3±23
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
Rectifier Assembly
1. Measure the resistance between each diode terminal
and aluminum diode fin in forward and reverse
directions with the connection of the tester leads
switched. The diodes are normal if resistance is
nearly zero ohms in one direction and is infinitely high
in the other direction.
2. If a diode has no resistance or equal resistance in
both directions, it is defective and should be replaced
together with the holder.
066RS036
IC Regulator Assembly
Connect a variable resistor, two 12V batteries, a fixed
resistor, and a voltmeter to the IC regulator as shown in
illustration.
a. Measuring equipment specifications
1. Fixed resistor (R1) : 10 Ohms /3W
2. Variable resistor (Rv) : 0-300 Ohms/12W
3. Batteries (BAT1, BAT2) : 12V (2 Batteries)
4. DC voltmeter : 0-50V/0.5 steps (4 Check points)
b. Measuring procedure
1. Measure the voltage ªV1º across the first battery
(BAT1). If the reading is between 10 and 13 volts,
the battery is normal.
2. Measure the voltage ªV3º across both the batteries
(BAT1, BAT2). If the reading is between 20 and 26
bolts, the batteries are normal.
3. Gradually increase the resistance of the variable
resistor from zero. Measure the voltage ªV2º (the
voltage across the F and E terminals).
Check to see that the voltage across ªV1º changes at
this time. If there is no change, the voltage regulator
is faulty and must be replaced.4. Measure the voltage at ªV4º (the voltage across the
variable resistor center tap and terminal E with the
variable resistor resistance held constant). The
measured voltage should be within the specified
(14.4+0.3 volts) limits. If it is not, the regulator must
be replaced.
066RX003
Reassembly
To reassemble, follow the disassembly steps in the
reverse order, noting the following points:
NOTE:

Never make battery connections with polarities
reversed, or battery will be shorted via the diodes.
This will cause damage to the diodes.

Do not connect generator B terminal to ground; it is
connected directly to the battery.
This cable will burn if it is connected to ground.

Make sure to disconnect the positive (+) terminal of
the battery when quick-charging battery .
Diodes may be damaged due to abnormal pulse
voltage generated by the quick charger.

When reassembling the front section to rear section,
insert a stiff wire into hole in the rear face of the rear
cover from the outboard side to support the brush in
raised position, then insert the front section to which
rotor is assembled.

Reassemble parts carefully to be sure they fit into
their original position, paying attention to the
insulated portions.

Wipe insulating tubes, washers and plates clean and
install them in position carefully to avoid getting oil or
grease on them.

6D3±24
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
1. Using a press with a socket wrench attached,
reassemble rotor and rear end cover assembly in the
front cover.
066RS022
2. Install pulley on the rotor.
Secure the pulley directly in the vise between two
copper plates, and tighten nut to the specified torque.
Torque: 111 N´m (82 lb ft)
066RS010
Bench Test
Conduct a bench test of the generator.
066RS023
Preparation
Remove generator from the vehicle (see ªGenerator
removalº).
1. Secure generator to the bench test equipment and
connect wires.
Terminal ªIGº for energization
Terminal ªLº for neutral (warning lamp)
Terminal ªBº for output
2. Conduct the generator characteristic test.
Characteristics of generator are shown in illustration.
Repair or replace the generator if its outputs are
abnormal.
066RX001

6D3±25
STARTING AND CHARGING SYSTEM (6VE1 3.5L)

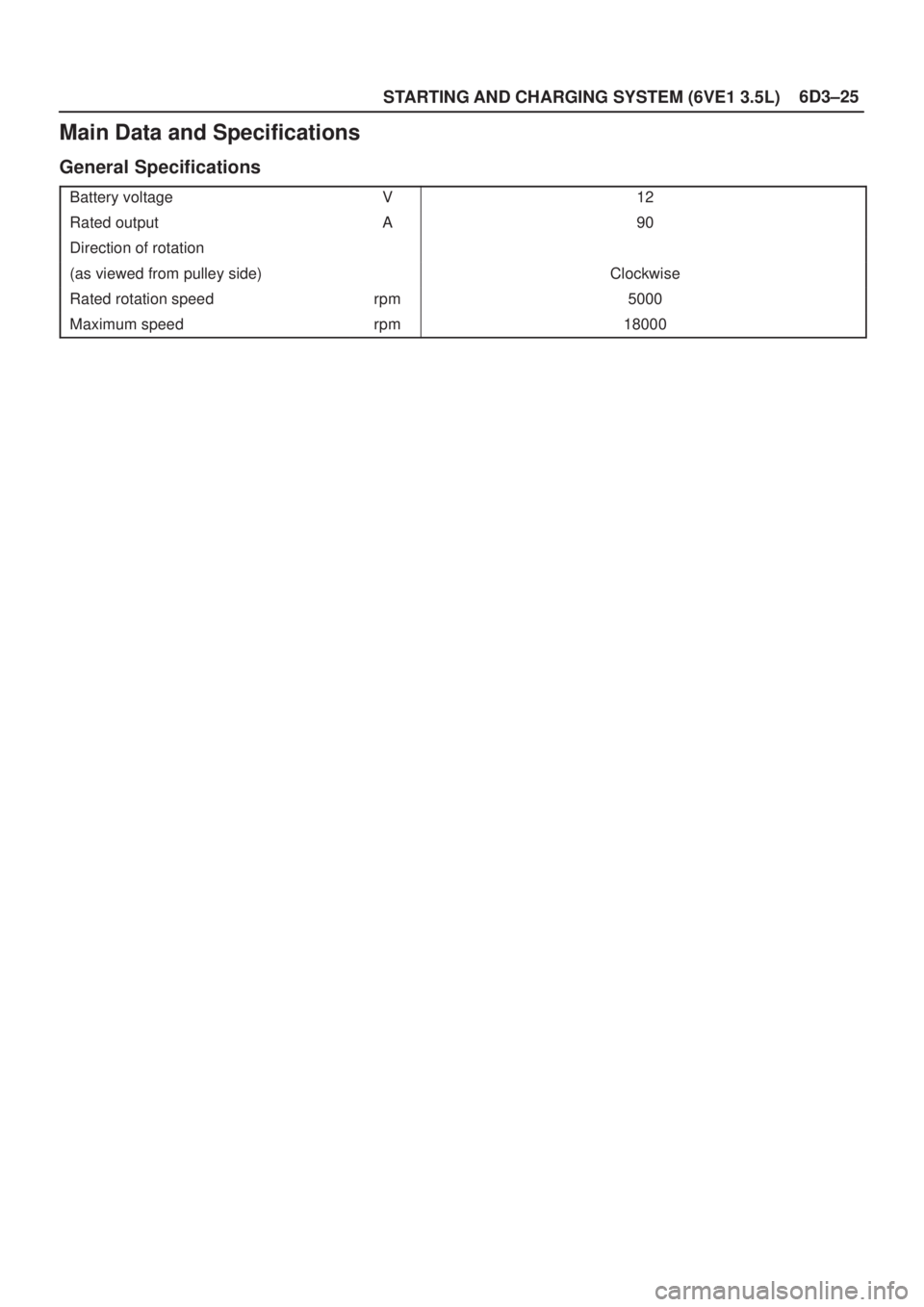

Main Data and Specifications
General Specifications
Battery voltageV12
Rated outputA90
Direction of rotation
(as viewed from pulley side)Clockwise
Rated rotation speedrpm 5000
Maximum speedrpm18000

6E±1
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
AXIOM
ENGINE
6VE1 3.5L ENGINE
DRIVEABILITY AND EMISSIONS
CONTENTS
Specifications 6E±6. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E±6. . . . . . . . . . . . . . .
Diagrams and Schematics 6E±7. . . . . . . . . . . . . . . .
PCM Wiring Diagram (1 of 7) 6E±7. . . . . . . . . . . .
PCM Wiring Diagram (2 of 7) 6E±8. . . . . . . . . . . .
PCM Wiring Diagram (3 of 7) 6E±9. . . . . . . . . . . .
PCM Wiring Diagram (4 of 7) 6E±10. . . . . . . . . . . .
PCM Wiring Diagram (5 of 7) 6E±11. . . . . . . . . . . .
PCM Wiring Diagram (6 of 7) 6E±12. . . . . . . . . . . .
PCM Wiring Diagram (7 of 7) 6E±13. . . . . . . . . . . .
PCM Pinouts 6E±14. . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Blue Connector
± Row ªF1 ~ 20º 6E±14. . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Blue Connector
± Row ªF20 ~ 40º 6E±15. . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Blue Connector
± Row ªF41 ~ 60º 6E±16. . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Blue Connector
± Row ªF61 ~ 80º 6E±17. . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Red Connector
± Row ªS1 ~ 20º 6E±19. . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Red Connector
± Row ªS21 ~ 40º 6E±21. . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Red Connector
± Row ªS41 ~ 60º 6E±23. . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 80-Way Red Connector
± Row ªS61 ~ 80º 6E±25. . . . . . . . . . . . . . . . . . . . .
Component Locators 6E±27. . . . . . . . . . . . . . . . . . .
Undercarriage Component Locator 6E±29. . . . . .
Fuse and Relay Panel (Underhood
Electrical Center) 6E±30. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E±31. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis 6E±33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±33. . . . . . . . . . . . .
DTC Stored 6E±33. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E±33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E±33. . . . . . . . . . . . . . . . .
Intermittents 6E±33. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E±33. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±33. . . . . . . . . . . . . . . .
General Service Information 6E±33. . . . . . . . . . . . . .
OBD II Serviceablity Issues 6E±33. . . . . . . . . . . . .
Emissions Control Information Label 6E±34. . . . .
Visual / Physical Engine Compartment
Inspection 6E±34. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E±35. . . . . .
Serial Data Communications 6E±35. . . . . . . . . . . . . . Class 2 Serial Data Communications 6E±35. . . . .
On-Board Diagnostic (OBD II) 6E±35. . . . . . . . . . . . .
On-Board Diagnostic Tests 6E±35. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E±35. . . . . . . . . . . . . . . . . .
System Status and Drive Cycle for
Satisfying Federal Inspection/Maintenance
(I/M 240) Regulations 6E±36. . . . . . . . . . . . . . . . . .
Common OBD II Terms 6E±36. . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E±36. . . . . . . . . . . . . . .
DTC Types 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . .
Decimal/Binary/Hexadecimal Conversions 6E±39
Verifying Vehicle Repair 6E±39. . . . . . . . . . . . . . . .
Reading Diagnostic Trouble Codes Using
The Tech 2 Scan Tool 6E±39. . . . . . . . . . . . . . . . .
Tech 2 6E±40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Features 6E±41. . . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E±41. . . . . . . . . . . . . . . . . . . . . . . .
Operating Procedure (For Example) 6E±42. . . . .
DTC Modes 6E±43. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E±43. . . . . . . . . . . . . . . . .
Miscellaneous Test 6E±44. . . . . . . . . . . . . . . . . . . .
Lamps Test 6E±44. . . . . . . . . . . . . . . . . . . . . . . . . . .
Relays Test 6E±46. . . . . . . . . . . . . . . . . . . . . . . . . . .
EVAP Test 6E±47. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel System Test 6E±48. . . . . . . . . . . . . . . . . . . . . .
Instruments Test 6E±50. . . . . . . . . . . . . . . . . . . . . . .
EGR Control Test 6E±52. . . . . . . . . . . . . . . . . . . . . .
Variable Intake Manifold Solenoid Test 6E±52. . .
Injector Balance Test 6E±54. . . . . . . . . . . . . . . . . . .
Plotting Snapshot Graph 6E±54. . . . . . . . . . . . . . . . .
Plotting Graph Flow Chart (Plotting graph
after obtaining vehicle information) 6E±55. . . . . .
Flow Chart for Snapshot Replay (Plotting
Graph) 6E±56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Primary System-Based Diagnostic 6E±57. . . . . . . . .
Primary System-Based Diagnostic 6E±57. . . . . . .
Fuel Control Heated Oxygen Sensor 6E±57. . . . .
HO2S Heater 6E±57. . . . . . . . . . . . . . . . . . . . . . . . .
Catalyst Monitor Heated Oxygen Sensors
and Diagnostic Operation 6E±57. . . . . . . . . . . . . .
Misfire Monitor Diagnostic Operation 6E±58. . . . . . .
Misfire Monitor Diagnostic Operation 6E±58. . . . .
Misfire Counters 6E±58. . . . . . . . . . . . . . . . . . . . . . .

6E±2
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Fuel Trim System Monitor Diagnostic
Operation 6E±59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Trim System Monitor Diagnostic
Operation 6E±59. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Trim Cell Diagnostic Weights 6E±59. . . . . . .
On-Board Diagnostic (OBD II) System Check 6E±60
Circuit Description 6E±60. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±60. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±60. . . . . . . . . . . . . . . . . . . . . . .
A/C Clutch Control Circuit Diagnosis 6E±63. . . . . . .
Circuit Description 6E±63. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±63. . . . . . . . . . . . . . . . . . . . . . . .
A/C Clutch Diagnosis 6E±64. . . . . . . . . . . . . . . . . .
Electronic Ignition System Diagnosis 6E±68. . . . . . .
EVAP Canister Purge Solenoid and EVAP
Vent Solenoid Valve 6E±68. . . . . . . . . . . . . . . . . . . . .
Visual Check of The Evaporative Emission
Canister 6E±68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Metering System Check 6E±68. . . . . . . . . . . . .
Fuel System Pressure Test 6E±68. . . . . . . . . . . . . . .
Fuel Injector Coil Test Procedure and Fuel
Injector Balance Test Procedure 6E±68. . . . . . . . . .
Test Description 6E±68. . . . . . . . . . . . . . . . . . . . . . .
Injector Coil Test Procedure (Steps 1-6)
and Injector Balance Test Procedure
(Steps 7-11) 6E±69. . . . . . . . . . . . . . . . . . . . . . . . . .
Powertrain Control Module (PCM) Diagnosis 6E±73
Multiple PCM Information Sensor DTCs Set 6E±73
Circuit Description 6E±73. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±73. . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) Diagnosis 6E±76
Engine Tech 2 Data Definitions and Ranges 6E±76
Typical Scan Data Values 6E±78. . . . . . . . . . . . . . . .
Test Conditions 6E±78. . . . . . . . . . . . . . . . . . . . . . . .
No Malfunction Indicator Lamp (MIL) 6E±84. . . . . . .
Circuit Description 6E±84. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±84. . . . . . . . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) ªONº
Steady 6E±87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit description 6E±87. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±87. . . . . . . . . . . . . . . . . . . . . . . .
No Reduced Power Lamp (RPL) 6E±89. . . . . . . . . .
Circuit Description 6E±89. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±89. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±89. . . . . . . . . . . . . . . . . . . . . . .
Reduced Power Lamp (RPL) ªONº Steady 6E±93. .
Circuit Description 6E±93. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±93. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±93. . . . . . . . . . . . . . . . . . . . . . .
Starter Control System Check 6E±96. . . . . . . . . . . . .
Circuit Description 6E±96. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±96. . . . . . . . . . . . . . . . . . . . . . . .
Engine Cranks But Will Not Run 6E±100. . . . . . . . . . .
Circuit Description 6E±102. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±102. . . . . . . . . . . . . . . . . . . . . . . . Test Description 6E±102. . . . . . . . . . . . . . . . . . . . . . .
Fuel System Electrical Test 6E±107. . . . . . . . . . . . . . .
Circuit Description 6E±108. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±108. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±108. . . . . . . . . . . . . . . . . . . . . . .
Fuel Pressure Relief Procedure 6E±108. . . . . . . . .
Electric Throttle Control (ETC) System
Check 6E±111. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±112. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±112. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±112. . . . . . . . . . . . . . . . . . . . . . .
Fuel System Diagnosis 6E±115. . . . . . . . . . . . . . . . . . .
Circuit Description 6E±116. . . . . . . . . . . . . . . . . . . . .
Test Description 6E±116. . . . . . . . . . . . . . . . . . . . . . .
Fuel Pressure Relief Procedure 6E±117. . . . . . . . .
Exhaust Gas Recirculation (EGR) System
Check 6E±120. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±120. . . . . . . . . . . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Output
Check 6E±122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±122. . . . . . . . . . . . . . . . . . . . .
Evaporative (EVAP) Emissions Canister
Purge Valve Check 6E±124. . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±124. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±124. . . . . . . . . . . . . . . . . . . . . . . .
PCM Diagnostic Trouble Codes 6E±127. . . . . . . . . . .
DTC P0101 MAF System Performance 6E±131. . . .
DTC P0102 MAF Sensor Circuit Low
Frequency 6E±134. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0103 MAF Sensor Circuit High
Frequency 6E±137. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0106 MAP System Performance 6E±140. . . .
DTC P0107 MAP Sensor Circuit Low
Voltage 6E±143. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0108 MAP Sensor Circuit High
Voltage 6E±146. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0112 IAT Sensor Circuit Low
Voltage 6E±149. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0113 IAT Sensor Circuit High
Voltage 6E±152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0117 ECT Sensor Circuit Low
Voltage 6E±155. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0118 ECT Sensor Circuit High
Voltage 6E±158. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0125 ECT Excessive Time to Closed
Loop Fuel Control 6E±161. . . . . . . . . . . . . . . . . . . . . . .
DTC P0128 Thermostat Insufficient
Temperature for Stable Operation 6E±164. . . . . . . . .
DTC P0131 HO2S Circuit Low Voltage
Bank 1 Sensor 1 6E±166. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0132 HO2S Circuit High Voltage
Bank 1 Sensor 1 6E±169. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0133 HO2S Slow Response
Bank 1 Sensor 1 6E±172. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0134 HO2S Circuit Insufficient
Activity Bank 1 Sensor 1 6E±176. . . . . . . . . . . . . . . . .

6E±3
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0135 HO2S Heater Circuit
Bank 1 Sensor 1 6E±179. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0137 HO2S Circuit Low Voltage
Bank 1 Sensor 2 6E±182. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0138 HO2S Circuit High Voltage
Bank 1 Sensor 2 6E±185. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0140 HO2S Circuit Insufficient Activity
Bank 1 Sensor 2 6E±188. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0141 HO2S Heater Circuit
Bank 1 Sensor 2 6E±191. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0151 HO2S Circuit Low Voltage
Bank 2 Sensor 1 6E±194. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0152 HO2S Circuit High Voltage
Bank 2 Sensor 1 6E±197. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0153 HO2S Slow Response
Bank 2 Sensor 1 6E±200. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0154 HO2S Circuit Insufficient Activity
Bank 2 Sensor 1 6E±204. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0155 HO2S Heater Circuit Open
Bank 2 Sensor 1 6E±207. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0157 HO2S Circuit Low Voltage
Bank 2 Sensor 2 6E±210. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0158 HO2S Circuit High Voltage
Bank 2 Sensor 2 6E±213. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0160 HO2S Circuit Insufficient Activity
Bank 2 Sensor 2 6E±216. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0161 HO2S Heater Circuit
Bank 2 Sensor 2 6E±219. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0171 Fuel Trim System Lean Bank 1 6E±222.
DTC P0172 Fuel Trim System Rich Bank 1 6E±226.
DTC P0174 Fuel Trim System Lean Bank 2 6E±230.
DTC P0175 Fuel Trim System Rich Bank 2 6E±234.
DTC P0201 Injector 1 Control Circuit 6E±238. . . . . .
DTC P0202 Injector 2 Control Circuit 6E±241. . . . . .
DTC P0203 Injector 3 Control Circuit 6E±244. . . . . .
DTC P0204 Injector 4 Control Circuit 6E±247. . . . . .
DTC P0205 Injector 5 Control Circuit 6E±250. . . . . .
DTC P0206 Injector 6 Control Circuit 6E±253. . . . . .
DTC P0300 Engine Misfire Detected 6E±256. . . . . . .
DTC P0301 Cylinder Misfire Detected 6E±260. . . . . .
DTC P0302 Cylinder Misfire Detected 6E±262. . . . . .
DTC P0303 Cylinder Misfire Detected 6E±264. . . . . .
DTC P0304 Cylinder Misfire Detected 6E±266. . . . . .
DTC P0305 Cylinder Misfire Detected 6E±268. . . . . .
DTC P0306 Cylinder Misfire Detected 6E±270. . . . . .
DTC P0325 ION Sensing Module/ION
Sensing Knock Intensity Circuit Fault 6E±272. . . . . .
DTC P0336 58X Reference Signal Circuit 6E±275. .
DTC P0337 CKP Sensor Circuit Low
Frequency 6E±278. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0351 Ignition 1 Control Circuit 6E±281. . . . . . .
DTC P0352 Ignition 2 Control Circuit 6E±284. . . . . . .
DTC P0353 Ignition 3 Control Circuit 6E±287. . . . . . .
DTC P0354 Ignition 4 Control Circuit 6E±290. . . . . . .
DTC P0355 Ignition 5 Control Circuit 6E±293. . . . . . . DTC P0356 Ignition 6 Control Circuit 6E±296. . . . . . .
DTC P0401 EGR Flow Insufficient 6E±299. . . . . . . . .
DTC P0402 EGR Pintle Crank Error 6E±302. . . . . . .
DTC P0404 EGR Open Stuck 6E±304. . . . . . . . . . . . .
DTC P0405 EGR Low Voltage 6E±306. . . . . . . . . . . .
DTC P0406 EGR High Voltage 6E±309. . . . . . . . . . .
DTC P0420 TWC System Low Efficiency
Bank 1 6E±312. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0430 TWC System Low Efficiency
Bank 2 6E±315. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0440 EVAP System 6E±318. . . . . . . . . . . . . . . .
DTC P0442 EVAP System Small Leak
Detected 6E±321. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0444 EVAP Purge Control Circuit
Open 6E±324. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0445 EVAP Purge Control Circuit
Short 6E±326. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0446 EVAP Canister Vent Control
Malfunction 6E±328. . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0447 EVAP Vent Solenoid Circuit
Open 6E±331. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0448 EVAP Vent solenoid Circuit
Short 6E±333. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0452 Fuel Tank Pressure Sensor
(Vapor Pressure Sensor) Low Voltage 6E±335. . . . .
DTC P0453 Fuel Tank Pressure Sensor
(Vapor Pressure Sensor) High Voltage 6E±338. . . . .
DTC P0456 EVAP Very Small Leak 6E±341. . . . . . .
DTC P0461 Fuel Level Sensor Performance 6E±344
DTC P0462 Fuel Level Sensor Circuit±Low
Voltage 6E±346. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0463 Fuel Level Sensor Circuit±High
Voltage 6E±349. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0462 Fuel Level Sensor Noisy Signal 6E±351
DTC P0502 VSS Circuit Low Input 6E±353. . . . . . . . .
DTC P0506 Idle Air Control System Low
RPM 6E±356. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0507 Idle Air Control System High
RPM 6E±359. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0562 System Voltage Low 6E±362. . . . . . . . . .
DTC P0563 System Voltage High 6E±364. . . . . . . . .
DTC P0565 Cruise Main Switch Circuit Error 6E±366
DTC P0566 Cruise Cancel Switch Circuit
Error 6E±368. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0567 Cruise Resume Switch Circuit
Error 6E±370. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0568 Cruise Set Switch Circuit Error 6E±372.
DTC P0571 No Brake Switch Signal 6E±374. . . . . . .
DTC P0601 PCM Memory 6E±376. . . . . . . . . . . . . . . .
DTC P0602 PCM Programming Error 6E±378. . . . . .
DTC P0604 PCM RAM Error 6E±380. . . . . . . . . . . . . .
DTC P0606 PCM Internal Performance 6E±382. . . .
DTC P1106 MAP Sensor Circuit Intermittent
High Voltage 6E±384. . . . . . . . . . . . . . . . . . . . . . . . . . .
