8A-606 ELECTRICAL-BODY AND CHASSIS

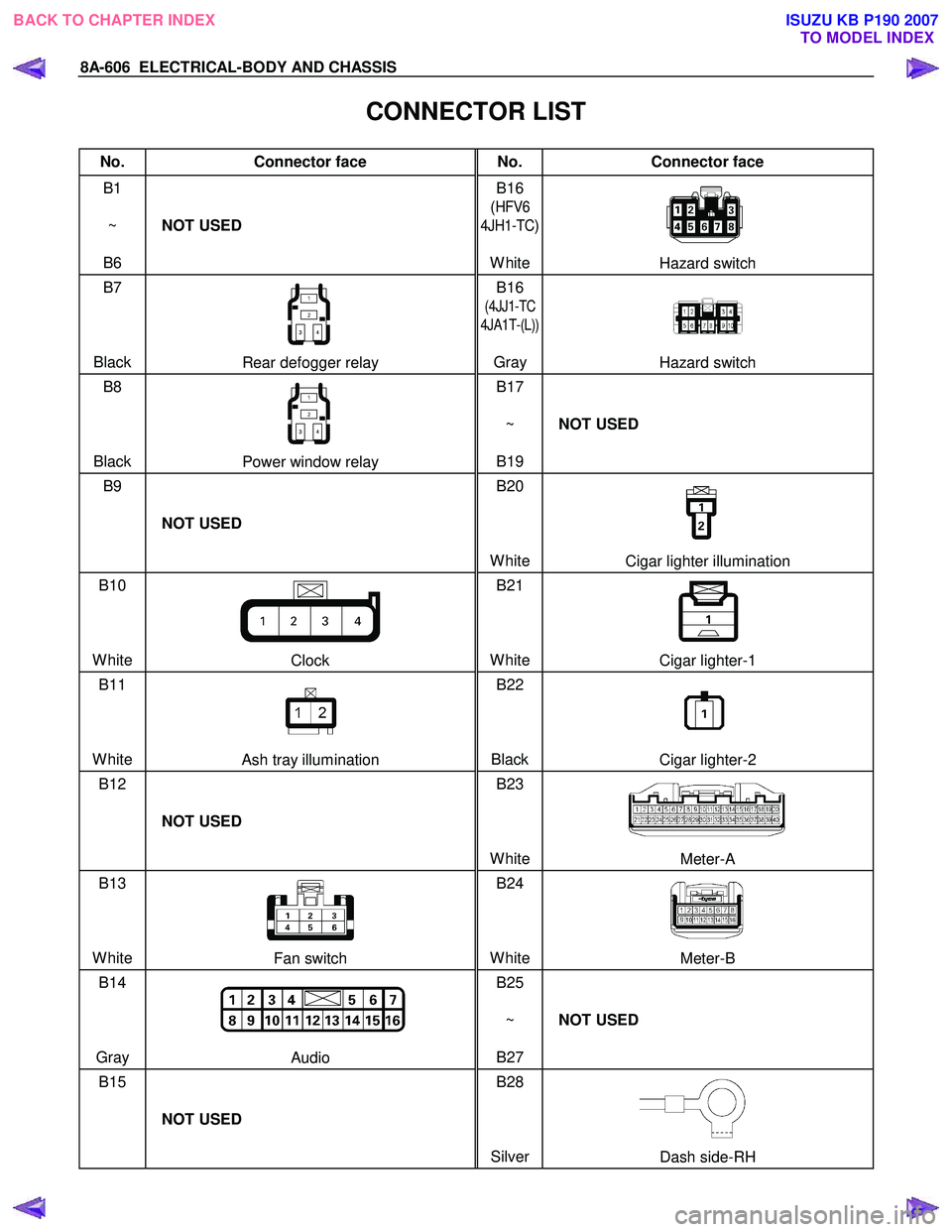

CONNECTOR LIST
No. Connector face No. Connector face
B1

~
B6 NOT USED B16
(
HFV6
4JH1-TC
)

White
Hazard switch
B7


Black
Rear defogger relay B16
(4JJ1-TC
4JA1T-(L))
Gray Hazard switch
B8


Black
Power window relay B17

~
B19 NOT USED
B9



NOT USED B20



White
Cigar lighter illumination
B10


White
Clock B21



WhiteCigar lighter-1
B11


White
Ash tray illumination B22



BlackCigar lighter-2
B12


NOT USED B23



White
Meter-A
B13


White
Fan switch B24



WhiteMeter-B
B14


Gray
Audio B25

~
B27 NOT USED
B15



NOT USED B28



Silver
Dash side-RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-1

SECTION 9
ACCESSORIES
TABLE OF CONTENTS
PAGE
Parts Location ................................................................................................................ ... 9 −
−−
−
2
Circuit Diagram ............................................................................................................... ... 9 −
−−
−
6
Connector List ................................................................................................................ ... 9 −
−−
−
22
Audio ......................................................................................................................... ......... 9 −
−−
−
24
Front Speaker ................................................................................................................. ... 9 −
−−
−
25
Tweeter ........................................................................................................................ ........ 9 −
−−
−
26
Rear Speaker (Extend Cab) .............................................................................................. 9 −
−−
−
27
Rear Speaker (Crew Cab) ................................................................................................. 9 −
−−
−
28
Clock.......................................................................................................................... .......... 9 −
−−
−
29
Antenna ....................................................................................................................... ....... 9 −
−−
−
30


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

9-22 ACCESSORIES

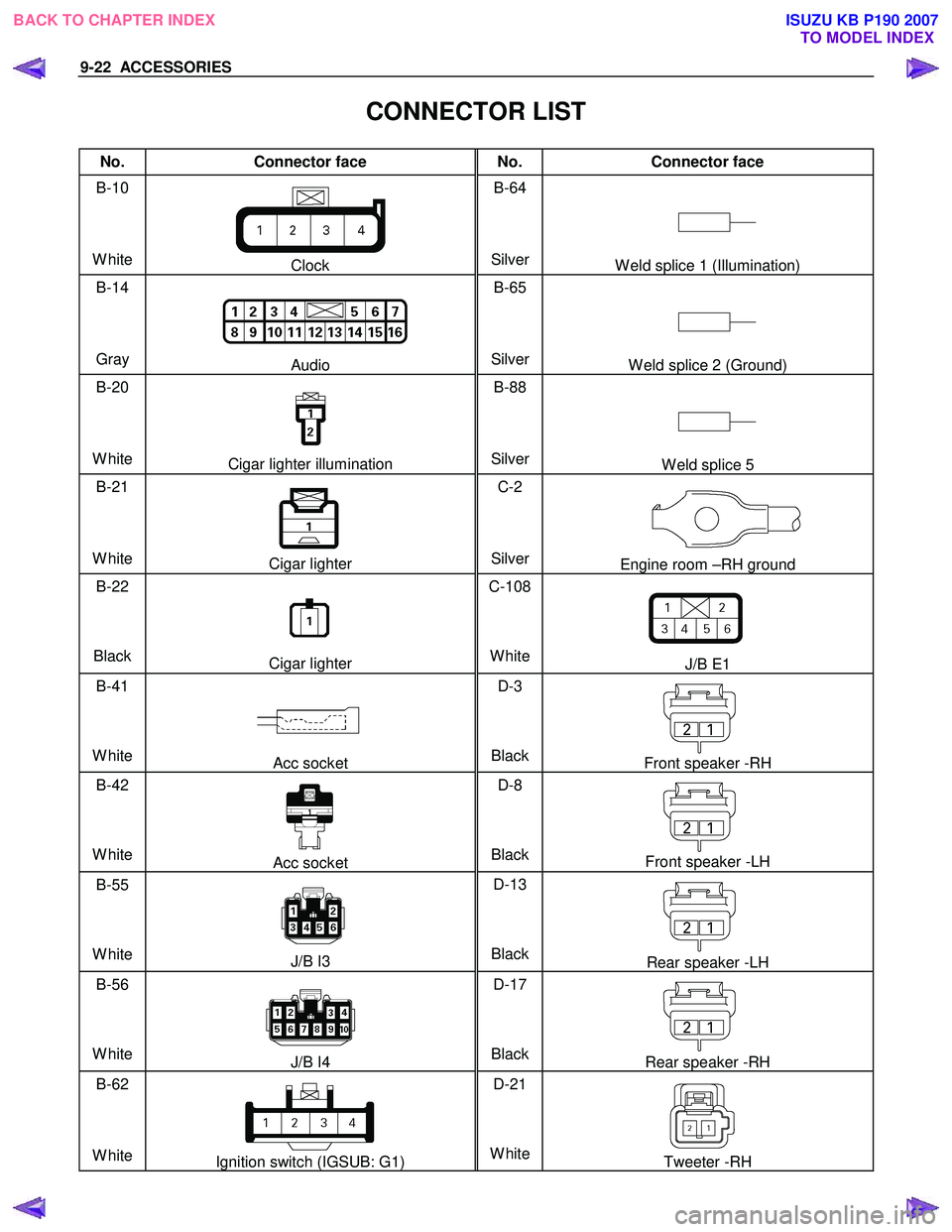

CONNECTOR LIST
No. Connector face No. Connector face
B-10
White
Clock B-64
SilverW eld splice 1 (Illumination)
B-14
Gray
Audio B-65
SilverW eld splice 2 (Ground)
B-20
White
Cigar lighter illumination B-88

SilverW eld splice 5
B-21
White
Cigar lighter C-2
SilverEngine room –RH ground
B-22
Black
Cigar lighter C-108
White
J/B E1
B-41
White
Acc socket D-3
BlackFront speaker -RH
B-42
White
Acc socket D-8
BlackFront speaker -LH
B-55
White
J/B I3 D-13
BlackRear speaker -LH
B-56
White
J/B I4 D-17
BlackRear speaker -RH
B-62
White
Ignition switch (IGSUB: G1) D-21
WhiteTweeter -RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

9-24 ACCESSORIES

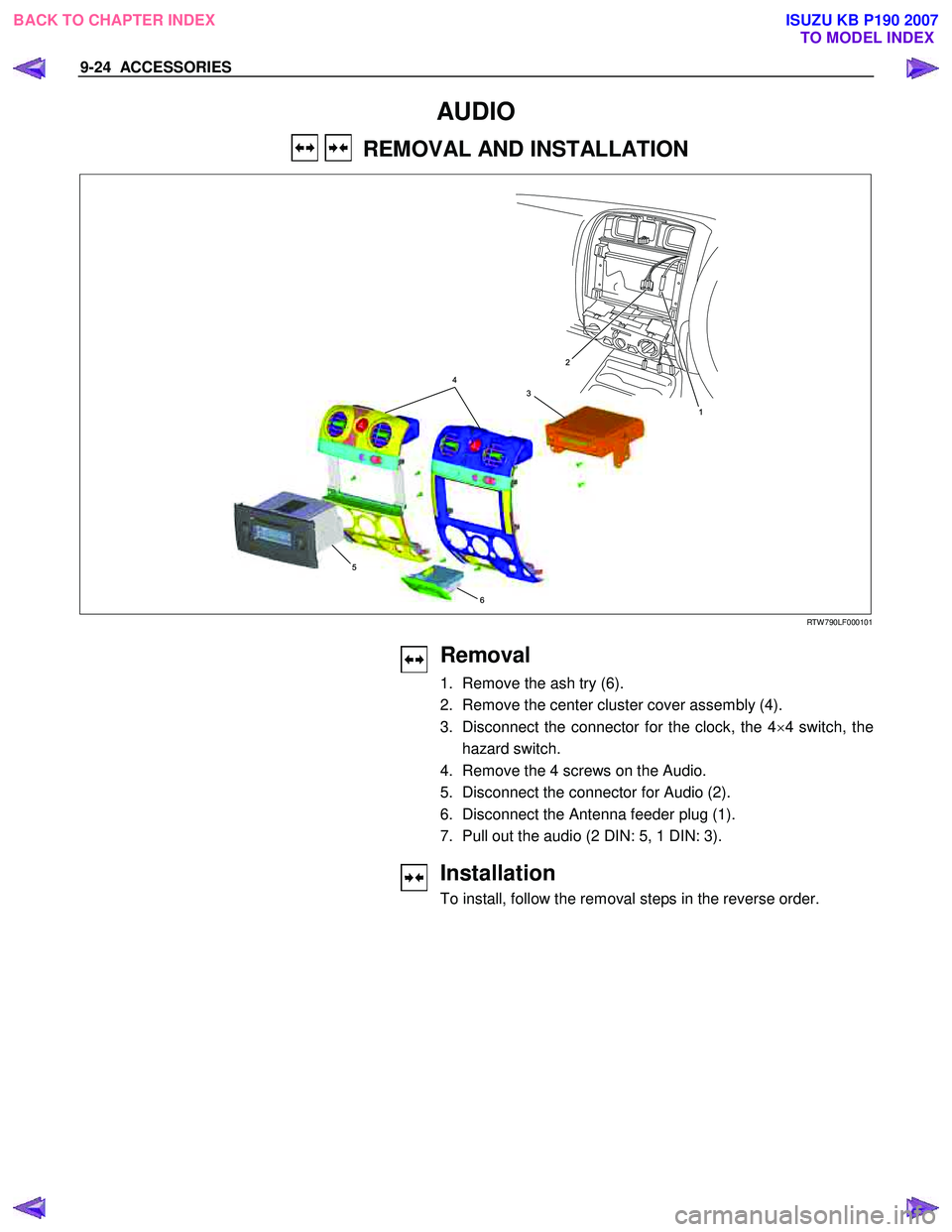

AUDIO
REMOVAL AND INSTALLATION

1
2
4
3
5
6

RTW 790LF000101



Removal
1. Remove the ash try (6).
2. Remove the center cluster cover assembly (4).
3. Disconnect the connector for the clock, the 4 ×4 switch, the
hazard switch.
4. Remove the 4 screws on the Audio.
5. Disconnect the connector for Audio (2).
6. Disconnect the Antenna feeder plug (1).
7. Pull out the audio (2 DIN: 5, 1 DIN: 3).


Installation
To install, follow the removal steps in the reverse order.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

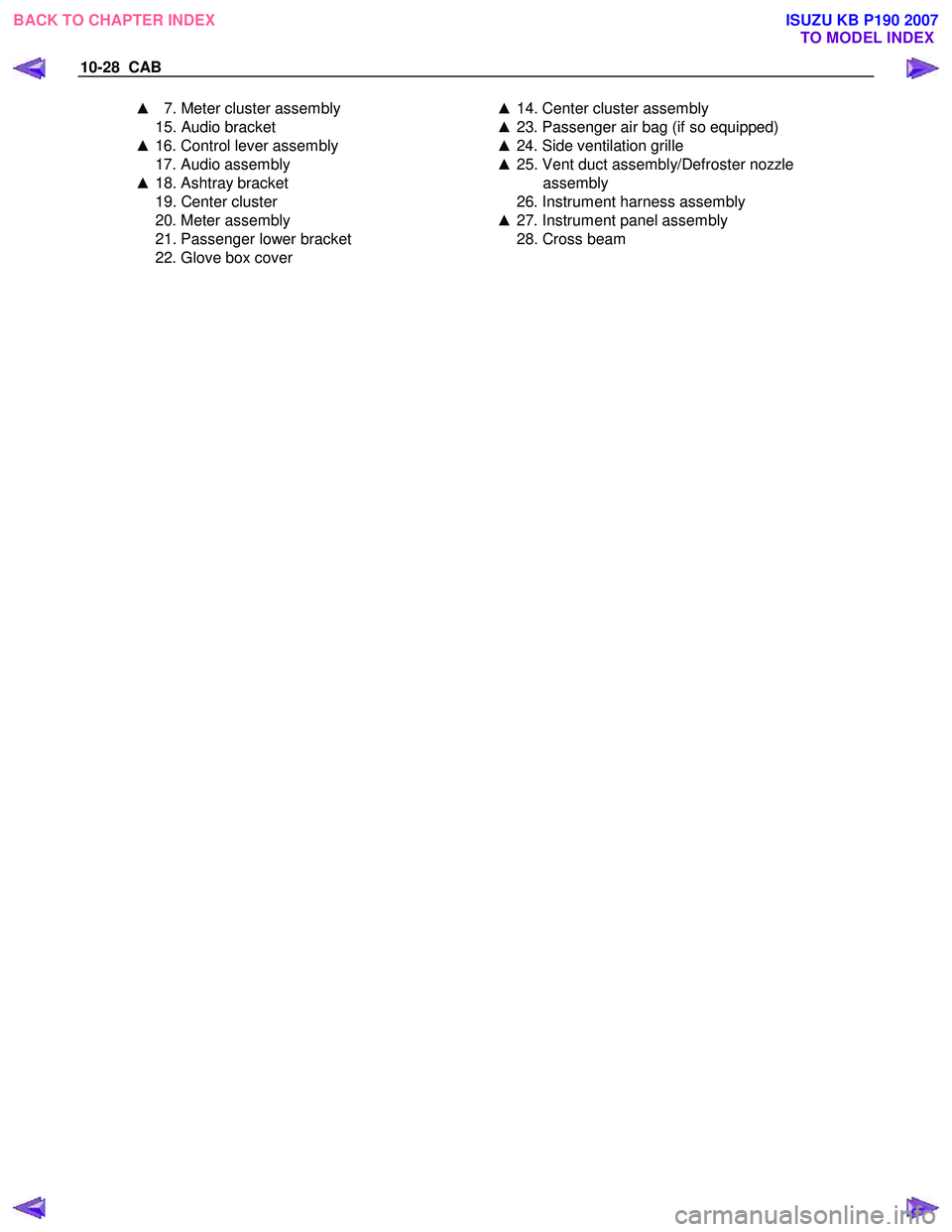

10-28 CAB
▲ 7. Meter cluster assembly ▲ 14. Center cluster assembly
15. Audio bracket
▲ 16. Control lever assembly
17. Audio assembly
▲ 18. Ashtray bracket
19. Center cluster
20. Meter assembly
21. Passenger lower bracket
22. Glove box cover

▲ 23. Passenger air bag (if so equipped)
▲ 24. Side ventilation grille
▲ 25. Vent duct assembly/Defroster nozzle
assembly
26. Instrument harness assembly
▲ 27. Instrument panel assembly
28. Cross beam

BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

10-32 CAB
INSTALLATION



18 19
19 19
18
24 231
3
2
20
21
278
22
25
26
17
9
6
5
5
7
28
14
10
11
15
13
16
12
4
This illustration is based on RHD model RTW 7A0LF001401

Installation Steps
1. Cross beam
2. Instrument panel assembly
3. Instrument harness assembly
4. Vent duct assembly/Defroster nozzle assembly
5. Side ventilation grille
6. Passenger air bag
7. Glove box cover
8. Passenger lower bracket
9. Meter assembly

10. Center cluster
11. Ashtray bracket
12. Audio assembly
13. Control lever assembly
14. Audio bracket
15. Center cluster assembly
16. Ashtray case
▲ 17. Instrument panel assembly & Cross
beam
18. Side cover
