6A-36 ENGINE MECHANICAL (4JK1/4JJ1)
Inspection
• Inspection of the exhaust manifold. Inspect the
plane surface of the plane on which the
manifold and the cylinder head are to be
installed.

Manifold installation plane surface mm (in)
Standard 0.3 (0.01) or lower
Limit 0.5 (0.02)
Note:
If the plane surface exceeds the limit, replace it.




LNW 21BSH022301
• Check a crack in the exhaust manifold visually.
Carefully inspect the turbocharger for abrasion and/o
r
excessive wear. Make any necessary adjustments,
repairs, and/or part replacements.

Wheel shaft axial play
Use a dial gauge to measure the wheel axle shaft pla
y
when a force of 12 N (1.2 kg / 2.6 lb) is alternately
applied to both sides of the compressor wheel.

Axial play mm (in)
Standard 0.03 − 0.06 (0.0012 − 0.0024)
Limit 0.09 (0.0035)




LNW 21BSH022201

Wheel shaft and bearing clearance
Use a dial gauge to measure the clearance between the
wheel shaft and the bearing.

Clearance mm (in)
Standard 0.056 − 0.127 (0.0022 − 0.0050)
Limit 0.14 (0.0055)

LNW 21BSH022301
Legend
1. Oil Outlet
2. Oil Intake



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-44 ENGINE MECHANICAL (4JK1/4JJ1)
3. Place a vernier caliper on the end of the control
rod of actuator. Release the vacuum pressure and
check the control rod moves. Measure the length
of the control rod moving.

Standard length mm (in)
12 (0.48)

Installation
1. Install the gasket and the turbocharger to the
exhaust manifold. Temporarily tighten nuts.
2. Install the oil feed and return pipe and temporaril
y
tighten.
3. Tighten the turbocharger nuts to the specified torque.
Tightening torque: 27 N ⋅
⋅⋅
⋅
m (2.8 kg ⋅
⋅⋅
⋅
m / 20 lb ft)
4. Tighten the oil feed and return pipe bolts and nuts to the specified torque.
Tightening torque (Turbocharger side): 10 N ⋅
⋅⋅
⋅
m (1.0 kg ⋅
⋅⋅
⋅
m / 87 lb in)
Tightening torque (Crank case side): 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
5. Install the water feed and return pipe to the turbocharger.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
6. Install the heat protector to the turbocharger. Tightening torque: 10 N ⋅
⋅⋅
⋅
m (1.0 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
7. Install the turbocharger bracket.
8. Install the catalyst converter.
Tighten the nuts to the specified torque.
Tightening torque: 27 N ⋅
⋅⋅
⋅
m (2.8 kg ⋅
⋅⋅
⋅
m / 20 lb ft)
9. Install the mud cover of front RH fender skirt (4 ×4
only).
10. Install the front exhaust pipe.
Tighten the nuts to the specified torque.
Tightening torque
Exhaust Manifold Side: 67 N⋅
⋅⋅
⋅m (6.8 kg⋅
⋅⋅
⋅m / 49 lb ft)
Exhaust Pipe Side: 43 N
⋅
⋅⋅
⋅
m (4.4 kg ⋅
⋅⋅
⋅
m / 32lb ft)
11. Install the intercooler. • Install the intercooler.
• Install the two intake hoses.
• Connect the BARO sensor harness connector.
12. Install the intake duct between the turbocharge
r
and the air cleaner.
Tightening torque: 6 N ⋅
⋅⋅
⋅
m (0.6 kg ⋅
⋅⋅
⋅
m / 52 lb in)
13.Replenish the coolant.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-47
Removal
1. Drain the engine coolant.
2. Remove the turbocharger. • Refer to “Turbocharger”.
3. Remove the EGR cooler heat protector.
4. Disconnect the water hoses from the EGR coole
r
water pipes.
5. Remove the EGR cooler.
6. Remove the exhaust manifold.







RTW 76ASH002101
Inspection
• Inspection of the exhaust manifold. Inspect the
plane surface of the plane on which the
manifold and the cylinder head are to be
installed.

Manifold installation plane surface mm (in)
Standard 0.3 (0.01) or lower
Limit 0.5 (0.02)

Caution:
If the plane surface exceeds the limit, replace it.




LNW 21BSH022301
• Check a crack in the exhaust manifold visually.
Carefully inspect the turbocharger for abrasion and/o
r
excessive wear. Make any necessary adjustments,
repairs, and/or part replacements.
Installation
1. Put the gasket in to install the exhaust manifold.
• Tighten up with the 8 nuts according to the
order given in the illustration.
Tightening torque: 52 N ⋅
⋅⋅
⋅
m (5.3 kg ⋅
⋅⋅
⋅
m / 38 lb ft)
Caution:
Do not tighten up too much because it hampers
expansion and contraction due to the heat from the
manifold.









RTW 76ASH002201


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-57
6. Remove the M6 bolt from the idle gear A.
7. Install the gear case cover. • Apply the liquid gasket (ThreeBond TB-1207B
or equivalent).


RTW 56ASH020101
Legend
1. Apply the liquid gasket

• Install the gasket in slot of the gear case cover.
• Tighten the bolts to the specified torque.
Tightening torque: 8 N ⋅
⋅⋅
⋅
m (0.8 kg ⋅
⋅⋅
⋅
m / 69 lb in)




RTW 56ASH012101
8. Install the vacuum pump.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
• Install the oil pipe (feed side and return side) o
f
vacuum pump.
• Install the vacuum pipe bracket and vacuum
pipe.
9. Install the power steering pump. • Tighten the nuts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
• Connect the bracket (1) of power steering oil
hose.




LTW 56ASH000101

10. Install the crank pulley.
Tightening torque: 294 N ⋅
⋅⋅
⋅
m (30.0 kg ⋅
⋅⋅
⋅
m / 217 lb ft)
11. Install the A/C compressor drive belt and fan belt.
Refer to drive belt tension check procedure fo
r
Heating and air conditioning and Engine cooling in
this manual.
12. Install the cooling fan.
13. Install the fan guide.
14. Install the radiator upper hose.
15. Replenish the engine coolant.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-60 ENGINE MECHANICAL (4JK1/4JJ1)
Removal
1. Rotate the crankshaft to make the No. 1 cylinder
meet the compression TDC.




RTW 76ASH001301
Legend
1. TDC


2. Remove the engine cover.
3. Remove the cylinder head cover.
Refer to "Cylinder Head Cover".
4. Install the M5 lock bolt of fixing sub gear.






RTW 56ASH007101


5. Remove the baffle plate (1).





RTW 56ASH006301
6. Remove the camshaft bearing cap and camshaft.
• Check the engraved making on the camshaft
bearing caps.






RTW 56ASH018401



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-62 ENGINE MECHANICAL (4JK1/4JJ1)
3. Remove the dowel pin.
4. Inspect the camshaft visually. • Check if the journal and cam parts of the
camshaft are worn or damaged, if so, replace
it.




LNW 21BSH020201
5. Inspect an end clearance of the camshaft.
• Use a thickness gauge to measure an end
clearance of the camshaft gear and the
camshaft bracket.
• If the measurement exceeds the limit, replace
the camshaft gear or the camshaft.
End clearance of the camshaft mm (in)
Standard 0.085 − 0.205 (0.003 − 0.008)
Limit 0.25 (0.010)
Note:
Measure an end clearance of the camshaft before
disassembling.





RTW 56ASH013901
6. Check if the cam lobe is worn.
• Use a micrometer to measure the height of the
cam lobe.
• If the height of the cam lobe is at the limit o
r
less, replace the camshaft.
Height of the cam lobe mm (in)
Inlet Exhaust
Standard 40.6 (1.60) 40.6 (1.60)
Limit 39.6 (1.56) 39.6 (1.56)



LNW 21BSH020401
7. Check if the camshaft journal is worn.
• Use a micrometer to measure wear which is
not even with a diameter of the camshaft
journal.
• If the measured uneven wear exceeds the limit,
replace the camshaft.

External diameter of the camshaft journal part
mm (in)
Standard 29.909 − 29.930
(1.1775 − 1.1783)
Limit 29.809 (1.1736)

Partial wear of the camshaft journal part mm (in)
Limit 0.05 (0.0020)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-63



LNW 21BSH020501
8. Check if the camshaft is runout.
• Place the camshaft on a V block to measure a
runout with a dial gauge.
• Rotate the camshaft slowly to measure ho
w
much the dial indicator shook. If it exceeds the
limit, replace the camshaft.

Runout of the camshaft mm (in)
Limit 0.05 (0.0020)



LNW 21BSH020601
9. Measure a camshaft journal oil clearance.
a. Measure an inside diameter of the camshaft bearing with a dial gauge.
b. Read the difference between the inside diameter of the camshaft bearing and the
diameter of the camshaft journal.
If the measured oil clearance exceeds the limit, replace the camshaft bearing.

Clearance of the journal part mm (in)
Standard 0.025
− 0.087
(0.0010 − 0.0034)
Limit 0.15 (0.0059)





LNW 21BSH054601
Reassembly
1. Install the dowel pin.
2. Install the camshaft gear. • Align the knock pin with the slot in the camshaft
gear. Use a press to install the camshaft gea
r
to the camshaft.





RTW 56ASH006601
Legend
1. Camshaft
2. Dowel Pin
3. Camshaft Gear




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

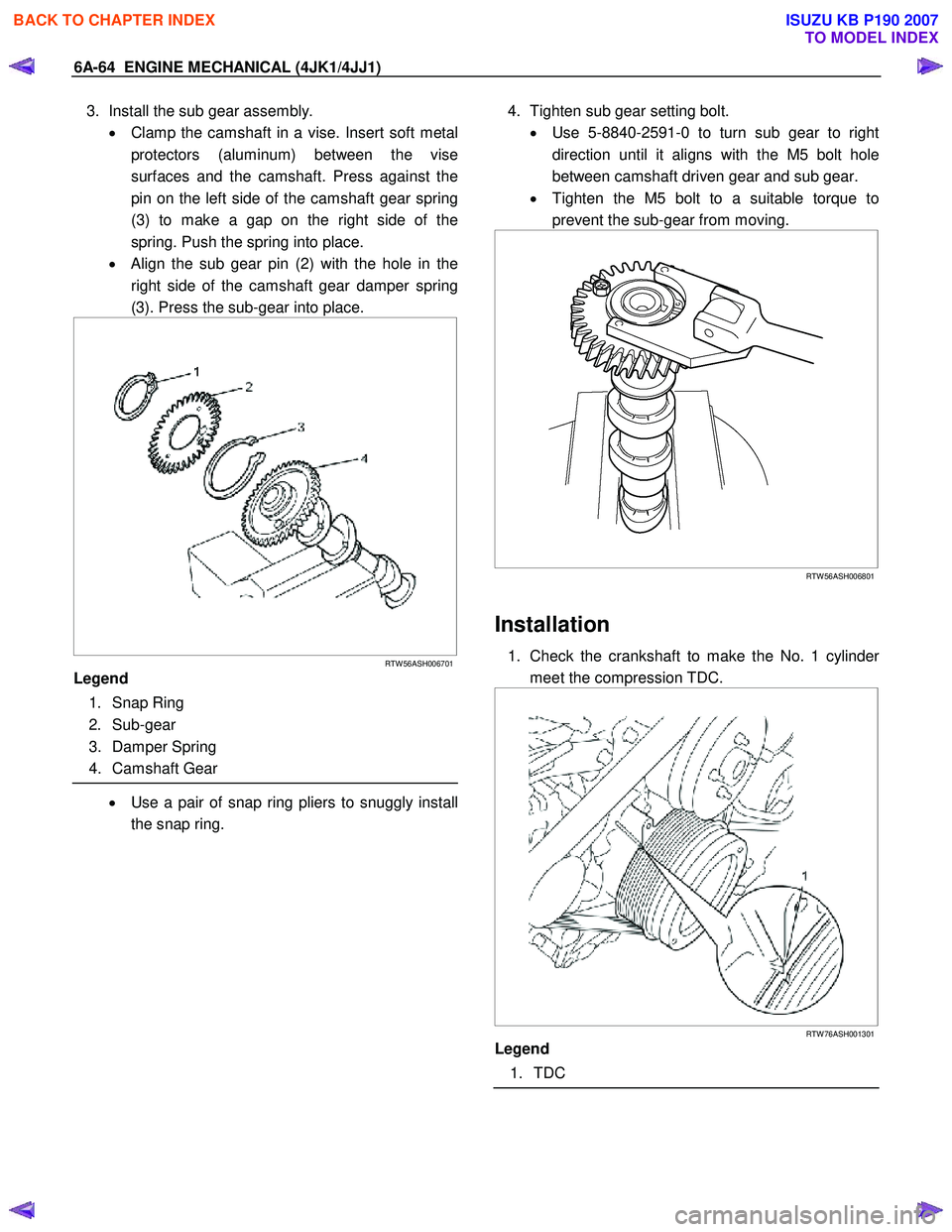

6A-64 ENGINE MECHANICAL (4JK1/4JJ1)
3. Install the sub gear assembly.
• Clamp the camshaft in a vise. Insert soft metal
protectors (aluminum) between the vise
surfaces and the camshaft. Press against the
pin on the left side of the camshaft gear spring
(3) to make a gap on the right side of the
spring. Push the spring into place.
• Align the sub gear pin (2) with the hole in the
right side of the camshaft gear damper spring
(3). Press the sub-gear into place.






RTW 56ASH006701
Legend
1. Snap Ring
2. Sub-gear
3. Damper Spring
4. Camshaft Gear

• Use a pair of snap ring pliers to snuggly install
the snap ring.

4. Tighten sub gear setting bolt.
• Use 5-8840-2591-0 to turn sub gear to right
direction until it aligns with the M5 bolt hole
between camshaft driven gear and sub gear.
• Tighten the M5 bolt to a suitable torque to
prevent the sub-gear from moving.





RTW 56ASH006801

Installation
1. Check the crankshaft to make the No. 1 cylinder
meet the compression TDC.





RTW 76ASH001301
Legend
1. TDC




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-65
2. Install the camshaft assembly.
• Align timing mark on intake camshaft and
exhaust camshaft to idle gear D.




RTW 56ASH007001
Legend
1. Exhaust Camshaft Gear
2. Intake Camshaft Gear
3. Idle Gear D


3. Camshaft bearing caps, tighten ten bolts on one
side bank to the specified torque.
• Apply engine oil to camshaft journal and
bearing surface of camshaft bearing caps.






RTW 56ASH018401


4. Check that the alignment marks (camshaft bearing
cap and camshaft) are aligned.





RTW 56ASH006901
Legend
1.
Align mark on intake camshaft and exhaust
camshaft to mark of bearing cap

• Apply engine oil over the screw part and tighten
up the bearing cap with the prescribed torque.
Tightening torque: 18 N ⋅
⋅⋅
⋅
m (1.8kg ⋅
⋅⋅
⋅
m / 13 lb ft)
5. Remove the M5 lock bolt of fixing sub gear.
6. Adjustment of valve clearance. • Refer to installation procedure for inspection
/
adjustment of valve clearance in this manual.
7. Install the baffle plate. Tighten the bolts to the specified torque.
Tightening torque: 10 N ⋅
⋅⋅
⋅
m (1.0 kg ⋅
⋅⋅
⋅
m/87 lb in)
8. Install the cylinder head cover.
Refer to "Cylinder Head Cover".
9. Install the engine cover.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-69
Inspection
Inspect the valve spring
Note:
Check the valve spring visually and if there is clea
r
damage or wear, replace it.
1. Free length • Measure free length of the spring and if it is
shorter than the prescribed limit, replace the
spring.

Free length of the valve spring
mm (in)
Inlet / Exhaust
Standard 49.04 (1.93)
Limit 48.15 (1.89)






LNW 21BSH017001
2. Valve spring squareness.
• Use a surface plate and a square to measure
the valve spring squareness.
If the measured value exceeds the specified limit, the valve spring must be replaced.
Valve spring squareness mm (in)
Limit 2.1 (0.083)





LNW 21BSH017101
3. Tension
• Use a spring tester to compress the spring to
the installation height. Measure tension of the
compressed spring. If the measurement is
lower than the limit, replace the spring.
Tension of the valve spring N (kg / lb)
Inlet / Exhaust
Installation length mm (in) 37.80 (1.488)
Standard 213 (21.7 / 47.8)
Limit 188 (19.2 / 42.3)







LNW 21BSH056701


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
