7A4-44 UNIT REPAIR (JR405E)

11C&L-SUB13

11.Snap ring
Remove the low clutch snap ring.


12C&L-SUB15

12.Retaining plate, drive plates, driven plates, and dish
plate Remove the low clutch retaining plate, the 7 drive plates,
the 7 driven plates, and the dish plate.

13C&L-SUB18

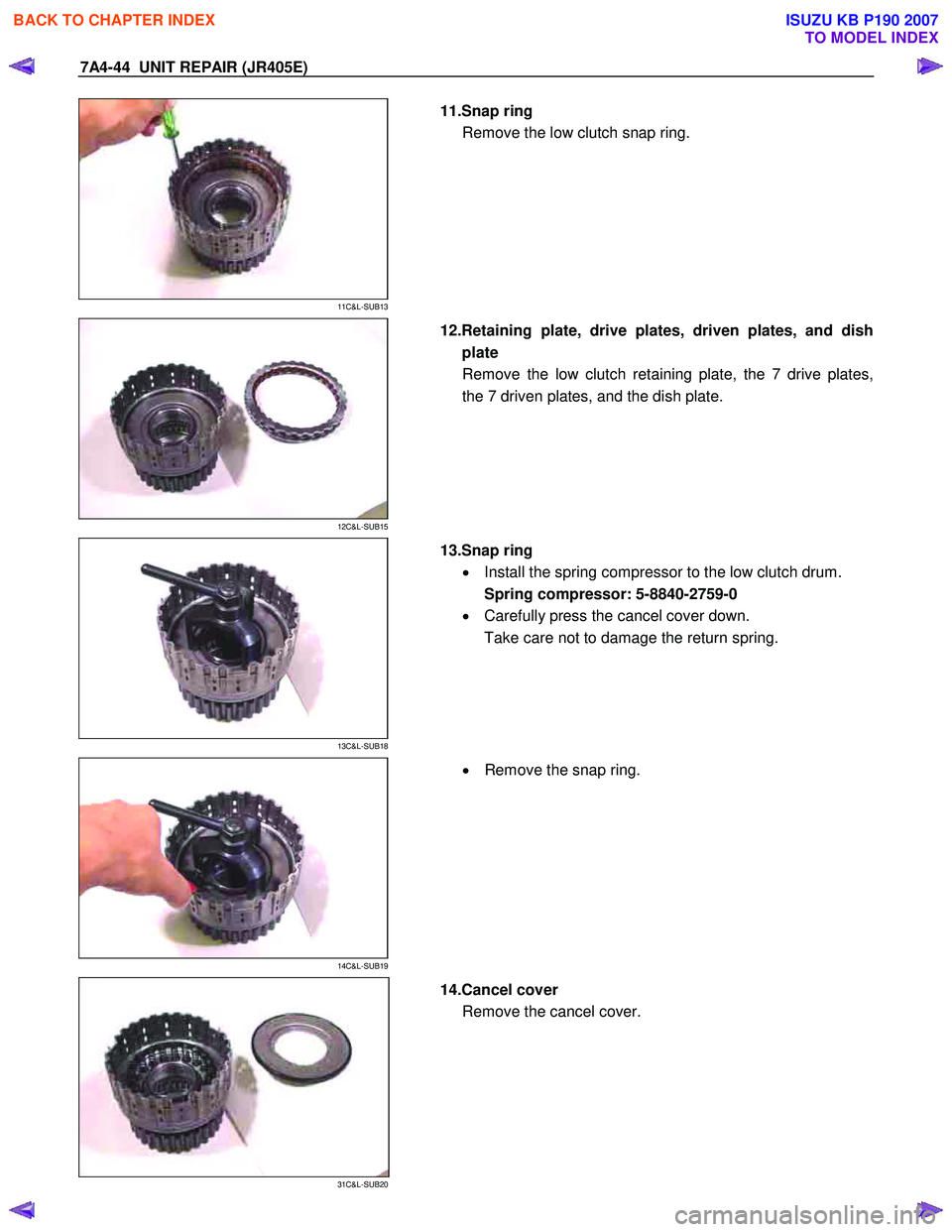

13.Snap ring
• Install the spring compressor to the low clutch drum.
Spring compressor: 5-8840-2759-0
• Carefully press the cancel cover down.
Take care not to damage the return spring.


14C&L-SUB19

•
Remove the snap ring.


31C&L-SUB20

14.Cancel cover
Remove the cancel cover.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

UNIT REPAIR (JR405E) 7A4-45

30C&L-SUB21

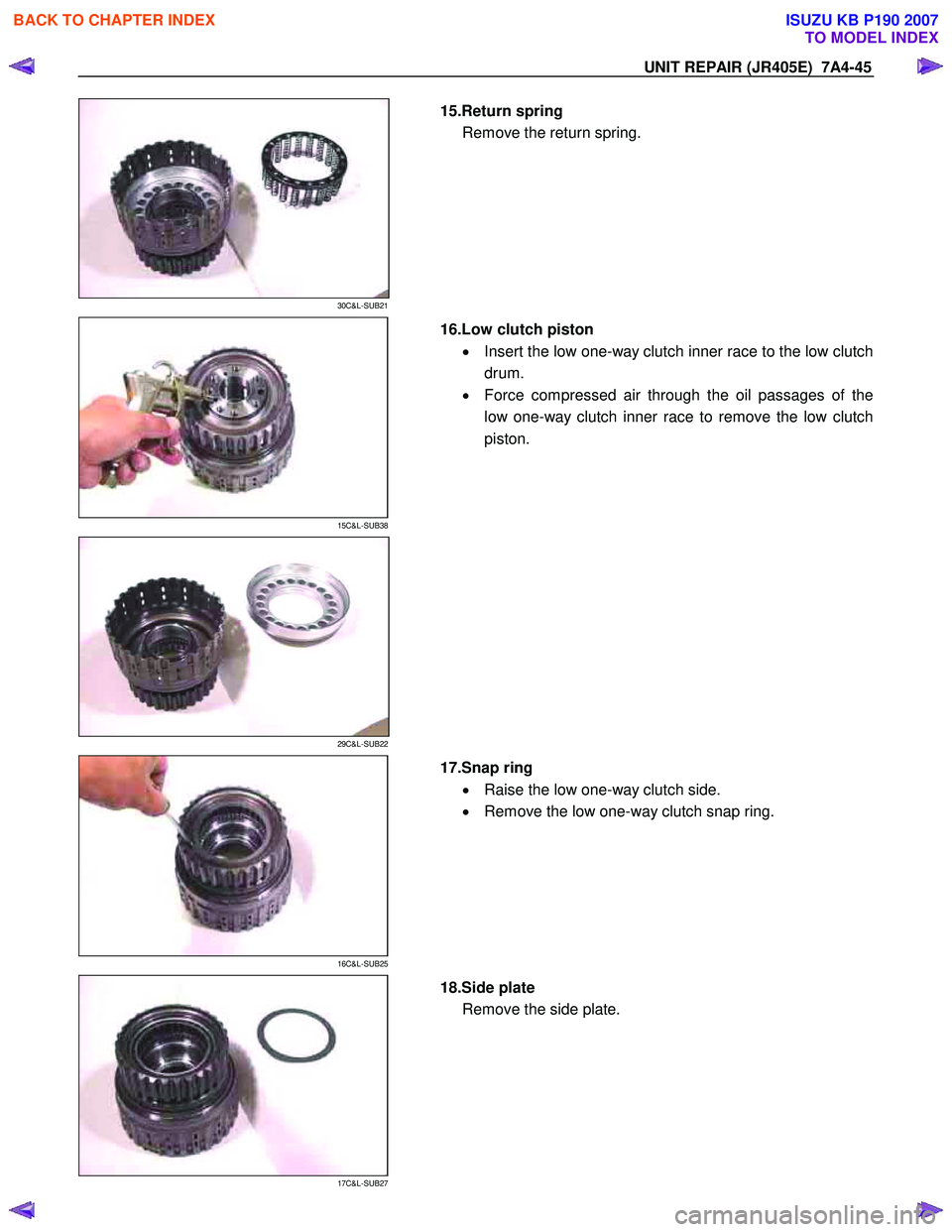

15.Return spring
Remove the return spring.


15C&L-SUB38

16.Low clutch piston
• Insert the low one-way clutch inner race to the low clutch
drum.
• Force compressed air through the oil passages of the
low one-way clutch inner race to remove the low clutch
piston.


29C&L-SUB22



16C&L-SUB25

17.Snap ring
• Raise the low one-way clutch side.
• Remove the low one-way clutch snap ring.


17C&L-SUB27

18.Side plate
Remove the side plate.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A4-46 UNIT REPAIR (JR405E)

18C&L-SUB28

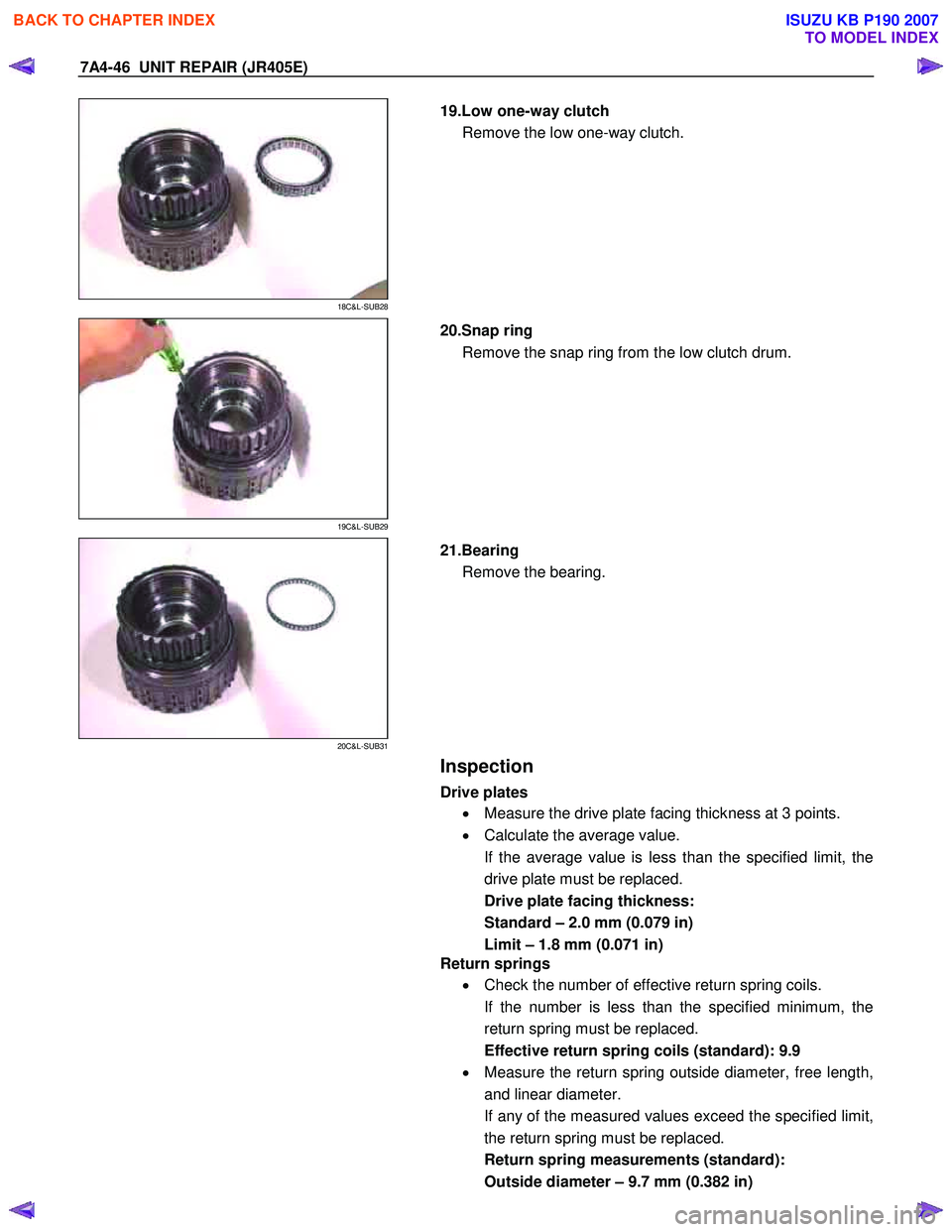

19.Low one-way clutch
Remove the low one-way clutch.

19C&L-SUB29

20.Snap ring
Remove the snap ring from the low clutch drum.

20C&L-SUB31

21.Bearing
Remove the bearing.



Inspection
Drive plates
• Measure the drive plate facing thickness at 3 points.
• Calculate the average value.
If the average value is less than the specified limit, the
drive plate must be replaced.
Drive plate facing thickness:
Standard – 2.0 mm (0.079 in)
Limit – 1.8 mm (0.071 in)
Return springs
• Check the number of effective return spring coils.
If the number is less than the specified minimum, the
return spring must be replaced.
Effective return spring coils (standard): 9.9
• Measure the return spring outside diameter, free length,
and linear diameter.
If any of the measured values exceed the specified limit,
the return spring must be replaced.
Return spring measurements (standard):
Outside diameter – 9.7 mm (0.382 in)

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

UNIT REPAIR (JR405E) 7A4-47
Free length – 36.4 mm (1.433 in)
Linear diameter – 1.2 mm (0.047 in)


21C&L-SUB31

Reassembly steps
Coat the parts with ATF before installing them.

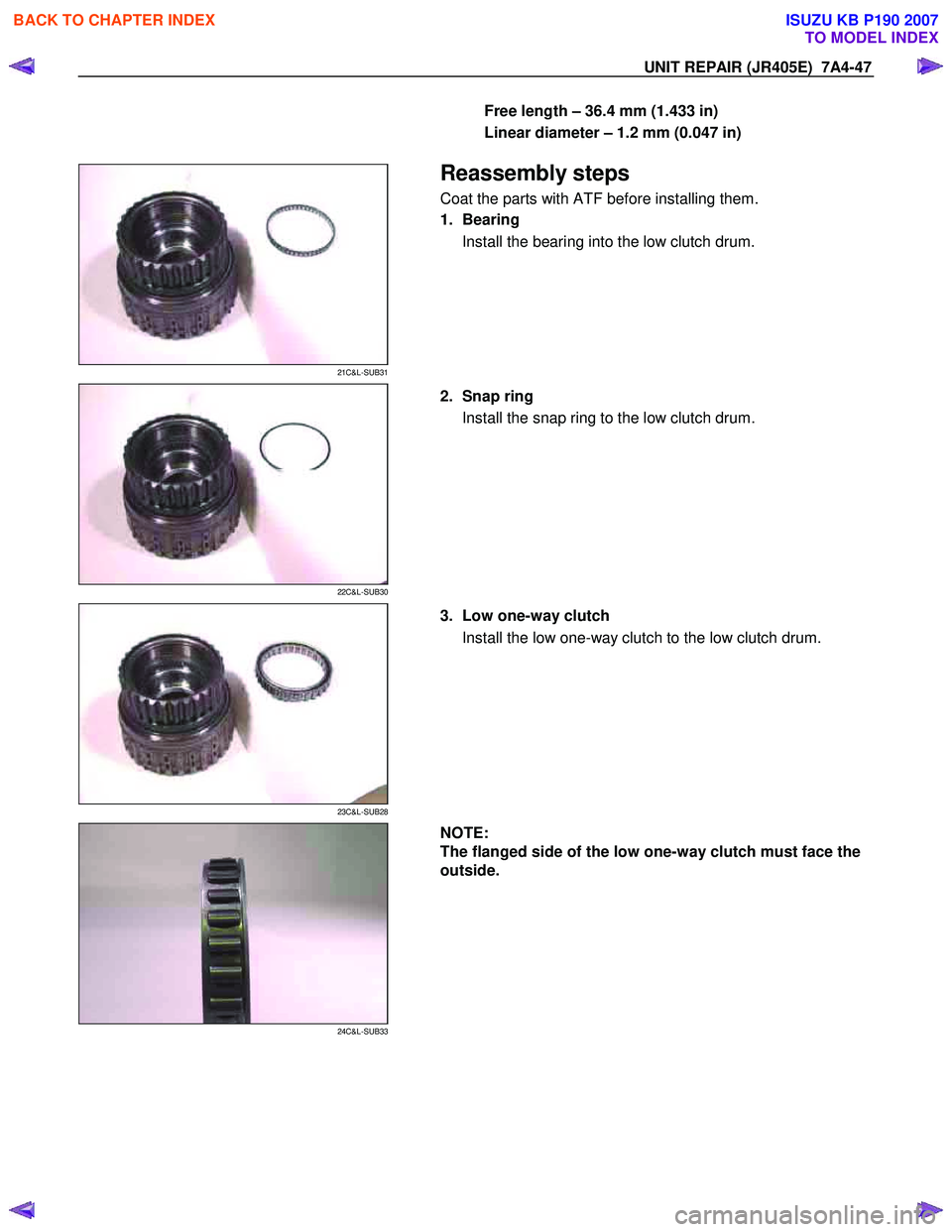

1. Bearing
Install the bearing into the low clutch drum.


22C&L-SUB30

2. Snap ring
Install the snap ring to the low clutch drum.


23C&L-SUB28

3. Low one-way clutch
Install the low one-way clutch to the low clutch drum.


24C&L-SUB33

NOTE:
The flanged side of the low one-way clutch must face the
outside.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A4-48 UNIT REPAIR (JR405E)

25C&L-SUB27

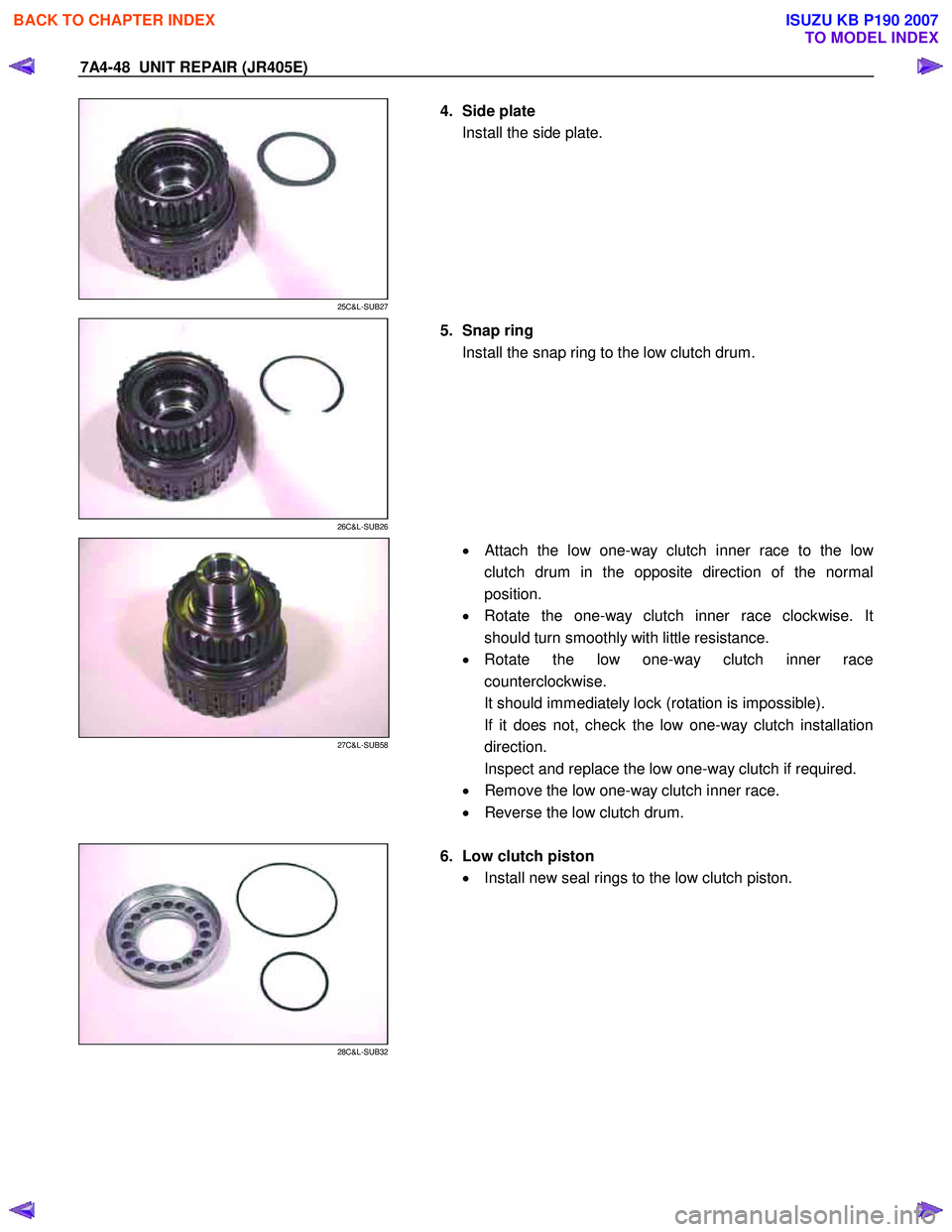

4. Side plate
Install the side plate.


26C&L-SUB26

5. Snap ring
Install the snap ring to the low clutch drum.


27C&L-SUB58

•
Attach the low one-way clutch inner race to the low
clutch drum in the opposite direction of the normal
position.
• Rotate the one-way clutch inner race clockwise. It
should turn smoothly with little resistance.
• Rotate the low one-way clutch inner race
counterclockwise.
It should immediately lock (rotation is impossible).
If it does not, check the low one-way clutch installation
direction.
Inspect and replace the low one-way clutch if required.
• Remove the low one-way clutch inner race.
• Reverse the low clutch drum.


28C&L-SUB32

6. Low clutch piston
• Install new seal rings to the low clutch piston.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

UNIT REPAIR (JR405E) 7A4-49

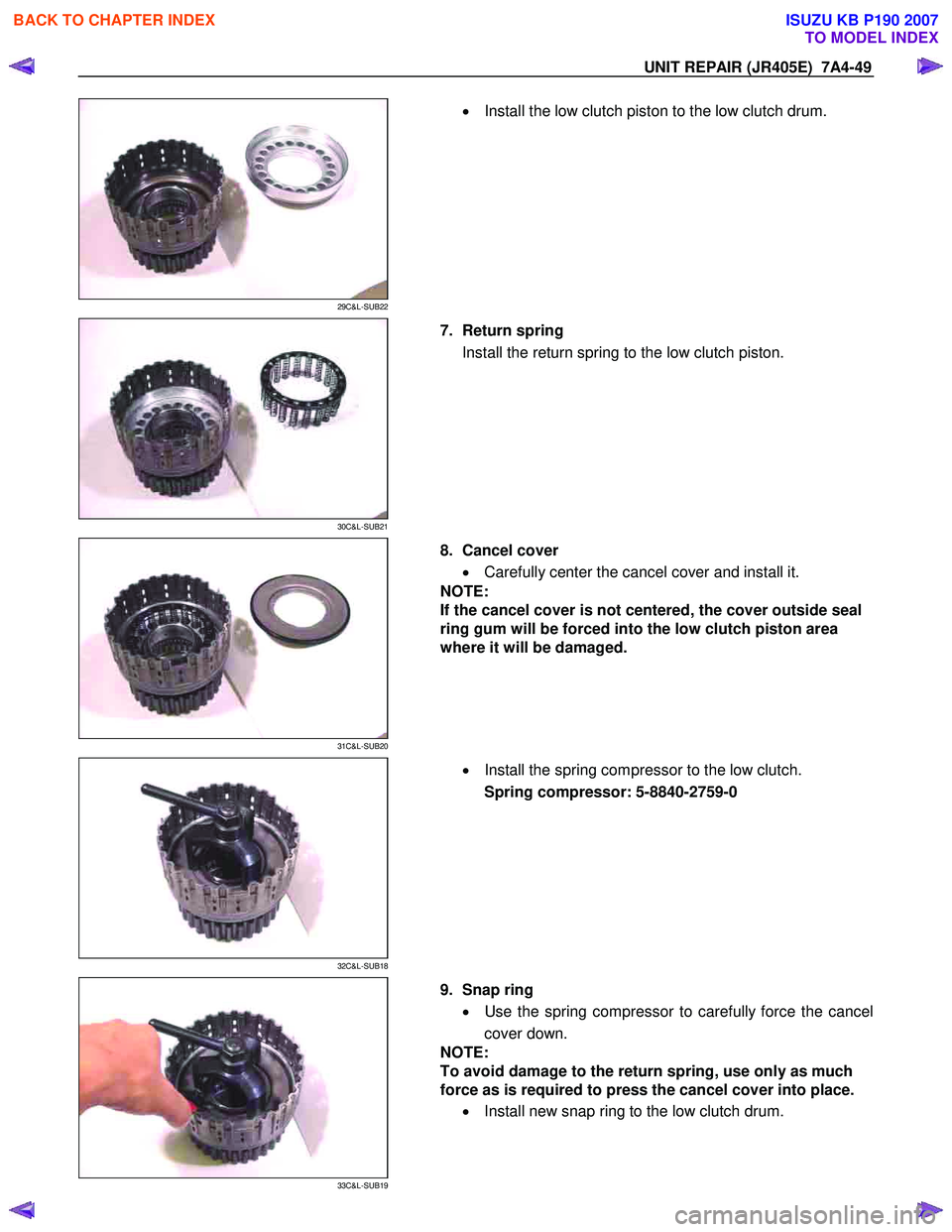

29C&L-SUB22

•
Install the low clutch piston to the low clutch drum.


30C&L-SUB21

7. Return spring
Install the return spring to the low clutch piston.


31C&L-SUB20

8. Cancel cover
• Carefully center the cancel cover and install it.
NOTE:
If the cancel cover is not centered, the cover outside seal
ring gum will be forced into the low clutch piston area
where it will be damaged.

32C&L-SUB18

•
Install the spring compressor to the low clutch.
Spring compressor: 5-8840-2759-0


33C&L-SUB19

9. Snap ring
• Use the spring compressor to carefully force the cancel
cover down.
NOTE:
To avoid damage to the return spring, use only as much
force as is required to press the cancel cover into place.
• Install new snap ring to the low clutch drum.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A4-50 UNIT REPAIR (JR405E)

34C&L-SUB15

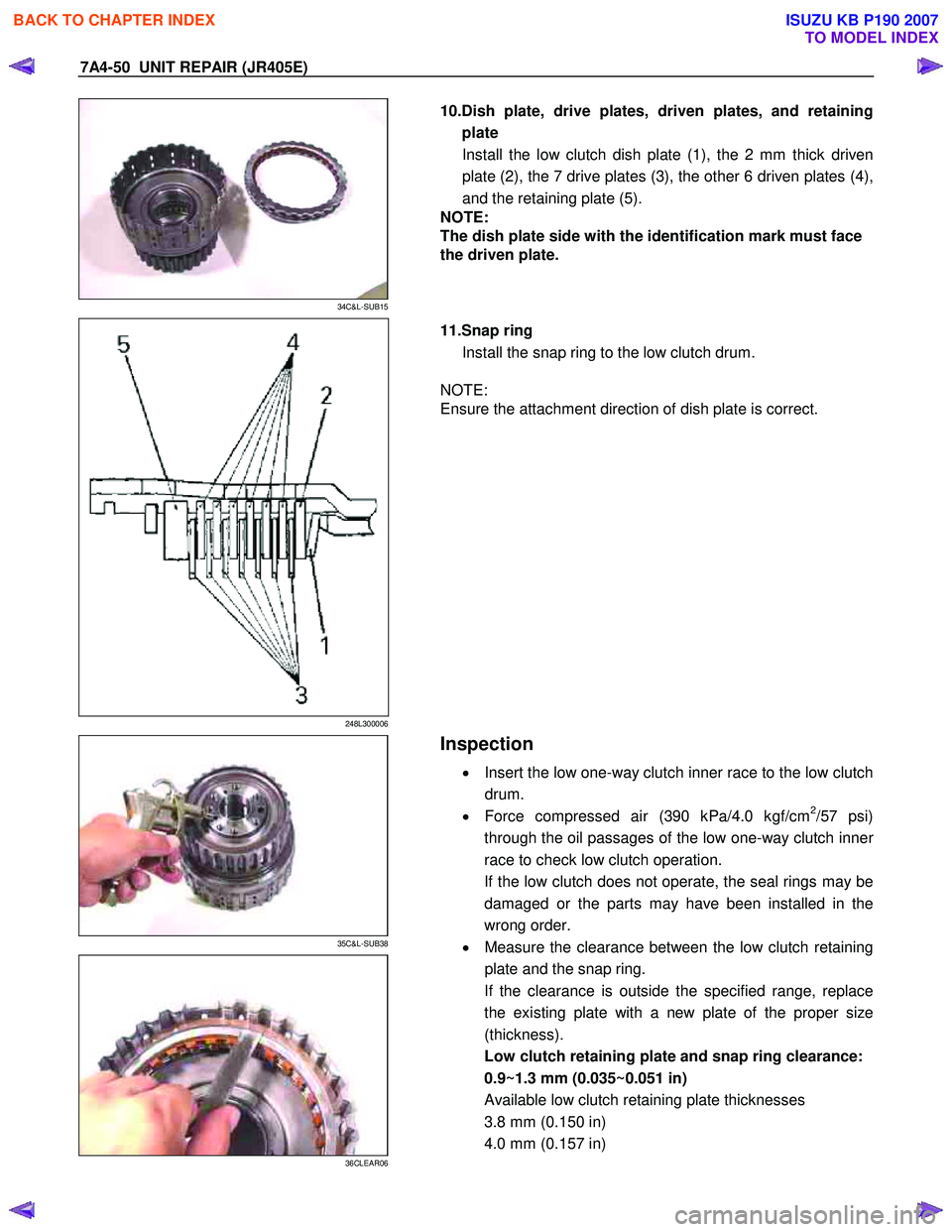

10.Dish plate, drive plates, driven plates, and retaining
plate Install the low clutch dish plate (1), the 2 mm thick driven
plate (2), the 7 drive plates (3), the other 6 driven plates (4),
and the retaining plate (5).
NOTE:
The dish plate side with the identification mark must face
the driven plate.

248L300006

11.Snap ring
Install the snap ring to the low clutch drum.

NOTE:
Ensure the attachment direction of dish plate is correct.

35C&L-SUB38



36CLEAR06


Inspection
• Insert the low one-way clutch inner race to the low clutch
drum.
• Force compressed air (390 kPa/4.0 kgf/cm
2/57 psi)
through the oil passages of the low one-way clutch inne
r
race to check low clutch operation.
If the low clutch does not operate, the seal rings may be
damaged or the parts may have been installed in the
wrong order.
• Measure the clearance between the low clutch retaining
plate and the snap ring.
If the clearance is outside the specified range, replace
the existing plate with a new plate of the proper size
(thickness).
Low clutch retaining plate and snap ring clearance:
0.9~1.3 mm (0.035~0.051 in)
Available low clutch retaining plate thicknesses
3.8 mm (0.150 in)
4.0 mm (0.157 in)

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

UNIT REPAIR (JR405E) 7A4-51
248L300007

4.2 mm (0.165 in)
4.4 mm (0.173 in)
4.6 mm (0.181 in)
4.8 mm (0.189 in)

37C&L-SUB40

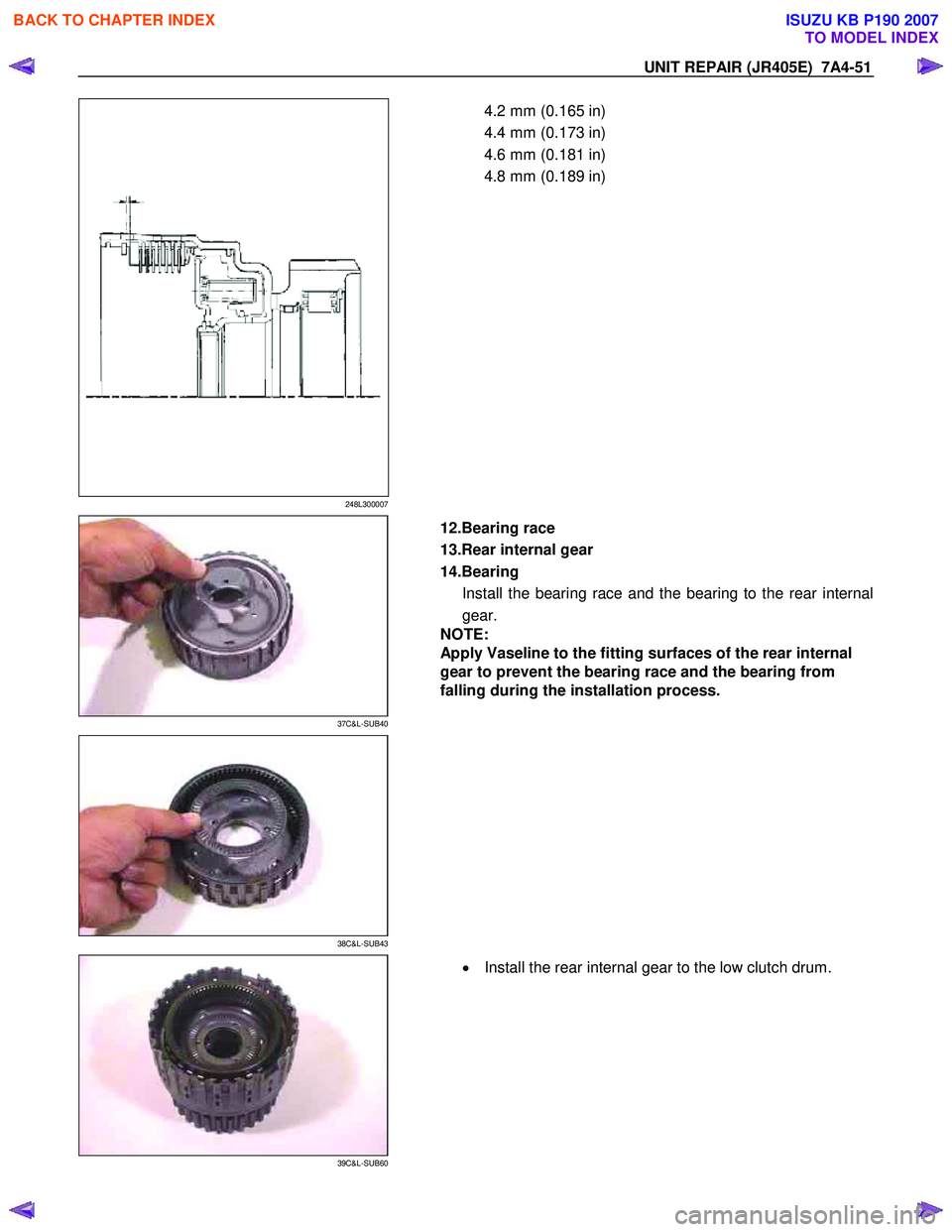

12.Bearing race
13.Rear internal gear
14.Bearing Install the bearing race and the bearing to the rear internal
gear.
NOTE:
Apply Vaseline to the fitting surfaces of the rear internal
gear to prevent the bearing race and the bearing from
falling during the installation process.


38C&L-SUB43


39C&L-SUB60
• Install the rear internal gear to the low clutch drum.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A4-52 UNIT REPAIR (JR405E)

40C&L-SUB46

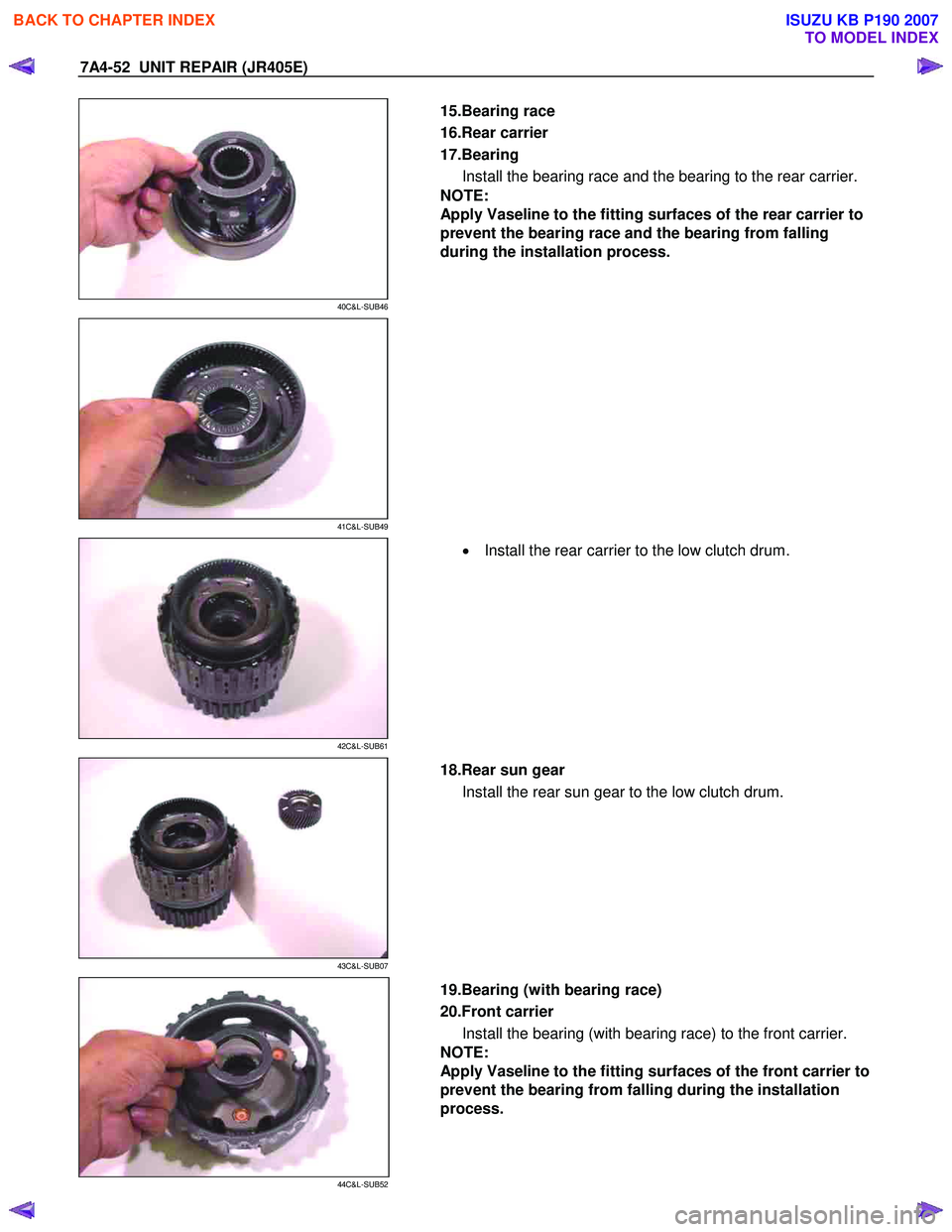

15.Bearing race
16.Rear carrier
17.Bearing Install the bearing race and the bearing to the rear carrier.
NOTE:
Apply Vaseline to the fitting surfaces of the rear carrier to
prevent the bearing race and the bearing from falling
during the installation process.


41C&L-SUB49


42C&L-SUB61
• Install the rear carrier to the low clutch drum.


43C&L-SUB07

18.Rear sun gear
Install the rear sun gear to the low clutch drum.


44C&L-SUB52

19.Bearing (with bearing race)
20.Front carrier Install the bearing (with bearing race) to the front carrier.
NOTE:
Apply Vaseline to the fitting surfaces of the front carrier to
prevent the bearing from falling during the installation
process.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

UNIT REPAIR (JR405E) 7A4-53

45C&L-SUB04

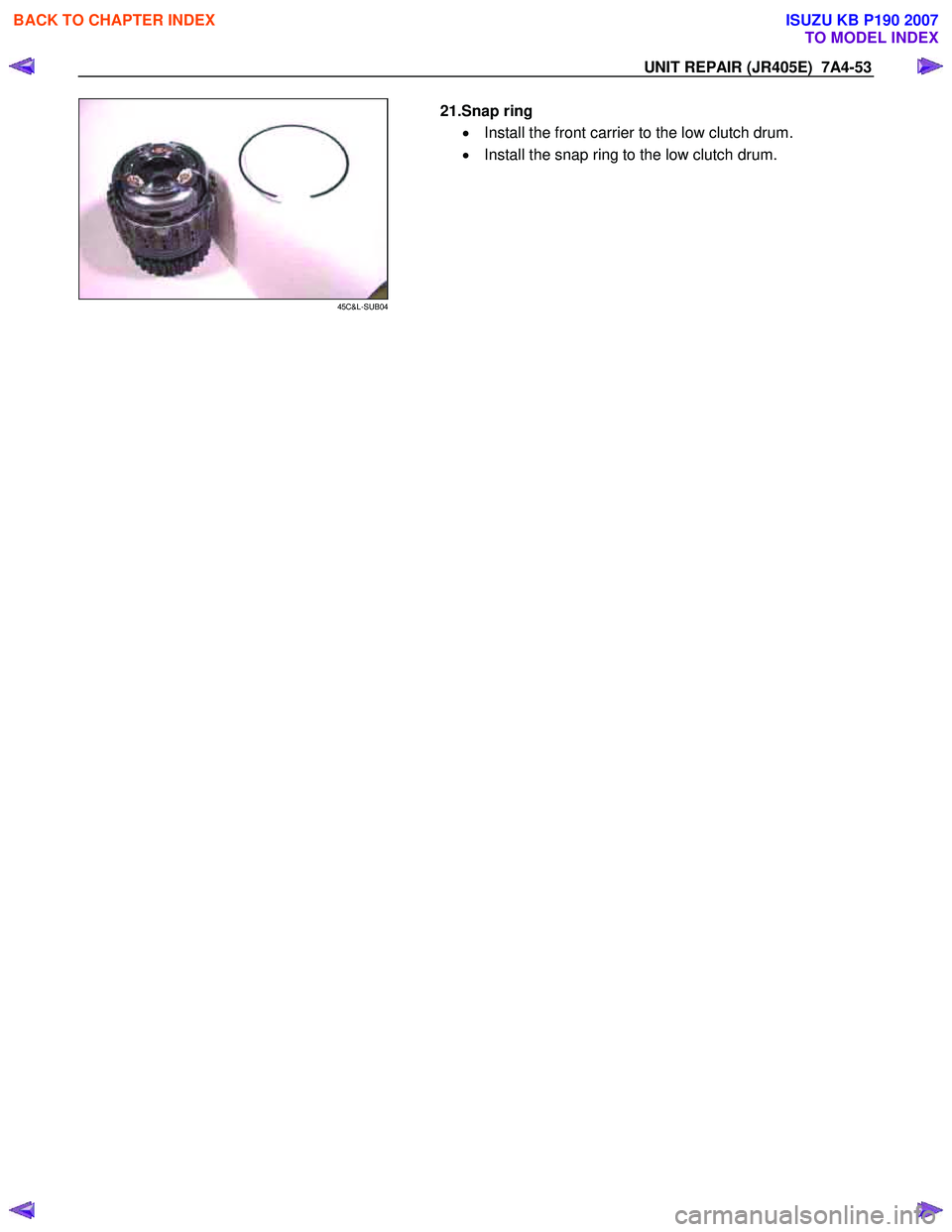

21.Snap ring
• Install the front carrier to the low clutch drum.
• Install the snap ring to the low clutch drum.



BACK TO CHAPTER INDEX
TO MODEL INDEX
