Page 124 of 4264
9A1-54 RESTRAINT CONTROL SYSTEM
DTC Will Clear When
The ignition switch is turned “OFF”.
DTC Will Set When
The combined resistance of the driver pretensioner
assembly, harness wiring circuits “Driver Pretensioner
High” and “Driver Pretensioner Low”, and connector
terminal contact is above a specified value. This test
run once each ignition cycle during the “Resistance
Measurement Test” when:
1.
No “higher priority faults” are detected during “Turn–
ON”
2.
“Ignition 1” voltage is in the specified value.
Action Taken
SRS control unit turns “ON” the “AIR BAG” warning
lamp and sets DTC B0065.
DTC Chart Test Description
Number(s) below refer to step number(s) on the
diagnostic chart:
2.
This test determines whether the malfunction is in
the SRS control unit.
3.
This test verifies proper connection of the yellow
connector at the base of the driver seat.
4.
This test checks for proper contact and/or corrosion
of the connector terminals at the base of the drive
r
seat.
5.
This test isolate the malfunction to one side of the
SRS coil assembly yellow connector located at the
base of the driver seat.
6.
This test determines whether the malfunction is due
to high resistance in the wiring.
7.
This test determines whether the malfunction is in
the driver pretensioner assembly.
Diagnostic Aids
An intermittent condition is likely to be caused by a poor
connection at the drive pretensioner harness connecto
r
terminals “1” and “2”, SRS control unit terminals “42”
and “41”, or a poor wire to terminal connection in circuit
“Driver Pretensioner High” or “Driver Pretensioner Low”
The test for this diagnostic trouble code is only run while
the “AIR BAG” warning lamp is performing the bulb
check. When a scan tool “Clear Codes” command is
issued and the malfunction is still present, the DTC will
not reappear until the next ignition cycle.
DTC B0065 (Flash Code 65) Driver Pretensioner Squib Circuit High Resistance
Step Action Yes No
1 Perform the “SRS Diagnostic System Check”.
Was the “SRS Diagnostic System Check” performed? Go to Step 2 Repeat the “SRS
Diagnostic System
Check”
2
1. Check the driver pretensioner squib circuit for open.
2. If the problem found repair as necessary.
Was a problem found? Verify repair Go to Step 3
3
1. Ignition switch “OFF.”
2. Disconnect SRS coil assembly yellow connector located at
base of the driver seat.
Is the connector connected properly? Go to Step 4 Seat pretensioner
assembly
connector
properly.
Go to Step 8
Page 138 of 4264
4A-2 PROPELLER SHAFT
Service Precaution
WARNING: THIS VEHICLE HAS A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS).
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON
OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PEREFORMING
SERVICE ON OR NEAR THE SRS COMPONENTS
OR THE SRS WIRING, REFER TO THE SRS
SERVICE INFORMATION. FAILURE TO FOLLOW
WARNING COULD RESULT IN POSSIBLE AI
R
BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS. CAUTION : Always use the correct fastener in the
proper location. When you replace a fastener,
use ONLY the exact part number for that
application. ISUZU will call out those fasteners
that require a replacement after removal. ISUZU
will also call out the fasteners that require thread
lockers or thread sealant. UNLESS OTHERWISE
SPECIFIED, do not use supplemental coatings
(Paints, greases, or other corrosion inhibitors)
on threaded fasteners or fastener joint
interfaces. Generally, such coatings adversely
affect the fastener torque and the joint clamping
force, and may damage the fastener. When you
install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts
and systems.
Page 166 of 4264
4B-2 REAR AXLE
Service Precaution
WARNING:
THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE REFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE
TO FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS
SYSTEM REPAIRS.
CAUTION:
Always use the correct fastener in the prope
r
location. When you replace a fastener, use ONLY
the exact part number for that application. ISUZU
will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers o
r
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (Paints,
greases, or other corrosion inhibitors) on threaded
fasteners or fastener joint interfaces. Generally,
such coatings adversely affect the fastener torque
and the joint clamping force, and may damage the
fastener. When you install fasteners, use the
correct tightening sequence and specification.
Following these instructions can help you avoid
damage to parts and systems.
Page 299 of 4264
SHIFT ON THE FLY SYSTEM 4C2-1
DRIVELINE/AXLE
SHIFT ON THE FLY SYSTEM
CONTENTS
Service Precaution............................................. 4C2-1
Shift On The Fly System .................................... 4C2-2
Outline of Shift on The Fly System ................. 4C2-2
Shift On The Fly Electrical Equipment ............... 4C2-3
Axle Shaft Connection and Disconnection ..... 4C2-3
Actuator Assembly.......................................... 4C2-3
Shift On The Fly System and Association
Parts ................................................................. 4C2-4
Disassembly ................................................... 4C2-5
Inspection and Repair..................................... 4C2-6
Reassembly .................................................... 4C2-9
Torque Specifications ..................................... 4C2-12
Special Service Tool ....................................... 4C2-13
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners o
r
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
Page 320 of 4264

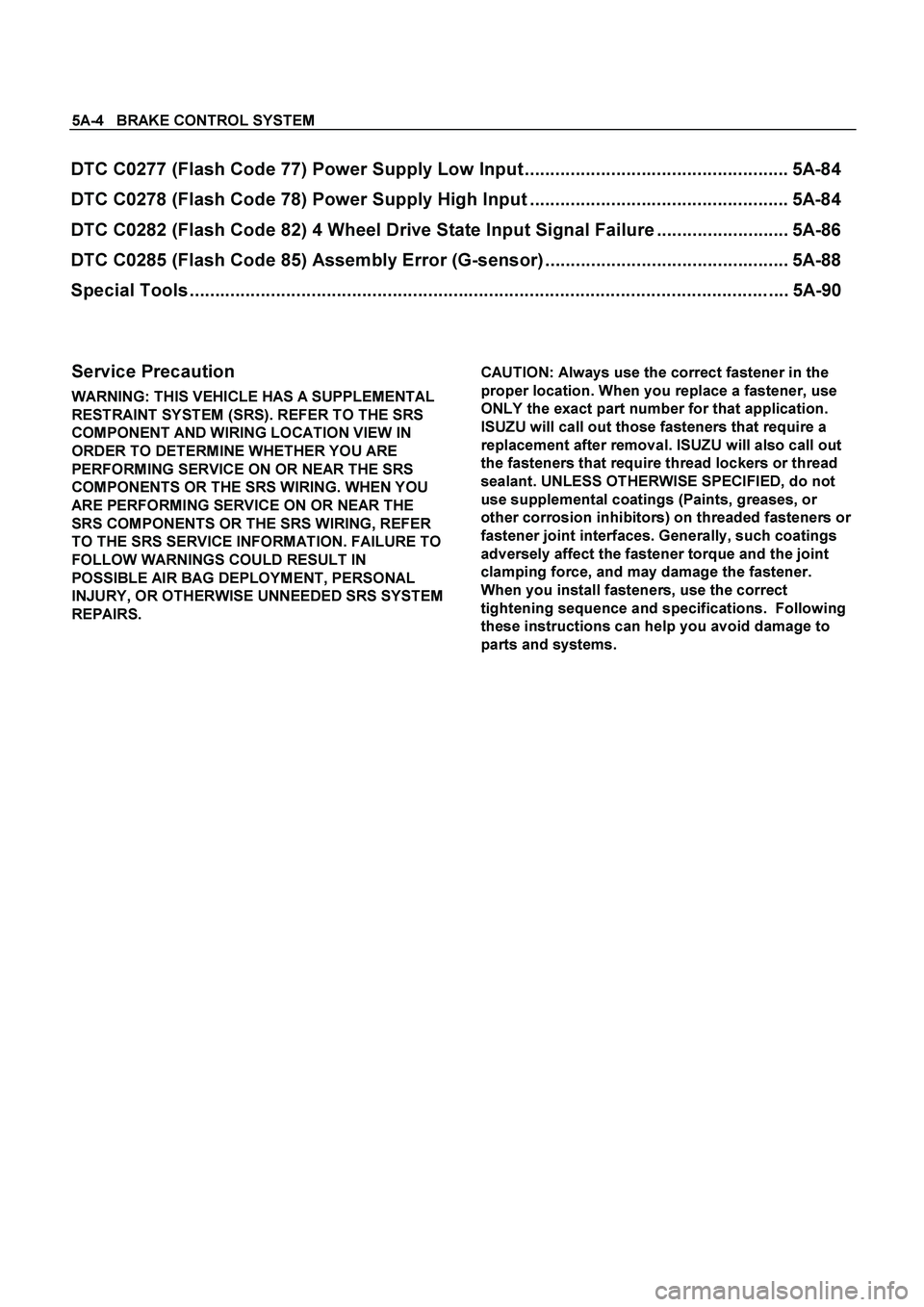

5A-4 BRAKE CONTROL SYSTEM
DTC C0277 (Flash Code 77) Power Supply Low Input .................................................... 5A-84
DTC C0278 (Flash Code 78) Power Supply High Input ................................................... 5A-84
DTC C0282 (Flash Code 82) 4 Wheel Drive State Input Signal Failure .......................... 5A-86
DTC C0285 (Flash Code 85) Assembly Error (G-sensor) ................................................ 5A-88
Special Tools ...................................................................................................................... 5A-90
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
Page 337 of 4264
BRAKE CONTROL SYSTEM 5A-21
Computer System Service Precautions
The Anti-lock Brake System and Electronic Brake-force
Distribution interfaces directly with the Electronic
Hydraulic Control Unit (EHCU) which is a control
computer that is similar in some regards to the Engine
Control Module. These modules are designed to
withstand normal current draws associated with vehicle
operation. However, care must be taken to avoid
overloading any of the EHCU circuits. In testing for
opens or shorts, do not ground or apply voltage to any
of the circuits unless instructed to do so by the
appropriate diagnostic procedure. These circuits should
only be tested with a high impedance multimeter
5-8840-0366-0 or special tools as described in this
section. Power should never be removed or applied to
any control module with the ignition in the “ON”
position.
Before removing or connecting battery cables, fuses or
connectors, always turn the ignition switch to the “OFF”
position.
General Service Precautions
The following are general precautions which should be
observed when servicing and diagnosing the Anti-lock
Brake System and/or other vehicle systems. Failure to
observe these precautions may result in Anti-lock Brake
System and Electronic Brake-force Distribution
damage.
If welding work is to be performed on the vehicle
using an electric arc welder, the EHCU and valve
block connectors should be disconnected before
the welding operation begins.
The EHCU and valve block connectors should
never be connected or disconnected with the
ignition “ON”.
Note:
If only rear wheels are rotated using jacks or drum
tester, the system will diagnose a speed sensor
malfunction and the “ABS and Brake” warning lamp
will illuminate. But actually no trouble exists. When
the DTC is not detected and the ABS and BRAKE
warning lamp is on, “How to erase code” is
performed and a ABS and BRAKE warning lamp
are off.
If the battery has been discharged
The engine may stall if the battery has been completely
discharged and the engine is started via jumper cables.
This is because the Anti-lock Brake System (ABS) and
Electronic Brake-force Distribution (EBD) System
requires a large quantity of electricity. In this case, wait
until the battery is recharged, or set the ABS and EBD
to a non-operative state by removing the fuse for the
ABS. After the battery has been recharged, stop the
engine and install the ABS fuse. Start the engine again,
and confirm that the ABS warning Lamp does not light.
Note on Intermittents
As with virtually any electronic system, it is difficult to
identify an intermittent failure. In such a case
duplicating the system malfunction during a test drive or
a good description of vehicle behavior from the
customer may be helpful in locating a “most likely”
failed component or circuit. The symptom diagnosis
chart may also be useful in isolating the failure. Most
intermittent problems are caused by faulty electrical
connections or wiring. When an intermittent failure is
encountered, check suspect circuits for:
Suspected harness damage.
Poor mating of connector halves or terminals not
fully seated in the connector body (backed out).
Improperly formed or damaged terminals.
Test Driving ABS Complaint Vehicles
In case that there has been an abnormality in the
lighting pattern of “ABS” warning lamp, the fault can be
located in accordance with the “DIAGNOSIS BY “ABS”
WARNING LAMP ILLUMINATION PATTERN”. In case
of such trouble as can be detected by the driver as a
vehicle symptom, however, it is necessary to give a test
drive following the test procedure mentioned below,
thereby reproducing the symptom for trouble diagnosis
on a symptom basis:
1.
Start the engine and make sure that the “ABS” W/L
goes OFF. If the W/L remains ON, it means that
the Diagnostic Trouble Code (DTC) is stored.
Therefore, read the code and locate the fault.
Note: The DTC cannot be cleared if the vehicle speed
does not exceed about 6km/h (4mph) at DTC, even
though the repair operation is completed.
2. Start the vehicle and accelerate to about 30 km/h
(19 mph) or more.
3. Slowly brake and stop the vehicle completely.
4. Then restart the vehicle and accelerate to about 40
km/h (25 mph) or more.
5. Brake at a time so as to actuate the ABS and stop
the vehicle.
6. Be cautious of abnormality during the test. If the
W/L is actuated while driving, read the DTC and
locate the fault.
7. If the abnormality is not reproduced by the test,
make best efforts to reproduce the situation
reported by the customer.
8. If the abnormality has been detected, repair in
accordance with the “SYMPTOM DIAGNOSIS” .
Note:
Be sure to give a test drive on a wide, even road
with a small traffic.
If an abnormality is detected, be sure to suspend
the test and start trouble diagnosis at once.
Page 344 of 4264
5A-28 BRAKE CONTROL SYSTEM
Isolation Valve Test
Purpose: The purpose of this test is to detect brake
pipe and valve line harness wire for wrong connections
and valve trouble.
This test will help you confirm the result of your repair
service including the removal/reinstallation of brake
pipe, valve line harness and valve.
Test conditions: The ignition key is in the “ON” position
with the four wheels lifted up. The brake pedal is
stepped on, released and stepped on again with the
parking brake released.
Test procedure:
1. Connect Tech 2 with the vehicle, and select
Actuaor Test from the menus.
2. Select a Solenoid Valve Test Menu from the
Actuaor Test Menus.
060L300002
3. Select Isolation Valve from the Valve Select Menus.
4. Step on the brake pedal.
5. Release the brake pedal.
6. Make sure that the Isolation Valve “ON” aimed at by
Tech 2 and the wheel locked position are the same.
If different, check brake pipe, valve line harness
wiring and H/UNIT. Repair is needed if abnormality
is found.
7. Conduct Step 2 through Step 5 above on all the
four wheels.
060L300002
CAUTION: When conducting this test, please
observe the following cautions.
1. Do not start the engine.
2. Lift up the vehicle at a level floor.
Secure a clearance from the floor surface
enough to allow the lifted tire to rotate.
3. Maintain the lift up.
4. Wipe the floor surface to remove water and oil
so that the surface may become unslippery.
5. Do not load the vehicle.
When lifting up the vehicle, be sure to
observe the lifting up points. Refer to
vehicle lifting points in 0A section.
Page 345 of 4264
BRAKE CONTROL SYSTEM 5A-29
Dump Valve Test
Purpose: The purpose of this test is to detect brake
pipe and valve line harness wire for wrong connections
and valve trouble.
This test will help you confirm the result of your repai
r
service including the removal/reinstallation of brake
pipe, valve line harness and valve.
Test conditions: The ignition key is in the “ON” position
with the four wheels lifted up. The brake pedal is
stepped on, released and stepped on again with the
parking brake released.
Test procedure:
1. Connect Tech 2 with the vehicle, and select
Actuator Test Function from the menus.
2. Select a Solenoid Valve Test Menu from the
Actuator Test Menus.
060L300002
3. Select Dump Valve from the Valve Select Meuns.
4. Step on the brake pedal.
5. Make sure that the Dump Valve “ON” aimed at by
Tech 2 and the wheel released position are the
same. If different, check brake pipe, valve line
harness wiring and H/UNIT. Repair is needed if
abnormality is found.
6. Conduct Step 2 through Step 5 above on all the
four wheels.
060L300002
CAUTION: When conducting this test, please
observe the following cautions.
1. Do not start the engine.
2. Lift up the vehicle at a level floor.
Secure a clearance from the floor surface
enough to allow the lifted tire to rotate.
3. Maintain the lift up.
4. Wipe the floor surface to remove water and oil
so that the surface may become unslippery.
5. Do not load the vehicle.
When lifting up the vehicle, be sure to
observe the lifting up points. Refer to
vehicle lifting points in 0A section.
Page 346 of 4264
5A-30 BRAKE CONTROL SYSTEM
Diagnostic Trouble Codes
Choose and trace an appropriate flowchart by the
numbers listed below to find fault and repair.
Note:
DTC cannot be erased when the DTC is a present.
Warning Lamp System Control Main Items
DTC
(Flash
Code) Description
ABS Brake
(EBD)ABS EBD
-
(12) Normal Condition
-
C0221
(21) Front Right Wheel Speed Sensor Short
Circuit or Circuit Open
*A
Sensor or Wiring
C0222
(22) Front Right Wheel Speed Sensor
Incorrect Signal *B
A
Sensor or install condition
C0223
(23) Front Right Wheel Speed Sensor Signal
- Tooth Chipping
*A
Sensor Rotor or install
condition
C0225
(25) Front Left Wheel Speed Sensor Short
Circuit or Circuit Open
*A
Sensor or Wiring
C0226
(26) Front Left Wheel Speed Sensor
Incorrect Signal *B
*A
Sensor or install condition
C0227
(27) Front Left Wheel Speed Sensor Signal -
Tooth Chipping
*A
Sensor Rotor or install
condition
C0231
(31) Rear Right Wheel Speed Sensor Short
Circuit or Circuit Open
*A
Sensor or Wiring
C0232
(32) Rear Right Wheel Speed Sensor
Incorrect Signal *B
*A
Sensor or install condition
C0233
(33) Rear Right Wheel Speed Sensor Signal
- Tooth Chipping
*A
Sensor Rotor or install
condition
C0235
(35) Rear Left Wheel Speed Sensor Short
Circuit or Circuit Open
*A
Sensor or Wiring
C0236
(36) Rear Left Wheel Speed Sensor
Incorrect Signal *B
*A
Sensor or install condition
C0237
(37) Rear Left Wheel Speed Sensor Signal -
Tooth Chipping
*A
Sensor Rotor or install
condition
C0238
(38) Tire Diameter Error
Vehicle , Sensor or Tire
C0241
(41) Front Right Isolation Solenoid Circuit
Open or Shorted to Ground
Solenoid (EHCU)
C0242
(42) Front Right Dump Solenoid Circuit
Open or Shorted to Ground
Solenoid (EHCU)
C0243
(43) Front Right Isolation Solenoid Circuit
Shorted to Battery
Solenoid (EHCU)
C0244
(44) Front Right Dump Solenoid Circuit
Shorted to Battery
Solenoid (EHCU)
C0245
(45) Front Left Isolation Solenoid Open Or
Shorted to Ground
Solenoid (EHCU)
C0246
(46) Front Left Dump Solenoid Circuit Open
Or Shorted to Ground
Solenoid (EHCU)
C0247
(47) Front Left Isolation Solenoid Circuit
Shorted to Battery
Solenoid (EHCU)
Page 347 of 4264
BRAKE CONTROL SYSTEM 5A-31
Warning Lamp System Control Main Items DTC
(Flash
Code) Description
ABS Brake
(EBD)ABS EBD
C0248
(48) Front Left Dump Solenoid Circuit
Shorted to Battery
Solenoid (EHCU)
C0251
(51) Rear Isolation Solenoid Circuit Open or
Shorted to Ground
Solenoid (EHCU)
C0252
(52) Rear Dump Solenoid Circuit Open or
Shorted to Ground
Solenoid (EHCU)
C0253
(53) Rear Isolation Solenoid Circuit Shorted
to Battery
Solenoid (EHCU)
C0254
(54) Rear Dump Solenoid Circuit Shorted to
Battery
Solenoid (EHCU)
C0265
(65) Fail Safe Relay (FSR) Shorted to
Ground
Motor (EHCU)
C0266
(66) Fail Safe Relay (FSR) Shorted to
Battery
Relay (EHCU)
C0267
(67) ABS Motor Shorted to Ground
Motor (EHCU)
C0268
(68) ABS Motor Shorted to Battery
Motor (EHCU)
C0271
(71) ECU Failure or Valve +B Circuit Open
EHCU
C0274
(74) ABS Operation Long Time
EHCU
C0276
(76) G-Sensor Malfunction
Sensor or Wiring
Battery, Wiring or EHCU
(less than 9V) C0277
(77) Power Supply Low Input
Battery or Wiring
(less than 10V)
C0278
(78) Power Supply High Input
Battery or Wiring EHCU
C0282
(82) 4 Wheel Drive State Input Signal Failure
Wiring
C0285
(85) Assembly Error (G-sensor)
Vehicle (Sensor or EHCU)
*A : When three or more failure are detected, or when
failure containing both front wheels and each rear
wheels are detected, EBD warning lamp is "ON"
and control is canceled.
*B : ABS lamp is “OFF” when the ABS lamp is “ON”
after a repair until vehicles speed becomes more
than 6km/h (4mph) in the following ignition cycle
and failure is not detected.
