9J-70 Supplemental Restraint System

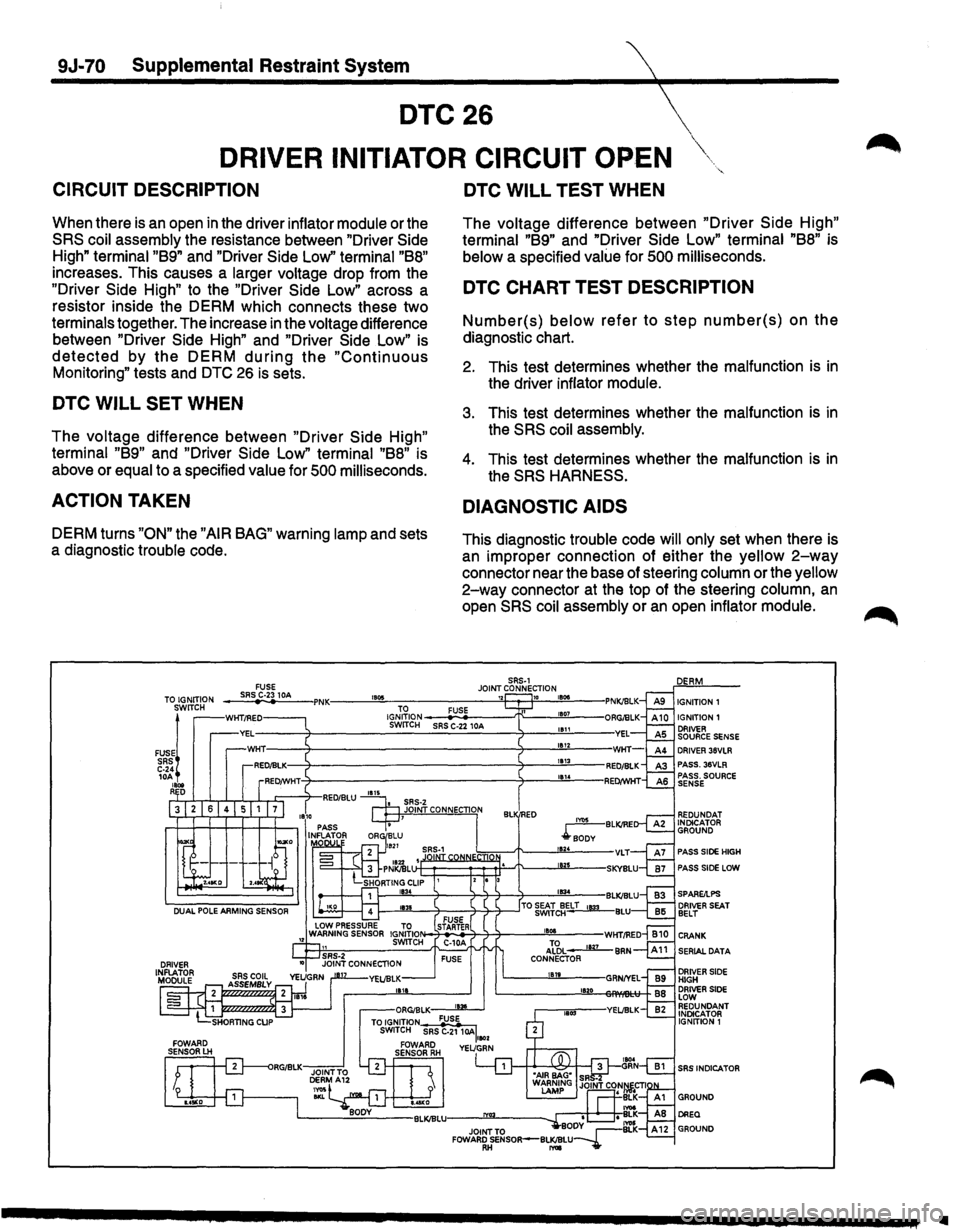

DTC26
DRIVER INITIATOR CIRCUIT OPEN
CIRCUIT DESCRIPTION
When there is an open in the driver inflator module or the
SRS coil assembly the resistance between "Driver Side
High" terminal "89" and "Driver Side Low" terminal "88"
increases. This causes a larger voltage drop from the
"Driver
Side High" to the "Driver Side Low" across a
resistor inside the DERM which connects these two
terminals together. The increase in the voltage difference
between "Driver
Side High" and "Driver Side Low" is
detected by the DERM during the "Continuous
Monitoring" tests and DTC 26 is sets.
DTC WILL SET WHEN
The voltage difference between "Driver Side High"
terminal "89" and "Driver Side Low" terminal "88" is
above or
equal to a specified value for 500 milliseconds.
ACTION TAKEN
DERM turns "ON" the "AIR BAG" warning lamp and sets
a diagnostic
trouble code.
TO IGNITION FUSE SRS C-23 lOA , ...
DTC WILL TEST WHEN
The voltage difference between "Driver Side High"
terminal "89" and "Driver Side Low" terminal "88" is
below a specified value for 500 milliseconds.
DTC CHART TEST DESCRIPTION
Number(s) below refer to step number(s) on the
diagnostic chart.
2. This test determines whether the malfunction is in
the driver inflator module.
3. This test determines whether the malfunction is in
the SRS coil assembly.
4. This test determines whether the malfunction is in
the SRS HARNESS.
DIAGNOSTIC AIDS
This diagnostic trouble code will only set when there is
an improper connection of either the
yellow 2-way
connector near the base of steering column or the yellow
2-way connector at the top of the steering column, an
open SRS coil assembly or an open inflator module.
SRS·l
JOINT CONNECTION ,.,. IGNITION 1 SWITCH
FUSE~
1GrJ;~ION-- SRS C-24 lOA , ... R D
I----'18"'34'----T---7-3--7-+---'"11134..._-BLI DRIVER 36VLR PASS. 36VLR PASS. SOURCE SENSE
REDUNDAT INDICATOR GROUND
PASS SIDE HIGH
PASS SIDE LOW
SERIAL DATA
DRIVER SIDE HIGH DRIVER SlOE LOW REDUNDANT INDICATOR IGNITION 1
SRS INDICATOR
Ill

STEP
1
2
3
4
5
Supplemetl Restraint System 9J-71
DTC 26 l
I
DRIVER INITIATOR CIRCUIT OPEN
ACTION
YES
WAS THE "SRS DIAGNOSTIC SYSTEM CHECK" GO TO STEP2.
PERFORMED?
WHEN MEASUREMENTS ARE REQUESTED
IN THIS CHART GO TO STEP3. USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER
FROM J-35616-A.
IGNITION SWITCH "OFF."
DISCONNECT DRIVER
AND PASSENGER INFLATOR
MODULES,
YELLOW 2-WAY OR 4-WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPARTMENT DOOR ASSEMBLY. CHECK FOR PROPER CONNECTION TO STEERING
COLUMN CONNECTOR AT TERMINALS "1" AND "2". IF OK THEN CONNECT J-41433 SRS DRIVER/PASSENGER
LOAD TOOL TO STEERING COLUMN HARNESS
CONNECTOR.
IGNITION SWITCH "ON."
IS
DTC CURRENT? (DTC 17 WILL BE CURRENT DUE TO
DISCONNECTED PASSENGER INFLATOR
MODULE).
IGNITION SWITCH "OFF." GO TO STEP4. DISCONNECT SRS DRIVER/PASSENGER LOAD TOOL.
DISCONNECT SRS COIL CONNECTOR, YELLOW 3-WAY CONNECTORS LOCATED NEAR THE BASE OF THE STEERING COLUMN. MEASURE RESISTANCE ON SRS COIL CONNECTOR AT THE TOP OF THE STEERING COLUMN, FROM TERMINAL "1" TO
TERMINAL "2". IS RESISTANCE 5.00 OR LESS?
DISCONNECT
DERM CONNECTOR.
RECONNECT SRS DRIVER/PASSENGER LOAD TOOL
CONNECTOR.
RECONNECT SRS COIL CONNECTOR.
MEASURE RESISTANS ON DERM CONNECTOR FROM TERMINAL "B9" TO TERMINAL "B8". IS RESISTANCE 5.00 OR LESS? RECONNECT
ALL SRS COMPONENTS. GO TO
CHART A.
NO
GO TO THE SRS
DIAGNOSTIC SYSTEM CHECK."
IGNITION SWITCH
"OFF." REPLACE DRIVER
INFLATOR
MODULE, REFER TO IN THIS
SECTION 3.
GOTOSTEP5.
IGNITION SWITCH
"OFF." REPLACE SRS
COIL
ASSEMBLY, REFER TO IN THIS
SECTION 3. GO TO STEPS.
REPLACE SRS
HARNESS. GOTOSTEPS.
RECONNECT
ALL SRS COMPONENTS, ENSURE ALL COMPONENTS ARE PROPERLY MOUNTED. GO TO THE "SRS DIAGNOSTIC SYSTEM
CHECK".
CLEAR SRS DIAGNOSTIC
TROUBLE CODE. REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

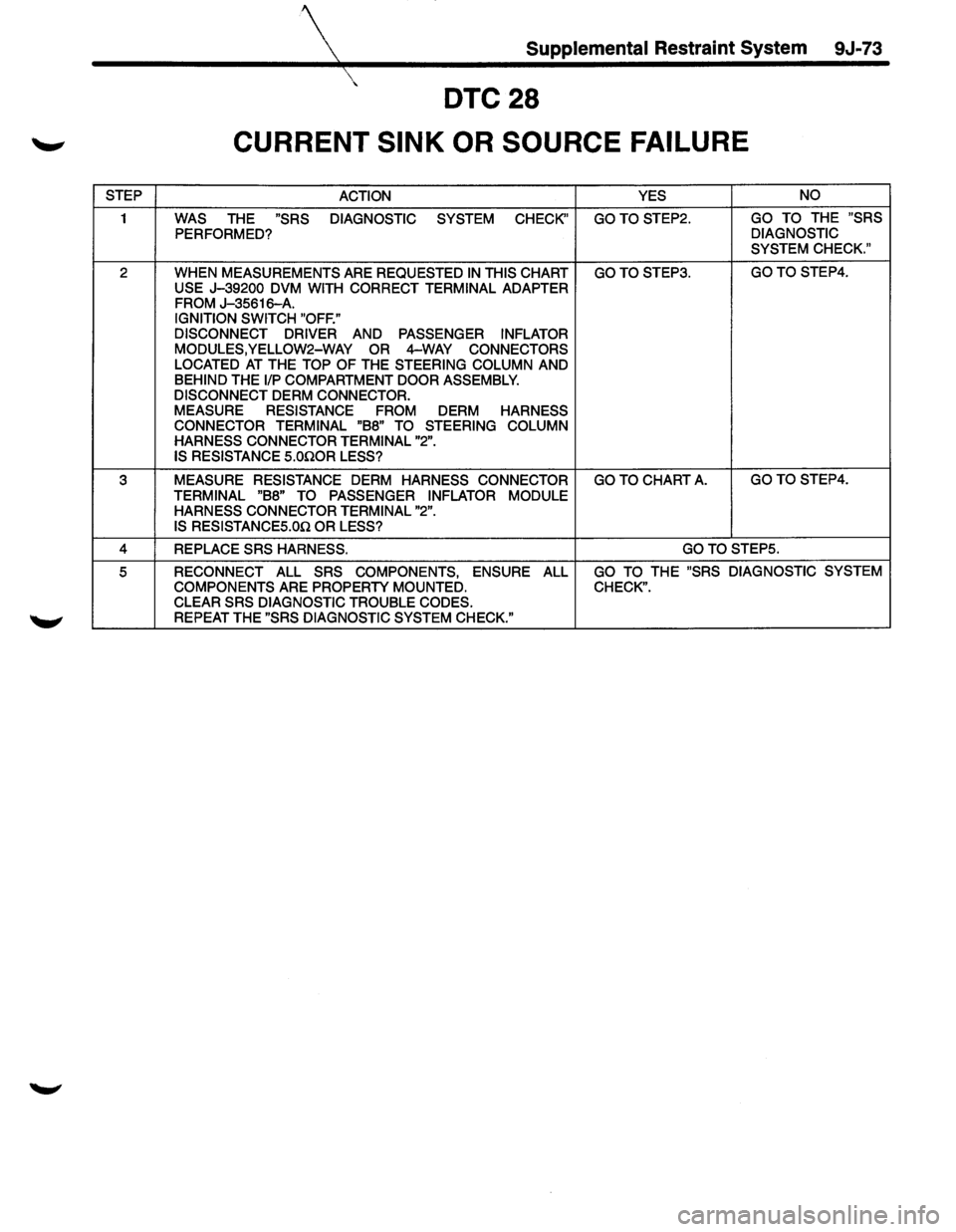

Supplemental Restraint System 9J-73

DTC28
CURRENT SINK OR SOURCE FAILURE
STEP
ACTION YES NO
1 WAS THE "SRS
DIAGNOSTIC
SYSTEM
CHECK" GOTOSTEP2. GO TO THE "SRS
PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2
WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART GOTOSTEP3. GOTO STEP4.
USE
J-39200 DVM WITH CORRECT TERMINAL ADAPTER FROM J-35616-A. IGNITION SWITCH "OFF."
DISCONNECT DRIVER AND PASSENGER INFLATOR
MODULES,YELLOW2-WAY OR 4-WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND
BEHIND THE 1/P COMPARTMENT DOOR ASSEMBLY.
DISCONNECT DERM CONNECTOR.
MEASURE RESISTANCE FROM
DERM HARNESS
CONNECTOR TERMINAL "B8" TO STEERING COLUMN
HARNESS CONNECTOR TERMINAL "2".
IS RESISTANCE S.OnOR LESS?
3 MEASURE RESISTANCE DERM HARNESS CONNECTOR GO TO CHART A. GOTOSTEP4.
TERMINAL "B8" TO PASSENGER INFLATOR MODULE
HARNESS CONNECTOR TERMINAL "2".
IS RESISTANCES.On OR LESS?
4 REPLACE SRS HARNESS. GOTO STEPS.
5 RECONNECT ALL SRS COMPONENTS, ENSURE ALL GO TO THE "SRS DIAGNOSTIC SYSTEM
COMPONENTS
ARE PROPERTY MOUNTED. CHECK". CLEAR SRS DIAGNOSTIC TROUBLE CODES.
REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System 9J-75

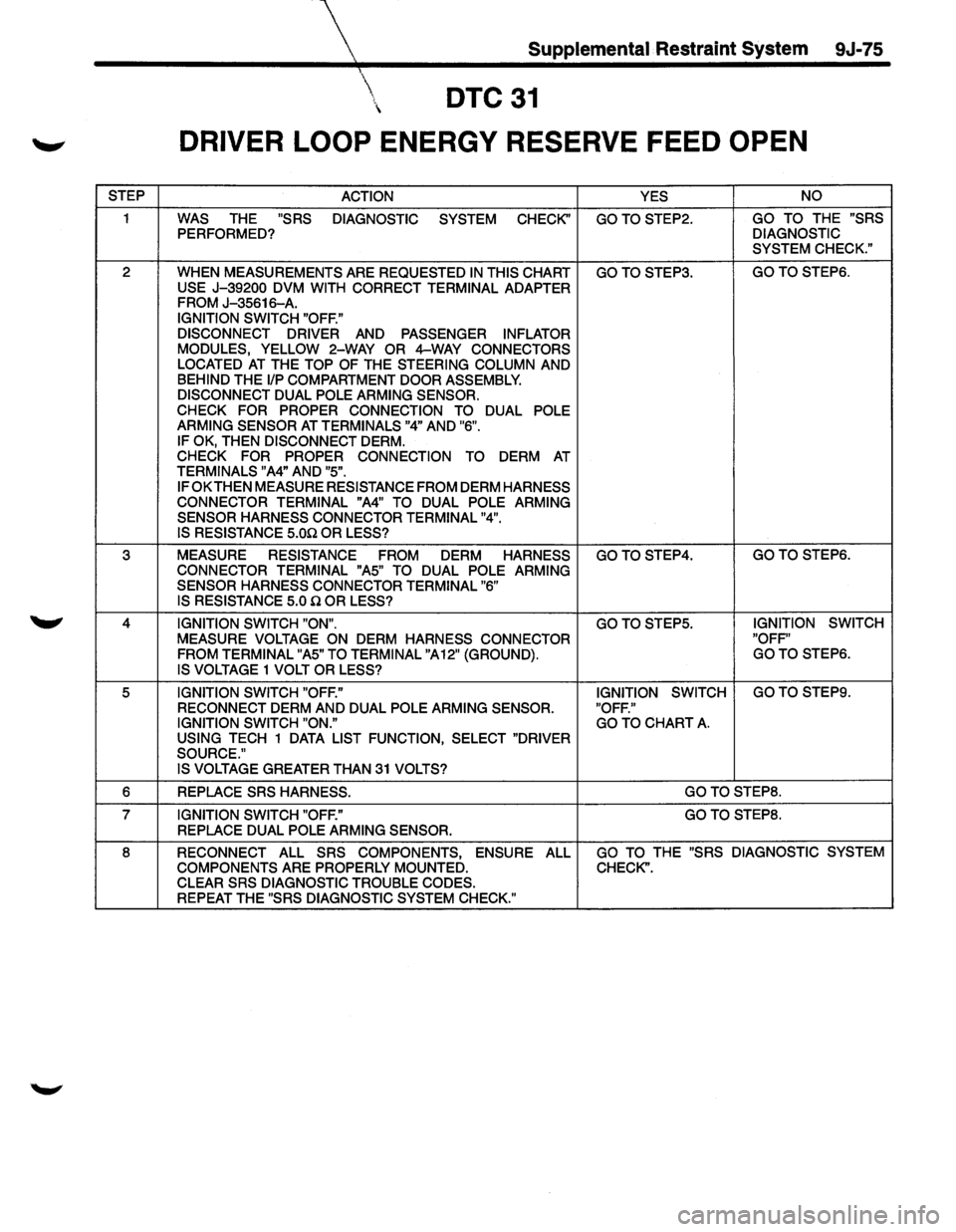

DTC31
DRIVER LOOP ENERGY RESERVE FEED OPEN
STEP ACTION YES NO
1 WAS THE "SRS
DIAGNOSTIC SYSTEM CHECK'' GOTOSTEP2. GO TO THE "SRS
PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2
WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART GOTOSTEP3. GOTOSTEP6.
USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER FROM J-35616-A.
IGNITION SWITCH "OFF."
DISCONNECT DRIVER AND PASSENGER INFLATOR
MODULES, YELLOW 2-WAY OR 4-WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPARTMENT DOOR ASSEMBLY. DISCONNECT DUAL POLE ARMING SENSOR.
CHECK FOR PROPER CONNECTION TO DUAL POLE
ARMING SENSOR AT TERMINALS "4" AND "6".
IF OK, THEN DISCONNECT DERM. CHECK
FOR PROPER CONNECTION
TO DERM AT TERMINALS "A4" AND "5".
IF OK
THEN MEASURE RESISTANCE FROM DERM HARNESS
CONNECTOR TERMINAL "A4" TO DUAL POLE ARMING
SENSOR HARNESS CONNECTOR TERMINAL "4". IS RESISTANCE 5.00 OR LESS?
3 MEASURE RESISTANCE FROM DERM HARNESS GOTOSTEP4. GOTOSTEP6.
CONNECTOR TERMINAL "A5" TO DUAL POLE ARMING
SENSOR HARNESS CONNECTOR TERMINAL "6"
IS RESISTANCE 5.0 Q OR LESS?
4 IGNITION SWITCH "ON". GOTOSTEP5. IGNITION SWITCH
MEASURE VOLTAGE ON DERM HARNESS CONNECTOR "OFF"
FROM TERMINAL "A5" TO TERMINAL "A12" (GROUND). GOTO STEPS.
IS VOLTAGE 1 VOLT OR LESS?
5 IGNITION SWITCH "OFF." IGNITION
SWITCH GOTO STEPS.
RECONNECT
DERM AND DUAL POLE ARMING SENSOR. "OFF."
IGNITION SWITCH "ON." GO TO CHART A. USING TECH 1 DATA LIST FUNCTION, SELECT "DRIVER
SOURCE." IS VOLTAGE
GREATER THAN 31 VOLTS?
6 REPLACE SRS HARNESS. GOTOSTEP8.
7 IGNITION SWITCH "OFF." GOTOSTEP8.
REPLACE DUAL POLE ARMING SENSOR.
8 RECONNECT ALL SRS COMPONENTS, ENSURE ALL GO TO THE "SRS DIAGNOSTIC SYSTEM
COMPONENTS
ARE PROPERLY MOUNTED. CHECK".
CLEAR SRS DIAGNOSTIC TROUBLE CODES.
REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System 9J-77

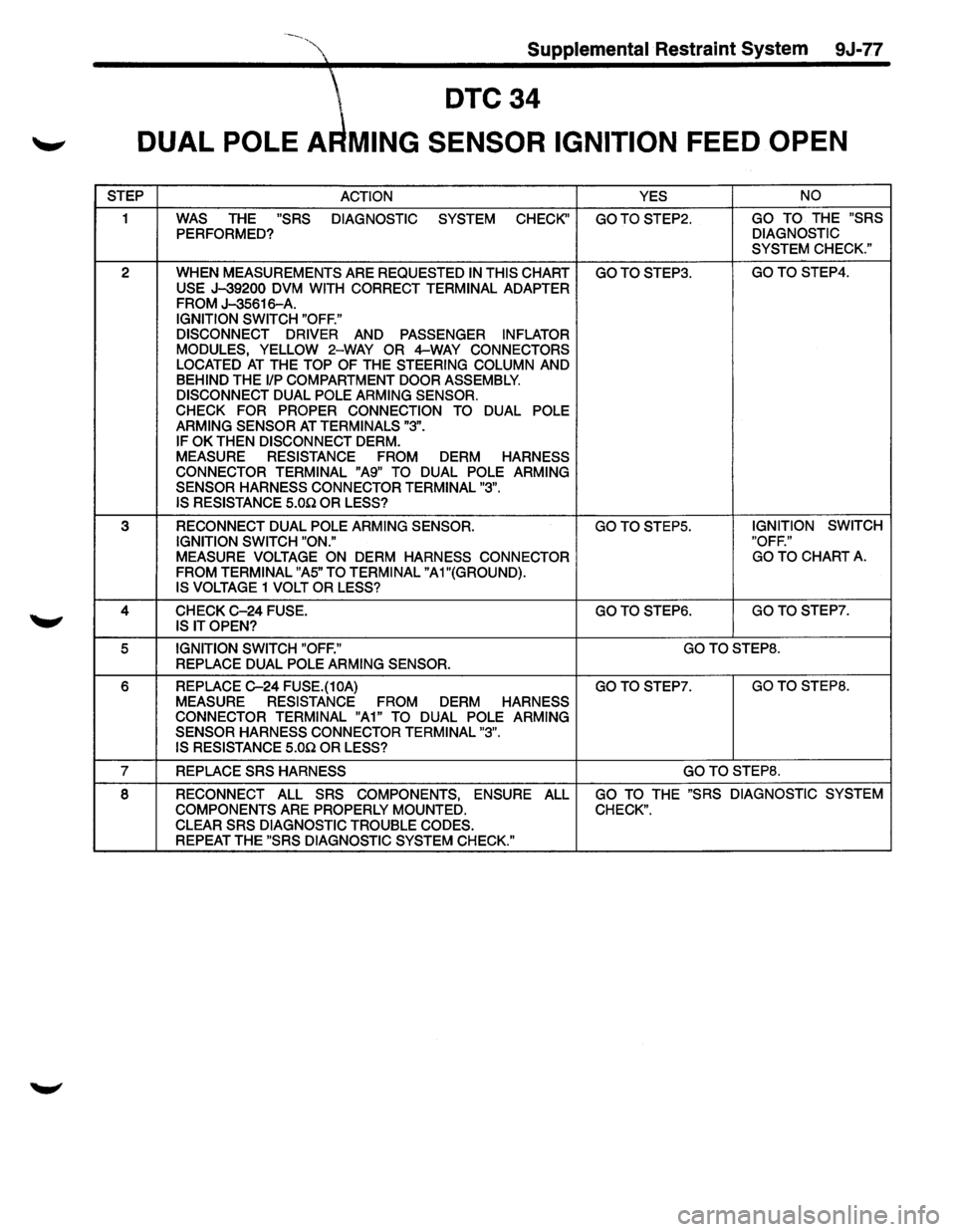

DTC34
'-" DUAL POLE A MING SENSOR IGNITION FEED OPEN
STEP
ACTION YES NO
1 WAS THE "SRS
DIAGNOSTIC SYSTEM CHECK" GOTOSTEP2. GO TO THE "SRS
PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2 WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART GOTOSTEP3. GOTO STEP4.
USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER FROM J-35616-A. IGNITION SWITCH "OFF."
DISCONNECT DRIVER
AND PASSENGER INFLATOR
MODULES, YELLOW 2-WAY OR 4-WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPARTMENT DOOR ASSEMBLY.
DISCONNECT DUAL POLE ARMING SENSOR.
CHECK FOR PROPER CONNECTION TO
DUAL POLE
ARMING SENSOR AT TERMINALS "3".
IF OK THEN DISCONNECT DERM.
MEASURE RESISTANCE FROM DERM HARNESS
CONNECTOR TERMINAL "A9" TO DUAL POLE ARMING
SENSOR HARNESS CONNECTOR TERMINAL "3". IS RESISTANCE 5.00 OR LESS?
3 RECONNECT DUAL POLE ARMING SENSOR. GO TO STEPS. IGNITION
SWITCH
IGNITION SWITCH "ON." "OFF."
MEASURE VOLTAGE ON DERM HARNESS
CONNECTOR GO
TO CHART A.
FROM TERMINAL "AS" TO TERMINAL "A 1 "(GROUND).
IS VOLTAGE 1 VOLT OR LESS?
4 CHECK C-24 FUSE. GOTO STEP6. GOTOSTEP7.
IS IT OPEN?
5 IGNITION SWITCH "OFF." GOTOSTEP8.
REPLACE DUAL POLE ARMING SENSOR.
6 REPLACE C-24 FUSE.(10A) GOTOSTEP7. GOTO STEPS.
MEASURE RESISTANCE FROM DERM HARNESS
CONNECTOR TERMINAL "A1" TO DUAL POLE ARMING
SENSOR HARNESS CONNECTOR TERMINAL "3".
IS RESISTANCE
5.00 OR LESS?
7 REPLACE SRS HARNESS GOTOSTEP8.
8 RECONNECT ALL SRS COMPONENTS, ENSURE ALL GO TO THE "SRS DIAGNOSTIC SYSTEM
COMPONENTS
ARE PROPERLY MOUNTED. CHECK".
CLEAR SRS DIAGNOSTIC TROUBLE CODES. REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System 9J-79

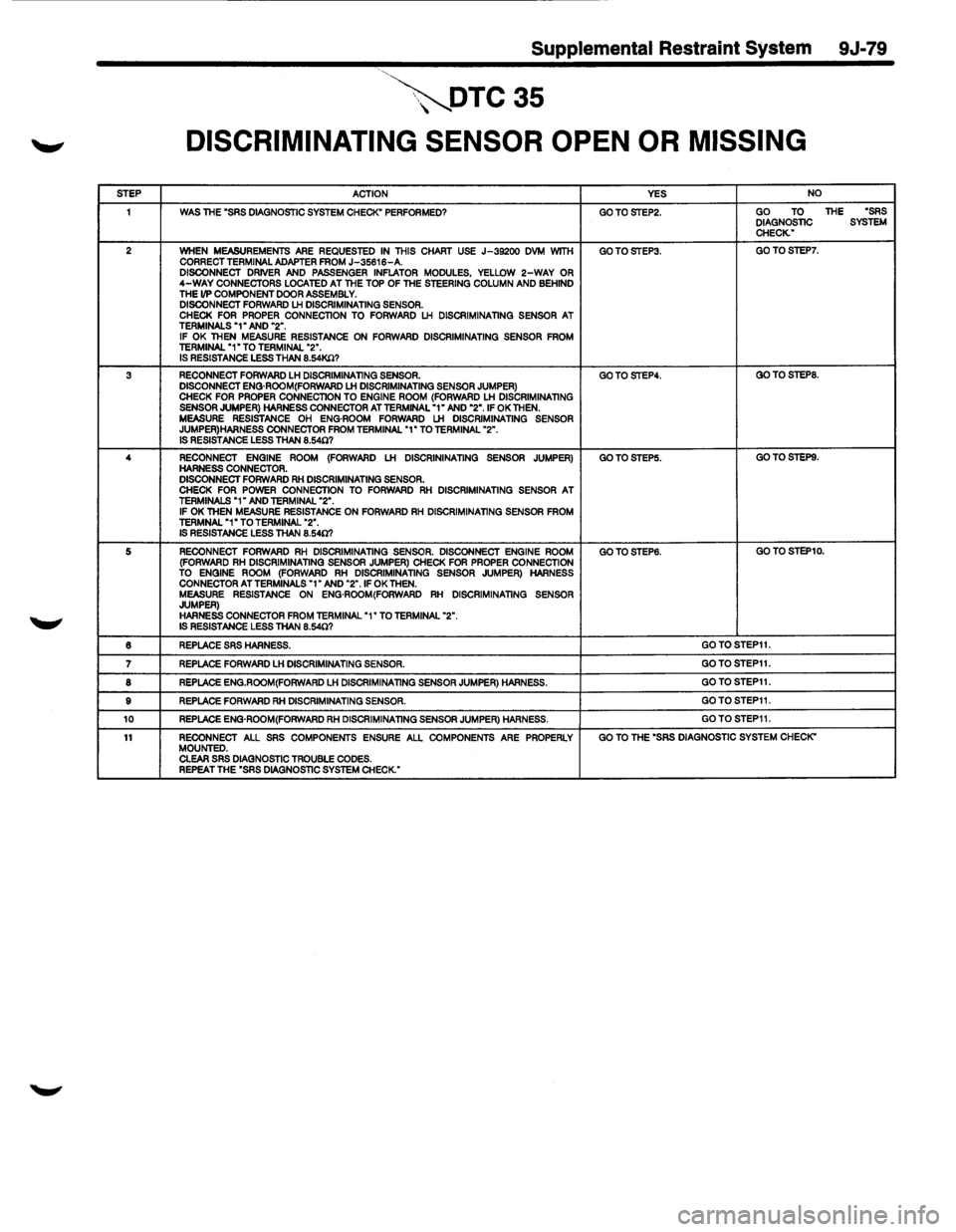

,~DTC35
DISCRIMINATING SENSOR OPEN OR MISSING
STEP ACTION YES NO
1 WAS THE "SRS DIAGNOSTIC SYSTEM CHECK" PERFORMED? GOTOSTEP2. GO TO THE "SRS DIAGNOSTIC SYSTEM CHECK."
2 WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART USE J-39200 DVM WITH GOTOSTEP3. GOTOSTEP7. CORRECT TERMINAL ADAPTER FROM J-35616-A. DISCONNECT DRIVER AND PASSENGER INFLATOR MODULES, YELLOW 2-WAY OR 4-WAY CONNECTORS LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPONENT DOOR ASSEMBLY. DISCONNECT FORWARD LH DISCRIMINATING SENSOR. CHECK FOR PROPER CONNECTION TO FORWARD LH DISCRIMINATING SENSOR AT TERMINALS "1" AND "2". IF OK THEN MEASURE RESISTANCE ON FORWARD DISCRIMINATING SENSOR FROM TERMINAL "1" TO TERMINAL "2". IS RESISTANCE LESS THAN 8.54K.Cl?
3 RECONNECT FORWARD LH DISCRIMINATING SENSOR. GOTOSTEP4. GOTOSTEP8. DISCONNECT ENG·ROOM(FORWARD LH DISCRIMINATING SENSOR JUMPER) CHECK FOR PROPER CONNECTION TO ENGINE ROOM (FORWARD LH DISCRIMINATING SENSOR JUMPER) HARNESS CONNECTOR AT TERMINAL "1" AND "2". IF OK THEN. MEASURE RESISTANCE OH ENG·ROOM FORWARD LH DISCRIMINATING SENSOR JUMPER) HARNESS CONNECTOR FROM TERMINAL "1" TO TERMINAL "2". IS RESISTANCE LESS THAN 8.540?
4
RECONNECT ENGINE ROOM (FORWARD LH DISCRININATING SENSOR JUMPER) GOTOSTEP5. GO TO STEPS. HARNESS CONNECTOR. DISCONNECT FORWARD RH DISCRIMINATING SENSOR. CHECK FOR POWER CONNECTION TO FORWARD RH DISCRIMINATING SENSOR AT TERMINALS "1" AND TERMINAL "2". IF OK THEN MEASURE RESISTANCE ON FORWARD RH DISCRIMINATING SENSOR FROM TERMNAL "1" TO TERMINAL "2". IS RESISTANCE LESS THAN 8.540?
5 RECONNECT FORWARD RH DISCRIMINATING SENSOR. DISCONNECT ENGINE ROOM GOTOSTEP6. GO TO STEP10. (FORWARD RH DISCRIMINATING SENSOR JUMPER) CHECK FOR PROPER CONNECTION TO ENGINE ROOM (FORWARD RH DISCRIMINATING SENSOR JUMPER) HARNESS CONNECTOR AT TERMINALS "1" AND "2".1F OK THEN. MEASURE RESISTANCE ON ENG·ROOM(FORWARD RH DISCRIMINATING SENSOR JUMPER) HARNESS CONNECTOR FROM TERMINAL "1" TO TERMINAL "2". IS RESISTANCE LESS THAN 8.540?
6 REPLACE SRS HARNESS. GOTOSTEP11.
7 REPLACE FORWARD LH DISCRIMINATING SENSOR. GOTOSTEP11.
8 REPLACE ENG.ROOM(FORWARD LH DISCRIMINATING SENSOR JUMPER) HARNESS. GOTOSTEP11.
9 REPLACE FORWARD RH DISCRIMINATING SENSOR. GOTOSTEP11.
10 REPLACE ENG·ROOM(FORWARD RH DISCRIMINATING SENSOR JUMPER) HARNESS. GOTOSTEP11.
11 RECONNECT ALL SRS COMPONENTS ENSURE ALL COMPONENTS ARE PROPERLY GO TO THE "SRS DIAGNOSTIC SYSTEM CHECK" MOUNTED. CLEAR SRS DIAGNOSTIC TROUBLE CODES. REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System 9J-81

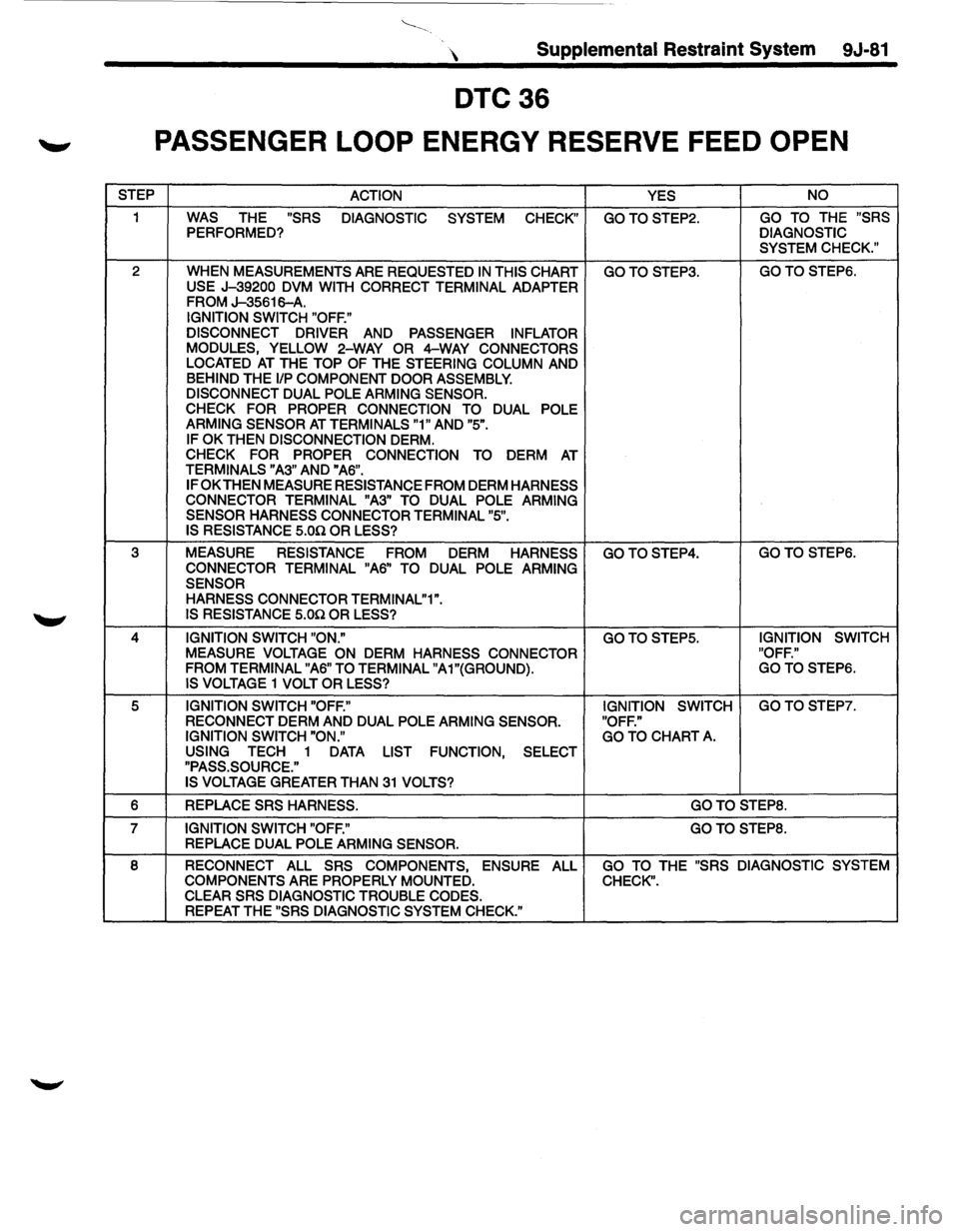

DTC36
'-" PASSENGER LOOP ENERGY RESERVE FEED OPEN
STEP
ACTION YES NO
1 WAS THE "SRS
DIAGNOSTIC
SYSTEM CHECK" GOTOSTEP2. GO TO THE "SRS PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2 WHEN
MEASUREMENTS ARE REQUESTED IN THIS CHART GOTOSTEP3. GOTOSTEP6.
USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER FROM J-35616-A.
IGNITION SWITCH "OFF."
DISCONNECT DRIVER
AND PASSENGER INFLATOR
MODULES, YELLOW 2-WAY OR 4-WAY CONNECTORS LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPONENT DOOR ASSEMBLY.
DISCONNECT DUAL POLE ARMING SENSOR.
CHECK FOR PROPER CONNECTION TO DUAL POLE
ARMING SENSOR AT TERMINALS "1" AND "5".
IF OK THEN DISCONNECTION DERM.
CHECK FOR PROPER CONNECTION TO DERM AT TERMINALS "A3" AND "A6".
IF OK THEN MEASURE RESISTANCE FROM DERM HARNESS
CONNECTOR TERMINAL "A3" TO DUAL POLE ARMING
SENSOR HARNESS CONNECTOR TERMINAL "5".
IS RESISTANCE 5.00. OR LESS?
3 MEASURE
RESISTANCE
FROM DERM HARNESS GOTOSTEP4. GOTO STEP6.
CONNECTOR TERMINAL "A6" TO
DUAL POLE ARMING
SENSOR HARNESS CONNECTOR TERMINAL"1".
IS RESISTANCE 5.00. OR LESS?
4 IGNITION SWITCH "ON." GOTOSTEP5. IGNITION
SWITCH
MEASURE VOLTAGE ON
DERM HARNESS CONNECTOR "OFF."
FROM TERMINAL "A6" TO TERMINAL "A1"{GROUND). GOTOSTEP6.
IS VOLTAGE 1 VOLT OR LESS?
5 IGNITION SWITCH "OFF." IGNITION SWITCH GOTOSTEP7.
RECONNECT DERM AND DUAL POLE ARMING SENSOR.
"OFF."
IGNITION SWITCH "ON." GO TO CHART A. USING TECH 1 DATA LIST FUNCTION, SELECT
"PASS.SOURCE."
IS
VOLTAGE GREATER THAN 31 VOLTS?
6
REPLACE SRS HARNESS. GOTOSTEP8.
7 IGNITION SWITCH "OFF." GOTOSTEP8. REPLACE DUAL POLE ARMING SENSOR.
8
RECONNECT ALL SRS COMPONENTS, ENSURE ALL GO TO THE "SRS DIAGNOSTIC SYSTEM
COMPONENTS ARE PROPERLY MOUNTED. CHECK". CLEAR SRS DIAGNOSTIC TROUBLE CODES. REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System 9J-83

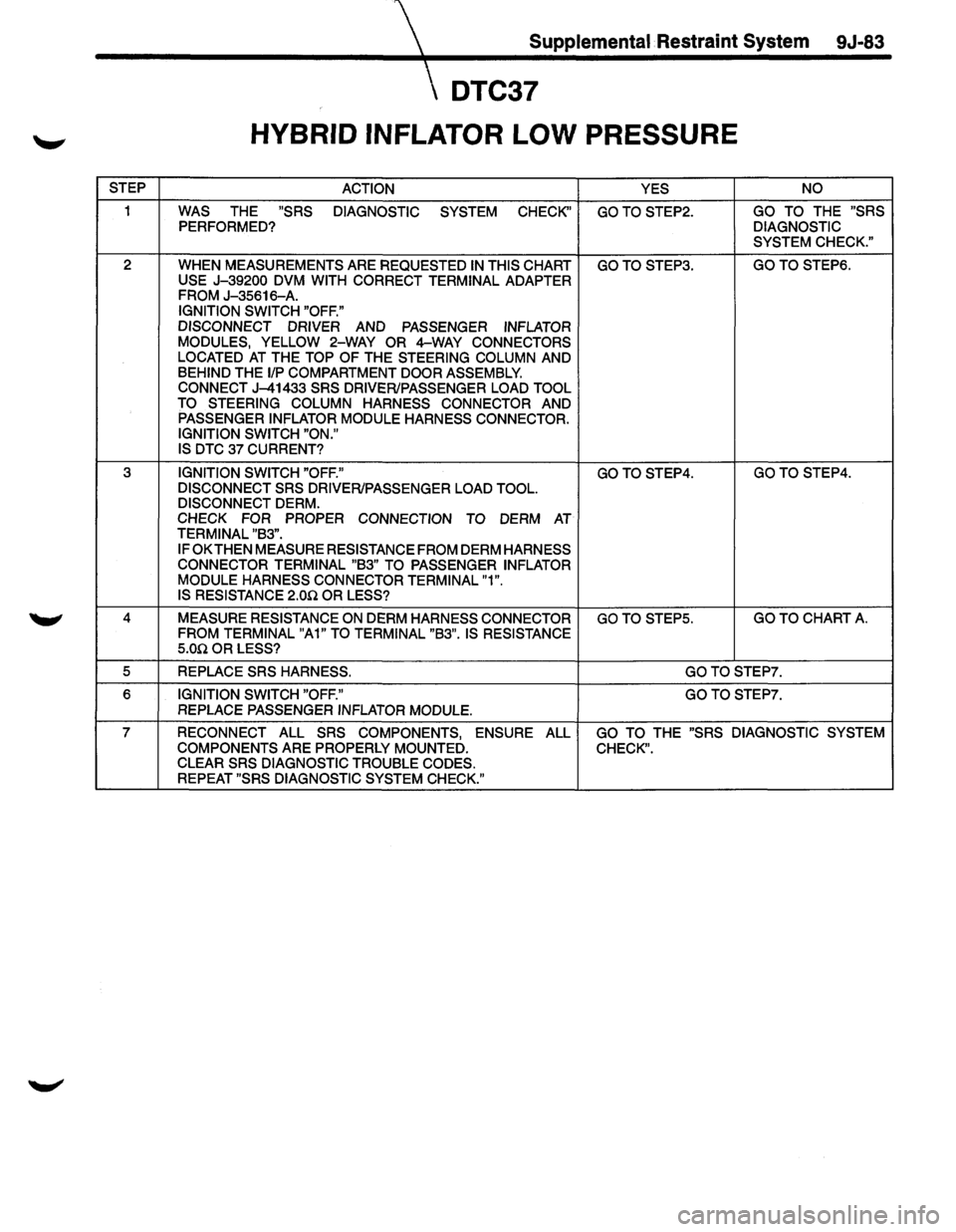

DTC37
HYBRID INFLATOR LOW PRESSURE
STEP ACTION
YES NO
1 WAS THE "SRS DIAGNOSTIC
SYSTEM CHECK" GOTOSTEP2. GO TO THE "SRS PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2 WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART GOTOSTEP3. GOTOSTEP6. USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER FROM J-35616-A. IGNITION SWITCH "OFF."
DISCONNECT DRIVER
AND PASSENGER INFLATOR
MODULES, YELLOW 2-WAY OR 4-WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPARTMENT DOOR ASSEMBLY. CONNECT J-41433 SRS DRIVER/PASSENGER LOAD TOOL
TO STEERING COLUMN HARNESS CONNECTOR AND
PASSENGER INFLATOR MODULE HARNESS CONNECTOR.
IGNITION SWITCH "ON."
IS DTC
37 CURRENT?
3
IGNITION SWITCH "OFF." GOTOSTEP4. GOTO STEP4. DISCONNECT SRS DRIVER/PASSENGER LOAD TOOL.
DISCONNECT DERM. CHECK FOR PROPER CONNECTION
TO DERM AT TERMINAL "B3".
IF OK THEN MEASURE RESISTANCE FROM DERM HARNESS CONNECTOR TERMINAL "B3" TO PASSENGER INFLATOR MODULE HARNESS CONNECTOR TERMINAL "1".
IS RESISTANCE 2.0.n OR LESS?
4
MEASURE RESISTANCE ON DERM HARNESS CONNECTOR GOTO STEPS. GO TO CHART A. FROM TERMINAL "A1" TO TERMINAL "B3". IS RESISTANCE
5.0.n OR LESS?
5 REPLACE SRS HARNESS. GOTOSTEP7.
6 IGNITION SWITCH "OFF." GOTOSTEP7. REPLACE PASSENGER INFLATOR MODULE.
7
RECONNECT ALL SRS COMPONENTS, ENSURE ALL GO TO THE "SRS DIAGNOSTIC SYSTEM
COMPONENTS ARE PROPERLY MOUNTED. CHECK".
CLEAR SRS DIAGNOSTIC TROUBLE CODES. REPEAT "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System
9J-85

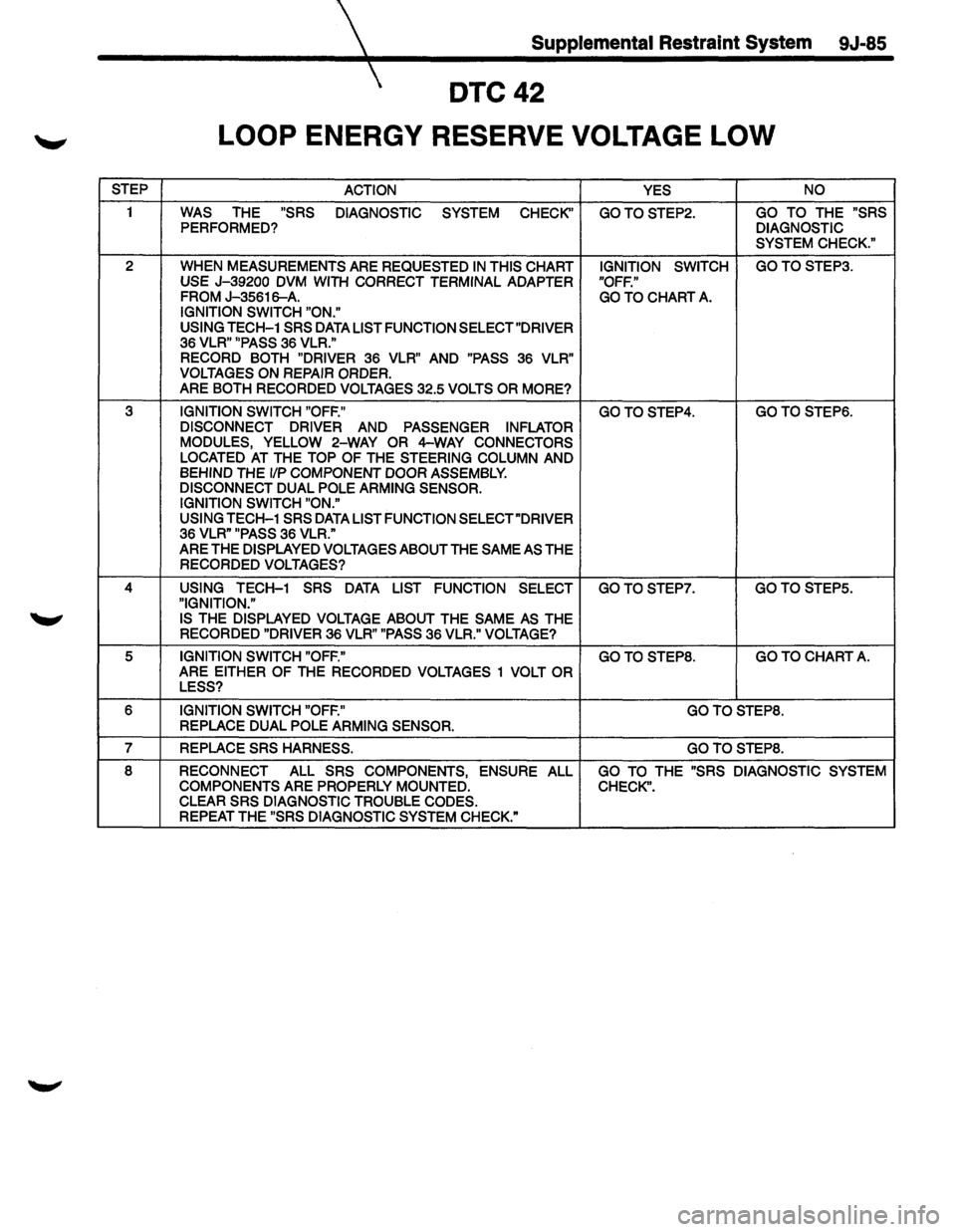

DTC42
LOOP ENERGY RESERVE VOLTAGE LOW
STEP
ACTION YES NO
1 WAS THE "SRS
DIAGNOSTIC SYSTEM CHECK" GOTOSTEP2. GO TO THE "SRS PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2
WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART IGNITION SWITCH GOTOSTEP3.
USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER "OFF." FROM J-35616-A. GO TO CHART A. IGNITION SWITCH "ON."
USING
TECH-1 SRS DATA LIST FUNCTION SELECT"DRIVER 36 VLR" "PASS 36 VLR."
RECORD BOTH "DRIVER 36 VLR" AND "PASS 36 VLR"
VOLTAGES ON REPAIR ORDER.
ARE BOTH RECORDED VOLTAGES 32.5 VOLTS OR MORE?
3 IGNITION SWITCH "OFF." GOTOSTEP4. GOTOSTEP6. DISCONNECT
DRIVER AND PASSENGER INFLATOR
MODULES, YELLOW 2-WAY OR 4-WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE liP COMPONENT DOOR ASSEMBLY.
DISCONNECT DUAL POLE ARMING SENSOR.
IGNITION SWITCH "ON."
USING
TECH-1 SRS DATA LIST FUNCTION SELECT"DRIVER 36 VLR" "PASS 36 VLR." ARE THE DISPLAYED VOLTAGES ABOUT THE SAME AS THE
RECORDED VOLTAGES?
4 USING TECH-1 SRS DATA LIST FUNCTION SELECT GOTOSTEP7. GOTOSTEP5. "IGNITION."
IS THE DISPLAYED VOLTAGE ABOUT THE SAME AS THE
RECORDED "DRIVER 36 VLR" "PASS 36 VLR." VOLTAGE?
5 IGNITION SWITCH "OFF."
GO TO STEPS. GO TO CHART A. ARE EITHER OF THE RECORDED VOLTAGES 1 VOLT OR
LESS?
6 IGNITION SWITCH "OFF."
GO TO STEPS. REPLACE DUAL POLE ARMING SENSOR.
7
REPLACE SRS HARNESS.
GO TO STEPS.
8 RECONNECT ALL SRS COMPONENTS, ENSURE
ALL GO TO THE "SRS DIAGNOSTIC SYSTEM
COMPONENTS ARE PROPERLY MOUNTED.
CHECK".
CLEAR SRS DIAGNOSTIC TROUBLE CODES. REPEAT THE "SRS DIAGNOSTIC SYSTEM CHECK."

Supplemental Restraint System 9J-87

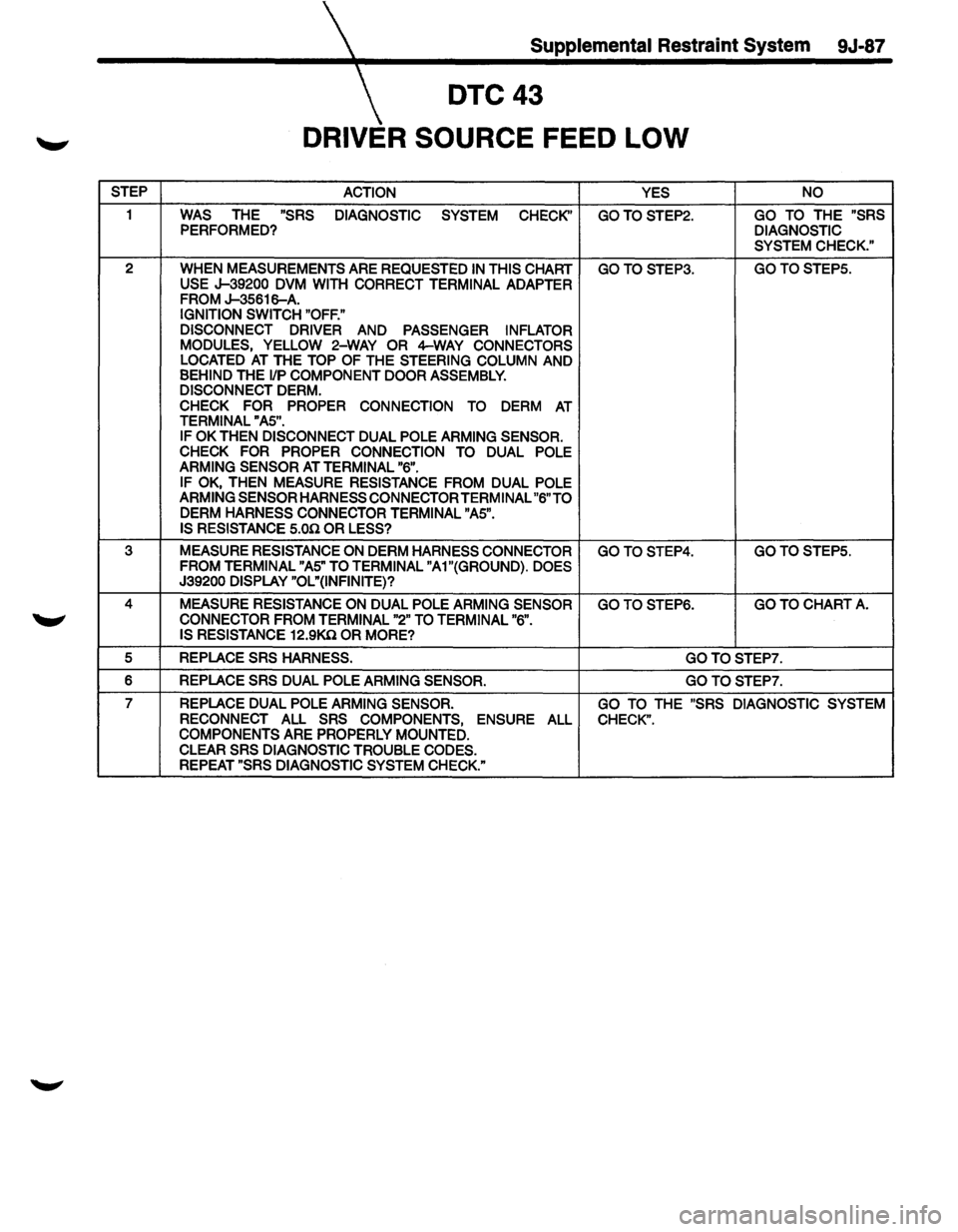

DTC43
DRIVER SOURCE FEED LOW
STEP
ACTION YES NO
1 WAS THE "SRS
DIAGNOSTIC
SYSTEM CHECK'' GOTOSTEP2. GO TO THE "SRS PERFORMED? DIAGNOSTIC
SYSTEM CHECK."
2
WHEN MEASUREMENTS ARE REQUESTED IN THIS CHART GOTOSTEP3. GO TO STEPS.
USE J-39200 DVM WITH CORRECT TERMINAL ADAPTER FROM J-3S616-A. IGNITION SWITCH "OFF."
DISCONNECT DRIVER
AND PASSENGER INFLATOR
MODULES, YELLOW 2-WAY OR 4--WAY CONNECTORS
LOCATED AT THE TOP OF THE STEERING COLUMN AND BEHIND THE 1/P COMPONENT DOOR ASSEMBLY.
DISCONNECT DERM. CHECK FOR
PROPER CONNECTION TO DERM AT TERMINAL "AS".
IF OK THEN DISCONNECT DUAL POLE ARMING SENSOR.
CHECK FOR PROPER CONNECTION TO DUAL POLE
ARMING SENSOR
AT TERMINAL "6".
IF OK, THEN MEASURE RESISTANCE FROM DUAL POLE
ARMING SENSOR HARNESS CONNECTOR TERMINAL "6"TO
DERM HARNESS CONNECTOR TERMINAL "AS". IS RESISTANCE S.On OR LESS?
3 MEASURE RESISTANCE ON DERM HARNESS CONNECTOR GOTOSTEP4. GO TO STEPS.
FROM TERMINAL "AS" TO TERMINAL "A1"(GROUND). DOES
J39200 DISPLAY "OL"{INFINITE)?
4 MEASURE RESISTANCE ON DUAL POLE ARMING SENSOR GOTOSTEP6. GO TO CHART A. CONNECTOR FROM TERMINAL "2" TO TERMINAL "6".
IS RESISTANCE 12.9Kn OR MORE?
s REPLACE SRS HARNESS. GOTOSTEP7.
6 REPLACE SRS DUAL POLE ARMING SENSOR. GOTOSTEP7.
7 REPLACE DUAL POLE ARMING SENSOR. GO TO THE "SRS DIAGNOSTIC SYSTEM
RECONNECT ALL SRS COMPONENTS, ENSURE ALL CHECK".
COMPONENTS ARE PROPERLY MOUNTED.
CLEAR SRS DIAGNOSTIC TROUBLE CODES. REPEAT "SRS DIAGNOSTIC SYSTEM CHECK."
