GENERAL DESCRIPTION
ENGINE CONTROL MODULE (ECM)
The Engine Control Module (ECM) (Fig. 6E2-50),
located under the instrument panel, is the control
center of the fuel injection system. If constantly looks
at the information from various sensors, and controls
the systems that affect vehicle performance. The ECM
also performs the diagnostic function of the system. It
can recognize operational problems, alert the driver
through the "Check Engine" malfunction indicator
lamp, and store a diagnostic trouble code or diagnostic
trouble codes which identify the problem areas to aid
the technician in making repairs.
See "Introduction"
Section "6E2" for more information on using the
diagnostic function
of the ECM.
For service, this ECM is replaced as a complete unit.
There are no serviceable parts in the
ECM. The
calibrations are stored in the
ECM in the Electronic
Erasable Programmable Read Only Memory
(EEPROM).
ENGINE CONTROL MODULE (ECM)
FUNCTION
This ECM supplies either 5 to 12 volts to power various
sensors
or switches. This is done through resistances
in the
ECM which are so high in value that a test light
Fig. 6E2-50

will not light when connected to the circuit. In some
cases, even an ordinary shop voltmeter
will not give an
accurate reading because its resistance is
too low.
Therefore, a 10 megohms input impedance digital
voltmeter is required to assure accurate voltage
readings.
The Engine
Control Module (ECM) controls output
circuits such as the fuel injectors, idle air control valve,
air conditioning clutch relay, etc. by controlling the
ground circuit through transistors
or a device called a
"quad-driver".
INFORMATION SENSORS
Engine Coolant Temperature (ECT) Sensor
(Fig. 6E2-51)
The Engine Coolant Temperature (ECT) Sensor is a
thermistor
(a resistor which changes value based on
temperature) mounted in the engine coolant stream.
Low ECT produces a high resistance (1 00,000 ohms at
-40.C/-40.F) while high temperature causes low
resistance (70 ohms at 130.C/266.F).
The ECM supplies a 5-volts signal to the ECT sensor
through a resistor in the
ECM and measures the
voltage. The voltage
will be high when the engine is
cold, and low when the engine is hot.
By measuring the voltage, the
ECM knows the ETC.
ECT affects most systems the ECM controls.
A failure in the
ECT sensor circuit should set a
Diagnostic Trouble Code
(DTC) 14. Remember, these
DTC(s) indicate a failure in the
ETC circuit, so proper
use
of the chart will lead to either repairing a wiring
problem or replacing the sensor, to properly repair a
problem.
1. Engine coolant temperature sensor
2. Harness connector to ECM
3. Locking tab
Fig. 6E2-51
Intake Air Temperature (IAT) Sensor
The Intake Air Temperature (IAT) sensor is a
thermistor, a resistor which changes
value based on
the temperature
of air entering the engine. Low
temperature produces a high resistance
(1 00,000
ohms at -4o·c/-40.F), while high temperature causes
low resistance (70 ohms at 130.C/266.F).
The ECM supplies a 5-volts signal to the sensor through
a resistor in the
ECM and measures the voltage. The
voltage
will be high when the intake air is cold, and low
DRIVEABILITV AND EMISSIONS 6E2-1 01
when the air is hot. By measuring the voltage, the ECM
knows the lAT.
The IAT sensor is also used to control spark timing and
delays exhaust gas recirculation when intake air is
cold.
A failure in the IAT sensor circuit should set a DTC 23.
Heated Oxygen Sensor (H02S) (Fig. 6E2-52)
The Heated Oxygen Sensor (H02S) is mounted in the
exhaust system where
it can monitor the Oxygen (02)
content of the exhaust gas stream. The 02 content in
the exhaust reacts
with the sensor to produce a voltage
output. This voltage ranges
from approximately .1 volt
(high 02-lean mixture) to .9 volt (low 02-rich mixture).
This voltage can
be measured with a digital voltmeter
having at
least 10 megohms input impedance. Use of
standard shop type voltmeters will result in very
inaccurate readings.
By monitoring the voltage
output ofthe H02S, the ECM
will know what fuel mixture command to give to the
injector
(lean mixture-low 02 voltage= rich command,
rich mixture-high
02 voltage= lean command).
The
H02S circuit, if open, should set a DTC 13. A
constant
low voltage in the sensor circuit should set a
DTC 44. While a constant high voltage in the circuit
should set a DTC 45. DTC(s) 44 and 45 could also be set
as a result of fuel system problems. See DTC charts for
conditions that can cause a lean or rich system.
The
H02S works in the same manner as the non-H02S
The exception is that battery positive voltage is
supplied to a heating unit that is part of the sensor
itself. This heater receives voltage
from the ECM's
main
relay circuit.
The heater
helps to heat up the H02S so the ECM can
start
controlling the fuel injection sooner for better fuel
emissions. There are no malfunction DTC(s) to detect if
the heater part of the sensor is working. To check the
heater, refer to "Functional
Check" in this section.
Fig. 6E2-52
~
\W

Park/Neutral Position (PNP) Switch (Auto Only)
The Park/Neutral position (PNP) switch indicates to the
Engine Control Module
(ECM) when the transmission
is in park, neutral
or drive. This information is used for
the exhaust gas recirculation, and the idle air control
valve operation.
NOTE:
• Vehicle
should not be driven with PNP switch
disconnected,
as idle quality will be affected and a
possible false diagnostic trouble code
(DTC) 24
(vehicle speed sensor).
DRIVEABILITY AND EMISSIONS 6E2-103
See DIAGNOSIS AND GENERAL SERVICE Section for
more information on the PNP switch. The PNP switch is
part
of the neutral/start and backup light switch
assembly mounted on the transmission.
See CHART C-
1 A for PNP switch check.
DIAGNOSIS
To read the DTC(s), use a "Scan tool" or ground the
diagnostic test terminal,
with the engine not running
and the ignition
"ON". The "Check Engine" malfunction
indicator lamp
will flash DTC 12 three times and then
flash each
DTC stored in memory three times. All
DTC(s) stored in memory will have been read when
DTC 12 is flashed again.
No new
DTC(s) can be stored when in the diagnostics
test mode (diagnostics lead grounded). This
eliminates confusion while the system is being
serviced.
To clear the
DTC(s) from memory:
• Ignition "OFF".
•
Disconnect main fuse located in the under hood
fuse/relay center near the battery.
Since the ECM can have a failure which may affect only
one circuit, following the diagnostic procedures in this
section
will determine which circuit has a problem and
where
it is.
If a diagnostic chart indicates thatthe ECM connections
or ECM is the cause of a problem, and the ECM is
replaced,
but does not correct the problem, one of the
following may be the reason.
• There is a problem with the ECM terminal
connections-The diagnostic chart will say ECM
connections or ECM. The terminals may have to
be removed from the connector in order to check
them properly.
• The ECM is not correct for the Vehicle-Ane
incorrect
ECM may cause a malfunction and may
set a DTC.
• The problem is intermittent -This means that
the problem is
not present at the time the system is
being checked.
In this case, refer to the
"Symptoms" portion of the manual and make a
careful physical inspection
of all portions of the
system involved.
• Shorted solenoid, relay coil, or harness
Solenoid and relays are turned "ON" and "OFF" by
the
ECM, using internal electronic switches called
"drivers".
Each driver is part of a group of four,
called "quad-drivers". Failure of one driver can
damage any other driver in the set. A
shorted solenoid, relay coil, or harness in a l-EFT­
SHCI
computer will not damage the ECM, but will
cause the circuit and controlled component to be
inoperative. When the circuit fault is not present or
has been repaired, the "quad-driver" will again
operate in a normal manner due to its fault
protected design. If a fault has been repaired in a
circuit controlled by a "quad-driver", the original
ECM should be reinstalled and the circuit checked
for proper operation. ECM replacement will not be
necessary if the repaired circuit or component now
operates correctly.
J 34636 or BT-8405 testers or equivalent provide a fast,
accurate means
of checking for a shorted coil or a short
to battery positive voltage.
• The replacement ECM may be faulty-After the
ECM is replaced, the system should be re-checked
for proper operation. If the diagnostic chart again
indicates the
ECM is the problem, substitute a
known good
ECM. Although this is a rare
condition,
it could happen.
ENGINE CONTROL MODULE (ECM)
A faulty ECM will be determined in the diagnostic
charts.
ELECTRONICALL V ERASABLE
PROGRAMMABLE READ
ONL V MEMORY
A faulty electrically erasable programmable read only
memory, which is part of the ECM, will set a DTC 51.
ENGINE CONTROL MODULE (ECM)
INPUTS
All of the sensors and input switches can be diagnosed
by the use
of "Scan tool".
Following is a short description of how the sensors and
switches can be diagnosed by the use
"Scan tool". The
"Scan tool" can also be used to compare the values for
a normal running engine with the engine you're
diagnosing.

DRIVEABILITY AND EMISSIONS 6E2-115
CHART C-1F
HEATED OXYGEN SENSOR (H02S) HEATER CHECK
CD • IGNITION "OFF"
• DISCONNECT FOUR PIN CONNECTOR TO HEATED OXYGEN SENSOR (H02S).
• IGNITION "ON" ENGINE NOT RUNNING • USING DVOM PROBE WHT /BLU WIRE OF FOUR PIN CONNECTOR
• SHOULD HAVE BATTERY POSITIVE VOLTAGE
DOES IT?
@ • IGNITION "ON" ENGINE RUNNING
• USING A TEST LIGHT TO BATTERY POSITIVE
VOLTAGE PROBE BLK WIRE OFF FOUR PIN CONNECTOR
• LIGHT SHOULD BE "ON" IS IT?
@ • USING DVOM MEASURE RESISTANCE AT THE H02S BETWEEN BLK WIRE AND WHT/RED WIRE THAT BECOMES THE BLK/YEL WIRE AFTER THE FOUR PIN CONNECTOR
• SHOULD HAVE 3.5 TO 14.3 OHMS
RESISTANCE (RESISTANCE VARIES WITH
TEMPERATURE) DOES IT?
OPEN IN BLK/YEL OR RED/GRN WIRE
CLEAR DIAGNOSTIC TROUBLE CODES AND CONFIRM "CLOSED LOOP" OPERATION AND NORMAL "CHECK ENGINE" MALFUNCTION
INDICATOR LAMP OPERATION.

1~1 Measure (If Installing a New Idle Air
Control (lAC) Valve) (Fig. 6E2-82)
• Distance between tip of idle air control (lAC)
valve pintle and mounting flange.
-
If greater than 28 mm, finger pressure to
slowly retract the pintle. The force required
to retract the pintle
of a new valve will not
cause damage to the valve.
Fig. 6E2-82
E) INSTALLATION
3. lAC valve assembly
2. lAC valve attaching screw
1. lAC valve electrical connector
MINIMUM THROTTLE BODY (TB)
POSITION CHECK
The minimum throttle body (TB) position (throttle stop
screw) adjustment
for the 3.2L should not be
considered the
"minimum idle speed", as on other fuel
injected engines. Low internal friction and provision
for slight production variations and various operation
altitudes resulted in a calibrated
minimum TB position
which is too
low to allow most engines to idle. The
adjustment is preset at the factory and no further
adjustment should be necessary.
If there is a complaint of high idle speed, vacuum leaks
should be considered the
most likely cause. Because
the Engine
Control Module (ECM) "learns" Idle lAC, it is
even less likely
that a stalling complaint would be due
to
an incorrect minimum TB position. In either case,
the
"Symptoms," Section "6E2-B" and lAC valve check
CHART C-2C should be referred to.
If it is determined that the minimum TB position is
suspect,
be sure lAC valve is not "lost'' (not actually at
the location indicated by current
lAC "counts"). The
lAC valve could be "lost" if ECM power has been
interrupted
with the ignition "ON", or the lAC valve has
been disconnected
with the engine running since the
last reset,
as described previously in this section in the
"lAC Valve Assembly" general description.
DRIVEABILITY AND EMISSIONS 6E2-127
The minimum TB position may be checked using the
following procedure.
1. Block drive wheels, and apply parking brake.
2. Connect "Scan tool" to the data link connector.
3. Start engine and allow to reach operating
temperature (about
go•q and "Closed Loop".
4. A/T-shift to DRIVE ("D") and then back to neutral
("N").
5. Select power steering pressure switch input on
"Scan tool". With air conditioning and all electrical
accessories
"OFF", transmission in natural, "Scan
tool" should read "OFF" or "NORMAL". (If not,
refer to
CHART C-1 E to diagnose and repair faulty
power steering pressure switch circuit before
proceeding).
Allow idle to stabilize.
6. Select lAC valve display on "Scan tool", and read
lAC valve counts. If between 5-45 counts, the
minimum
TB position adjustment is acceptable. It
is important to allow idle speed to stabilize to
assure correct counts are determined.
If counts in step 6 are too low, check for intake air
(vacuum) leaks at hoses,
TB and intake manifold or
damaged throttle lever and correct as necessary.
Also, refer to
CHART C-2C facing page "Diagnostic
Aids". If no vacuum leaks or other cause of
excessive air into the intake are found, it may be
necessary
to replace the TB to correct the low idle
speed problem. Refer to
"TB Replacement" in this
section.
If counts in Step 6 are too high, check for damaged
throttle lever or airflow restriction by the
TB. If no
problem is evident, remove inlet air
duct at the TB,
and
clean residue from inside of TB bore and from
edges of TB using carburetor cleaner and a shop
towel. (Do Not use a cleaner that contains methyl
ethyl ketone.
It is an extremely strong solvent, and
not necessary for this type of deposit). Re-check
"Scan tool" lAC valve counts, per the preceding
procedure.
If counts are still too high it may be necessary to
replace the
lAC valve or the TB assembly, If no
vacuum leaks are indicated
or engine loads are
present.
Minimum Throttle Body (TB) Position
(Non-Adjustable)
\fl CAUTION:
VI • It is extremely unlikely that this adjustment will
ever be necessary on a TB that has not been
tampered
with after production! If idle
revolution per minute is low, you may need
to
replace the TB to correct the low idle speed.

6E2-130 DRIVEABILITY AND EMISSIONS
CHART C-2C
IDLE AIR CONTROL (lAC) SYSTEM CHECK
Circuit Description:
The engine control module (ECM) controls engine idle speed with idler air control (lAC) valve. To increase idle
speed, the ECM retracts the lAC valve pintle away from its seat, allowing more air to bypass the throttle bore. To
decrease
idle speed, it extends the lAC valve pintle towards its seat, reducing bypass air flow. A "Scan tool" will
read the ECM commands to the lAC valve in counts. Higher counts indicate more air bypass (higher idle). Lower
counts indicate
less air is allowed to bypass (lower idle).
Test Description:
Number below re{er to circled numbers on the diagnostic chart.
1. The lAC tester is used to extend and retract the lAC valve. Valve movement is verified by an engine speed
change.
If no change in engine speed occurs, the valve can be retested when removed from the throttle body.
2. This step checks the quality of the lAC movement in step 1. Between 700 revolution per minute (rpm) and
about
1500 rpm, the engine speed should change smoothly with each flash of the tester light in both extend
and retract.
If the lAC valve is retracted beyond the control range (about 1500 rpm), it may take many flashes
in the extend position before engine speed will begin to drop. This is normal on certain engines, fully
extending lAC may cause engine stall. This may be normal.
3. Steps 1 and 2 verified proper lAC valve operation. This step checks the lAC circuits. Each lamp on the node
light should flash red and green while the lAC valve is cycled. While the sequence of color is not important if
either light "OFF" or does not flash red and green, check the circuits for faults, beginning with poor terminal
contacts.
Diagnostic Aids:
A slow, unstable, or fast idle may be caused by a non-lAC system problem that cannot overcome by the lAC valve.
Out
of control range lAC "Scan tool" counts will be above 60 if idle is too low, and zero counts if idle is too high. The ..-...
following checks should be made to repair a non-lAC system problem. _......._
• Vacuum Leak (High Idle)
If idle
is too high, stop the engine. Fully extend (low) lAC with tester.
Start engine.
If idle speed is above 800 rpm, locate and correct vacuum leak including PCV system. Also check
for binding of throttle blade or linkage.
•
Lean heated oxygen sensor signal (High Air/Fuel Ratio)
The
idle speed may be too high or too low. Engine speed may vary up and down and disconnecting the lAC
valve
does not help. Diagnostic trouble code 44 may be set. "Scan tool" oxygen (02) voltage will be less than
100 mV (.1 volt). Check for low regulated fuel pressure, water in fuel, or a restricted injector.
• Rich heated oxygen sensor signal (Low Air/Fuel Ratio)
The
idle speed will be too low. "Scan tool" lAC counts will usually be above 80. System is obviously rich and
may exhibit
black smoke in exhaust.
"Scan tool" 02 voltage will be fixed about 750 mV (.75 volt).
Check
for high fuel pressure, leaking or sticking injector. Silicon contaminated heated oxygen sensor will
"Scan
tool" an 02 voltage slow to respond.
• Throttle Body
Remove
lAC valve and inspect bore for foreign material.
• lAC Valve
Electrical Connections
lAC valve
connections should be carefully checked for proper contact.
• PCV Valve
An incorrect or faulty PCV valve may result in an incorrect idle speed.
• Refer to "Rough, Unstable, Incorrect Idle or Stalling" in "Symptoms," Section "6E2-B".
• If
intermittent poor driveability or idle symptoms are resolved by disconnecting the lAC, carefully recheck
connections,
valve terminal resistance, or replace lAC.

DRIVEABILITY AND EMISSIONS 6E2-131
CHART C-2C
IDLE AIR CONTROL (lAC) SYSTEM CHECK
CD • IGNITION "OFF", CONNECT IDLE AIR CONTROL (lAC) DRIVER* TO lAC VALVE. • SET PARKING BRAKE, BLOCK WHEELS, AIR CONDITIONING "OFF".
• IDLE ENGINE IN PARK (A/T) OR NEUTRAL (MIT). • INSTALL "SCAN TOOL" AND DISPLAY REVOLUTION PER MINUTE (RPM). • WITH lAC DRIVER, EXTEND AND RETRACT lAC VALVE. • ENGINE SPEED SHOULD DECREASE AND INCREASE AS lAC IS CYCLED.
I
1 I • RPM CHANGES I NO RPM CHANGE I
I I • RPM SHOULD CHANGE SMOOTHLY
WITH EACH • CHECK lAC PASSAGES.
I FLASH OF THE lAC DRIVER LIGHT FROM 700 RPM • IF OK, REPLACE lAC.
TO ABOUT 1500 RPM. DOES IT?
I
~ cf
• INSTALL APPROPRIATE lAC NODE LIGHT* IN • CHECK lAC PASSAGES.
l ENGINE CONTROL MODULE HARNESS. • IF OK, REPLACE lAC. ®
• CYCLE lAC
DRIVER AND NODE LIGHTS.
• BOTH LIGHTS SHOULD CYCLE RED AND GREEN BUT NEVER "OFF" AS RPM IS CHANGED OVER
ITS RANGE. DO THEY?
I
cf ~ IF CIRCUIT(S) DID NOT TEST GREEN AND RED, CHECK •
USING THE OTHER CONNECTOR ON THE lAC
FOR: DRIVER
PIGTAIL, CHECK RESISTANCE
•
FAULTY CONNECTOR TERMINAL CONTACTS. ACROSS
lAC COILS.
• OPEN CIRCUITS INCLUDING CONNECTIONS. •
SHOULD BE 40 TO 80 OHMS BETWEEN lAC
• CIRCUITS SHORTED TO GROUND OR VOLTAGE. TERMINALS "A" TO "B" AND "C" TO "D".
• FAULTY ENGINE CONTROL MODULE CONNECTION I OR ENGINE CONTROL MODULE.
~
l REPAIR AS NECESSARY AND RETEST. l NOT OK I .
_l
• CHECK RESISTANCE BETWEEN lAC I REPLACE lAC VALVE I TERMINALS "B" AND "C" AND "A" AND RETEST. AND "D". • SHOULD BE INFINITE.
I
~
l
I NOT OK I
]
AC DRIVER AND NODE LIGHT REQUIRED. * I J lAC VALVE AND CIRCUIT OK. I REPLACE lAC VALVE J 37027 FROM KENT-MOORE, INC. REFER TO "DIAGNOSTIC AIDS" ON AND RETEST. FACING~
~ CLEAR DIAGNOSTIC TROUBLE CODES AND CONFIRM "CLOSED LOOP" OPERATION AND NORMAL "CHECK ENGINE" MALFUNCTION
INDICATOR LAMP OPERATION.
------

DRIVEABILITV AND EMISSIONS 6E2-133
CHART C-20

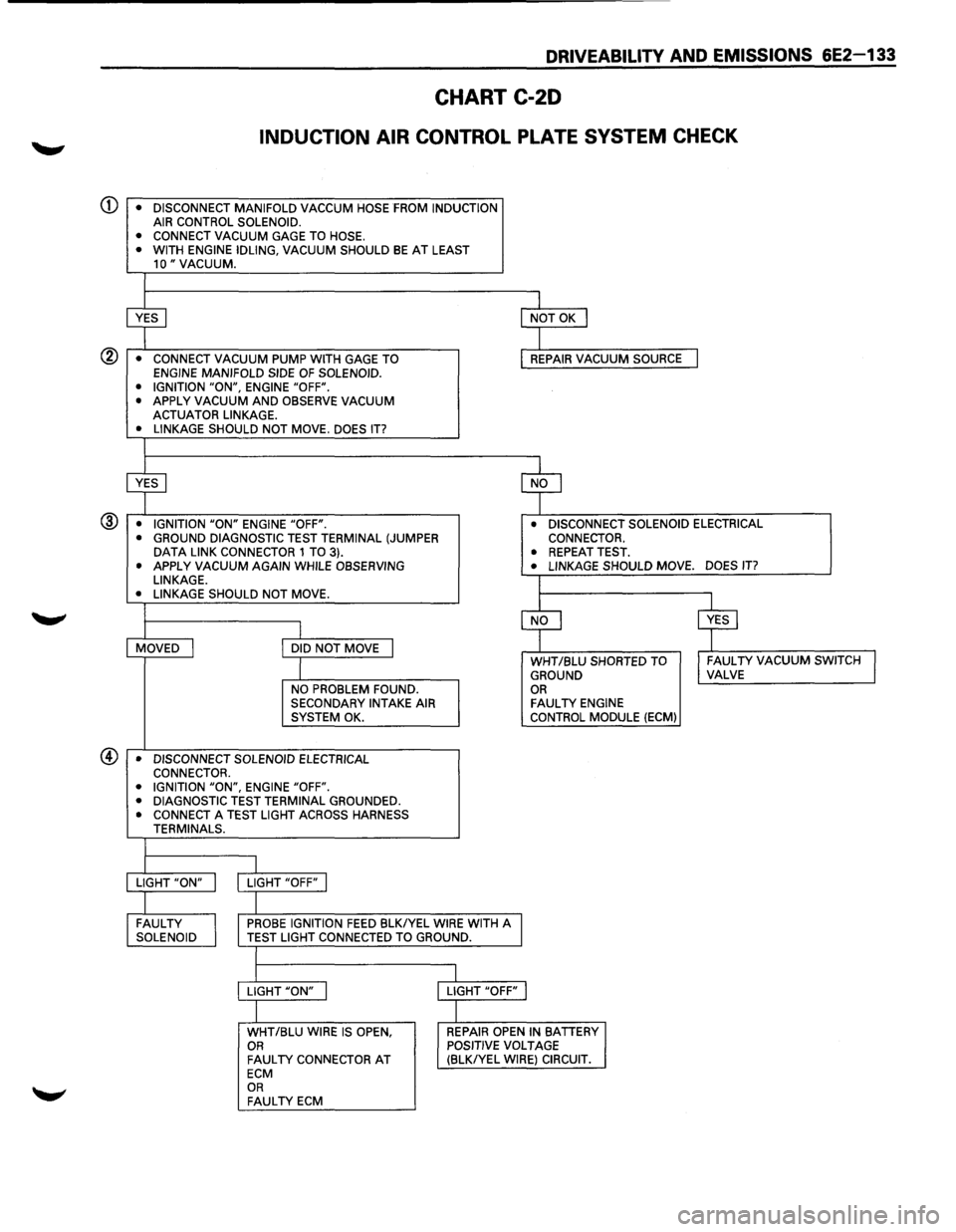

INDUCTION AIR CONTROL PLATE SYSTEM CHECK
AIR CONTROL SOLENOID.
• CONNECT VACUUM
GAGE TO HOSE.
• WITH ENGINE IDLING, VACUUM SHOULD BE AT LEAST 10" VACUUM.
~
I NOT OK I
I • CONNECT VACUUM PUMP WITH GAGE TO REPAIR VACUUM SOURCE I ENGINE MANIFOLD SIDE OF SOLENOID.
• IGNITION "ON", ENGINE "OFF".
• APPLY VACUUM AND OBSERVE VACUUM ACTUATOR LINKAGE.
• LINKAGE SHOULD NOT MOVE. DOES IT?
~ ~ • IGNITION "ON" ENGINE "OFF". • DISCONNECT SOLENOID ELECTRICAL ® • GROUND DIAGNOSTIC TEST TERMINAL (JUMPER CONNECTOR. DATA LINK CONNECTOR 1 TO 3). • REPEAT TEST. • APPLY VACUUM AGAIN WHILE OBSERVING • LINKAGE SHOULD MOVE. DOES IT?
LINKAGE.
L • LINKAGE SHOULD NOT MOVE.
~ ~ I MOVED I DID NOT MOVE I
I WHT /BLU SHORTED TO I FAULTY VACUUM SWITCH I GROUND VALVE
NO PROBLEM FOUND. OR SECONDARY INTAKE AIR FAUL TV ENGINE SYSTEM OK. CONTROL
MODULE (ECM)
• DISCONNECT SOLENOID ELECTRICAL
CONNECTOR.
• IGNITION
"ON", ENGINE "OFF".
• DIAGNOSTIC TEST TERMINAL GROUNDED. • CONNECT A TEST LIGHT ACROSS HARNESS
TERMINALS.
I LIGHT "ON" I LIGHT "OFF" I
I FAULTY
I
PROBE IGNITION FEED BLKIYEL WIRE WITH A SOLENOID TEST LIGHT CONNECTED TO GROUND.
I
l
LIGHT "ON" I LIGHT "OFF" j
I WHT/BLU WIRE IS OPEN, REPAIR OPEN IN BATTERY OR POSITIVE VOLTAGE FAUL TV CONNECTOR AT (BLKIYEL WIRE) CIRCUIT. ECM OR FAULTY ECM

DRIVEABILITV AND EMISSIONS 6E2-137
CHART C-3
EVAPORATIVE EMISSION CANISTER PURGE VALVE CHECK
Q) • IGNITION "OFF"
• IGNITION "ON" ENGINE STOPPED. (DO NOT CRANK ENGINE BEFORE FOLLOWING STEPS BELOW).
• DISCONNECT THROTTLE BODY TO EVAPORATE EMISSION CANISTER PURGE SOLENOID VACUUM
HOSE FROM SOLENOID.
•
APPLY VACUUM (10" HYDRAGYRUM OR 34 kPa) TO SOLENOID.
SOLENOID SHOULD HOLD VACUUM. DOES IT?
~ $
• GROUND DIAGNOSTIC TEST TERMINAL. @ • DISCONNECT SOLENOID ELECTRICAL CONNECTOR. ® • VACUUM SHOULD DROP. • APPLY VACUUM TO
SOLENOID AS IN STEP 1. DOES IT? SOLENOID
SHOULD HOLD VACUUM. DOES IT?
I
$ $ $ $
• INSTALL VACUUM GAUGE • DISCONNECT SOLENOID CHECK FOR SHORT TO I FAULTY SOLENOID. J TO HOSE PREVIOUSLY ELECTRICAL CONNECTOR. BROUND IN WHT
/RED DISCONNECTED FROM
• CONNECT TEST LIGHT WIRE. IF CIRCUIT IS SOLENOID. BETWEEN HARNESS
OK,
ENGINE CONTROL
• START ENGINE. TERMINALS. TEST LIGHT MODULE IS FAULTY. •
STABILIZE ENGINE SPEED AT SHOULD LIGHT. DOES IT?
ABOUT 2500.
• MOMENTARILY SNAP
THROTTLE OPEN AND LET
$
RETURN TO IDLE.
~
VERIFY THAT ABOUT 10" HYDRAGYRUM (34 kPa) OF VACUUM IS AVAILABLE AT FAULTY PURGE I PROBE EACH HARNESS
EVAPORATE EMISSION
SOLENOID. TERMINAL WITH A TEST
CANISTER PURGE SOLENOID, LIGHT TO GROUND.
IS IT?
I I
$
$
LIGHT "ON" ONE LIGHT
"ON" BOTH I NO LIGHT J
I I
OPEN WHT/RED REPAIR SHORT I OPEN BLK/ I NO SEE "DIAGNOSTIC
WIRE OR TO VOLTAGE IN VEL PROBLEM ~~.ON FACING FAULTY ENGINE WHT/RED WIRE.
FOUND. p . CONTROL
MODULE.
CLEAR DIAGNOSTIC TROUBLE CODES AND CONFIRM "CLOSED LOOP" OPERATION AND NORMAL "CHECK ENGINE" MALFUNCTION
INDICATOR LAMP OPERATION.
