JAGUAR XFR 2010 1.G Workshop Manual

10.
11.

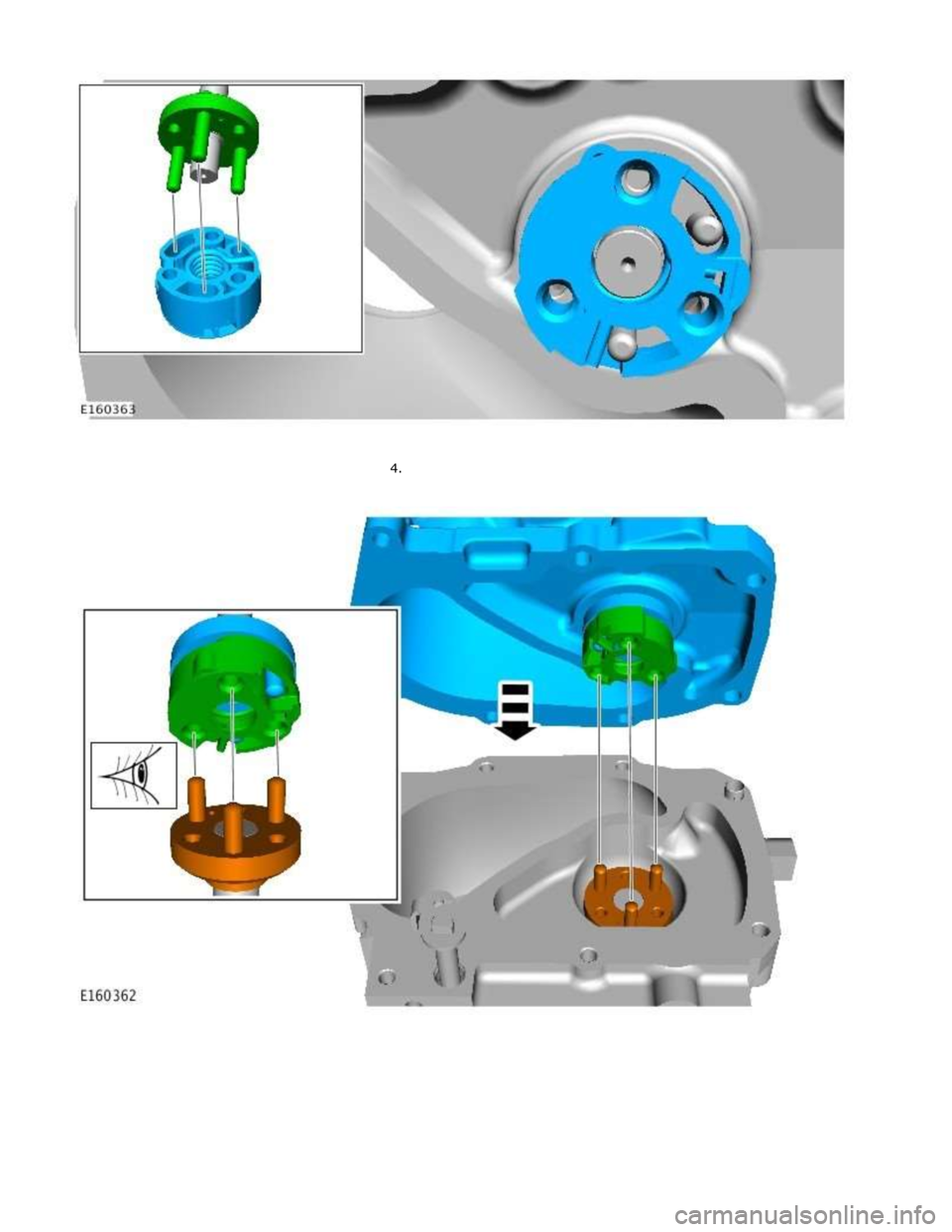

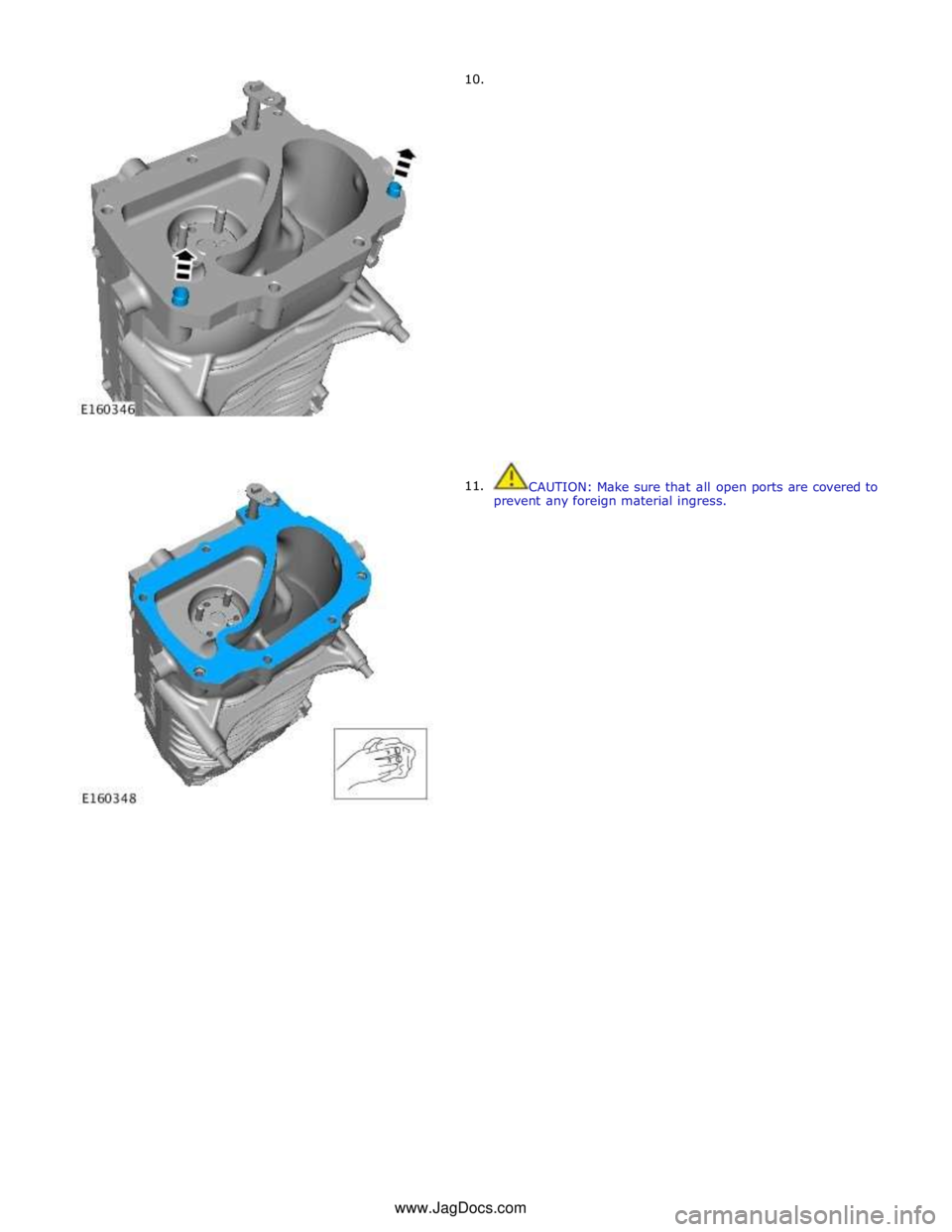

CAUTION: Make sure that all open ports are covered to
prevent any foreign material ingress. www.JagDocs.com

1. CAUTION: Make sure that all open ports are covered to
prevent any foreign material ingress.


















2. CAUTION: Apply a continuous bead of gasket sealant
as shown on the illustration. The application of the sealant
must be 1mm diameter. Install the component immediately
after applying the sealant without smearing the sealant.




















3. Installation

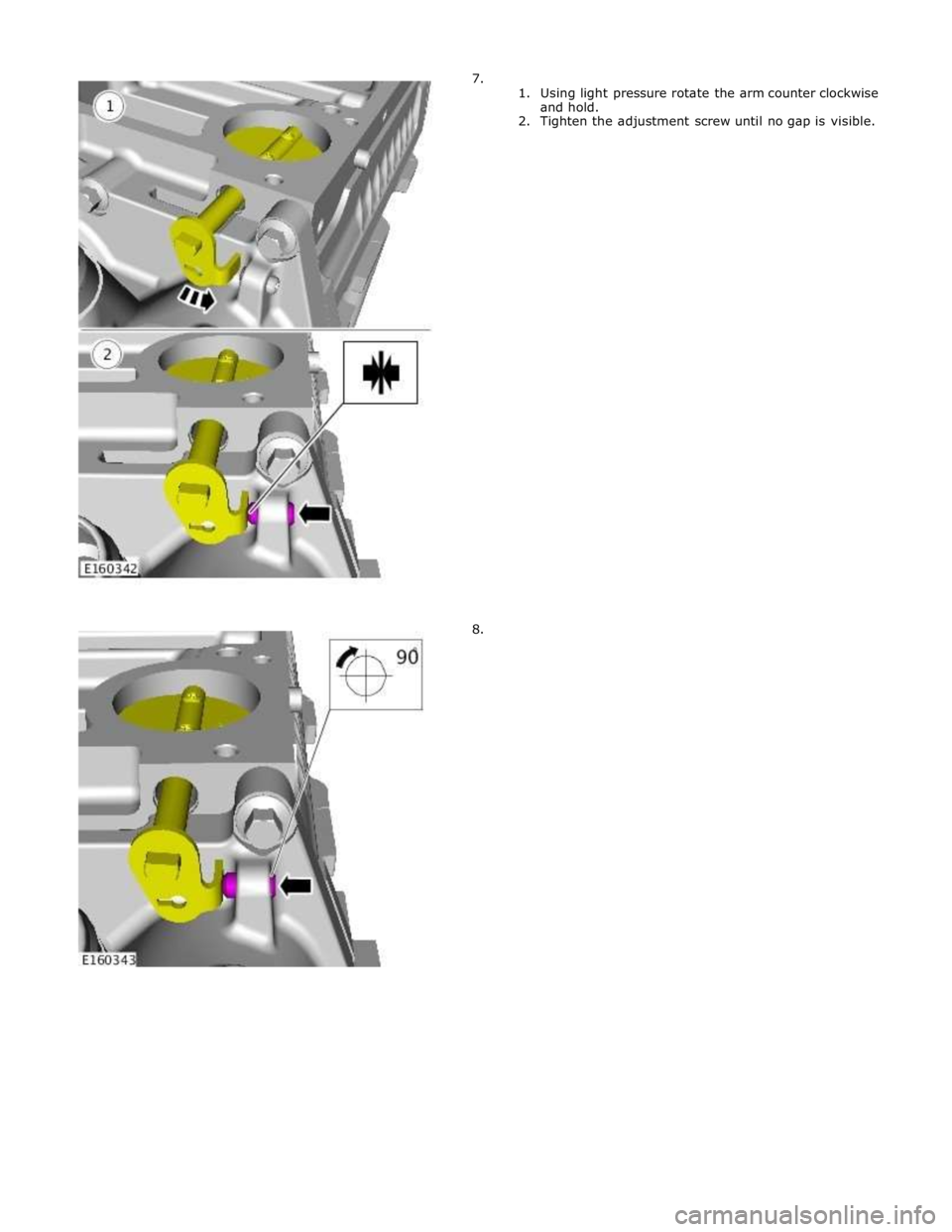

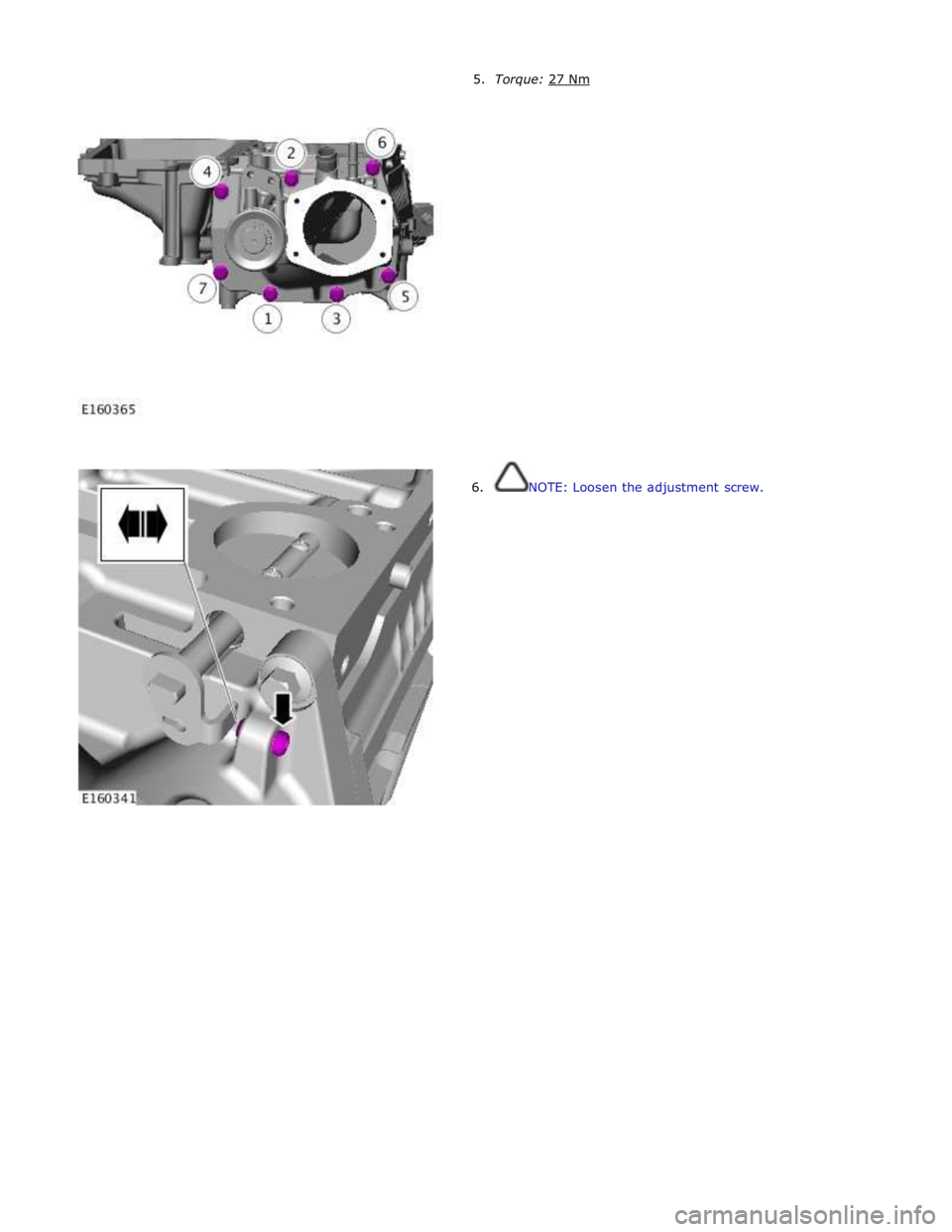

6. NOTE: Loosen the adjustment screw.

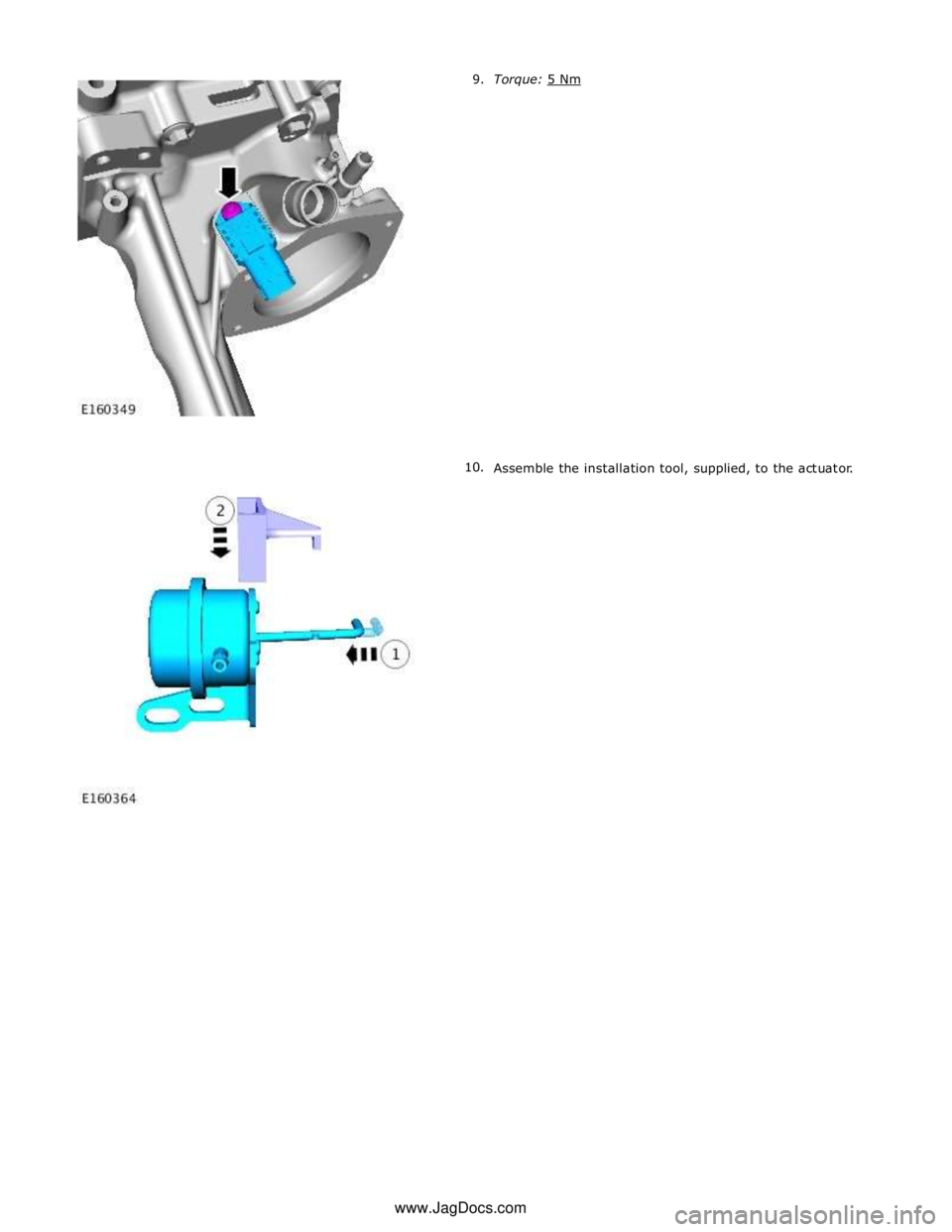

Assemble the installation tool, supplied, to the actuator. www.JagDocs.com

11.
12. Torque: 20 Nm























Remove the installation tool.

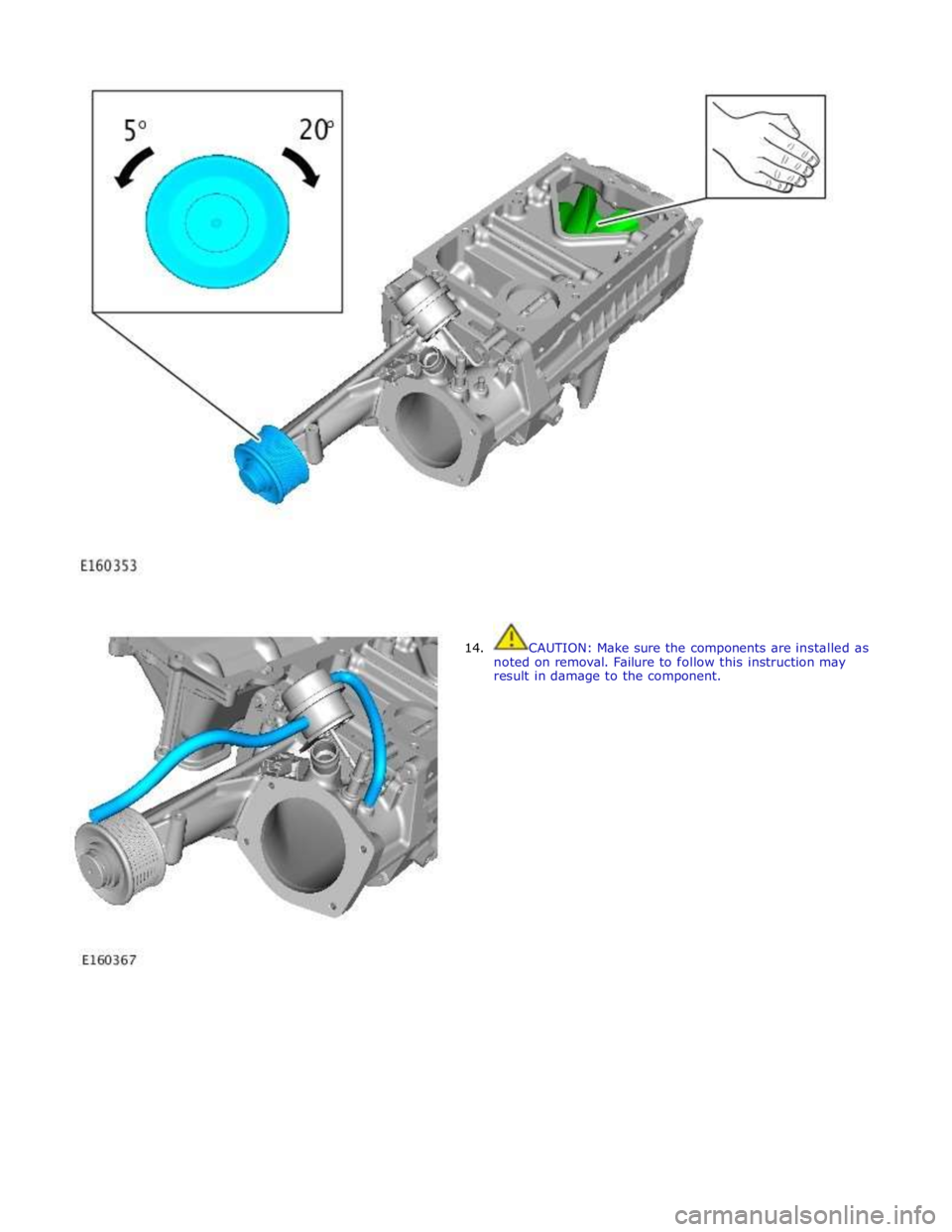

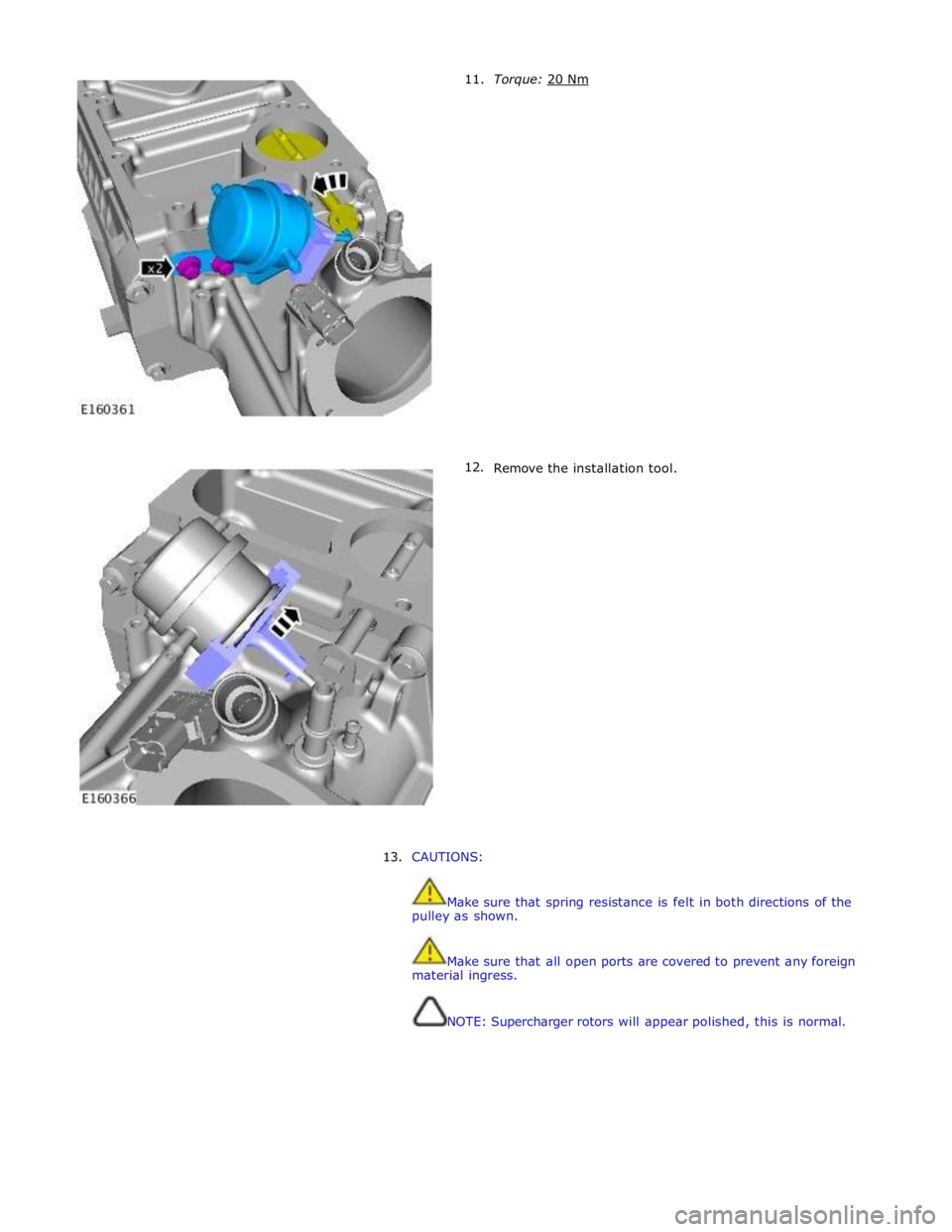

13. CAUTIONS:


Make sure that spring resistance is felt in both directions of the
pulley as shown.


Make sure that all open ports are covered to prevent any foreign
material ingress.


NOTE: Supercharger rotors will appear polished, this is normal.

14. CAUTION: Make sure the components are installed as
noted on removal. Failure to follow this instruction may
result in damage to the component.

16. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

Evaporative emission canister retaining nut 9 - 80 www.JagDocs.com
