Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol - Air Cleaner Outlet Pipe T-Connector
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).




Installation

2. Torque: 10 Nm
1. To install, reverse the removal procedure. www.JagDocs.com

Published: 08-Nov-2013
Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol - Charge Air Cooler
Removal and Installation
Removal


NOTE: Removal steps in this procedure may contain installation details.


1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).

4. Refer to: Secondary Bulkhead Center Panel (501-02 Front End Body Panels, Removal and Installation).

5. Refer to: Fuel Injection Component Cleaning (303-04D Fuel Charging and Controls - V8 5.0L Petrol, General Procedures).

6. Refer to: Cooling System Partial Draining, Filling and Bleeding - V8 S/C 5.0L Petrol (303-03C Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

7. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol (310-00 Fuel System - General Information, General Procedures).

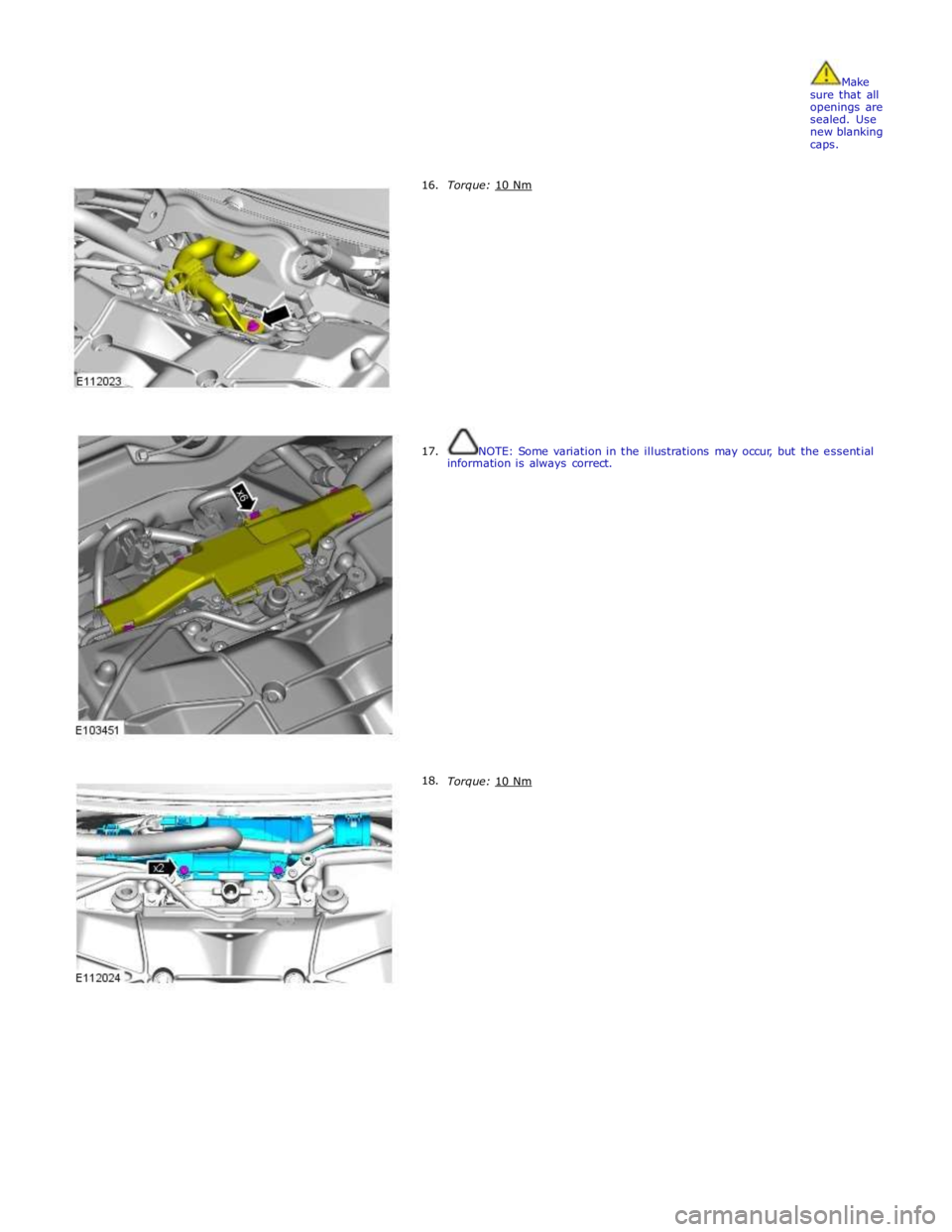

8. NOTE: Some variation in the illustrations may occur, but the essential
information is always correct.

Torque: 25 Nm












9.

10.
11.
12.
13.

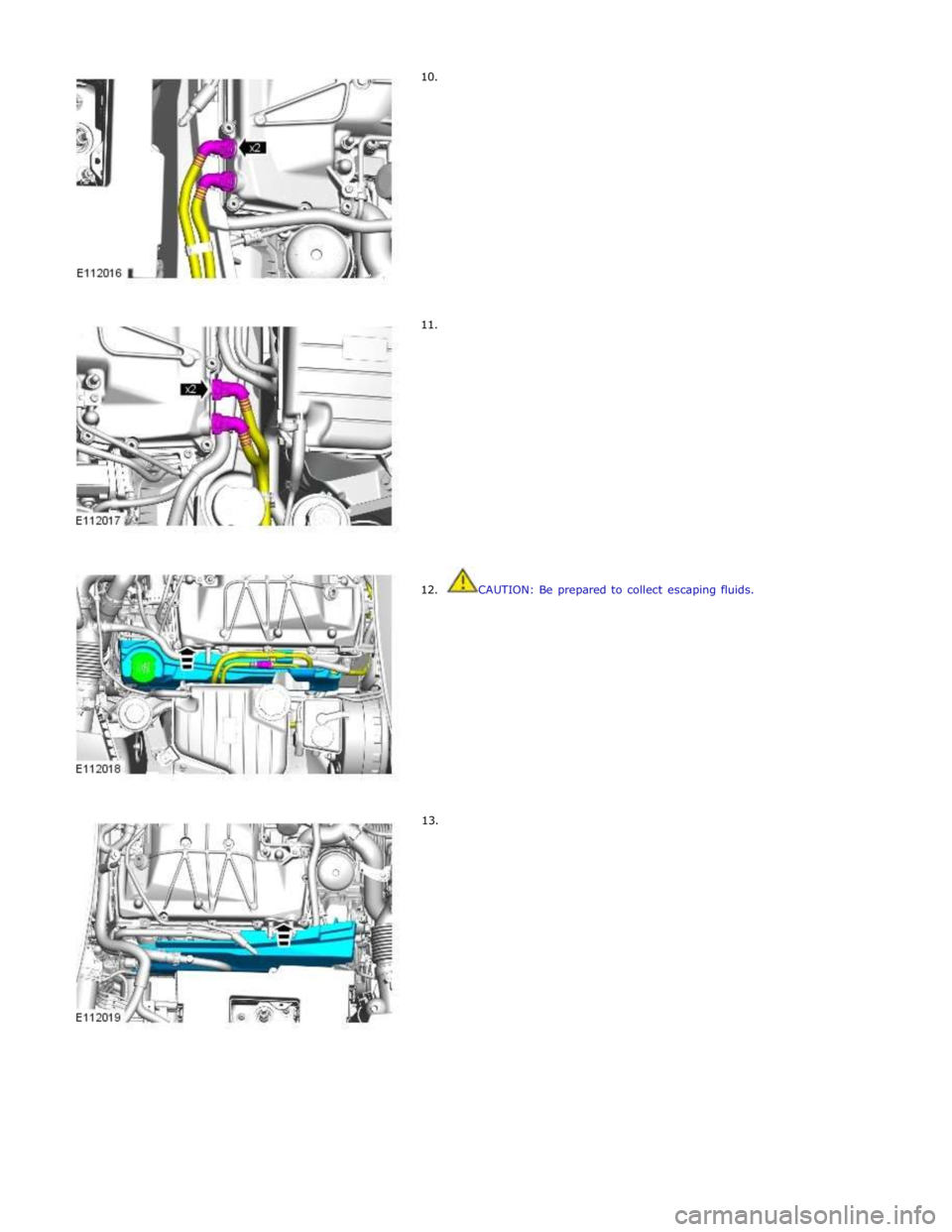

CAUTION: Be prepared to collect escaping fluids.

14.


















15.


















WARNINGS:


Do not
smoke or
carry lighted
tobacco or
open flame
of any type
when
working on
or near any
fuel related
components.
Highly
flammable
vapors are
always
present and
may ignite.
Failure to
follow these
instructions
may result
in personal
injury.


Do not
smoke or
carry lighted
tobacco or
open flame
of any type
when
working on
or near any
fuel related
components.
Highly
flammable
vapors are
always
present and
may ignite.
Failure to
follow these
instructions
may result
in personal
injury.

CAUTIONS:


Make
sure that
the fuel line
union does
not rotate.


Be
prepared to
collect
escaping
fluids.

Make
sure that all
openings are
sealed. Use
new blanking
caps.

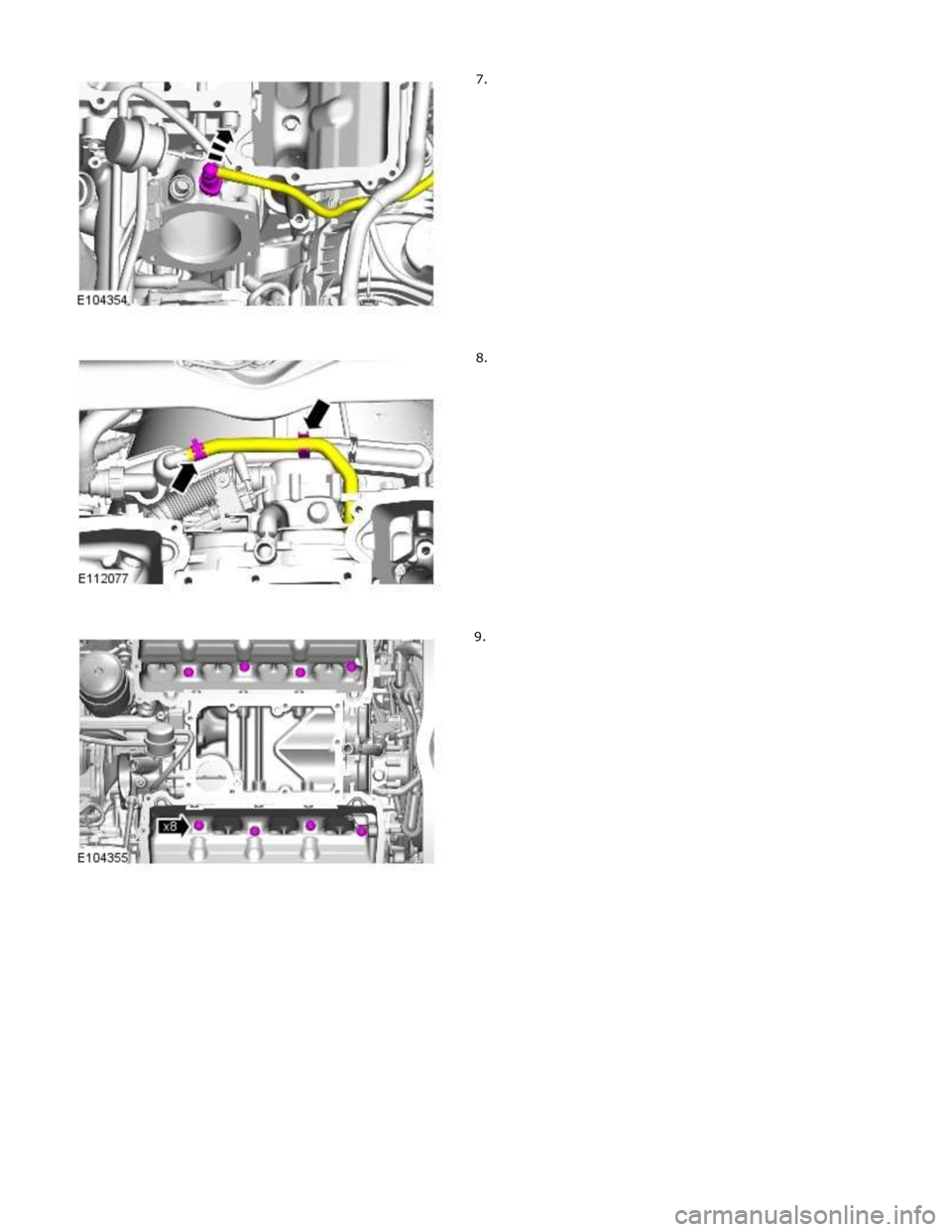

16.
17.
18. Torque: 10 Nm


















NOTE: Some variation in the illustrations may occur, but the essential
information is always correct.























Torque: 10 Nm

21. NOTES:

Install and lightly tighten bolts in sequence illustrated.
Complete the tightening sequence.
Remove and discard the gasket.
Torque: 25 Nm www.JagDocs.com

Installation

1. To install, reverse the removal procedure.


2.
WARNING:
Do not
smoke or
carry lighted
tobacco or
open flame
of any type
when
working on
or near any
fuel related
components.
Highly
flammable
vapors are
always
present and
may ignite.
Failure to
follow these
instructions
may result
in personal
injury.

NOTES:


Lubricate
only the
union
threads with
clean engine
oil.


Do not
tighten at

this stage.


Remove and
discard the
blanking
caps.


3.
WARNING:
Do not
smoke or
carry lighted
tobacco or
open flame
of any type
when working
on or near
any fuel
related
components.
Highly
flammable
vapors are
always
present and
may ignite.
Failure to
follow these
instructions
may result in
personal
injury.

Torque:
Union 21 Nm M6 12 Nm
4. WARNINGS:


Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable vapors
are always present and may ignite. Failure to follow these instructions may
result in personal injury.


After carrying out repairs, the fuel system must be checked visually for
leaks. Failure to follow these instructions may result in personal injury.

Torque: 21 Nm

Published: 30-Jan-2014
Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol - Supercharger
Removal and Installation

Special Tool(s)


303-1449-01
Supercharger Installation Guide Pins - Threaded

303-1449-02
Supercharger Installation Guide Pins - Unthreaded Removal


CAUTION: If a new cylinder head has been installed, then new taptite bolts must be used to install the supercharger.
NOTES:


New taptite bolts when used cut their own threads on the first application.


Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Charge Air Cooler (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

4. Refer to: Throttle Body (303-04E Fuel Charging and Controls - V8 S/C 5.0L Petrol, Removal and Installation).

5. Refer to: Supercharger Belt (303-05 Accessory Drive - 5.0L, Removal and
Installation).

6. Refer to: Manifold Absolute Pressure (MAP) Sensor (303-14D Electronic Engine Controls - V8 S/C 5.0L Petrol, Removal and Installation).
