JAGUAR XFR 2010 1.G Workshop Manual

Torque: 20 Nm

Torque: 20 Nm

1. To install, reverse the removal procedure. www.JagDocs.com

Published: 11-May-2011
Supplemental Restraint System - Restraints Control Module (RCM)
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Make the air bag supplemental restraint system (SRS) safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).


2. WARNING: To avoid accidental deployment and possible personal injury,
the backup power supply must be depleted before repairing or replacing
any air bag supplementary restraints system (SRS) components. To
deplete the backup power supply energy, disconnect the battery ground
cable and wait for one minute. Failure to follow this instruction may
result in personal injury.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

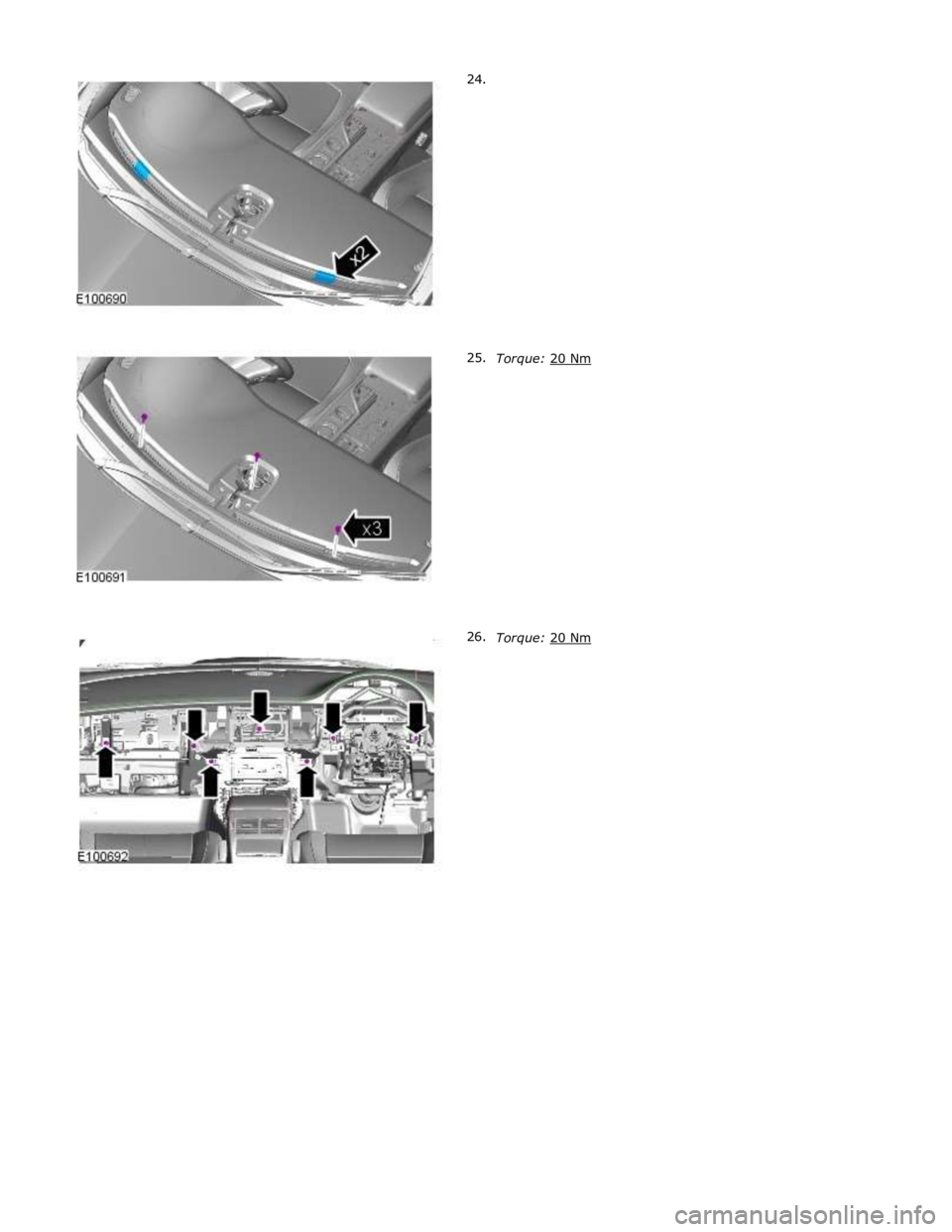

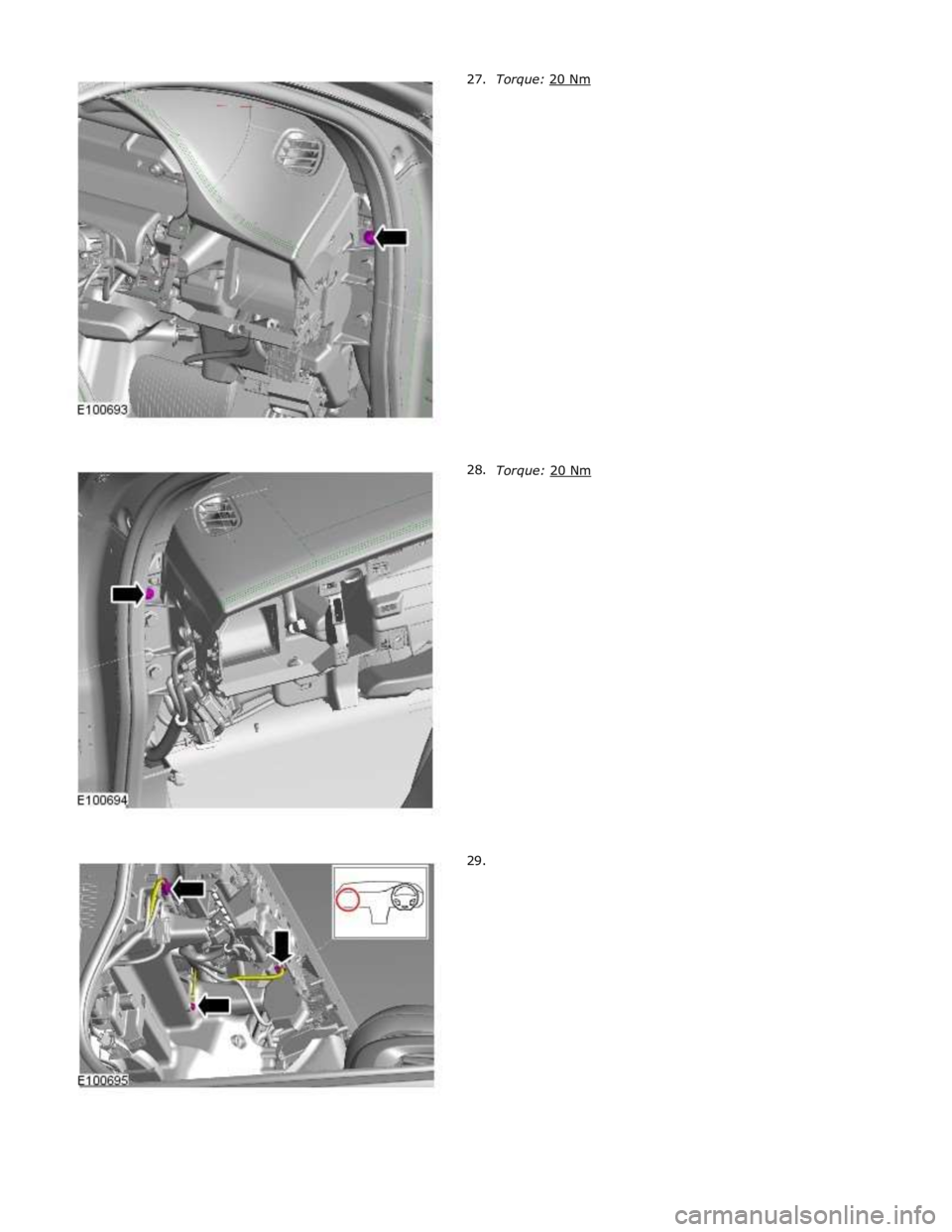

3.
4.

5.
6. Torque: 6 Nm 7.

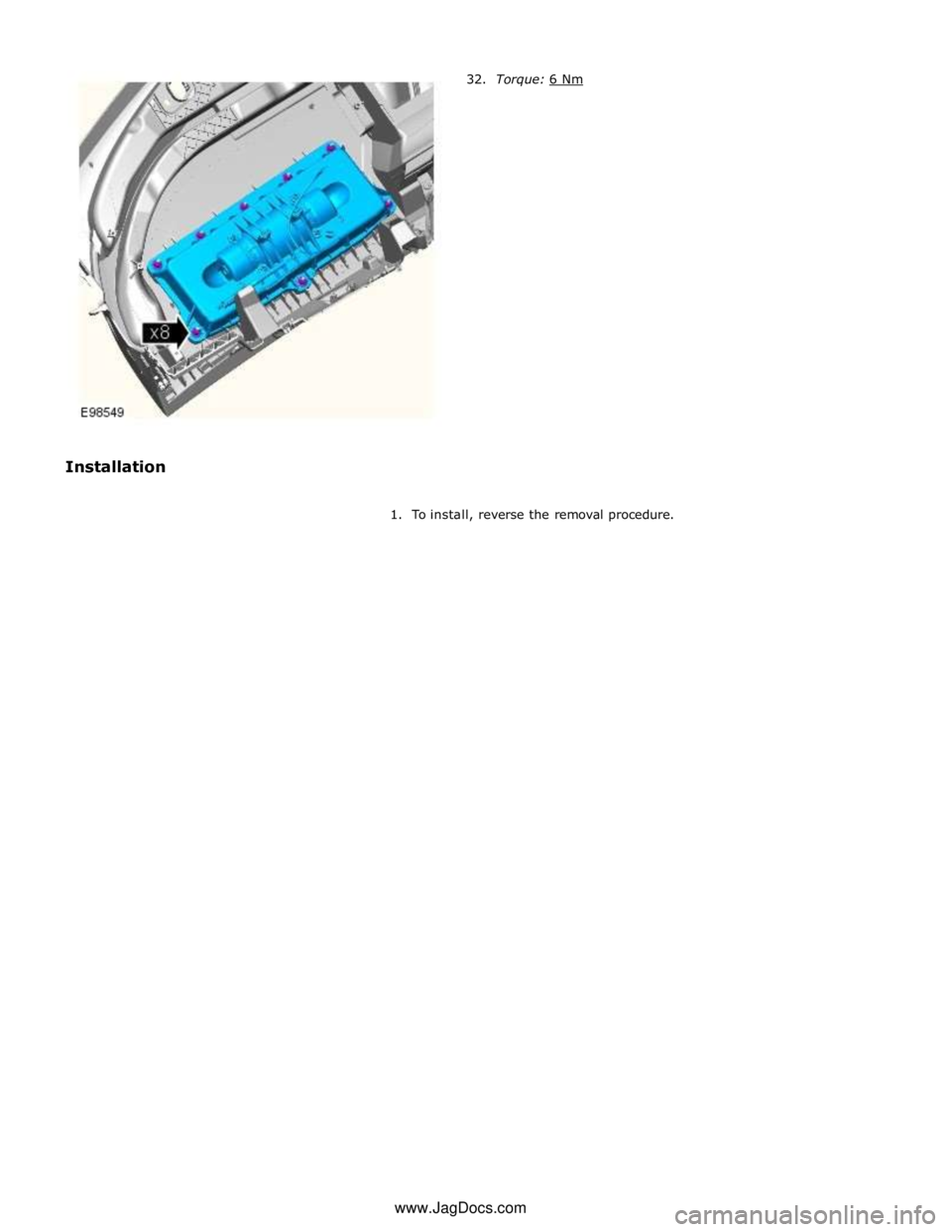

8. NOTES:


If the SRS component is to be replaced, the bar code
of the new unit must be recorded.


The RCM will record and store impact data. The
module must be replaced when three records are noted.
Torque: 10 Nm

Installation

1. To install, reverse the removal procedure.

2. If a new component has been installed, configure using Jaguar approved
diagnostic equipment.

Supplemental Restraint System - Side Air Bag Module
Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 07-Sep-2011

1. Make the air bag supplemental restraint system (SRS) safe.
For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.
For additional information, refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Remove the front seat.
For additional information, refer to: Front Seat (501-10 Seating, Removal and Installation).

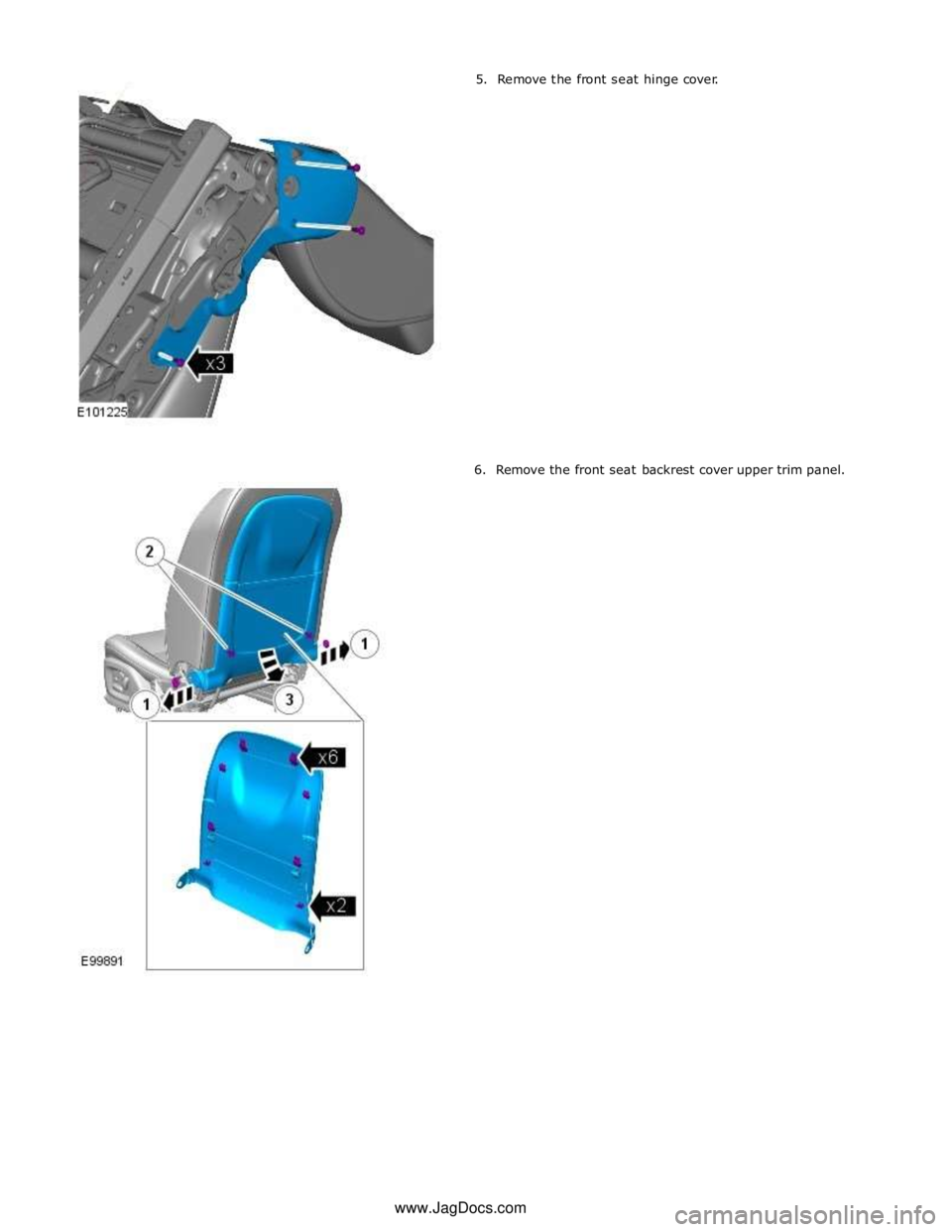

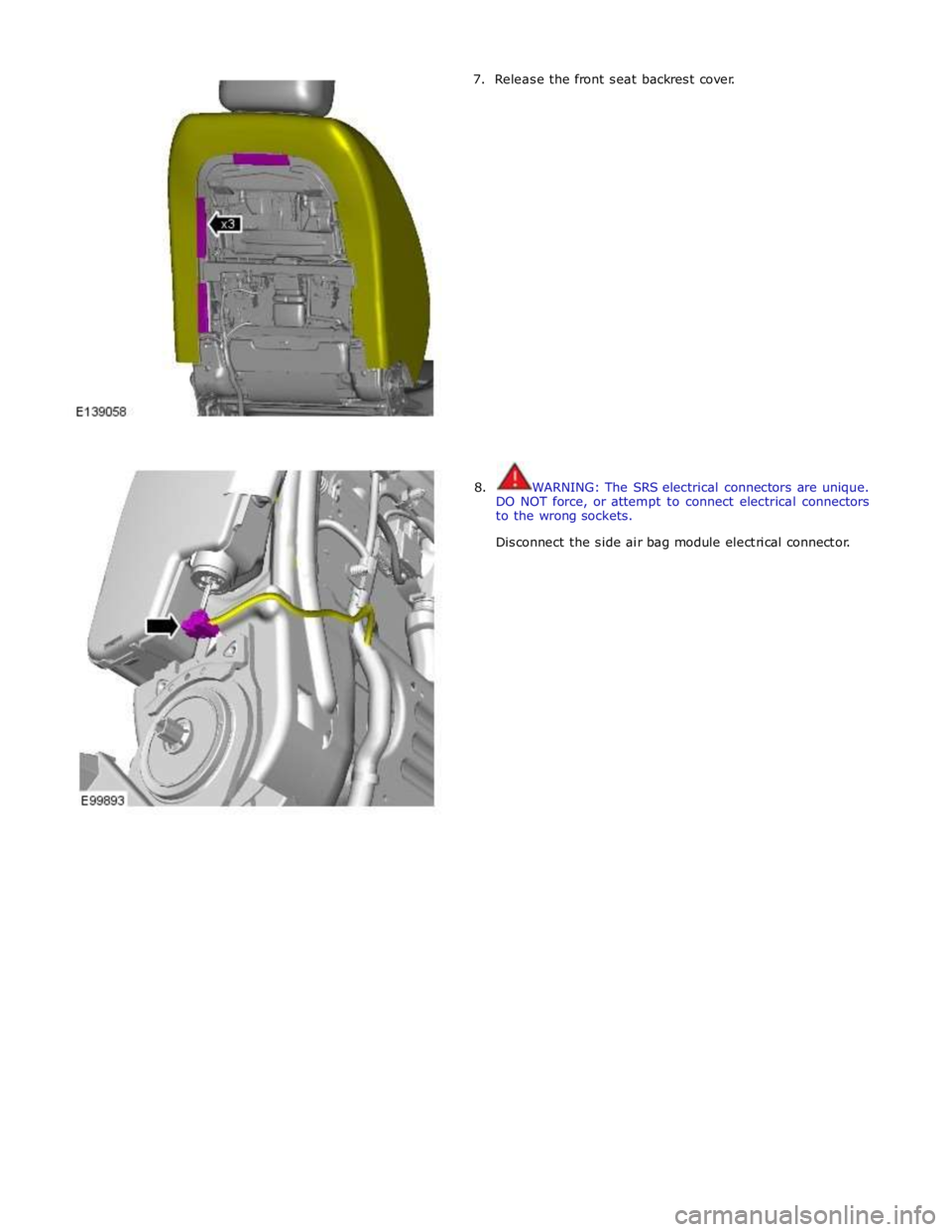

4. Remove the front seat backrest lower rear cover.
