JAGUAR XFR 2010 1.G Workshop Manual

Supplemental Restraint System - Side Air Curtain Module
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

All vehicles Published: 19-May-2011

1. Make the air bag supplemental restraint system (SRS) safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and Installation).

4. Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation).

5. Refer to: Sun Visor (501-05 Interior Trim and Ornamentation, Removal and Installation).

6. Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

7. Refer to: B-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

8. Refer to: C-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

9. Torque: 2 Nm

www.JagDocs.com

Vehicles with roof opening panel

13. NOTES:


Note the different lengths of screws.


Make sure that the component is installed to the
position noted on removal.
Torque: 2 Nm

Vehicles without roof opening panel

14. NOTES:


Note the different lengths of screws.


Make sure that the component is installed to the
position noted on removal.
Torque: 2 Nm

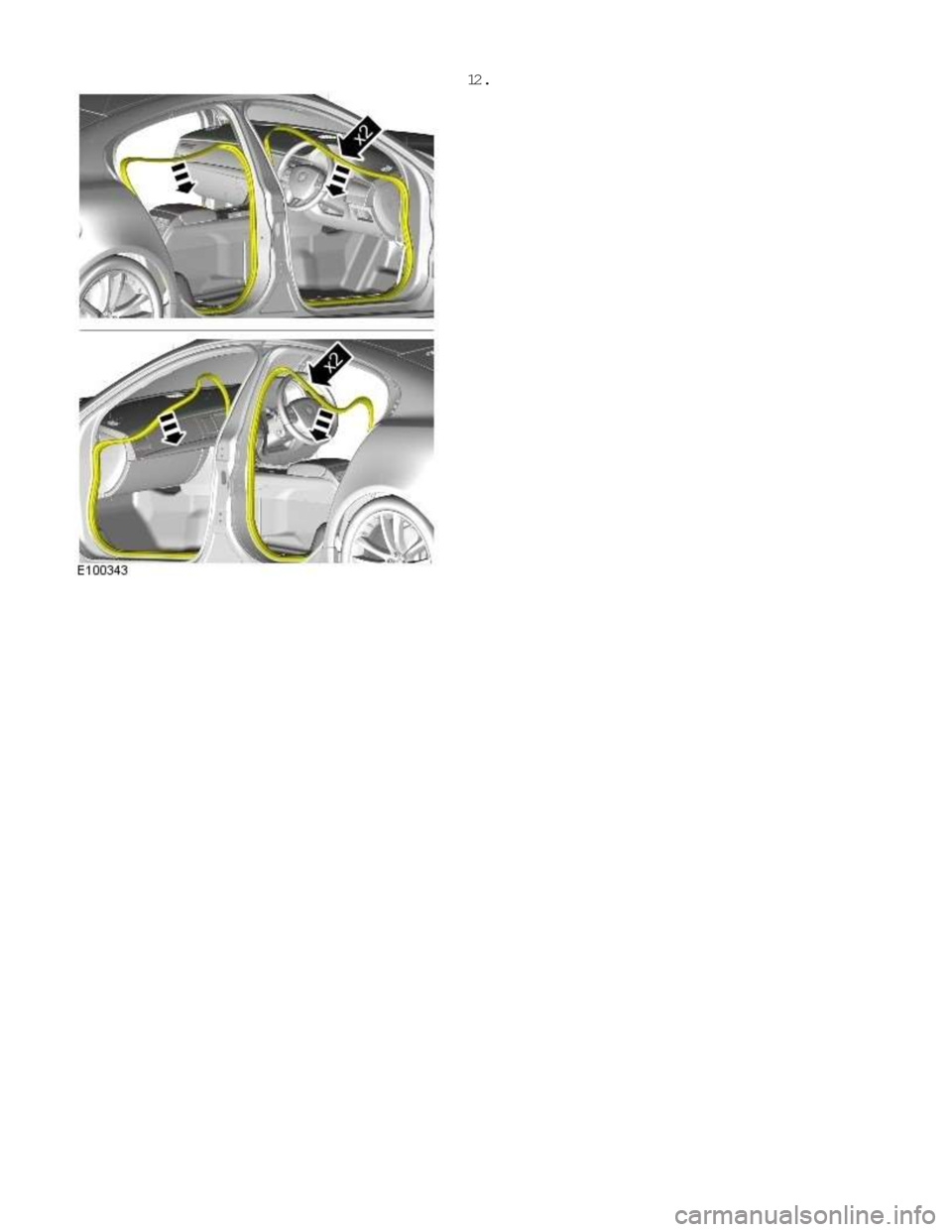

All vehicles

15.

16.
17.
18.



















WARNING: This step requires the aid of another
technician.
















WARNING: This step requires the aid of another
technician.

19.

































20.

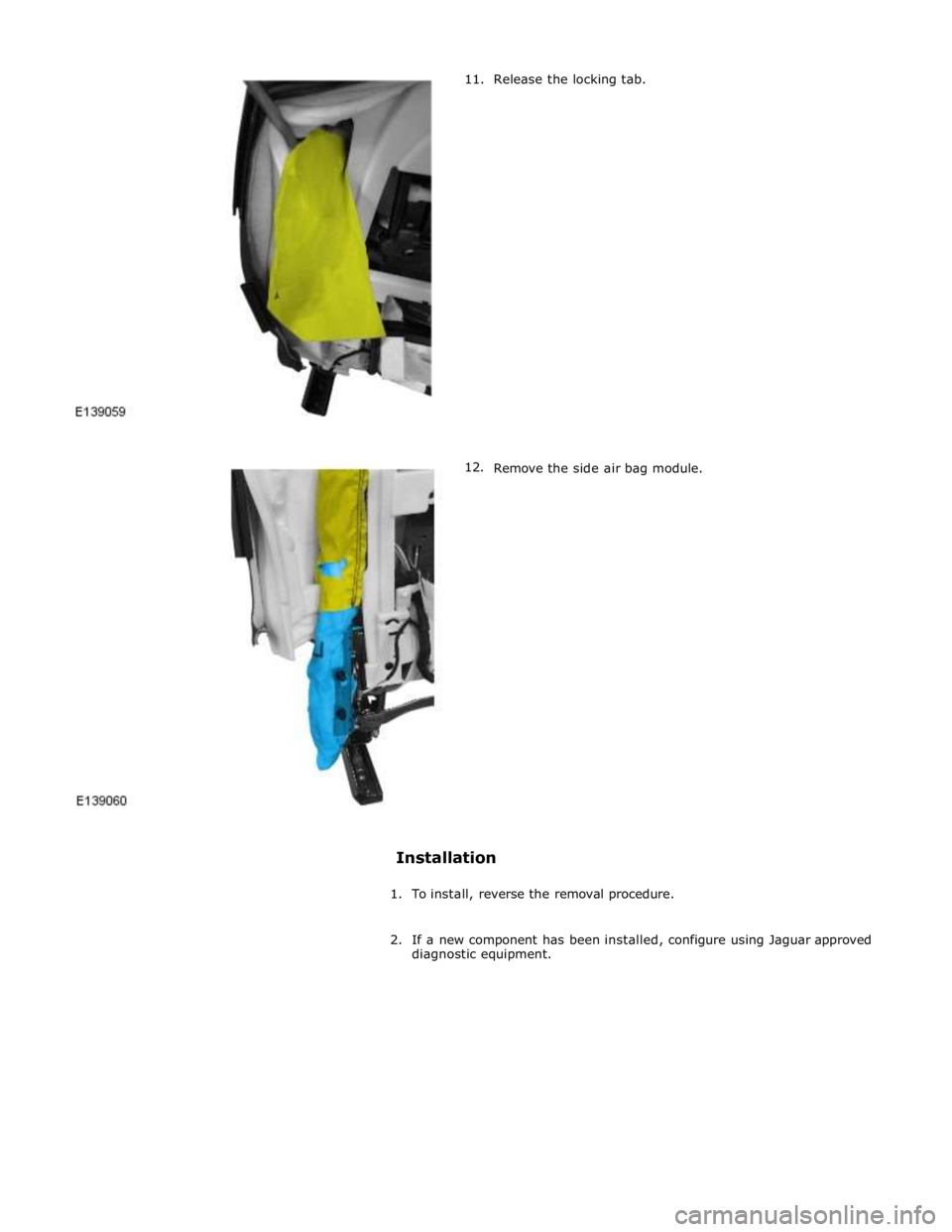

CAUTION: Note the fitted position of the component
prior to removal.


NOTE: Make sure that the component is installed to
the position noted on removal.




























CAUTIONS:


Make sure that the clips are correctly located.


Note the fitted position of the component prior to
removal.
NOTES:


Make sure that this component is installed to the
noted removal position.


Federal vehicles only.

Torque: 9 Nm

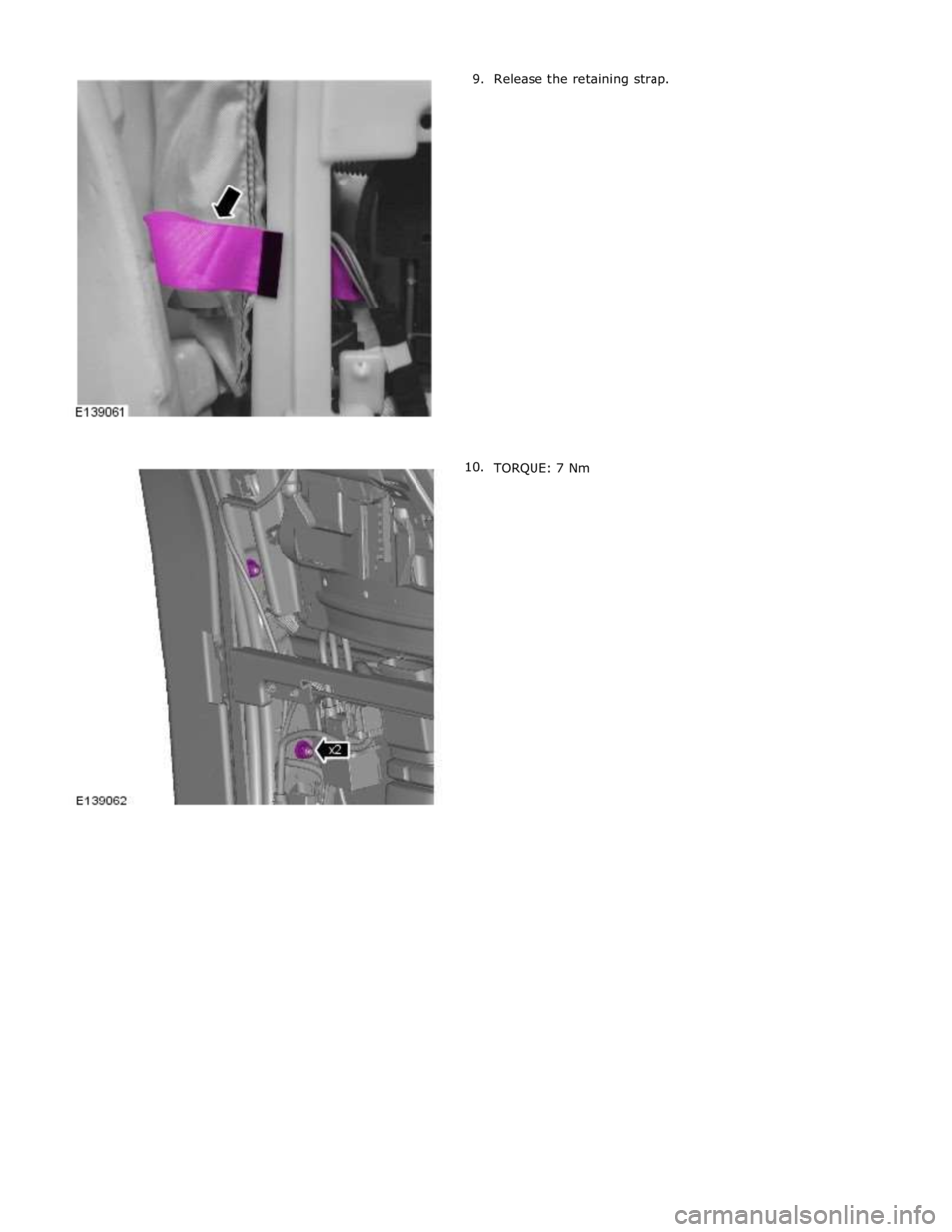

21. WARNING: The SRS electrical connectors are unique.
DO NOT force, or attempt to connect electrical connectors
to the wrong sockets.


CAUTION: Note the fitted position of the component
prior to removal.
NOTES:


Make sure that the component is installed to the
noted removal position. www.JagDocs.com

Some variation in the illustrations may occur, but the
essential information is always correct.
Torque: 9 Nm
Installation


1. CAUTION: Make sure that the component is correctly located on the
locating pegs.
To install, reverse the removal procedure.

2. If a new component has been installed, configure using Jaguar approved
diagnostic equipment.
