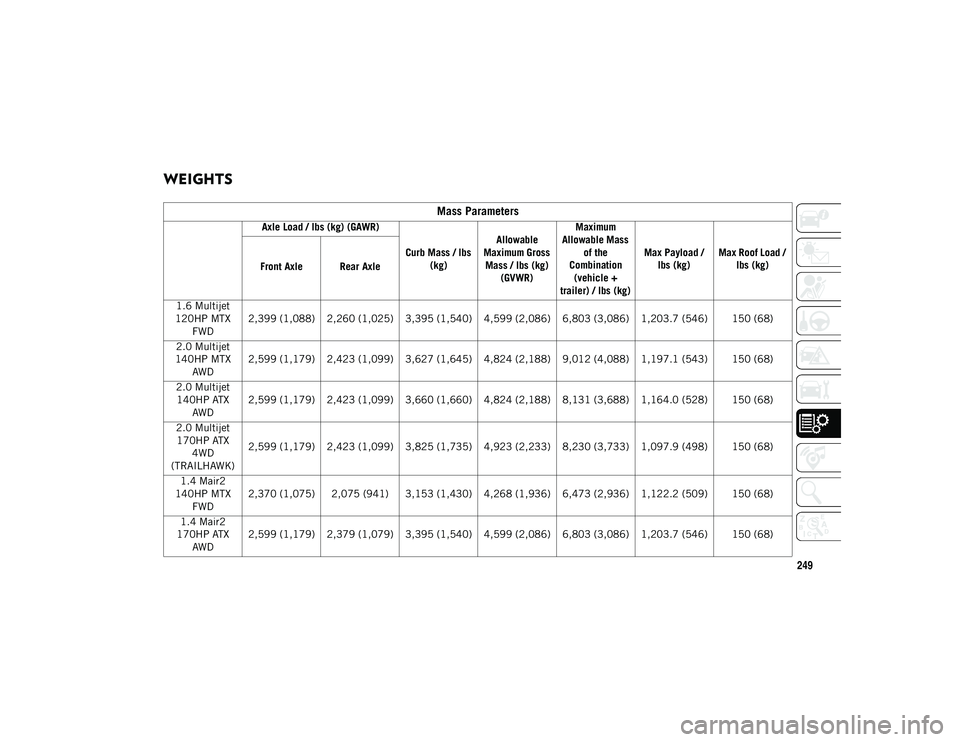

WEIGHTS
Mass Parameters
Axle Load / lbs (kg) (GAWR)Curb Mass / lbs (kg) Allowable
Maximum Gross Mass / lbs (kg) (GVWR) Maximum
Allowable Mass of the
Combination (vehicle +
trailer) / lbs (kg) Max Payload /
lbs (kg) Max Roof Load /
lbs (kg)
Front Axle Rear Axle
1.6 Multijet
120HP MTX FWD 2,399 (1,088) 2,260 (1,025) 3,395 (1,540) 4,599 (2,086) 6,803 (3,086) 1,203.7 (546) 150 (68)
2.0 Multijet
140HP MTX AWD 2,599 (1,179) 2,423 (1,099) 3,627 (1,645) 4,824 (2,188) 9,012 (4,088) 1,197.1 (543) 150 (68)
2.0 Multijet 140HP ATX AWD 2,599 (1,179) 2,423 (1,099) 3,660 (1,660) 4,824 (2,188) 8,131 (3,688) 1,164.0 (528) 150 (68)
2.0 Multijet 170HP ATX 4WD
(TRAILHAWK) 2,599 (1,179) 2,423 (1,099) 3,825 (1,735) 4,923 (2,233) 8,230 (3,733) 1,097.9 (498) 150 (68)
1.4 Mair2
140HP MTX FWD 2,370 (1,075) 2,075 (941) 3,153 (1,430) 4,268 (1,936) 6,473 (2,936) 1,122.2 (509) 150 (68)
1.4 Mair2
170HP ATX AWD 2,599 (1,179) 2,379 (1,079) 3,395 (1,540) 4,599 (2,086) 6,803 (3,086) 1,203.7 (546) 150 (68)
2020_JEEP_M6_UG_UK.book Page 249

TECHNICAL SPECIFICATIONS
250
FUEL REQUIREMENTS —
GASOLINE ENGINE
1.4L Turbo Gasoline Engine
This engine is designed to meet all emission
regulations and provide satisfactory fuel
economy and performance when using
high-quality unleaded gasoline having a
minimum research octane rating (RON) of
95. For optimum performance and fuel
economy the use of minimum research
octane rating (RON) of 98 or higher is recom-
mended. Light spark knock at low engine speeds is not
harmful to your engine. However, continued
heavy spark knock at high speeds can cause
damage, and immediate service is required.
Poor quality gasoline can cause problems
such as hard starting, stalling, and hesita
-
tions. If you experience these symptoms, try
another brand of gasoline before considering
service for the vehicle.
Poor quality gasoline can cause problems
such as hard starting, stalling, and hesita -
tions. If you experience these symptoms, try
another brand of gasoline before considering
service for the vehicle.
Ethanol
The manufacturer recommends that your
vehicle be operated on fuel containing no
more than 10% ethanol. Purchasing your
fuel from a reputable supplier may reduce
the risk of exceeding this 10% limit and/or of
receiving fuel with abnormal properties.
Materials Added To Fuel
Indiscriminate use of fuel system cleaning
agents should be avoided. Many of these
materials intended for gum and varnish
removal may contain active solvents or
similar ingredients. These can harm fuel
system gasket and diaphragm materials.
Gasoline/Oxygenate Blends
Some fuel suppliers blend unleaded gasoline
with oxygenates such as ethanol.
CAUTION!
Do not load your vehicle any heavier than
the GVWR or the maximum front and rear
GAWR. If you do, parts on your vehicle can
break, or it can change the way your
vehicle handles. This could cause you to
lose control. Also overloading can shorten
the life of your vehicle. Never exceed the
maximum combined vehicle load value:
the maximum towable load is only allowed
if it does not exceed the maximum
combined vehicle load.
CAUTION!
Use of fuel with Ethanol content higher
than 10% may result in engine
malfunction, starting and operating
difficulties, and materials degradation.
These adverse effects could result in
permanent damage to your vehicle.
CAUTION!
DO NOT use E-85, gasoline containing
methanol, or gasoline containing more
than 15% ethanol (E-15). Use of these
blends may result in starting and
drivability problems, damage critical fuel
system components, cause emissions to
exceed the applicable standard, and/or
cause the Malfunction Indicator Light to
illuminate. Please observe pump labels as
they should clearly communicate if a fuel
contains greater than 15% ethanol (E-15).
2020_JEEP_M6_UG_UK.book Page 250

251
Problems that result from using gasoline
containing more than 15% ethanol (E-15) or
gasoline containing methanol are not the
responsibility of the manufacturer and may
void or not be covered under New Vehicle
Limited Warranty.Fuel Icon Identification Compliant To
EN16942
The following symbols make it easier to
recognize the correct type of fuel to be used
on your vehicle. Before proceeding with thesupply, check the symbols placed inside the
fuel filler flap (if present) and compare them
with the symbol on the fuel pump (if
present).
Fuel Icons
What It Means
Unleaded fuel containing up to 2,7 % (m/m) oxygen and a maximum ethanol content of 5,0 % (V/V) EN228
compliant fuel
Unleaded fuel containing up to 3,7 % (m/m) oxygen and a maximum ethanol content of 10,0 % ( V/V) EN228
compliant fuel
Compressed Natural Gas and biomethane for automotive applications EN16723 compliant fuel
Liquefied Petroleum Gas for automotive applications EN589 compliant fuel
Diesel fuel containing up to 7 % ( V/V) Fatty Acid Methyl Esters (FAME) EN590 compliant fuel
Diesel fuel containing up to 10 % (V/V) Fatty Acid Methyl Esters (FAME) EN16734 compliant fuel
2020_JEEP_M6_UG_UK.book Page 251

TECHNICAL SPECIFICATIONS
252
Fuel System CautionsNOTE:
Intentional tampering with the emissions
control system can result in civil penalties
being assessed against you.
Carbon Monoxide Warnings
FUEL REQUIREMENTS —
DIESEL ENGINE
Diesel Engine
Use good quality diesel fuel from a reputable
supplier. If the outside temperature is very
low, the diesel fuel thickens due to the
formation of paraffin clots with consequent
defective operation of the fuel supply
system.
In order to avoid these problems different
types of fuel are distributed according to the
season: summer type, winter type and arctic
type (cold/mountain areas). If fueling with
diesel fuel whose features are not suitable
for the temperature of use, it is advisable to
mix in a suitable additive with the fuel. With
the proportions shown on the container, pour
the additive in the tank before fueling.
When using or parking the vehicle for a long
time in the mountains or cold areas, it is
advisable to refuel using locally available
fuel. In this case, it is also advisable to keep
the tank over half full.
CAUTION!
Follow these guidelines to maintain your
vehicle’s performance:
The use of leaded gasoline is prohibited
by law. Using leaded gasoline can impair
engine performance and damage the
emissions control system.
An out-of-tune engine or certain fuel or
ignition malfunctions can cause the
catalytic converter to overheat. If you
notice a pungent burning odor or some
light smoke, your engine may be out of
tune or malfunctioning and may require
immediate service. Contact an autho-
rized dealer for service assistance.
The use of fuel additives, which are now
being sold as octane enhancers, is not
recommended. Most of these products
contain high concentrations of meth-
anol. Fuel system damage or vehicle
performance problems resulting from the
use of such fuels or additives is not the
responsibility of the manufacturer and
may void or not be covered under the
New Vehicle Limited Warranty.
WARNING!
Carbon monoxide (CO) in exhaust gases is
deadly. Follow the precautions below to
prevent carbon monoxide poisoning:
Do not inhale exhaust gases. They
contain carbon monoxide, a colorless
and odorless gas, which can kill. Never
run the engine in a closed area, such as
a garage, and never sit in a parked
vehicle with the engine running for an
extended period. If the vehicle is
stopped in an open area with the engine
running for more than a short period,
adjust the ventilation system to force
fresh, outside air into the vehicle.
Guard against carbon monoxide with
proper maintenance. Have the exhaust
system inspected every time the vehicle
is raised. Have any abnormal conditions
repaired promptly. Until repaired, drive
with all side windows fully open.
2020_JEEP_M6_UG_UK.book Page 252

253
This vehicle must only use premium diesel
fuel that meets the requirements of EN 590.
Biodiesel blends up to 7% that meet EN
590 may also be used.Diesel fuel is seldom completely free of
water. To prevent fuel system trouble, drain
the accumulated water from the fuel/water
separator using the provided fuel/water
separator drain. If you buy good quality fuel
and follow the cold weather advice above,
fuel conditioners should not be required in
your vehicle. If available in your area, a high
cetane “premium” diesel fuel may offer
improved cold-starting and warm-up perfor
-

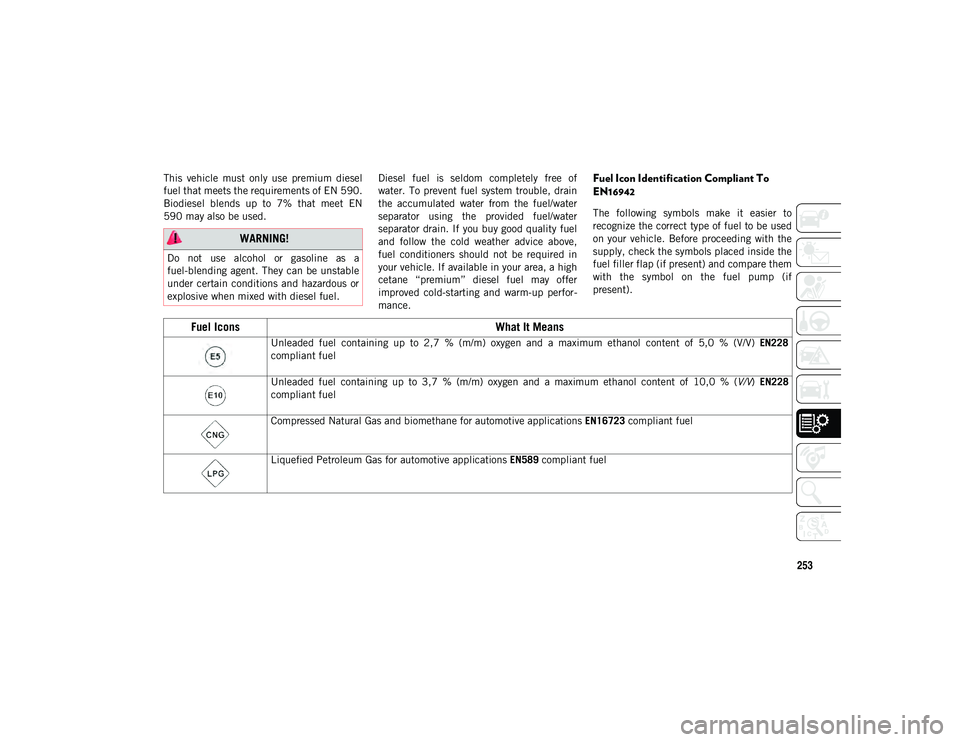

mance.Fuel Icon Identification Compliant To
EN16942
The following symbols make it easier to
recognize the correct type of fuel to be used
on your vehicle. Before proceeding with the
supply, check the symbols placed inside the
fuel filler flap (if present) and compare them
with the symbol on the fuel pump (if
present).
WARNING!
Do not use alcohol or gasoline as a
fuel-blending agent. They can be unstable
under certain conditions and hazardous or
explosive when mixed with diesel fuel.
Fuel Icons What It Means
Unleaded fuel containing up to 2,7 % (m/m) oxygen and a maximum ethanol content of 5,0 % (V/V) EN228
compliant fuel
Unleaded fuel containing up to 3,7 % (m/m) oxygen and a maximum ethanol content of 10,0 % ( V/V) EN228
compliant fuel
Compressed Natural Gas and biomethane for automotive applications EN16723 compliant fuel
Liquefied Petroleum Gas for automotive applications EN589 compliant fuel
2020_JEEP_M6_UG_UK.book Page 253

TECHNICAL SPECIFICATIONS
254
FLUID CAPACITIES
Diesel fuel containing up to 7 % (V/V) Fatty Acid Methyl Esters (FAME) EN590 compliant fuel
Diesel fuel containing up to 10 % (V/V) Fatty Acid Methyl Esters (FAME) EN16734 compliant fuel
US Metric
Fuel (Approximate)
All Engines 15.9 Gallons60 Liters
AdBlue® (UREA) Fluid Tank 3.4 Gallons13 Liters
Engine Oil With Filter
1.4 Liter Gasoline Engine (SAE 0W-30 ACEA C2, FCA Material Standard
9.55535-GS1) 4.0 Quarts
3.8 Liters
1.6 Liter Diesel Engine Without AdBlue® (UREA) (SAE 0W-30 ACEA C2, FCA
Material Standard 9.55535-DS1 or MS.90047) 5.07 Quarts
4.8 Liters
1.6 Liter Diesel Engine With AdBlue® (SAE 0W-20 ACEA C2, FCA Material
Standard 9.55535–DSX) 5.07 Quarts
4.8 Liters
2.0 Liter Diesel Engine Without AdBlue® (UREA) (SAE 0W-30 ACEA C2, FCA
Material Standard 9.55535-DS1 or MS.90047) 4.43 Quarts
4.2 Liters
2.0 Liter Diesel Engine With AdBlue® (UREA) (SAE 0W-20 ACEA C2, FCA
Material Standard 9.55535–DSX) 4.43 Quarts
4.2 Liters
Fuel Icons What It Means
2020_JEEP_M6_UG_UK.book Page 254

255
FLUIDS AND LUBRICANTS
Engine
Your vehicle is equipped with an engine oil
that has been thoroughly developed and
tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use
of the prescribed lubricants guarantees the
fuel consumption and emission specifica-
tions. Lubricant quality is crucial for engine
operation and duration. If lubricants
conforming to the specific request are not
available, products that meet the indicated
specifications can be used to top up, in this
case optimal performance of the engine is
not guaranteed. Cooling System*
1.4 Liter Gasoline Engine (OAT FCA Material Standard MS.90032)
5.5 Quarts5.2 Liters
1.6 Liter Diesel Engine (OAT FCA Material Standard MS.90032) 6.45 Quarts6.1 Liters
2.0 Liter Diesel Engine (OAT FCA Material Standard MS.90032) 6.8 Quarts6.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
US Metric
2020_JEEP_M6_UG_UK.book Page 255

TECHNICAL SPECIFICATIONS
256Component
Fluid, Lubricant, or Genuine Part
Engine Coolant
We recommend you use PARAFLU UP Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of FCA Material
Standard MS.90032.
Engine Oil – 1.4L Gasoline Engine We recommend you use SELENIA DIGITEK P.E. or equivalent, SAE
0W-30 ACEA C2 Synthetic Engine Oil, meeting the requirements of
FCA Material Standard 9.55535-GS1.
Engine Oil – 1.6L / 2.0L Diesel Engine Without AdBlue® (UREA) For best performance and maximum protection under all types of operating conditions, the manufacturer recommends SELENIA WR
FORWARD engine oils, or equivalent, SAE 0W-30 that meet the
requirements of FCA Material Standard 9.55535-DS1 or MS.90047
and ACEA C2.
NOTE:
If lubricants compliant with the required specifications are not
available, products that comply with the minimum required char-
acteristics can be used for topping off; in this case optimal perfor -
mance of the engine is not guaranteed.
The use of products with specifications other than those indicated
above could cause damage to the engine not covered by the
warranty.
2020_JEEP_M6_UG_UK.book Page 256

257
Engine Oil – 1.6L / 2.0L Diesel Engine With AdBlue® (UREA) For best performance and maximum protection under all types ofoperating conditions, the manufacturer recommends SAE 0W-20
that meet the requirements of FCA Material Standard 9.55535-DSX
and ACEA C2.
NOTE:
If lubricants compliant with the required specifications are not
available, products that comply with the minimum required char-
acteristics can be used for topping off; in this case optimal perfor -
mance of the engine is not guaranteed.
The use of products with specifications other than those indicated
above could cause damage to the engine not covered by the
warranty.
Engine Oil Filter We recommend you use a Mopar Engine Oil Filter.
Spark Plugs – Gasoline Engines We recommend you use Mopar Spark Plugs.
Fuel Selection – 1.4L Gasoline Engine Minimum of 95 Research Octane Number (RON) specification
EN228
Fuel Selection – Diesel Engines Diesel fuel conforming to the European specification EN590
Additive For Diesel Emissions AdBlue® (UREA) AdBlue® (Urea-Water Solution) According To DIN 70 070 and ISO
22241-1
ComponentFluid, Lubricant, or Genuine Part
2020_JEEP_M6_UG_UK.book Page 257

TECHNICAL SPECIFICATIONS
258
(Continued)
(Continued)
CAUTION!
Mixing of engine coolant (antifreeze)
other than specified Organic Additive
Technology (OAT) engine coolant (anti -
freeze), may result in engine damage
and may decrease corrosion protection.
Organic Additive Technology (OAT)
engine coolant is different and should
not be mixed with Hybrid Organic Addi -
tive Technology (HOAT) engine coolant
(antifreeze) or any “globally compatible”
coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into
the cooling system in an emergency, the
cooling system will need to be drained,
flushed, and refilled with fresh OAT
coolant (conforming to MS.90032), by
an authorized dealer as soon as possible.Do not use water alone or alcohol-based
engine coolant (antifreeze) products. Do
not use additional rust inhibitors or anti -
rust products, as they may not be
compatible with the radiator engine
coolant and may plug the radiator.
This vehicle has not been designed for
use with propylene glycol-based engine
coolant (antifreeze). Use of propylene
glycol-based engine coolant (antifreeze)
is not recommended.
The use of products with different spec-
ifications than those indicated above
could cause damage to the engine that is
not covered by the warranty.
CAUTION! (Continued)
Use AdBlue® only according to DIN 70
070 and ISO 22241-1. Other fluids may
cause damage to the system: also
exhaust emissions would no longer
comply with the law.
The distribution companies are respon -
sible for the compliance of their product.
Observe the precautions of storage and
servicing, in order to preserve the initial
qualities. The manufacturer of the
vehicle does not recognize any guarantee
in case of malfunctions and damage
caused to the vehicle due to the use of
AdBlue® not in accordance with regula-
tions.
CAUTION! (Continued)
2020_JEEP_M6_UG_UK.book Page 258
