Play Mode
When switched to BTSA mode, some audio
devices can start playing music over the vehi-
cle’s audio system, but some devices require
the music to be initiated on the device first, then
it will get streamed to the Uconnect™ phone
system. Seven devices can be paired to the
Uconnect™ phone system, but just one can be
selected and played.
Selecting Different Audio Device
1. Press PHONE button to begin.
2. After theReadyprompt and the following
beep, say Setup, then Select Audio De-
vices.
3. Say the name of the audio device or ask the
Uconnect™ phone system to list audio de-
vices.
Next Track
Use the SEEK UP button, or press the VR
button on the radio and say “Next Track” to
jump to the next track music on your cellular
phone. Previous Track
Use the SEEK DOWN button, or press the VR
button on the radio and say “Previous Track” to
jump to the previous track music on your cel-
lular phone.
Browse
Browsing is not available on a BTSA device.
Only the current song that is playing will display
info.
UCONNECT™ MULTIMEDIA VIDEO
ENTERTAINMENT SYSTEM
(VES)™ — IF EQUIPPED
Your rear seat Video Entertainment System
(VES)™ is designed to give your family years of
enjoyment. You can play your favorite CDs or
DVDs, listen to audio over the wireless head-
phones, or plug and play a variety of standard
video games or audio devices. Please review
this Owner’s Manual to become familiar with its
features and operation.
System OverviewThe rear seat Video Entertainment System
(VES)™ consists of:
•
Your vehicle may be equipped a single LCD
overhead console screen system.
• One infrared remote control to allow rear seat
audio and video control function capability of
the VES™.
• Two infrared wireless dual channel head-
phones for rear passenger listening.
• Auxiliary RCA audio/video inputs (AUX
jacks) for listening and viewing of other con-
sumer electronic device media such as MP3
players or video games.
• Radio capable of playing DVDs.
187

Video Entertainment System (VES)™This manual is intended to aid with the opera-
tion of the rear seat Video Entertainment Sys-
tem (VES)™.
The Video Entertainment System (VES)™ ex-
pands the vehicle’s audio and video capabili-
ties so that rear passengers can enjoy movies,
music and external audio/video devices such
as video games or MP3 players. The VES™
integrates seamlessly with the vehicle’s radio
so the audio may be heard through the cabin
speakers and/or headphones. The system may
be controlled by the radio for front seat occu-
pants or controlled by the remote control for
rear seat occupants.The VES™ is a dual channel system. The video
screen displays information in a split screen
format. The left side of the screen is referred to
as Channel 1 and the right side of the screen is
referred to as Channel 2. All modes except
video modes (DVD video, Aux video) are dis-
played in a split screen format. When a video
mode is displayed it is displayed on the full
screen. The remote control is designed to con-
trol either channel by the use of the selector
switch located on the right side of the remote
control. The headphones are designed to listen
to either channel by use of the selector switch
located on the right ear cup.
Using the included dual channel wireless head-
phones, the VES™ allows rear passengers to
listen to two different audio sources simultane-ously. The wireless remote control allows rear
passengers to change stations, tracks, discs
and audio/video modes.
Remote Control Operation
Quick Reference Chart
This chart provides a quick reference of the
remote control button functions for the different
radio modes and menu screens.
NOTE:
•
Ensure the remote control channel/
screen selector switch is set to the screen
or channel to be controlled.
• Ensure the headphone channel selector
switch is set to the screen or channel to
be listened to.
188

RemoteControl Button Standard Screens Menu Screens
AM/FM/MW/LW SAT–Audio HDD–Hard Disc DriveDISC/DVD AUX/AUX1/AUX2
Mode Select
Menu Screen Setup
Power Screen ON/OFF
Light Remote Backlight ON/OFF
Up Arrow
Next Seek Up* Next
Channel*Next
ChannelNext Track
Audio:Next Track
Not
AvailableSelection Up Selection Up
Video Play: Next
Chapter
Video Menu: Selection
Up
Down Arrow
Prev Seek Down* Previous
Channel*Previous
ChannelPrevious
Track Audio:
Previous
Track
Not
AvailableSelection
Down Selection
Down
Video Play: Previous
Chapter
Video Menu: Selection
Down
Right Arrow
FF Tune Up* Next
Channel*Next
ChannelFast Forward
Audio:Fast
Forward
Not
AvailableSelection
Right Selection
Right
Video Play: Fast
Forward
Video Menu: Selection
Right
189

RemoteControl Button Standard Screens Menu Screens
AM/FM/MW/LW SAT–Audio HDD–Hard Disc DriveDISC/DVD AUX/AUX1/AUX2
Mode Select
Menu Screen Setup
Left Arrow
RW Tune Down* Previous
Channel*Previous
ChannelFast Rewind
Audio:Fast
Rewind
Not
AvailableSelection Left Selection Left
Video Play: Fast
Rewind
Video Menu: Selection
Left
Enter Show Numeric
Entry Menu* Show Nu-
meric Entry
Menu*
Not
AvailableShow Nu-
meric Entry
Menu Audio:
Show
Numeric
EntryNot
AvailableActivate
Selected ItemNot Available
Video Play:NotAvailable
Video Menu: Activate
Selected
Item
Back
Not Available Not Available Not AvailableNot AvailableAudio:Not
Available Not
AvailableReturn to Std
Screen Return to Std
Screen
Video Play:
Not Available
Video Menu: Previous
Menu
190

RemoteControl Button Standard Screens Menu Screens
AM/FM/MW/LW SAT–Audio HDD–Hard Disc DriveDISC/DVD AUX/AUX1/AUX2
Mode Select
Menu Screen Setup
Setup
Not Available Not AvailableShow/Hide
Display Set-
tings MenuNot AvailableAudio:Not AvailableAudi-
o:Not
Available Not AvailableReturn to Std
Screen
Video Play: Show/Hide
SettingsVideo:
Show/
Hide Dis-
play Set-
tings
Menu
Menu
Not Available Not AvailableShow
Channel
Select
Menu Show Disc
Options
Menu
Audio:
Disc
Options
MenuNot
Available Not Available Not Available
Video Play:
Show Disc
Menu
191

RemoteControl Button Standard Screens Menu Screens
AM/FM/MW/LW SAT–Audio HDD–Hard Disc DriveDISC/DVD AUX/AUX1/AUX2
Mode Select
Menu Screen Setup
Play/Pause
Not Available Not Available Not AvailablePause if
playing, else
resume playAudio:
Pause if
playing/
resumeNot
Available Not Available Not Available
Video Play:
Pause if
playing/
resume
Video Menu: Activate
selected
item
Stop
Not Available Not Available Not AvailableStop StopNotAvailable Not Available Not Available
Mute
Mute/Unmute Headphones
SlowNot Available Not Available Not AvailableNot AvailableAudio:Not
Available Not
Available Not Available Not Available
Video Play:
Slow play/
resume
Video Menu:
Not Available
192

RemoteControl Button Standard Screens Menu Screens
AM/FM/MW/LW SAT–Audio HDD–Hard Disc DriveDISC/DVD AUX/AUX1/AUX2
Mode Select
Menu Screen Setup
Status
Not Available Not AvailableSlow Mode
and
Content
InfoNot AvailableAudio:Not Avail- ableAudio:
Not
AvailableNot Available Not Available
Video Play: Show
Mode InfoVideo:
Show
Mode
Info
Mode Show Mode Select Menu Advance to
Next Mode Show Mode
Select Item
Prog Up Next Preset* Next Preset*
Not
Available Not AvailableNext Disc
(if player is changer)Not
Available Not Available Not Available
Prog Down
Previous
Preset* Previous
Preset*Not
Available Not AvailablePrevious Disc
(if player is changer)Not
Available Not Available Not Available
Ensure remote control selector switch is set to
Screen or Channel to be controlled: 1 OR 2.
Ensure headphone selector switch is set to
Screen or Channel to be listened to: 1 OR 2.
*No action when mode is shared with cabin
speakers.
193

1. Power – Turns the screen and wireless
headphone transmitter for the selected Chan-
nel on or off. To hear audio while the screen is
closed, press the Power button to turn the
headphone transmitter on.
2. Channel Selector Indicators – When a but-
ton is pressed, the currently affected channel
or channel button is illuminated momentarily.
3. Light – Turns the remote control backlighting
on or off. The remote backlighting turns off
automatically after five seconds.4. Channel/Screen Selector Switch - Indicates
which channel is being controlled by the re-
mote control. When the selector switch is in the
Channel 1 position, the remote controls the
functionality of headphone Channel 1 (right
side of the screen). When the selector switch is
in the Channel 2, position the remote controls
the functionality of headphone Channel 2 (left
side of the screen).
5.
 – In radio modes, press to seek the next
tunable station. In disc modes, press and hold
to fast forward through the current audio track
or video chapter. In menu modes use to navi-
gate in the menu.
6. / Prev – In radio modes, press to select to
the previous station. In disc modes, press to
advance to the start of the current or previous
audio track or video chapter. In menu modes,
use to navigate in the menu.
7. MENU – Press to return to the main menu of
a DVD disc, to select a satellite audio channel
from the Station list, or select playback modes
(RANDOM for a CD). 8.
/ (Play/Pause) – Begin/resume or pause
disc play.
9. (Stop) – Stops disc play
10. PROG Up/Down – When listening to a radio
mode, pressing PROG Up selects the next
preset and pressing PROG Down selects the
previous preset stored in the radio. When lis-
tening to compressed audio on a data disc,
PROG Up selects the next directory and PROG
Down selects the previous directory. When
listening to a disc in a radio with a multiple-disc
changer, PROG Up selects the next disc and
PROG Down selects the previous disc.
11. MUTE – Press to mute the headphone
audio output for the selected channel.
12. SLOW – Press to slow playback of a DVD
disc. Press play () to resume normal play.
13. STATUS – Press to display the current
status.
Figure 1: Remote Control
194

14. MODE – Press to change the mode of the
selected channel. See the Mode Selection sec-
tion of this manual for details on changing
modes.
15. SETUP – When in a video mode, press the
SETUP button to access the display settings
(see the display settings section) to access the
DVD setup menu, select the menu button on
the radio. When a disc is loaded in the DVD
player (if equipped) and the VES™ mode is
selected and the disc is stopped, press the
SETUP button to access the DVD Setup menu.
(see the DVD Setup Menu of this manual.)
16. BACK – When navigating in menu mode,
press to return to the previous screen. When
navigating a DVDs disc menu, the operation
depends on the disc’s contents.
17. – In radio modes, press to seek to the
previous tunable station. In disc modes, press
and hold to fast rewind through the current
audio track or video chapter. In menu modes
use to navigate in the menu. 18. ENTER – Press to select the highlighted
option in a menu.
19.
/ NEXT – In radio modes, press to select
to the next station. In disc modes, press to
advance to the next audio track or video chap-
ter. In menu modes, use to navigate in the
menu.
Remote Control StorageThe video screen(s) come with a built in stor-
age compartment for the remote control which
is accessible when the screen is opened. To
remove the remote, use your index finger to pull
and rotate the remote towards you. Do not try to
pull the remote straight down as it will be very
difficult to remove. To return the remote back
into its storage area, insert one long edge of the
remote into the two retaining clips first, and
then rotate the remote back up into the other
two retaining clips until it snaps back into
position.
Locking The Remote ControlAll remote control functionality can be disabled
as a parental control feature.
• To disable the Remote Control from making
any changes, press the Video Lock button
add follow the radio’s instructions (select
menu, rear ves, lock). If the vehicle is not
equipped with a DVD player, follow the ra-
dio’s instructions to turn Video Lock on. The
radio and the video screen(s) indicate when
Video Lock is active.
The Remote Control Storage
195

•Pressing the Video Lock again or turning the
ignition OFF turns Video Lock OFF and al-
lows remote control operation of the VES™.
Replacing The BatteriesThe remote control requires two AAA batteries
for operation. To replace the batteries:
•Locate the battery compartment on the back
of the remote, then slide the battery cover
downward.
• Replace the batteries, making sure to orient
them according to the polarity diagram
shown.
• Replace the battery compartment cover.
Headphones OperationThe headphones receive two separate chan-
nels of audio using an infrared transmitter from
the video screen.
Front seat occupants receive some headphone
audio coverage to allow them to adjust the
headphone volume for the young rear seat
occupants that may not be able to do so for
themselves. If no audio is heard after increasing the volume
control, verify that the screen is turned on and
in the down position and that the channel is not
muted and the headphone channel selector
switch is on the desired channel. If audio is still
not heard, check that fully charged batteries
are installed in the headphones.
ControlsThe headphone power indicator and controls
are located on the right ear cup.NOTE:
The rear video system must be turned on
before sound can be heard from the head-
phones. To conserve battery life, the head-
phones will automatically turn off approxi-
mately three minutes after the rear video
system is turned off.
Changing the Audio Mode for Headphones
1. Ensure the Remote Control channel/screen
selector switch is in the same position as the
headphone selector switch. .
NOTE:
•
When both switches are on Channel 1, the
Remote is controlling Channel 1 and the
headphones are tuned to the audio of the
VES™ Channel 1.
• When both switches are on Channel 2, the
Remote is controlling Channel 2 and the
headphones are tuned to the audio of the
VES™ Channel 2.
2. Press the MODE button on the remote con-
trol.
3. If the video screen is displaying a video
source (such as a DVD Video), pressing STA-

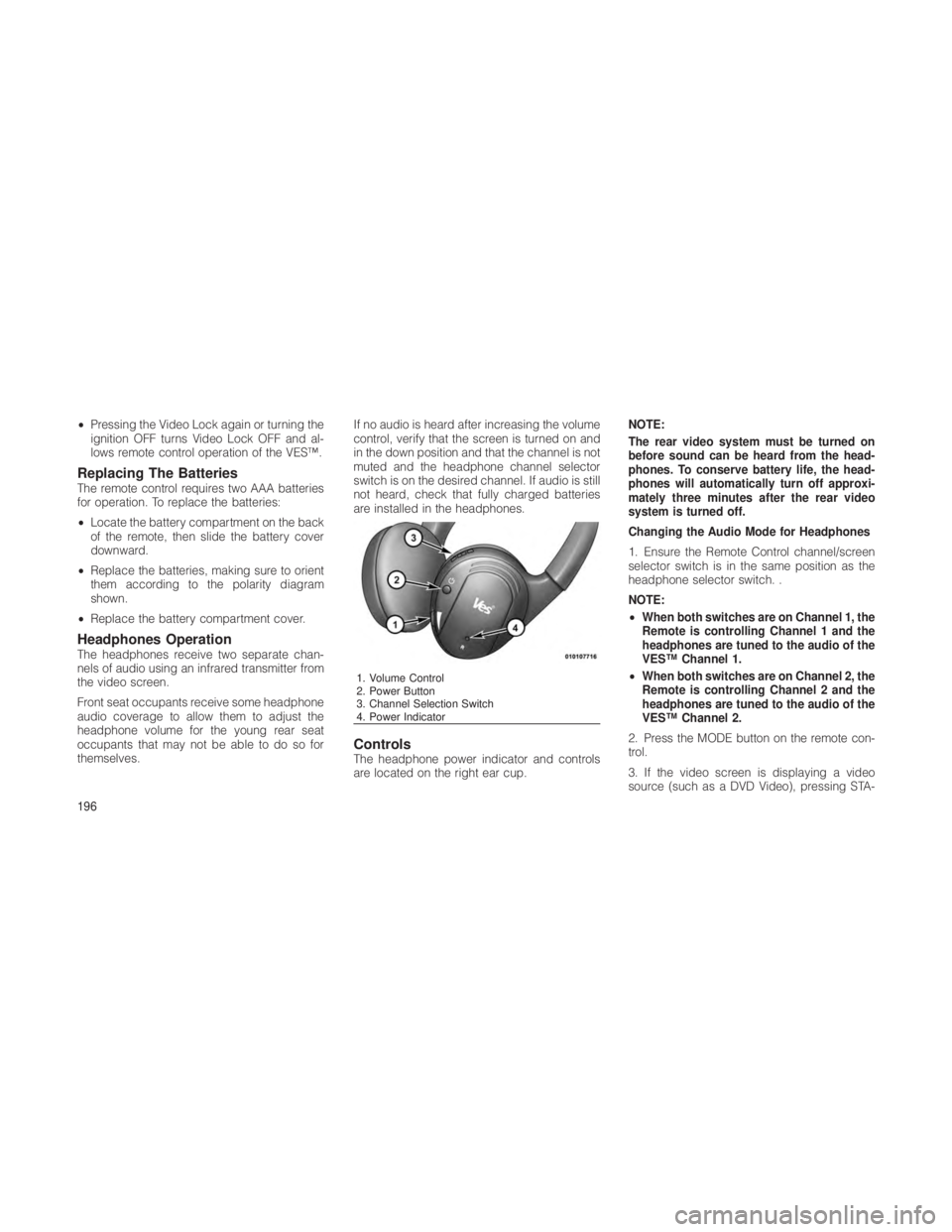

1. Volume Control
2. Power Button
3. Channel Selection Switch
4. Power Indicator
196
