Advanced Front Air Bags and Supplemental
Driver Side Knee Air Bag are designed to
provide additional protection by supplementing
the seat belts in certain frontal collisions de-
pending on several factors, including the sever-
ity and type of collision. Advanced Front Air
Bags are not expected to reduce the risk of
injury in rear, or side collisions.
The Advanced Front Air Bags and Supplemen-
tal Driver Side Knee Air Bag will not deploy in all
frontal collisions, including some that may pro-
duce substantial vehicle damage — for ex-
ample, some pole collisions, truck underrides,
and angle offset collisions. On the other hand,
depending on the type and location of impact,
Advanced Front Air Bags may deploy in crashes
with little vehicle front-end damage but that
produce a severe initial deceleration.
The side air bags will not deploy in all side
collisions. Side air bag deployment will depend
on the severity and type of collision.
Because air bag sensors measure vehicle decel-
eration over time, vehicle speed and damage bythemselves are not good indicators of whether or
not an air bag should have deployed.
Seat belts are necessary for your protection in
all collisions, and also are needed to help keep
you in position, away from an inflating air bag.
The ORC monitors the readiness of the elec-
tronic parts of the air bag system whenever the
ignition switch is in the START or ON/RUN
position. If the key is in the LOCK position, in the
ACC position, or not in the ignition, the air bag
system is not on and the air bags will not inflate.
The ORC contains a backup power supply
system that may deploy the air bags even if the
battery loses power or it becomes disconnected
prior to deployment.
Also, the ORC turns on the Air Bag
Warning Light in the instrument
panel for approximately four to
eight seconds for a self-check
when the ignition is first turned to
the ON/RUN position. After the self-check, the
Air Bag Warning Light will turn off. If the ORC
detects a malfunction in any part of the system, it turns on the Air Bag Warning Light, either
momentarily or continuously. A single chime will
sound if the light comes on again after initial
startup.
It also includes diagnostics that will illuminate
the instrument cluster Air Bag Warning Light if a
malfunction is noted that could affect the air bag
system. The diagnostics also record the nature
of the malfunction.
WARNING!
Ignoring the Air Bag Warning Light in your
instrument panel could mean you won’t have
the air bags to protect you in a collision. If the
light does not come on as a bulb check when
the ignition is first turned on, stays on after
you start the vehicle, or if it comes on as you
drive, have an authorized dealer service the
air bag system immediately.
45
Page 166 of 408

INSTRUMENT CLUSTER
DESCRIPTIONS
1. Tachometer
Indicates the engine speed in revolutions per
minute (RPM x 1000).
2. Air Bag Warning LightThis light will turn on for four to
eight seconds as a bulb check
when the ignition switch is first
turned to the ON/RUN position. If
the light is either not on during
starting, stays on, or turns on while driving, have
the system inspected at an authorized dealer as
soon as possible. Refer to “Occupant Re-
straints” in “Things To Know Before Starting
Your Vehicle” for further information. 3. Malfunction Indicator Light (MIL)
The Malfunction Indicator Light (MIL)
is part of an onboard diagnostic sys-
tem called OBD II that monitors en-
gine and automatic transmission con-
trol systems. The light will illuminate when the
key is in the ON/RUN position before engine
start. If the bulb does not come on when turning
the key from OFF to ON/RUN, have the condi-
tion checked promptly.
Certain conditions, such as a loose or missing
gas cap, poor fuel quality, etc., may illuminate
the light after engine start. The vehicle should
be serviced if the light stays on through several
of your typical driving cycles. In most situations,
the vehicle will drive normally and will not
require towing.
CAUTION!
Prolonged driving with the Malfunction Indi-
cator Light (MIL) on could cause damage to
the engine control system. It also could affect
fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage
and power loss will soon occur. Immediate
service is required.
WARNING!
A malfunctioning catalytic converter, as ref-
erenced above, can reach higher tempera-
tures than in normal operating conditions.
This can cause a fire if you drive slowly or
park over flammable substances such as dry
plants, wood, cardboard, etc. This could re-
sult in death or serious injury to the driver,
occupants or others.
162
Page 169 of 408

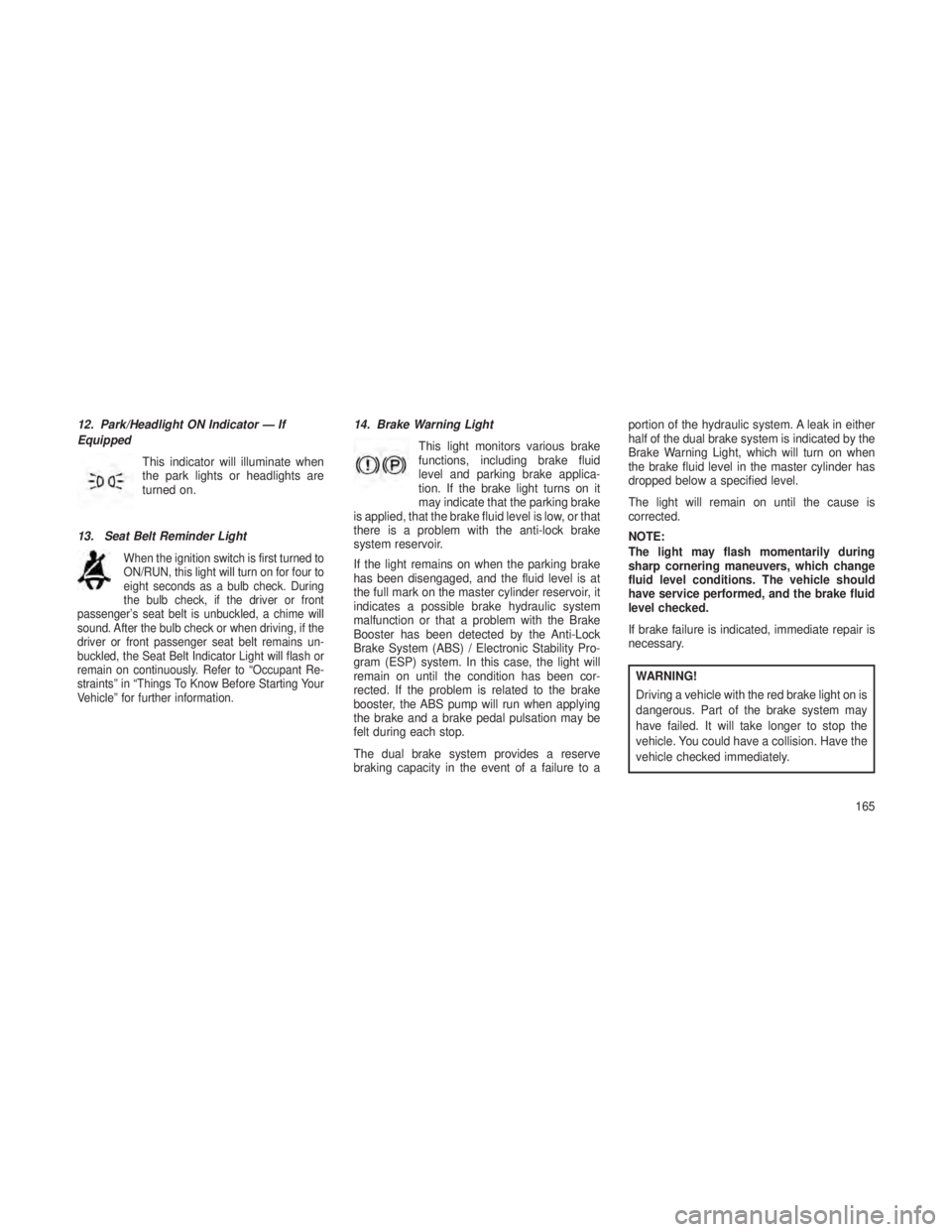

12. Park/Headlight ON Indicator — If
EquippedThis indicator will illuminate when
the park lights or headlights are
turned on.
13. Seat Belt Reminder Light
When the ignition switch is first turned to
ON/RUN, this light will turn on for four to
eight seconds as a bulb check. During
the bulb check, if the driver or front
passenger’s seat belt is unbuckled, a chime will
sound. After the bulb check or when driving, if the
driver or front passenger seat belt remains un-
buckled, the Seat Belt Indicator Light will flash or
remain on continuously. Refer to “Occupant Re-
straints” in “Things To Know Before Starting Your
Vehicle” for further information.
14. Brake Warning Light
This light monitors various brake
functions, including brake fluid
level and parking brake applica-
tion. If the brake light turns on it
may indicate that the parking brake
is applied, that the brake fluid level is low, or that
there is a problem with the anti-lock brake
system reservoir.
If the light remains on when the parking brake
has been disengaged, and the fluid level is at
the full mark on the master cylinder reservoir, it
indicates a possible brake hydraulic system
malfunction or that a problem with the Brake
Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Pro-
gram (ESP) system. In this case, the light will
remain on until the condition has been cor-
rected. If the problem is related to the brake
booster, the ABS pump will run when applying
the brake and a brake pedal pulsation may be
felt during each stop.
The dual brake system provides a reserve
braking capacity in the event of a failure to a portion of the hydraulic system. A leak in either
half of the dual brake system is indicated by the
Brake Warning Light, which will turn on when
the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is
corrected.
NOTE:
The light may flash momentarily during
sharp cornering maneuvers, which change
fluid level conditions. The vehicle should
have service performed, and the brake fluid
level checked.
If brake failure is indicated, immediate repair is
necessary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may
have failed. It will take longer to stop the
vehicle. You could have a collision. Have the
vehicle checked immediately.
165
Page 171 of 408

19. Fuel Gauge
The pointer shows the level of fuel in the fuel
tank when the ignition switch is in the ON/RUN
position.
20. Electronic Vehicle Information Center
(EVIC) White Telltale Area
This area will display the EVIC reconfigurable
white telltales. For further information, refer to
“Electronic vehicle Information Center (EVIC)”.
21. Electronic Vehicle Information Center
(EVIC) Amber Telltale Area
This area will display the EVIC reconfigurable
amber caution telltales. For further information,
refer to “Electronic vehicle Information Center
(EVIC)”.
22. Electronic Vehicle Information Center
(EVIC) Red Telltale Area
This area will display the EVIC reconfigurable
red telltales. For further information, refer to
“Electronic vehicle Information Center (EVIC)”.23. Electronic Stability Control (ESC) OFF
Indicator Light — If Equipped
This light indicates the Electronic
Stability Control (ESC) is off.
24. Vehicle Security Light
This light will flash rapidly for ap-
proximately 15 seconds when the
vehicle theft alarm is arming. The
light will flash at a slower speed
continuously after the alarm is set.
The security light will also come on for about
three seconds when the ignition is first turned on.
25. Temperature Gauge
The temperature gauge shows engine coolant
temperature. Any reading within the normal
range indicates that the engine cooling system
is operating satisfactorily. The gauge pointer will likely indicate a higher
temperature when driving in hot weather, up
mountain grades, or when towing a trailer. It
should not be allowed to exceed the upper limits
of the normal operating range.
CAUTION!
Driving with a hot engine cooling system
could damage your vehicle. If the tempera-
ture gauge reads “H” pull over and stop the
vehicle. Idle the vehicle with the air condi-
tioner turned off until the pointer drops back
into the normal range. If the pointer remains
on the “H” and you hear continuous chimes,
turn the engine off immediately and call an
authorized dealer for service.
167
Page 172 of 408

WARNING!
A hot engine cooling system is dangerous.
You or others could be badly burned by
steam or boiling coolant. You may want to
call an authorized dealer for service if your
vehicle overheats. If you decide to look un-
der the hood yourself, see “Maintaining Your
Vehicle”. Follow the warnings under the
Cooling System Pressure Cap paragraph.
26. Rear Fog Light Indicator — If Equipped This indicator will illuminate when the
rear fog lights are on.ELECTRONIC VEHICLE
INFORMATION CENTER (EVIC)
The Electronic Vehicle Information Center
(EVIC) features a driver-interactive display that
is located in the instrument cluster.
The EVIC consists of the following:
•Fuel Economy
• ACC: (If Equipped)
• Vehicle Speed
• Trip Info •
Terrain: (If Equipped)
• Tire PSI/KPA: (If Equipped)
• Vehicle Info
• Messages
• Units: English/Metric
• System Setup
• Turn Menu Off
The system allows the driver to select informa-
tion by pressing the following buttons mounted
on the steering wheel:
168
Page 175 of 408

•ACC Set — After setting the desired speed in
the ACC system. Refer to “Adaptive Cruise
Control (ACC)” in “Understanding The Fea-
tures Of Your Vehicle” (if equipped).
• ACC Cancelled — To disable the ACC sys-
tem. Refer to “Adaptive Cruise Control
(ACC)” in “Understanding The Features Of
Your Vehicle” (if equipped).
• Sensed Vehicle Indicator — The system de-
tects a slower moving vehicle in the same
lane. Refer to “Adaptive Cruise Control
(ACC)” in “Understanding The Features Of
Your Vehicle” (if equipped).
• Driver Override — If you apply the accelera-
tor after setting the desired speed in the ACC
system. Refer to “Adaptive Cruise Control
(ACC)” in “Understanding The Features Of
Your Vehicle” (if equipped).
• Distance Set — After changing the desired
following distance in the ACC system, this
message will display momentarily. Refer to
“Adaptive Cruise Control (ACC)” in “Under-
standing The Features Of Your Vehicle” (if
equipped). •
Brake — If the ACC system predicts that its
maximum braking level is not sufficient to
maintain the set distance, this message will
flash and a chime will sound while ACC
continues to apply its maximum braking ca-
pacity. When this occurs, you should imme-
diately apply the brakes as needed to main-
tain a safe distance from the vehicle ahead.
Refer to “Adaptive Cruise Control (ACC)” in
“Understanding The Features Of Your Ve-
hicle” (if equipped).
•
Clean Radar Sensor in the Front of Vehicle —
If the ACC system deactivates due to perfor-
mance limiting conditions. Refer to “Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle” (if equipped).
•ACC/FCW Unavailable Vehicle System Error
— If the ACC system turns off due to a tempo-
rary malfunction that limits functionality. Refer
to “Adaptive Cruise Control (ACC)” in “Under-
standing The Features Of Your Vehicle” (if
equipped).
• ACC/FCW Unavailable Service Radar Sen-
sor — If the ACC system turns off due to an
internal system fault that requires service
from an authorized dealer. Refer to “Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle” (if equipped).
• Coolant Low
• Service Air Suspension System
• Oil Change Due
• Key In Ignition
• Lights On
• Key In Ignition Lights On
• Ignition Or Accessory On
• Ignition Or Accessory On. Lights On
• Turn Signal On
• Turn Signal On
• Park Assist On
• Warning Object Detected
• Memory 1 Profile Set
• Memory 2 Profile Set
171
Page 176 of 408

•Memory System Unavailable — Not in Park
• Memory System Unavailable — Seatbelt
buckled
• Memory 1 Profile Recall
• Memory 2 Profile Recall
• Press Brake Pedal And Push Button To Start
• Wrong Key
• Damaged Key
• Key Not Programmed
• Function Currently Unavailable — Power
Liftgate
• Unlock To Operate — Power Liftgate
• Put In Park To Operate — Power Liftgate
• Automatic High Beams On
• Automatic High Beams Off
• Service Four Wheel Drive System
• Eco — Fuel Saver Indicator
• Terrain Settings — Automatic
• Terrain Settings — Rock •
Terrain Settings — Sand/Mud
• Terrain Settings — Snow
• Terrain Settings — Sport
• Sport Not Available In 4 Low 4 High Is
Required
• Rock Not Available In 4 Low 4 High Is
Required
• To Tow Vehicle Safely, Read Neutral Shift
Procedure In Owners Manual
• For 4x4 Low Slow Below 5 Mph Or 8 Kph Put
Trans In N Press 4 Low
• For 4x4 High Slow Below 5 Mph Or 8 Kph Put
Trans In N Press 4 Low
• Terrain System Settings Not Available
• Raising Vehicle Ride Height (with icon)
• Lowering Vehicle Ride Height (with icon)
• Normal Vehicle Ride Height — This message
is displayed (for five seconds) when the
vehicle has achieved the Normal Vehicle
Ride Height. •
Off Road Ride Height Level 1 — This mes-
sage is displayed (for five seconds) when the
vehicle has achieved the Off Road Height
Level 1.
• Off Road Ride Height Level 2 — This mes-
sage is displayed (for five seconds) when the
vehicle has achieved the Off Road Height
Level 2.
•
Vehicle Lowered To Entry/Exit (Park) Height —
This message is displayed (for five seconds)
when the vehicle has achieved the Park
Height.
• Entry/Exit (Park) Height in Progress — This
message is displayed (for five seconds)
when the request is made to go into Entry/
Exit Height while the vehicle speed is be-
tween 15 and 25 mph. This shows that the
request has been recognized and will lower
to Entry/Exit height when vehicle is below
15 mph.
• Service Air Suspension System — This is
displayed when a fault has occurred in the
system. The system will have limited opera-
tion at that point.
172
Page 178 of 408

•Power Steering System Over Temp — If
Equipped
If the “POWER STEERING SYS-
TEM OVER TEMP” message and
a icon are displayed on the EVIC
screen, it indicates that extreme
steering maneuvers may have oc-
curred, which caused an over tem-
perature condition in the power steering sys-
tem. You will lose power steering assistance
momentarily until the over temperature condi-
tion no longer exists. Once driving conditions
are safe, then pull over and let vehicle idle. After
five minutes, the system will cool and return to
normal operation. Refer to “Power Steering” in
“Starting and Operating” for further information.
NOTE:
•
Even if power steering assistance is no
longer operational, it is still possible to
steer the vehicle. Under these conditions
there will be a substantial increase in steer-
ing effort, especially at very low vehicle
speeds and during parking maneuvers.
• If the condition persists, see your autho-
rized dealer for service.
EVIC Amber Telltale LightsThis area will show reconfigurable amber cau-
tion telltales. These telltales include:
•Forward Collision Warning (FCW) OFF
This light warns the driver of a po-
tential collision with the vehicle in
front and prompts the driver to take
action in order to avoid the collision.
For further information, refer to
“Adaptive Cruise Control (ACC)” in “Understand-
ing The Features Of Your Vehicle.”
• Wait To Start Light — Diesel Only
This light will illuminate when the igni-
tion switch is first turned to the RUN
position. Wait until the light turns off
before starting the vehicle. Refer to “Starting
Procedures” in “Starting And Operating”.
• Water In Fuel Indicator — Diesel Only
This light indicates water has col-
lected in the fuel filter and should
be drained immediately. See your
authorized dealer for service. •
Air Suspension Up
The air suspension up telltale will
illuminate when the air suspension
is in use. For further information,
refer to “Starting And Operating”.
• Air Suspension Down
The air suspension down telltale will
illuminate when the air suspension is
in use. For further information, refer
to “Starting And Operating”.
•Low Fuel Light
When the fuel level reaches approxi-
mately 3.0 gal (11.0 L) this light will turn
on, and remain on until fuel is added.
•Loose Gascap Indicator
If the vehicle diagnostic system de-
termines that the fuel filler cap is
loose, improperly installed, or dam-
aged, a loose gascap indicator will
display in the telltale display area.
174
Page 179 of 408

Tighten the fuel filler cap properly and press the
SELECT button to turn off the message. If the
problem continues, the message will appear the
next time the vehicle is started.
•A loose, improperly installed, or damaged
fuel filler cap may also turn on the Malfunc-
tion Indicator Light (MIL).
• Windshield Washer Fluid Low Indicator
This light will turn on to indicate the
windshield washer fluid is low.
• SERV 4WD
The SERV 4WD light monitors the
electric shift 4WD system. If the
SERV 4WD light stays on or comes
on during driving, it means that the
4WD system is not functioning
properly and that service is required.EVIC Red Telltale LightsThis area will show reconfigurable red telltales.
These telltales include:
• Door Ajar
This light will turn on to indicate
that one or more doors may be
ajar.
• Liftgate Ajar
This light will turn on to indicate
that liftgate may be ajar.
• Liftgate Flipper Glass Ajar
This light will turn on to indicate
that liftgate flipper glass may be
ajar. •
Oil Pressure Warning Light
This light indicates low engine oil pres-
sure. The light should turn on momen-
tarily when the engine is started. If the light turns
on while driving, stop the vehicle and shut off
the engine as soon as possible. A chime will
sound when this light turns on.
• Do not operate the vehicle until the cause is
corrected. This light does not show how
much oil is in the engine. The engine oil level
must be checked under the hood.
• Charging System Light
This light shows the status of the elec-
trical charging system. The light should
come on when the ignition switch is
first turned ON and remain on briefly as a bulb
check. If the light stays on or comes on while
driving, turn off some of the vehicle’s non-
essential electrical devices or increase engine
speed (if at idle). If the charging system light
remains on, it means that the vehicle is experi-
encing a problem with the charging system.
175
Page 180 of 408

Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
•If jump starting is required, refer to “Jump
Starting Procedures” in “What To Do In
Emergencies”.
• Electronic Throttle Control (ETC) Light
This light informs you of a problem
with the Electronic Throttle Control
(ETC) system. The light will come
on when the ignition is first turned
ON and remain on briefly as a bulb
check. If the light does not come on during
starting, have the system checked by an autho-
rized dealer.
• If a problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped
and the shift lever is placed in the PARK
position. The light should turn off.
• If the light remains lit with the engine running,
your vehicle will usually be drivable. How-
ever, see an authorized dealer for service as soon as possible. If the light is flashing when
the engine is running, immediate service is
required. You may experience reduced per-
formance, an elevated/rough idle or engine
stall and your vehicle may require towing.
• Engine Temperature Warning Light
This light warns of an overheated en-
gine condition. As temperatures rise
and the gauge approaches H,this in-
dicator will illuminate and a single chime will
sound after reaching a set threshold. Further
overheating will cause the temperature gauge
to pass H,a continuous chime will occur until
the engine is allowed to cool.
• If the light turns on while driving, safely pull
over and stop the vehicle. If the A/C system is
on, turn it off. Also, shift the transmission into
NEUTRAL and idle the vehicle. If the tem-
perature reading does not return to normal,
turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats”
in “What To Do In Emergencies” for more
information. •
Transmission Temperature Light
This light indicates that there is
excessive transmission fluid tem-
perature that might occur with se-
vere usage such as trailer towing. It
may also occur when operating the
vehicle in a high torque converter slip condition,
such as 4-wheel-drive operation (e.g., snow
plowing, off- road operation). If this light comes
on, stop the vehicle and run the engine at idle or
faster, with the transmission in NEUTRAL until
the light goes off.
CAUTION!
Continuous driving with the Transmission
Temperature Indicator illuminated will even-
tually cause severe transmission damage or
transmission failure.
176
