JEEP RENEGADE 2017 1.G Owners Manual

NOTE:Remember, never drive diagonally across a hill -
drive straight up or down.
If the wheels start to slip as you approach the crest of a hill,
ease off the accelerator and maintain headway by turning
the front wheels slowly left and right. This may provide a
fresh “bite” into the surface and will usually provide
traction to complete the climb.
Traction Downhill
Shift the transmission into a low gear and the 4WD System
to 4WD LOW range or Select Hill Descent Control if
equipped (refer to Electronic Brake Control System in this
section for further information). Let the vehicle go slowly
down the hill with all four wheels turning against engine
compression drag. This will permit you to control the
vehicle speed and direction.
When descending mountains or hills, repeated braking can
cause brake fade with loss of braking control. Avoid
repeated heavy braking by downshifting the transmission
whenever possible.
After Driving Off-Road
Off-road operation puts more stress on your vehicle than
does most on-road driving. After going off-road, it is always a good idea to check for damage. That way you can
get any problems taken care of right away and have your
vehicle ready when you need it.
•
Completely inspect the underbody of your vehicle.
Check tires, body structure, steering, suspension, and
exhaust system for damage.
• Inspect the radiator for mud and debris and clean as
required.
• Check threaded fasteners for looseness, particularly on
the chassis, drivetrain components, steering, and sus-
pension. Retighten them, if required, and torque to the
values specified in the Service Manual.
• Check for accumulations of plants or brush. These things
could be a fire hazard. They might hide damage to fuel
lines, brake hoses, axle pinion seals, and propeller shafts.
• After extended operation in mud, sand, water, or similar
dirty conditions, have the radiator, fan, brake rotors,
wheels, brake linings, and axle yokes inspected and
cleaned as soon as possible.
6
STARTING AND OPERATING 309

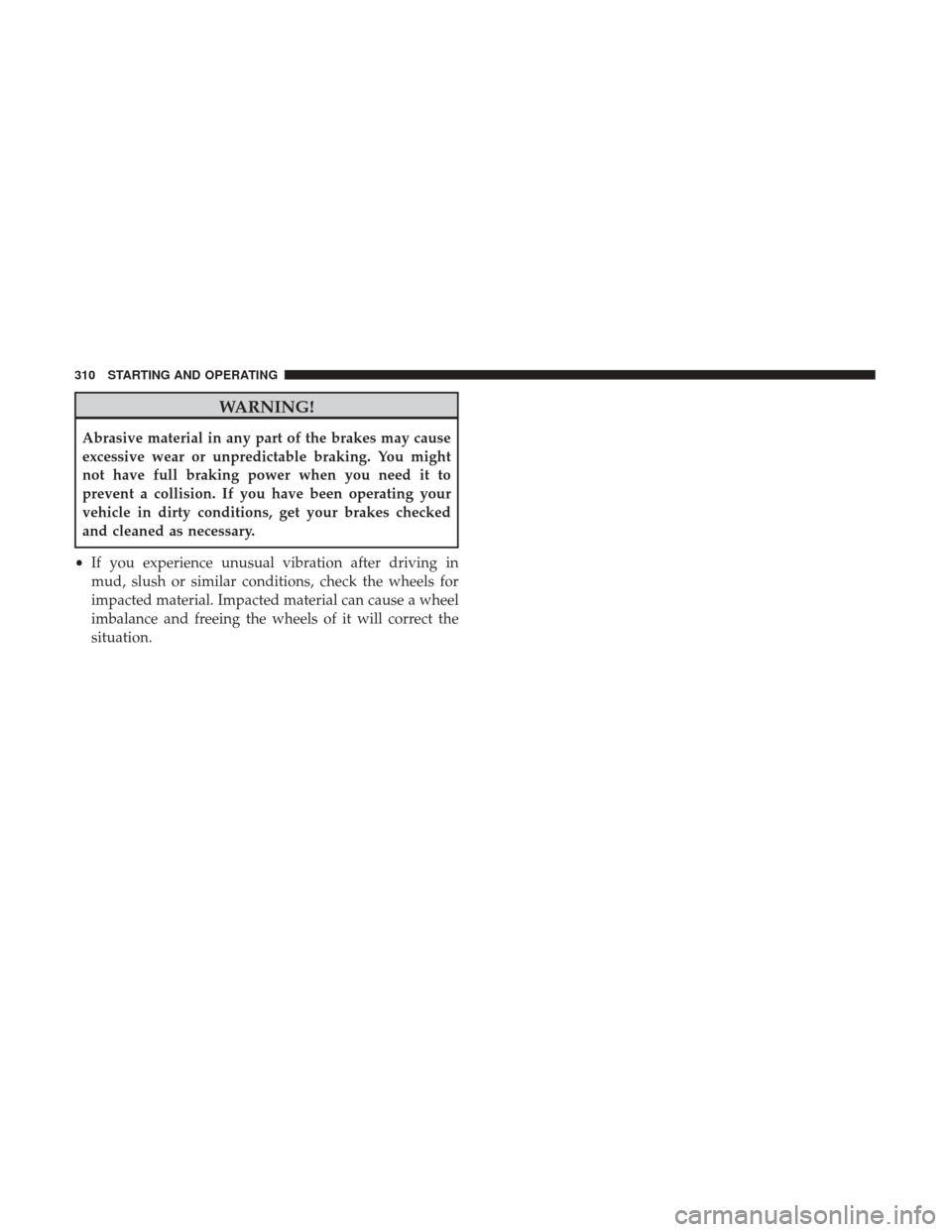

WARNING!
Abrasive material in any part of the brakes may cause
excessive wear or unpredictable braking. You might
not have full braking power when you need it to
prevent a collision. If you have been operating your
vehicle in dirty conditions, get your brakes checked
and cleaned as necessary.
• If you experience unusual vibration after driving in
mud, slush or similar conditions, check the wheels for
impacted material. Impacted material can cause a wheel
imbalance and freeing the wheels of it will correct the
situation.
310 STARTING AND OPERATING

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............313
 ASSIST AND 9-1-1 — IF EQUIPPED ..........313
 BULB REPLACEMENT ....................317
▫ General Information .....................317
▫ Replacement Bulbs ..................... .318
▫ Replacing Exterior Bulbs ..................320
▫ Replacing Interior Bulbs ..................333
 FUSES ............................... .338
▫ General Information .....................338
▫ Access To The Fuses .....................340
▫ Engine Compartment Fuses/Distribution Unit . .340
▫ Body Computer Fuse Center ...............345
▫ Rear Cargo Fuse/Relay Distribution Unit ......348
 JACKING AND TIRE CHANGING ...........350▫
Jack Location/Spare Tire Stowage ...........350
▫ Preparations For Jacking .................351
▫ Jacking Instructions .....................352
▫ Road Tire Installation ....................357
 TIRE SERVICE KIT — IF EQUIPPED .........358
▫ Tire Service Kit Storage ...................358
▫ Tire Service Kit Components And Operation . . .358
▫ Tire Service Kit Usage Precautions ...........360
▫ Replacing The Sealant ....................360
 JUMP STARTING ....................... .361
▫ Preparations For Jump Start ...............362
▫ Jump Starting Procedure ..................363
 REFUELING IN EMERGENCY ...............364
 IF

YOUR ENGINE OVERHEATS .............364
7

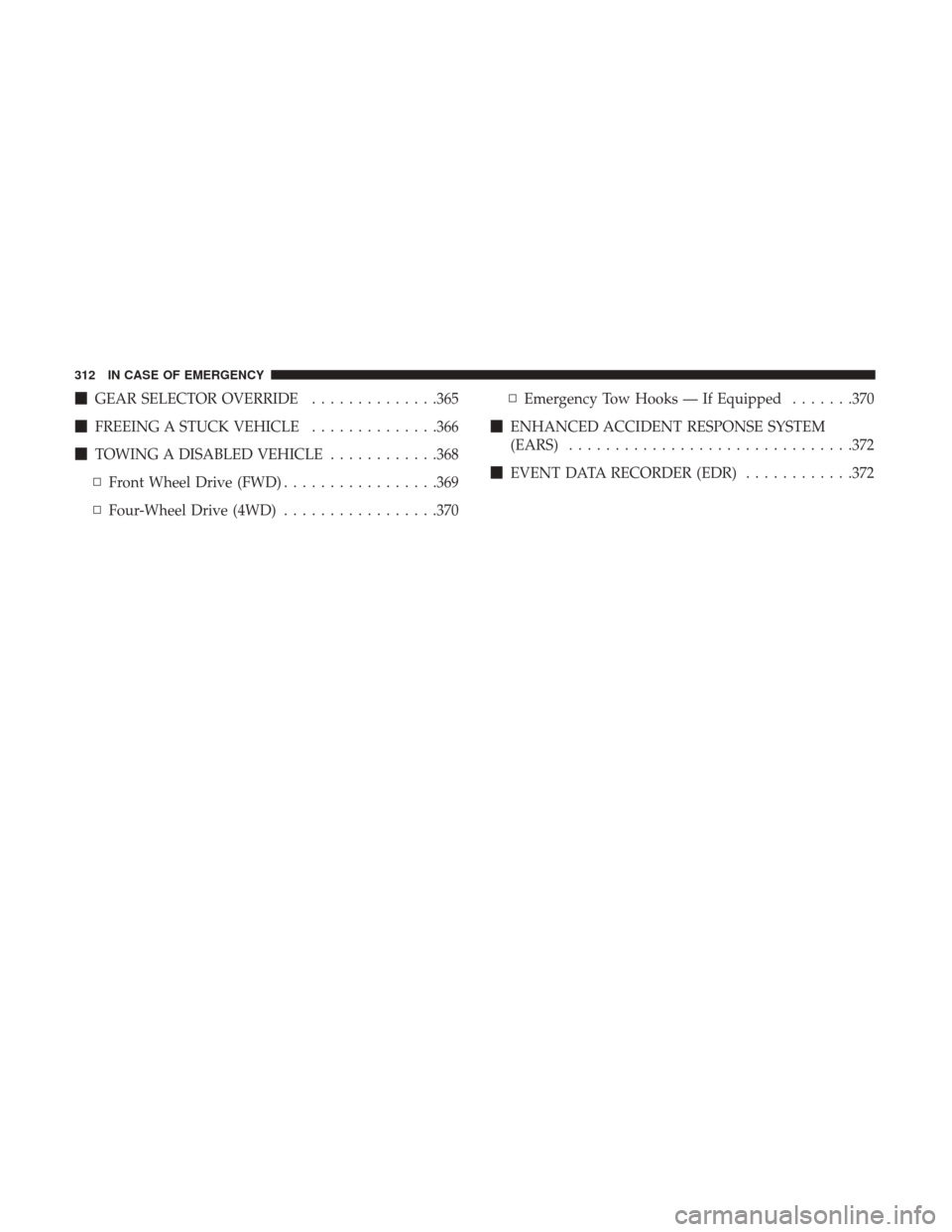

GEAR SELECTOR OVERRIDE ..............365
 FREEING A STUCK VEHICLE ..............366
 TOWING A DISABLED VEHICLE ............368
▫ Front Wheel Drive (FWD) .................369
▫ Four-Wheel Drive (4WD) .................370 ▫
Emergency Tow Hooks — If Equipped .......370
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .372
 EVENT DATA RECORDER (EDR) ............372
312 IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the switch
bank below the radio.Push the switch to turn on the Hazard Warning
Flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming traffic
of an emergency. Push the switch a second time to turn off
the Hazard Warning flashers.
This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in OFF mode.
NOTE: With extended use the Hazard Warning flashers
may wear down your battery.
ASSIST AND 9-1-1 — IF EQUIPPED
If equipped, the overhead console contains an ASSIST and
a 9-1-1 button.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.
Driver Assistance Call Buttons
1 — 9-1-1 Button
2 — Assist Button
7
IN CASE OF EMERGENCY 313

NOTE:
•Your vehicle may be transmitting data as authorized by
the subscriber.
• The ASSIST and 9–1–1 features operate through the
Uconnect Access service. These buttons will only oper-
ate as long as your Uconnect Access service is active.
Refer to your Uconnect Radio Supplement for further
information.
ASSIST Call
The ASSIST Button is used to automatically connect you to
any one of the following support centers:
• Roadside Assistance – If you get a flat tire, or need a tow,
just push the Assist button and you’ll be connected to
someone who can help. Roadside Assistance will know
what vehicle you’re driving and its location. Additional
fees may apply for Roadside Assistance.
• Uconnect Access Customer Care – In-vehicle support for
Uconnect Access and Uconnect Access Via Mobile fea-
tures.
• Vehicle Customer Care – Total support for all other
vehicle issues. 9-1-1 Call
1. Push the 9-1-1 Call button on the overhead console.
NOTE:
In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call system
initiates a call to a 9-1-1 operator. To cancel the 9-1-1 Call
connection, push the 9-1-1 Call button on the overhead
console or press the cancellation button on the Device
Screen. Termination of the 9-1-1 Call will turn the green
LED light on the overhead console off.
2. The LED light located on the Assist and 9-1-1 buttons in the overhead console will turn green once you push
these buttons and will remain on until the call is ended.
3. Once a connection between the vehicle and a 9-1-1 operator is made, the 9-1-1 Call system may transmit the
following important vehicle information to a 9-1-1 op-
erator:
• Indication that the occupant placed a 9-1-1 Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle.
314 IN CASE OF EMERGENCY

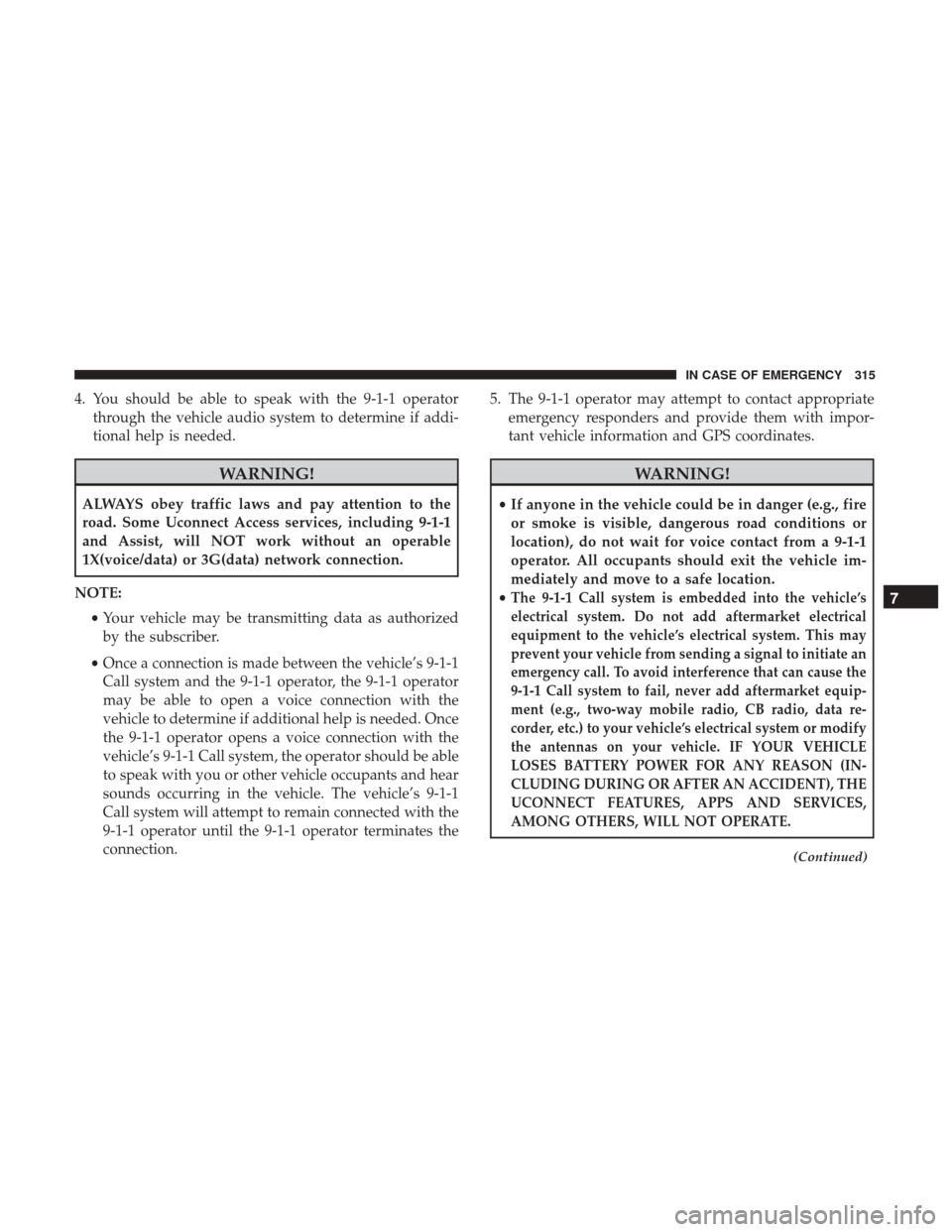

4. You should be able to speak with the 9-1-1 operatorthrough the vehicle audio system to determine if addi-
tional help is needed.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.
NOTE: •Your vehicle may be transmitting data as authorized
by the subscriber.
• Once a connection is made between the vehicle’s 9-1-1
Call system and the 9-1-1 operator, the 9-1-1 operator
may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able
to speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1
Call system will attempt to remain connected with the
9-1-1 operator until the 9-1-1 operator terminates the
connection. 5. The 9-1-1 operator may attempt to contact appropriate
emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
WARNING!
•If anyone in the vehicle could be in danger (e.g., fire
or smoke is visible, dangerous road conditions or
location), do not wait for voice contact from a 9-1-1
operator. All occupants should exit the vehicle im-
mediately and move to a safe location.
•
The 9-1-1 Call system is embedded into the vehicle’s
electrical system. Do not add aftermarket electrical
equipment to the vehicle’s electrical system. This may
prevent your vehicle from sending a signal to initiate an
emergency call. To avoid interference that can cause the
9-1-1 Call system to fail, never add aftermarket equip-
ment (e.g., two-way mobile radio, CB radio, data re-
corder, etc.) to your vehicle’s electrical system or modify
the antennas on your vehicle. IF YOUR VEHICLE
LOSES BATTERY POWER FOR ANY REASON (IN-
CLUDING DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
(Continued)
7
IN CASE OF EMERGENCY 315

WARNING!(Continued)
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you need
it. You could be injured if the air bag system is not
there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle:
• The overhead console lights located on the Assist and
9-1-1 buttons will continuously be illuminated red.
• The Device Screen will display the following message
“Vehicle Device Requires Service. Please Contact Your
Dealer.”
• An In-Vehicle Audio message will state “Vehicle Device
Requires Service. Please Contact Your Dealer.”
WARNING!
• Ignoring the Assist and 9-1-1 buttons light could
mean you will not have 9-1-1 Call services. If the
Assist and 9-1-1 buttons light is illuminated, have an
authorized dealer service the 9-1-1 Call system im-
mediately.
• The Occupant Restraint Control module turns on the
air bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the air bag Warning Light is illuminated, have an
authorized dealer service the ORC system immedi-
ately.
Even if the 9-1-1 Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the
9-1-1 Call system operation. These include, but are not
limited to, the following factors:
• The ignition key is in OFF position.
• The vehicle’s electrical systems are not intact.
• The 9-1-1 Call system software and/or hardware are
damaged during a crash.
316 IN CASE OF EMERGENCY

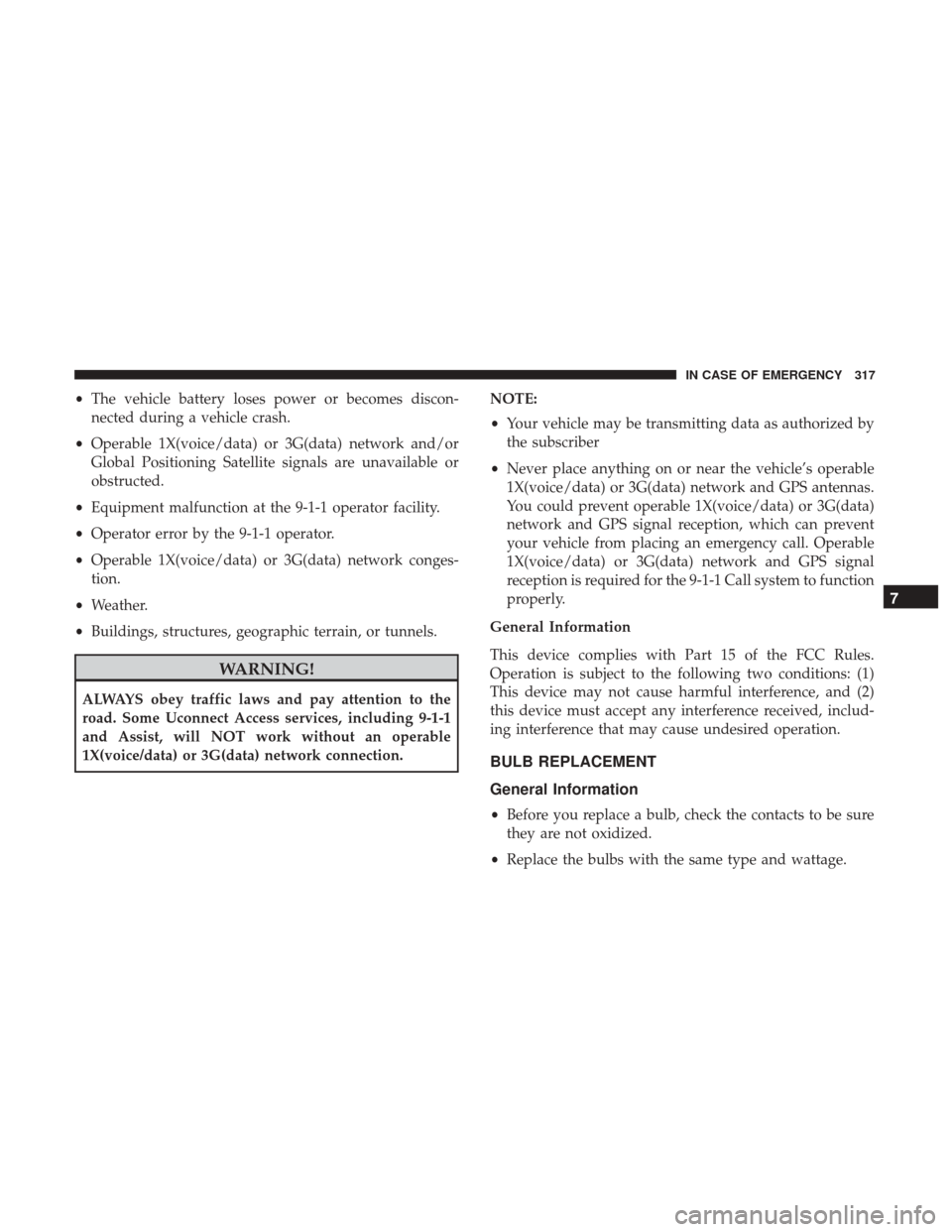

•The vehicle battery loses power or becomes discon-
nected during a vehicle crash.
• Operable 1X(voice/data) or 3G(data) network and/or
Global Positioning Satellite signals are unavailable or
obstructed.
• Equipment malfunction at the 9-1-1 operator facility.
• Operator error by the 9-1-1 operator.
• Operable 1X(voice/data) or 3G(data) network conges-
tion.
• Weather.
• Buildings, structures, geographic terrain, or tunnels.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection. NOTE:
•
Your vehicle may be transmitting data as authorized by
the subscriber
• Never place anything on or near the vehicle’s operable
1X(voice/data) or 3G(data) network and GPS antennas.
You could prevent operable 1X(voice/data) or 3G(data)
network and GPS signal reception, which can prevent
your vehicle from placing an emergency call. Operable
1X(voice/data) or 3G(data) network and GPS signal
reception is required for the 9-1-1 Call system to function
properly.
General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
BULB REPLACEMENT
General Information
• Before you replace a bulb, check the contacts to be sure
they are not oxidized.
• Replace the bulbs with the same type and wattage.
7
IN CASE OF EMERGENCY 317

•After replacing a light bulb, always check the correct
orientation.
• Before replacing a bulb that is not functioning, check
that the fuse is intact. NOTE:
Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric condi-
tions change to allow the condensation to change back into
a vapor. Turning the lamps on will usually accelerate the
clearing process.
Replacement Bulbs
Interior Bulbs
Lamps Bulb Number
Front Courtesy Light C5W
Front Courtesy Lights (Sun Visors) C5W
Rear Dome Light (Models Without Retractable roof) C5W
Rear Interior Lights (Models With Retractable roof) C5W
Interior Lights W5W
Dome Light (Glove Compartment) W5W
318 IN CASE OF EMERGENCY
