KIA CARNIVAL 2007 Workshop Manual

Front Door

2007 > 2.7L V6 GASOLINE >

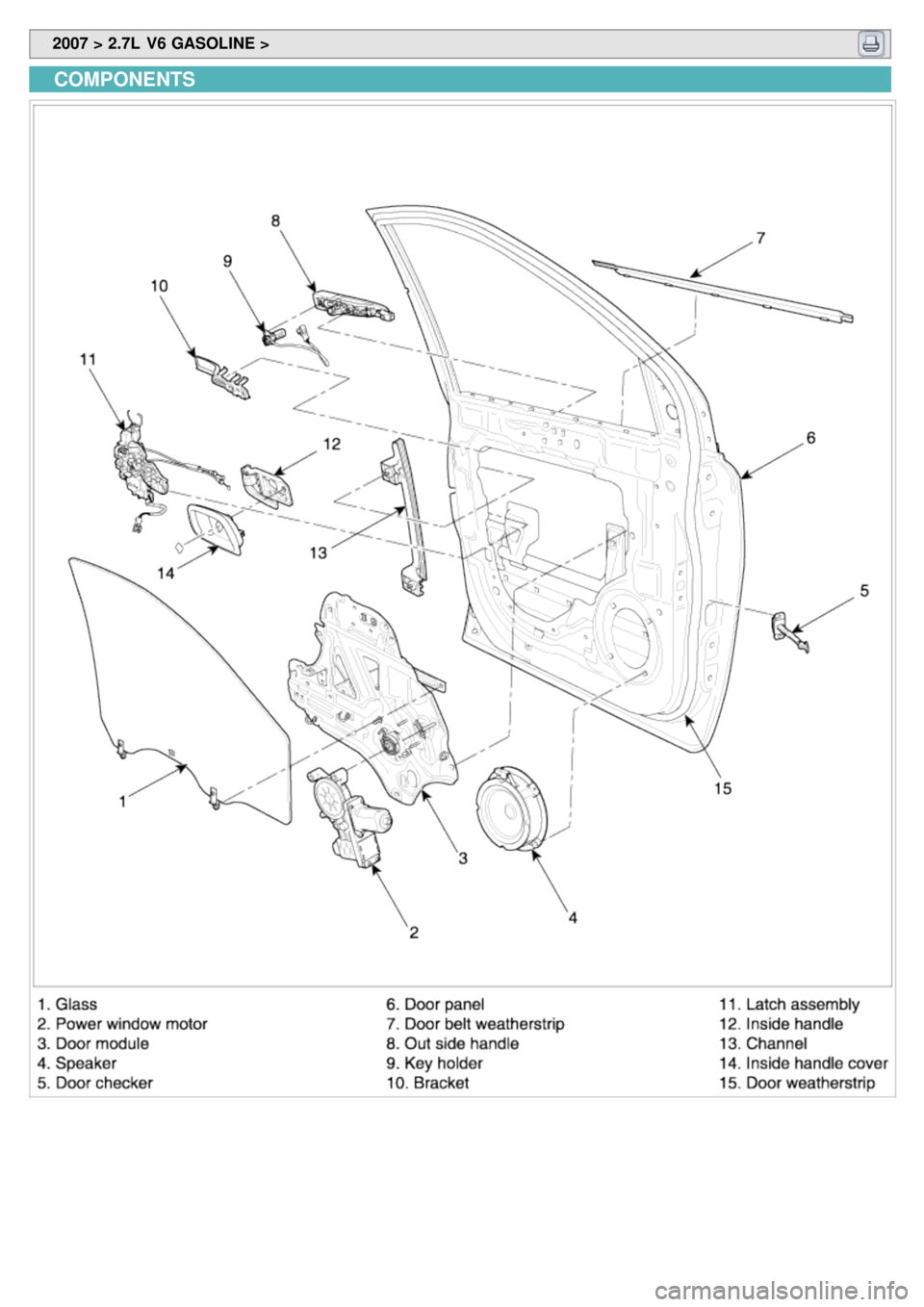

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
FRONT DOOR TRIM REPLACEMENT
a. Take care not to scratch the door trim and other parts.
b. Put on gloves to protect your hands.
1. Remove the quadrant inner cover (A).
2.Loosen the mounting screw, remove the inside handle cover (A).
3.Loosen the door trim (C) mounting screws. Release the clips that hold the door trim, then remove the door trim by
pulling it upward. Disconnect the power window switch connector (A), power mirror connector (B), and door
courtesy lamp connector (D).
[LHD]

[RHD]
4.Installation is the reverse of removal.
a.Make sure of connectors is plugged in properly and each rod is connected securely.
b. Make sure the door locks and opens properly.
GLASS REPLACEMENT
1.Remove the front door trim.
2. Remove the door trim seal (A).
3.Carefully move the glass (A) until you can see the bolts, then loosen them. Carefully pull the glass out through the
window slot (B).
4.Installation is the reverse of removal.

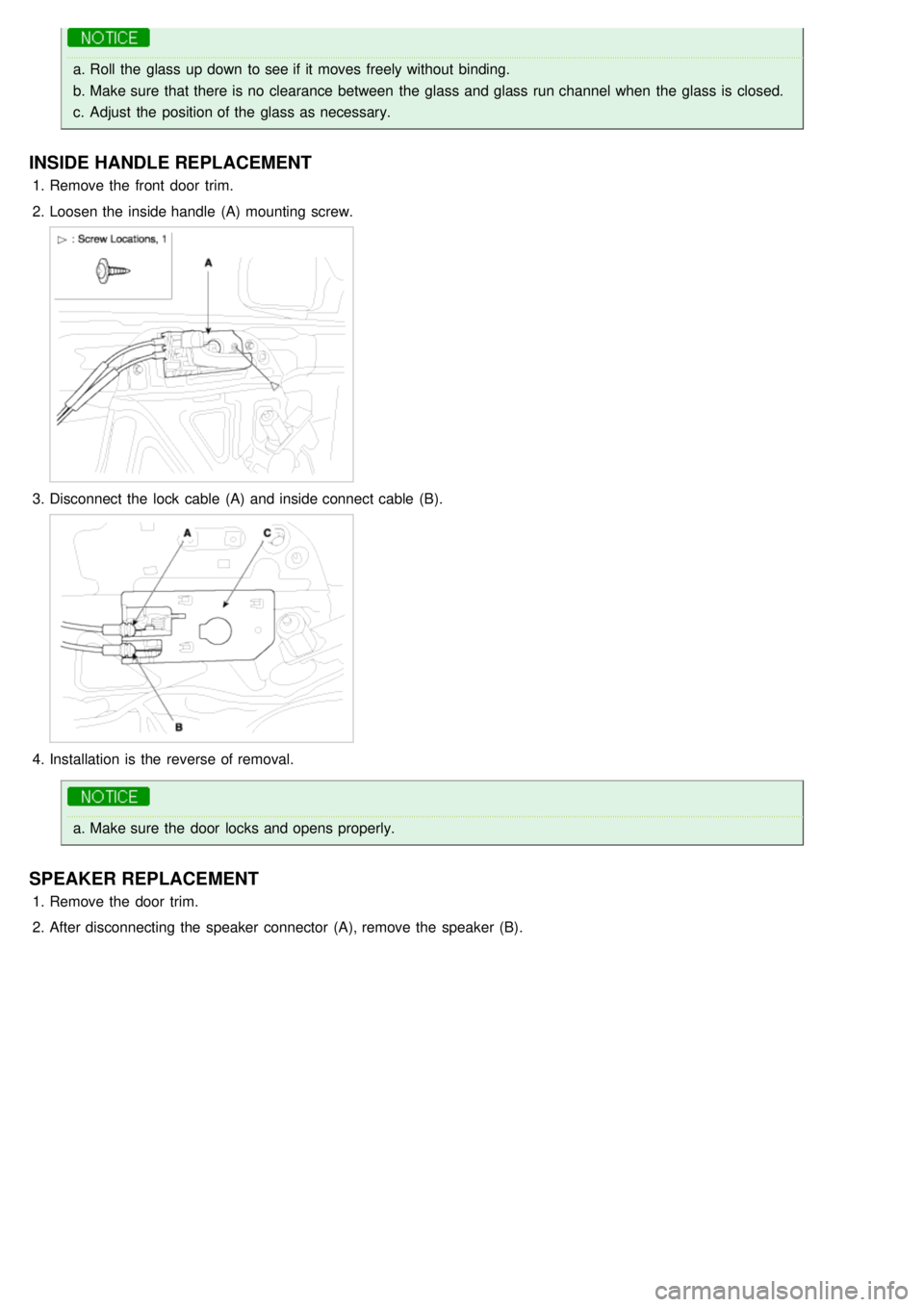

a.Roll the glass up down to see if it moves freely without binding.
b. Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
c. Adjust the position of the glass as necessary.
INSIDE HANDLE REPLACEMENT
1.Remove the front door trim.
2. Loosen the inside handle (A) mounting screw.
3.Disconnect the lock cable (A) and inside connect cable (B).
4.Installation is the reverse of removal.
a.Make sure the door locks and opens properly.
SPEAKER REPLACEMENT
1.Remove the door trim.
2. After disconnecting the speaker connector (A), remove the speaker (B).

3.Installation is the reverse of removal.
POWER WINDOW MOTOR REPLACEMENT
1.Remove the door trim .
2. Disconnect the power window motor connector (A).
3. After loosening the mounting nuts, remove the power window motor (B).
4.Installation is the reverse of removal.
a.Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
b. Adjust the position of the glass as necessary.
FRONT DOOR LATCH ASSEMBLY REPLACEMENT
1.Remove the following parts.
a. Front door trim.
b. Glass.
c. Inside handle.
d. Door module.
2. Remove the latch assembly (A).

3.Installation is the reverse the removal.
a.Make sure the door locks and opens properly.

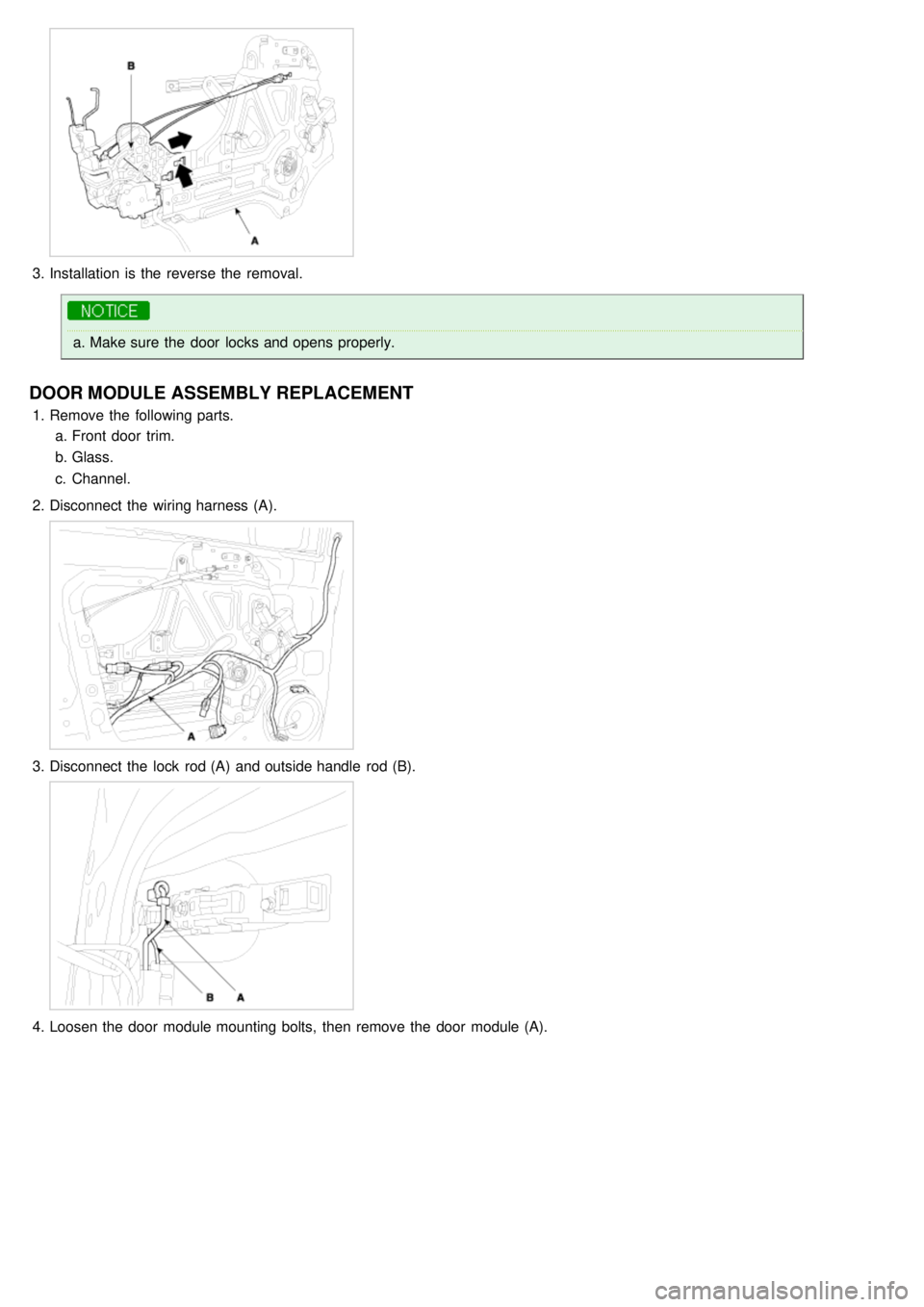

DOOR MODULE ASSEMBLY REPLACEMENT
1.Remove the following parts.
a. Front door trim.
b. Glass.
c. Channel.
2. Disconnect the wiring harness (A).
3.Disconnect the lock rod (A) and outside handle rod (B).
4.Loosen the door module mounting bolts, then remove the door module (A).

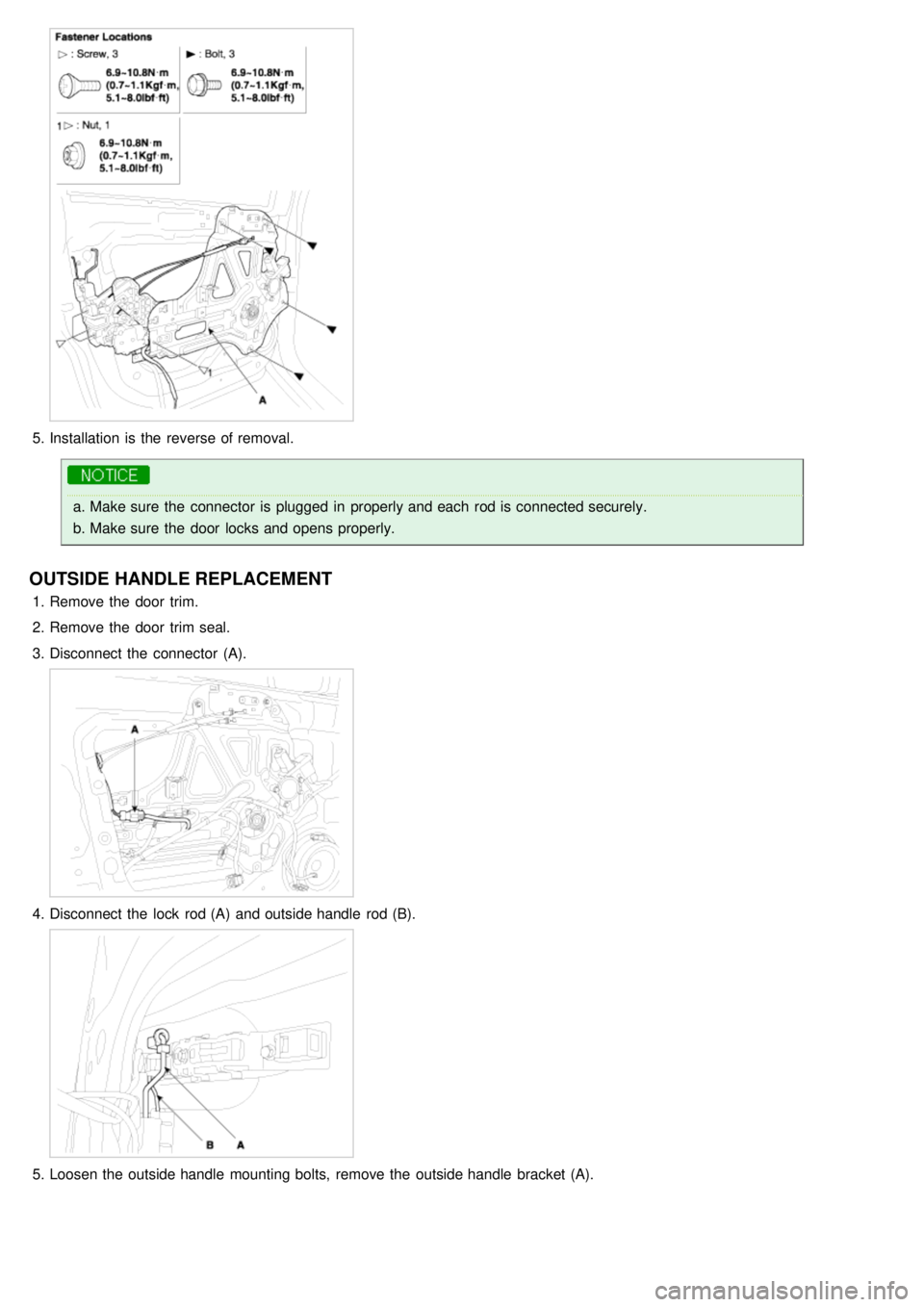

5.Installation is the reverse of removal.
a.Make sure the connector is plugged in properly and each rod is connected securely.
b. Make sure the door locks and opens properly.
OUTSIDE HANDLE REPLACEMENT
1.Remove the door trim.
2. Remove the door trim seal.
3. Disconnect the connector (A).
4.Disconnect the lock rod (A) and outside handle rod (B).
5.Loosen the outside handle mounting bolts, remove the outside handle bracket (A).

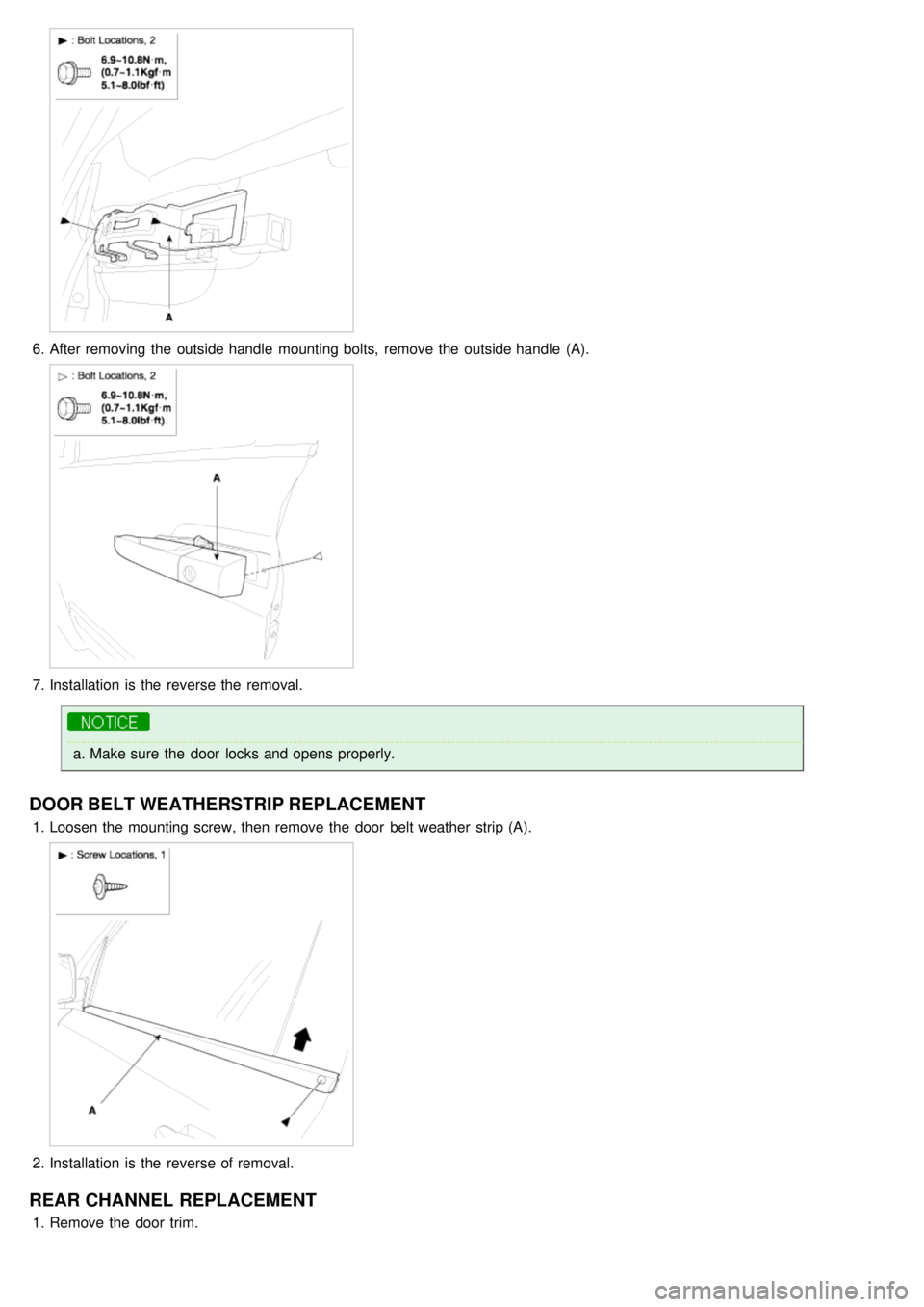

6.After removing the outside handle mounting bolts, remove the outside handle (A).
7.Installation is the reverse the removal.
a.Make sure the door locks and opens properly.
DOOR BELT WEATHERSTRIP REPLACEMENT
1.Loosen the mounting screw, then remove the door belt weather strip (A).
2.Installation is the reverse of removal.
REAR CHANNEL REPLACEMENT
1.Remove the door trim.

2.Remove the glass.
3. Loosen the rear channel mounting nuts.
4. After disconnecting the glass molding, remove the rear channel (A).
5.Installation is the reverse of removal.
DOOR WEATHERSTRIP REPLACEMENT
1.Loosen the checker mounting bolts.
2. Release the clips then remove the door weatherstrip(A).
3.Installation is the reverse of removal.
POWER WINDOW SWITCH REPLACEMENT
1.Remove the front door trim.
2. Loosen the mounting screws (B).
3. Disconnect the connector (A).
4.Remove the power window switch (A).
