KIA CARNIVAL 2007 Workshop Manual

2007 > 2.7L V6 GASOLINE >

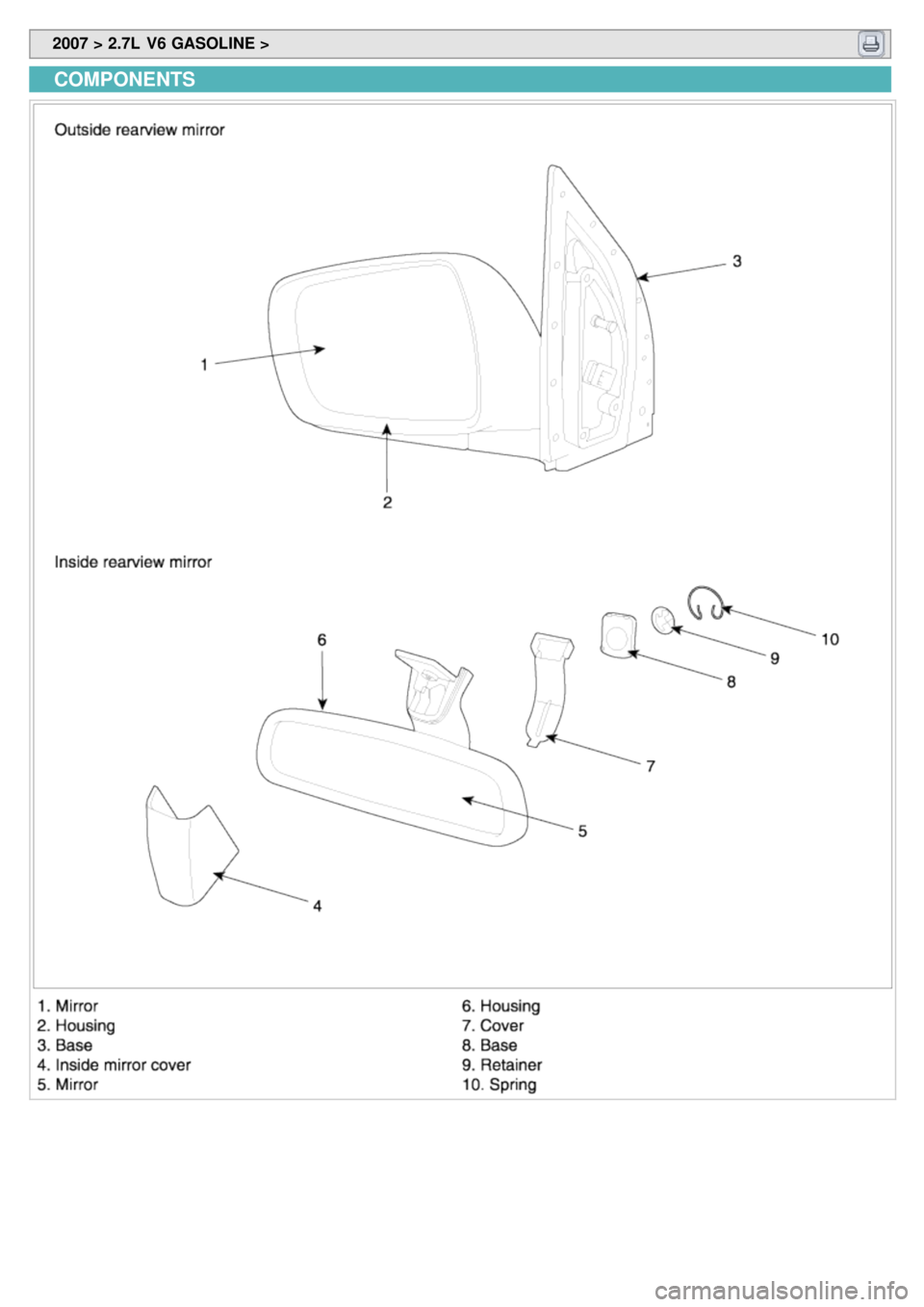

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
OUTSIDE REAR VIEW MIRROR RELPLACEMENT
a. When prying with a flat- tipper screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the quadrant inner cover (A).
2.Remove the door trim.
3. After disconnecting the connector (A), remove the outside rear view mirror (B).
4.Installation is the reverse of removal.
INSIDE REAR VIEW MIRROR REPLACEMENT
1.Push the inside rear view mirror base (A) down to remove to inside rear view mirror assembly (B).

2.Installation is the reverse of removal.

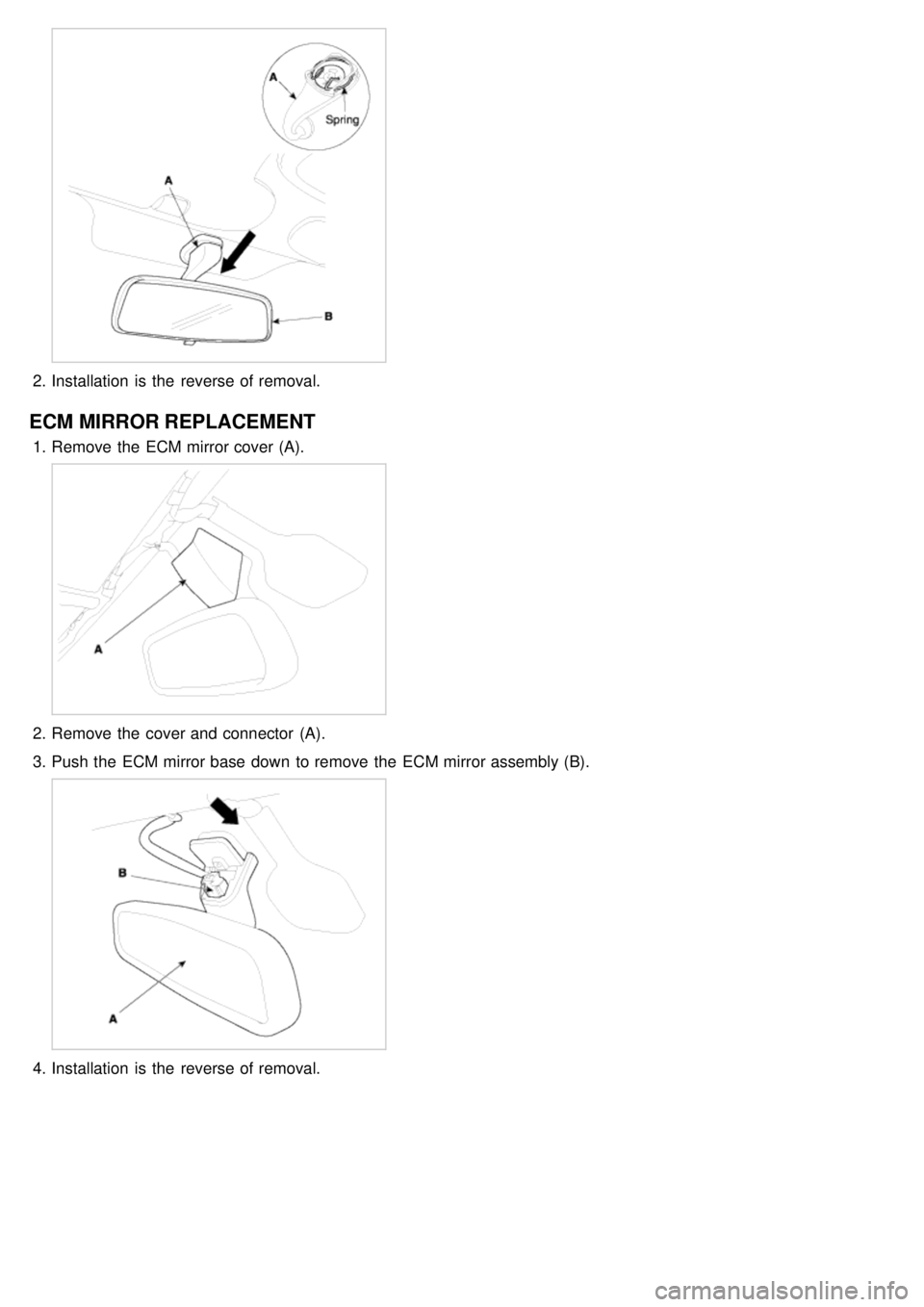

ECM MIRROR REPLACEMENT
1.Remove the ECM mirror cover (A).
2.Remove the cover and connector (A).
3. Push the ECM mirror base down to remove the ECM mirror assembly (B).
4.Installation is the reverse of removal.

Interior

Console

2007 > 2.7L V6 GASOLINE >

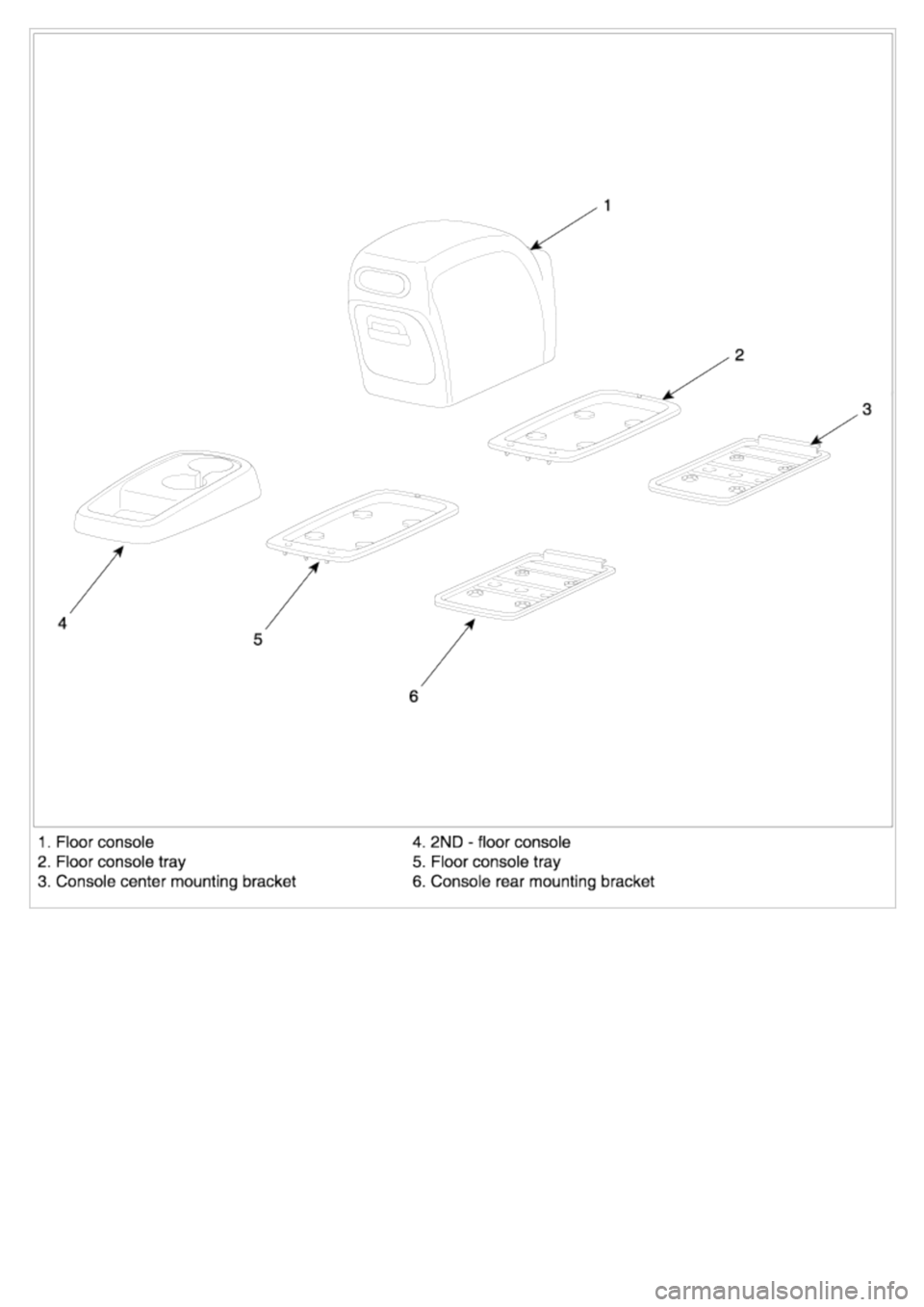

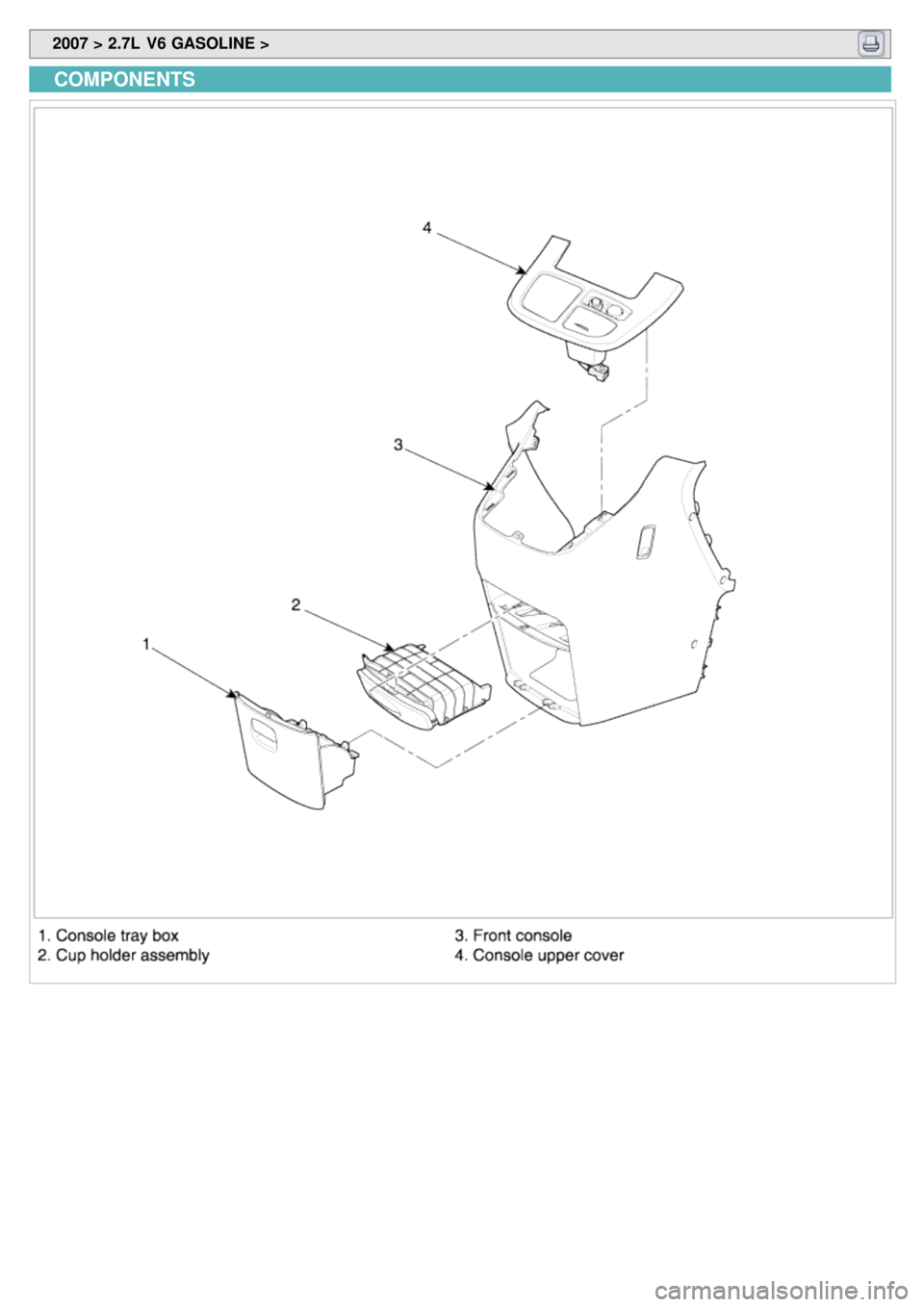

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

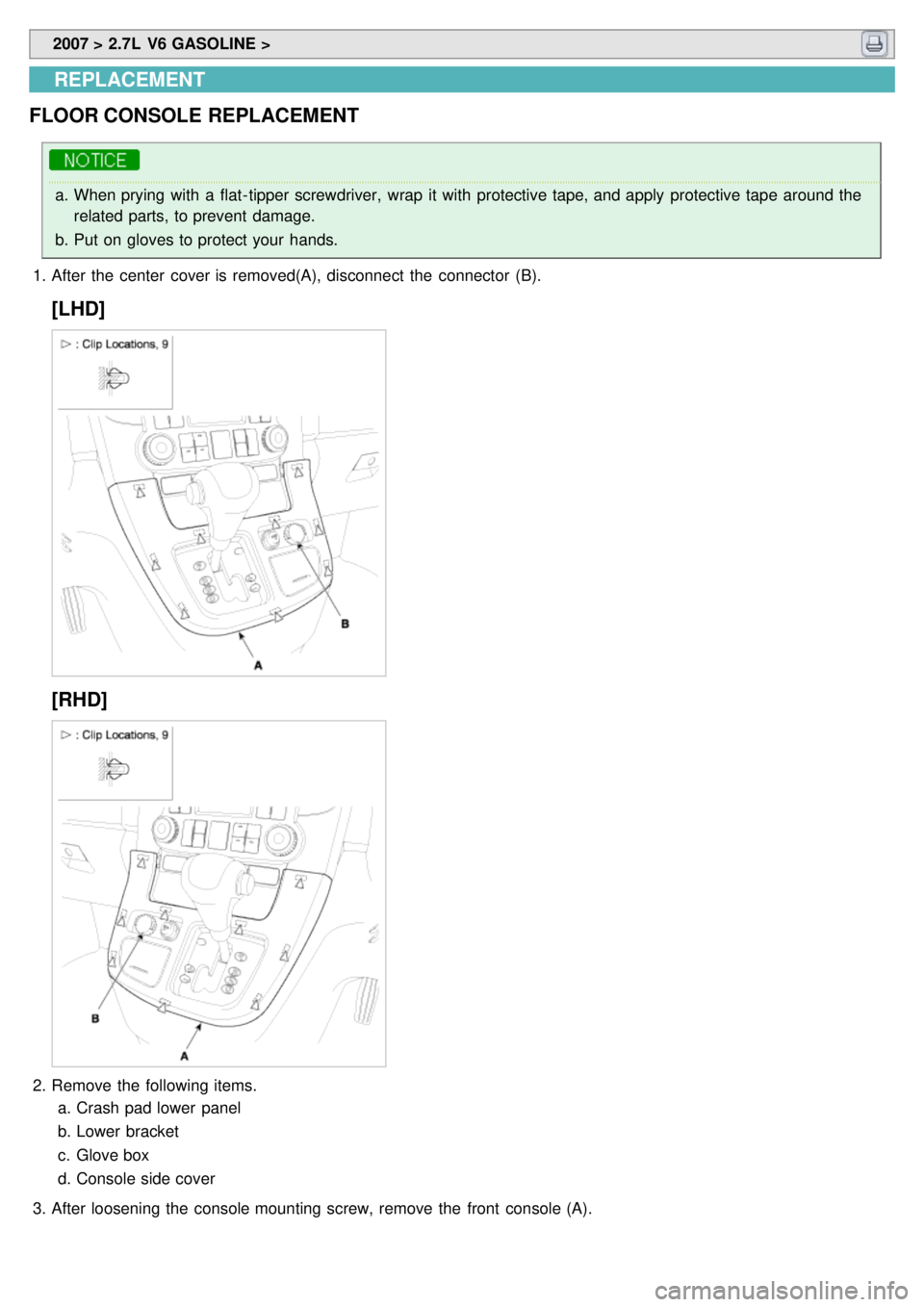

FLOOR CONSOLE REPLACEMENT
a. When prying with a flat- tipper screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. After the center cover is removed(A), disconnect the connector (B).
[LHD]
[RHD]
2.Remove the following items.
a. Crash pad lower panel
b. Lower bracket
c. Glove box
d. Console side cover
3. After loosening the console mounting screw, remove the front console (A).

[LHD]
[RHD]
4.Installation is the reverse of removal.

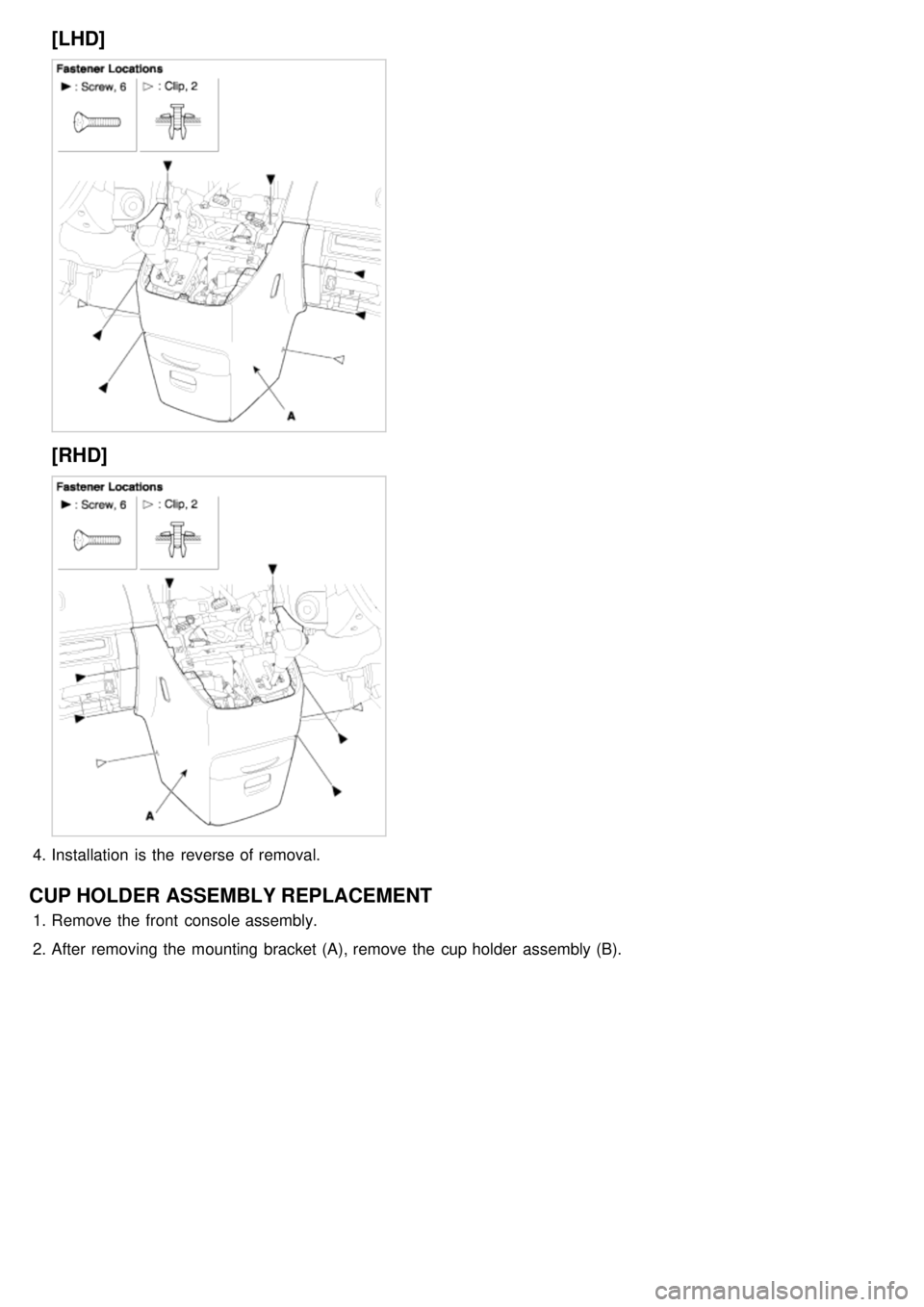

CUP HOLDER ASSEMBLY REPLACEMENT
1.Remove the front console assembly.
2. After removing the mounting bracket (A), remove the cup holder assembly (B).

3.Installation is the reverse of removal.

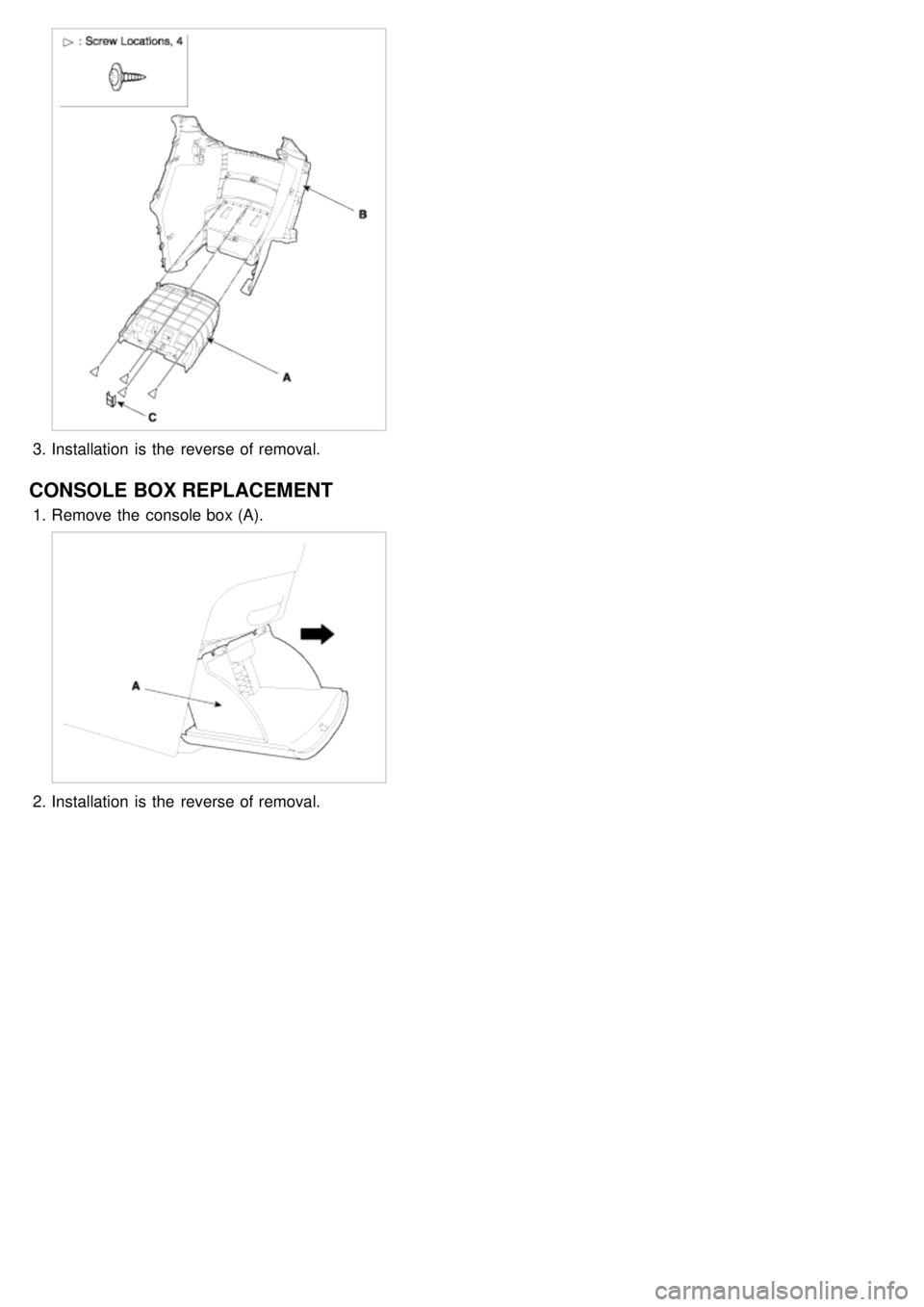

CONSOLE BOX REPLACEMENT
1.Remove the console box (A).
2.Installation is the reverse of removal.
