KIA CARNIVAL 2007 Workshop Manual

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
SUNVISOR REPLACEMENT
1. Loosen the mounting screws, then sunvisor (A) and holder (B).
2. Disconnect the connector (C).
3.Installation is the reverse of removal.
S/G CASE REPLACEMENT
1.Using a screwdriver, remove the side tray (A).
2.Installation is the reverse of removal.
REAR HEATER CONTROL UNIT REPLACEMENT
1.Remove the rear heater control unit (A).
2. Disconnect the connector (B).

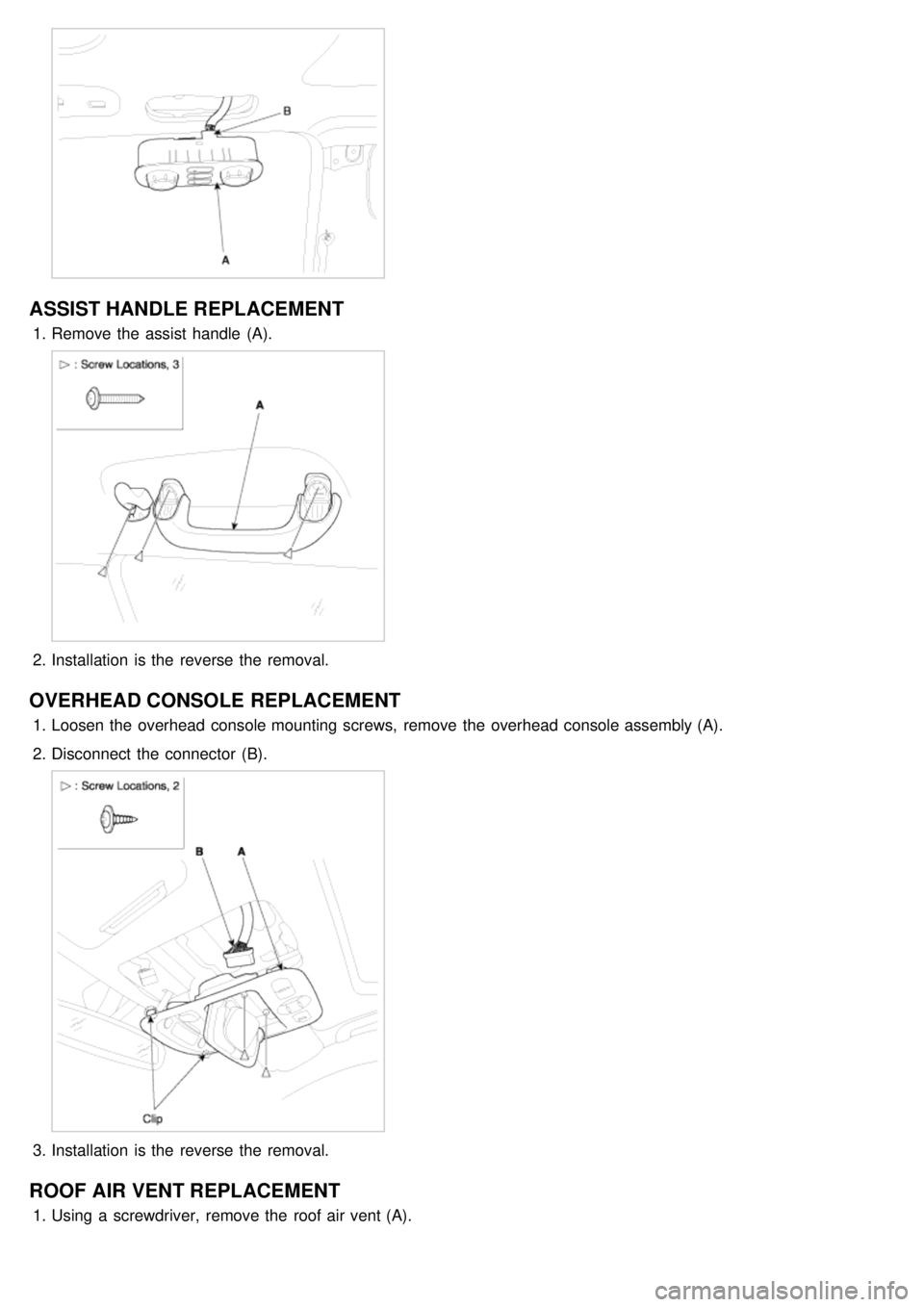

ASSIST HANDLE REPLACEMENT
1.Remove the assist handle (A).
2.Installation is the reverse the removal.
OVERHEAD CONSOLE REPLACEMENT
1.Loosen the overhead console mounting screws, remove the overhead console assembly (A).
2. Disconnect the connector (B).
3.Installation is the reverse the removal.
ROOF AIR VENT REPLACEMENT
1.Using a screwdriver, remove the roof air vent (A).

2.Installation is the reverse the removal.

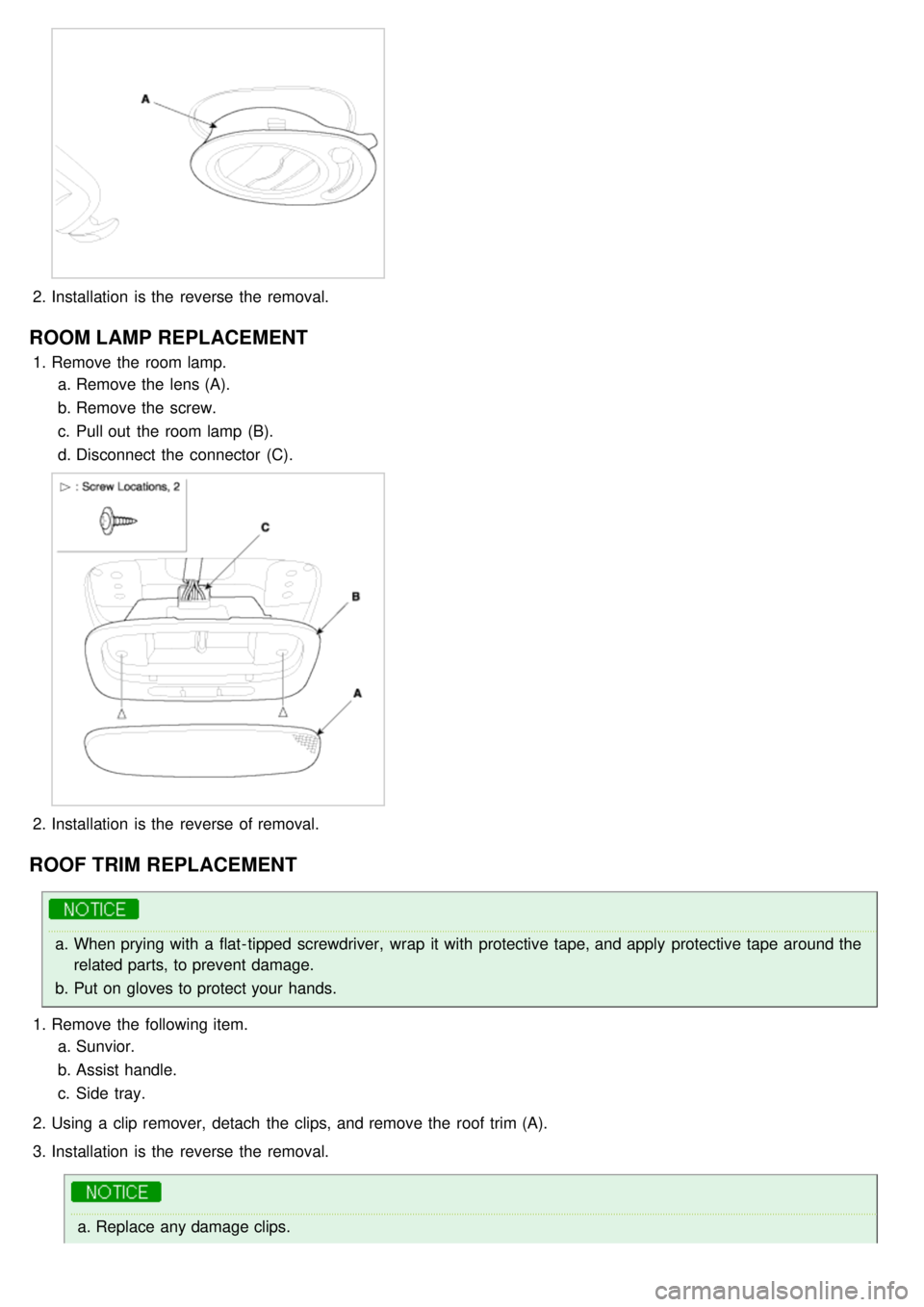

ROOM LAMP REPLACEMENT
1.Remove the room lamp.
a. Remove the lens (A).
b. Remove the screw.
c. Pull out the room lamp (B).
d. Disconnect the connector (C).
2.Installation is the reverse of removal.
ROOF TRIM REPLACEMENT
a.When prying with a flat- tipped screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the following item.
a. Sunvior.
b. Assist handle.
c. Side tray.

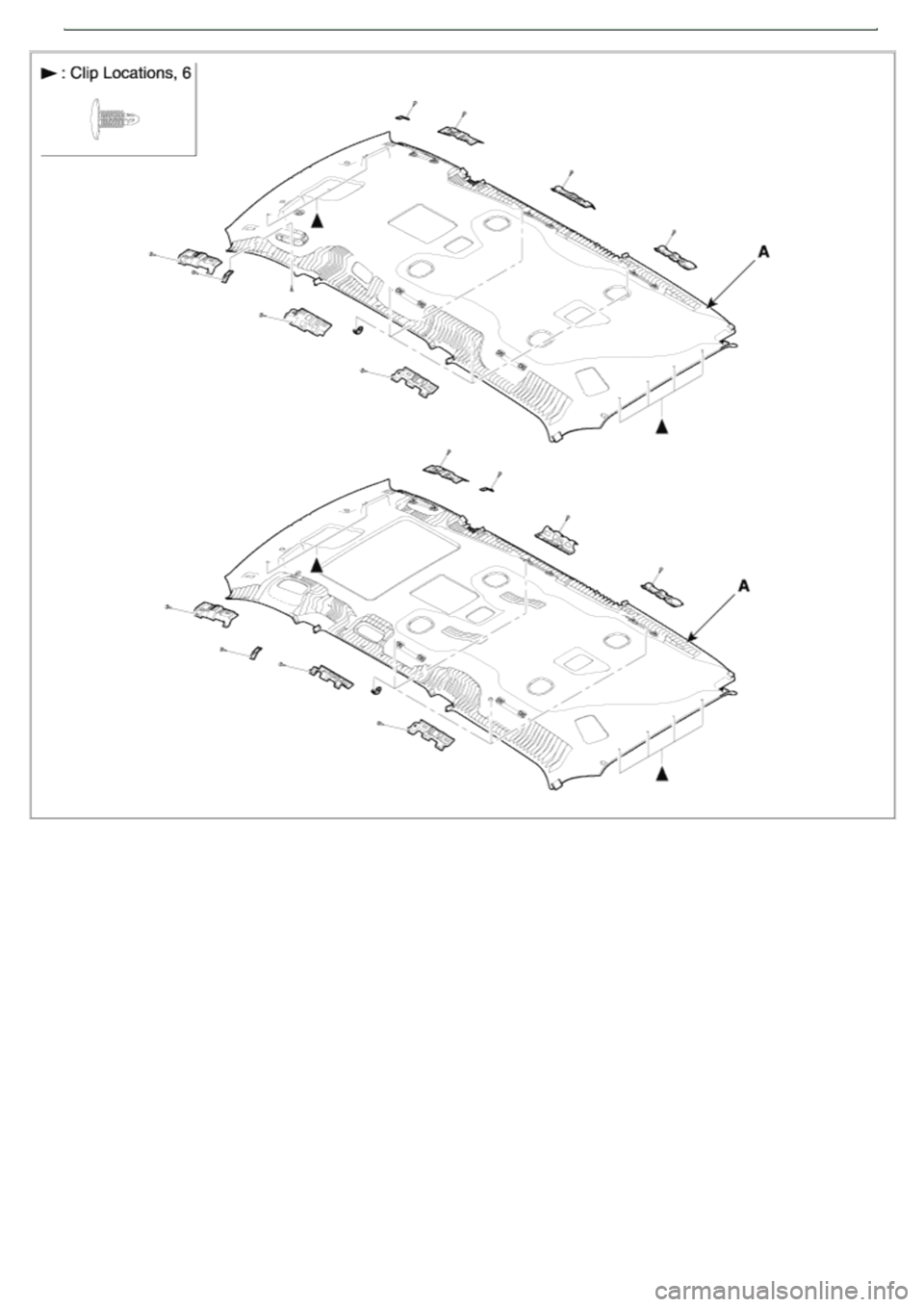

2. Using a clip remover, detach the clips, and remove the roof trim (A).
3. Installation is the reverse the removal.
a.Replace any damage clips.

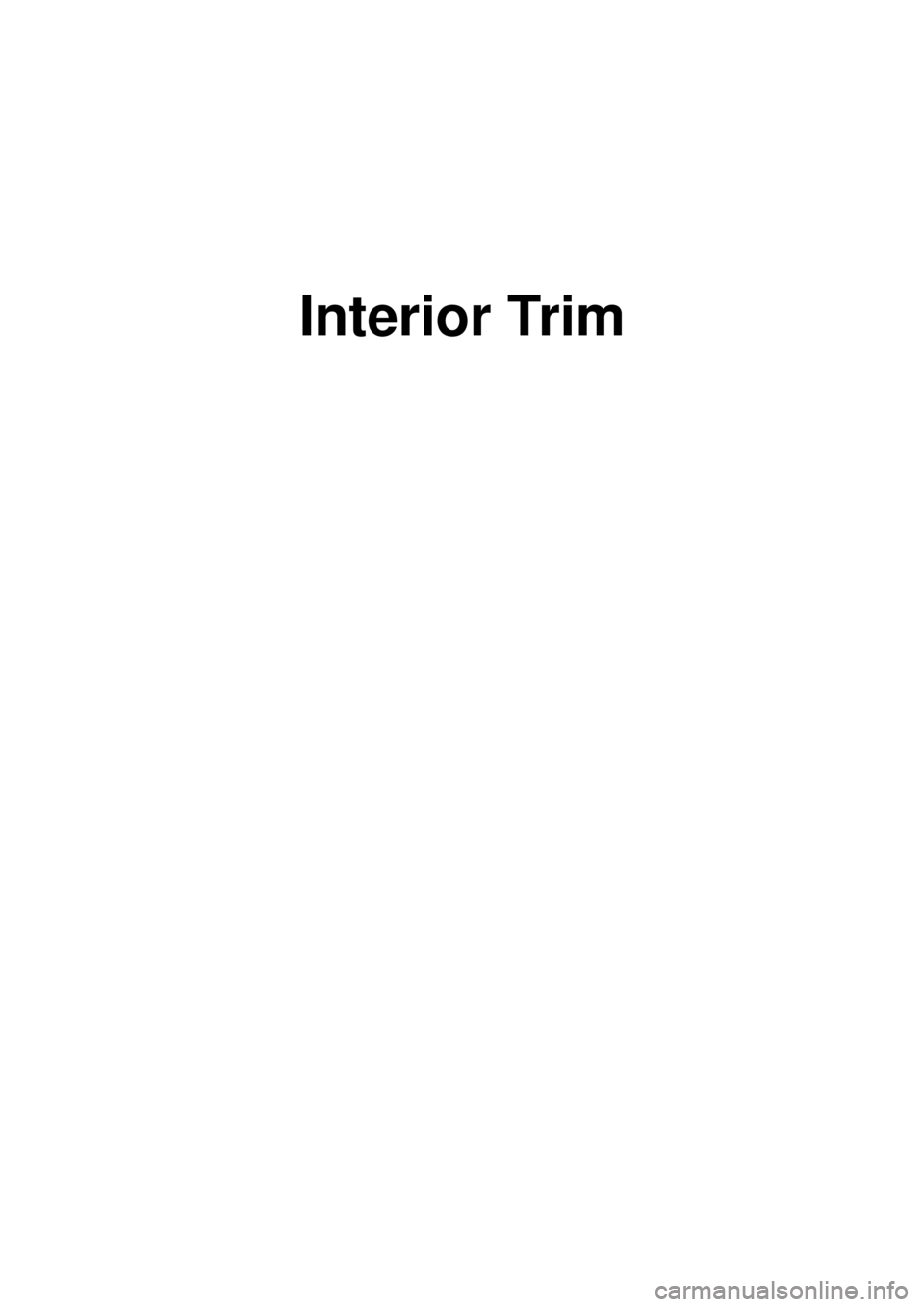

Interior Trim

2007 > 2.7L V6 GASOLINE >

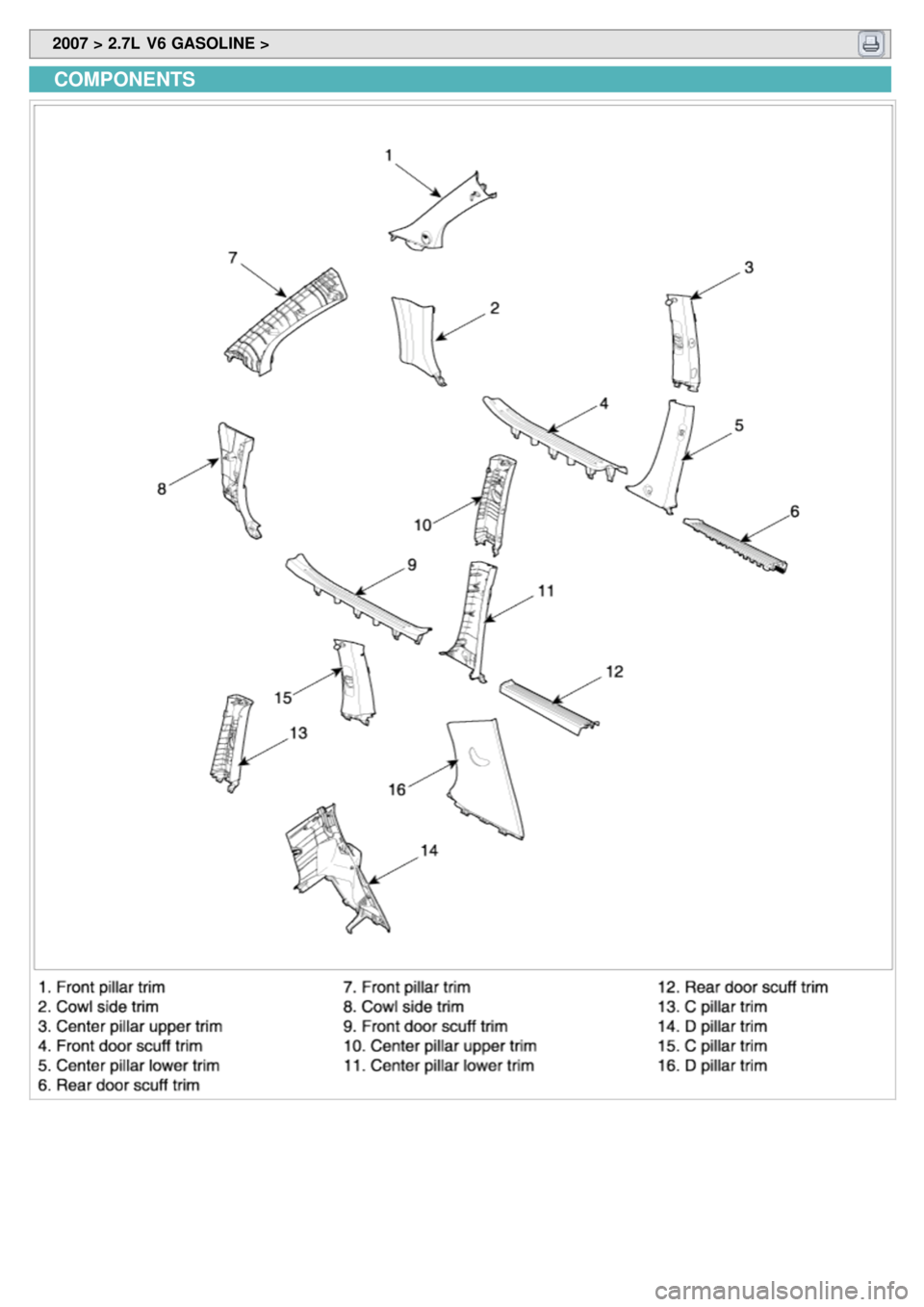

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

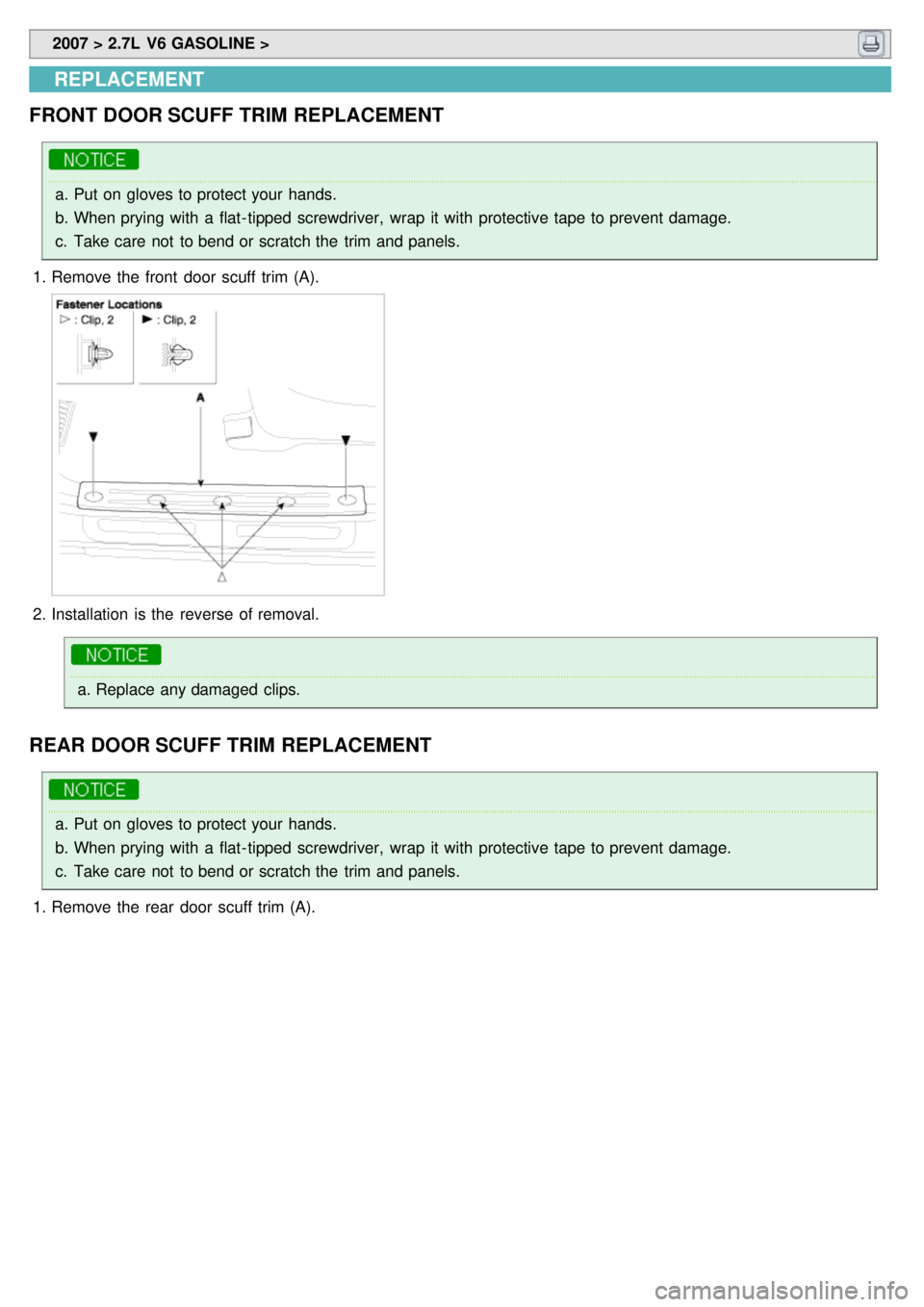

FRONT DOOR SCUFF TRIM REPLACEMENT
a. Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the front door scuff trim (A).
2.Installation is the reverse of removal.
a.Replace any damaged clips.
REAR DOOR SCUFF TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.

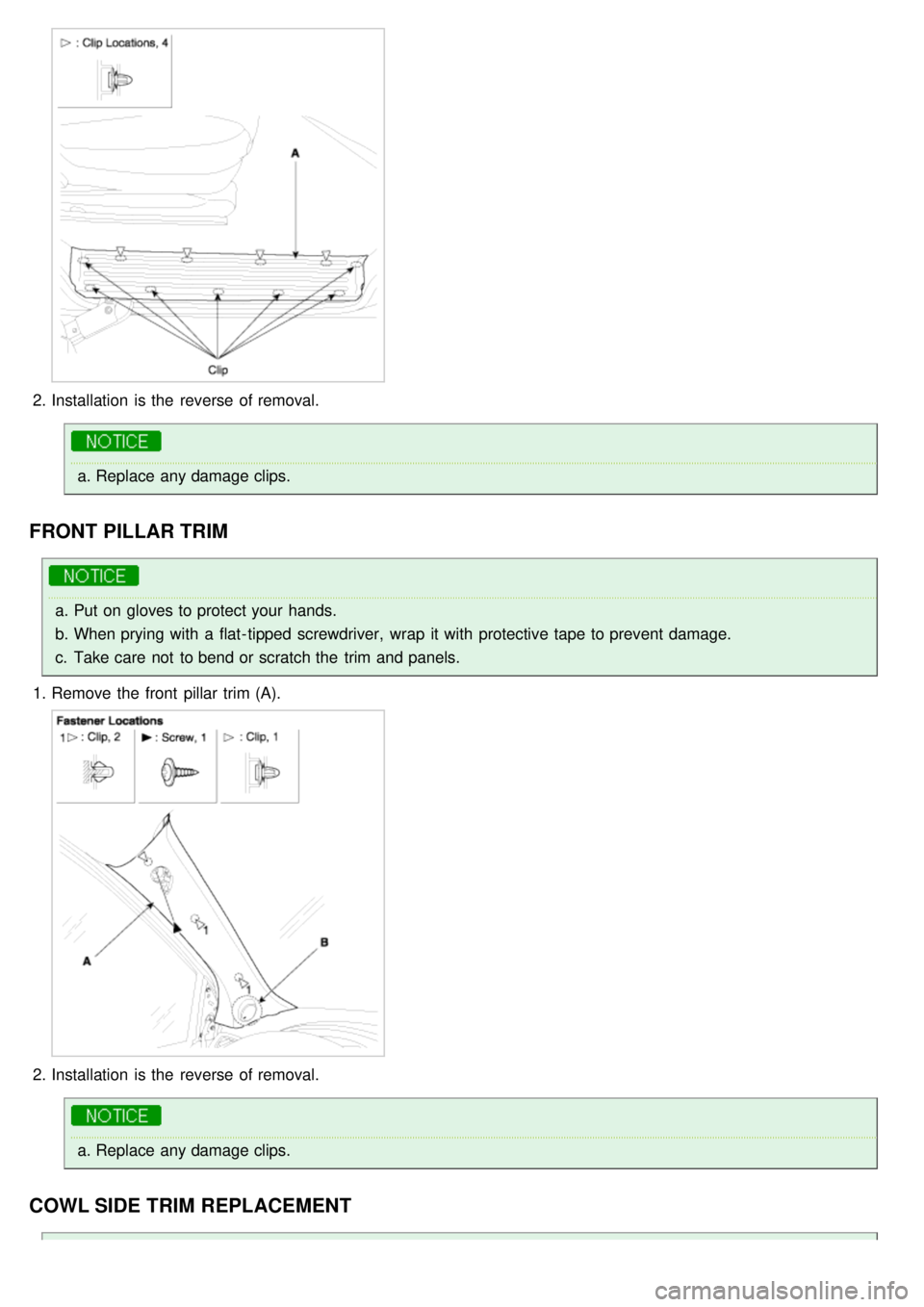

1. Remove the rear door scuff trim (A).

2.Installation is the reverse of removal.
a.Replace any damage clips.
FRONT PILLAR TRIM
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the front pillar trim (A).
2.Installation is the reverse of removal.
a.Replace any damage clips.

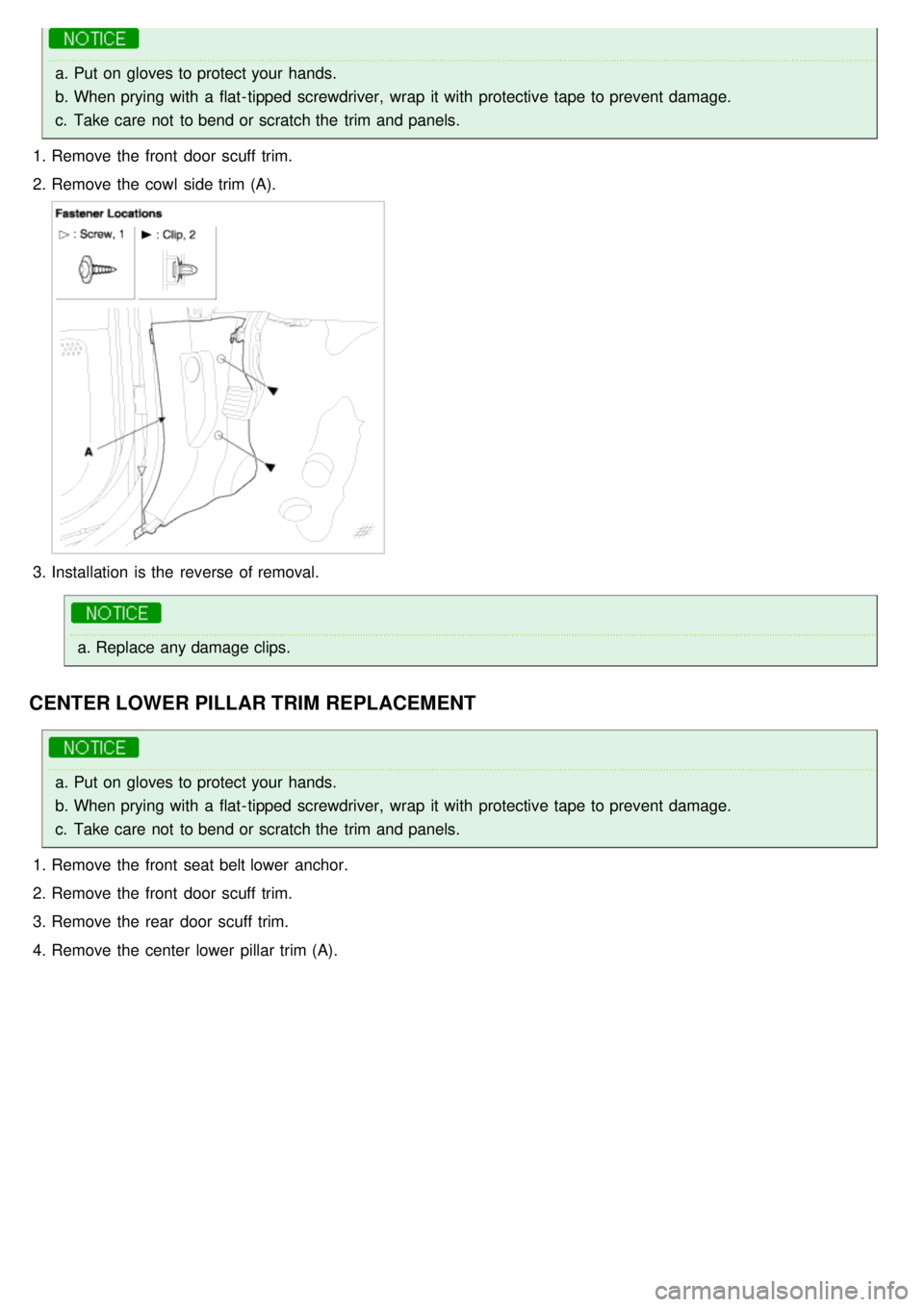

COWL SIDE TRIM REPLACEMENT

a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the front door scuff trim.
2. Remove the cowl side trim (A).
3.Installation is the reverse of removal.
a.Replace any damage clips.
CENTER LOWER PILLAR TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the front seat belt lower anchor.
2. Remove the front door scuff trim.
3. Remove the rear door scuff trim.

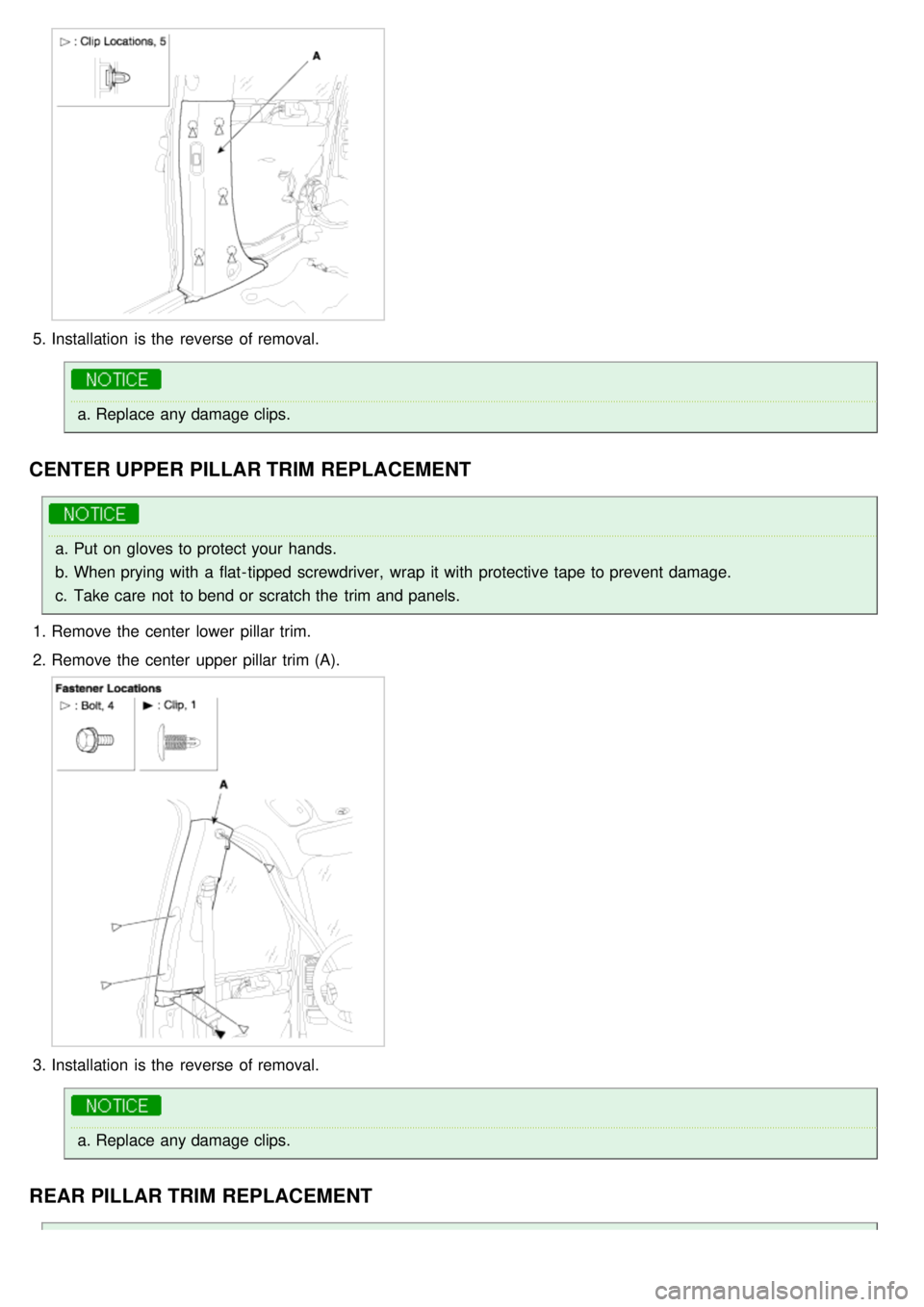

4. Remove the center lower pillar trim (A).

5.Installation is the reverse of removal.
a.Replace any damage clips.
CENTER UPPER PILLAR TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the center lower pillar trim.
2. Remove the center upper pillar trim (A).
3.Installation is the reverse of removal.
a.Replace any damage clips.
REAR PILLAR TRIM REPLACEMENT
