KIA CARNIVAL 2007  Workshop Manual 10.After installation,  check for  leaks at hose  and line  joints or connections, and retighten if necessary.

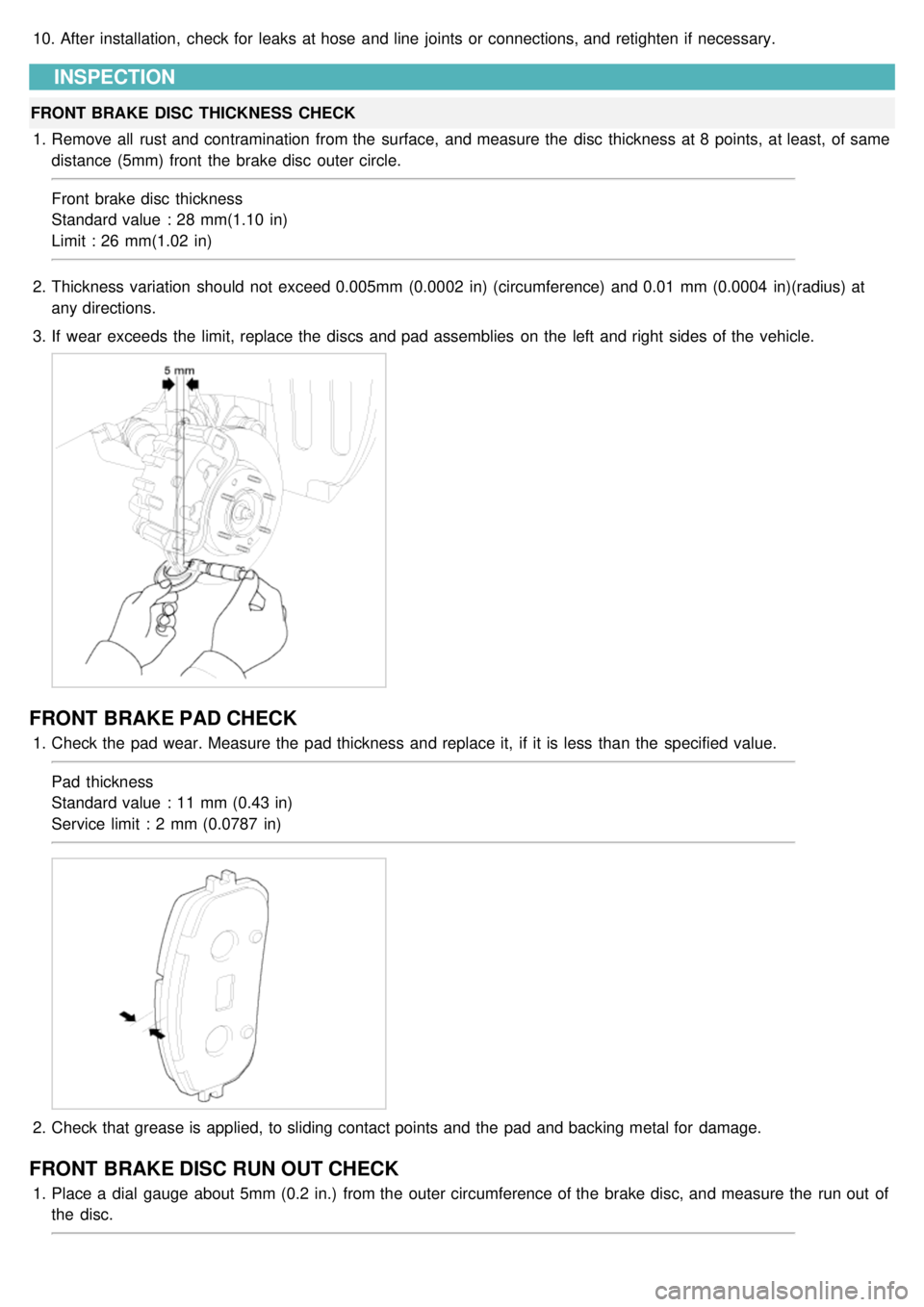

INSPECTION
FRONT BRAKE  DISC  THICKNESS  CHECK
1. Remove all  rust and contramination  fr

Page 902 of 1575

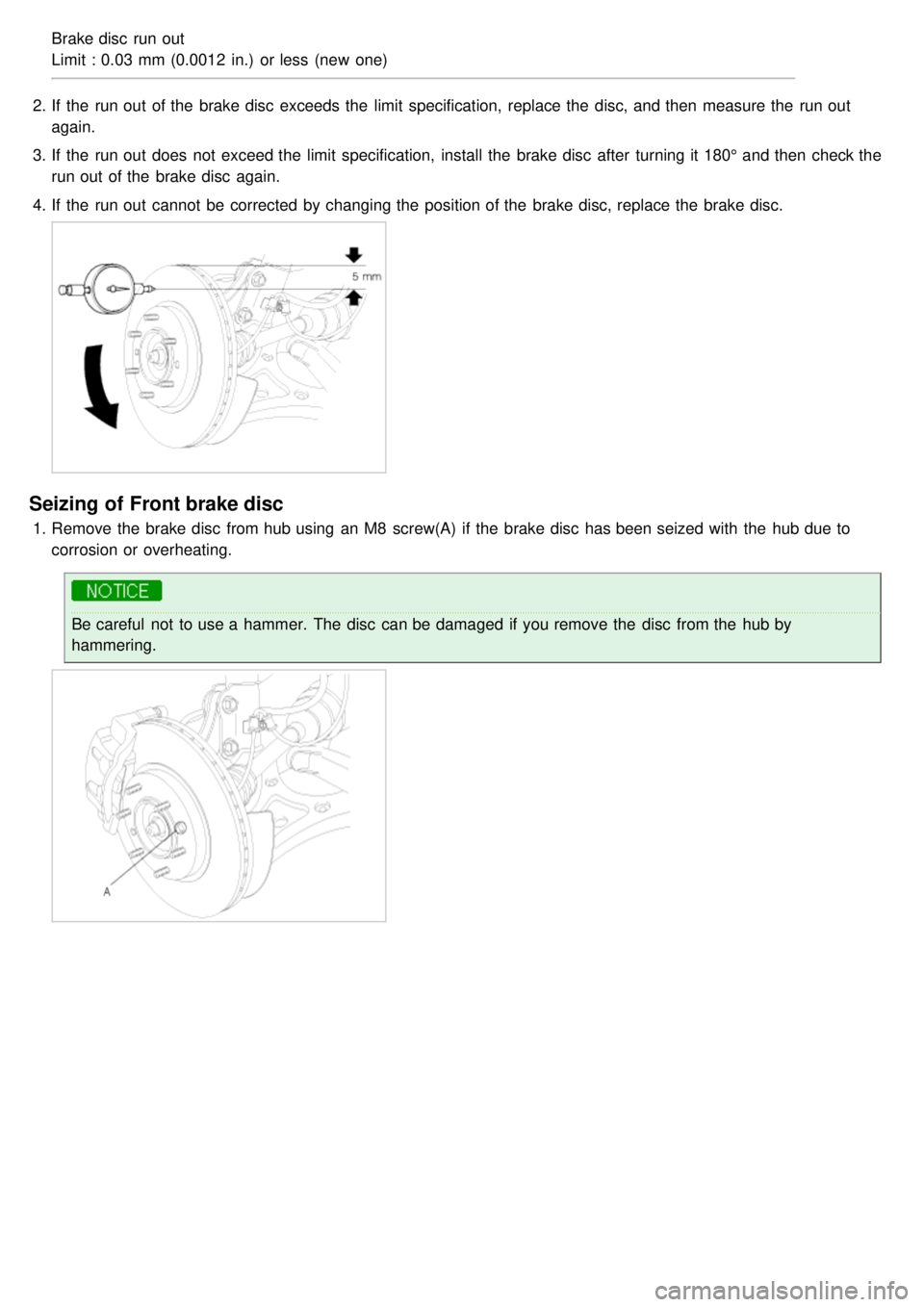

KIA CARNIVAL 2007  Workshop Manual Brake disc  run out
Limit : 0.03  mm (0.0012  in.)  or less  (new  one)
2. If  the  run out  of the  brake disc  exceeds the  limit  specification,  replace the  disc, and then  measure the  run out
a

Page 903 of 1575

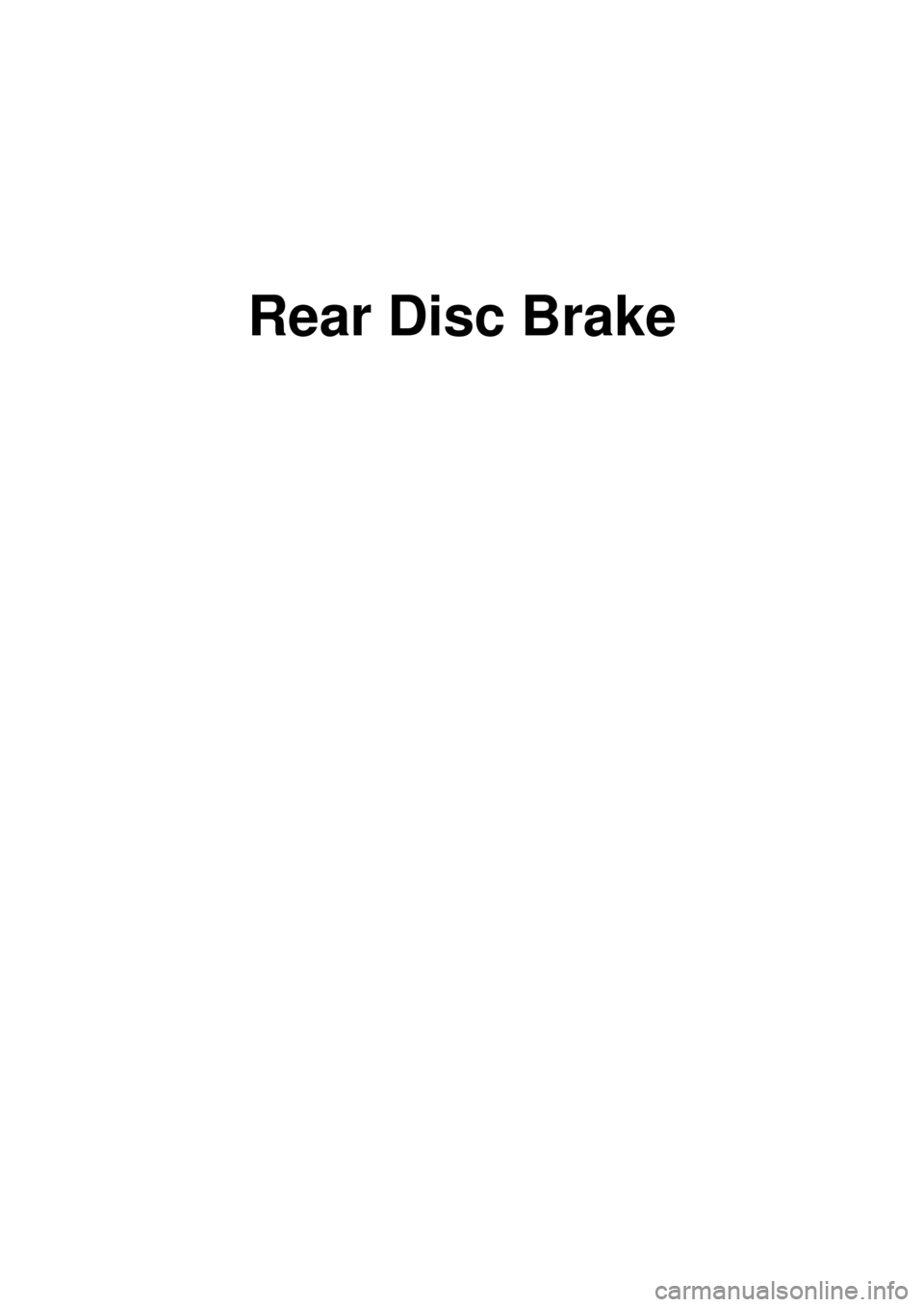

KIA CARNIVAL 2007  Workshop Manual Rear Disc Brake

Page 904 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
COMPONENTS

Page 905 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >

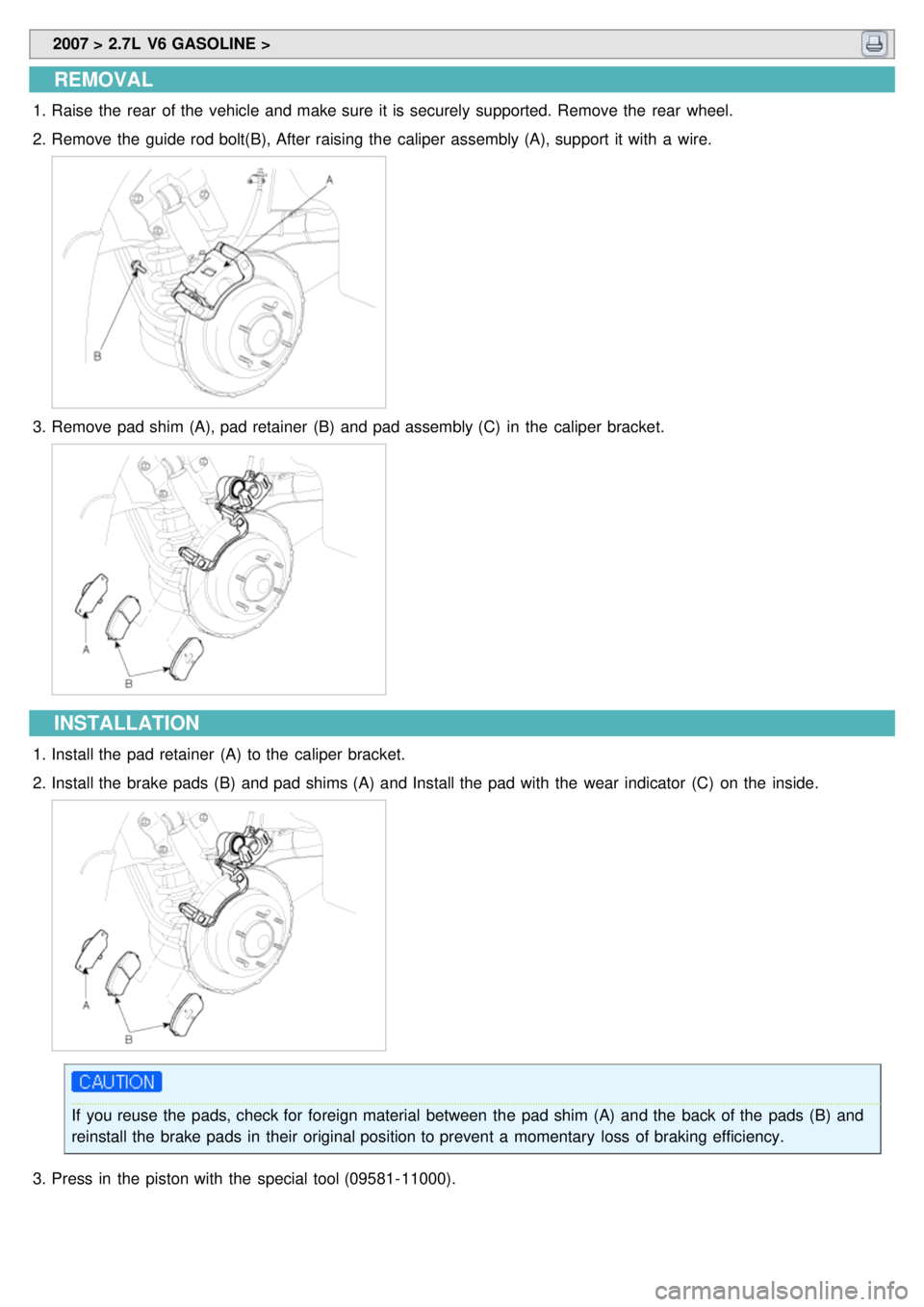

REMOVAL
1.Raise  the  rear  of the  vehicle and make sure  it is securely supported. Remove the  rear  wheel.
2. Remove the  guide rod bolt(B), After raising  the  caliper

Page 906 of 1575

KIA CARNIVAL 2007  Workshop Manual 4.Grease the  piston boot  to prevent from twisting.
5. Install the  guide rod.
6. Install the  cylinder assembly (A)  to the  disc  plate.
Be careful  not  to damage the  piston boot.
7.Install the

Page 907 of 1575

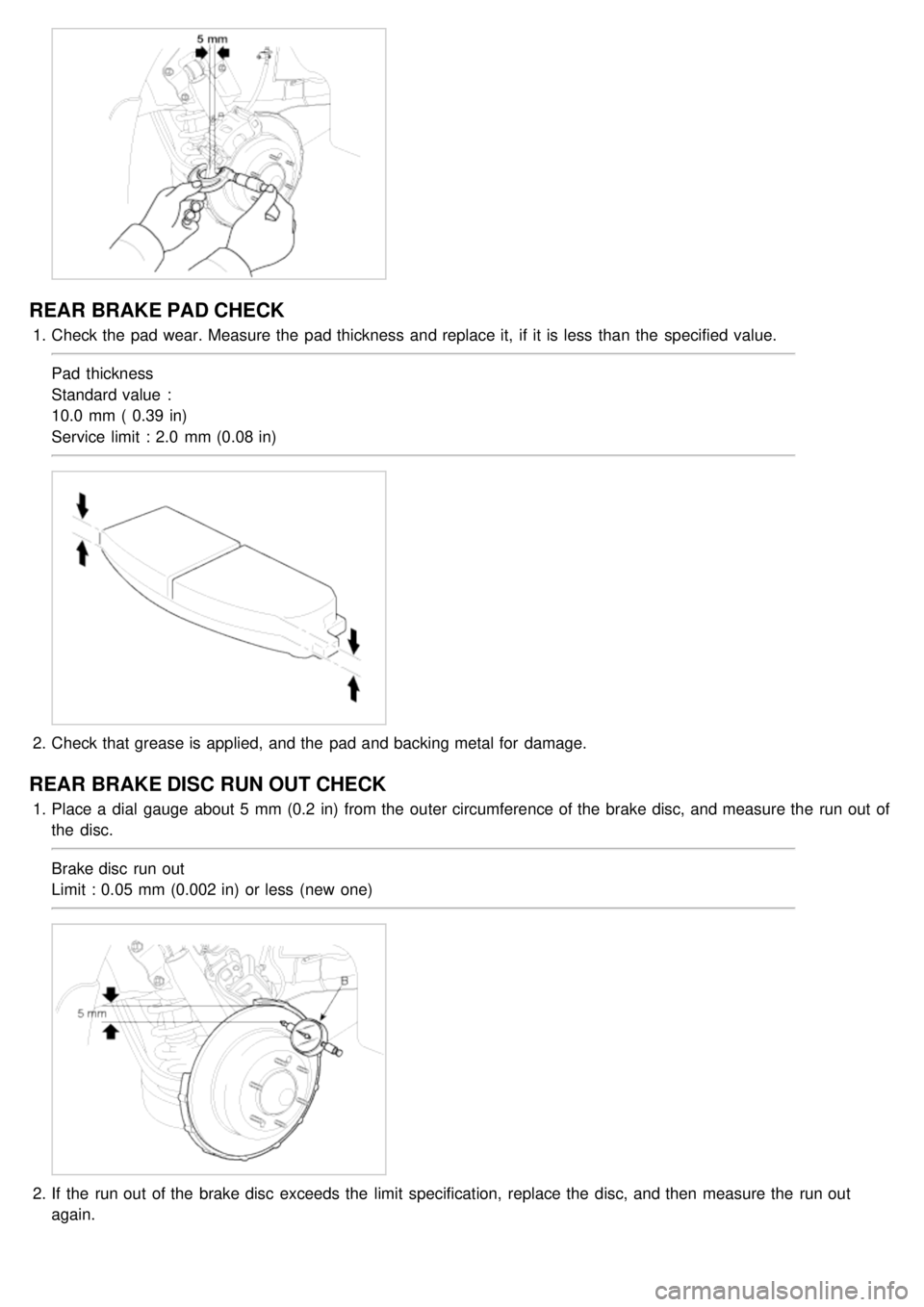

KIA CARNIVAL 2007  Workshop Manual REAR BRAKE PAD CHECK
1.Check the  pad wear. Measure the  pad thickness  and replace it,  if it is less  than  the  specified  value.
Pad  thickness
Standard value  :
10.0  mm (  0.39  in)
Service limi

Page 908 of 1575

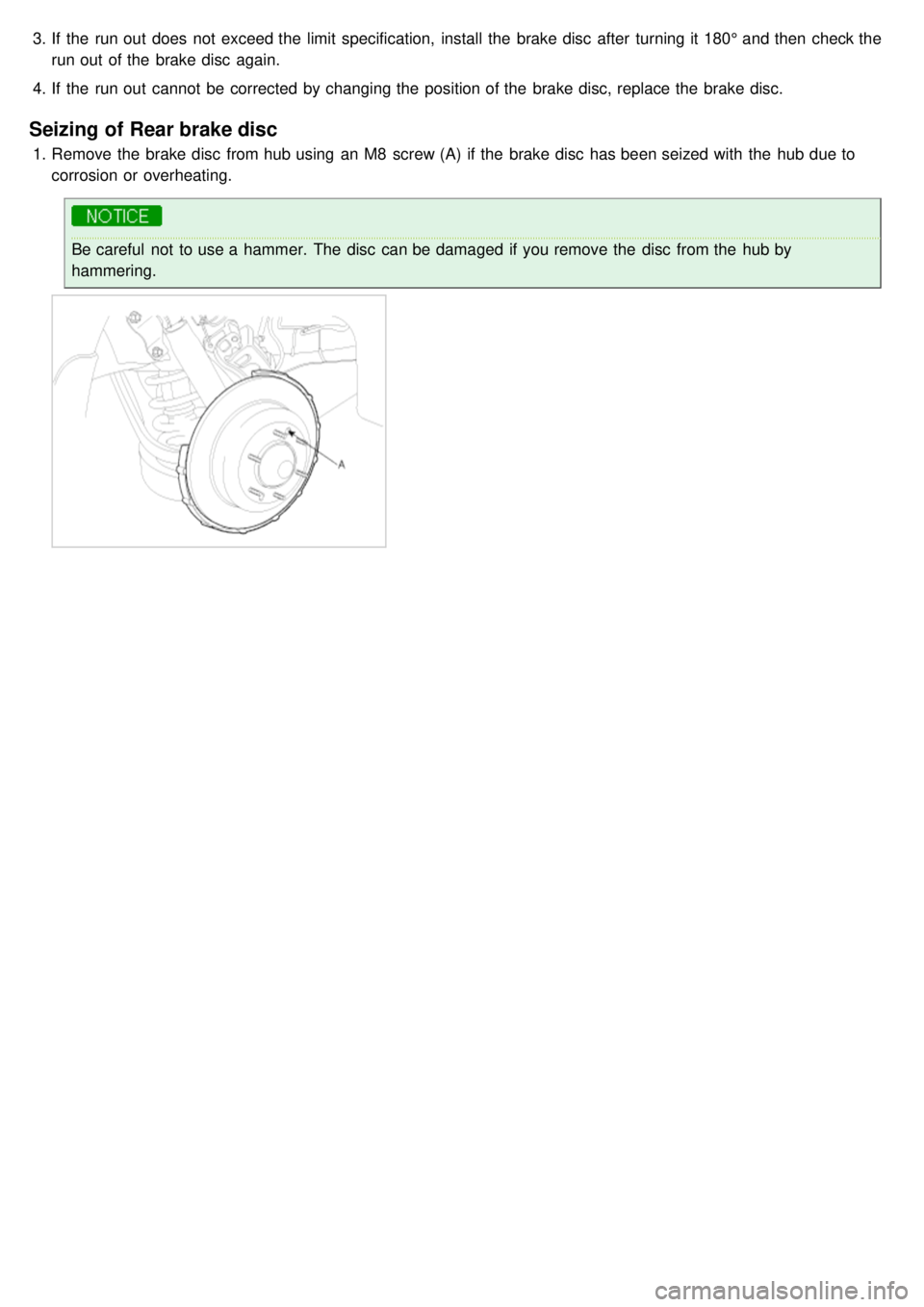

KIA CARNIVAL 2007  Workshop Manual 3.If  the  run out  does  not  exceed the  limit  specification,  install  the  brake disc  after  turning it 180° and then  check the
run out  of the  brake disc  again.
4. If  the  run out  cannot

Page 909 of 1575

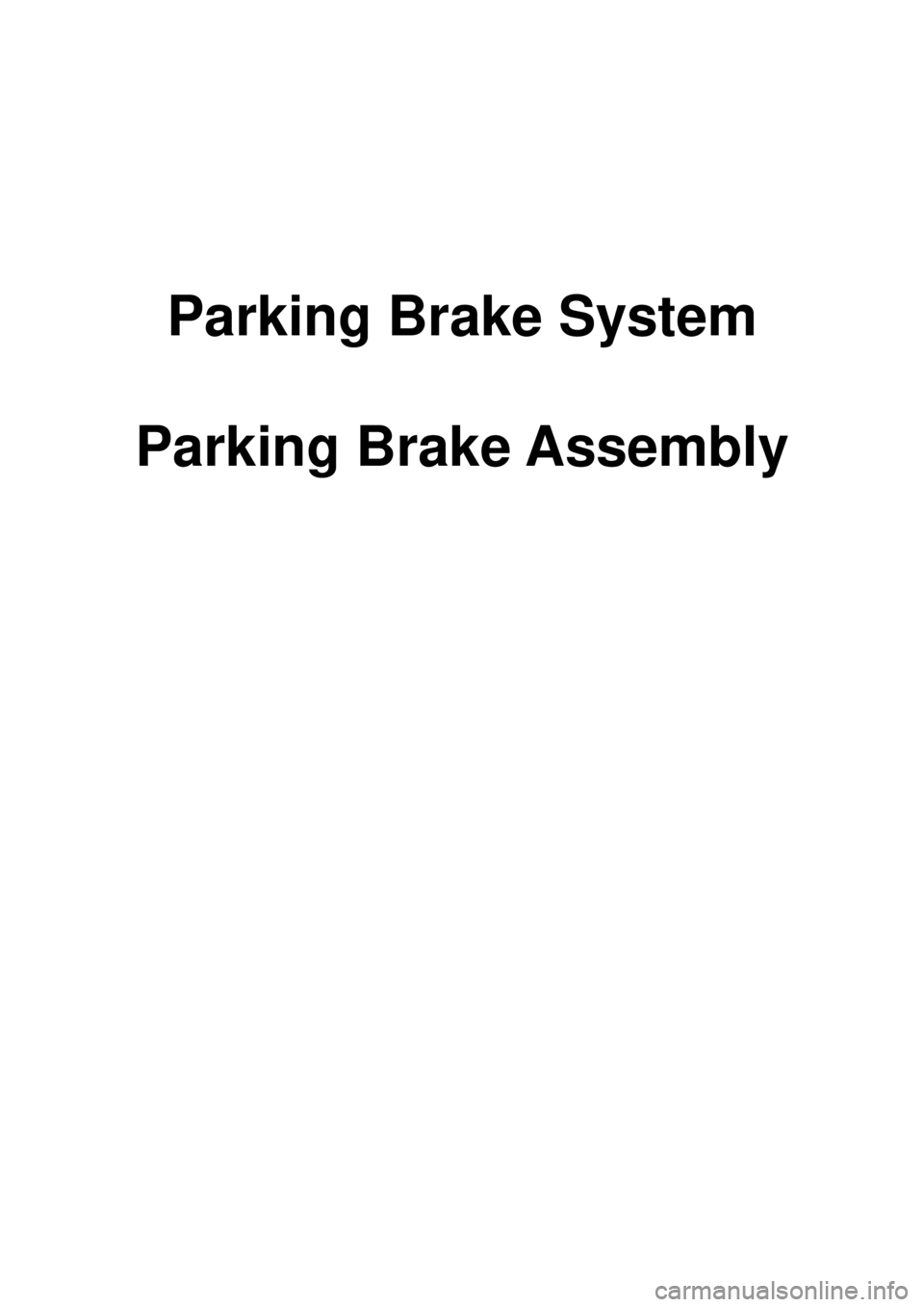

KIA CARNIVAL 2007  Workshop Manual Parking Brake System
Parking Brake Assembly

Page 910 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >

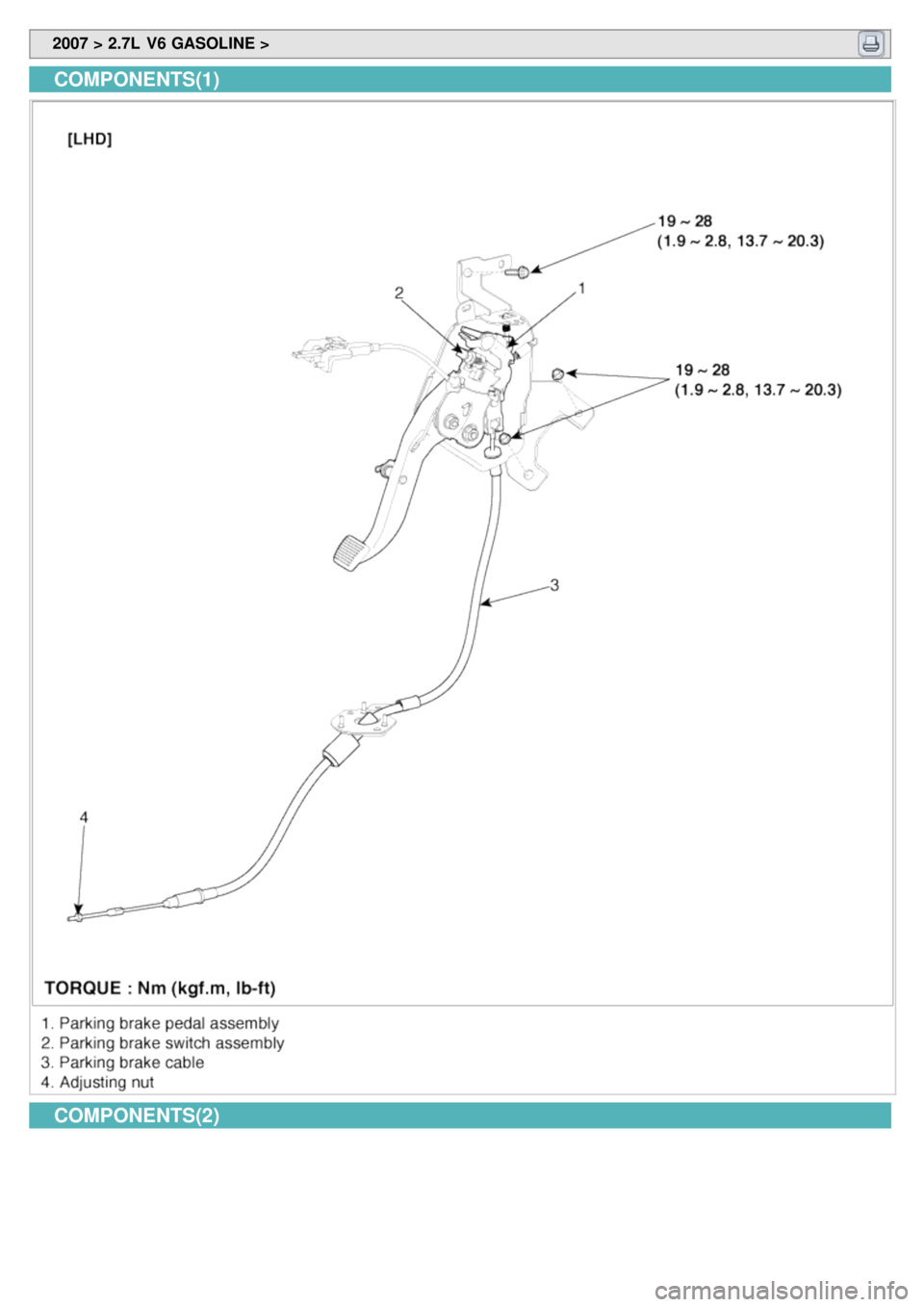

COMPONENTS(1)
COMPONENTS(2)
