KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
COMPONENTS

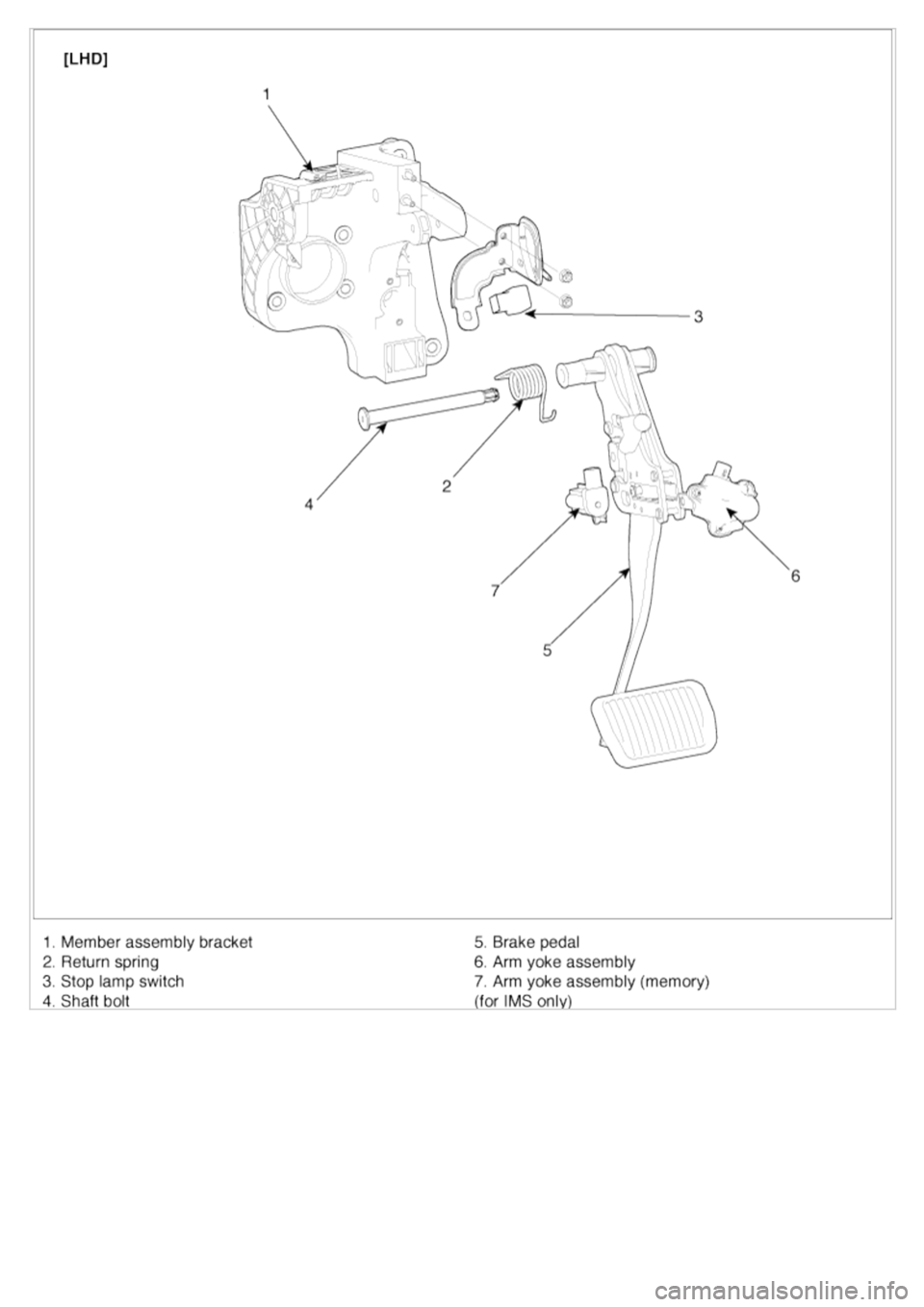

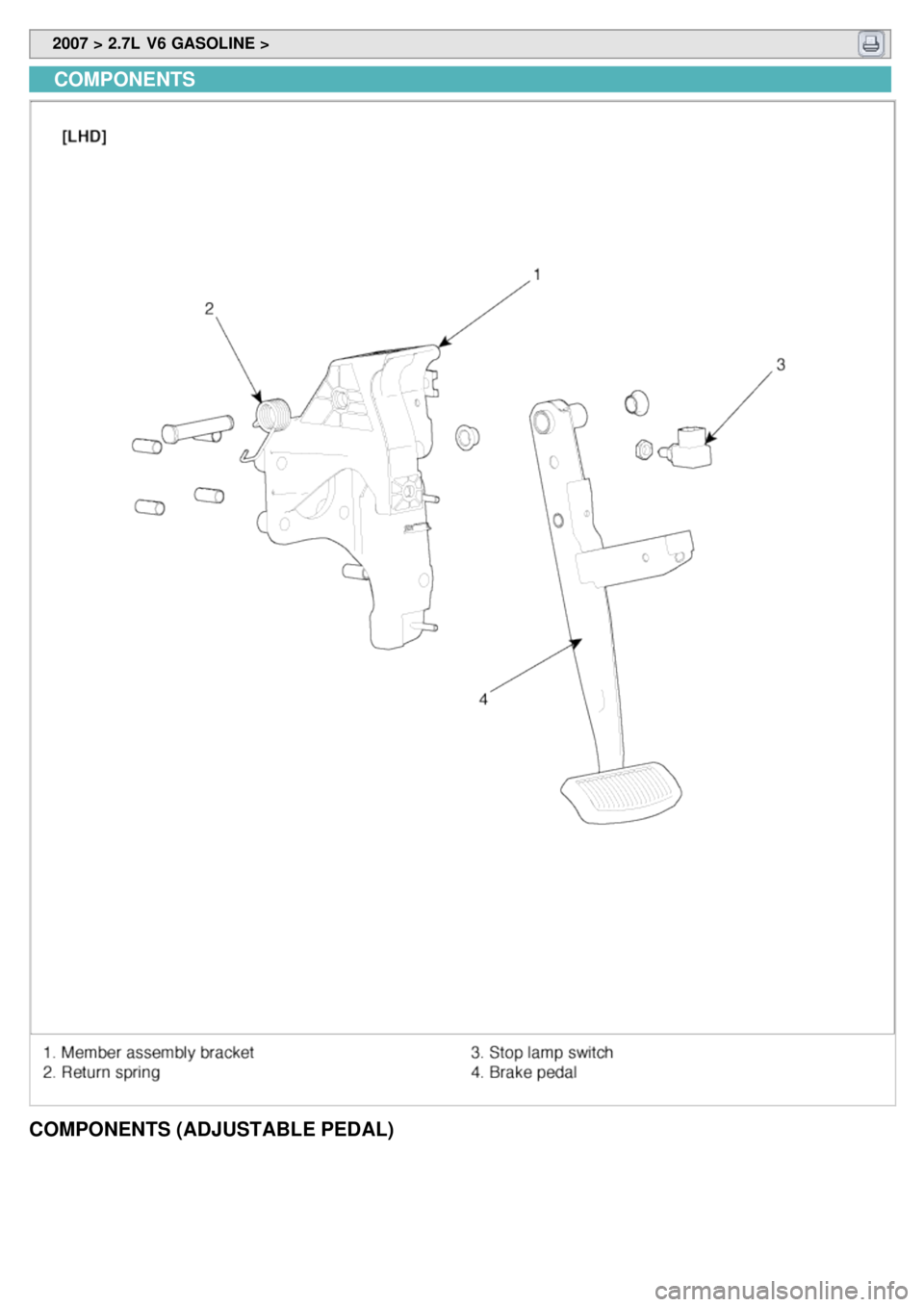

COMPONENTS (ADJUSTABLE PEDAL)

Page 892 of 1575

KIA CARNIVAL 2007  Workshop Manual

Page 893 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
REMOVAL
1.Remove the  lower  crash pad.  (Refer  to BD  group  Crash  pad)
2. Remove the  brake switch  connector.
3. Remove the  trans cable  (A)  in  case of the  adju

Page 894 of 1575

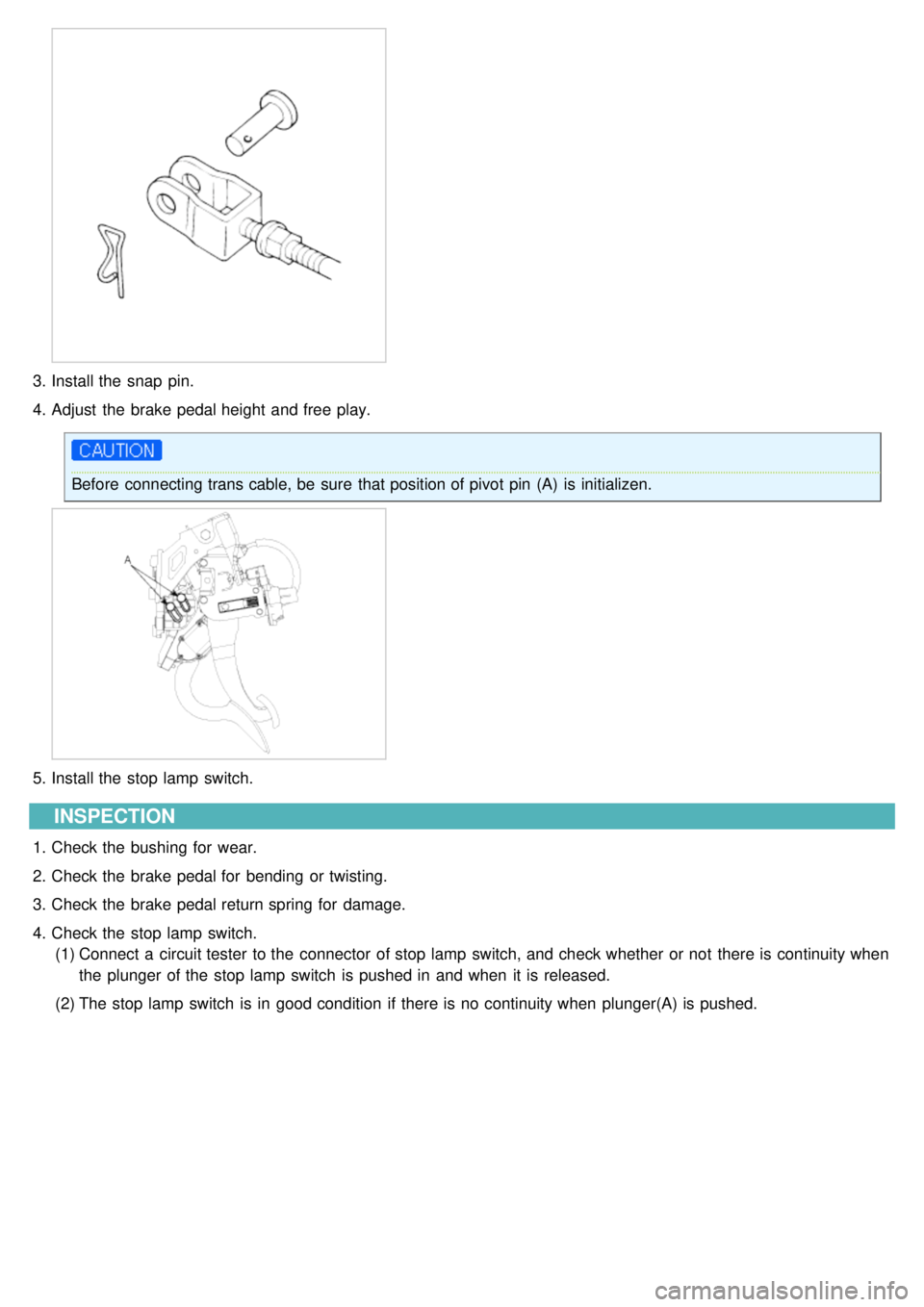

KIA CARNIVAL 2007  Workshop Manual 3.Install the  snap  pin.
4. Adjust  the  brake pedal height and free play.
Before  connecting trans cable, be sure  that position of pivot pin (A)  is initializen.

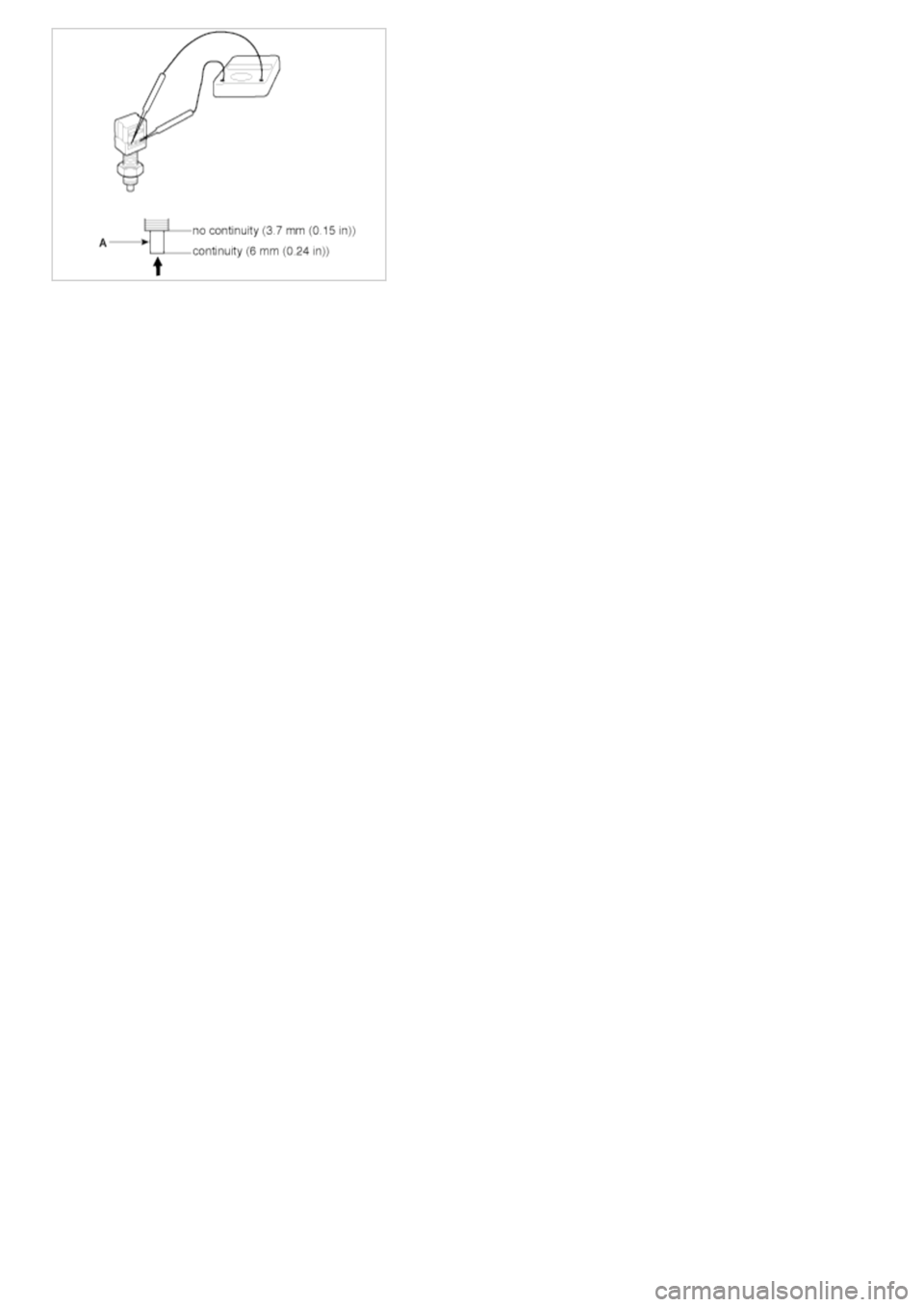

5.Install the  stop lamp  switch.
I

Page 895 of 1575

KIA CARNIVAL 2007  Workshop Manual

Page 896 of 1575

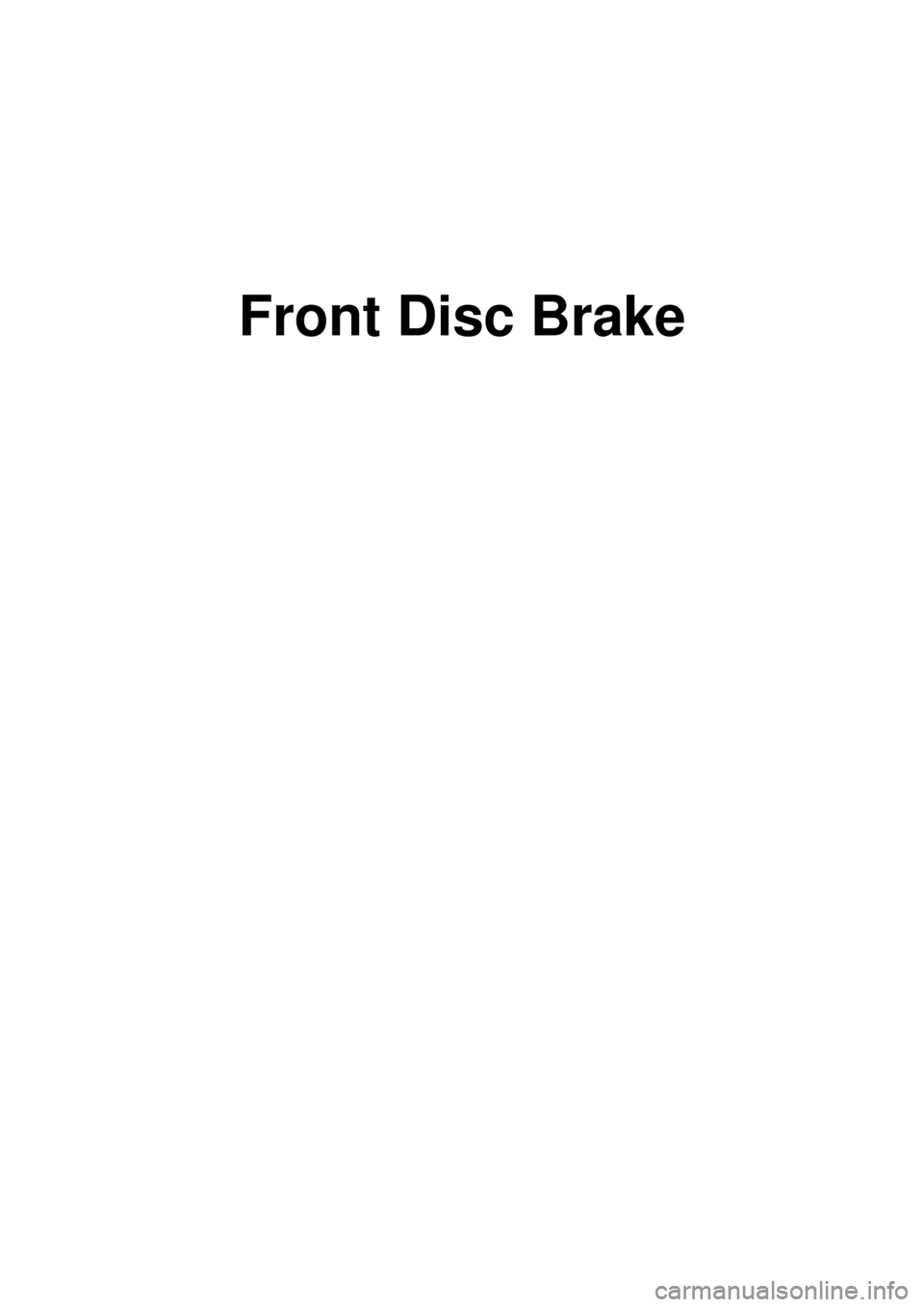

KIA CARNIVAL 2007  Workshop Manual Front Disc Brake

Page 897 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >

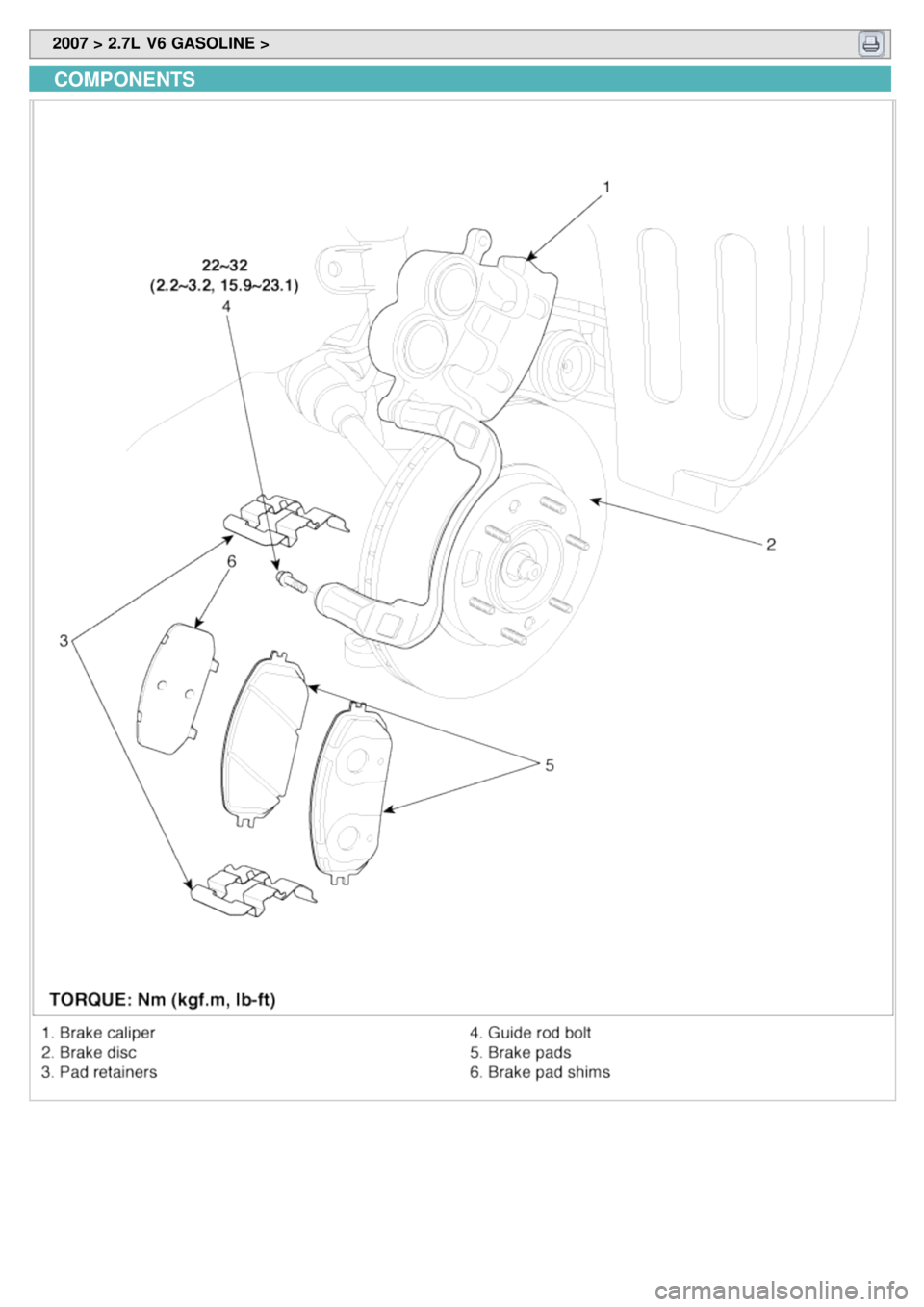

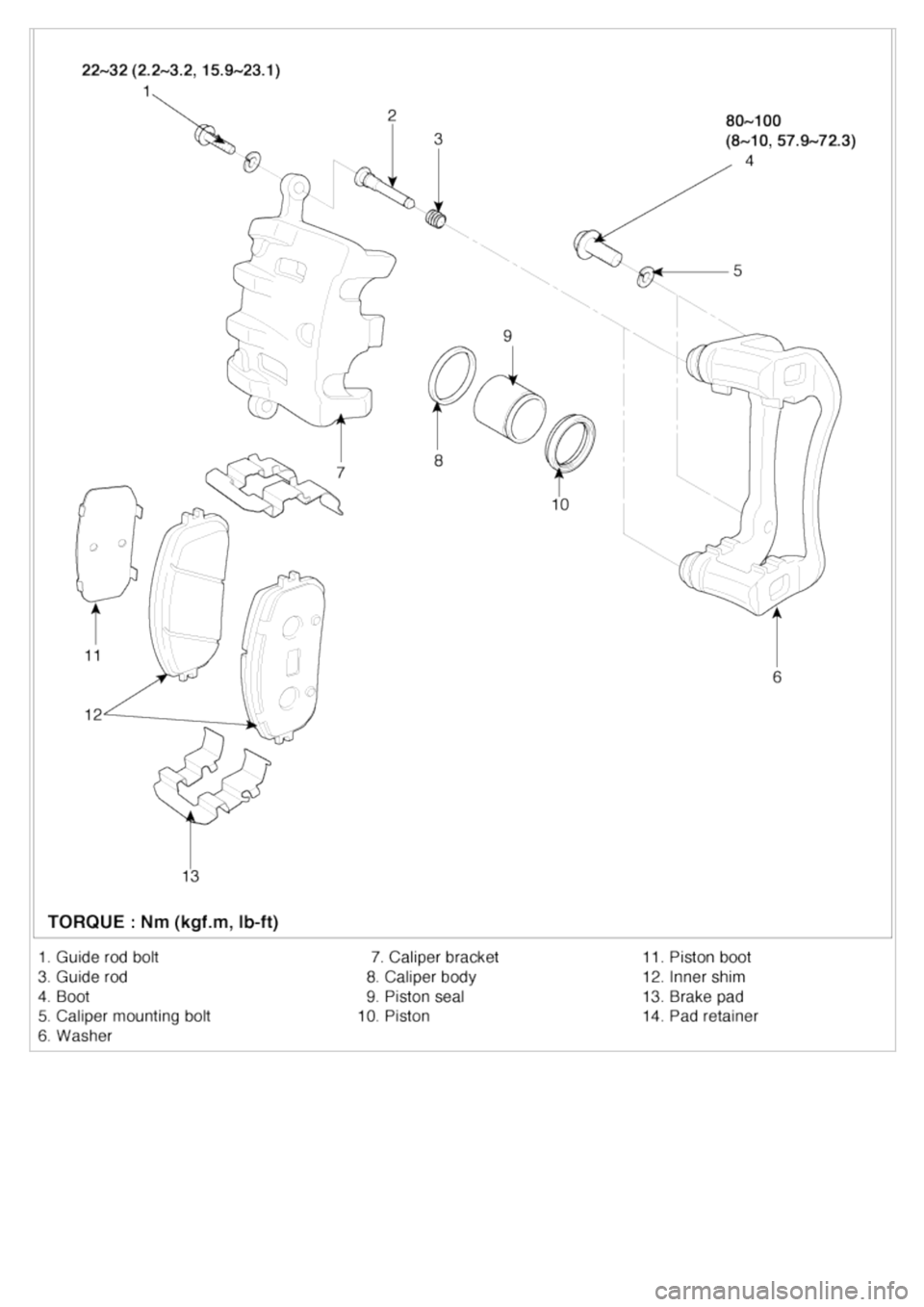

COMPONENTS

Page 898 of 1575

KIA CARNIVAL 2007  Workshop Manual

Page 899 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
REMOVAL
Frequent  inhalation of brake pad dust,  regardless of material  composition, could  be hazardous to your  health.
a. Avoid breathing  dust particles.
b. Never use

Page 900 of 1575

KIA CARNIVAL 2007  Workshop Manual If  you are reusing the  pads, always reinstall the  brake pads  in  their  original positions  to prevent a  momentary
loss  of braking efficiency.
3.Insert the  piston in  the  cylinder using  the
