Lancia Delta 2010 Owner handbook (in English)

210IN AN EMERGENCY
38
38
38
–
38
38
38
38
38
38
38
38F42
F43
F44
F45
F46
F47
F48
F49
F50
F51
F52
F535
30
15
–
20
20
20
5
7.5
5/7.5 (*)
15
7.5
CONSUMERS FUSE AMPERE DIAGRAM
Brake Node, yaw sensor
Windscreen wiper system on steering wheel interface, bi-directional
windscreen/rearscreen washer pump system on steering wheel interface
Cigar lighter/power socket on tunnel,
luggage compartment power socket
Spare
Sunroof motor
Driver-side front electric window
Passenger-side front electric window
Emergency, right, left and central control panels on radio/
radio-navigator (illumination), steering wheel controls (illumination),
controls on front courtesy light (illumination), volume-sensing
alarm control unit, electric sunroof system (controls illumination
control unit), rain/dusk sensor,
electro-chrome mirror, heated front seats controls
Air Bag Node
Cigar lighter (illumination), cruise control control,
Convergence Node, Parking Sensor Node, AQS sensor, climate control
unit, door mirror adjustment, tyre
pressure detection control unit, Lane assistance Node,
control unit on right-hand gas discharge headlight (*)
Rear wiper system on steering wheel interface
Instrument panel, direction indicators
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 210

IN AN EMERGENCY211
4
–
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40F08
F09
F10
F11
F14
F15
F16
F17
F18
F19
F22
F22
F23
F24
F30
F85–
20
10
10
15
30
7.5
10
7.5
7.5
15
20
20
5
15
15
FUSE SUMMARY TABLE - Engine compartment control unit
CONSUMERS FUSE AMPERE DIAGRAM
Spare
Headlight washer pump
Horn
Electronic injection secondary loads
Main beam headlights
PTC1 additional heater
Engine Management Node
Electronic injection primary loads
Engine Management Node
Air conditioning compressor
Electronic injection primary loads (1.4 engine)
Electronic injection primary loads (1.8 and diesel engine)
Brake Node (valves)
Electric Steering Node
Fog/cornering lights
Fuel pump
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 211

212IN AN EMERGENCY
42
42
42
42
42
42F1
F2
F3
F6
F4
F530
30
10
10
15
10
FUSE SUMMARY TABLE - Luggage compartment control unit
CONSUMERS FUSE AMPERE DIAGRAM
Right front seat adjustment node
Left front seat adjustment node
Left front seat heating
Right front seat heating
Audio Hi-Fi control unit
BASSBOX loudspeaker (Hi-Fi system)
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 212

IN AN EMERGENCY213
4

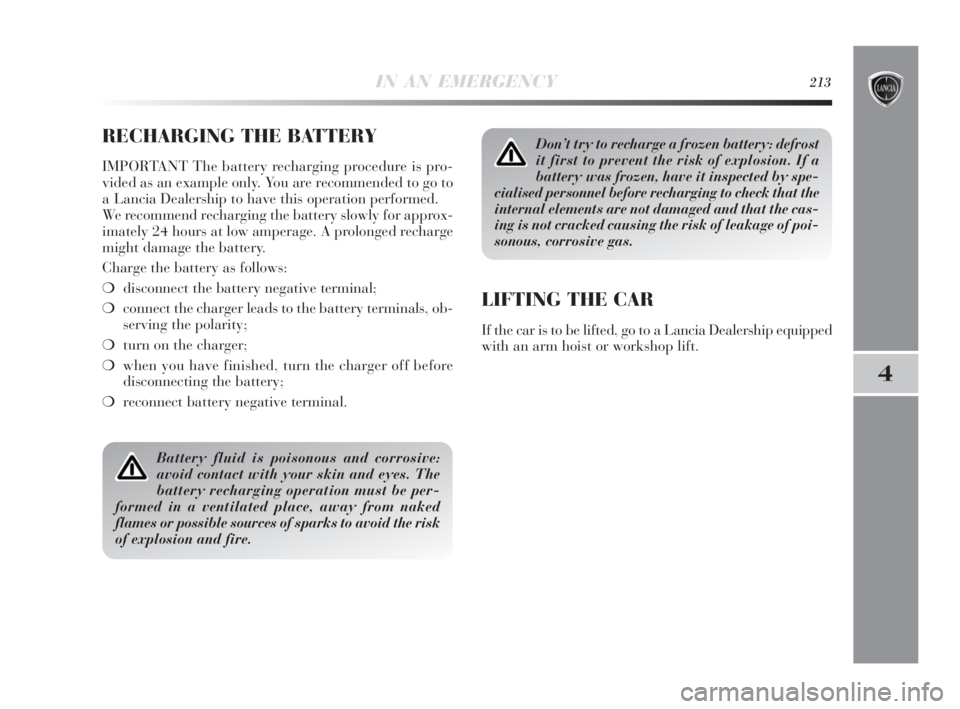

RECHARGING THE BATTERY
IMPORTANT The battery recharging procedure is pro-
vided as an example only. You are recommended to go to
a Lancia Dealership to have this operation performed.
We recommend recharging the battery slowly for approx-
imately 24 hours at low amperage. A prolonged recharge
might damage the battery.
Charge the battery as follows:
❍disconnect the battery negative terminal;
❍connect the charger leads to the battery terminals, ob-
serving the polarity;
❍turn on the charger;
❍when you have finished, turn the charger off before
disconnecting the battery;
❍reconnect battery negative terminal.
Battery fluid is poisonous and corrosive:
avoid contact with your skin and eyes. The
battery recharging operation must be per-
formed in a ventilated place, away from naked
flames or possible sources of sparks to avoid the risk
of explosion and fire.
Don’t try to recharge a frozen battery: defrost
it first to prevent the risk of explosion. If a
battery was frozen, have it inspected by spe-
cialised personnel before recharging to check that the
internal elements are not damaged and that the cas-
ing is not cracked causing the risk of leakage of poi-
sonous, corrosive gas.
LIFTING THE CAR
If the car is to be lifted, go to a Lancia Dealership equipped
with an arm hoist or workshop lift.
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 213

214IN AN EMERGENCY
TOWING THE CAR
The tow ring provided with the car is housed in the tool
box under the luggage compartment mat.
FASTENING THE TOW RING fig. 43-44
Proceed as follows:
❍release cap A;
❍take the tow hook B from its seat in the tool support;
❍tighten the ring on the rear or front threaded pin.
fig. 43L0E0090mfig. 44L0E0091m
Before starting towing operations, turn the ig-
nition key to MAR and then to STOP, without
extracting it. If the key is extracted, the steer-
ing wheel lock will be automatically activated, thus
preventing steering. The power brakes and the elec-
trical power steering will not work while the car is be-
ing towed. More effort on the brake pedal and steer-
ing wheel will therefore be required. Do not use wires
for towing. Do not jerk. Make sure not to damage parts
in contact with the car while towing. Respect the spe-
cific rules of the Highway Code when towing the car
specifically in relation to the towing device and the be-
haviour to maintain on the road. Do not start the en-
gine while towing the car.
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 214

CARE AND MAINTENANCE215
5
Scheduled maintenance ................................................................. 216
Scheduled maintenance plan ......................................................... 217
Periodic checks .............................................................................. 221
Demanding use of the car............................................................... 221
Checking fluid levels ..................................................................... 223
Air filter ........................................................................................ 230
Pollen filter ................................................................................... 230
Diesel fuel filter ............................................................................. 230
Battery .......................................................................................... 231
Wheels and tyres ........................................................................... 234
Rubber hoses ................................................................................ 236
Windscreen wiper/rear wiper ......................................................... 236
Bodywork...................................................................................... 239
Interiors ......................................................................................... 242
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 215

216CARE AND MAINTENANCE
SCHEDULED SERVICING
Correct maintenance is essential for ensuring long car life
under the best conditions.
Lancia has prepared a series of checks and service oper-
ations to be carried out every 30,000 kilometres (for petrol
versions) or every 35,000 kilometres (for diesel versions).
Scheduled servicing will not however fully cover all of the
needs of your car: also in the initial period before the
30,000/35,000 km service and later, between one ser-
vice and another, ordinary care is still required such as
routine checks, topping up the fluid levels,checking tyre
pressure, etc.
IMPORTANT Scheduled Services are required by the man-
ufacturer. Failure to carry them out may invalidate the
warranty.Scheduled Services are offered by all Lancia Dealerships
according to a set time schedule.
If during each operation, in addition to the scheduled ones,
the need arises for further replacements or repairs, these
may be carried out only with the explicit agreement of the
Customer.
IMPORTANT You are advised to contact a Lancia Deal-
ership in the event of any minor operating faults, with-
out waiting for the next service.
If your car is used frequently for towing, the interval be-
tween one service and the next should be reduced.
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 216

CARE AND MAINTENANCE217
5
SCHEDULED SERVICING PLAN
Petrol versions
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights,
passenger compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of bonnet and boot locks and
linkage cleanness and lubrication;
Check and top up, if required, fluid levels (engine coolant, brake/hydraulic
clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever stroke and adjust it, if necessary
visually inspect the condition of the accessory drive belt
Visually inspect the condition of the toothed timing drive belt30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 217

218CARE AND MAINTENANCE
30 60 90 120 150 180
●●● ●●●
●●
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●●
●●● ●●●Thousands of kilometres
Check exhaust fumes/emissions
Check evaporation control system
Check engine management system operation (via diagnostic socket)
Replace auxiliary drive belt/s
Replace toothed timing drive belt (*)
Replace spark plugs
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every 15 months)
(*) Regardless of the km covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates,
driving in the city, idling for a long time) or in any case every 5 years.
(**) If the car is mainly used in cities or less than 10,000 km a year, change the engine oil and filter every 12 months.
For 1.4 Turbo Jet versions, in order to guarantee correct operation and prevent serious damage to the engine, it is essential to ob-
serve the following:
- only use spark plugs specifically certified for Turbo Jet engines; all spark plugs should be of the same type and brand (see the “En-
gine” paragraph);
- carefully observe the spark plug replacement intervals detailed in the Scheduled Service Plan;
- it is advisable to have this performed at a Lancia Dealership.
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 218

CARE AND MAINTENANCE219
5
Diesel versions
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights,
passenger compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad seal condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of bonnet and boot locks and
linkage cleanness and lubrication
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever stroke and adjust it, if necessary
Check and if necessary adjust the auxiliary
drive belts (excluding engines equipped with automatic tensioners)
Check exhaust fumes/emissions
Visually inspect the condition of the auxiliary drive belt35 70 105 140 175
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●●
