technical specifications Lancia Musa 2007 Owner handbook (in English)

127
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
DRIVER’S DOOR
On the driver’s door panel are set two or (where fitted) five switches
for controlling, with ignition key at MAR:
A front left window opening/closing;
B front right window opening/closing;
C rear left window opening/closing (where fitted);
D rear right window opening/closing (where fitted);
E inhibitor of rear door switches (where fitted). When the device is
on, the button led is on.
L0D0103m
L0D0155m

128
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Continuous automatic operation
(only for front windows, where provided)
Certain versions with four power windows with
automatic opening/closing for front (where fitted)
windows and automatic opening only for rear
windows are fitted – just on front (where fitted)
doors - with crush-prevention seal safety system
capable of reversing the window motion when
detecting the contact between an obstacle and the
window seal.
A – B Buttons with continuous automatic
operation both for lowering and raising the
window;
C – D Buttons with continuous automatic
operation only for window opening.
Pressing briefly one of the control buttons, the
window moves “jerking” and it stops when the
button is released.PASSENGER’S DOOR AND REAR DOORS
(where fitted)
On each door panel there is the switch for
controlling the respective window.
WARNING
Improper use of the power windows can be dangerous. Before and during its
operation ensure that any passengers are not at risk from the moving glass either
by personal objects getting caught in the mechanism or by being injured by it
directly. Always remove the ignition key when getting out of the car to prevent the
power windows being operated accidentally and constituting a danger to the
passengers in the car.

129
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
BOOT
The boot tailgate (when unlocked) can be opened only from the
outside through the electric opening handle set above the number
plate holder.
If doors are unlocked the boot can be opened at any time.
Through the set-up menu of the cluster display (see “Reconfigurable
multifunction display” in the present chapter) it is possible to activate
the “Independent boot unlocking”: in this way the boot is not
unlocked together with the doors; to open it press button
Ron the
remote control.
The tailgate opening is indicated by double flashing of direction
indicators.L0D0104m
L0D0016m
REAR MANUAL WINDOW CONTROLS
(where fitted)
Operate the handle to open or to close the window.
L0D0156m

130
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
TAILGATE CLOSING
First lower the tailgate using the appropriate handles, as shown in the
figure, and then push the tailgate until it clicks into place.
IMPORTANT If option “Independent boot” is on, before closing the
boot check whether you have with you the ignition key since the boot
will be locked automatically.
L0D0105m
The addition of objects (speakers, spoilers, etc.) on the rear shelf or boot lid, except those
envisaged by the manufacturer, may prevent the gas filled struts at the sides of the boot from
working properly.
WARNING
WARNING
When using the boot, make sure the loads do not exceed the permitted weight (see
“Technical specifications” chapter). Also make sure the items in the boot are
arranged properly to prevent them being thrown forwards and injuring
passengers should you brake sharply.
Never travel with objects on the rear shelf to prevent them being thrown forwards
and injuring passengers in case of accident or sharp braking.

131
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
EMERGENCY OPENING OF TAILGATE
To succeed in opening the tailgate from the inside, should the car
battery be flat, or because of a defect of the electric lock of the
tailgate, proceed as follows (refer to “Extending the boot” in this
section):
❒remove the rear head restraints;
❒tilt seat backrests to "table" configuration;
❒tilt cushion / backrest completely.
❒operate lever B, to obtain tailgate mechanical release, operating
from the inside of the boot.
REAR PARCEL SHELF REMOVAL
To remove the rear parcel shelf in order to extend the boot, proceed as
follows:
❒Front parcel shelf: release and turn the parcel shelf from its seat
and release the two pins from the side seats.
❒Rear parcel shelf: release the two pins from the side seats
L0D0338m
L0D0108m

132
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

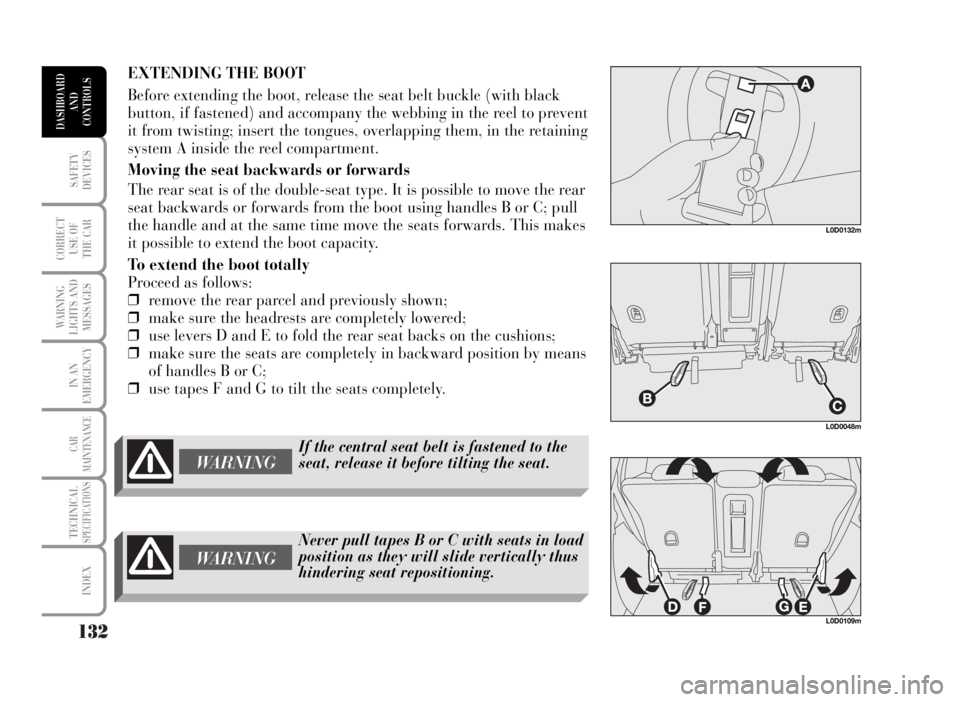

EXTENDING THE BOOT
Before extending the boot, release the seat belt buckle (with black
button, if fastened) and accompany the webbing in the reel to prevent
it from twisting; insert the tongues, overlapping them, in the retaining
system A inside the reel compartment.
Moving the seat backwards or forwards
The rear seat is of the double-seat type. It is possible to move the rear
seat backwards or forwards from the boot using handles B or C; pull
the handle and at the same time move the seats forwards. This makes
it possible to extend the boot capacity.
To extend the boot totally
Proceed as follows:
❒remove the rear parcel and previously shown;
❒make sure the headrests are completely lowered;
❒use levers D and E to fold the rear seat backs on the cushions;
❒make sure the seats are completely in backward position by means
of handles B or C;
❒use tapes F and G to tilt the seats completely.
L0D0132m
L0D0109m
L0D0048m
WARNING
WARNING
If the central seat belt is fastened to the
seat, release it before tilting the seat.
Never pull tapes B or C with seats in load
position as they will slide vertically thus
hindering seat repositioning.

133
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
The tilted seats are fastened in this position by the action of the side
struts.
IMPORTANT Tilting is only possible with rear seats positioned
completely backwards.
Partial extension
Operating the required part (right or left) of the seat in the same way
it is possible to obtain partial extension of the boot as illustrated.
IMPORTANT For rear seat complete tilting it could be necessary to
move the front seats forward.
To return the cushions on the floor
Use tapes (B) to return the cushions on the floor.
L0D0111m
L0D0112m
L0D0110m
WARNING
With table folded seats, in the event of a
crash it can be dangerous to carry heavy
objects on the rear seat back.
WARNING
The position of the rear seat backs folded
on the respective cushions shall not be
considered a loading position and
therefore cannot bear heavy weights.

134
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
BONNET
TO OPEN THE BONNET
Proceed as follows:
❒pull lever A in the direction of the arrow;
❒move the lever B to the right as shown by the arrow;
❒lift the bonnet and at the same time release the rod C from the clip
D, then insert the rod end in its housing E on the bonnet.
IMPORTANT Before opening the bonnet, check that windscreen
wiper arms are not lifted from the windscreen.
L0D0113m
L0D0114mL0D0115m
WARNING
For safety reasons the bonnet shall
always be perfectly closed when
travelling. Always check for proper
bonnet locking. If the bonnet is left
inadvertently open, stop the car
immediately and close the bonnet.

135
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
TO CLOSE THE BONNET
Proceed as follows:
❒hold the bonnet up with one hand and with the
other remove rod C from recess D and replace it
in its locking device E;❒lower the bonnet at approx. 20 centimetres from
the engine compartment and then let it drop,
ensuring that it is fully closed and not just held
in position by the safety catch. If the bonnet does
not close properly, do not push it down but open
it again and repeat the above procedure.
IMPORTANT Always check that the bonnet is
closed properly to avoid its opening while the car is
travelling.
WARNINGIf the supporting rod is not positioned correctly the bonnet may fall violently.
WARNING
Carry out operations when the vehicle is stationary.

136
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
ROOF/SKI RACKS (where provided)
IMPORTANT Use roof/ski racks provided at Lineaccesori Lancia.
Always attain to the installation instructions provided with the kit
and have the roof racks installed by skilled personnel.
IMPORTANT Never exceed the max. permissible loads (see section
“Technical specifications”).
After few kilometers, check that fastening screws are firmly tightened.
HEADLIGHTS
ADJUSTING THE HEADLIGHT BEAM
Proper adjustment of the headlight beams is of vital importance for
your safety and comfort and also for the other road users. To ensure
you and other drivers have the best visibility conditions when
travelling with the headlights on, the headlights must be set properly.
Contact Lancia Dealership to have the headlights properly adjusted.
Headlight aiming device
The device can be operated with the ignition key at MAR and dipped
beam headlights on. When the car is loaded, it slopes backwards.
This means that the headlight beam rises. In this case, it is necessary
to return it to the correct position.
L0D0116m L0D0248m
Never activate the sunroof with roof racks mounted.
