Lancia Ypsilon 2011 Owner handbook (in English)

TABLE OF CONTENTS
INTRODUCTION.....................................................263
TIPS ......................................................................263
TECHNICAL CHARACTERISTICS .......................26
Speakers for Basic Audio specification....................265
Speakers for 360° HI-FI MUSIC specification ........265
QUICK GUIDE ........................................................266
General functions ...................................................267
Radio functions ......................................................268
CD functions ..........................................................268
Media Player functions (only withBlue&Me™) ...269
STEERING WHEEL CONTROLS ..........................270
INTRODUCTION.....................................................271
FUNCTIONS AND ADJUSTMENTS ........................272
SWITCHING ON THE CAR RADIO ......................272
SWITCHING OFF THE CAR RADIO.....................272
SELECTING THE RADIO FUNCTIONS ...............272
SELECTING CD FUNCTION ................................273
AUDIO SOURCE MEMORY FUNCTION ...............273
VOLUME ADJUSTMENT ......................................273
MUTE/PAUSE FUNCTION....................................273
AUDIO SETTINGS ................................................273
TONE ADJUSTMENT (bass/treble) .......................274
BALANCE ADJUSTMENT.....................................274
FADER ADJUSTMENT ..........................................274
LOUDNESS FUNCTION .......................................274
EQ FUNCTION .....................................................275
USER EQ SETTINGS FUNCTION ........................275
MENU....................................................................275
AF SWITCHING function .....................................276
TRAFFIC INFORMATION function ......................277REGIONAL MODE function .................................278
MP3 DISPLAY function ........................................278
SPEED VOLUME function ...................................279
RADIO ON VOLUME function .............................279
SPEECH VOLUME function .................................280
AUX OFFSET function .........................................280
RADIO OFF function ............................................280
SYSTEM RESET function......................................280
PHONE SET-UP ....................................................281
ANTI-THEFT PROTECTION ................................281
RADIO (TUNER) .....................................................282
INTRODUCTION...................................................282
FREQUENCY BAND SELECTION ........................282
PRESET BUTTONS...............................................283
STORING THE LAST STATION LISTENED TO...283
AUTOMATIC TUNING ..........................................283
MANUAL TUNING ................................................283
AUTOSTORE FUNCTION ....................................283
EMERGENCY ALARM RECEPTION ....................284
EON FUNCTION (Enhanced Other Network) ........284
STEREOPHONIC BROADCASTERS .....................285
CD PLAYER ............................................................285
INTRODUCTION...................................................285
SELECTING THE CD PLAYER ............................285
LOADING/EJECTING A CD..................................286
DISPLAY INFORMATION .....................................286
TRACK SELECTION (forward/back) ....................287
TRACK FAST FORWARD/REWIND ......................287
PAUSE FUNCTION ...............................................287
CD MP3 PLAYER ....................................................287
261
SOUND-SYSTEM
5

INTRODUCTION...................................................287
MP3 MODE ...........................................................287
SELECTING MP3 SESSIONS ON HYBRID
DISCS ....................................................................288
DISPLAY INFORMATION .....................................288
SELECTING NEXT/PREVIOUS FOLDER ............289
STRUCTURE OF THE FOLDERS.........................289
AUX (only with theBlue&Me™ system) ................289INTRODUCTION...................................................289
AUX MODE ...........................................................289
TROUBLESHOOTING ...........................................290
GENERAL .............................................................290
CD PLAYER ..........................................................290
MP3 FILE READING.............................................290
262
SOUND-SYSTEM

INTRODUCTIONThe radio has been designed according to the
passenger compartment's specific characteristics
and with a personalised design that complements
the style of the dashboard.
The instructions for use are given below. We
recommend that you read them carefully.
TIPS
Road safety
Familiarise yourself with the various car radio
functions (e.g. storing radio stations), before
starting to drive.
Reception conditions
Reception conditions change constantly while
driving. Reception may be interfered with by the
presence of mountains, buildings or bridges, or
when you are far away from the broadcaster.
Note
The volume may be increased when receiving
traffic alerts and news.
WARNING
If the volume is too loud this could be
dangerous for the
driver and for
passengers when driving in traffic. Always
adjust the volume so that you can still hear
background noises.
Maintenance and care
Only clean the cover with a soft, anti-static cloth.
Cleaning and polishing products may damage the
surface.
CD
Dirt, scratches or any distortions on CDs may
cause skipping during playback and poor sound
quality. Follow these tips for optimum playback
conditions:
❒only use CDs with the brand:
❒clean every CD thoroughly removing any
fingerprints or dust using a soft cloth. Hold CDs
by the circumference and clean them from the
centre towards the edge;
263
SOUND-SYSTEM

❒never use chemical products (e.g. antistatic or
thinner spray cans) for cleaning as they could
damage the surface of the CDs;
❒after listening to them place CDs back in their
cases to avoid them being damaged;
❒do not expose CDs to direct sunlight, high
temperatures or moisture for long periods;
❒do not stick labels on the surface of the CD and
do not write on the recorded surface using pens
or pencils;
❒Never use CDs that are very scratched, cracked,
distorted, etc. Their use could cause damage the
player or make it malfunction;
❒to achieve the best quality audio reproduction
we recommend the use of original CD media.
Correct operation is not guaranteed when CD-
R/RW media are used that were not correctly
burnt and/or with a maximum capacity above
650 Mb;
❒do not use commercially available protective
sheets for CDs or discs with stabilisers as they
could get stuck in the internal mechanism and
damage the disc;❒if a copy-protected CD is used, it may take a few
seconds before the system starts to play it. The
CD player cannot be guaranteed to play all
protected discs. The presence of copy protection
is often indicated in small letters or may be
difficult to read on the cover of the CD; it may
say something like, for example, "COPY
CONTROL", "COPY PROTECTED", "THIS
CD CANNOT BE PLAYED ON A PC/MAC" or
may be identified through the use of symbols,
such as, for example:
❒The CD player is able to read most of the
compression systems currently on the market
(e.g.:LAME, BLADE, XING, FRAUNHOFER)
but as these systems are continually evolving,
playback of all compression formats is not
guaranteed.
264
SOUND-SYSTEM

Speakers for Basic Audio specification
Front speakers
❒2
38 mm tweeters on the door pillar;
❒2165 mm mid-woofer speakers in the door
panel.
Rear speakers
❒2165 mm full-range speakers in the door
panel.
Speakers for 360° HI-FI MUSIC specification
(if requested as an optional, as an alternative
to the Basic Audio level)
Front speakers
❒239 mm tweeters on the door pillar;
❒2165 mm mid-woofer speakers in the door
panel.
Rear speakers
❒239 mm tweeters on the side panels;
❒2165 mm mid-woofer speakers in the door
panel;
❒1 8-channel amplifier.The 360° HI-FI MUSIC audio system has been
carefully designed to provide the best acoustic
performance and reproduce sound like a live
concert in all areas of the passenger compartment.
The system faithfully reproduces crystalline treble
tones and provides full and rich bass tones that
make the loudness function superfluous.
The complete range of sound is reproduced
throughout the entire passenger compartment so
that the occupants are enveloped with the feeling
of space experienced when listening to live music.
The components used have been patented and
make use of the most sophisticated technology
whilst at the same time being easy to use by even
the most inexperienced people.
265
SOUND-SYSTEM
TECHNICAL CHARACTERISTICS

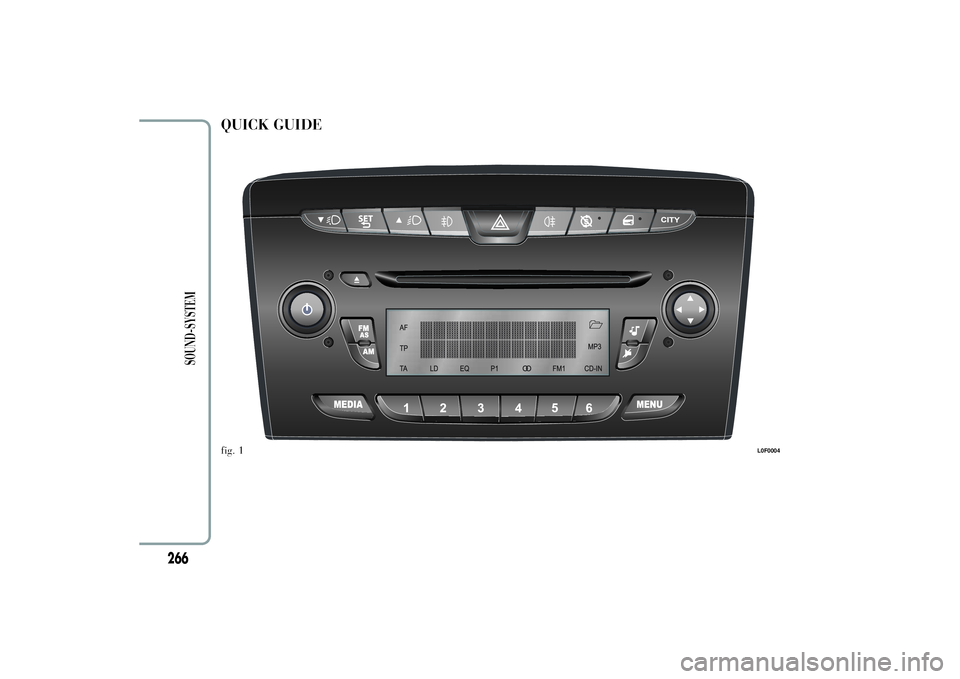

QUICK GUIDEfig. 1
L0F0004
266
SOUND-SYSTEM

General functionsButton Functions Method
On short button press
Off short button press
Volume adjustment LH/RH knob rotation
FM ASFM1, FM2, FM Autostore radio source
selectionshort cyclical button press
AMMW1, MW2 radio source selection short cyclical button press
MEDIACD/Media Player source selection (only with
Blue&Me
™
) / AUX (only with
Blue&Me
™
, for versions/markets, where
provided)short cyclical button press
Volume activation/deactivation
(Mute/Pause)Short button pressAudio adjustments: low tones (BASS), high
tones (TREBLE), RH / LH balance
(BALANCE), front / rear balance (FADER)Menu activation: short button press
Selection of type of adjustment: pressing
or
buttons
Adjustment of values: pressing
or
˙
buttons
MENUAdvanced functions adjustmentMenu activation: short button press
Selection of type of adjustment: pressing
or
buttons
Adjustment of values: pressing
or
buttons.
267
SOUND-SYSTEM

Radio functionsButton Functions Method
Radio station search:
- Automatic search
- Manual searchAutomatic search: pressing
or
buttons
(long press for fast forward)
Manual search: pressing
or
buttons
(long press for fast forward)
123456Store current radio stationLong press on keys for preset/memory from
1to6
Stored station recallBrief press on keys for preset/memory from
1to6
CD functionsButton Functions Method
CD ejection Short button pressPlay previous/next track Short press of
or
buttons
Fast forwarding/rewinding CD track Long pressing of
or
buttons
Playing previous/next folder (for CD-MP3) Short press of
or
buttons
268
