Media Player functions (only with Blue&Me™)Button Functions Method
Select previous/next
folder/artist/genre/album depending on the
active selection modeShort button pressPlay previous/next track Short button press
269
SOUND-SYSTEM

STEERING WHEEL CONTROLS(for versions/markets, where provided)Button Functions Method
AudioMute on/off (Radio mode) or Pause
function (MP3 or Media Player mode only
withBlue&Me
™
)Short button press
+Increasing volume Button press
-Decreasing volume Button press
SRCSelection of Radio frequency range (FM1,
FM2, FMT, FMA, MW1, MW2) and listening
sources; Radio, MP3 or Media Player (only
withBlue&Me
™
) /AUX (only with
Blue&Me
™
, for versions/markets, where
provided)Button press
Radio: recall stored stations (from 1 to 6)
CD/CD MP3: select next trackButton pressRadio: recall stored stations (from 6 to 1)
CD/CD MP3: select previous trackButton press
SRC
fig. 2
L0F0049
270
SOUND-SYSTEM

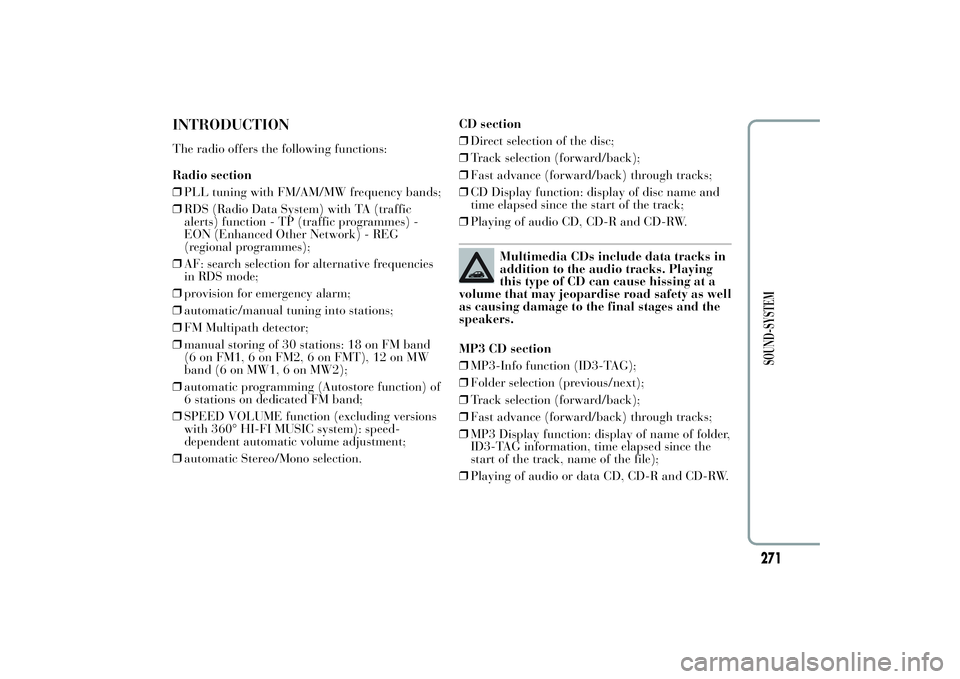

INTRODUCTIONThe radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequency bands;
❒RDS (Radio Data System) with TA (traffic
alerts) function - TP (traffic programmes) -
EON (Enhanced Other Network) - REG
(regional programmes);
❒AF: search selection for alternative frequencies
in RDS mode;
❒provision for emergency alarm;
❒automatic/manual tuning into stations;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM band
(6 on FM1, 6 on FM2, 6 on FMT), 12 on MW
band (6 on MW1, 6 on MW2);
❒automatic programming (Autostore function) of
6 stations on dedicated FM band;
❒SPEED VOLUME function (excluding versions
with 360° HI-FI MUSIC system): speed-
dependent automatic volume adjustment;
❒automatic Stereo/Mono selection.CD section
❒Direct selection of the disc;
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒CD Display function: display of disc name and
time elapsed since the start of the track;
❒Playing of audio CD, CD-R and CD-RW.
Multimedia CDs include data tracks in
addition to the audio tracks. Playing
this type of CD can cause hissing at a
volume that may jeopardise road safety as well
as causing damage to the final stages and the
speakers.
MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒MP3 Display function: display of name of folder,
ID3-TAG information, time elapsed since the
start of the track, name of the file);
❒Playing of audio or data CD, CD-R and CD-RW.
271
SOUND-SYSTEM

Audio section
❒Mute/Pause function;
❒Soft-Mute function;
❒Loudness function (excluding versions with
360° HI-FI MUSIC system);
❒7 band graphic equalizer (excluding versions
with 360° HI-FI MUSIC system);
❒Separate bass/treble adjustment;
❒Right/left channel balance.
Media Player section (only with Blue&Me™)
For the Media Player functions see, the
Blue&Me™ supplement.
AUX section (only with Blue&Me™)
(for versions/markets, where provided)
❒AUX source selection;
❒AUX Offset function: alignment of the portable
device volume with that of the other sources;
❒Portable player playback.
FUNCTIONS AND ADJUSTMENTSSWITCHING ON THE CAR RADIO
The car radio comes on when the button/knob
(ON/OFF) is pressed briefly.
When the car radio is turned on, the volume is
limited to value 20 if it was set to a higher value
when previously used or to value 5 if it was
previously set to value 0 or to Mute/Pause. The
previously set value is maintained in all other
cases.
When the radio is switched on with the key
extracted from the ignition, it switches off
automatically after about 20 minutes. After the
radio has switched itself off automatically it can be
turned on for a further 20 minutes by pressing the(ON/OFF) button/knob.
SWITCHING OFF THE CAR RADIO
Briefly press the
(ON/OFF) button/knob.
SELECTING THE RADIO FUNCTIONS
By pressing the FM AS button quickly and
repeatedly, the following audio sources can be
selected cyclically:
❒TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button briefly and repeatedly,
the following audio sources can be selected
cyclically:
❒TUNER ("MW1", "MW2").
272
SOUND-SYSTEM

SELECTING CD FUNCTION
By pressing the MEDIA button briefly it is possible
to select the CD function.
AUDIO SOURCE MEMORY FUNCTION
If another function (e.g. the radio) is selected
whilst listening to a CD, playback is interrupted
and is resumed from the same point when
returning to the CD source.
If another function is selected whilst listening to
the radio, the last station selected is tuned into
when returning to the Radio mode.
VOLUME ADJUSTMENT
Turn the
(ON/OFF) button/knob to adjust the
volume.
If the volume level is changed during the
transmission of traffic news, the new setting will
only be maintained until the update is finished.
MUTE/PAUSE FUNCTION
(volume reset)
Press thebutton briefly to activate the Mute
function. The volume will gradually decrease and
the words "RADIO Mute" (in radio mode) or
"PAUSE" (in CD mode) will appear on the
display.
Press thebutton again to deactivate the Mute
function. The volume will gradually increase until
it reaches the level previously set.When the volume level is changed using the
dedicated controls, the Mute function is
deactivated and the volume is adjusted to the new
level selected.
With the Mute function activated, it will be
ignored when there is an incoming traffic alert (if
the TA function is activated), or if an emergency
alarm is received. The function will be reactivated
when the alert is over.
AUDIO SETTINGS
The functions in the audio menu differ according
to the activated source: AM/FM/CD/Media Player
(only withBlue&Me™) /AUX (only with
Blue&Me™, for versions/markets, where
provided).
Press the
button briefly to change the Audio
functions.
After thebutton is first pressed, the display will
show the bass level value for the source activated
at that time (e.g. in FM mode the display will
show the wording "FM Bass +2").
Use theor
buttons to scroll the menu
functions. To change the setting of the function
selected use the
or
buttons. The current status
of the selected function appears on the display.
The functions managed by the Menu are:
❒BASS (adjustment of bass tones);
❒TREBLE (adjustment high tones);
❒BALANCE (right/left balance adjustment);
273
SOUND-SYSTEM

❒FADER (front/back balance adjustment);
❒LOUDNESS (excluding versions with 360°
HI-FI MUSIC system) (activation/deactivation
of LOUDNESS function);
❒EQUALIZER (excluding versions with 360°
HI-FI MUSIC system) (activation and selection
of equalizer factory settings);
❒USER EQUALISER (excluding versions with
360° HI-FI MUSIC system) (personalised
equaliser settings).
TONE ADJUSTMENT (bass/treble)
Proceed as follows:
❒Use
or
buttons to set the “Bass” or “Treble”
in the AUDIO menu;
❒press theor
button to increase/decrease the
bass or treble.
By pressing the buttons briefly, the levels will
change progressively. By pressing them down
longer, the levels will change quickly.
BALANCE ADJUSTMENT
Proceed as follows:
❒Select by theor
buttons the "Balance"
setting in the AUDIO menu;
❒press the
button to increase the volume of the
right speakers or the
button to increase the
volume of the left speakers.By pressing the buttons briefly, the levels will
change progressively. By pressing them down
longer, the levels will change quickly.
Select the value "
0
" to set the same level for
the right and left audio outputs.
FADER ADJUSTMENT
Proceed as follows:
❒Select by the
or
buttons the "Fader" setting
in the AUDIO menu;
❒press the
button to increase the sound from
the rear speakers or the
button to increase the
sound from the front speakers.
By pressing the buttons briefly, the levels will
change progressively. By pressing them down
longer, the levels will change quickly.
Select the value "
0
" to set the same level for
the front and rear audio outputs.
LOUDNESS FUNCTION
(excluding versions with 360° HI-FI MUSIC
system)
The Loudness function improves the volume of the
sound whilst listening at low volumes, increasing
the bass and treble.
To activate/deactivate the function, select the
Loudness setting of the AUDIO menu using the
or
buttons.
274
SOUND-SYSTEM

The condition of the function (on or off) is shown
on the display for a few seconds by the wording
“Loudness On” or “Loudness off”.
EQ FUNCTION
(equaliser activation/deactivation)
(excluding versions with 360° HI-FI MUSIC
system)
The built-in equaliser can be
activated/deactivated. When the equaliser function
is off, the audio settings can only be changed by
adjusting the “Bass” and “Treble” settings,
whereas when the function is on, the acoustic
curves can be adjusted. To turn off the equaliser,
select the "EQ OFF" function using the
or
buttons.
To turn the equaliser on, use the
or
buttons to
select one of the adjustments:
❒"FM/AM/CD...EQ User" (adjustment of 7
equaliser bands that can be changed by the
user);
❒"Classic" (equaliser preset for optimal classical
music sound);
❒"Rock" (equaliser preset for optimal rock and
pop music sound);
❒"Jazz" (equaliser preset for optimal jazz music
sound).
When one of the equaliser settings is activated the
letters "EQ" light up.USER EQ SETTINGS FUNCTION
(equaliser settings only if the USER setting is
selected)
(excluding versions with 360° HI-FI MUSIC
system)
To set a customised equaliser adjustment, set to
"User" using the
or
buttons and press the
MENU button.
A 7-bar graph appears on the display, in which
each bar represents a frequency.
Select the bar to adjust using the
or
buttons;
the selected bar will start to flash and it can be
adjusted using the
or
buttons.
To store the setting, press the
button again. The
display will show the source activated at the time
followed by the word "User". If the mode is, for
example, FM, then the display will show "FM EQ
User".
MENU
Menu button functions
Press the Menu function briefly to activate the
MENU function. The display will show the first
menu item that can be adjusted (AF) ("AF
Switching On" on the display).
Use the
or
buttons to scroll the menu
functions. To change the setting of the function
selected use the
or
buttons.
The current status of the function selected will be
shown on the display.
275
SOUND-SYSTEM

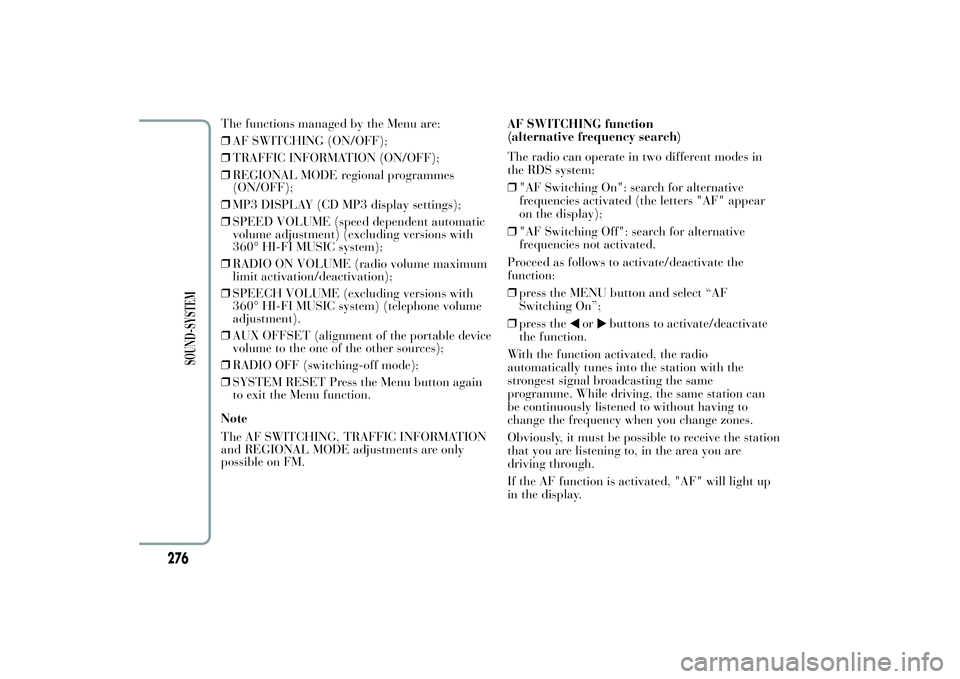

The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);
❒REGIONAL MODE regional programmes
(ON/OFF);
❒MP3 DISPLAY (CD MP3 display settings);
❒SPEED VOLUME (speed dependent automatic
volume adjustment) (excluding versions with
360° HI-FI MUSIC system);
❒RADIO ON VOLUME (radio volume maximum
limit activation/deactivation);
❒SPEECH VOLUME (excluding versions with
360° HI-FI MUSIC system) (telephone volume
adjustment).
❒AUX OFFSET (alignment of the portable device
volume to the one of the other sources);
❒RADIO OFF (switching-off mode);
❒SYSTEM RESET Press the Menu button again
to exit the Menu function.
Note
The AF SWITCHING, TRAFFIC INFORMATION
and REGIONAL MODE adjustments are only
possible on FM.AF SWITCHING function
(alternative frequency search)
The radio can operate in two different modes in
the RDS system:
❒"AF Switching On": search for alternative
frequencies activated (the letters "AF" appear
on the display);
❒"AF Switching Off": search for alternative
frequencies not activated.
Proceed as follows to activate/deactivate the
function:
❒press the MENU button and select “AF
Switching On”;
❒press the
or
buttons to activate/deactivate
the function.
With the function activated, the radio
automatically tunes into the station with the
strongest signal broadcasting the same
programme. While driving, the same station can
be continuously listened to without having to
change the frequency when you change zones.
Obviously, it must be possible to receive the station
that you are listening to, in the area you are
driving through.
If the AF function is activated, "AF" will light up
in the display.
276
SOUND-SYSTEM

If the AF function has been activated and the
radio is not able to receive the tuned station, the
radio activates the automatic search, during which
"FM Search" appears on the display (only for top
of the range radios).
With the AF function deactivated, the remaining
RDS functions, such as the display of the station
name, still remain active.
The AF function can only be activated on FM
bands.
TRAFFIC INFORMATION function
(traffic information)
Some stations on the FM band (FM1, FM2 and
FMA) can broadcast information about traffic
conditions.
In this case the text "TA" appears on the display.
Proceed as follows to activate/deactivate the TA
function:
❒press the MENU button briefly and select
“Traffic info”;
❒press the
or
buttons to activate/deactivate
the function.
❒If the TA function has been activated, the icon
“TA” lights up on the display.Note
If the TA function is activated with an audio
source other than Tuner (Radio) (CD, MP3,
telephone or Mute/Pause), the radio can carry out
an automatic search and therefore it is possible,
when reactivating the Tuner (Radio) source, that
the frequency tuned into is different from the one
previously set.
With the TA function, it is possible to:
❒search only for RDS stations that broadcast in
FM and are enabled to broadcast traffic
information;
❒receive traffic information even when the CD
player is in operation;
❒receive traffic information at a minimum preset
volume even with the radio volume off.
Note
In some countries there are radio stations that,
even with the TP function activated, do not
transmit traffic information (the icon "TP"
appears on the display).
If the radio is tuned to a station in the AM band,
when TA is activated it will tune to the last
selected station in the FM1 band.
The volume at which the traffic news is
transmitted depends on the listening volume:
❒listening volume below 5: traffic news volume 5
(fixed value);
277
SOUND-SYSTEM

❒listening volume above 5: traffic news volume
equal to listening volume +1.
If the volume is changed during traffic news, the
level will not be shown on the display; the new
level will only be maintained during the news.
While traffic information is being received,
“TRAFFIC INFORMATION” will appear on the
display.
The TA function can be interrupted by pressing
any button on the car radio.
REGIONAL MODE function
(regional transmission reception)
Some national broadcasters will transmit regional
programmes at certain times of the day (that vary
from region to region).
This function makes it possible to tune into local
(regional) broadcasters automatically (see "EON
function" paragraph).
If you want the radio to automatically tune into
the regional stations being broadcast on the
selected network, the function must be activated.
To activate/deactivate the function use the
or
buttons.
The current status of the function appears on the
display:
❒"Regional On": function activated;
❒"Regional Off": function deactivated.If the function is deactivated and you have tuned
into a regional station working in a given area and
you enter a different area, then the regional station
received in the new area will be broadcast.
Note
If the AF and REG functions are on at the same
time, once a border between two regions is
crossed, the radio may not switch correctly to a
valid alternative frequency.
MP3 DISPLAY function
(MP3 CD data displaying)
This function makes it possible to select the
information shown by the display when listening
to a CD containing MP3 tracks.
The function can only be selected if an MP3 CD is
inserted: in this case "MP3 Display" will appear
on the display.
To change the function, use the
or
buttons.
The following settings are available:
❒"Title" (track title, if the ID3-TAG is available);
❒"Author" (track author, if ID3-TAG is
available);
❒"Album" (track album, the ID3-TAG if
available);
❒"Folder" name (name assigned to the folder);
❒"File" name (name assigned to the MP3 file).
278
SOUND-SYSTEM
