LAND ROVER FRELANDER 2 2006 Repair Manual

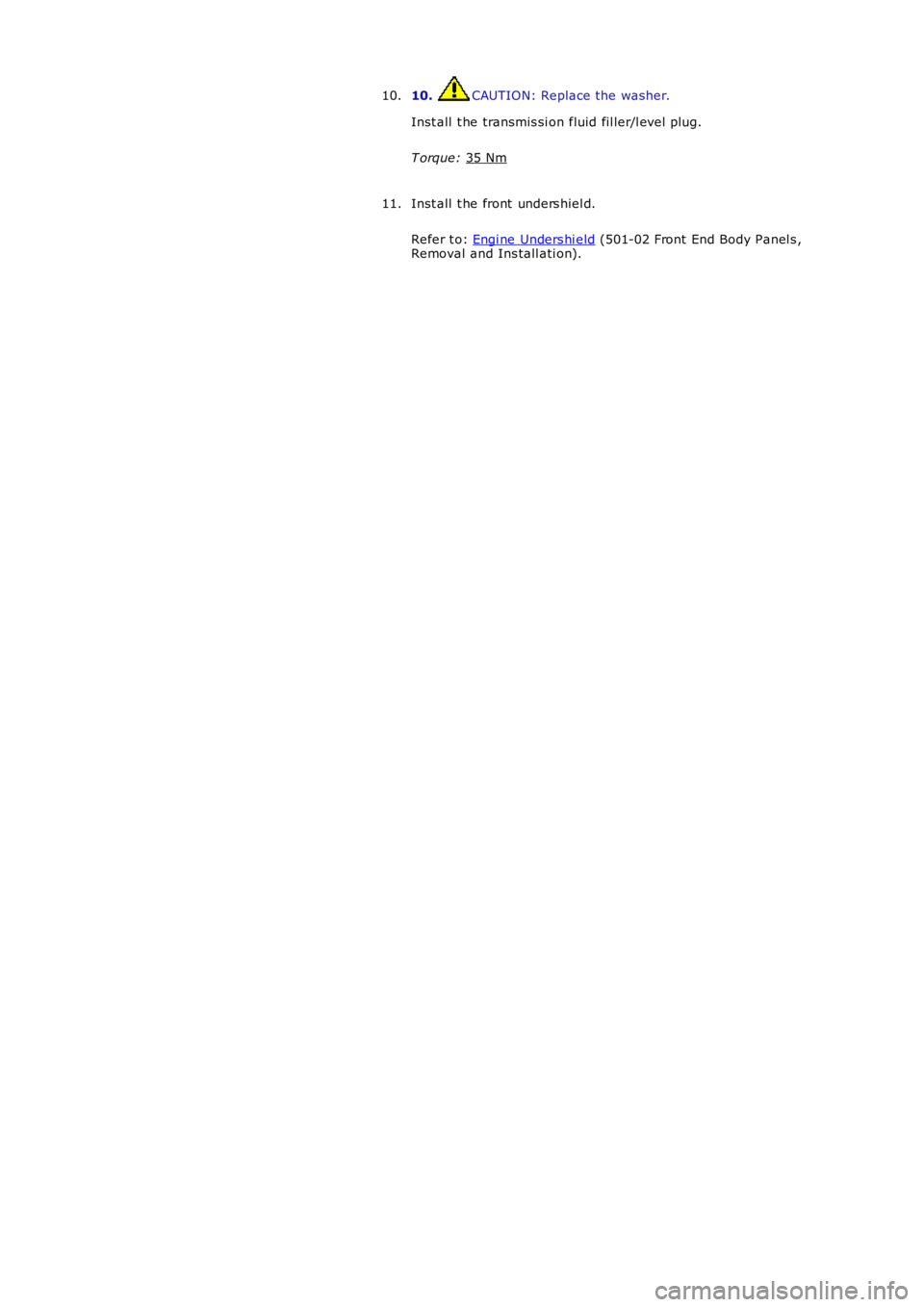

10. CAUTION: Replace the washer.
Inst all t he transmis si on fluid fil ler/l evel plug.
T orque: 35 Nm 10.
Inst all t he front unders hiel d.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
11.

Publi s hed: 11-May-2011

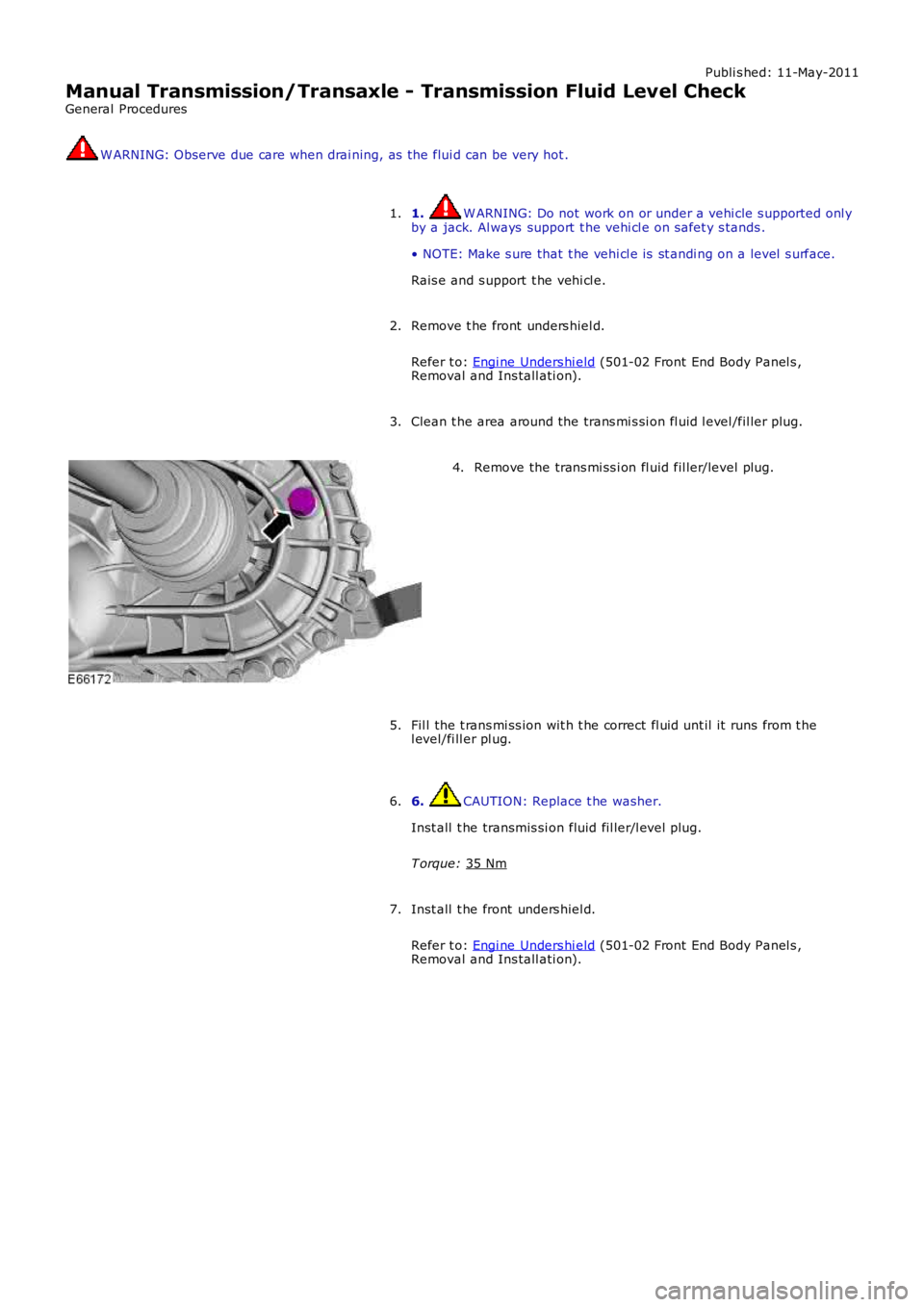

Manual Transmission/Transaxle - Transmission Fluid Level Check
General Procedures W ARNING: Observe due care when drai ning, as the flui d can be very hot .
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
• NOTE: Make s ure that t he vehi cl e is st andi ng on a level s urface.
Rais e and s upport t he vehi cl e.
1.
Remove t he front unders hiel d.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
2.
Clean t he area around the trans mi s si on fl uid l evel /fil ler plug.
3. Remove the trans mi ss i on fl uid fil ler/level plug.
4.
Fil l the t rans mi ss ion wit h t he correct fl uid unt il it runs from t he
l evel/fi ll er pl ug.
5.
6. CAUTION: Replace t he washer.
Inst all t he transmis si on fluid fil ler/l evel plug.
T orque: 35 Nm 6.
Inst all t he front unders hiel d.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
7.

Publi s hed: 11-May-2011

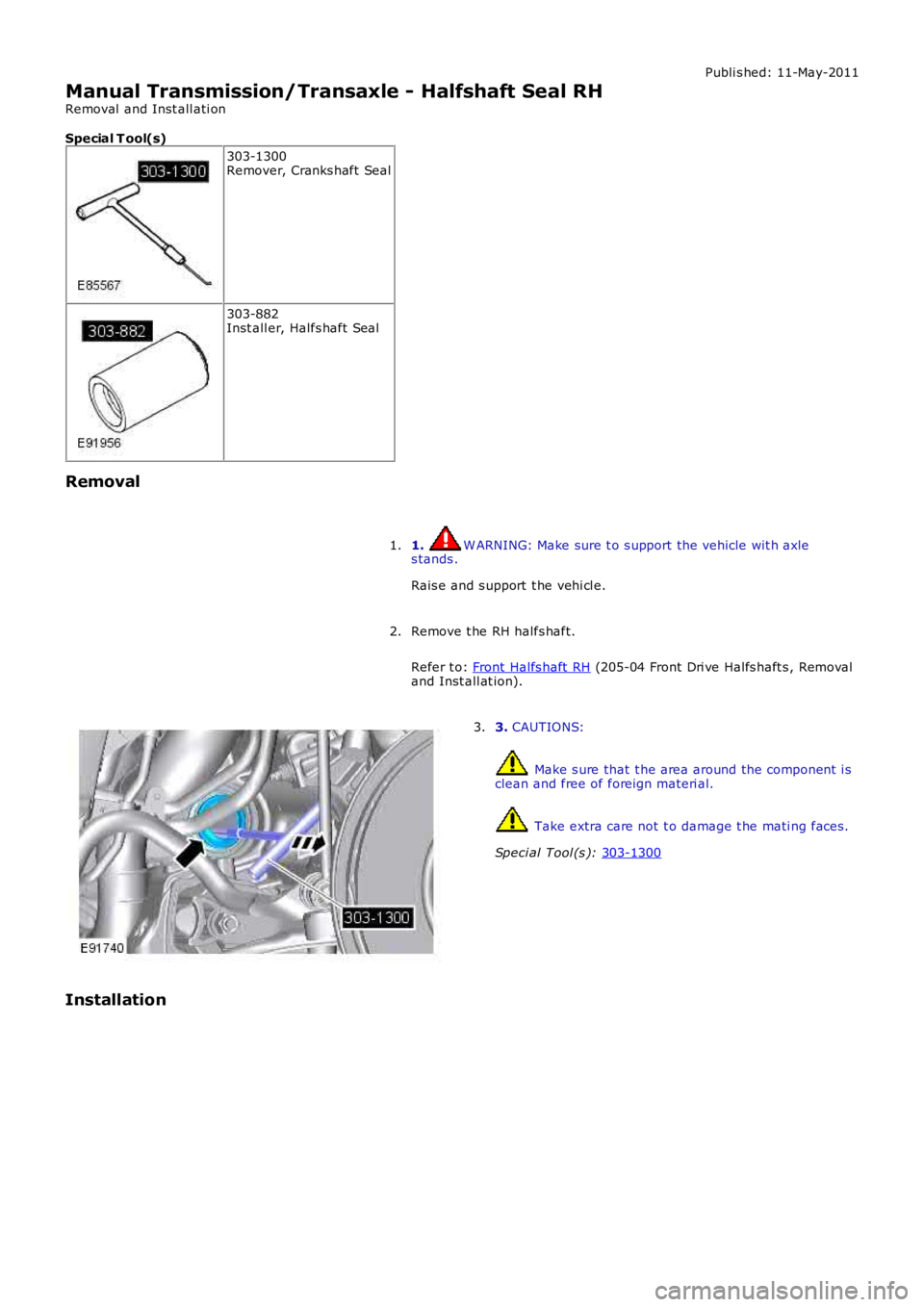

Manual Transmission/Transaxle - Halfshaft Seal RH
Removal and Inst all ati on
Special T ool(s) 303-1300
Remover, Cranks haft Seal 303-882
Inst all er, Halfs haft Seal
Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he RH halfs haft.
Refer t o: Front Halfs haft RH (205-04 Front Dri ve Halfs haft s , Removal
and Inst all at ion).
2. 3.
CAUTIONS: Make s ure that t he area around the component i s
clean and free of foreign materi al. Take extra care not t o damage t he mati ng faces .
Speci al Tool (s ): 303-1300 3.
Installation

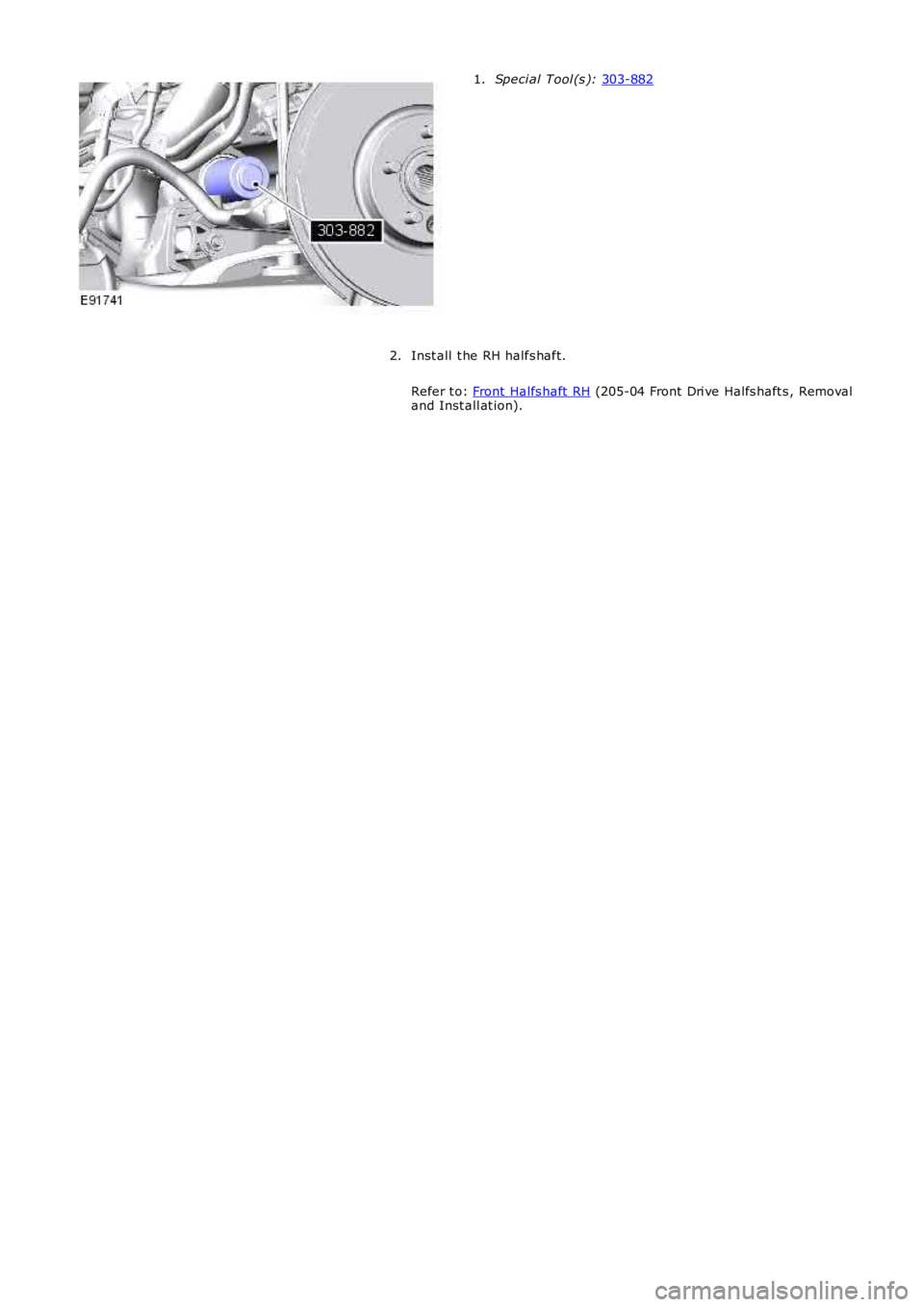

Speci al Tool (s ):
303-882 1.
Inst all t he RH halfs haft.
Refer t o: Front Halfs haft RH (205-04 Front Dri ve Halfs haft s , Removal
and Inst all at ion).
2.

Publi s hed: 11-May-2011

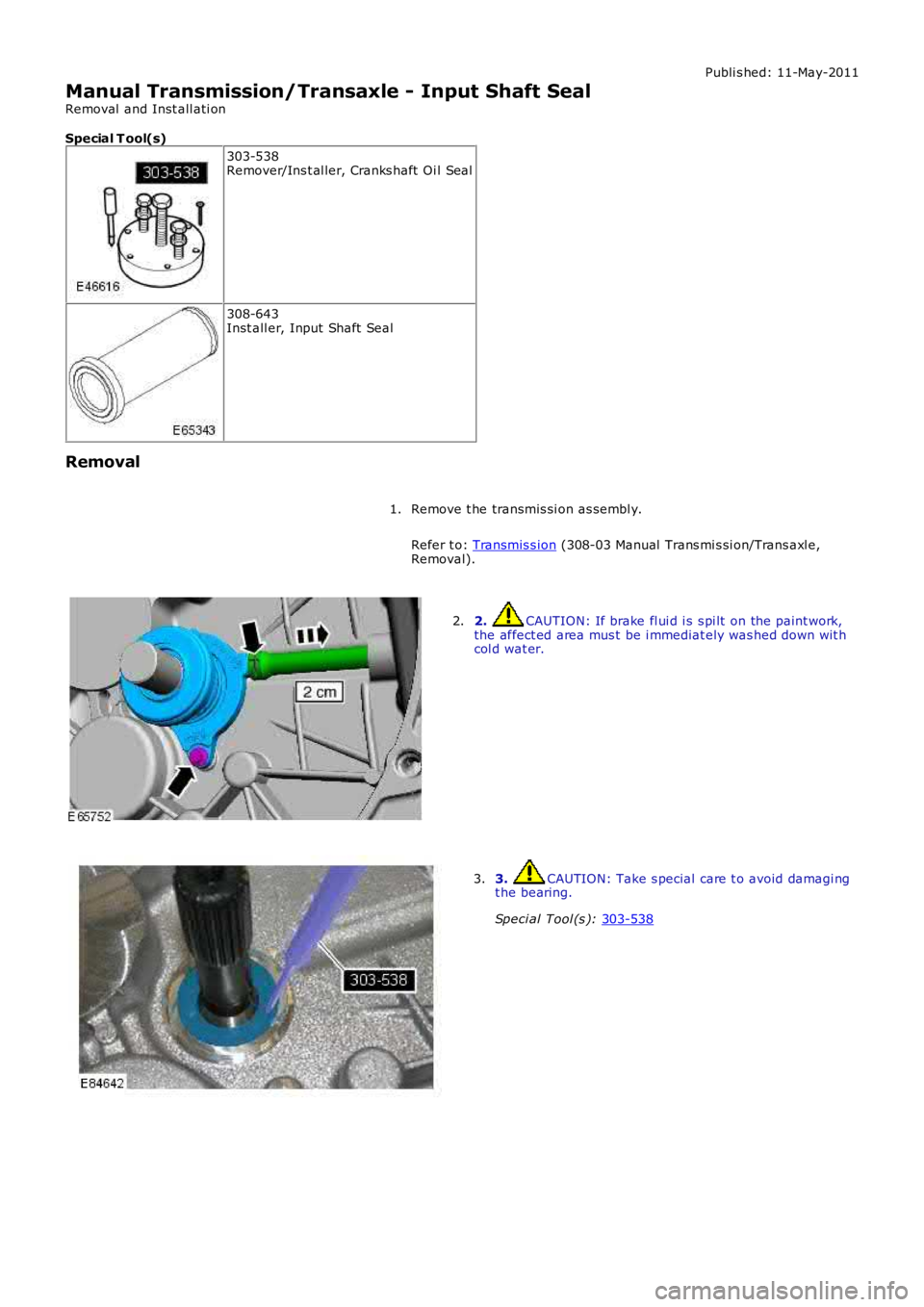

Manual Transmission/Transaxle - Input Shaft Seal
Removal and Inst all ati on
Special T ool(s) 303-538
Remover/Ins t al ler, Cranks haft Oi l Seal 308-643
Inst all er, Input Shaft Seal
Removal Remove t he transmis si on as sembl y.
Refer t o: Transmis s ion (308-03 Manual Trans mi s si on/Trans axl e,
Removal).
1. 2. CAUTION: If brake fl ui d i s s pi lt on the paint work,
the affect ed area mus t be i mmediat ely was hed down wit h
col d wat er.
2. 3. CAUTION: Take s pecial care t o avoid damagi ng
t he bearing.
Speci al Tool (s ): 303-538 3.

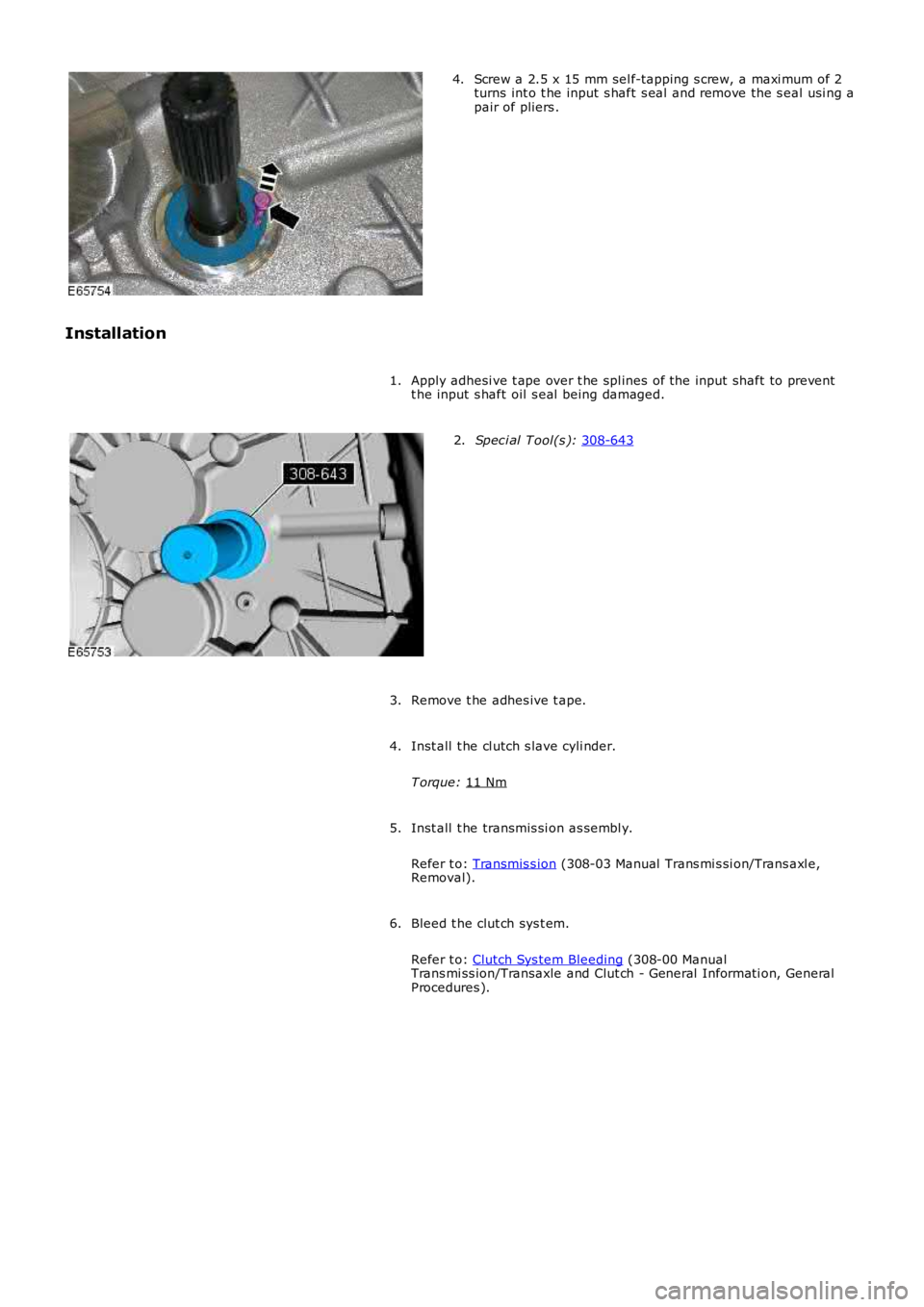

Screw a 2.5 x 15 mm sel f-tapping s crew, a maxi mum of 2
turns int o t he input s haft s eal and remove the s eal usi ng a
pair of pliers .
4.
Installation Apply adhesi ve t ape over t he spl ines of the input shaft to prevent
t he input s haft oil s eal being damaged.
1. Spec i al T ool(s ):
308-643 2.
Remove t he adhes ive t ape.
3.
Inst all t he cl utch s lave cyli nder.
T orque: 11 Nm 4.
Inst all t he transmis si on as sembl y.
Refer t o: Transmis s ion (308-03 Manual Trans mi s si on/Trans axl e,
Removal).
5.
Bleed t he clut ch sys t em.
Refer t o: Clutch Sys tem Bleeding (308-00 Manual
Trans mi ss ion/Transaxle and Clut ch - General Informati on, General
Procedures ).
6.

Publi s hed: 11-May-2011

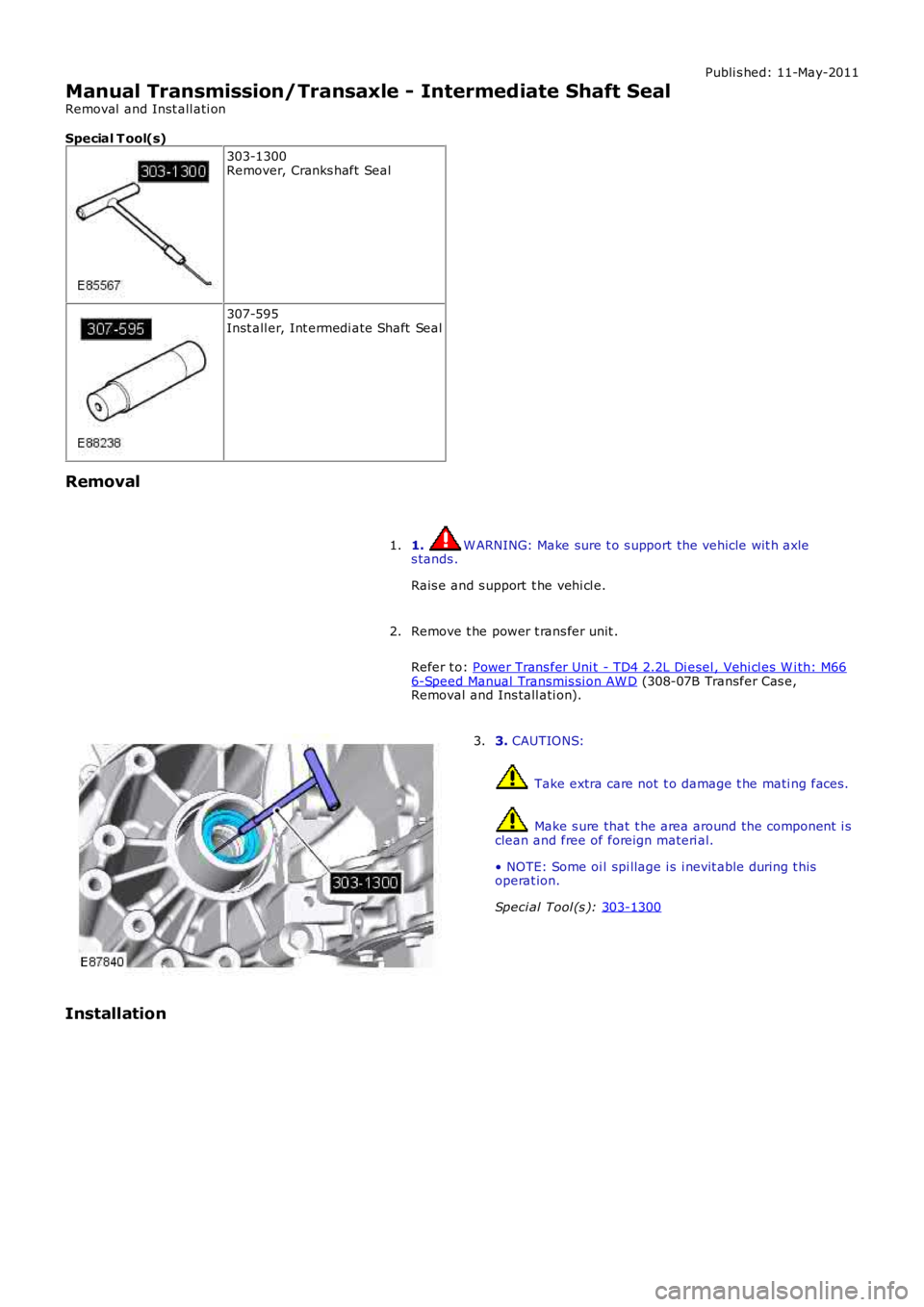

Manual Transmission/Transaxle - Intermediate Shaft Seal
Removal and Inst all ati on
Special T ool(s) 303-1300
Remover, Cranks haft Seal 307-595
Inst all er, Int ermedi ate Shaft Seal
Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he power t rans fer unit .
Refer t o: Power Trans fer Uni t - TD4 2.2L Di esel , Vehi cl es W i th: M66 6-Speed Manual Transmis si on AW D (308-07B Transfer Cas e,
Removal and Ins tall ati on).
2. 3.
CAUTIONS: Take extra care not t o damage t he mati ng faces .
Make s ure that t he area around the component i s
clean and free of foreign materi al.
• NOTE: Some oi l spi llage i s i nevit able during t his
operat ion.
Speci al Tool (s ): 303-1300 3.
Installation

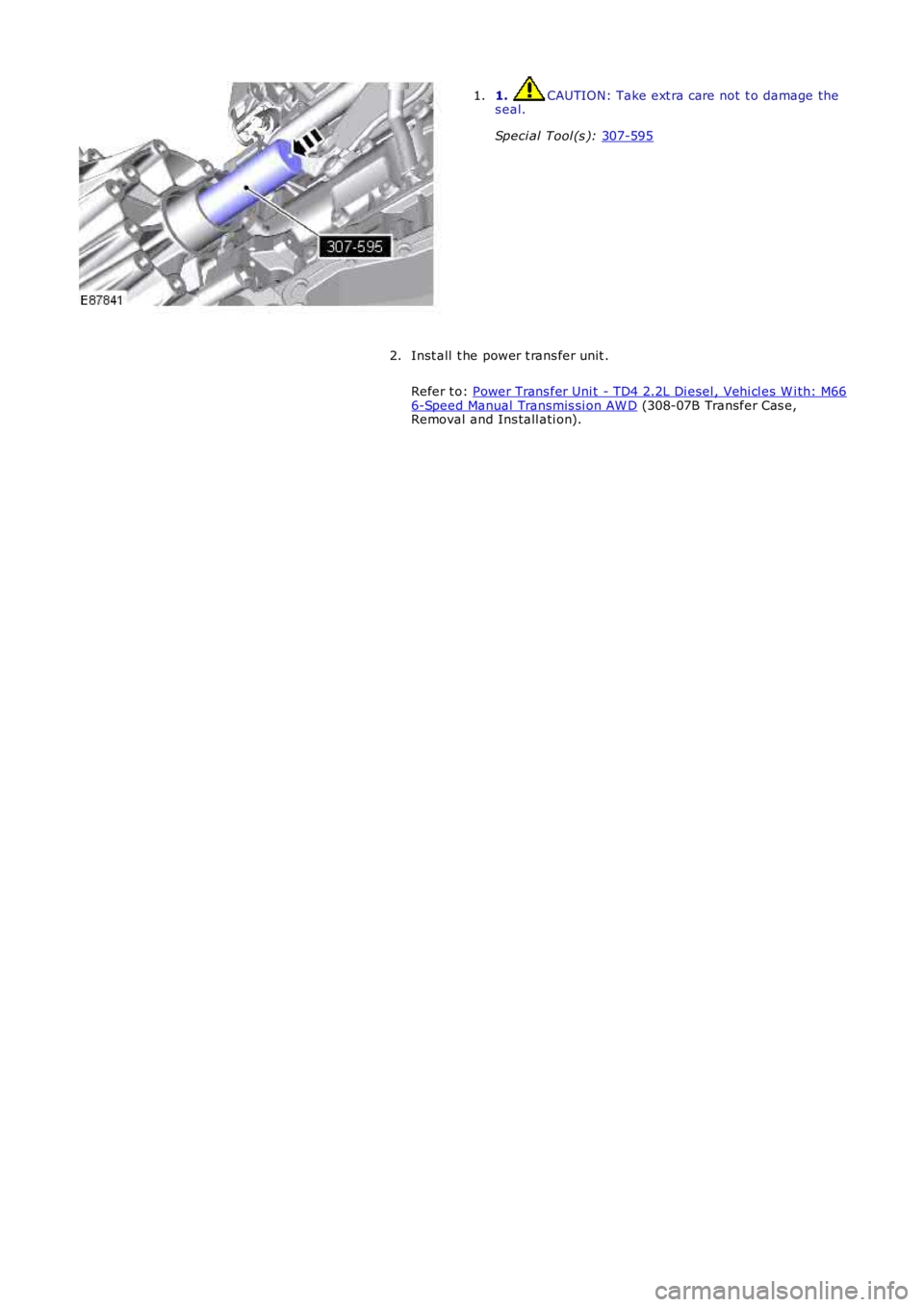

1. CAUTION: Take ext ra care not t o damage the
s eal.
Speci al Tool (s ): 307-595 1.
Inst all t he power t rans fer unit .
Refer t o: Power Trans fer Uni t - TD4 2.2L Di esel , Vehi cl es W i th: M66 6-Speed Manual Transmis si on AW D (308-07B Transfer Cas e,
Removal and Ins tall ati on).
2.

Publi s hed: 11-May-2011

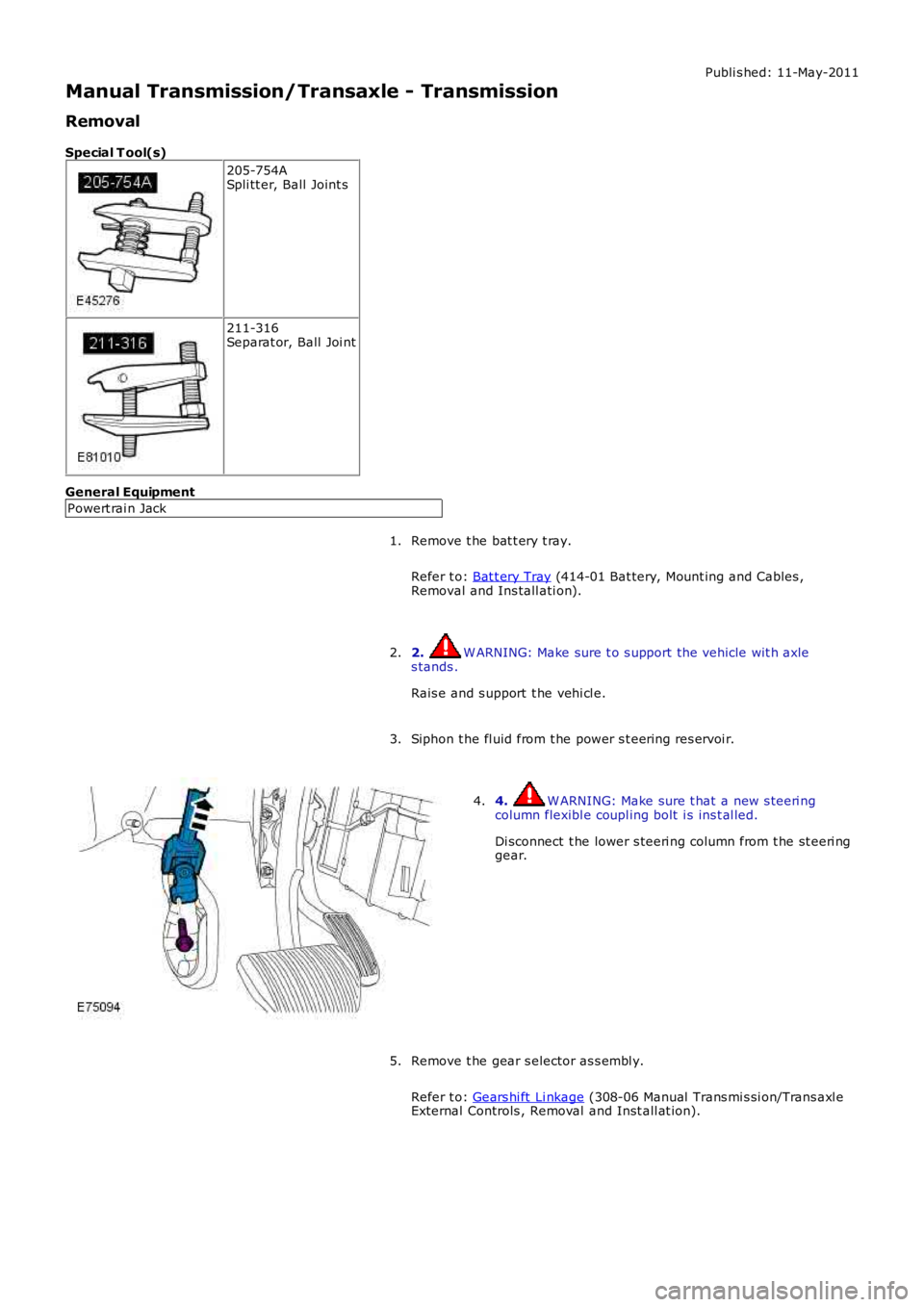

Manual Transmission/Transaxle - Transmission
Removal
Special T ool(s)
205-754ASpli tt er, Ball Joint s
211-316Separat or, Ball Joi nt
General Equipment
Powert rai n Jack
Remove t he bat t ery t ray.
Refer t o: Bat t ery Tray (414-01 Bat tery, Mount ing and Cables ,Removal and Ins tall ati on).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
2.
Siphon t he fl uid from t he power s t eering res ervoi r.3.
4. W ARNING: Make sure t hat a new s teeri ngcolumn flexibl e coupl ing bolt i s ins t al led.
Di sconnect t he lower s teeri ng column from t he st eeri nggear.
4.
Remove t he gear s elector as s embl y.
Refer t o: Gears hi ft Li nkage (308-06 Manual Trans mi s si on/Trans axl eExternal Controls , Removal and Inst all at ion).
5.

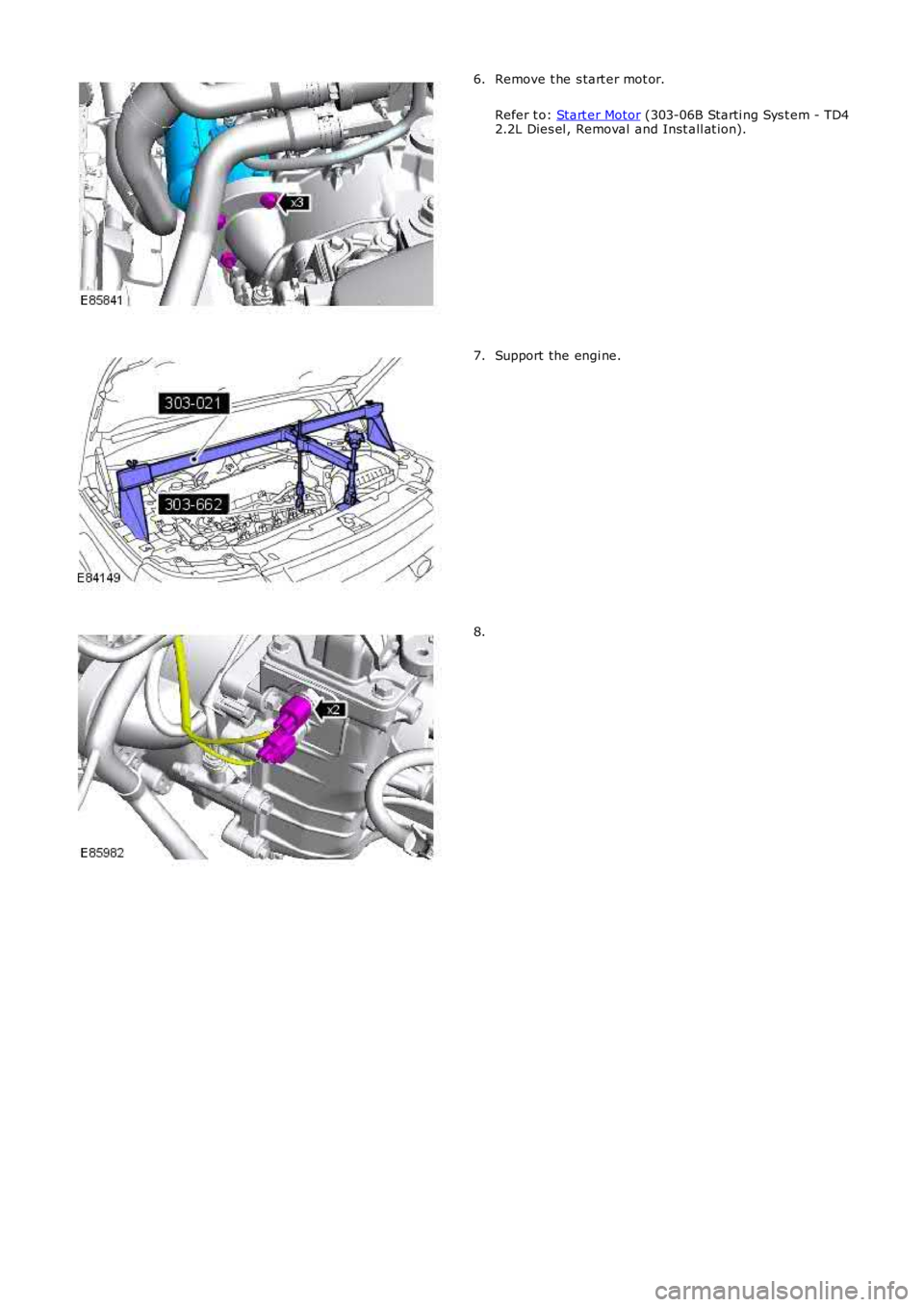

Remove t he s tart er mot or.
Refer t o: Start er Motor (303-06B Starti ng Sys t em - TD42.2L Dies el , Removal and Inst all at ion).
6.
Support the engi ne.7.
8.
