LAND ROVER FRELANDER 2 2006 Repair Manual

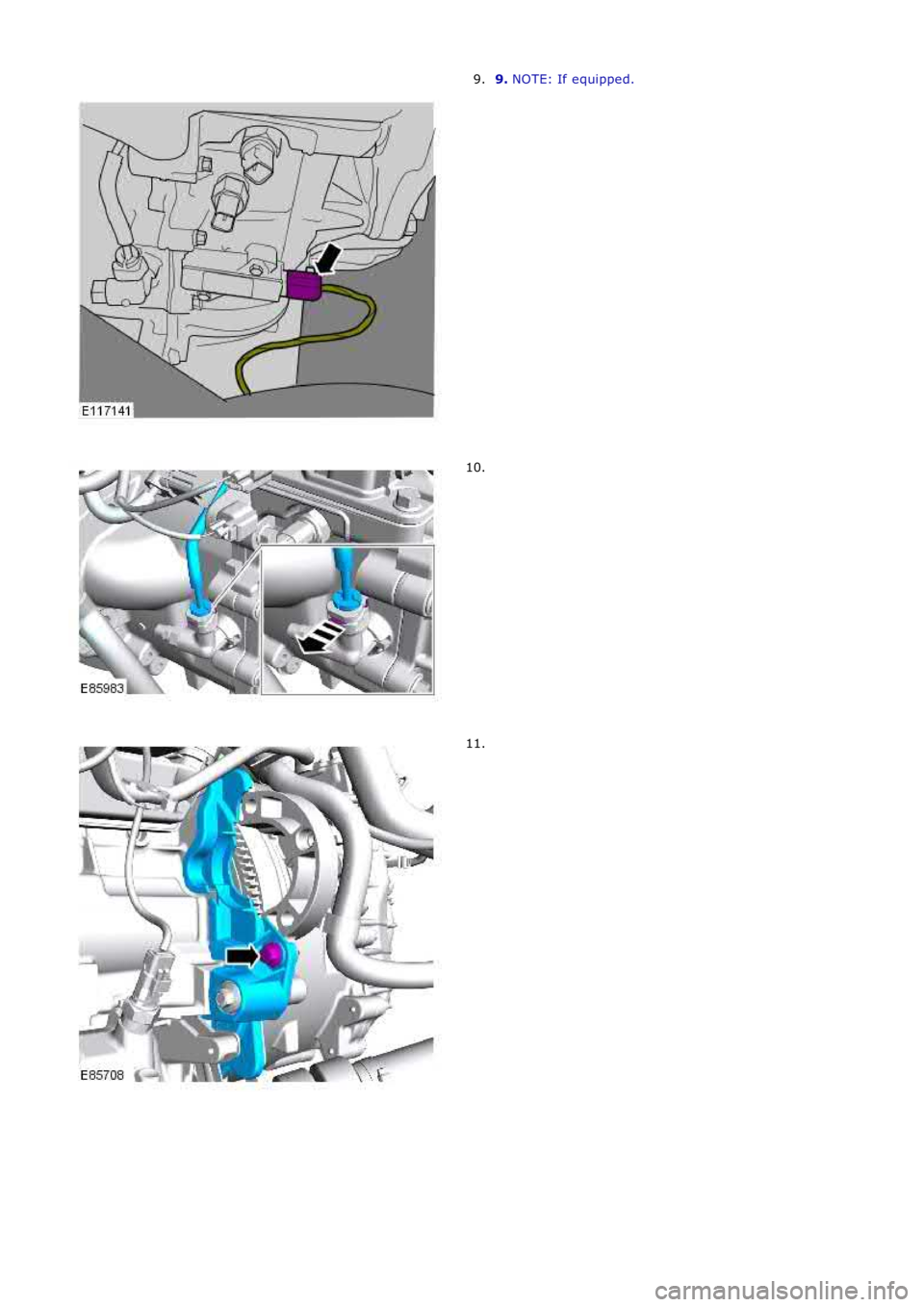

9. NOTE: If equipped.9.
10.
11.

12.
13.

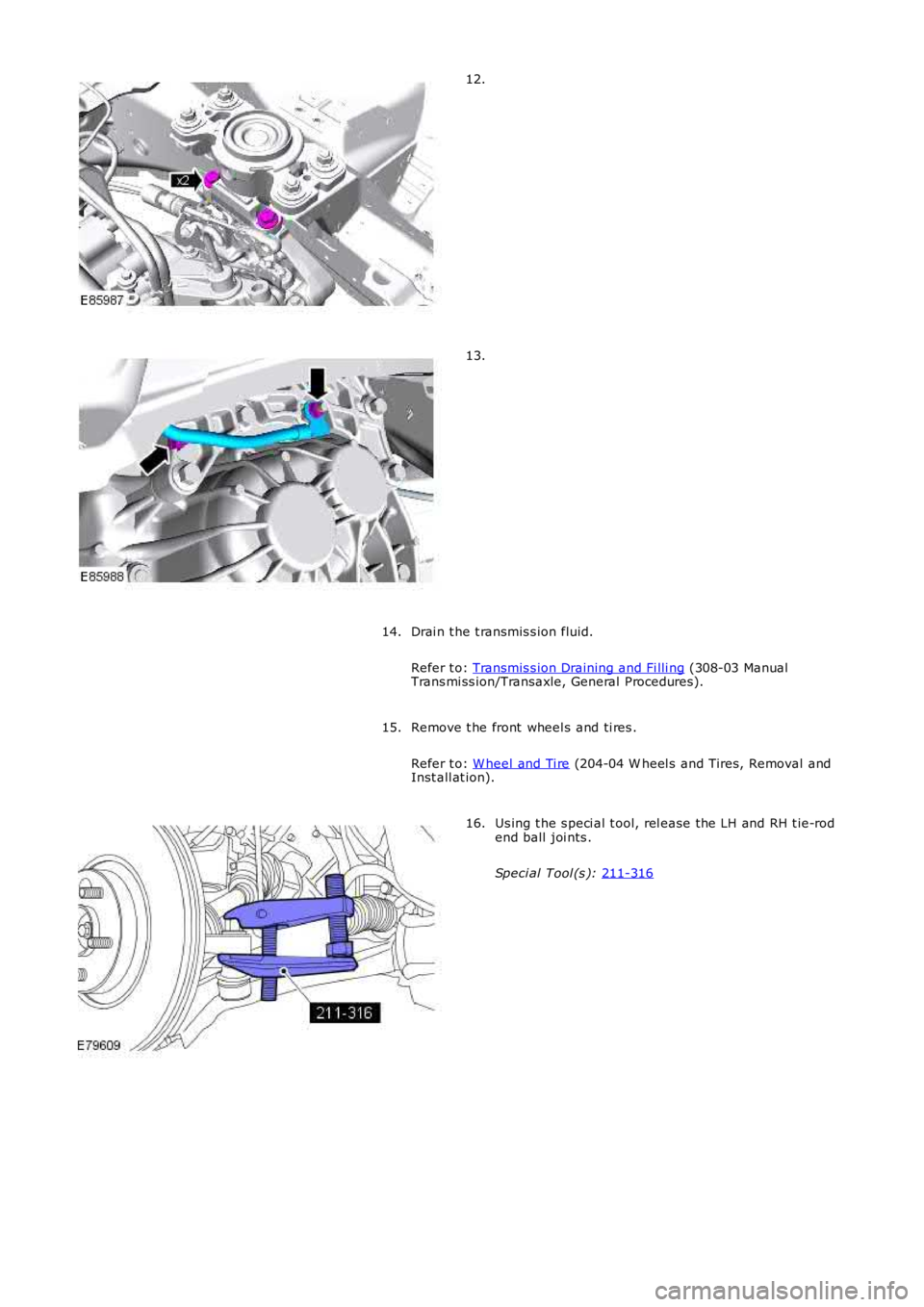

Drai n t he t ransmis s ion fluid.
Refer t o: Transmis s ion Draining and Fi lli ng (308-03 Manual
Trans mi ss ion/Transaxle, General Procedures).
14.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
15. Us ing t he s peci al t ool, rel ease the LH and RH t ie-rod
end ball joi nts .
Speci al Tool (s ): 211-316 16.

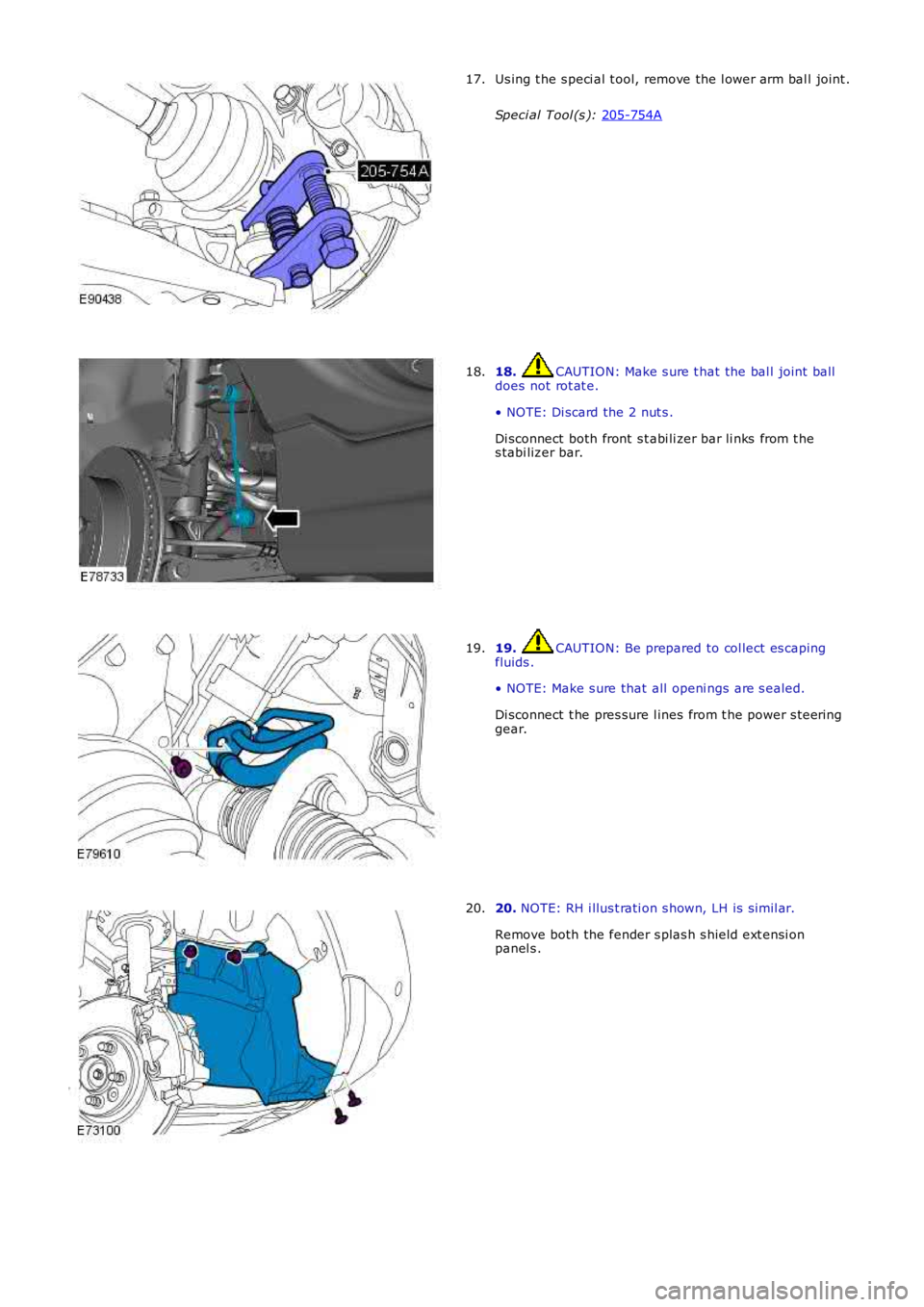

Us ing t he s peci al t ool, remove the l ower arm bal l joint .
Speci al Tool (s ): 205-754A 17.
18. CAUTION: Make s ure t hat the bal l joint ball
does not rot at e.
• NOTE: Di scard the 2 nut s .
Di sconnect both front s t abi li zer bar li nks from t he
s tabi lizer bar.
18. 19. CAUTION: Be prepared to col lect es caping
fluids .
• NOTE: Make s ure that all openi ngs are s ealed.
Di sconnect t he pres sure l ines from t he power s teeri ng
gear.
19. 20.
NOTE: RH i llus t rati on s hown, LH is s imil ar.
Remove both the fender s plas h s hield ext ensi on
panel s .
20.

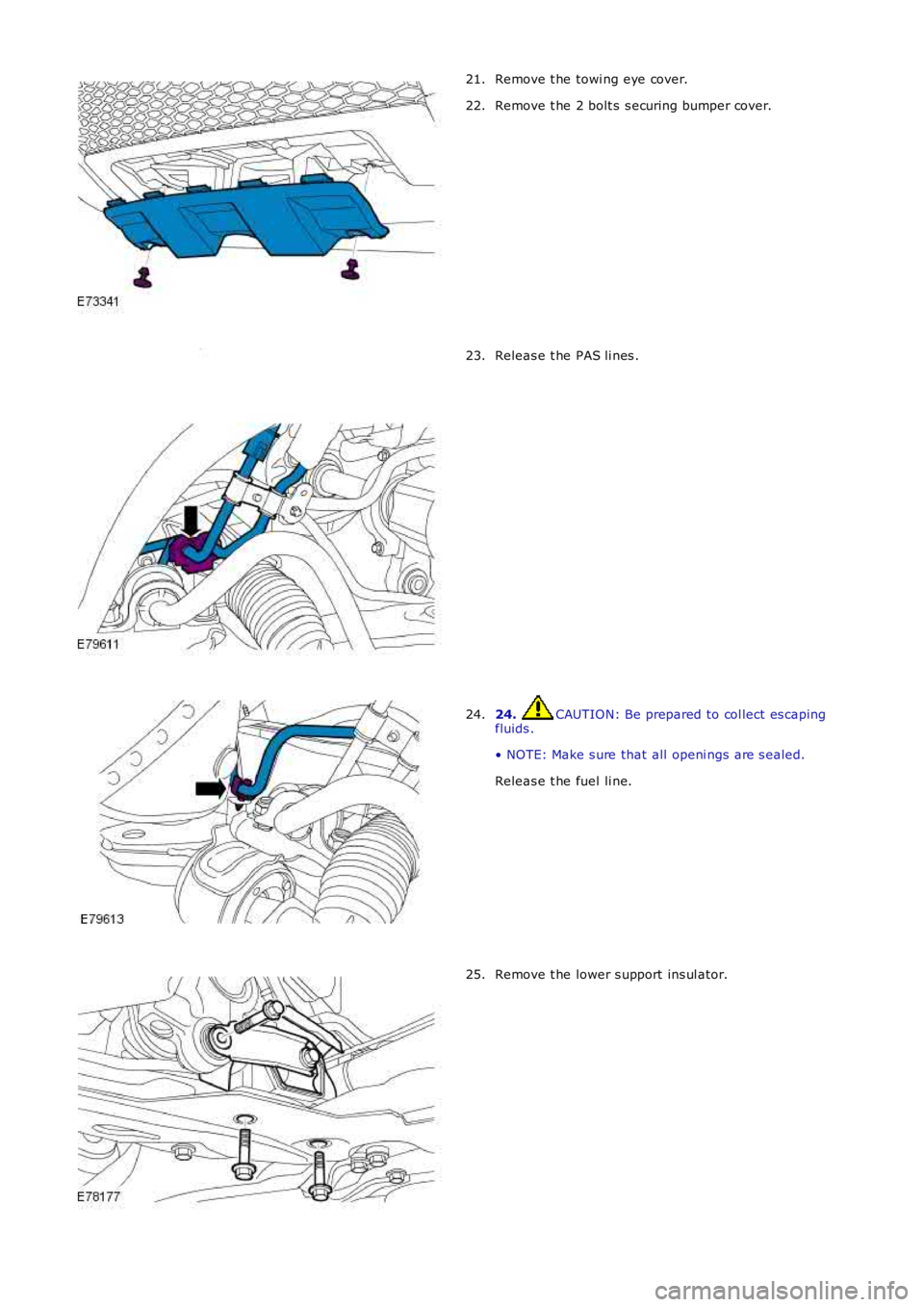

Remove t he towi ng eye cover.21.
Remove t he 2 bolt s s ecuring bumper cover.22.
Releas e t he PAS li nes .23.
24. CAUTION: Be prepared to col lect es capingfluids .
• NOTE: Make s ure that all openi ngs are s ealed.
Releas e t he fuel li ne.
24.
Remove t he lower s upport ins ul ator.25.

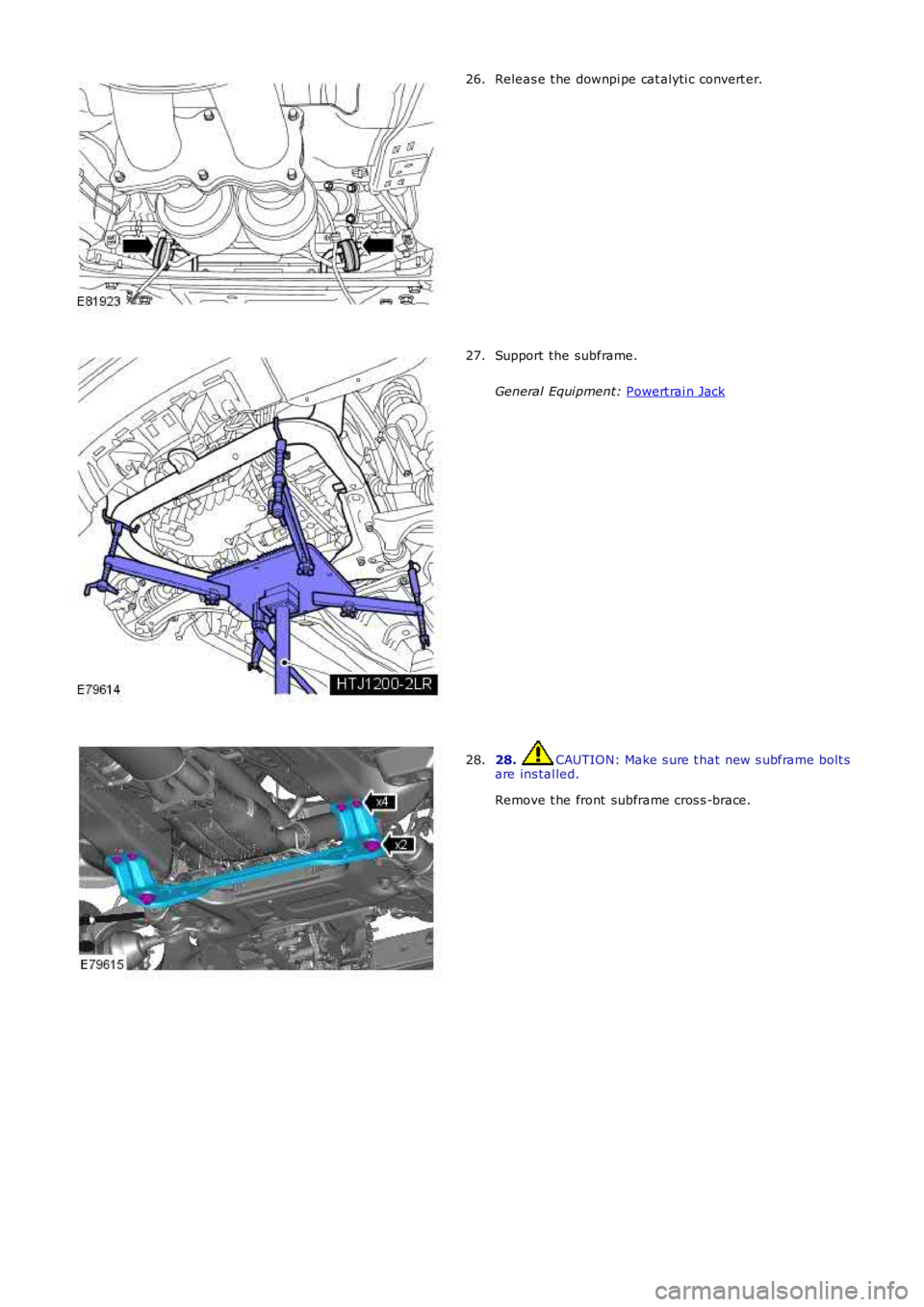

Releas e t he downpi pe cat alyti c convert er.
26. Support the subframe.
General Equi pment: Powert rai n Jack 27.
28. CAUTION: Make s ure t hat new s ubframe bolt s
are ins tal led.
Remove t he front subframe cros s -brace.
28.

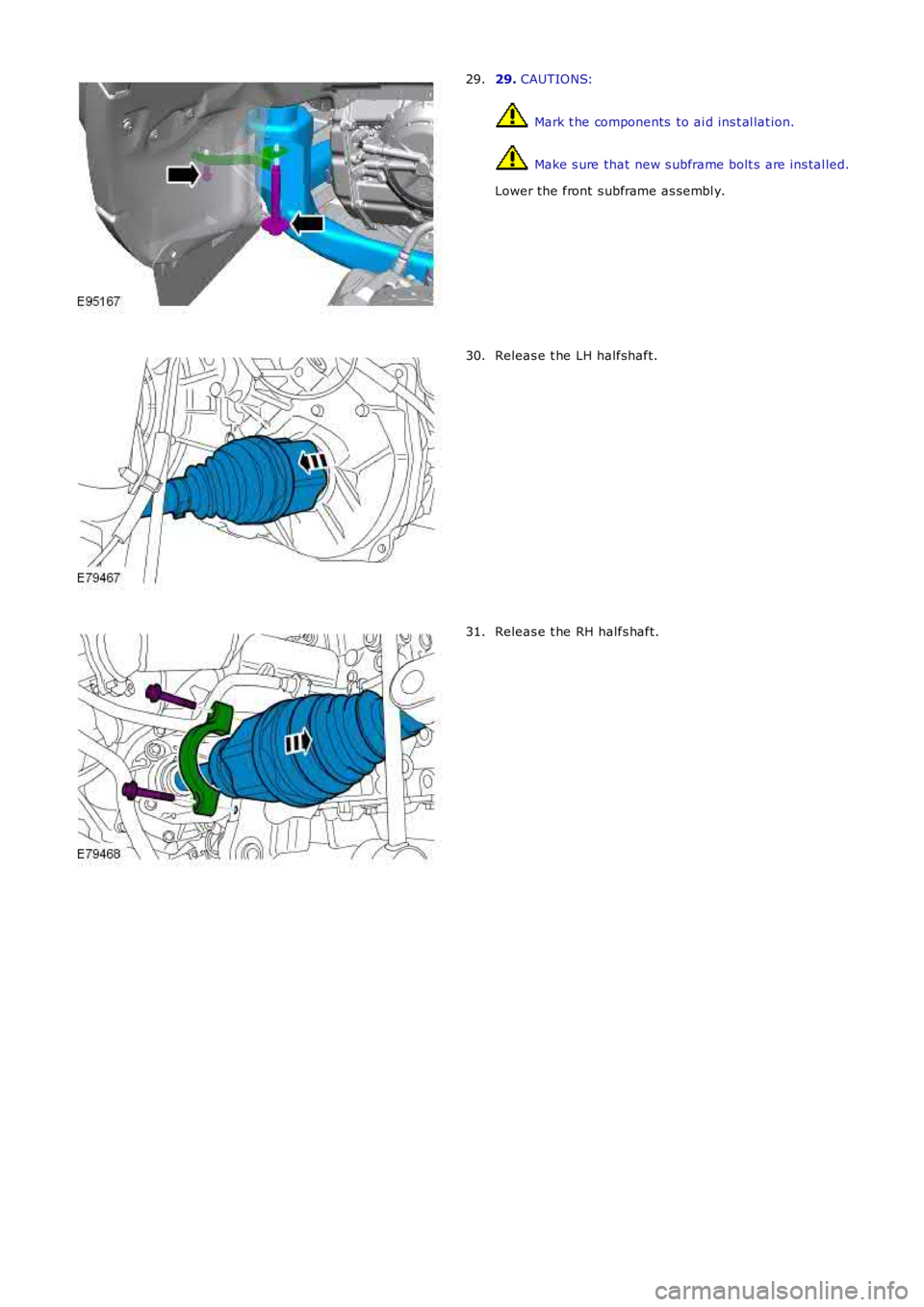

29. CAUTIONS:
Mark t he components to ai d ins t al lat ion.
Make s ure that new s ubframe bolt s are ins tal led.
Lower the front s ubframe as sembl y.
29.
Releas e t he LH halfshaft.30.
Releas e t he RH halfs haft.31.

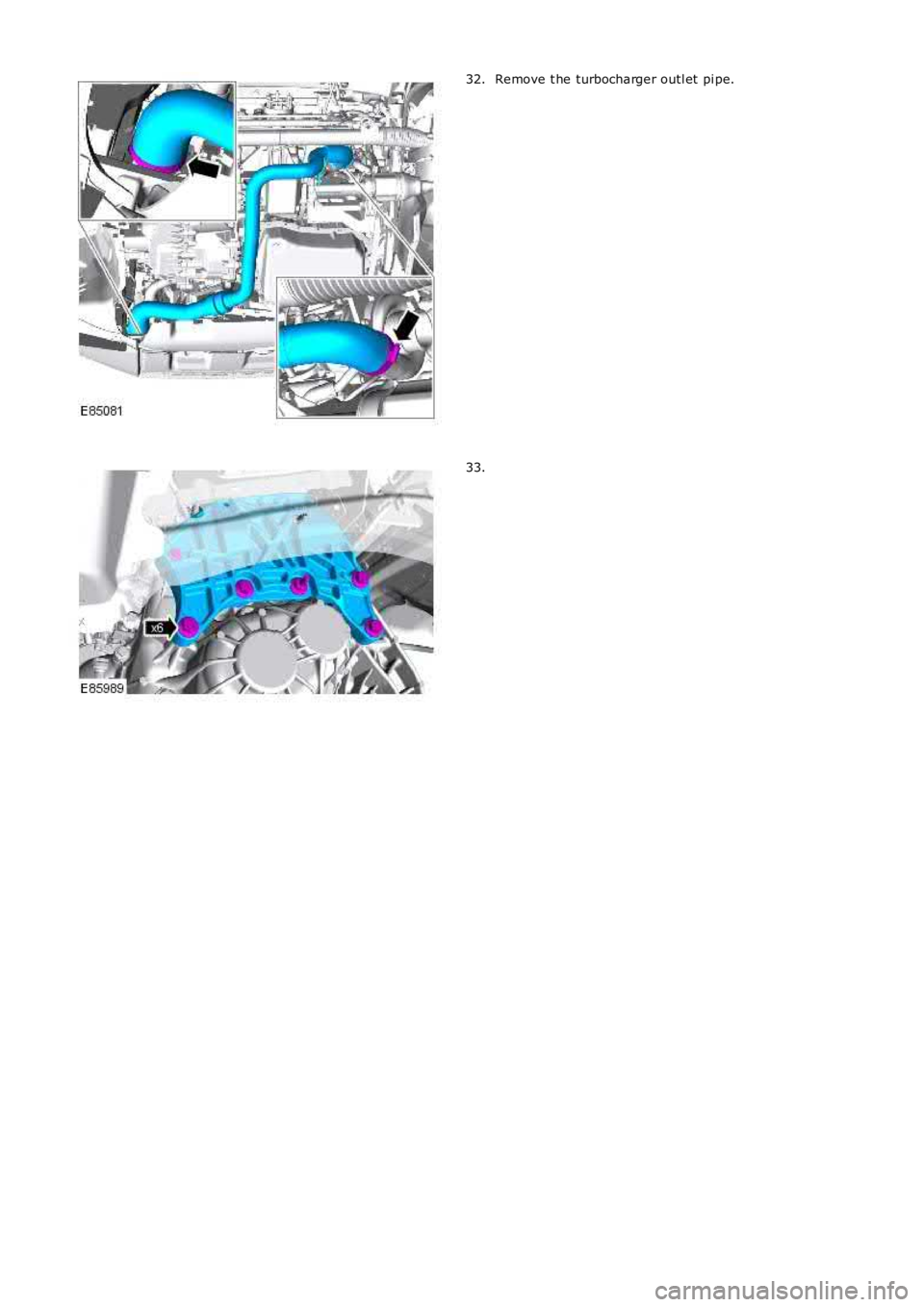

Remove t he turbocharger outl et pi pe.32.
33.

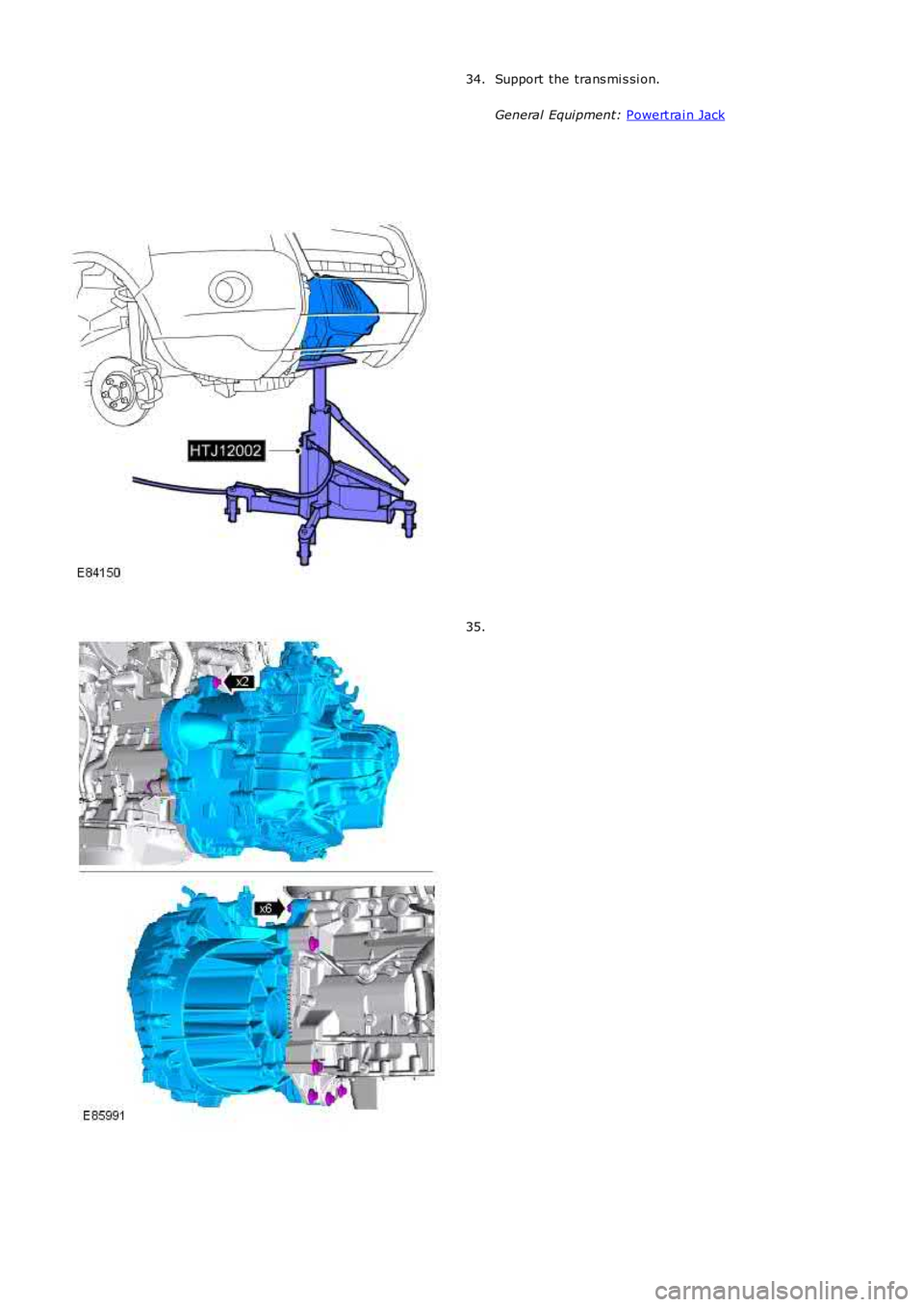

Support the trans mi s si on.
General Equi pment: Powert rai n Jack 34.
35.

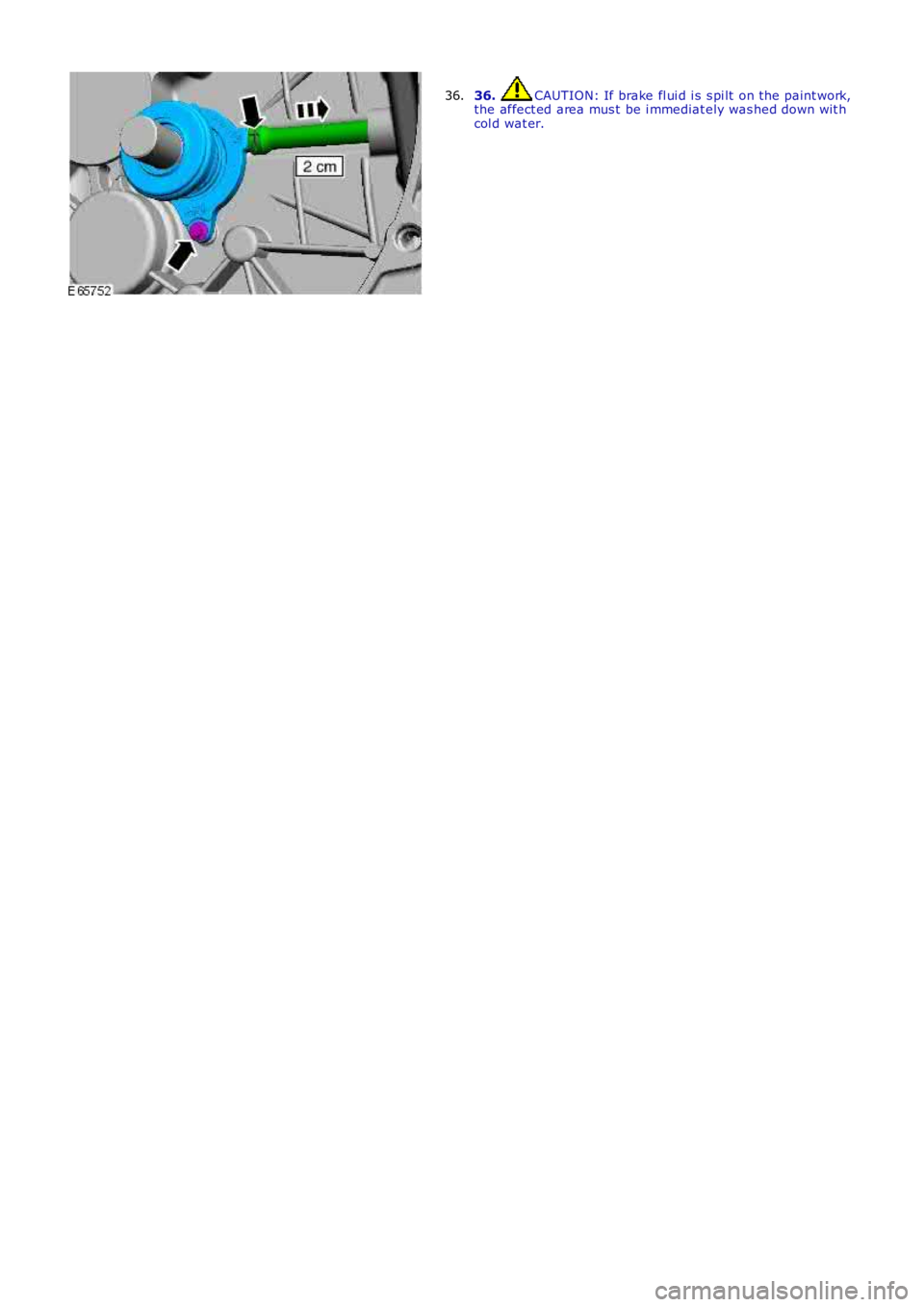

36. CAUTION: If brake fl ui d i s s pi lt on t he paint work,the affect ed area mus t be i mmediat ely was hed down wit hcol d wat er.
36.

Publi s hed: 11-May-2011

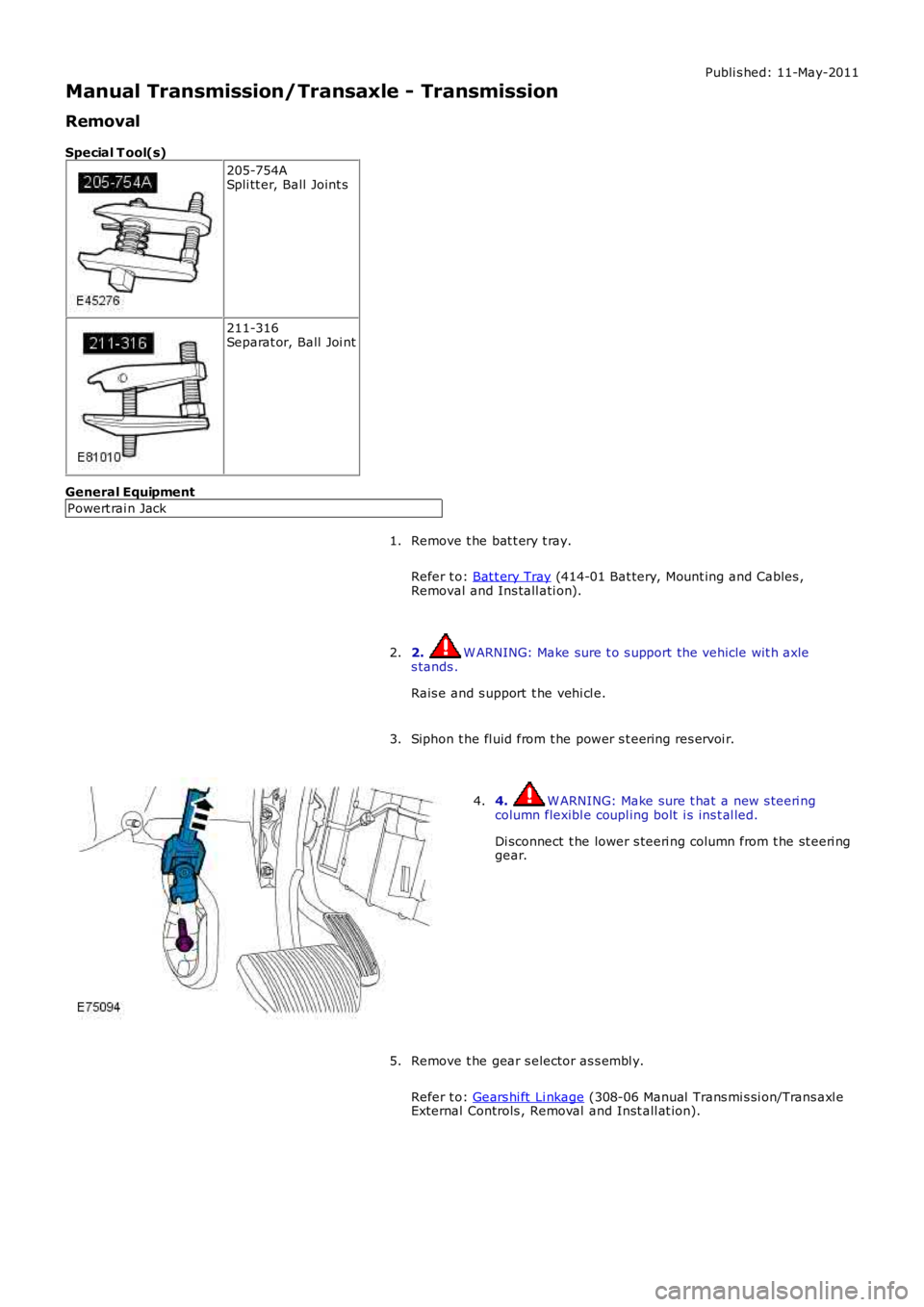

Manual Transmission/Transaxle - Transmission
Removal
Special T ool(s) 205-754A
Spli tt er, Ball Joint s 211-316
Separat or, Ball Joi nt
General Equipment Powert rai n Jack
Remove t he bat t ery t ray.
Refer t o: Bat t ery Tray (414-01 Bat tery, Mount ing and Cables ,
Removal and Ins tall ati on).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
2.
Siphon t he fl uid from t he power s t eering res ervoi r.
3. 4. W ARNING: Make sure t hat a new s teeri ng
column flexibl e coupl ing bolt i s ins t al led.
Di sconnect t he lower s teeri ng column from t he st eeri ng
gear.
4.
Remove t he gear s elector as s embl y.
Refer t o: Gears hi ft Li nkage (308-06 Manual Trans mi s si on/Trans axl e
External Controls , Removal and Inst all at ion).
5.
