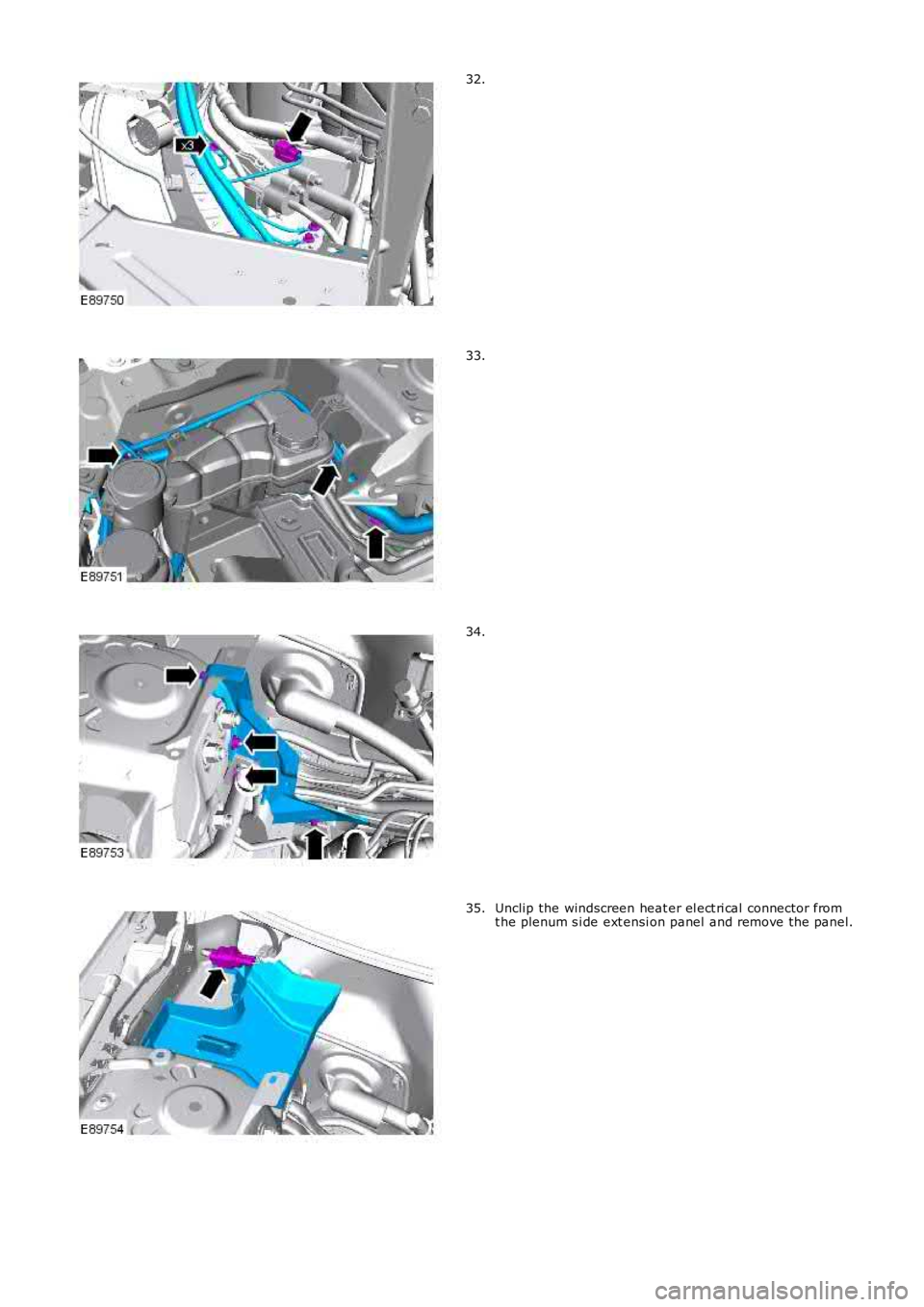

32.
33.
34.
Unclip the windscreen heat er el ect ri cal connector fromt he plenum s i de ext ensi on panel and remove the panel.35.

36.
37. NOTE: LHD il lus trati on s hown, RHD is s imil ar.37.
38. NOTE: LHD il lus trati on s hown, RHD is s imil ar.38.

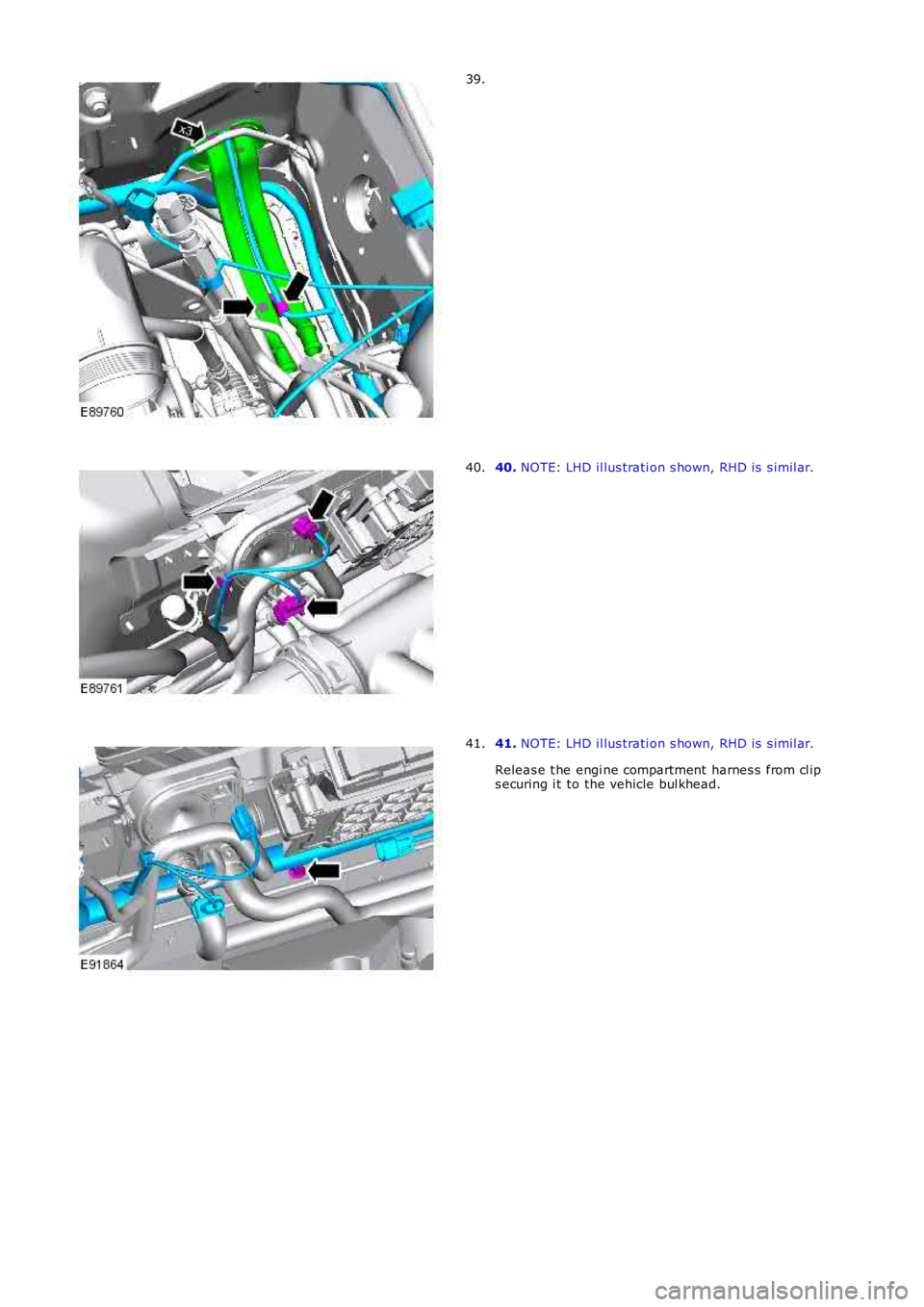

39.
40. NOTE: LHD il lus trati on s hown, RHD is s imil ar.40.
41. NOTE: LHD il lus trati on s hown, RHD is s imil ar.
Releas e t he engi ne compartment harnes s from cl ips ecuring i t to the vehicle bul khead.
41.

42. NOTE: RHD i llus t rati on s hown, LHD is s imil ar.42.
43.
44. NOTE: LHD il lus trati on s hown, RHD is s imil ar.44.

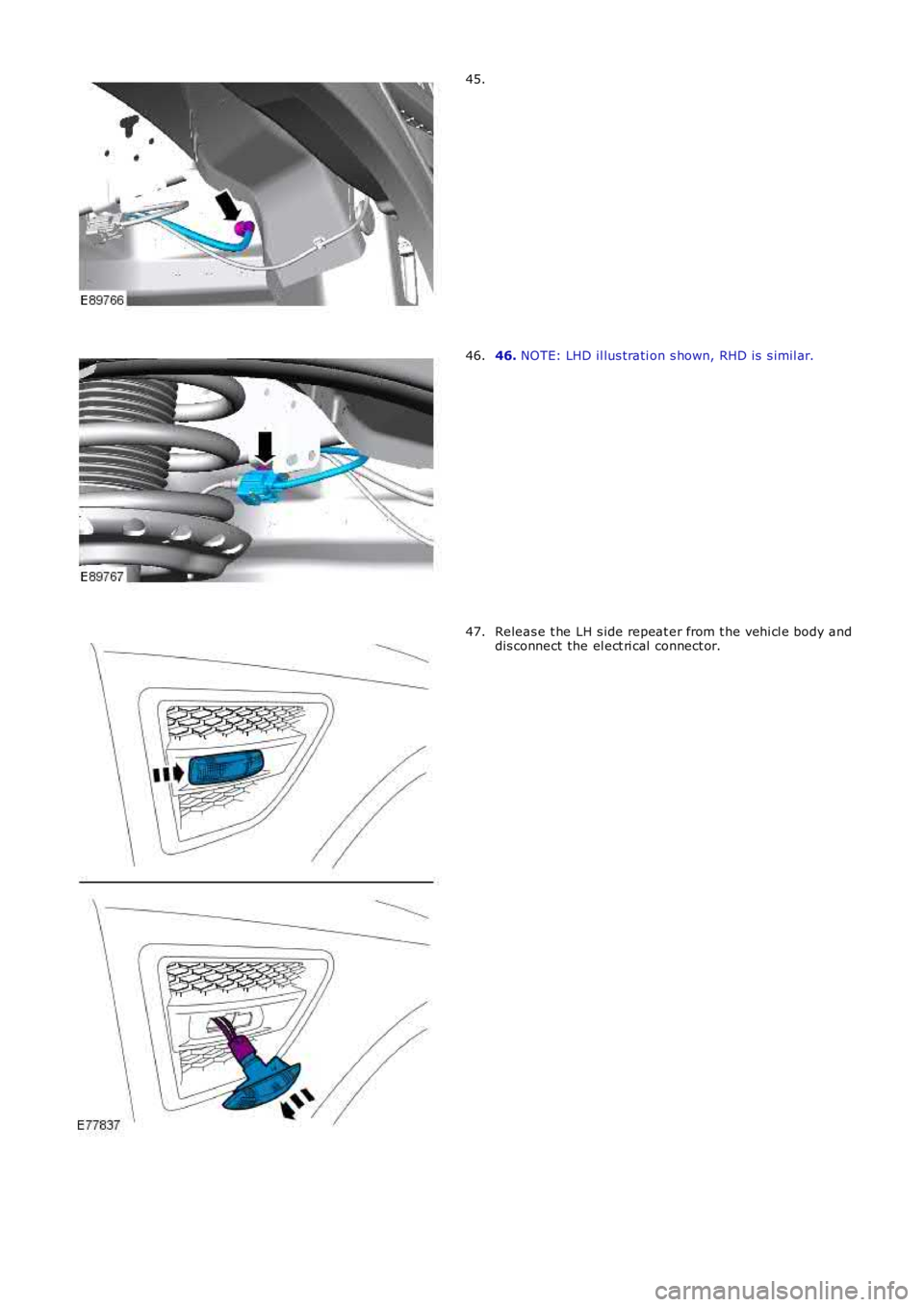

45.
46. NOTE: LHD il lus trati on s hown, RHD is s imil ar.46.
Releas e t he LH s ide repeat er from t he vehi cl e body anddis connect the el ect ri cal connect or.47.

48. NOTE: LHD il lus trati on s hown, RHD is s imil ar.48.
Unclip the harnes s t ray from t he vehi cl e bulkhead and rout e the RHSof t he harness around the brake pipes int o t he LHS of the enginebay.
49.
50. NOTE: RHD i llus t rati on s hown, LHD is s imil ar.50.
51. NOTE: RHD i llus t rati on s hown, LHD is s imil ar.51.

52. NOTE: RHD i llus t rati on s hown, LHD is s imil ar.52.
53. NOTE: LHD il lus trati on s hown, RHD is s imil ar.53.
54. NOTE: LHD il lus trati on s hown, RHD is s imil ar.54.

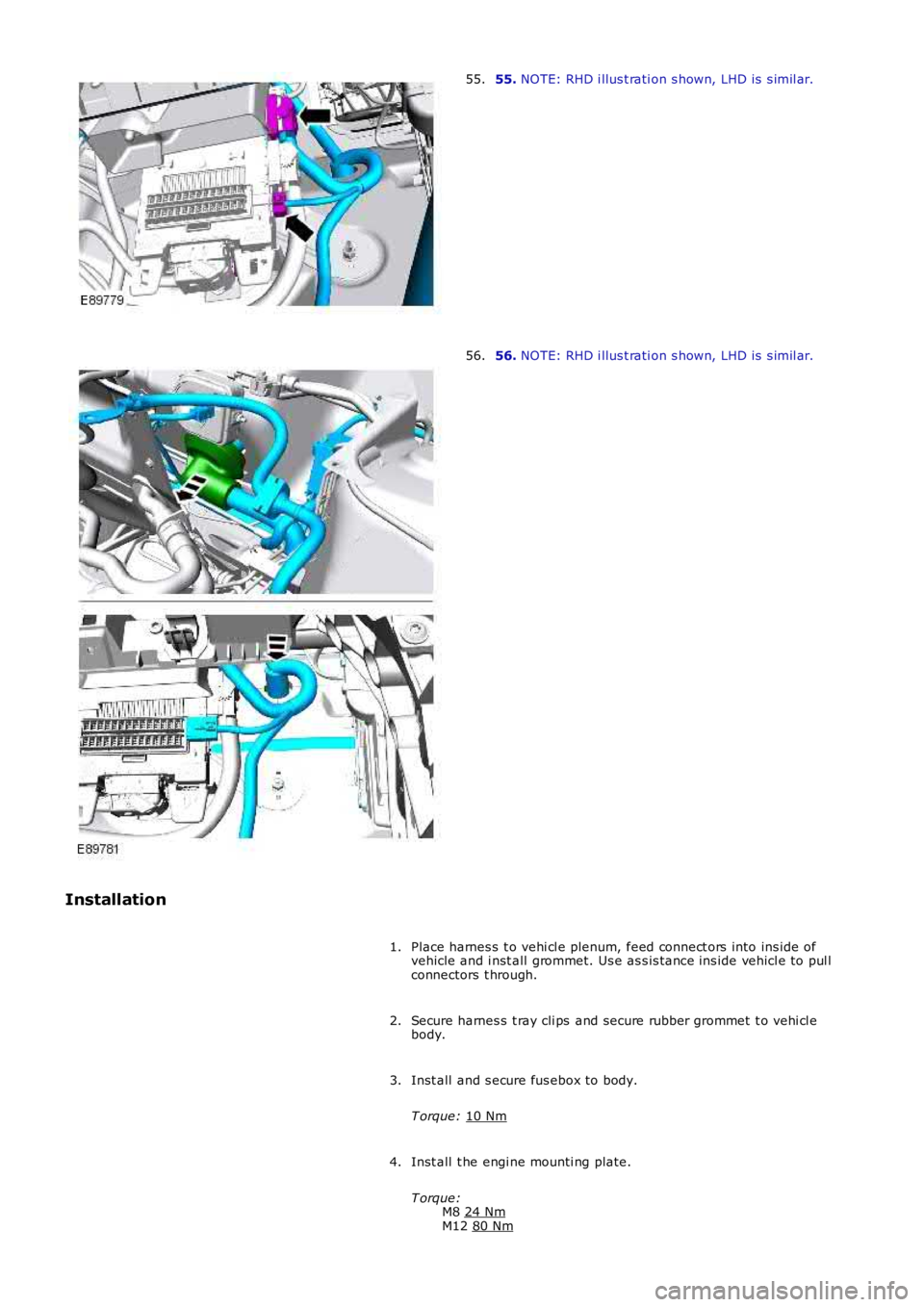

55.
NOTE: RHD i llus t rati on s hown, LHD is s imil ar.
55. 56.
NOTE: RHD i llus t rati on s hown, LHD is s imil ar.
56.
Installation Place harnes s t o vehi cl e plenum, feed connect ors into ins ide of
vehicle and i nst all grommet. Us e as s is tance ins ide vehicl e to pul l
connectors t hrough.
1.
Secure harnes s t ray cli ps and secure rubber grommet t o vehi cl e
body.
2.
Inst all and s ecure fus ebox to body.
T orque: 10 Nm 3.
Inst all t he engi ne mounti ng plate.
T orque: M8 24 Nm M12
80 Nm 4.

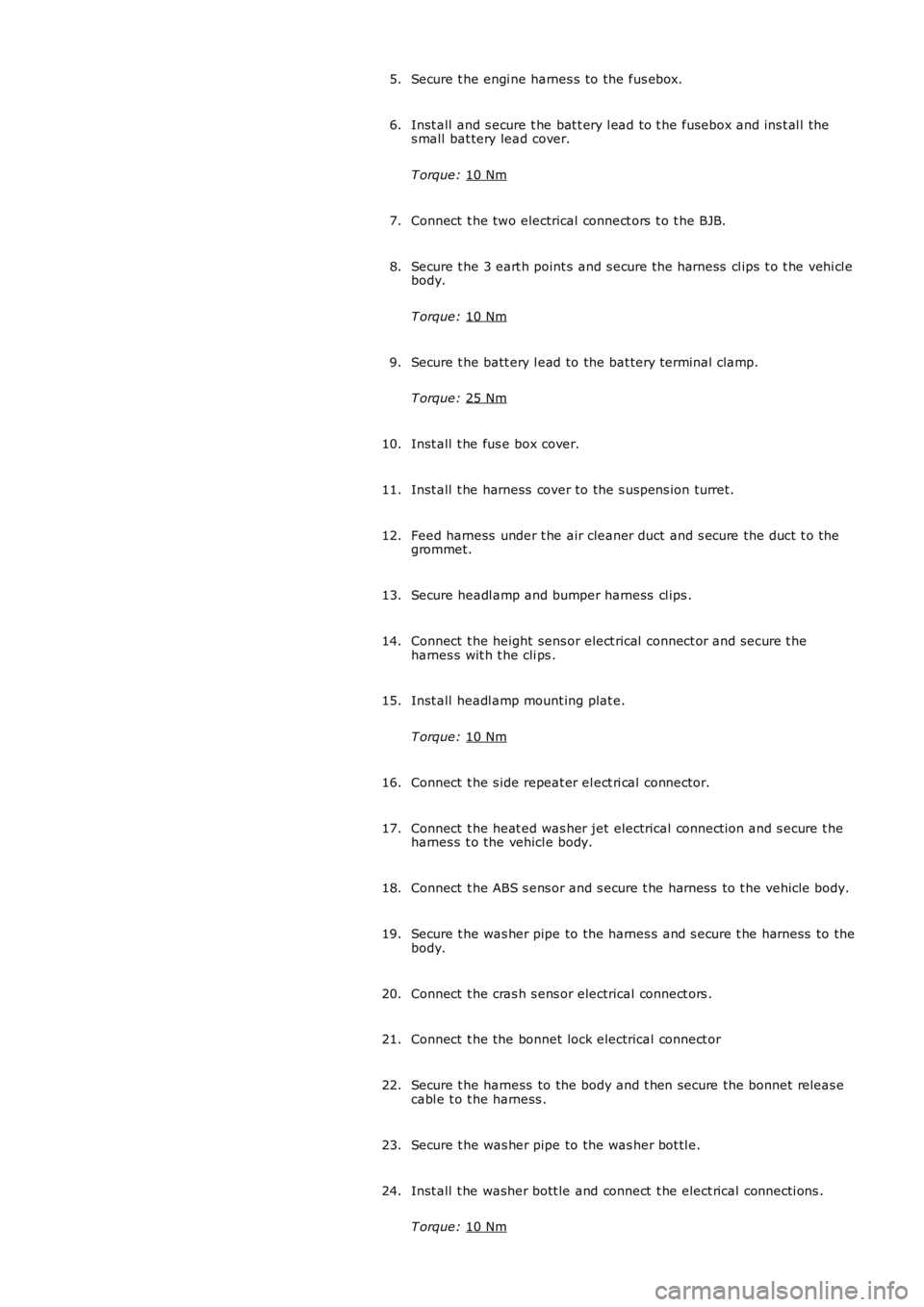

Secure t he engi ne harnes s to the fus ebox.
5.
Inst all and s ecure t he bat t ery l ead to t he fusebox and ins t al l the
s mall bat tery lead cover.
T orque: 10 Nm 6.
Connect t he two electrical connect ors t o t he BJB.
7.
Secure t he 3 eart h point s and s ecure t he harness cl ips t o t he vehi cl e
body.
T orque: 10 Nm 8.
Secure t he batt ery l ead to the bat tery terminal clamp.
T orque: 25 Nm 9.
Inst all t he fus e box cover.
10.
Inst all t he harness cover to the s us pens ion turret.
11.
Feed harness under t he air cleaner duct and s ecure the duct t o the
grommet.
12.
Secure headl amp and bumper harness cl ips .
13.
Connect t he height sens or elect rical connect or and s ecure t he
harnes s wit h t he cli ps .
14.
Inst all headl amp mount ing plat e.
T orque: 10 Nm 15.
Connect t he s ide repeat er el ect ri cal connector.
16.
Connect t he heat ed was her jet electrical connect ion and s ecure t he
harnes s t o the vehicl e body.
17.
Connect t he ABS s ens or and s ecure t he harness to t he vehicle body.
18.
Secure t he was her pipe to the harnes s and s ecure t he harness to the
body.
19.
Connect t he cras h s ens or electrical connect ors .
20.
Connect t he the bonnet lock electrical connect or
21.
Secure t he harness to the body and t hen secure the bonnet releas e
cabl e t o t he harness .
22.
Secure t he was her pipe to the was her bot tl e.
23.
Inst all t he washer bott le and connect t he elect rical connecti ons .
T orque: 10 Nm 24.

Secure t he 3 ground cables t o t he vehi cl e body.
T orque: 10 Nm 25.
Secure t he harness to the vehicle body.
26.
Connect t he the bonnet lock electrical connect or
27.
Inst all t he RH s econdary bul khead mount ing bracket.
T orque: 10 Nm 28.
Inst all t he inner plenum plat e and s ecure t he electrical connect or to
t he plat e.
29.
Connect t he heat ed s creen RH el ect ri cal connector.
30.
Inst all t he auxi liary cool ant pump and connect the feed hos e.
T orque: 10 Nm 31.
Inst all t he FFB heat er coolant feed and ret urn pipes .
32.
Connect t he FFB heat er coolant feed and ret urn hos es to the pi pes .
33.
Connect t he A/C pres sure s wit ch and t he BBUS electrical connect ors .
Als o secure t he harnes s t o t he vehi cl e body.
34.
Secure t he engi ne compartment harnes s t o t he vehi cl e bulkhead.
35.
Secure t he harness tray to the LHS of t he vehicle bul khead.
36.
Connect t he LH heated s creen el ect ri cal connector and s ecure t he
harnes s t o the vehicl e body.
37.
Feed the harnes s i nto the LH wheel arch and s ecure t he grommet.
38.
Inst all t he ABS modulat or bracket.
T orque: 25 Nm 39.
Inst all t he LH s ide repeat er lamp and s ecure t he cli ps to the vehicle
body.
40.
Connect t he rear was her pi pe.
41.
Connect t he ABS s ens or electrical connect or and s ecure the harnes s
t o t he vehi cl e body.
42.
Connect t he two electrical connect ors t o t he CJB.
43.
Connect t he main engi ne compartment harnes s t o t he ins trument
panel harnes s and clos e t he cover.
44.
Connect t he main engi ne compartment harnes s t o t he headl amp
l evell ing ECU.
45.
Connect t he 3 floor harness el ect ri cal connect ions.
46.
