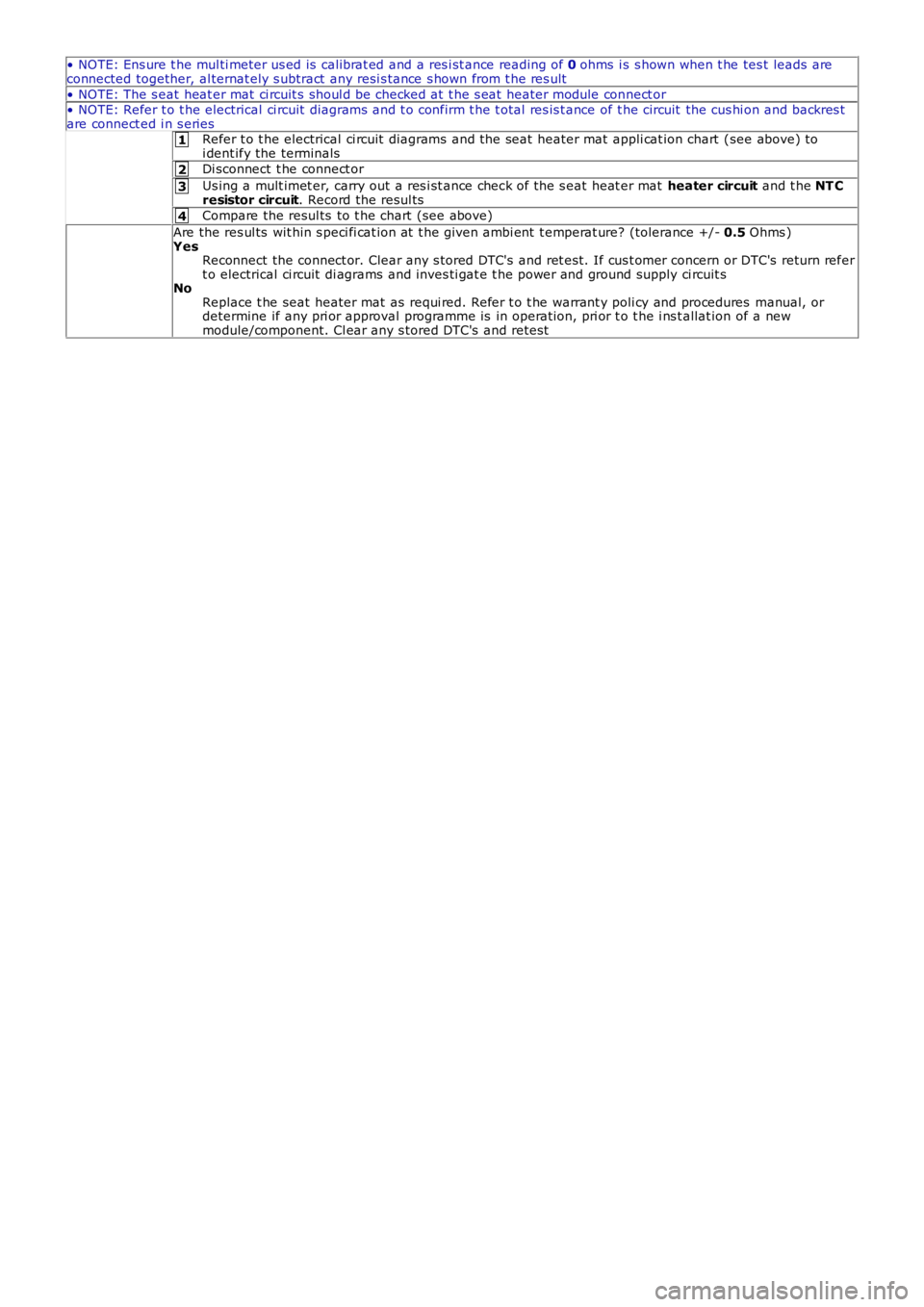

• NOTE: Ens ure t he mul ti meter us ed is cali brat ed and a res i st ance reading of 0 ohms i s s hown when t he tes t leads areconnected together, al ternat ely s ubtract any resi s tance s hown from t he res ult
• NOTE: The s eat heat er mat ci rcuit s s houl d be checked at t he s eat heater module connect or• NOTE: Refer t o t he electrical ci rcuit diagrams and t o confirm t he t otal res is t ance of t he circuit the cus hi on and backres tare connect ed i n s eriesRefer t o t he electrical ci rcuit diagrams and the seat heater mat appli cat ion chart (see above) toi dent ify the terminals
Di sconnect t he connect or
Us ing a mult imet er, carry out a res i st ance check of the s eat heat er mat heater circuit and t he NT Cresistor circuit. Record the resul ts
Compare the resul ts to t he chart (see above)
Are the res ul ts wit hin s peci fi cat ion at t he given ambi ent t emperat ure? (tolerance +/- 0.5 Ohms )YesReconnect the connect or. Clear any s tored DTC's and ret es t. If cus t omer concern or DTC's return refert o electrical ci rcuit di agrams and inves ti gat e t he power and ground supply ci rcuit sNoReplace t he seat heater mat as requi red. Refer t o t he warrant y poli cy and procedures manual, ordetermine if any pri or approval programme is in operat ion, pri or t o t he i ns t allat ion of a newmodule/component. Cl ear any s tored DTC's and retes t

Publi s hed: 11-May-2011

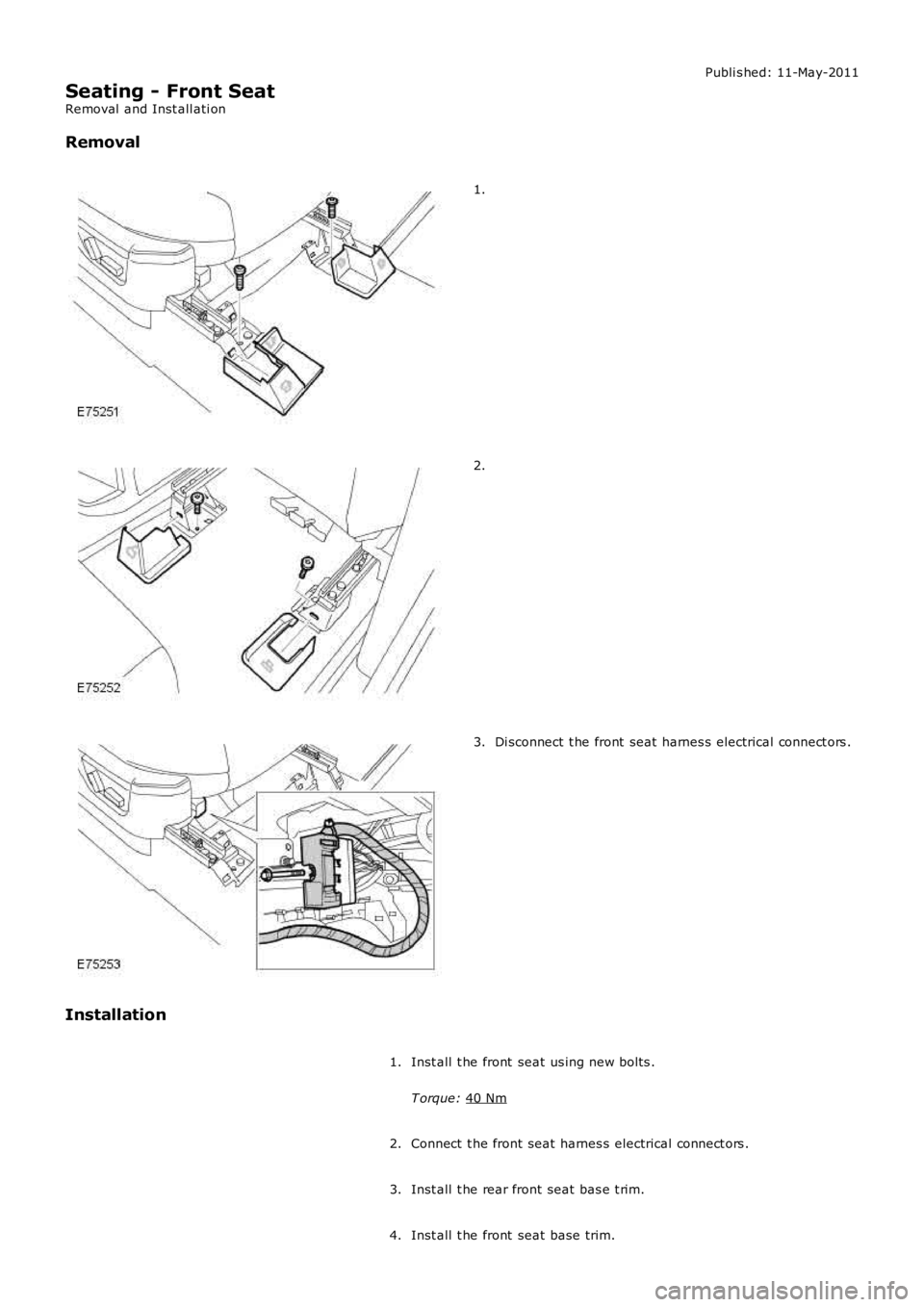

Seating - Front Seat
Removal and Inst all ati on
Removal 1.
2.
Di sconnect t he front seat harnes s electrical connect ors .
3.
Installation Inst all t he front seat us ing new bol ts .
T orque: 40 Nm 1.
Connect t he front seat harnes s electrical connect ors .
2.
Inst all t he rear front seat bas e t rim.
3.
Inst all t he front seat base trim.
4.

Publi s hed: 11-May-2011
Seating - Front Seat Backrest Cover
Removal and Inst all ati on
Removal

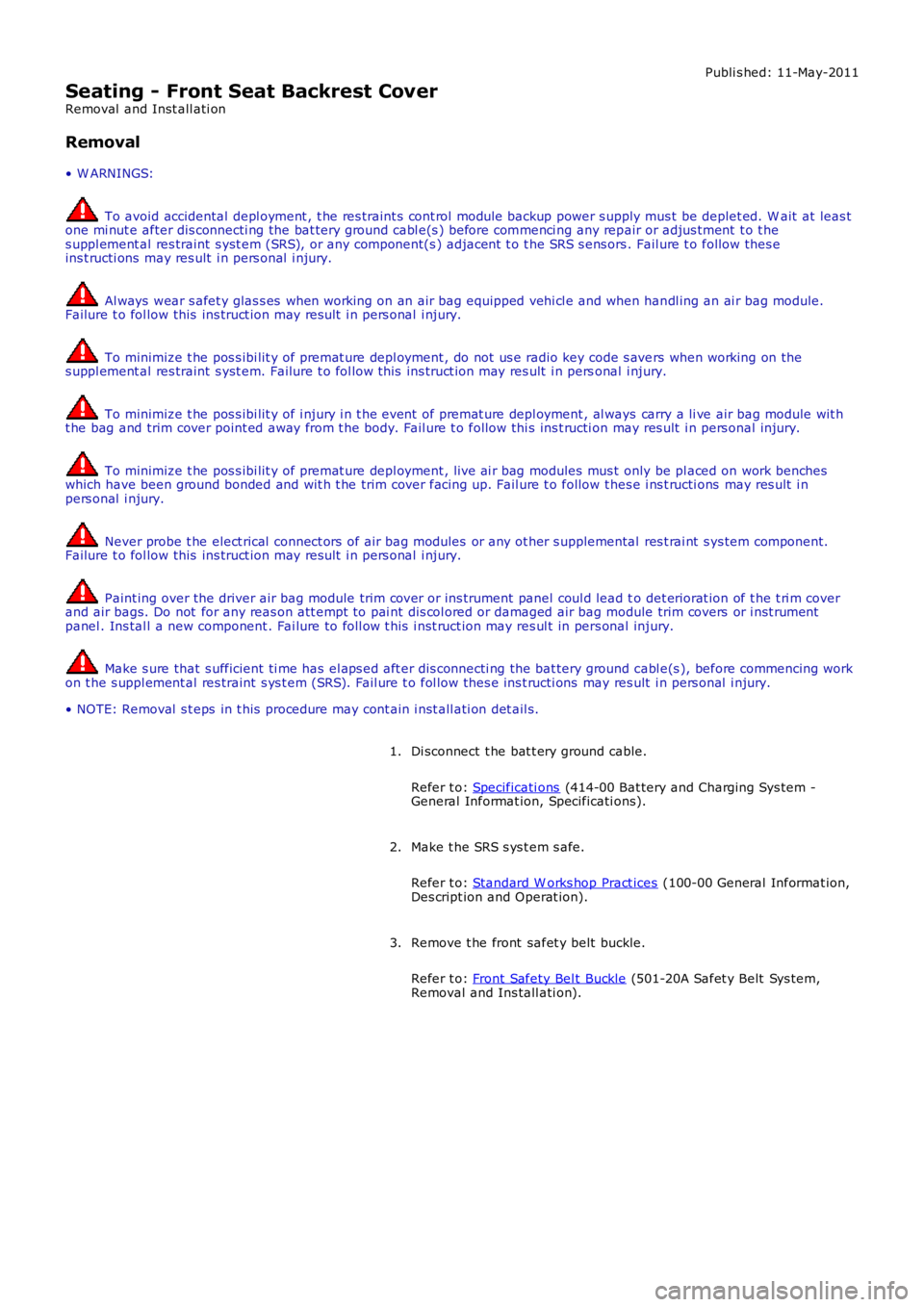

• W ARNINGS:
To avoid accidental depl oyment , t he res traint s cont rol module backup power s upply mus t be deplet ed. W ait at leas tone mi nut e after dis connecti ng the bat tery ground cabl e(s ) before commenci ng any repair or adjus tment t o t hes uppl ement al res traint s yst em (SRS), or any component(s ) adjacent t o t he SRS s ens ors. Fail ure t o follow thes eins t ructi ons may res ult i n pers onal i njury.
Al ways wear s afet y glas s es when working on an air bag equipped vehi cl e and when handl ing an ai r bag module.Failure t o fol low this ins truct ion may res ult i n pers onal i njury.
To minimize t he pos s ibi lit y of premat ure depl oyment , do not us e radio key code s avers when working on thes uppl ement al res traint s yst em. Failure t o fol low this ins truct ion may res ult i n personal i njury.
To minimize t he pos s ibi lit y of i njury i n t he event of premat ure depl oyment , al ways carry a li ve air bag module wit ht he bag and trim cover point ed away from t he body. Fail ure t o follow thi s ins t ructi on may res ult i n pers onal injury.
To minimize t he pos s ibi lit y of premat ure depl oyment , live ai r bag modules mus t only be pl aced on work bencheswhich have been ground bonded and wit h t he trim cover facing up. Fail ure t o follow thes e i ns t ructi ons may res ult i npers onal i njury.
Never probe t he elect rical connect ors of air bag modules or any ot her s upplemental res t rai nt s ys tem component.Failure t o fol low this ins truct ion may res ult i n pers onal i njury.
Paint ing over the driver air bag module trim cover or ins trument panel coul d lead to det eriorat ion of t he t ri m coverand air bags. Do not for any reas on att empt to pai nt dis col ored or damaged air bag module trim covers or i nst rumentpanel . Ins tal l a new component . Fai lure to foll ow t his i nst ruct ion may res ul t in pers onal injury.
Make s ure that s ufficient ti me has el aps ed aft er dis connecti ng the bat tery ground cabl e(s ), before commencing workon t he s uppl ement al res traint s ys t em (SRS). Fail ure t o fol low thes e ins t ructi ons may res ult i n pers onal i njury.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,Des cript ion and Operat ion).
2.
Remove t he front safet y belt buckle.
Refer t o: Front Safety Bel t Buckle (501-20A Safet y Belt Sys tem,Removal and Ins tall ati on).
3.

4.
5.

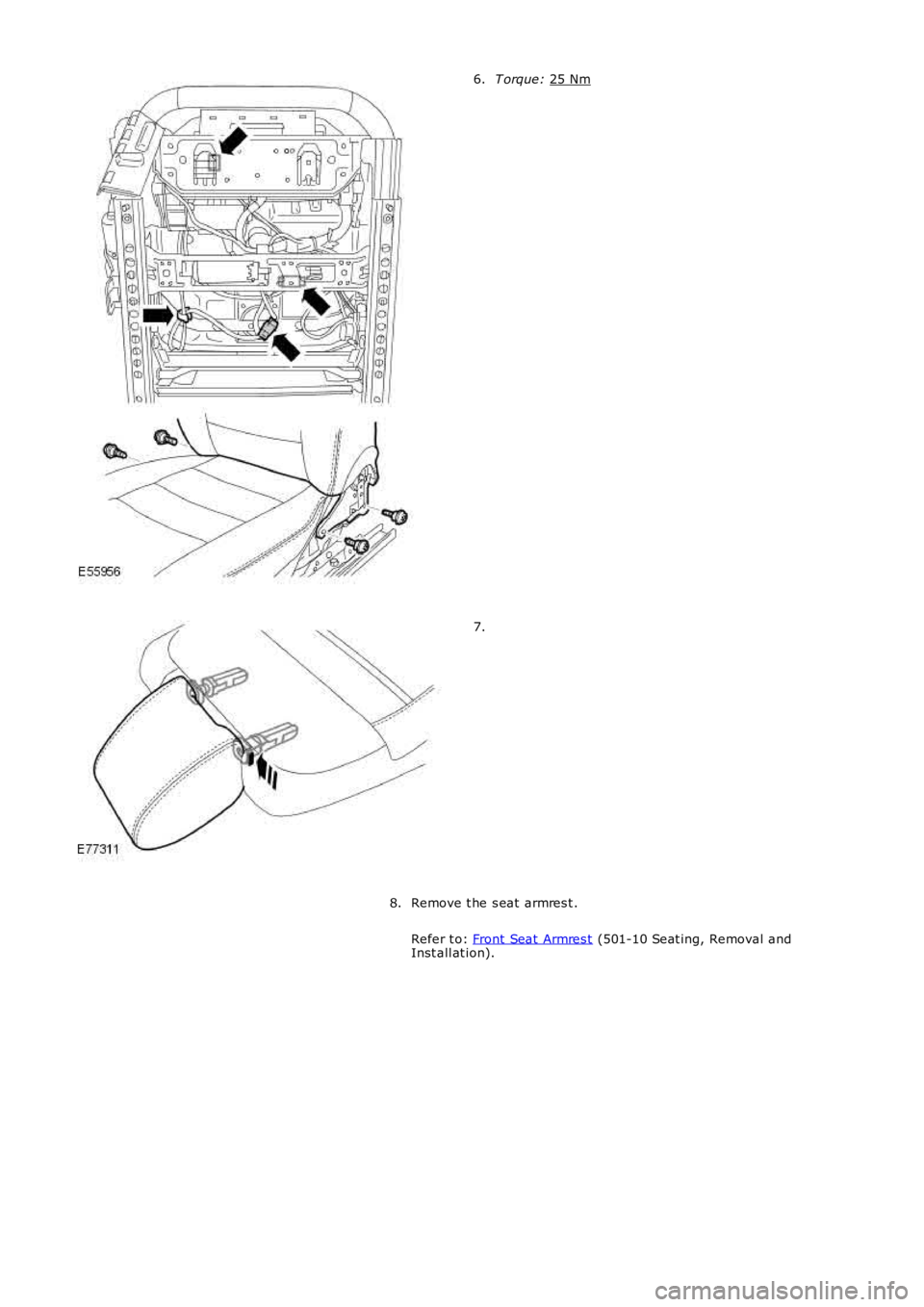

T orque:
25 Nm 6.
7.
Remove t he s eat armres t .
Refer t o: Front Seat Armres t (501-10 Seat ing, Removal and
Inst all at ion).
8.

9.
10.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011

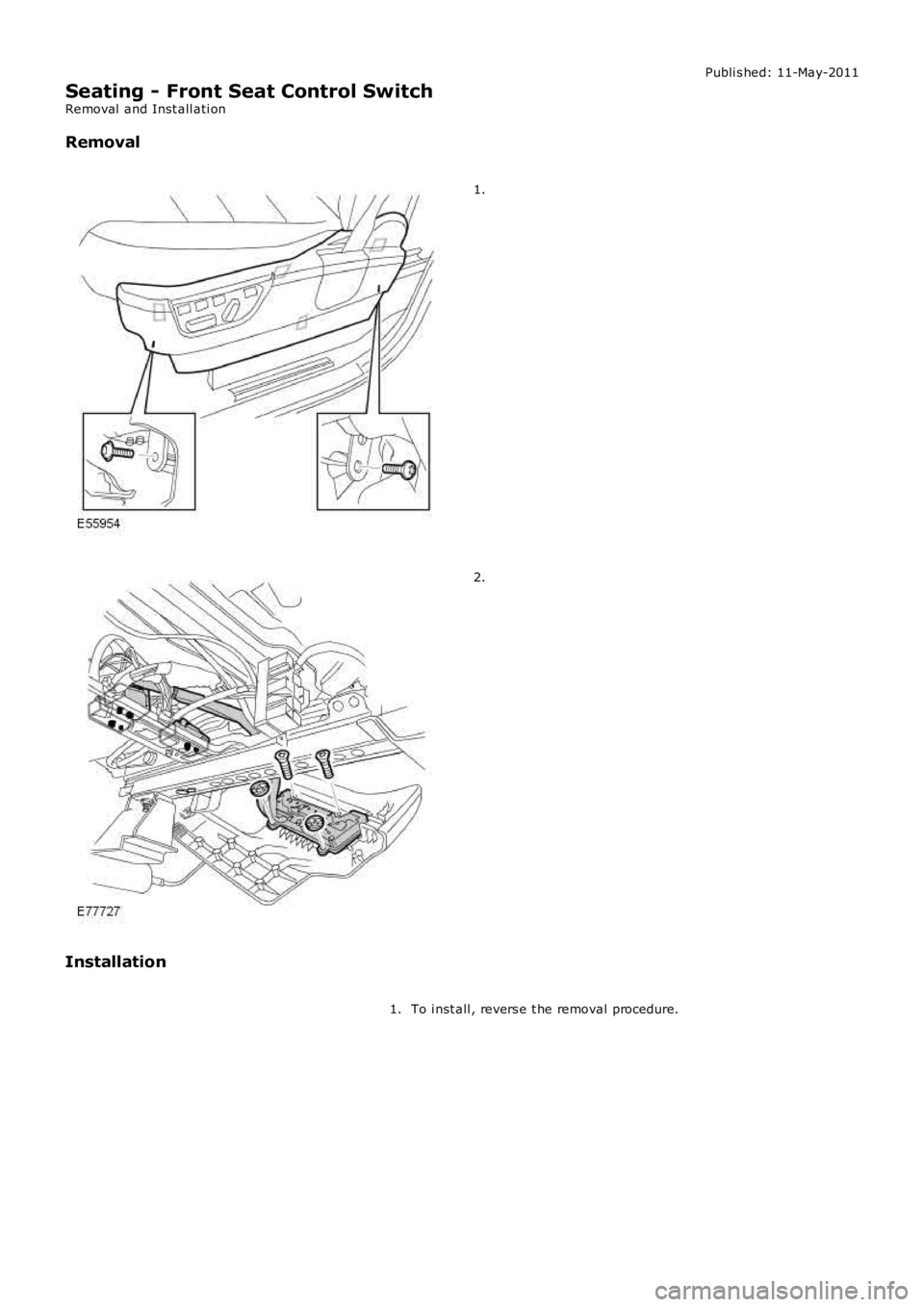

Seating - Front Seat Control Switch
Removal and Inst all ati on
Removal 1.
2.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

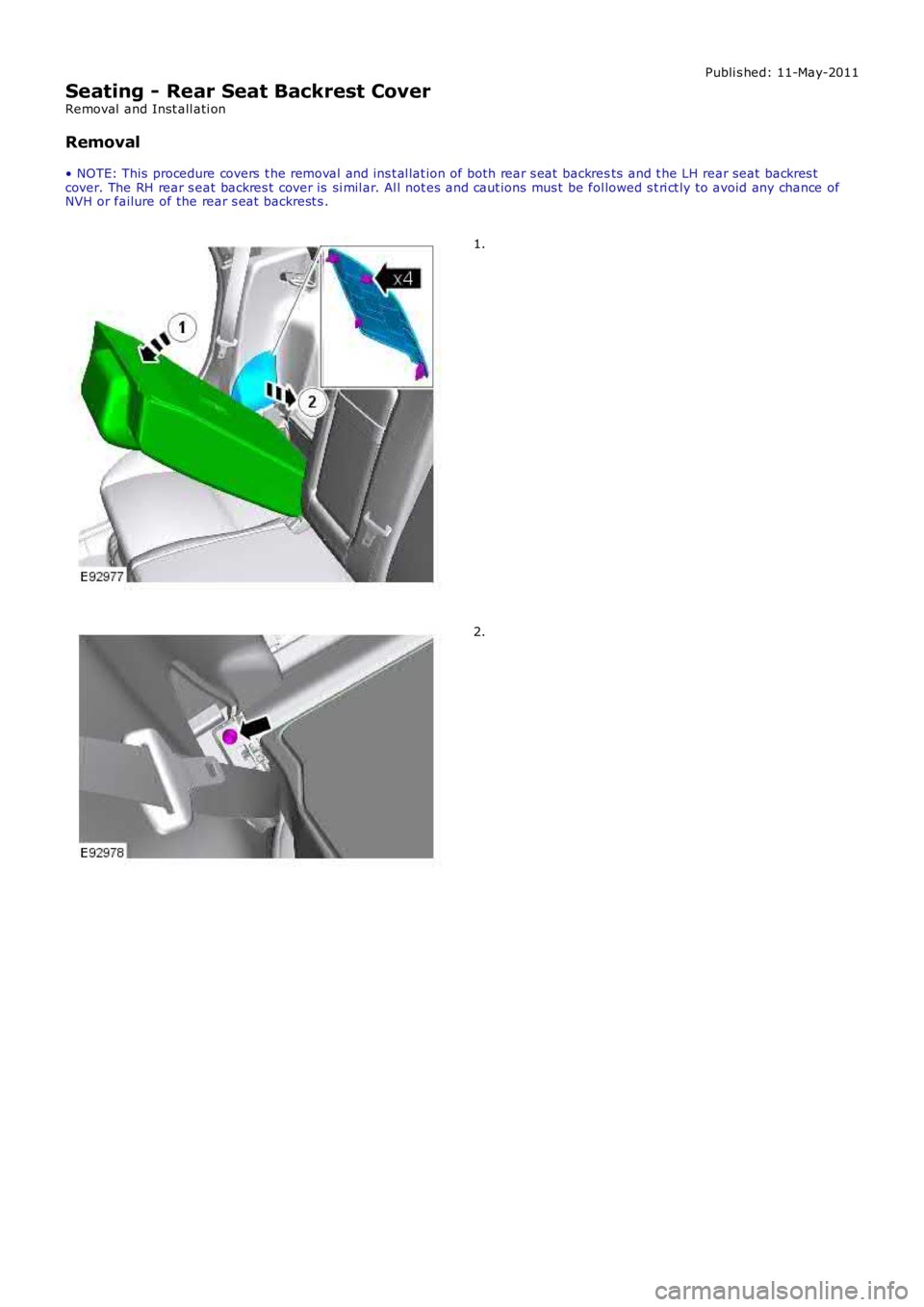

Seating - Rear Seat Backrest Cover
Removal and Inst all ati on
Removal
• NOTE: This procedure covers t he removal and ins t al lat ion of both rear s eat backrests and t he LH rear seat backres tcover. The RH rear s eat backres t cover is si mil ar. Al l not es and caut ions mus t be fol lowed s t ri ct ly to avoid any chance ofNVH or failure of the rear s eat backrest s .
1.
2.

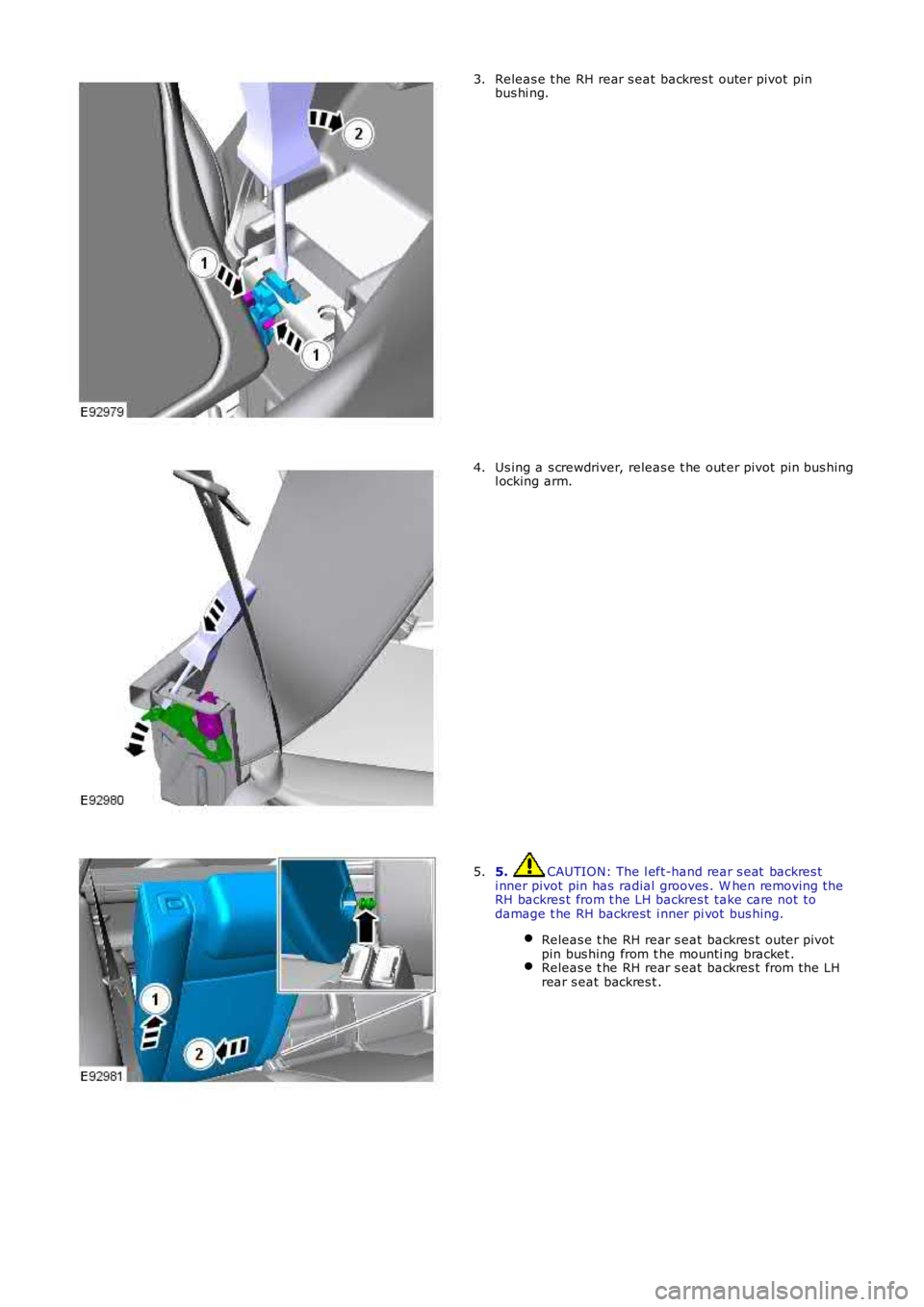

Releas e t he RH rear s eat backres t outer pivot pinbus hi ng.3.
Us ing a s crewdriver, releas e t he out er pivot pin bus hingl ocking arm.4.
5. CAUTION: The l eft-hand rear s eat backres ti nner pivot pin has radial grooves . W hen removing t heRH backres t from t he LH backres t take care not t odamage t he RH backrest i nner pi vot bus hing.
Releas e t he RH rear s eat backres t outer pivotpin bus hing from t he mounti ng bracket .Releas e t he RH rear s eat backres t from the LHrear s eat backres t .
5.

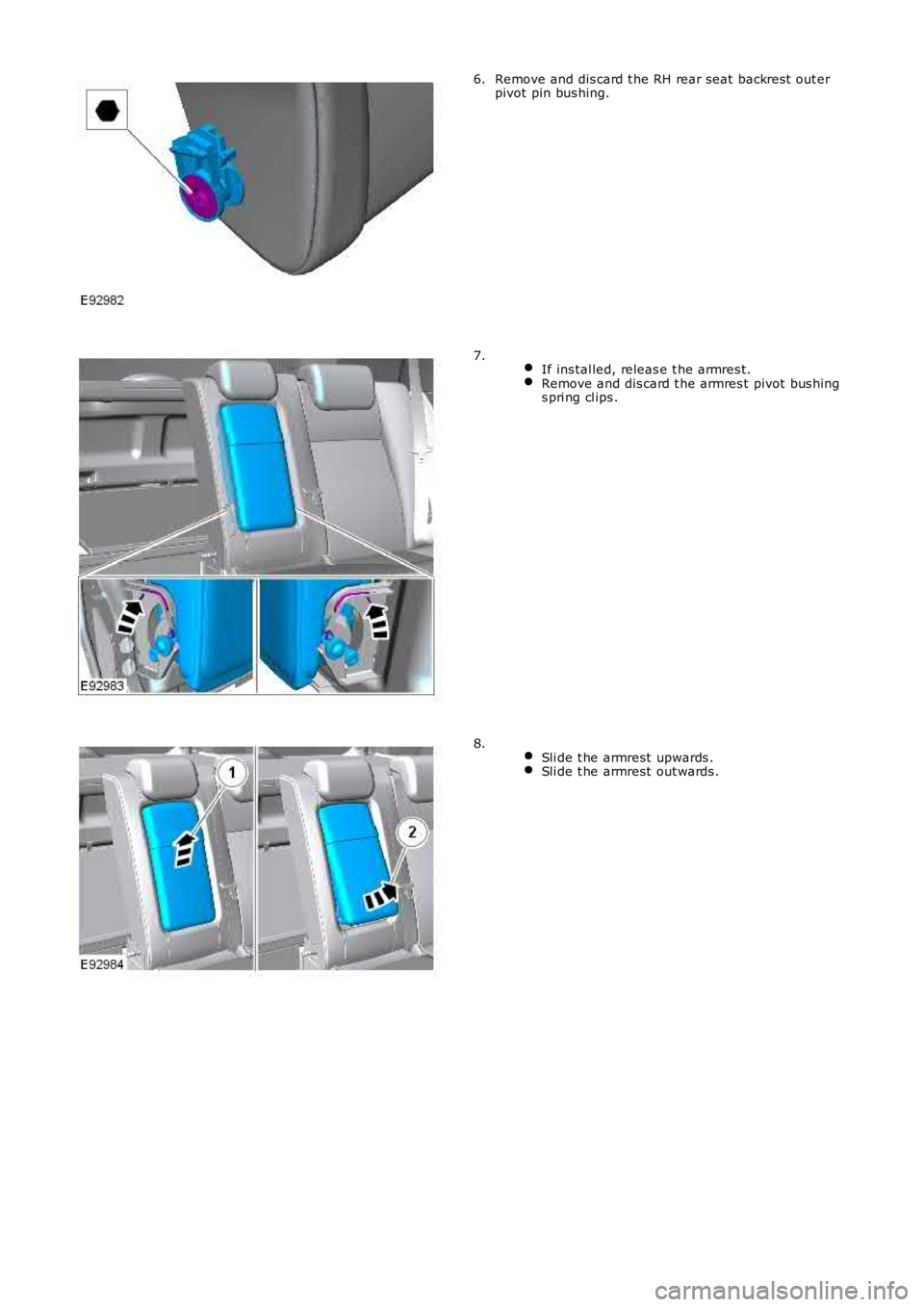

Remove and dis card t he RH rear seat backrest out erpivot pin bus hing.6.
If ins tal led, releas e t he armres t.Remove and dis card t he armres t pivot bus hings pri ng cl ips .
7.
Sli de t he armrest upwards .Sli de t he armrest out wards .
8.
