Page 2201 of 3229

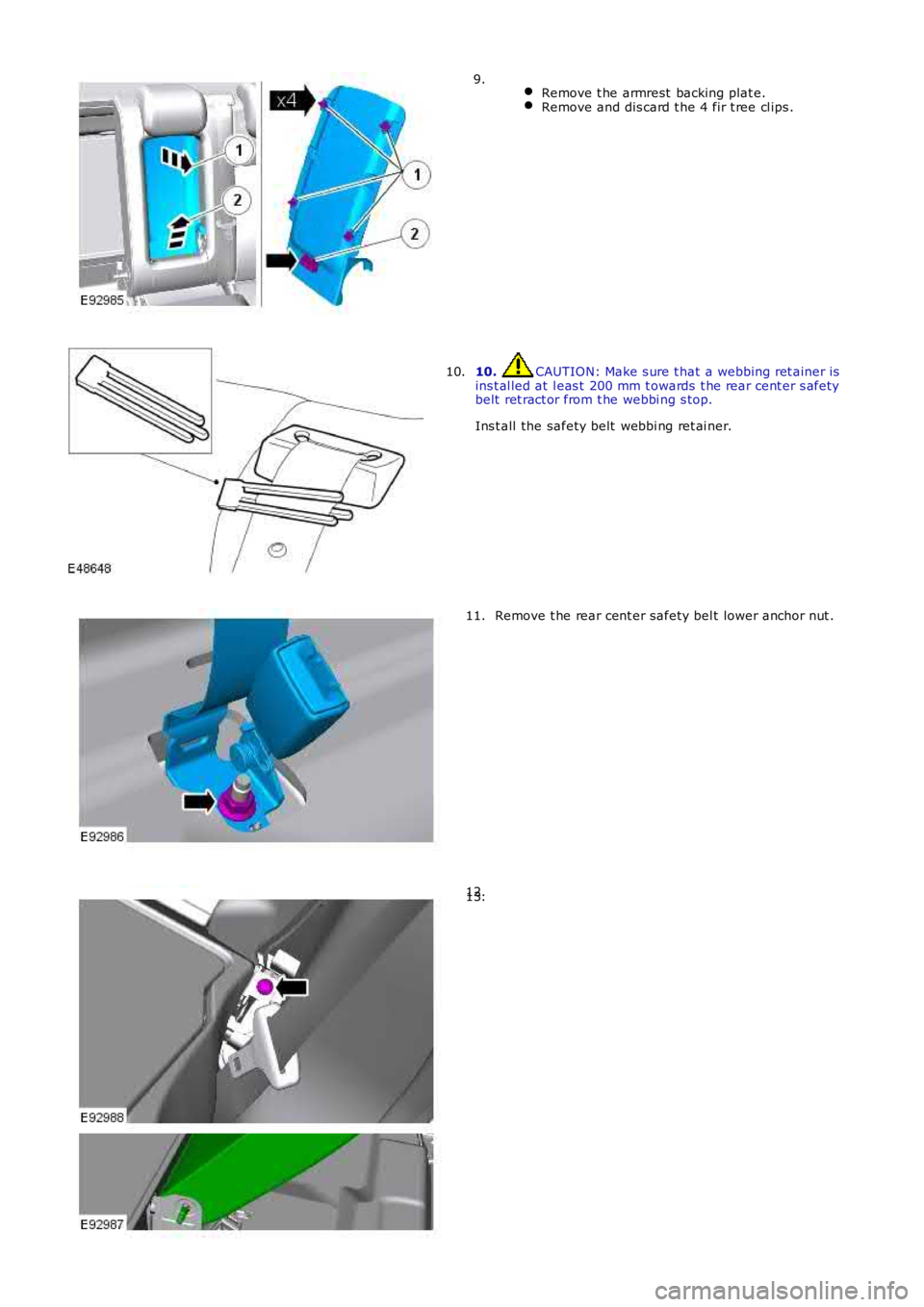

Remove t he armrest backing plat e.Remove and dis card t he 4 fir t ree cl ips .
9.
10. CAUTION: Make s ure t hat a webbing ret ainer isins t al led at l eas t 200 mm t owards t he rear cent er s afetybelt ret ract or from t he webbi ng s top.
Ins t all the safety belt webbi ng ret ai ner.
10.
Remove t he rear cent er safety bel t lower anchor nut .11.
12.13.
Page 2202 of 3229

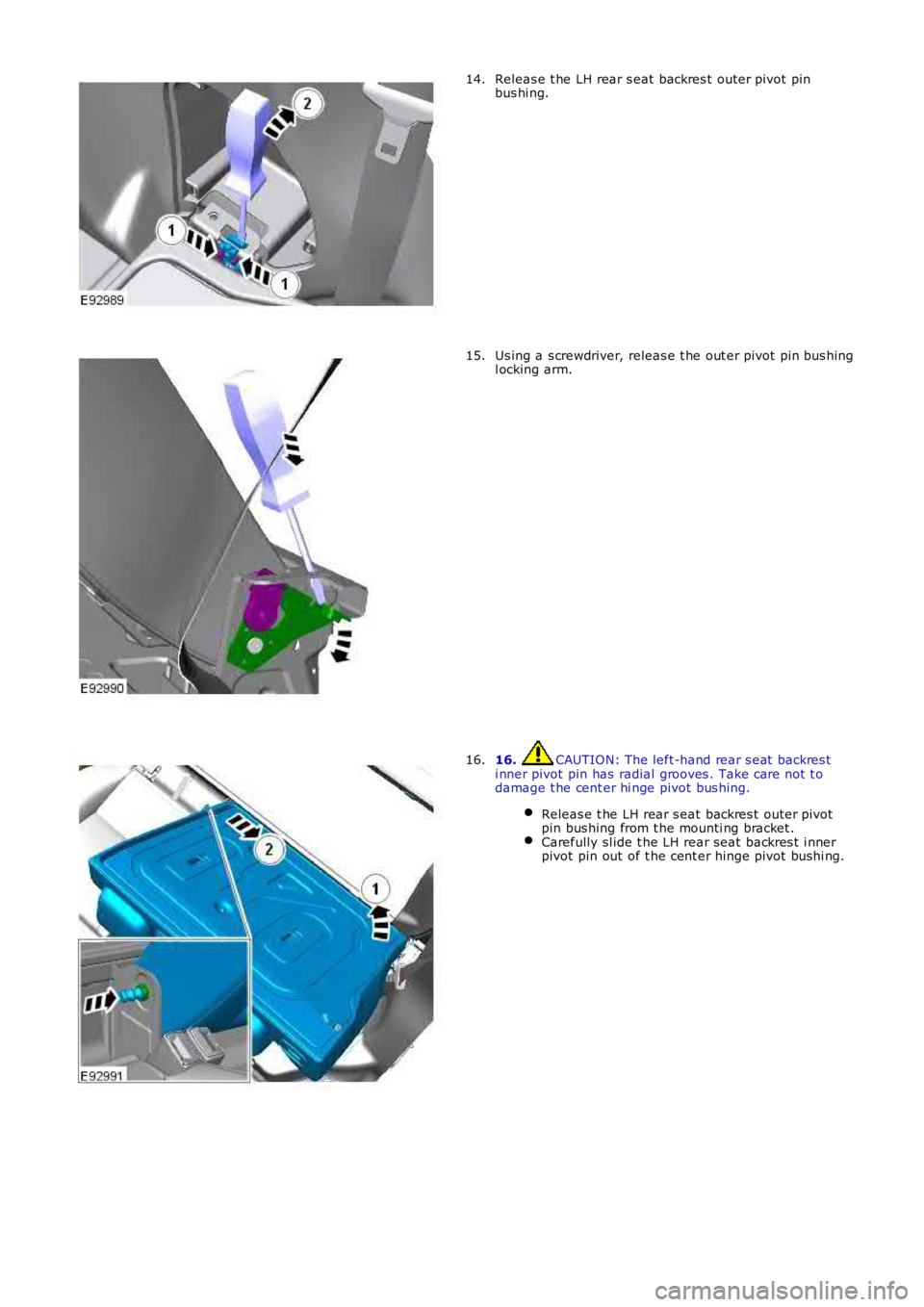

Releas e t he LH rear s eat backres t outer pivot pinbus hi ng.14.
Us ing a s crewdriver, releas e t he out er pivot pin bus hingl ocking arm.15.
16. CAUTION: The left-hand rear s eat backres ti nner pivot pin has radial grooves . Take care not t odamage t he cent er hi nge pivot bus hing.
Releas e t he LH rear s eat backres t outer pivotpin bus hing from t he mounti ng bracket .Carefully sl ide t he LH rear seat backres t i nnerpivot pin out of t he cent er hinge pivot bushi ng.
16.
Page 2203 of 3229
Remove and dis card t he LH rear seat backres t out erpivot pin bus hing.17.
18.
Remove t he cent er safet y belt t rim panel.19.
Page 2204 of 3229

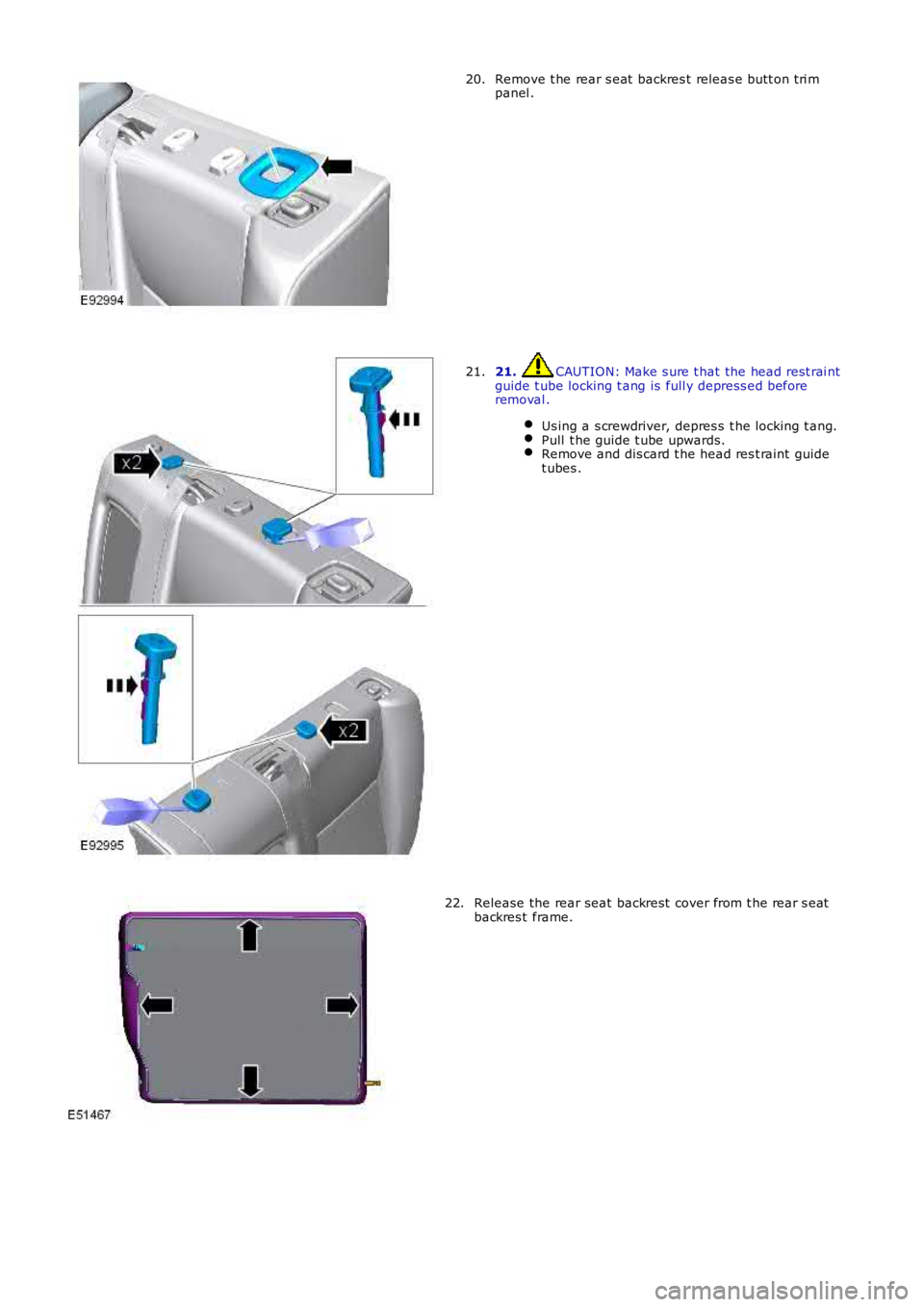

Remove t he rear s eat backres t releas e butt on t ri mpanel .20.
21. CAUTION: Make s ure t hat the head rest rai ntguide t ube locking t ang is full y depress ed beforeremoval .
Us ing a s crewdriver, depres s t he locking t ang.Pull t he guide t ube upwards.Remove and dis card t he head res t raint guidet ubes .
21.
Release the rear seat backrest cover from t he rear s eatbackres t frame.22.
Page 2205 of 3229

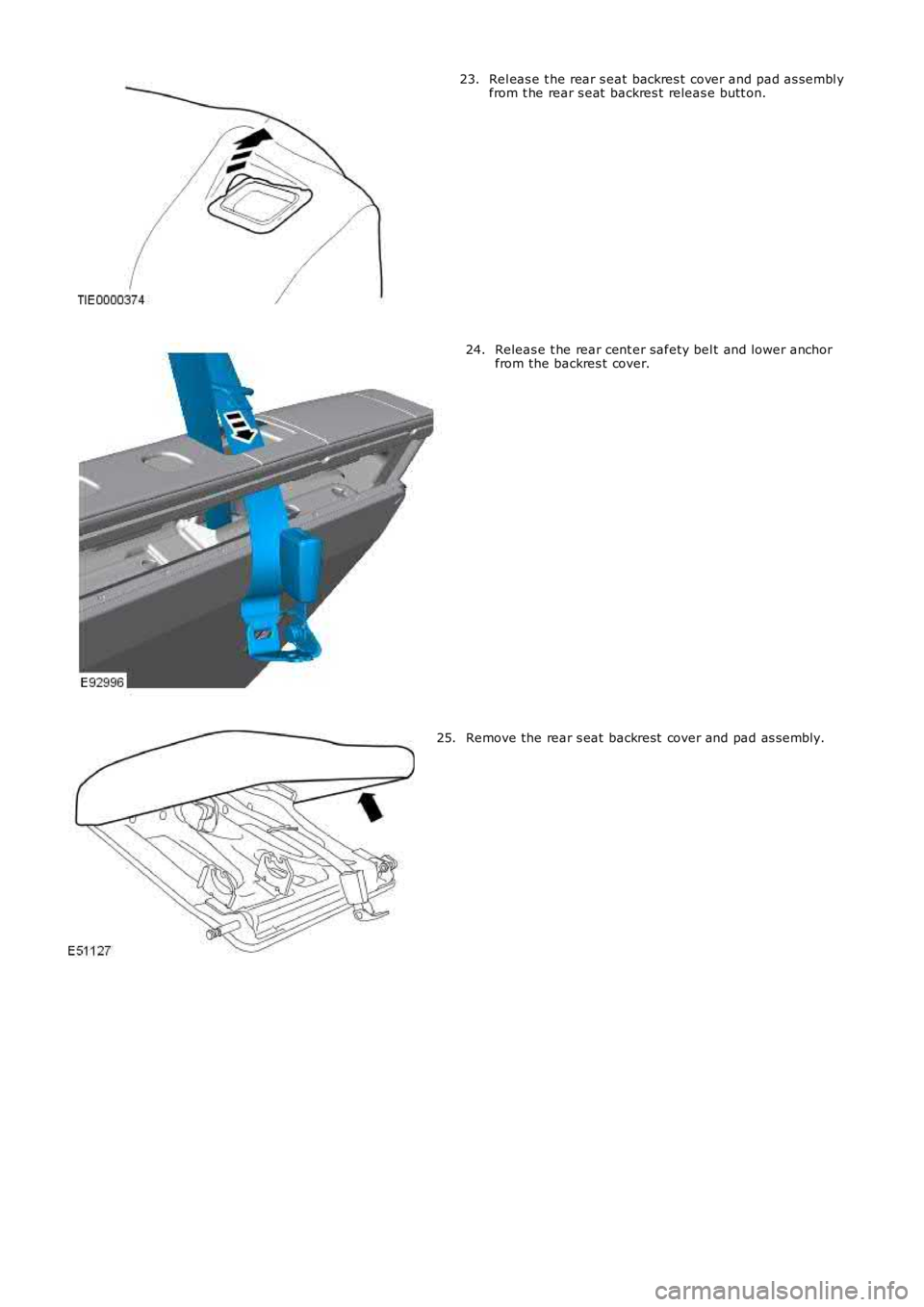

Rel eas e t he rear s eat backres t cover and pad as sembl yfrom t he rear s eat backres t releas e butt on.23.
Releas e t he rear cent er safety bel t and lower anchorfrom the backres t cover.24.
Remove the rear s eat backrest cover and pad as s embly.25.

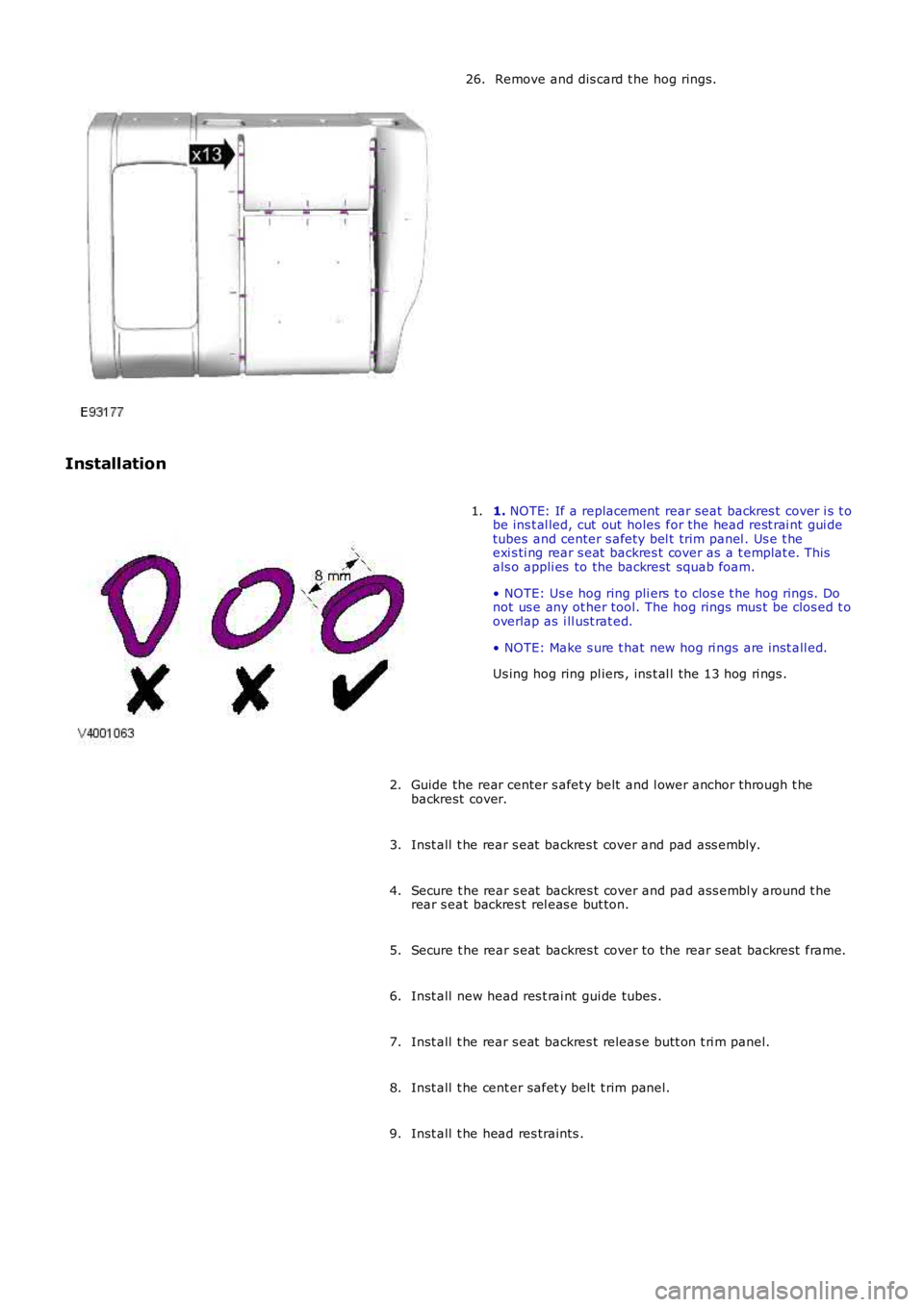

Page 2206 of 3229

Remove and dis card t he hog rings.26.
Installation
1. NOTE: If a replacement rear seat backres t cover i s t obe ins t al led, cut out holes for the head rest rai nt gui detubes and center s afety bel t trim panel . Us e t heexi s ti ng rear s eat backres t cover as a t emplat e. Thisals o appli es to the backrest squab foam.
• NOTE: Us e hog ring pli ers t o clos e t he hog rings. Donot us e any ot her tool. The hog rings mus t be clos ed t ooverlap as i ll ust rat ed.
• NOTE: Make s ure t hat new hog ri ngs are i nst all ed.
Us ing hog ring pl iers , ins t al l the 13 hog ri ngs .
1.
Guide the rear center s afet y belt and l ower anchor t hrough t hebackrest cover.2.
Inst all t he rear s eat backres t cover and pad ass embly.3.
Secure t he rear s eat backres t cover and pad ass embl y around t herear s eat backres t rel eas e but ton.4.
Secure t he rear s eat backres t cover to the rear seat backrest frame.5.
Inst all new head res t rai nt gui de tubes .6.
Inst all t he rear s eat backres t releas e butt on t ri m panel.7.
Inst all t he cent er safet y belt t rim panel.8.
Inst all t he head res traints .9.
Page 2207 of 3229

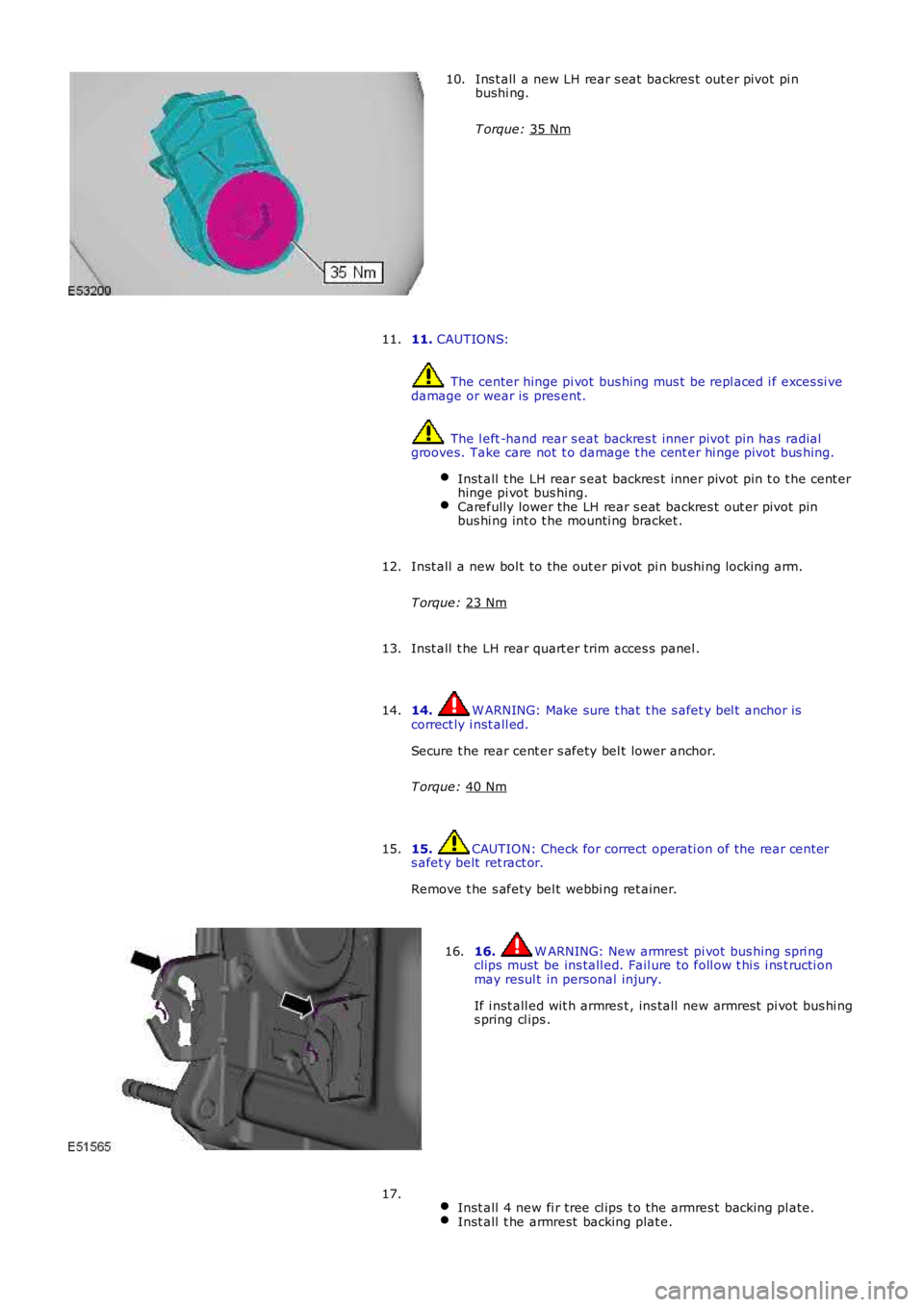

Ins t all a new LH rear s eat backres t out er pivot pi n
bushi ng.
T orque: 35 Nm 10.
11. CAUTIONS: The center hinge pi vot bus hing mus t be repl aced i f exces si ve
damage or wear is pres ent. The l eft -hand rear s eat backres t inner pivot pin has radial
grooves. Take care not t o damage t he cent er hi nge pivot bus hing.
Inst all t he LH rear s eat backres t inner pivot pin t o t he cent er
hinge pi vot bus hing. Carefully lower the LH rear s eat backres t out er pivot pin
bus hi ng int o t he mounti ng bracket . 11.
Inst all a new bol t to the out er pi vot pi n bushi ng locking arm.
T orque: 23 Nm 12.
Inst all t he LH rear quart er trim acces s panel .
13.
14. W ARNING: Make sure t hat t he s afet y bel t anchor is
correct ly i nst all ed.
Secure t he rear cent er s afety bel t lower anchor.
T orque: 40 Nm 14.
15. CAUTION: Check for correct operati on of the rear cent er
s afet y belt ret ract or.
Remove t he s afety bel t webbi ng ret ainer.
15. 16. W ARNING: New armrest pi vot bus hing s pri ng
clips must be ins tall ed. Fail ure to foll ow t hi s i ns t ructi on
may resul t in personal injury.
If i nst all ed wit h armres t , ins tall new armres t pi vot bus hi ng
s pring cl ips .
16.
Inst all 4 new fi r tree cl ips t o t he armres t backing pl ate. Inst all t he armrest backing plat e.17.
Page 2208 of 3229

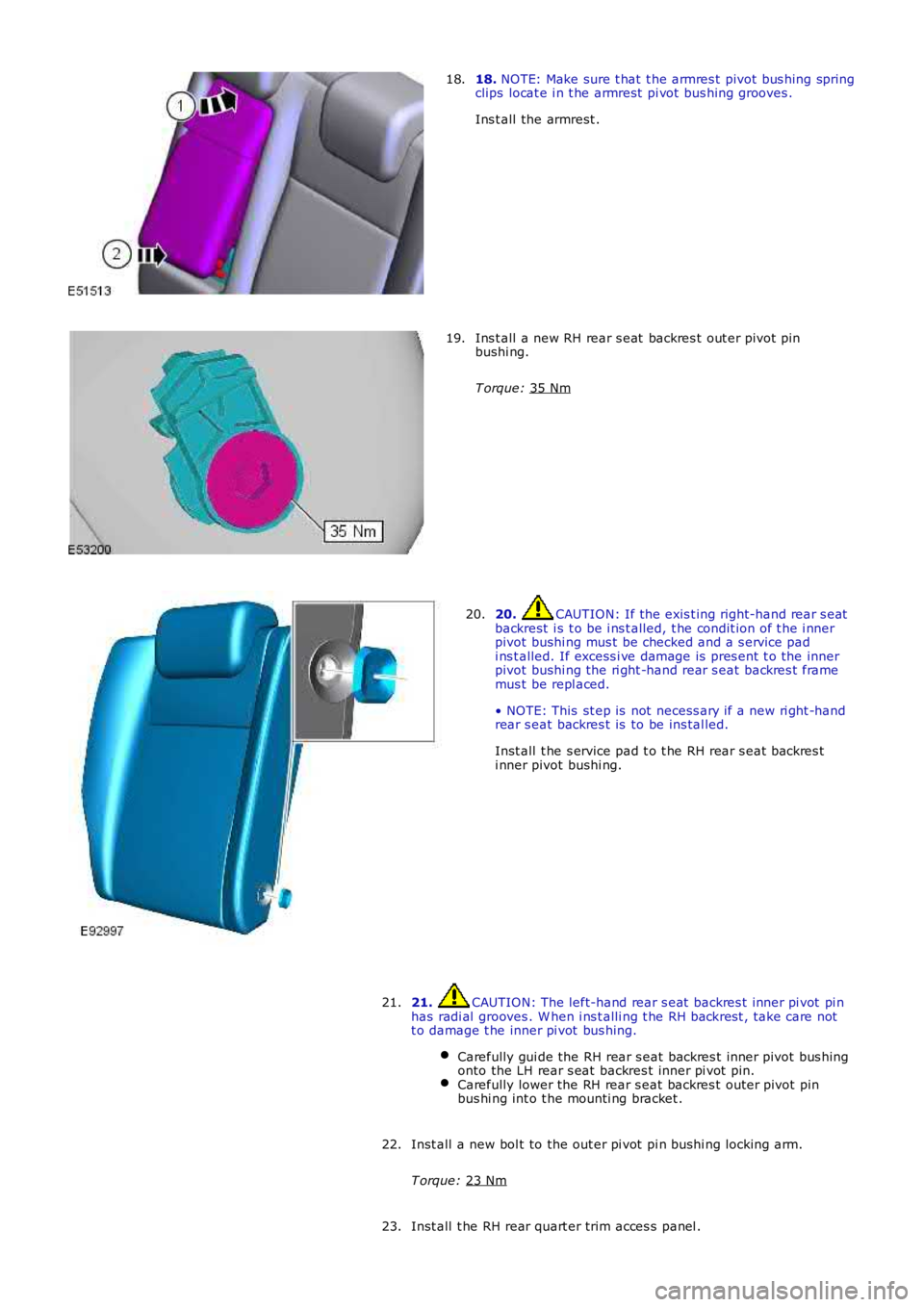

18.
NOTE: Make sure t hat t he armres t pivot bus hing spring
clips locat e i n t he armrest pi vot bus hing grooves .
Ins t all the armrest .
18. Ins t all a new RH rear s eat backres t out er pivot pin
bushi ng.
T orque: 35 Nm 19.
20. CAUTION: If the exis t ing right-hand rear s eat
backrest i s t o be i ns t alled, t he condit ion of t he i nner
pivot bushi ng mus t be checked and a s ervice pad
i ns t alled. If excess i ve damage is pres ent t o the inner
pivot bushi ng the ri ght -hand rear s eat backres t frame
mus t be repl aced.
• NOTE: This st ep is not necess ary if a new ri ght -hand
rear s eat backres t is to be ins tal led.
Inst all t he s ervice pad t o t he RH rear s eat backres t
i nner pivot bushi ng.
20.
21. CAUTION: The left-hand rear s eat backres t inner pi vot pi n
has radi al grooves . W hen i ns t alli ng t he RH backrest , take care not
t o damage t he inner pi vot bus hing.
Carefully gui de the RH rear s eat backres t inner pivot bus hing
onto the LH rear s eat backres t inner pi vot pi n. Carefully lower the RH rear s eat backres t outer pivot pin
bus hi ng int o t he mounti ng bracket . 21.
Inst all a new bol t to the out er pi vot pi n bushi ng locking arm.
T orque: 23 Nm 22.
Inst all t he RH rear quart er trim acces s panel .
23.
Page 2209 of 3229

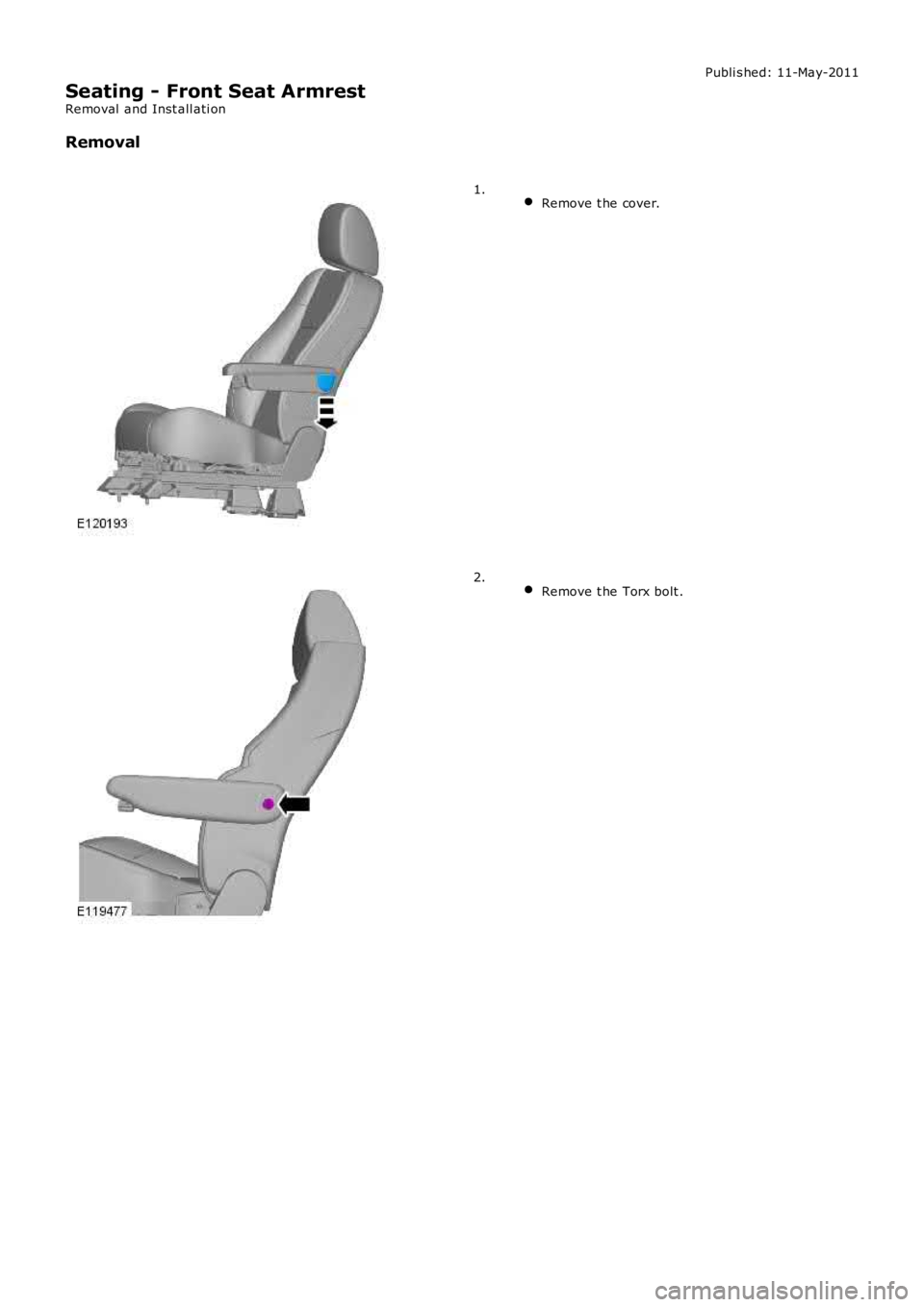

Publi s hed: 11-May-2011
Seating - Front Seat Armrest
Removal and Inst all ati on
Removal
Remove t he cover.1.
Remove t he Torx bolt .2.
Page 2210 of 3229

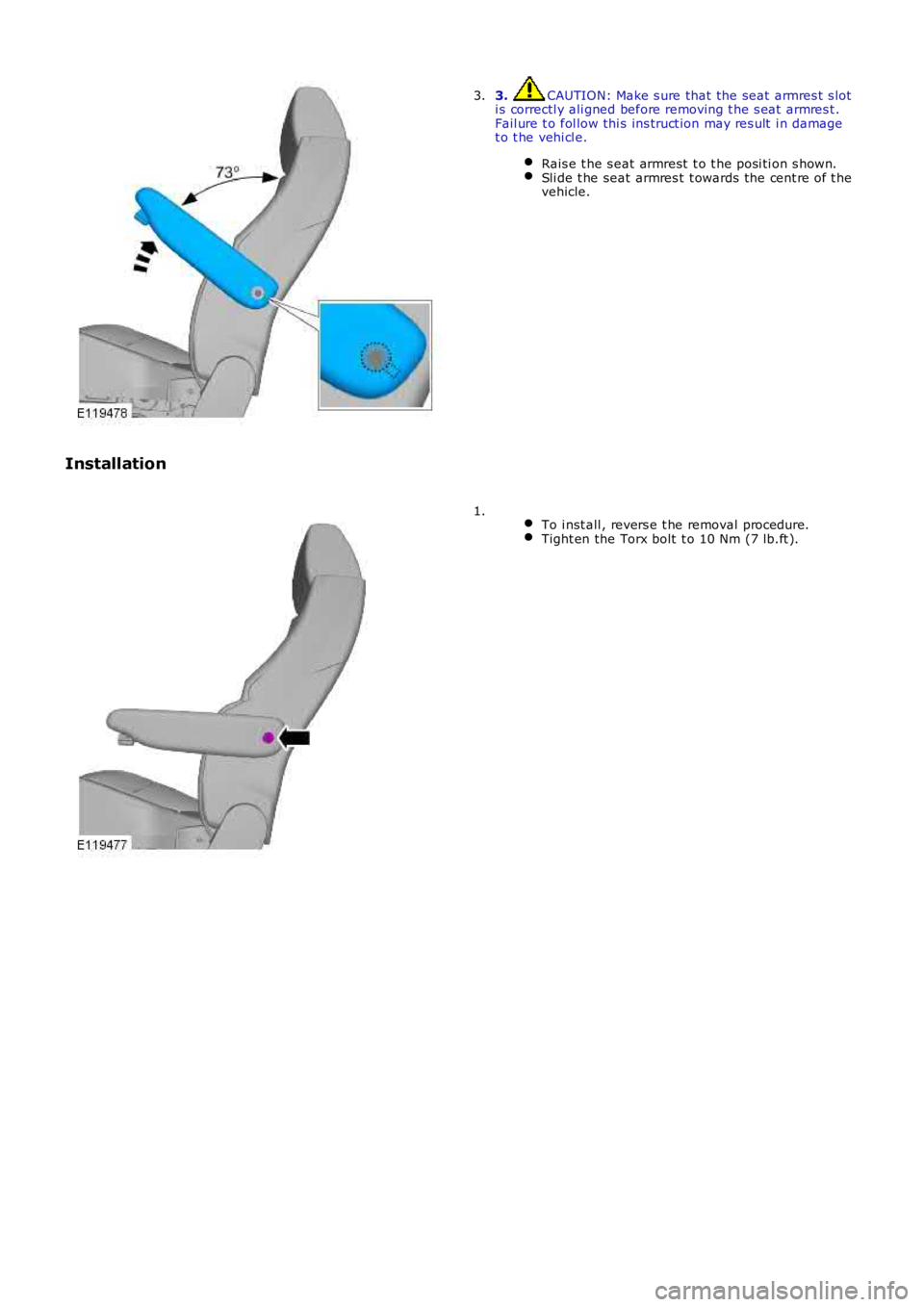

3. CAUTION: Make s ure that the seat armres t s loti s correctl y ali gned before removing t he s eat armres t .Fail ure t o fol low thi s ins truct ion may res ult i n damaget o t he vehi cl e.
Rais e t he s eat armrest t o t he posi ti on s hown.Sli de t he seat armres t t owards the cent re of t hevehicle.
3.
Installation
To i nst all , revers e t he removal procedure.Tight en the Torx bolt t o 10 Nm (7 lb.ft ).
1.
