LAND ROVER FRELANDER 2 2006 Repair Manual

Publi s hed: 11-May-2011

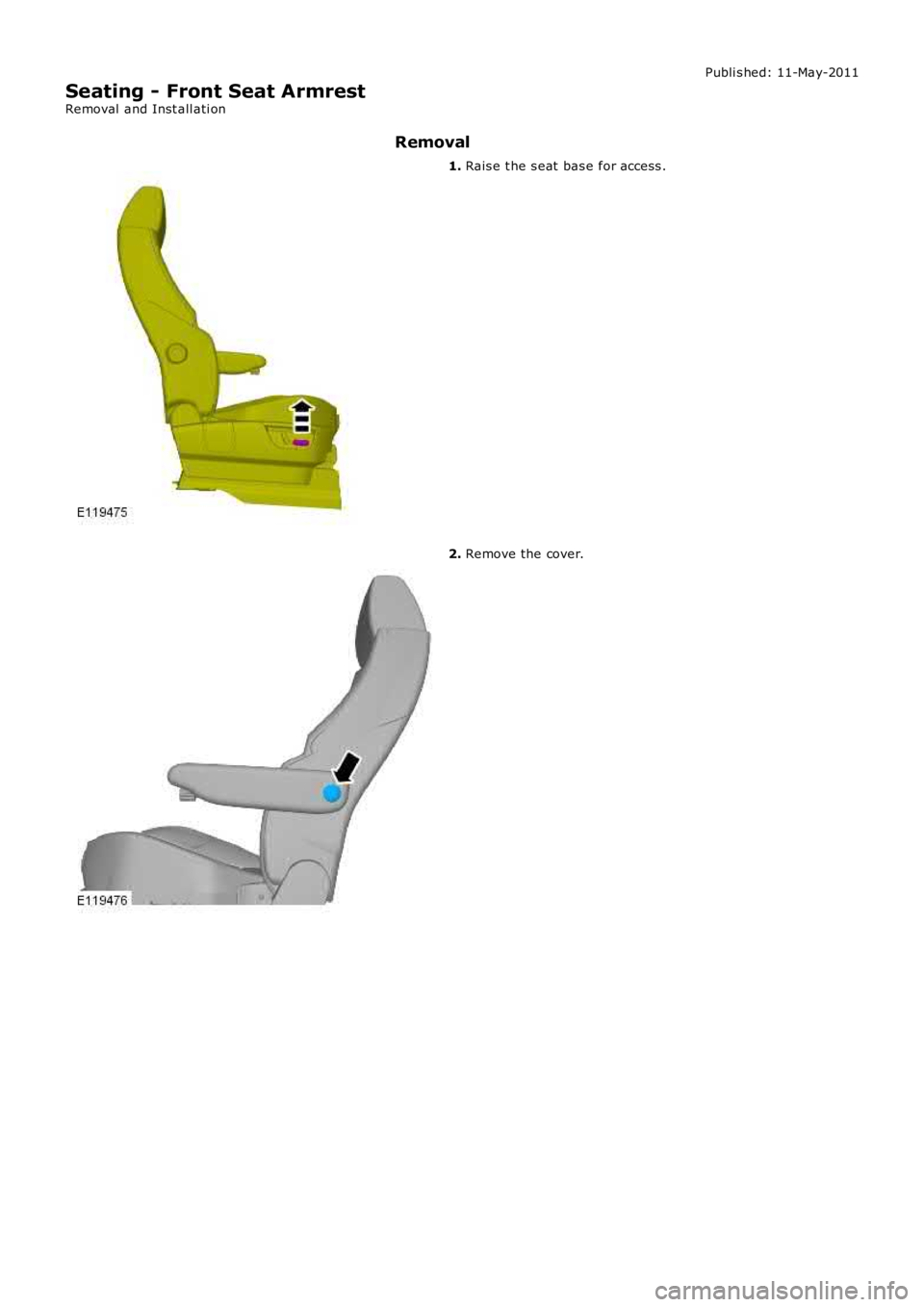

Seating - Front Seat Armrest
Removal and Inst all ati on
Removal
1. Rais e t he s eat bas e for access .
2. Remove the cover.

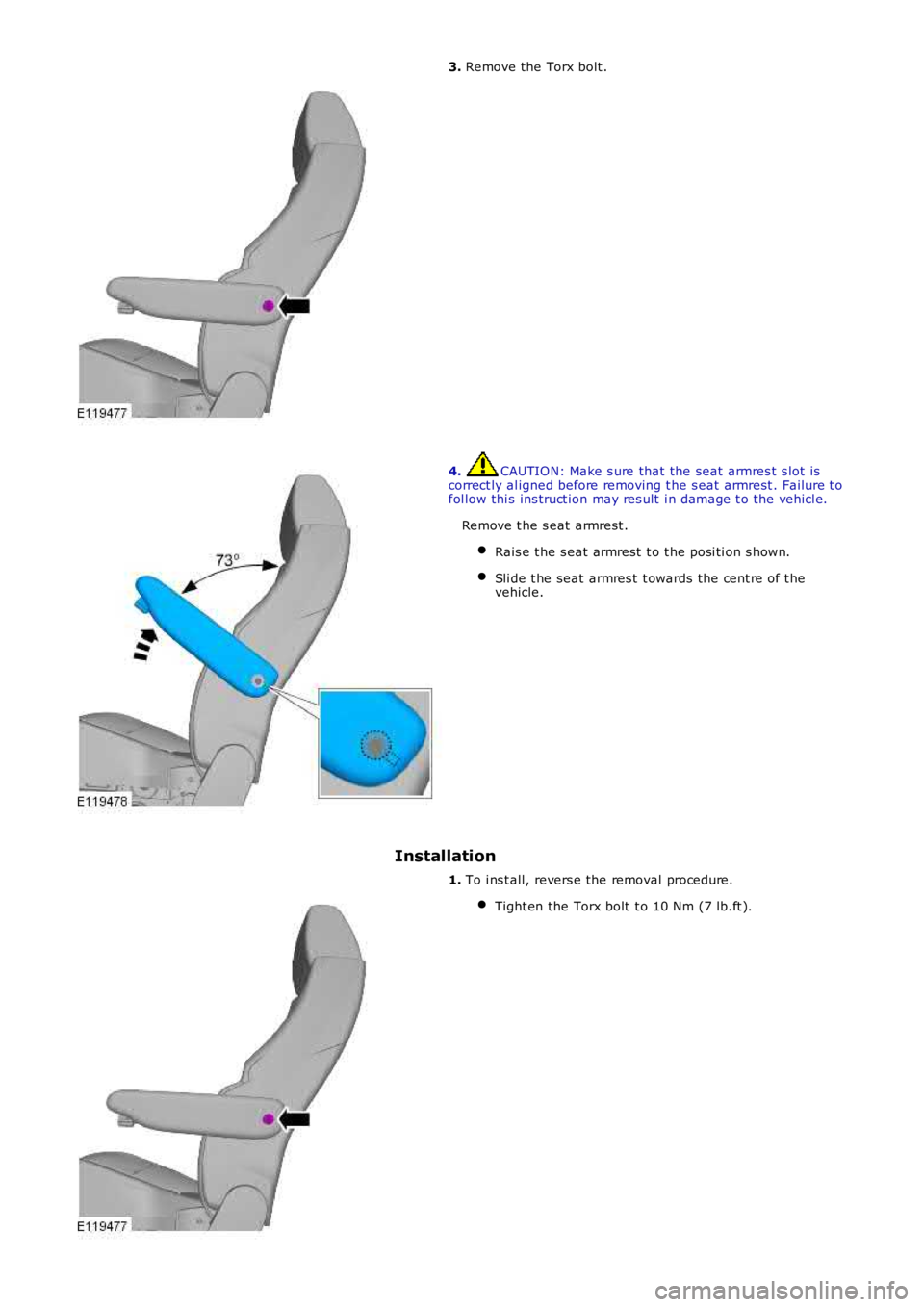

3. Remove the Torx bolt .
4. CAUTION: Make s ure that the seat armres t s lot iscorrect ly al igned before removing t he s eat armrest . Failure t ofol low thi s ins truct ion may res ult i n damage t o the vehicl e.
Remove t he s eat armrest .
Rais e t he s eat armrest t o t he posi ti on s hown.
Sli de t he seat armres t t owards the cent re of t hevehicle.
Installation
1. To i ns t all, revers e the removal procedure.
Tight en the Torx bolt t o 10 Nm (7 lb.ft ).

Publi s hed: 11-May-2011

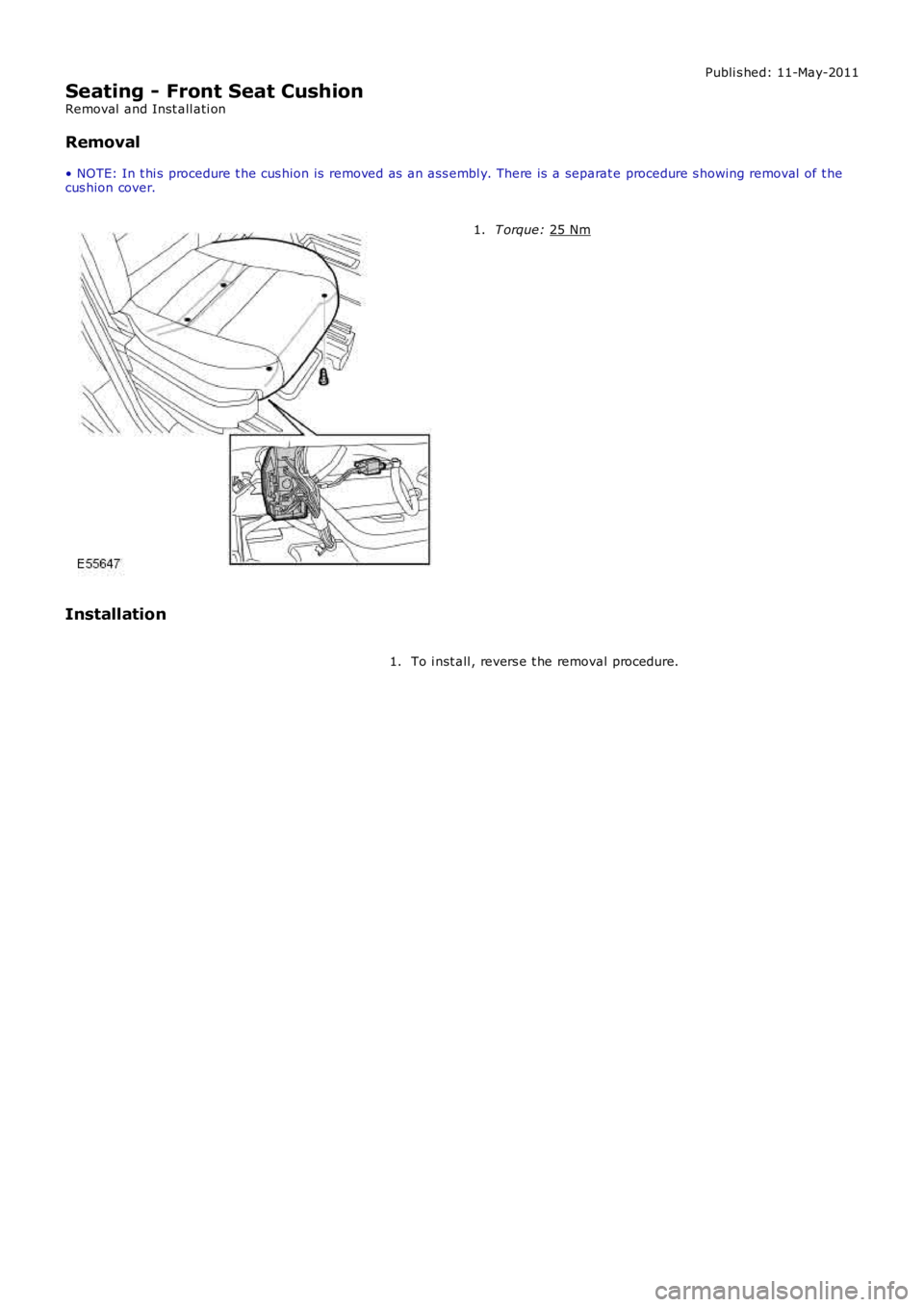

Seating - Front Seat Cushion
Removal and Inst all ati on
Removal
• NOTE: In t hi s procedure t he cus hion is removed as an ass embl y. There is a separat e procedure s howing removal of t he
cus hion cover. T orque:
25 Nm 1.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

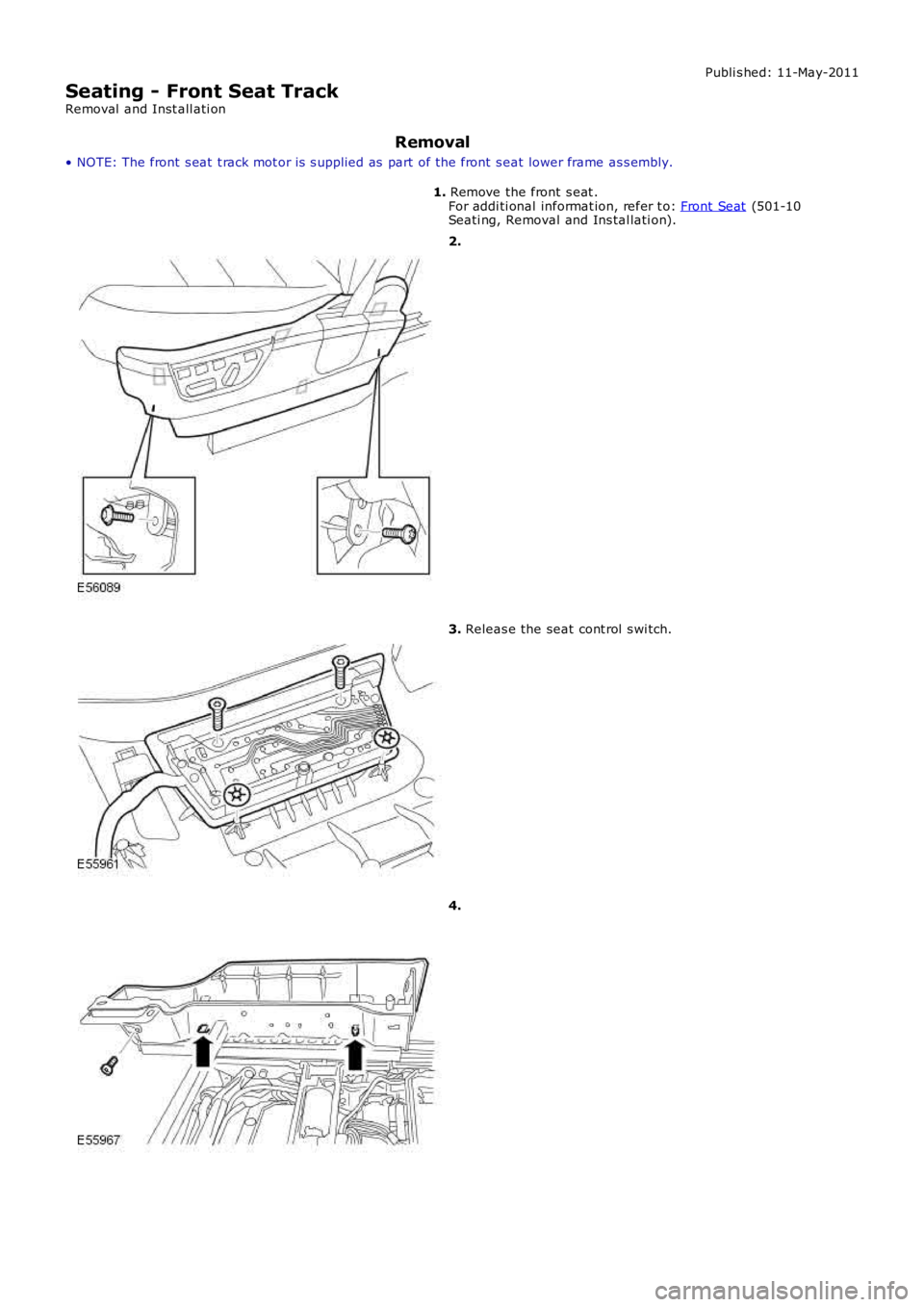

Seating - Front Seat Track
Removal and Inst all ati on
Removal
• NOTE: The front s eat t rack mot or is s upplied as part of the front s eat lower frame as s embly.
1. Remove the front s eat .For addi ti onal informat ion, refer t o: Front Seat (501-10Seati ng, Removal and Ins tal lati on).
2.
3. Releas e the seat cont rol s wi tch.
4.

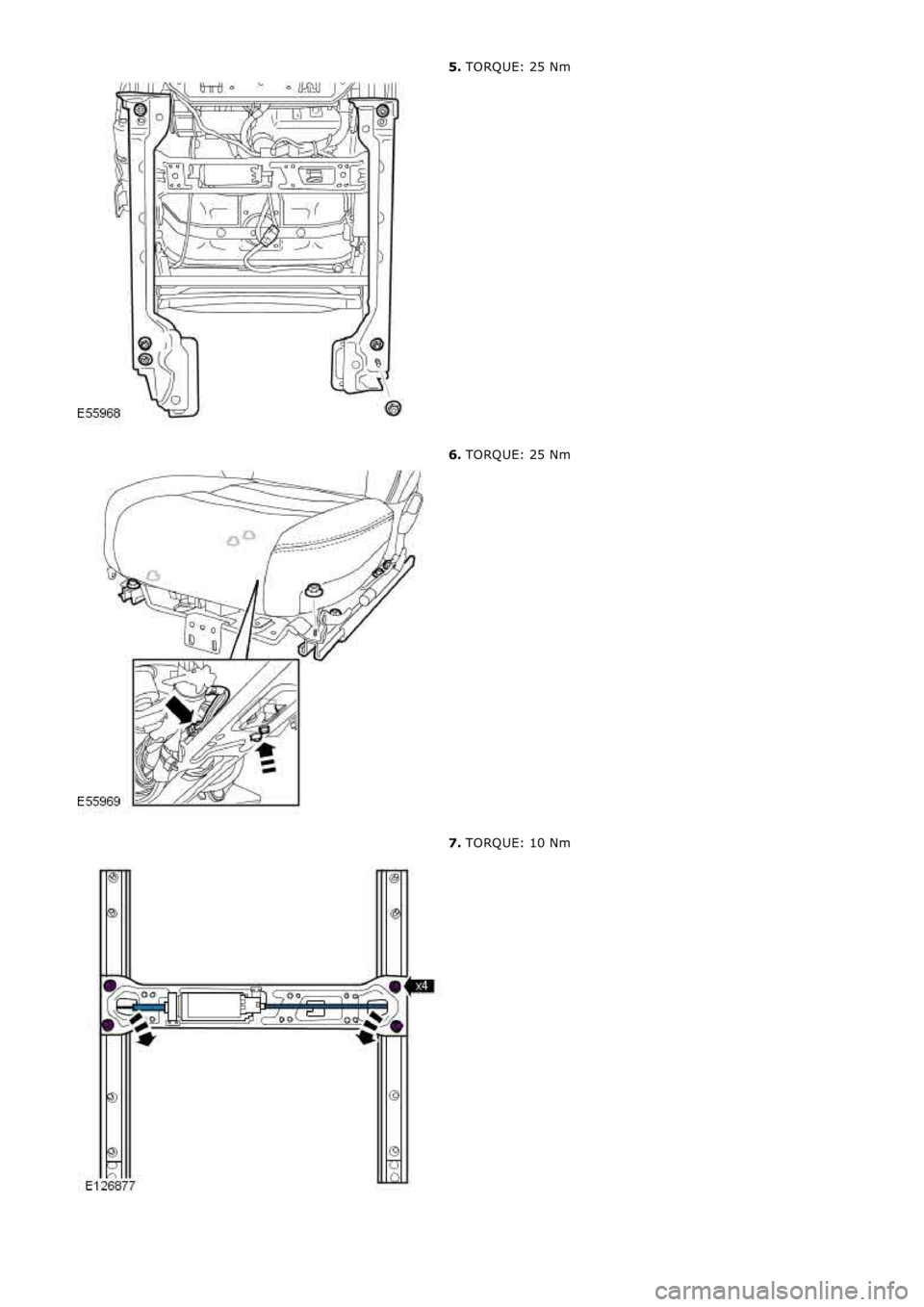

5. TORQUE: 25 Nm
6. TORQUE: 25 Nm
7. TORQUE: 10 Nm

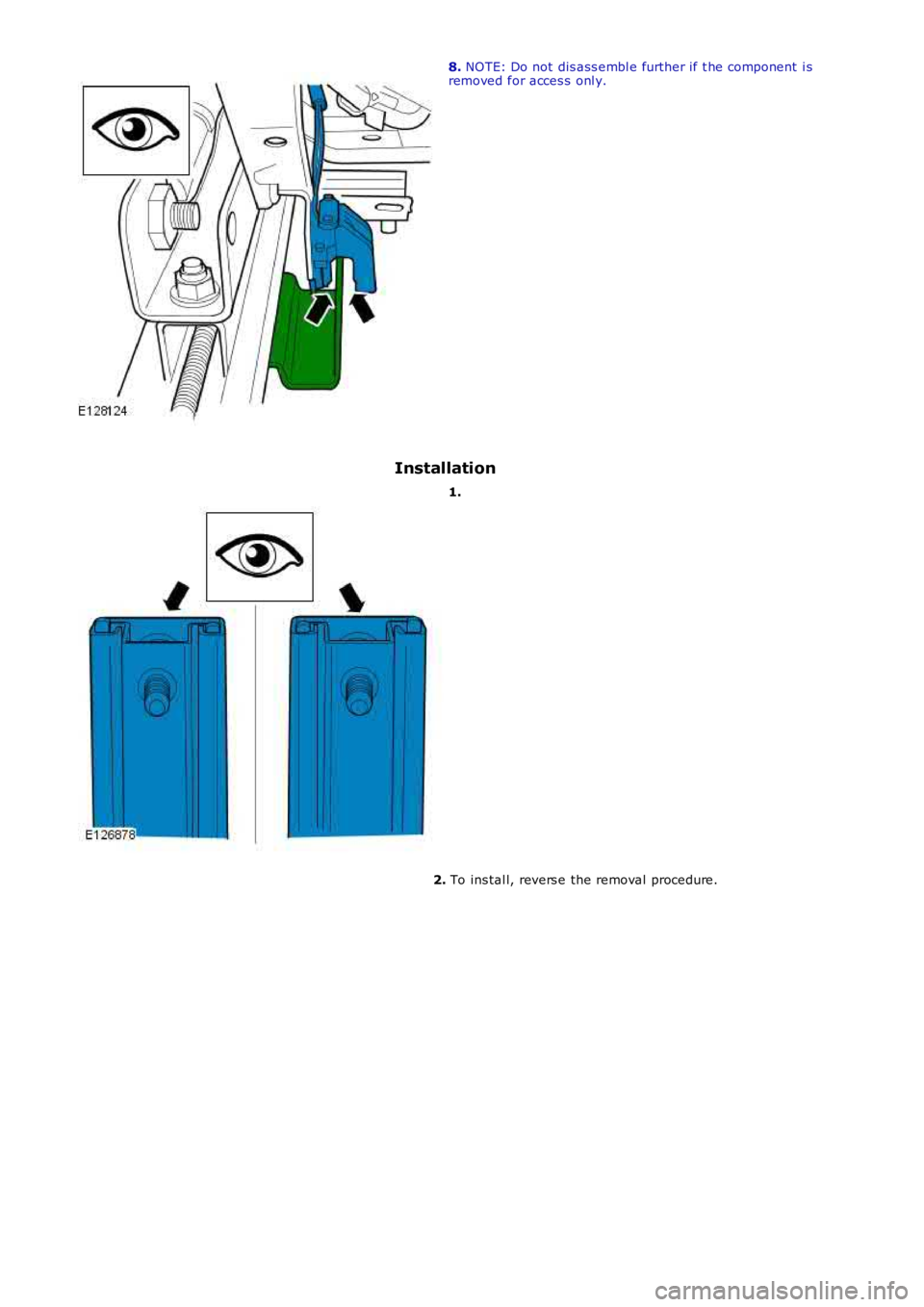

8. NOTE: Do not dis ass embl e further if t he component i sremoved for acces s onl y.
Installation
1.
2. To ins tal l, revers e the removal procedure.

Publi s hed: 11-May-2011

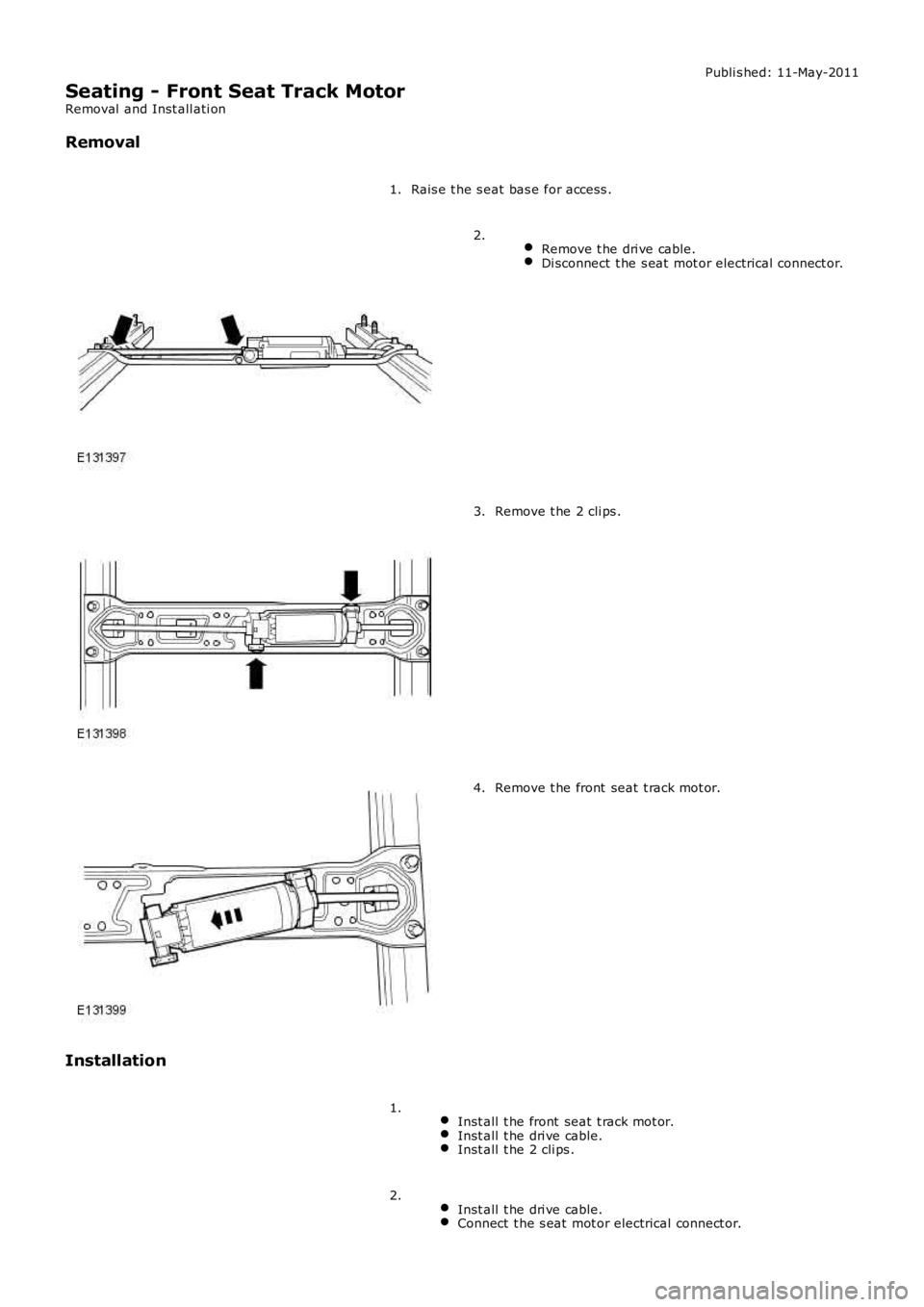

Seating - Front Seat Track Motor
Removal and Inst all ati on
Removal
Rais e t he s eat bas e for access .1.
Remove t he dri ve cable.Di sconnect t he s eat mot or electrical connect or.
2.
Remove t he 2 cli ps .3.
Remove t he front seat t rack mot or.4.
Installation
Inst all t he front seat t rack mot or.Inst all t he dri ve cable.Inst all t he 2 cli ps .
1.
Inst all t he dri ve cable.Connect t he s eat mot or electrical connect or.
2.

Publi s hed: 11-May-2011

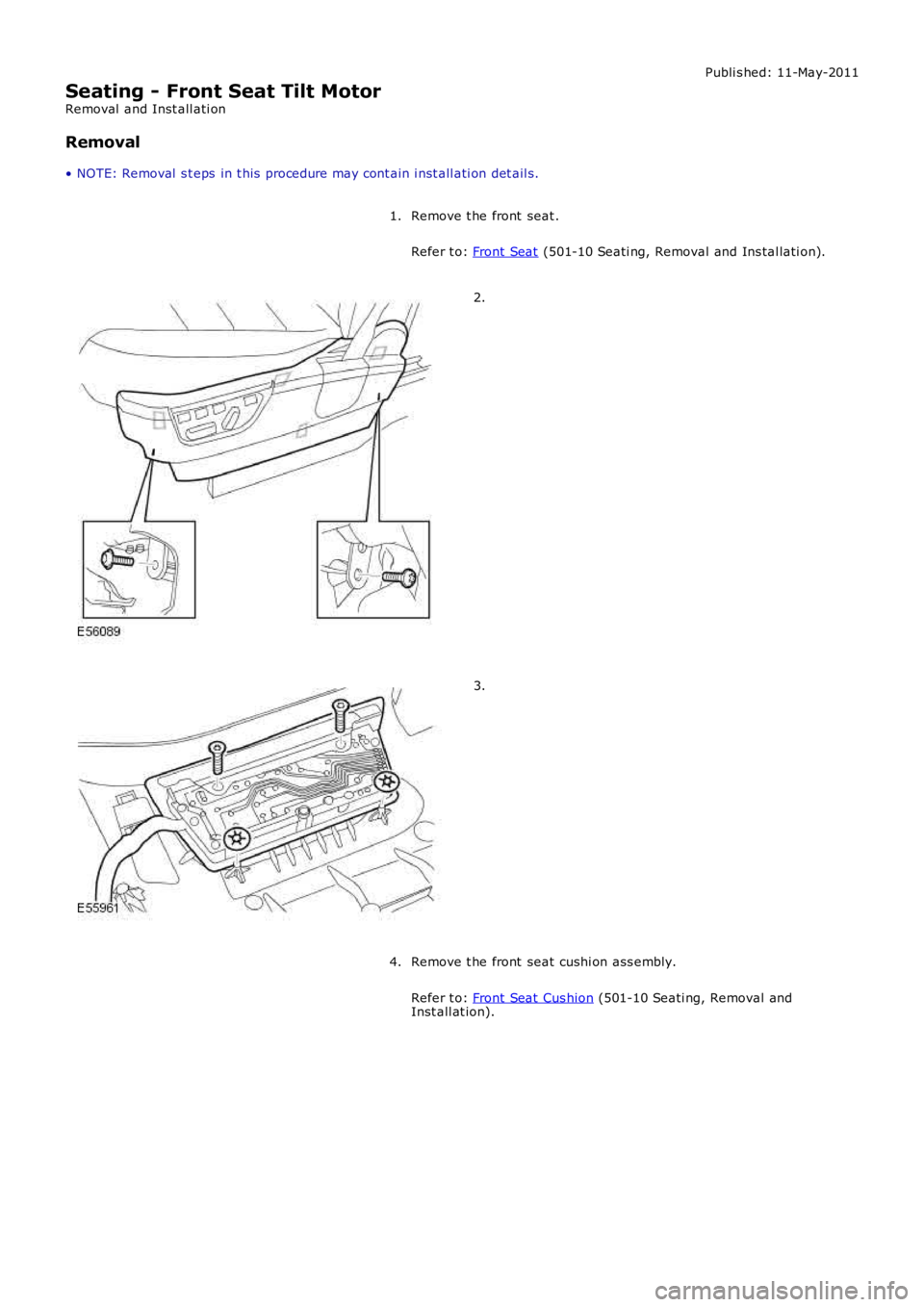

Seating - Front Seat Tilt Motor
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he front seat .
Refer t o: Front Seat (501-10 Seati ng, Removal and Ins tal lati on).
1.
2.
3.
Remove t he front seat cushi on ass embly.
Refer t o: Front Seat Cus hion (501-10 Seati ng, Removal andInst all at ion).
4.

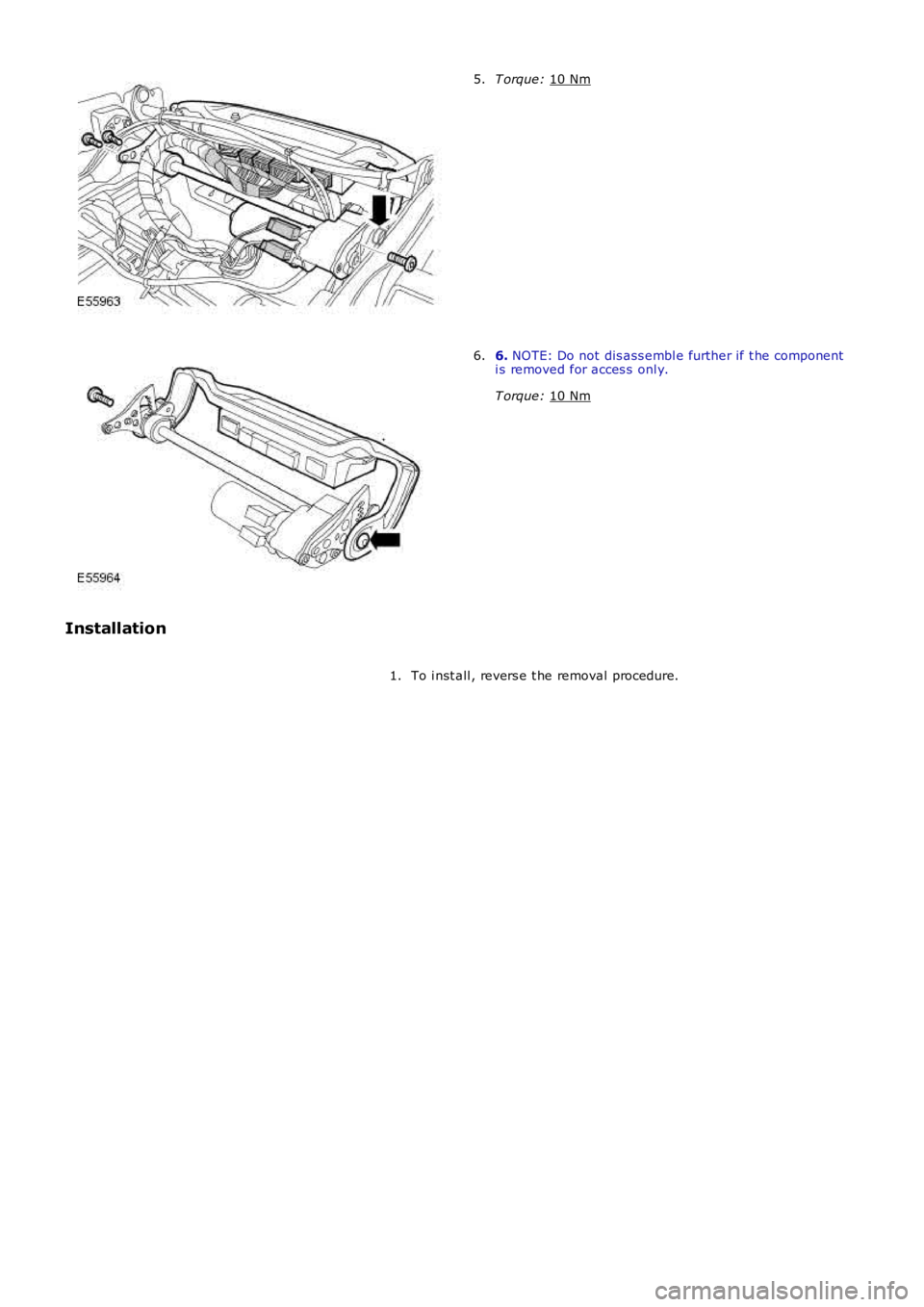

T orque:
10 Nm 5.
6.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
T orque: 10 Nm 6.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

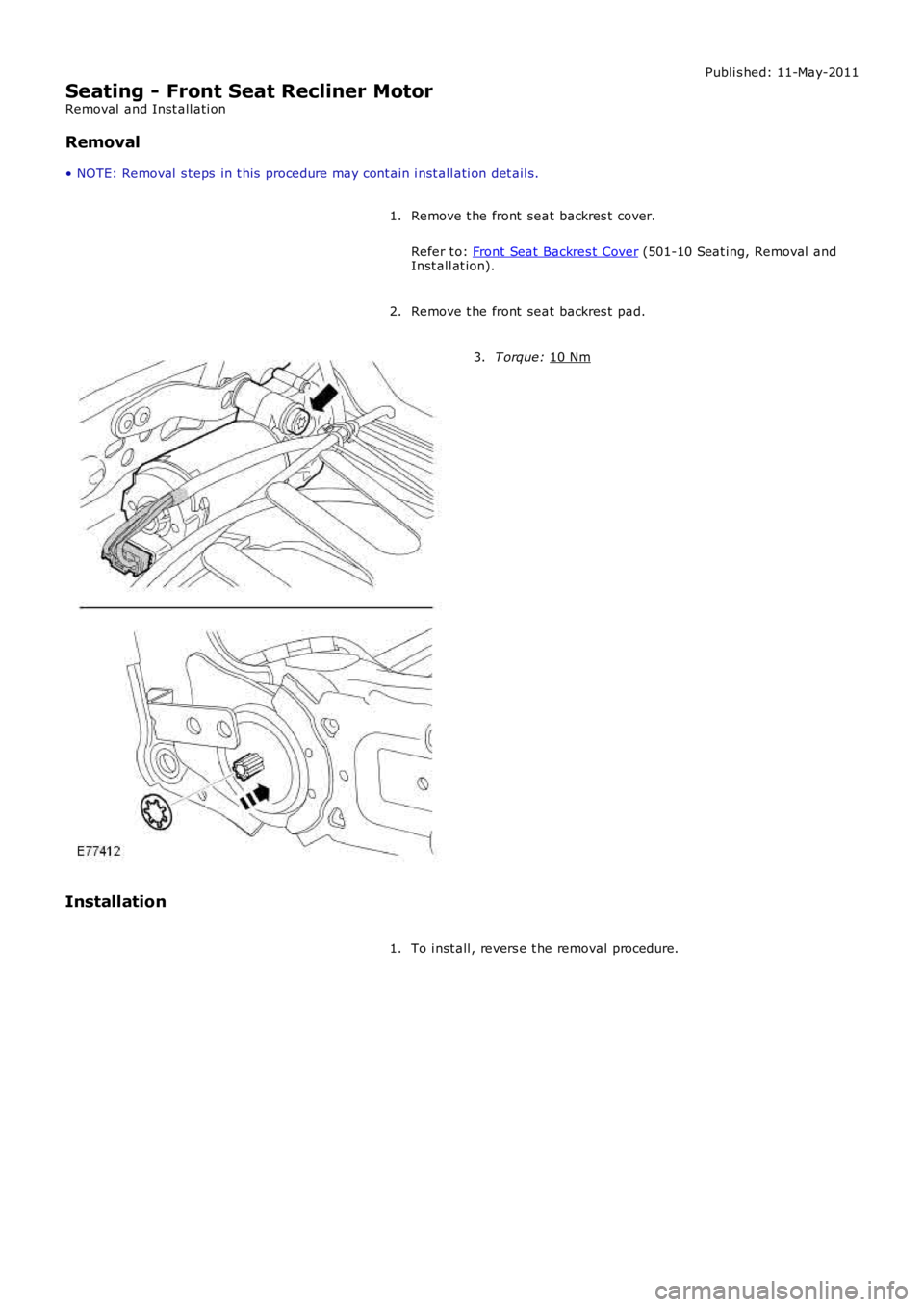

Seating - Front Seat Recliner Motor
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he front seat backres t cover.
Refer t o: Front Seat Backres t Cover (501-10 Seat ing, Removal and
Inst all at ion).
1.
Remove t he front seat backres t pad.
2. T orque:
10 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.
