LEXUS LS430 2003 Factory Repair Manual

Fig. 257: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CONNECT CONNECTOR
a. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
3.CHECK CAN BUS LINE FOR SHORT TO GND (CAN BUSES TO P-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 Mohms or more

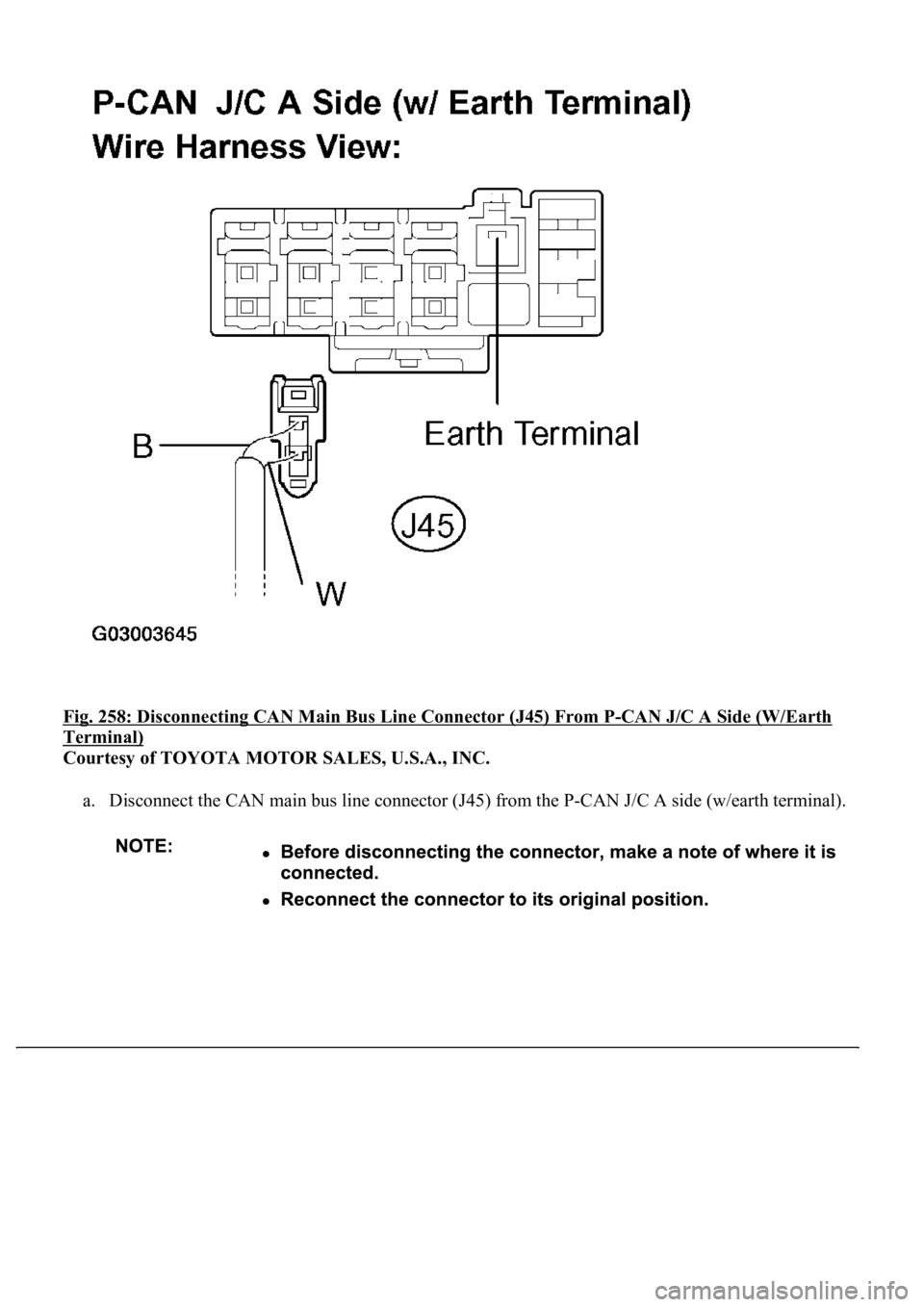

Fig. 258: Disconnecting CAN Main Bus Line Connector (J45) From P-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).

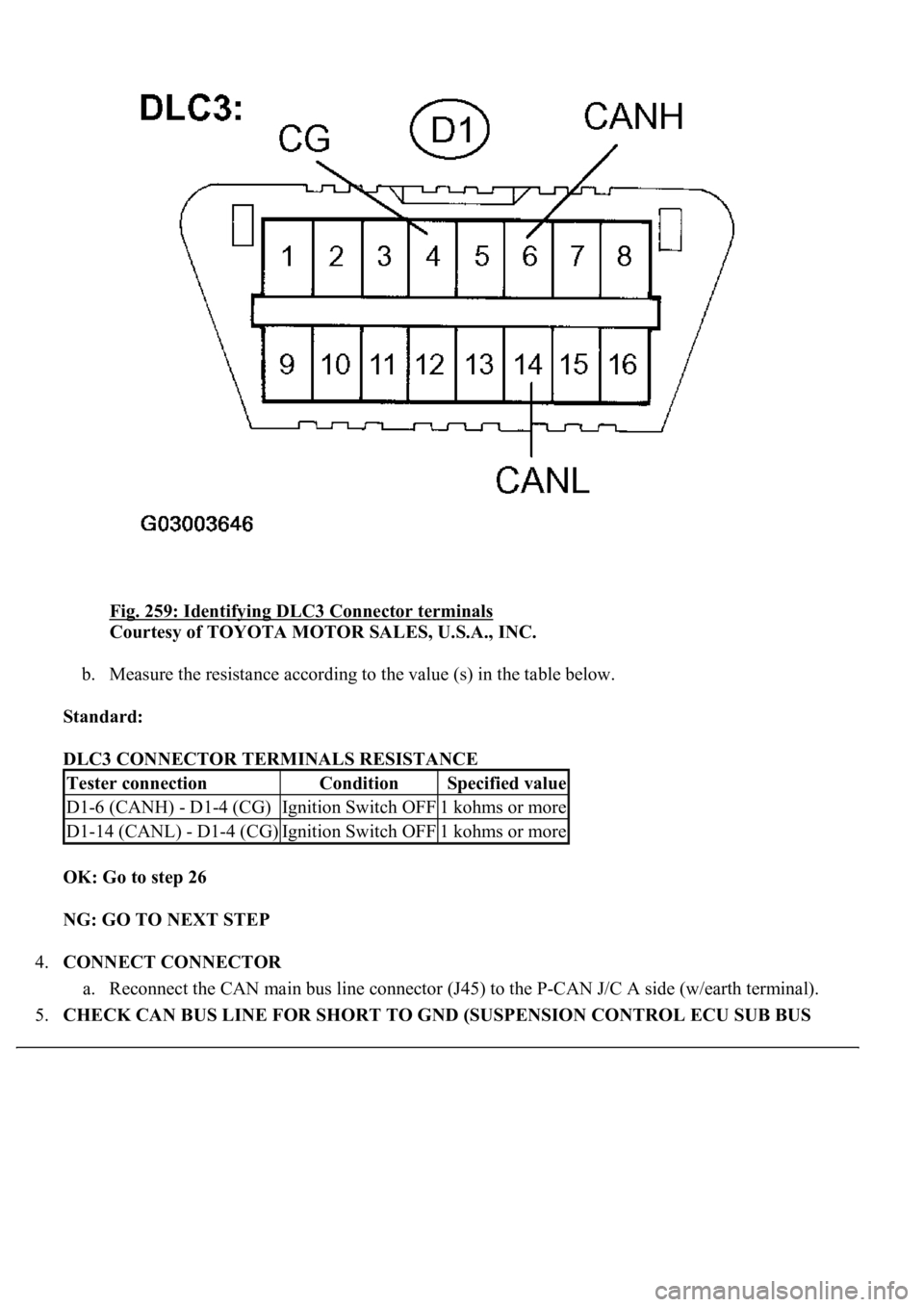

Fig. 259: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 26
NG: GO TO NEXT STEP
4.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
5.CHECK CAN BUS LINE FOR SHORT TO GND (SUSPENSION CONTROL ECU SUB BUS
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

LINE)

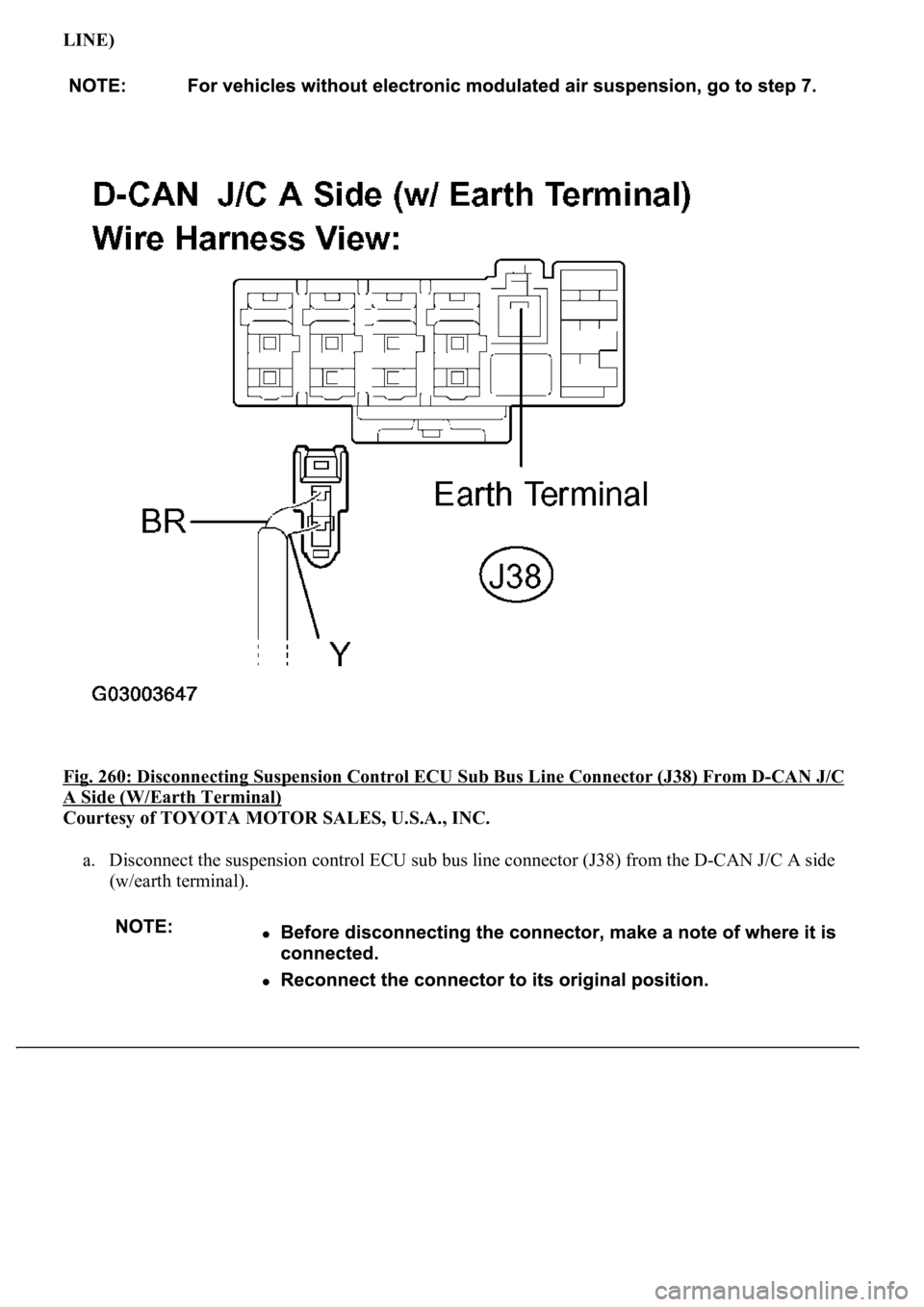

Fig. 260: Disconnecting Suspension Control ECU Sub Bus Line Connector (J38) From D
-CAN J/C
A Side (W/Earth Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the suspension control ECU sub bus line connector (J38) from the D-CAN J/C A side
(w/earth terminal).

Fig. 261: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 16
NG: GO TO NEXT STEP
6.CONNECT CONNECTOR
a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side
(w/earth terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

7.CHECK CAN BUS LINE FOR SHORT TO GND (GATEWAY ECU SUB BUS LINE)
Fig. 262: Disconnecting Gateway ECU Sub Bus Line Connector (J36) From D
-CAN J/C A Side
(W/Earth Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the gateway ECU sub bus line connector (J36) from the D-CAN J/C A side (w/earth
terminal).

Fig. 263: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 18
NG: GO TO NEXT STEP
8.CONNECT CONNECTOR
a. Reconnect the gateway ECU sub bus line connector (J36) to the D-CAN J/C A side (w/earth
terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

9.CHECK CAN BUS LINE FOR SHORT TO GND (ECM SUB BUS LINE)
Fig. 264: Identifying ECM Sub Bus Line Connector (J40)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the ECM sub bus line connector (J40) from the D-CAN J/C B side (w/o earth terminal).

Fig. 265: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 20
NG: GO TO NEXT STEP
10.CONNECT CONNECTOR
a. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
11.CHECK CAN BUS LINE FOR SHORT TO GND (SKID CONTROL ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

a. Disconnect the skid control ECU sub bus line connector (J41) from the D-CAN J/C (w/o earth
terminal).

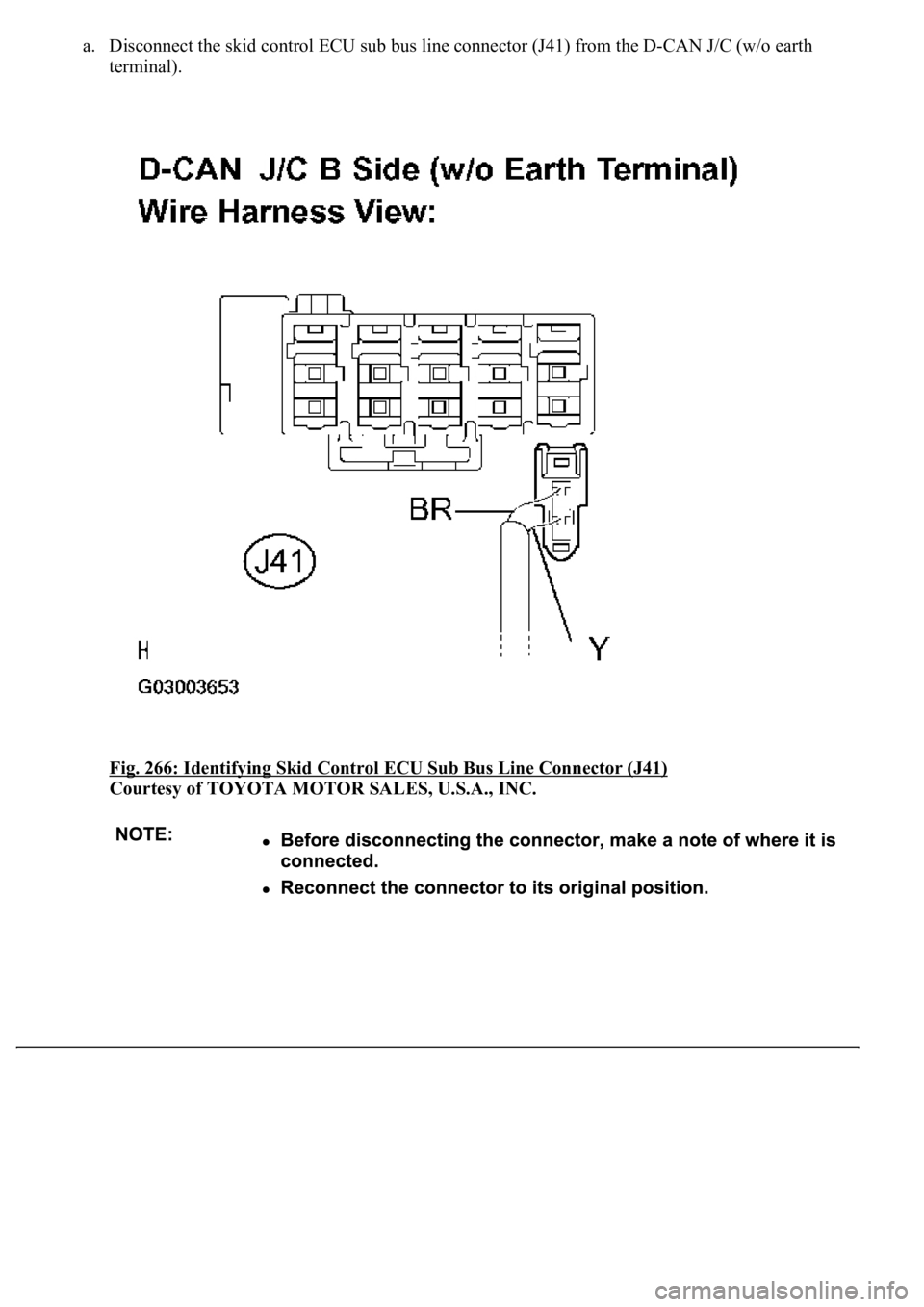

Fig. 266: Identifying Skid Control ECU Sub Bus Line Connector (J41)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
