LEXUS LS430 2003 Factory Repair Manual

Fig. 13: Removing Instrument Panel Garnish Sub-Assy RH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.REMOVE GLOVE Compartment PLATE
24.REMOVE GLOVE Compartment HOLE COVER
a. Disengage the 6 claws and remove the glove compartment hole cover.

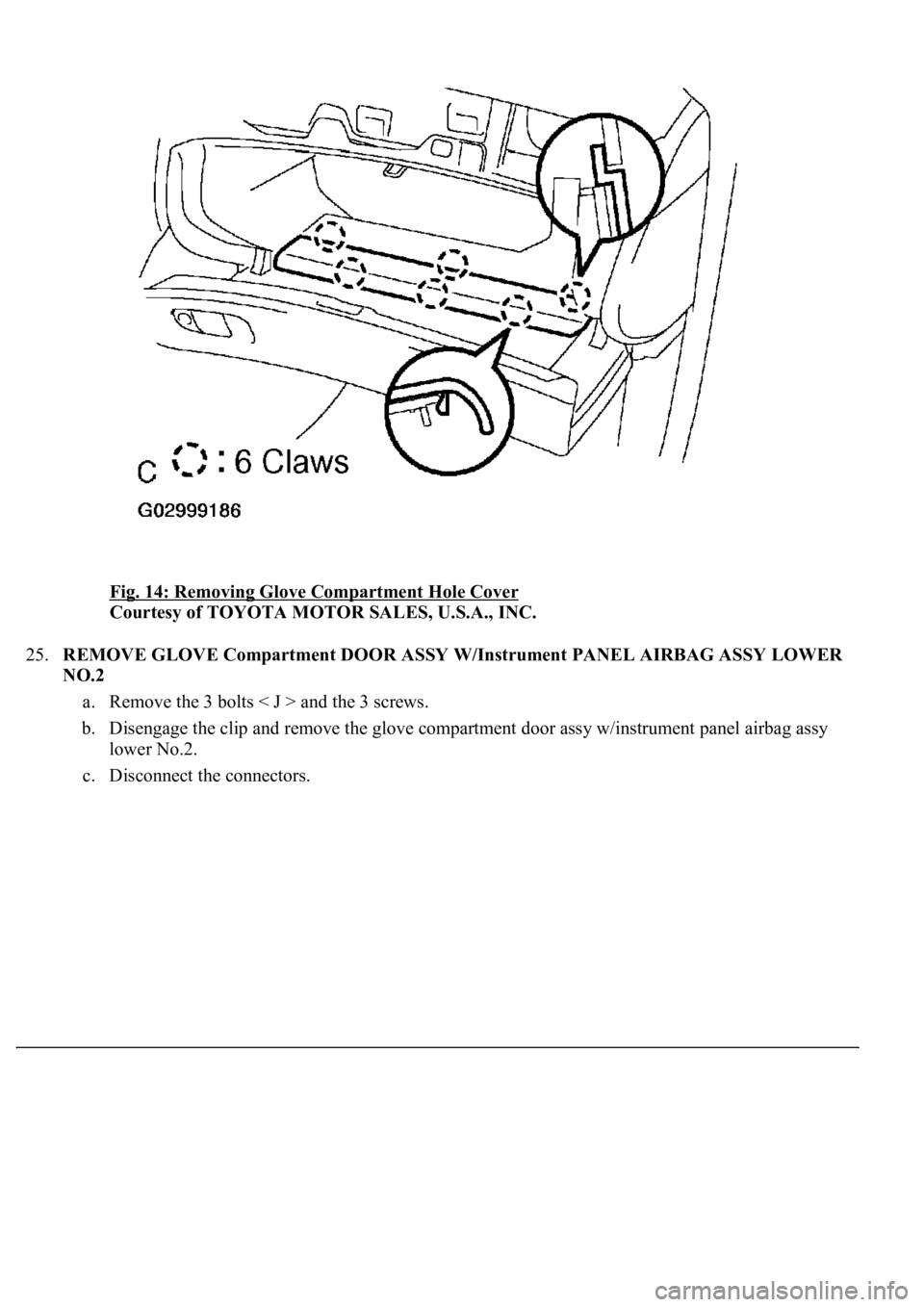

Fig. 14: Removing Glove Compartment Hole Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
25.REMOVE GLOVE Compartment DOOR ASSY W/Instrument PANEL AIRBAG ASSY LOWER
NO.2
a. Remove the 3 bolts < J > and the 3 screws.
b. Disengage the clip and remove the glove compartment door assy w/instrument panel airbag assy
lower No.2.
c. Disconnect the connectors.

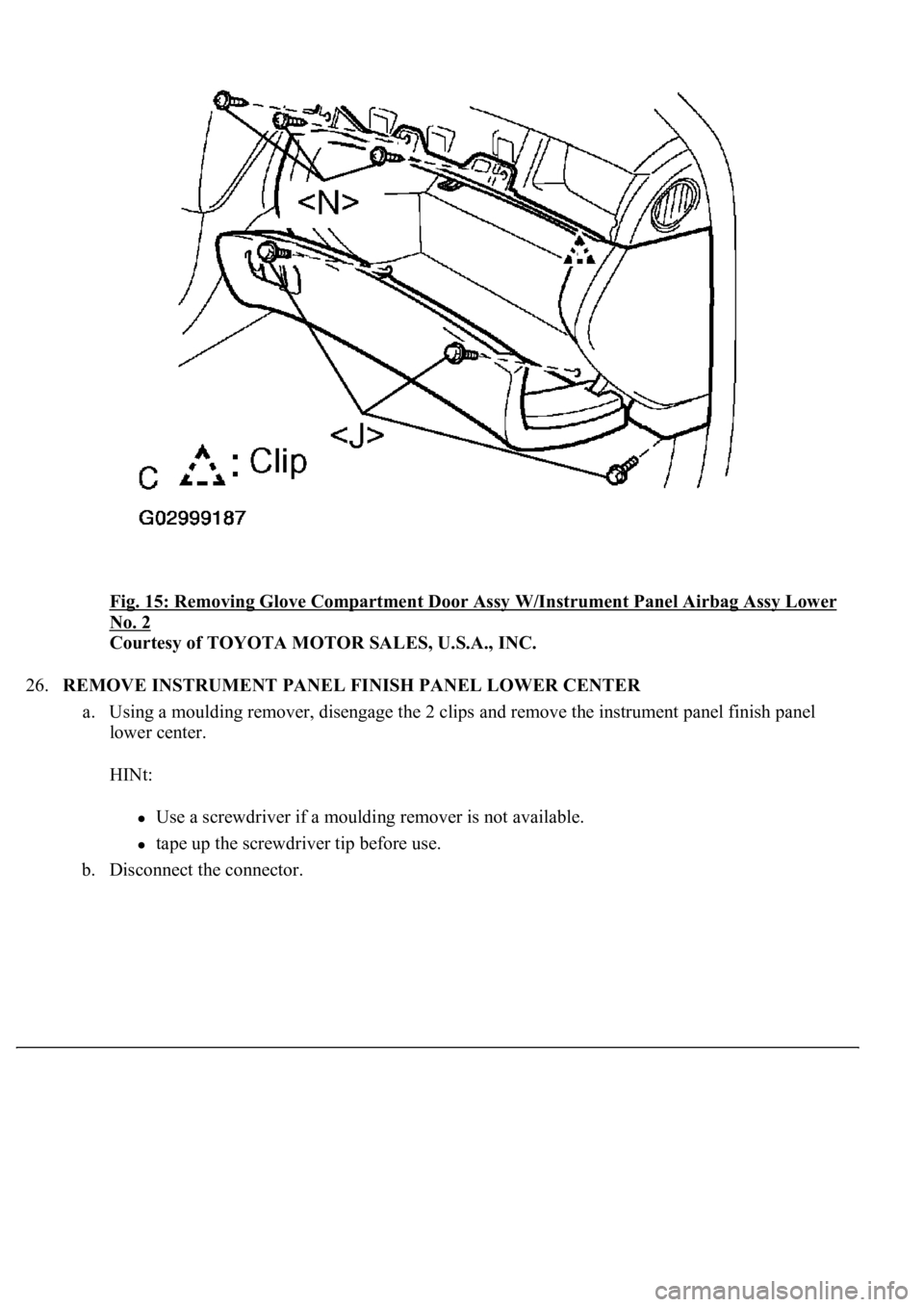

Fig. 15: Removing Glove Compartment Door Assy W/Instrument Panel Airbag Assy Lower
No. 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
a. Using a moulding remover, disengage the 2 clips and remove the instrument panel finish panel
lower center.
HINt:
Use a screwdriver if a moulding remover is not available.
tape up the screwdriver tip before use.
b. Disconnect the connector.

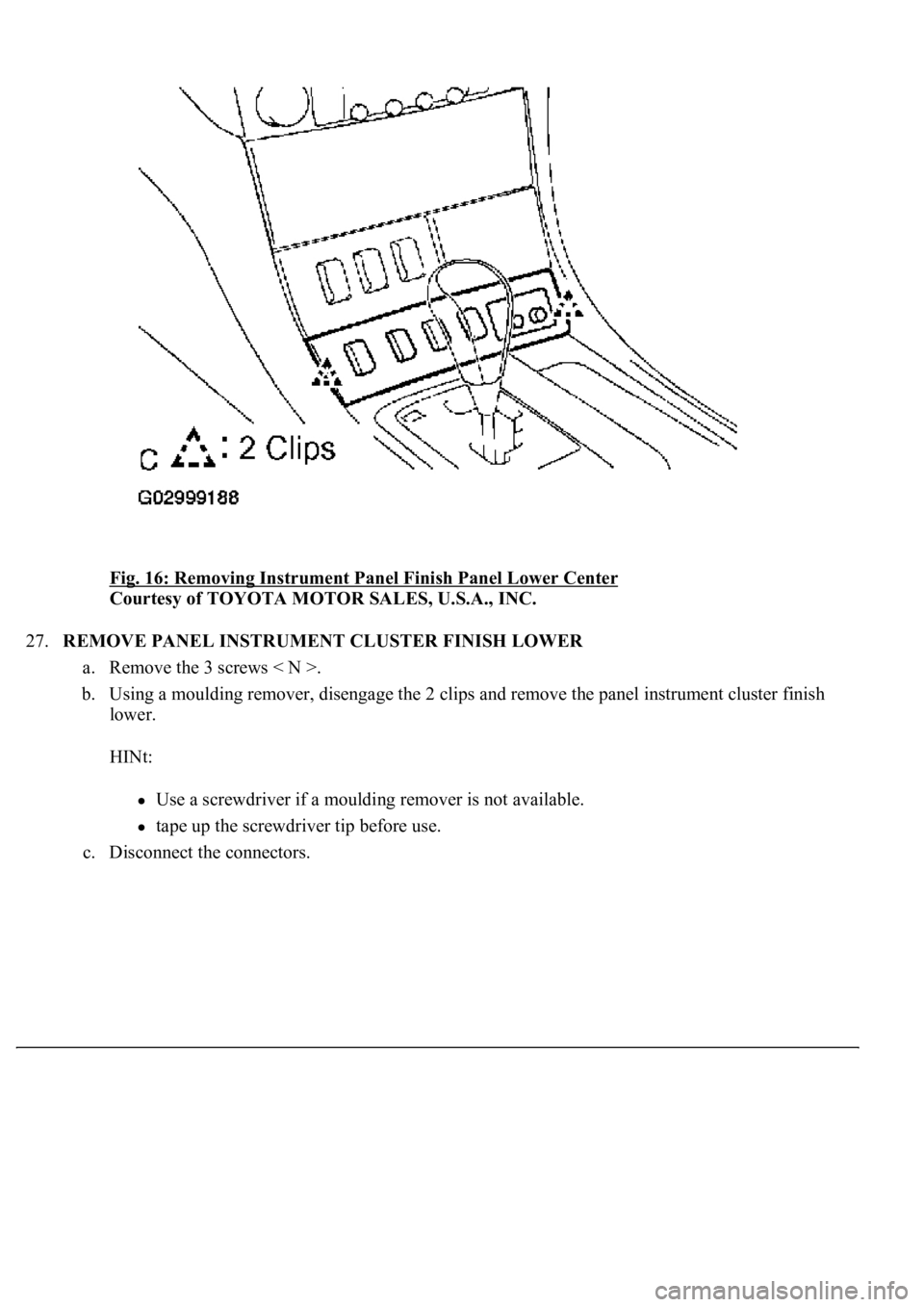

Fig. 16: Removing Instrument Panel Finish Panel Lower Center
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER
a. Remove the 3 screws < N >.
b. Using a moulding remover, disengage the 2 clips and remove the panel instrument cluster finish
lower.
HINt:
Use a screwdriver if a moulding remover is not available.
tape up the screwdriver tip before use.
c. Disconnect the connectors.

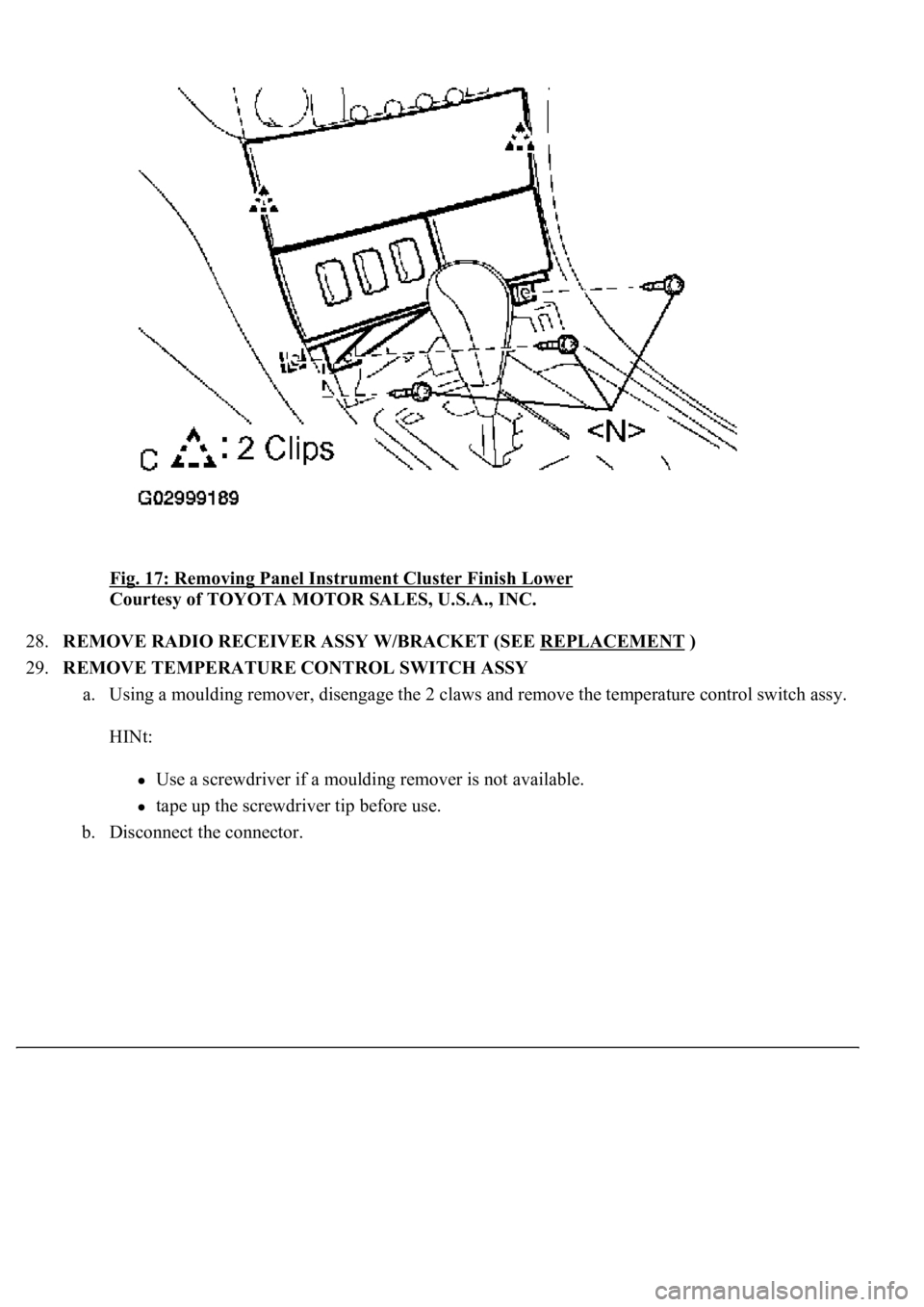

Fig. 17: Removing Panel Instrument Cluster Finish Lower
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.REMOVE RADIO RECEIVER ASSY W/BRACKET (SEE REPLACEMENT
)
29.REMOVE TEMPERATURE CONTROL SWITCH ASSY
a. Using a moulding remover, disengage the 2 claws and remove the temperature control switch assy.
HINt:
Use a screwdriver if a moulding remover is not available.
tape up the screwdriver tip before use.
b. Disconnect the connector.

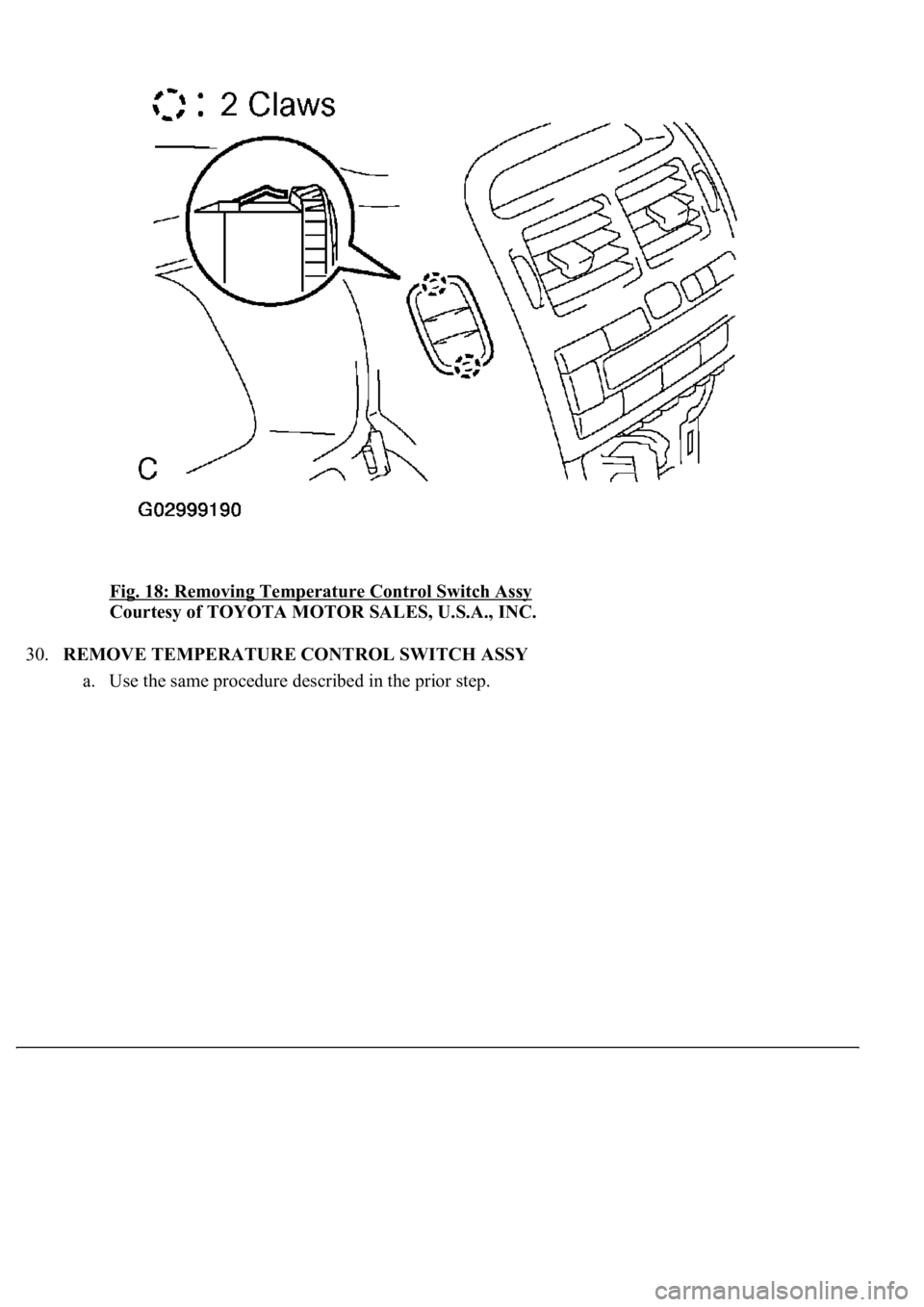

Fig. 18: Removing Temperature Control Switch Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.REMOVE TEMPERATURE CONTROL SWITCH ASSY
a. Use the same procedure described in the prior step.

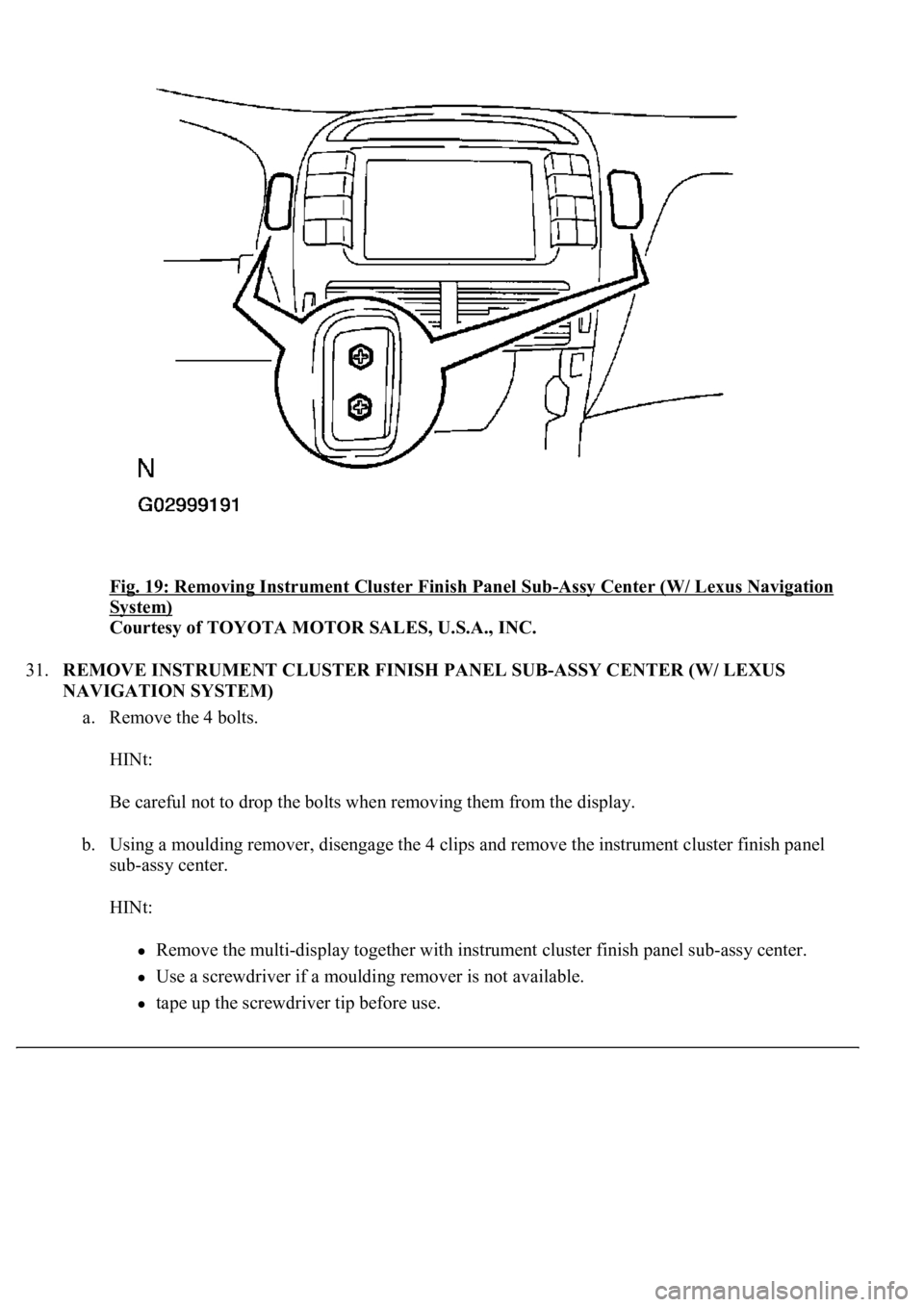

Fig. 19: Removing Instrument Cluster Finish Panel Sub-Assy Center (W/ Lexus Navigation
System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
31.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/ LEXUS
NAVIGATION SYSTEM)
a. Remove the 4 bolts.
HINt:
Be careful not to drop the bolts when removing them from the display.
b. Using a moulding remover, disengage the 4 clips and remove the instrument cluster finish panel
sub-assy center.
HINt:
Remove the multi-display together with instrument cluster finish panel sub-assy center.
Use a screwdriver if a moulding remover is not available.
tape up the screwdriver tip before use.

c. Disconnect the connectors.
32.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/O LEXUS
NAVIGATION SYSTEM)
a. Remove the 2 bolts.
HINt:
Be careful not to drop the bolts when removing them from the display.
b. Using a moulding remover, disengage the 4 clips and remove the instrument cluster finish panel
sub-assy center.

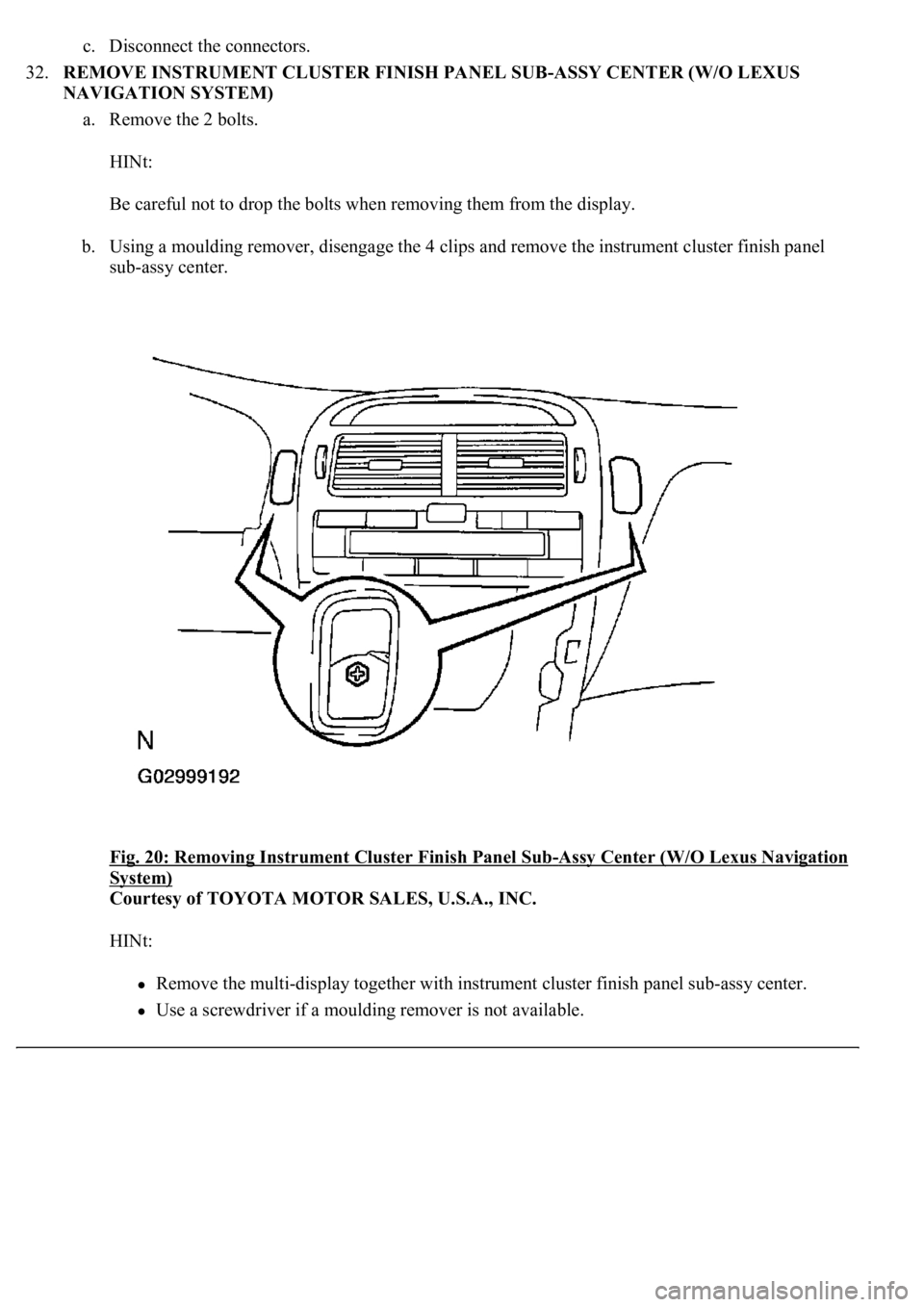

Fig. 20: Removing Instrument Cluster Finish Panel Sub
-Assy Center (W/O Lexus Navigation
System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINt:
Remove the multi-display together with instrument cluster finish panel sub-assy center.
Use a screwdriver if a moulding remover is not available.

tape up the screwdriver tip before use.
c. Disconnect the connectors.
33.REMOVE FRONT PILLAR GARNISH LH (SEE REPLACEMENT
)
34.REMOVE FRONT PILLAR GARNISH RH (SEE REPLACEMENT
)
35.REMOVE FRONT DOOR SCUFF PLATE LH (SEE REPLACEMENT
)
36.REMOVE FRONT DOOR SCUFF PLATE RH (SEE REPLACEMENT
)
37.REMOVE SHIFT LEVER KNOB SUB-ASSY
a. turn the shift lever knob sub-assy counterclockwise and remove the shift lever knob sub-assy.

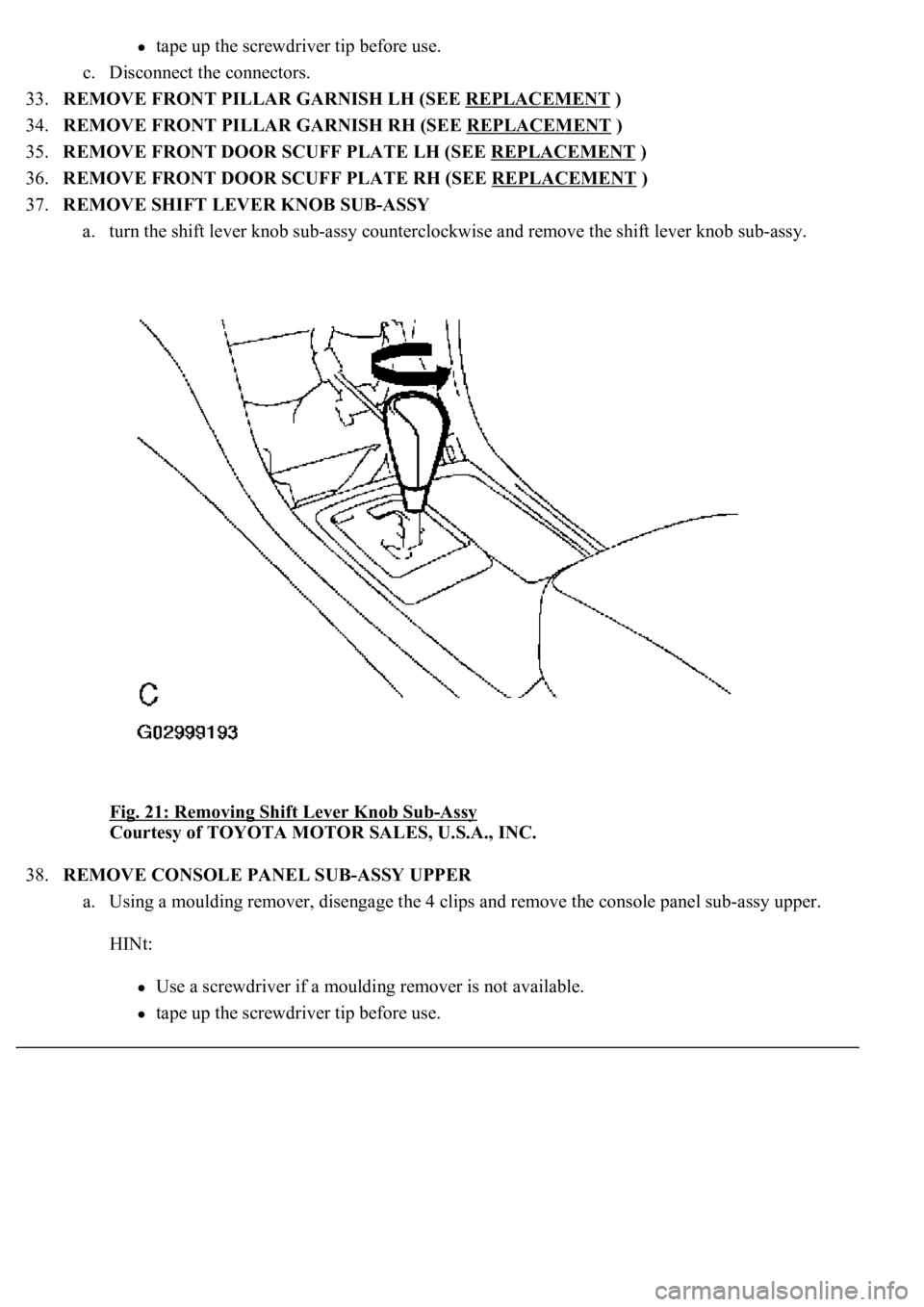

Fig. 21: Removing Shift Lever Knob Sub
-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
38.REMOVE CONSOLE PANEL SUB-ASSY UPPER
a. Using a moulding remover, disengage the 4 clips and remove the console panel sub-assy upper.
HINt:
Use a screwdriver if a moulding remover is not available.
tape up the screwdriver tip before use.

b. Disconnect the connector.

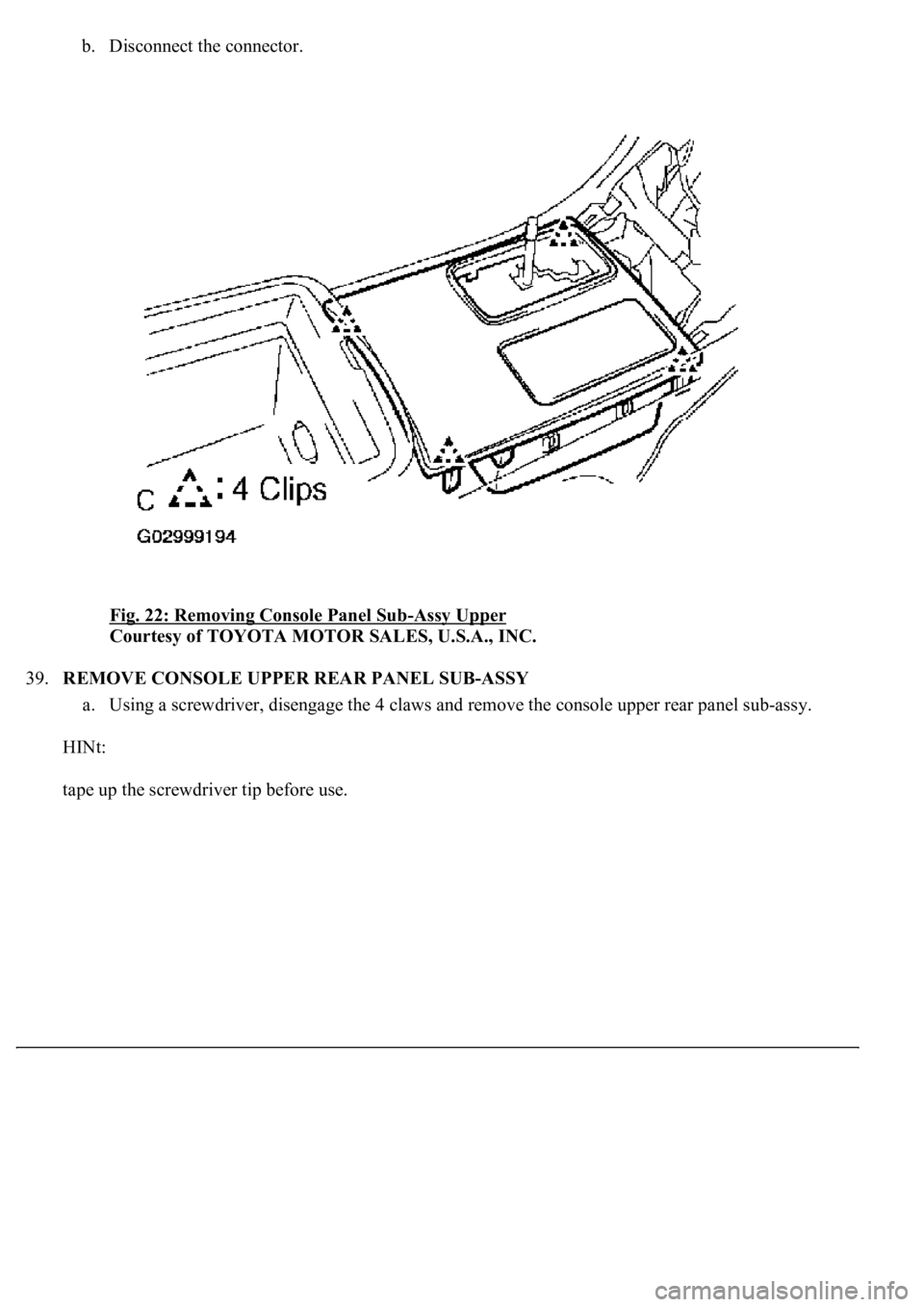

Fig. 22: Removing Console Panel Sub
-Assy Upper
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
39.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
a. Using a screwdriver, disengage the 4 claws and remove the console upper rear panel sub-assy.
HINt:
tape up the screwdriver tip before use.
