LEXUS LS430 2003 Factory Repair Manual

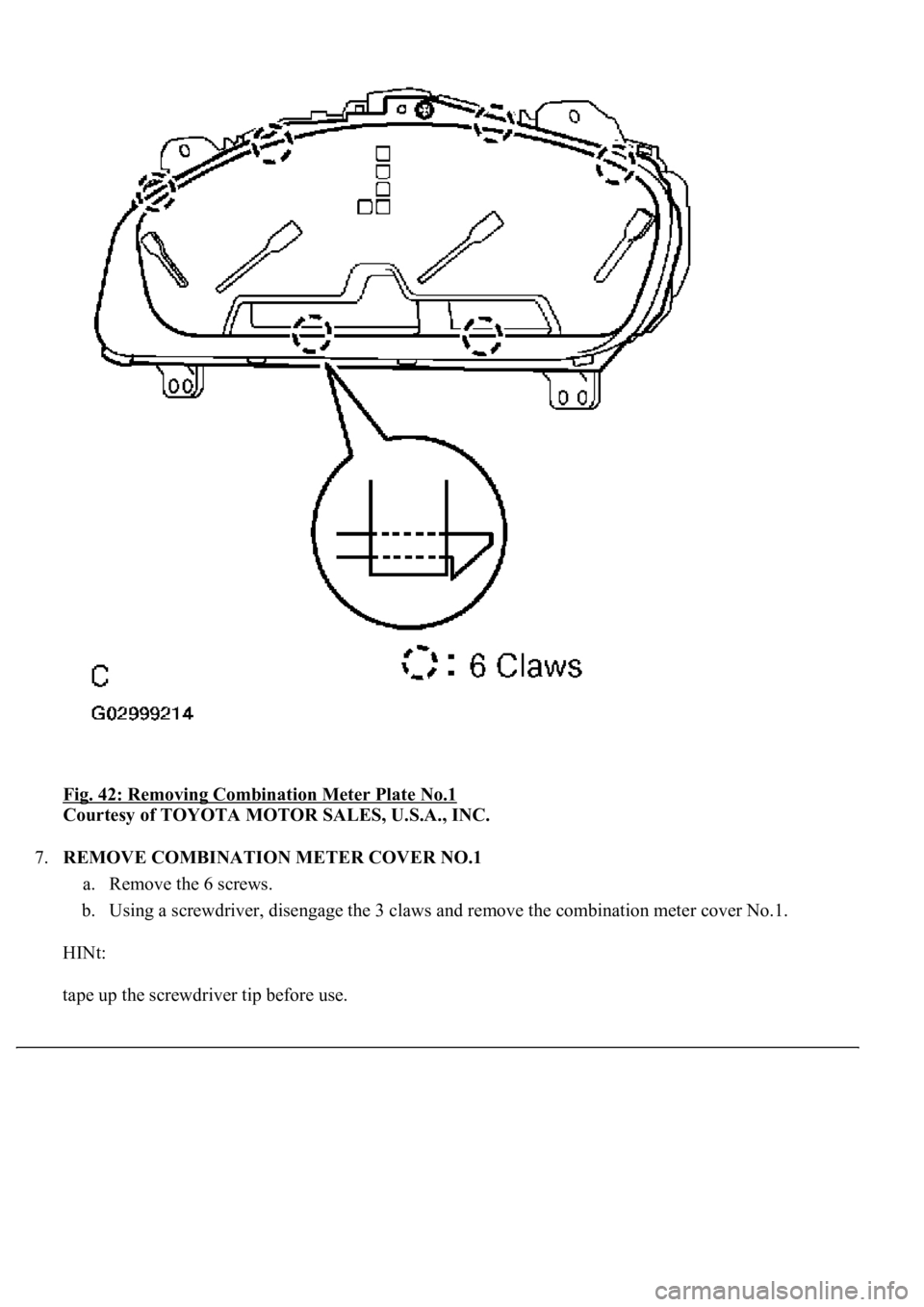

Fig. 42: Removing Combination Meter Plate No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE COMBINATION METER COVER NO.1
a. Remove the 6 screws.
b. Using a screwdriver, disengage the 3 claws and remove the combination meter cover No.1.
HINt:
tape up the screwdriver tip before use.

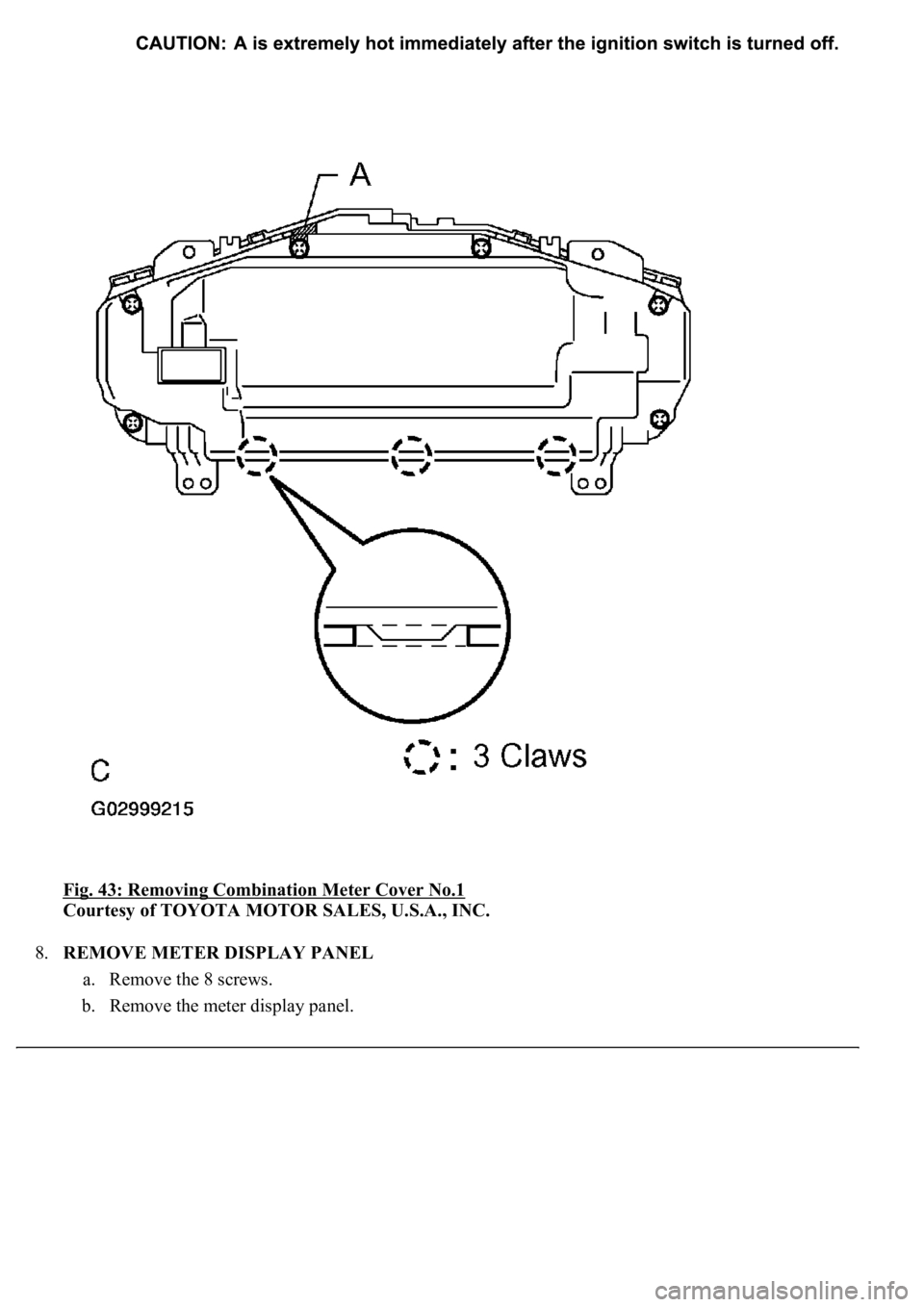

Fig. 43: Removing Combination Meter Cover No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE METER DISPLAY PANEL
a. Remove the 8 screws.
b. Remove the meter display panel.

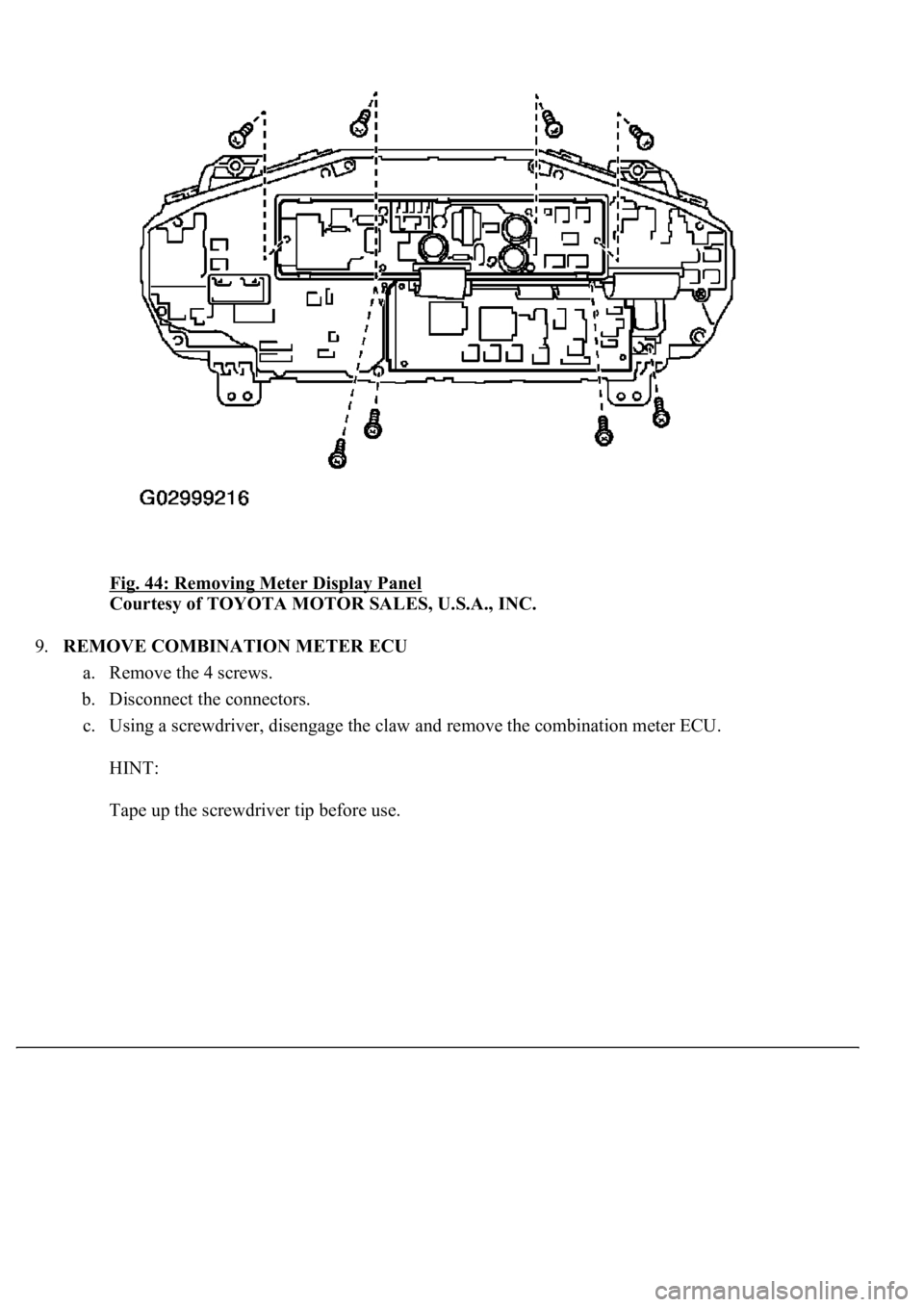

Fig. 44: Removing Meter Display Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.REMOVE COMBINATION METER ECU
a. Remove the 4 screws.
b. Disconnect the connectors.
c. Using a screwdriver, disengage the claw and remove the combination meter ECU.
HINT:
Tape up the screwdriver tip before use.

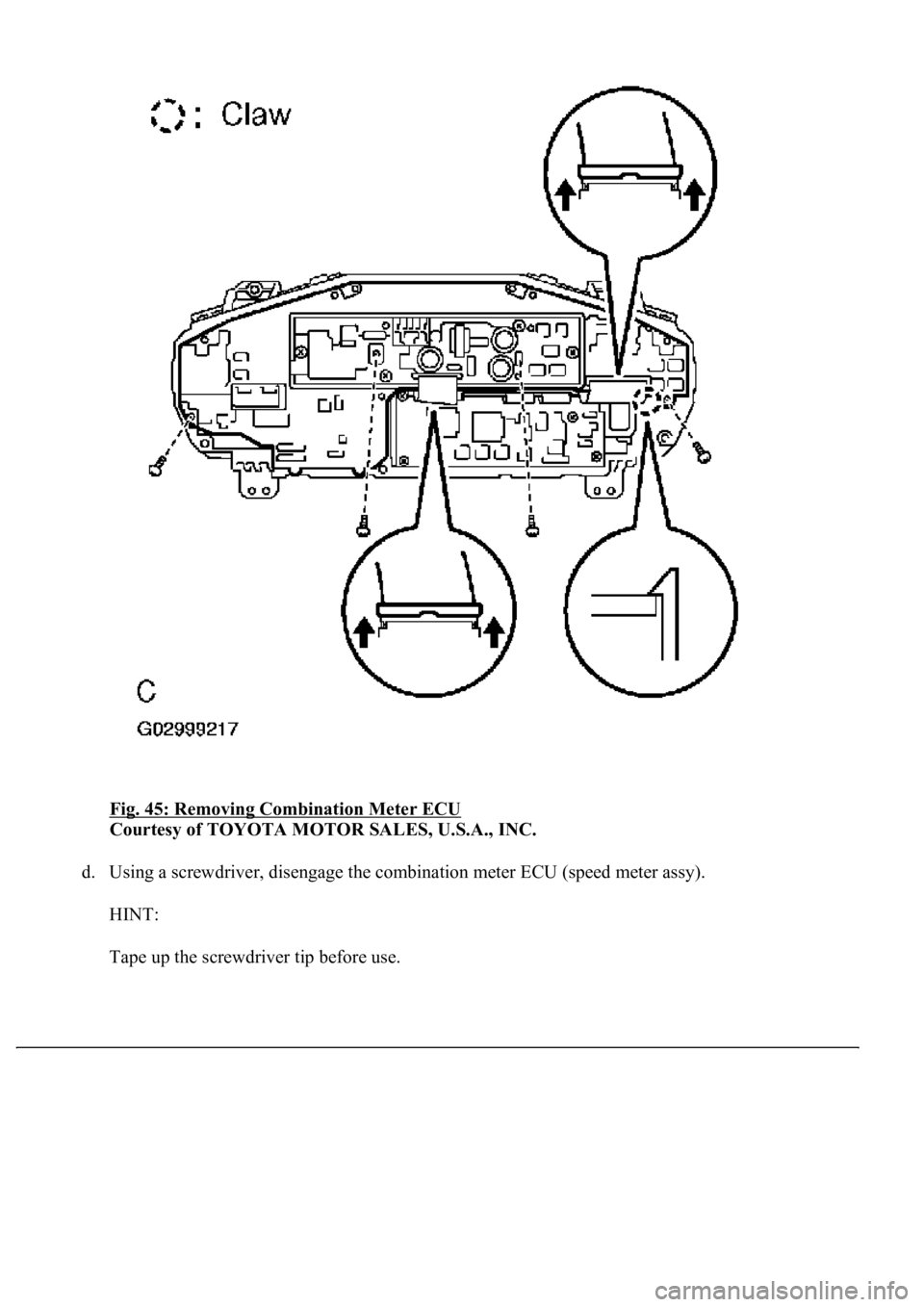

Fig. 45: Removing Combination Meter ECU
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using a screwdriver, disengage the combination meter ECU (speed meter assy).
HINT:
Tape up the screwdriver tip before use.

Fig. 46: Disengaging Combination Meter ECU (Speed Meter Assy)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Remove the combination meter ECU (speed meter assy).

<0029004c004a001100030017001a001d000300350048005000520059004c0051004a00030026005200500045004c005100440057004c0052005100030030004800570048005500030028002600380003000b00360053004800480047000300300048005700
4800550003002400560056005c000c[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

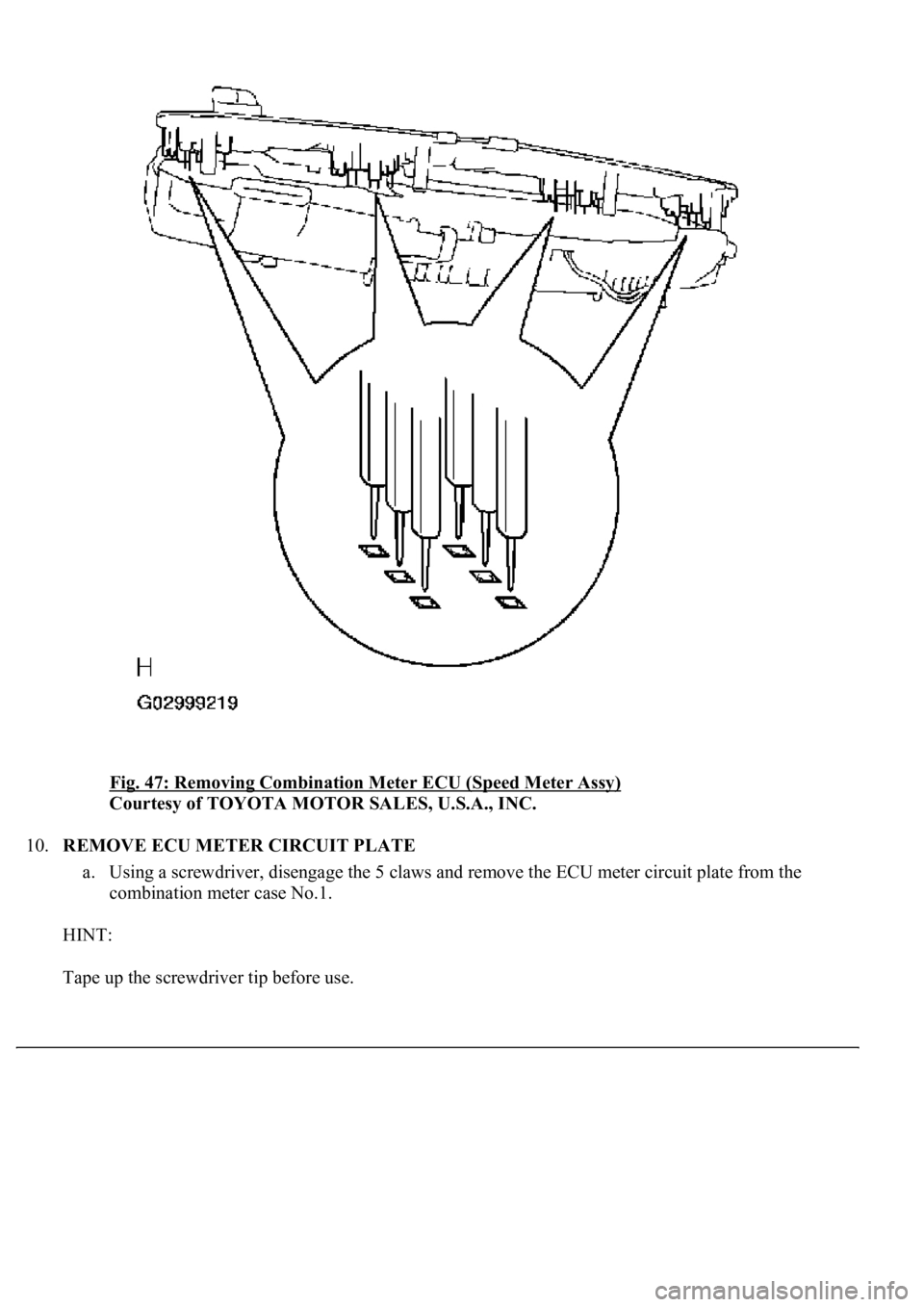

10.REMOVE ECU METER CIRCUIT PLATE
a. Using a screwdriver, disengage the 5 claws and remove the ECU meter circuit plate from the
combination meter case No.1.
HINT:
Tape up the screwdriver tip before use.

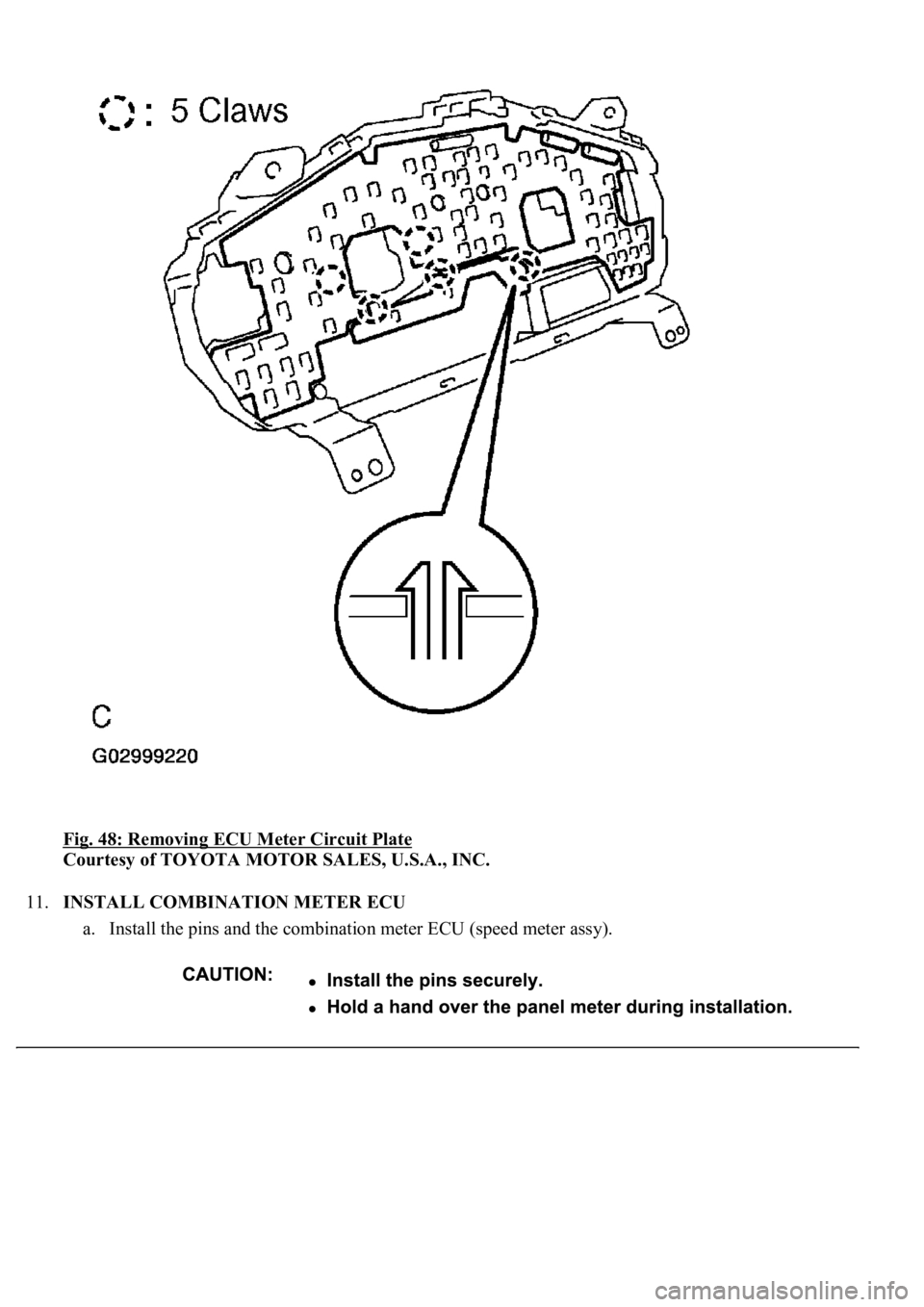

Fig. 48: Removing ECU Meter Circuit Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
11.INSTALL COMBINATION METER ECU
a. Install the pins and the combination meter ECU (speed meter assy).

Fig. 49: Installing Pins And Combination Meter ECU (Speed Meter Assy)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Engage the claw and install the combination meter ECU with 4 screws.
c. Connect the connectors.

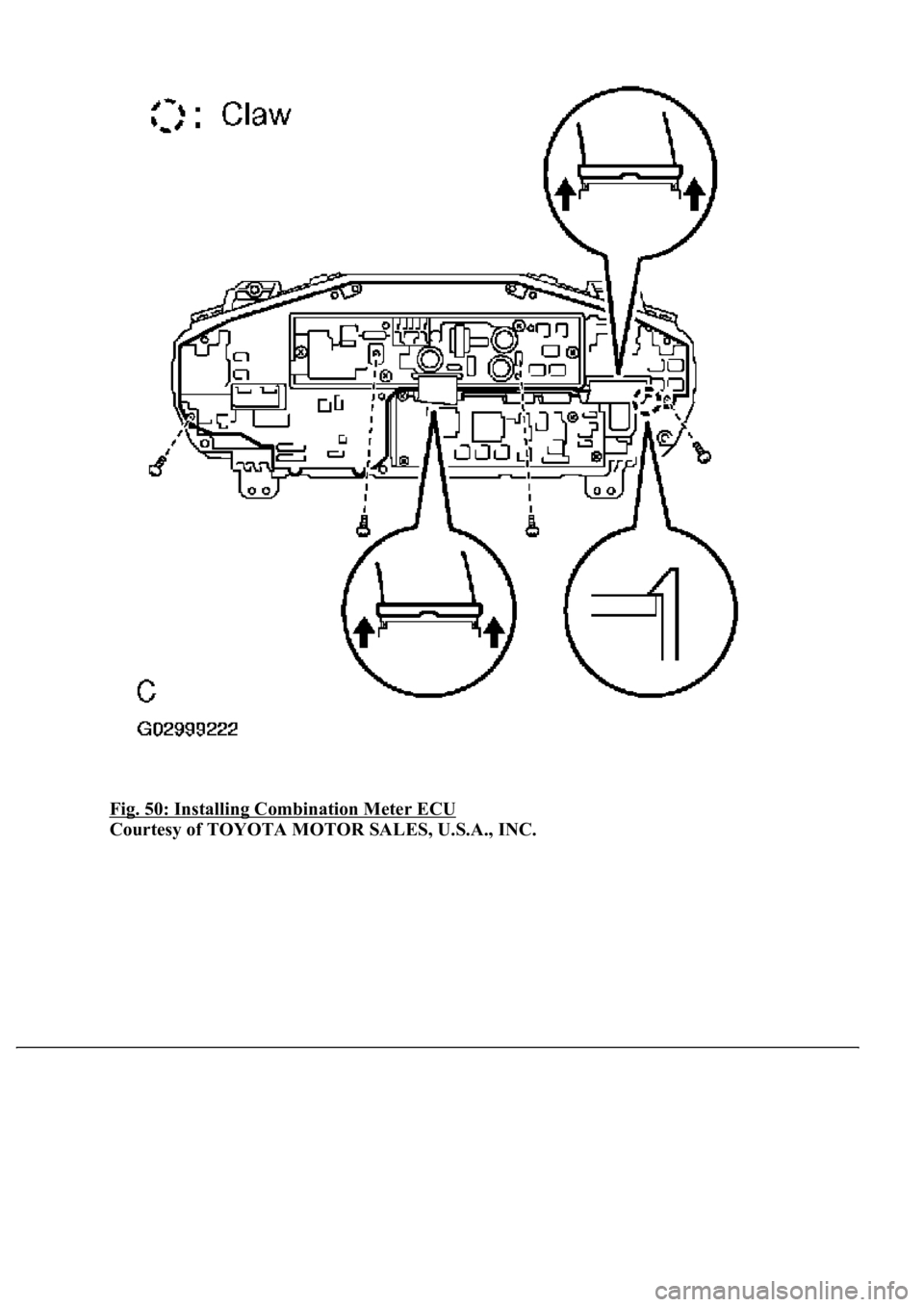

Fig. 50: Installing Combination Meter ECU
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

LOCATION

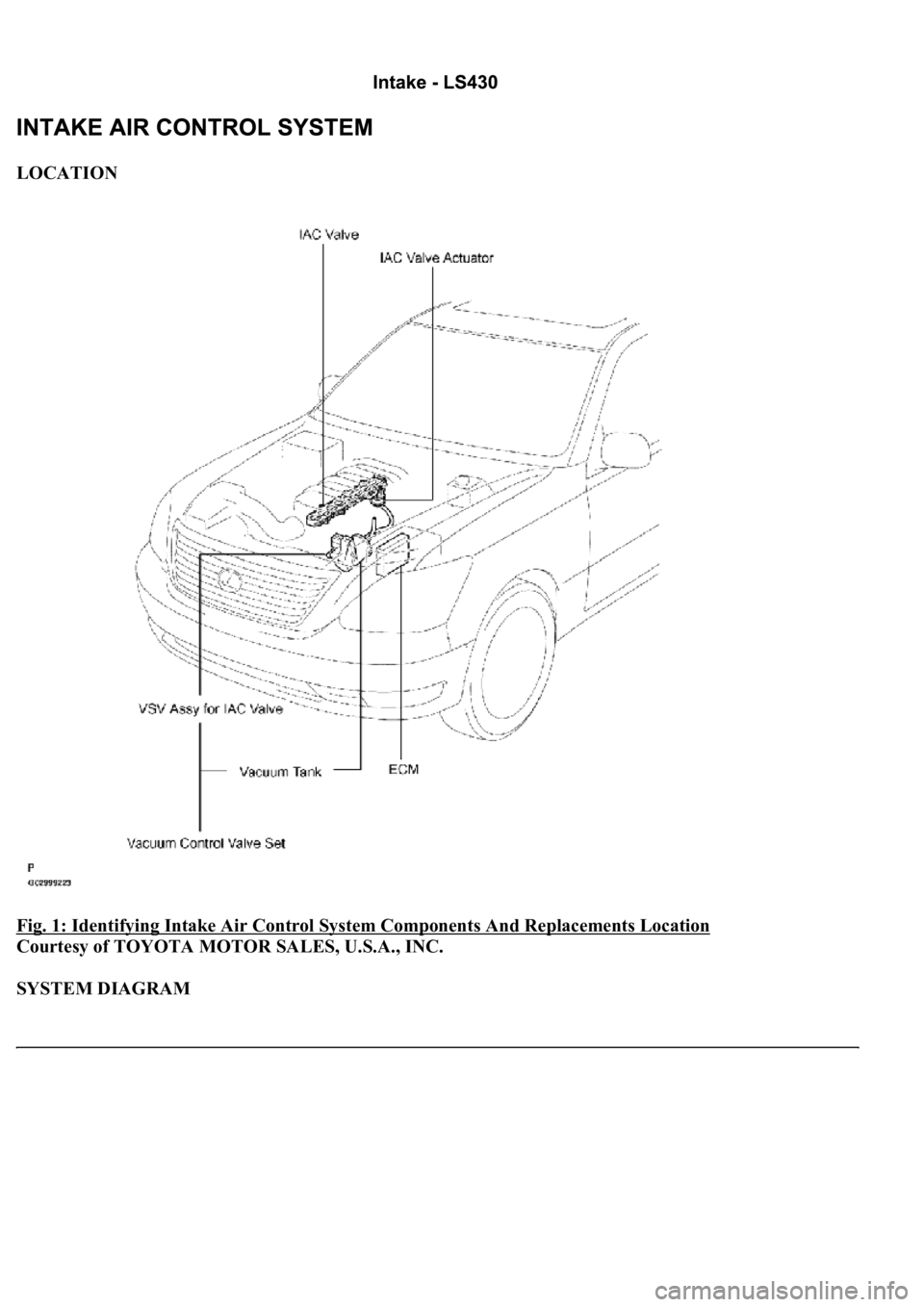

Fig. 1: Identifying Intake Air Control System Components And Replacements Location
