LINCOLN MKZ 2013 Owners Manual

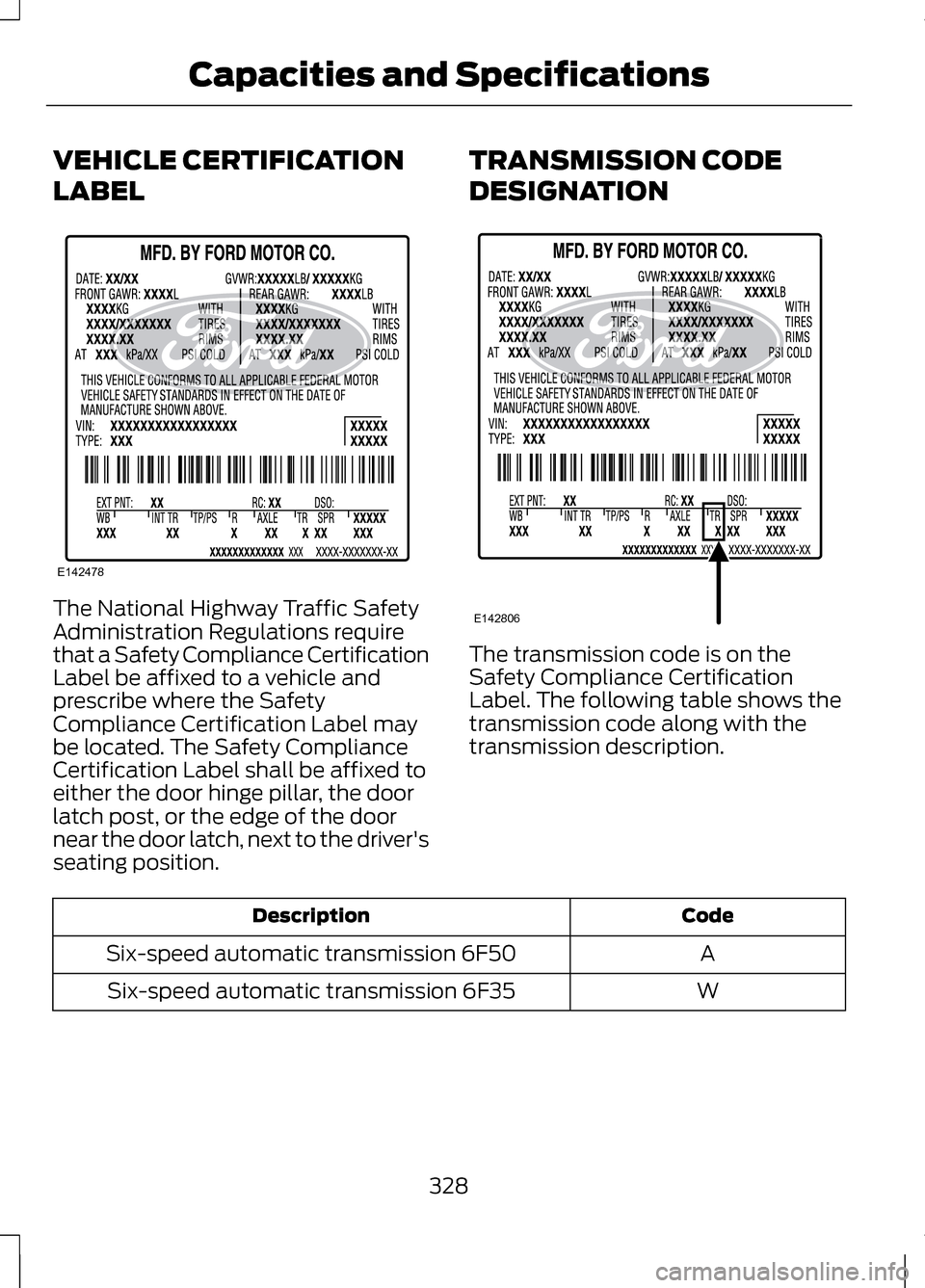

VEHICLE CERTIFICATION
LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the driver's
seating position. TRANSMISSION CODE
DESIGNATION
The transmission code is on the
Safety Compliance Certification
Label. The following table shows the
transmission code along with the
transmission description.
Code
Description
A
Six-speed automatic transmission 6F50
W
Six-speed automatic transmission 6F35
328
Capacities and SpecificationsE142478 E142806

TECHNICAL SPECIFICATIONS
Ford Part Number
/ Ford Specifica- tion
Ford Part Name or
Equivalent
Capacity
Item
PM-1-C / WSS-
M6C65-A2 and
ISO 4925 Class 6
Motorcraft® DOT
4 LV High
Performance Brake Fluid
Between MIN
and MAX on reservoir
Brake fluid
1
XG-4 or XL-5 or
equivalent / ESB- M1C93-B
Multi-Purpose
Grease (lithium grease)
Not applicable
Door latch, hood
latch, auxiliary hood latch, trunk latch, seat tracks.
XL-1 / None
Motorcraft®
Penetrating and Lock Lubricant
Not applicable
Lock cylinder
XT-10-QLV
MERCON® LV
Motorcraft®
MERCON® LV ATF
9.0 qt (8.5 L)
6F35 automatic
transmission fluid 2, 3
11.6 qt (11 L)
6F50 automatic
transmission fluid 2, 3
XY-80W90-QL /WSP-M2C197-A
Motorcraft® SAE
80W-90 Premium Rear Axle
Lubricant
2.4 pt (1.15 L)
Rear differential
(AWD) fluid
XY-75W140-QL /WSL-M2C192-A
Motorcraft® SAE
75W-140
Synthetic Rear Axle Lubricant
12fl oz (0.35 L)
Power Transfer Unit
(PTU) fluid (AWD) 4
WSS-M2C946-A
Motorcraft® SAE
5W-30 or equi-
valent motor oil
5.7 qt (5.4 L)
2.0L EcoBoost engine
oil 5, 6
WSS-M2C945-A
Motorcraft® SAE
5W-20 or equi-
valent motor oil
6 qt (5.7 L)
3.7L V6 engine oil 5, 6
329
Capacities and Specifications

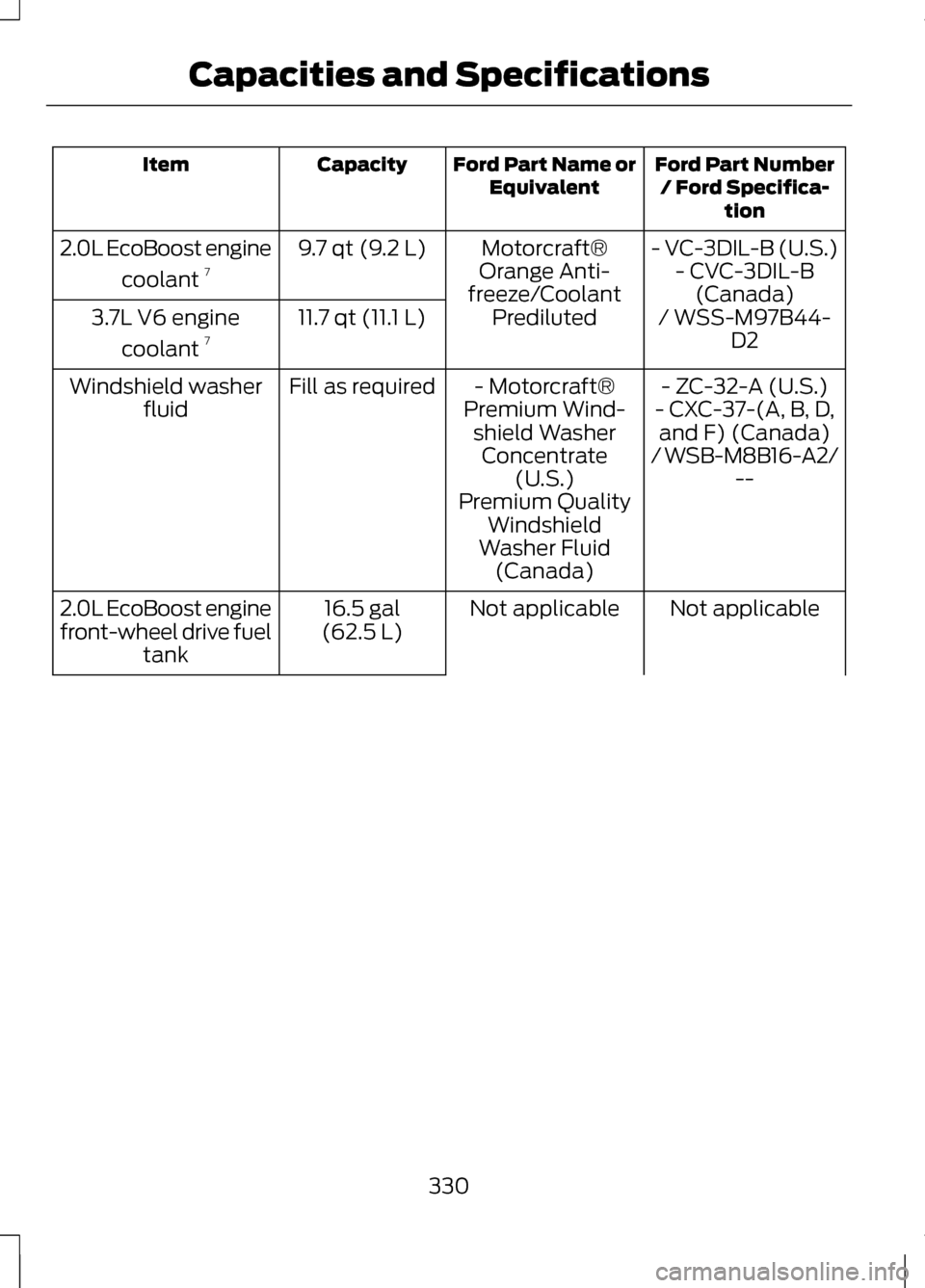

Ford Part Number
/ Ford Specifica- tion
Ford Part Name or
Equivalent
Capacity
Item
- VC-3DIL-B (U.S.)
Motorcraft®
Orange Anti-
freeze/Coolant Prediluted
9.7 qt (9.2 L)
2.0L EcoBoost engine
coolant 7
- CVC-3DIL-B
(Canada)
/ WSS-M97B44- D2
11.7 qt (11.1 L)
3.7L V6 engine
coolant 7
- ZC-32-A (U.S.)
- Motorcraft®
Premium Wind- shield WasherConcentrate (U.S.)
Fill as required
Windshield washer
fluid - CXC-37-(A, B, D,
and F) (Canada)
/ WSB-M8B16-A2/ --
Premium Quality Windshield
Washer Fluid (Canada)
Not applicable
Not applicable
16.5 gal
(62.5 L)
2.0L EcoBoost engine
front-wheel drive fuel
tank
330
Capacities and Specifications

Ford Part Number
/ Ford Specifica- tion
Ford Part Name or
Equivalent
Capacity
Item
17.5 gal
(66.2 L)
2.0L EcoBoost engine
all-wheel drive fuel tank
17.5 gal
(66.2 L)
3.7L V6 engine front-
wheel drive or all-
wheel drive fuel tank
1 Use only Motorcraft® DOT 4 LV High Performance Brake Fluid or equivalent
meeting WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than
the recommended fluid may cause brake system damage.
2 Approximate dry fill capacity. Actual amount may vary during fluid changes.
3 Automatic transmissions that require Motorcraft® MERCON® LV transmission
fluid should only use Motorcraft® MERCON® LV transmission fluid.
Use of any fluid other than the recommended fluid may cause transmission
damage.
Change the automatic transmission fluid and filter at the correct service interval.
See Scheduled Maintenance (page 440).
4 See your authorized dealer for fluid level checking or filling.
5 Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil must
meet or exceed the requirements of Ford specification WSS-M2C946-A, SAE
5W-30 (2.0L engine) or WSS-M2C945-A, SAE 5W-20 (3.7L engine) and display
the API Starburst Certification Mark.
6 If the Ford specification is not shown on the oil container, the oil container must
display the API Starburst Certification Mark and the correct viscosity.
7 Add the coolant type originally equipped in your vehicle.
331
Capacities and Specifications

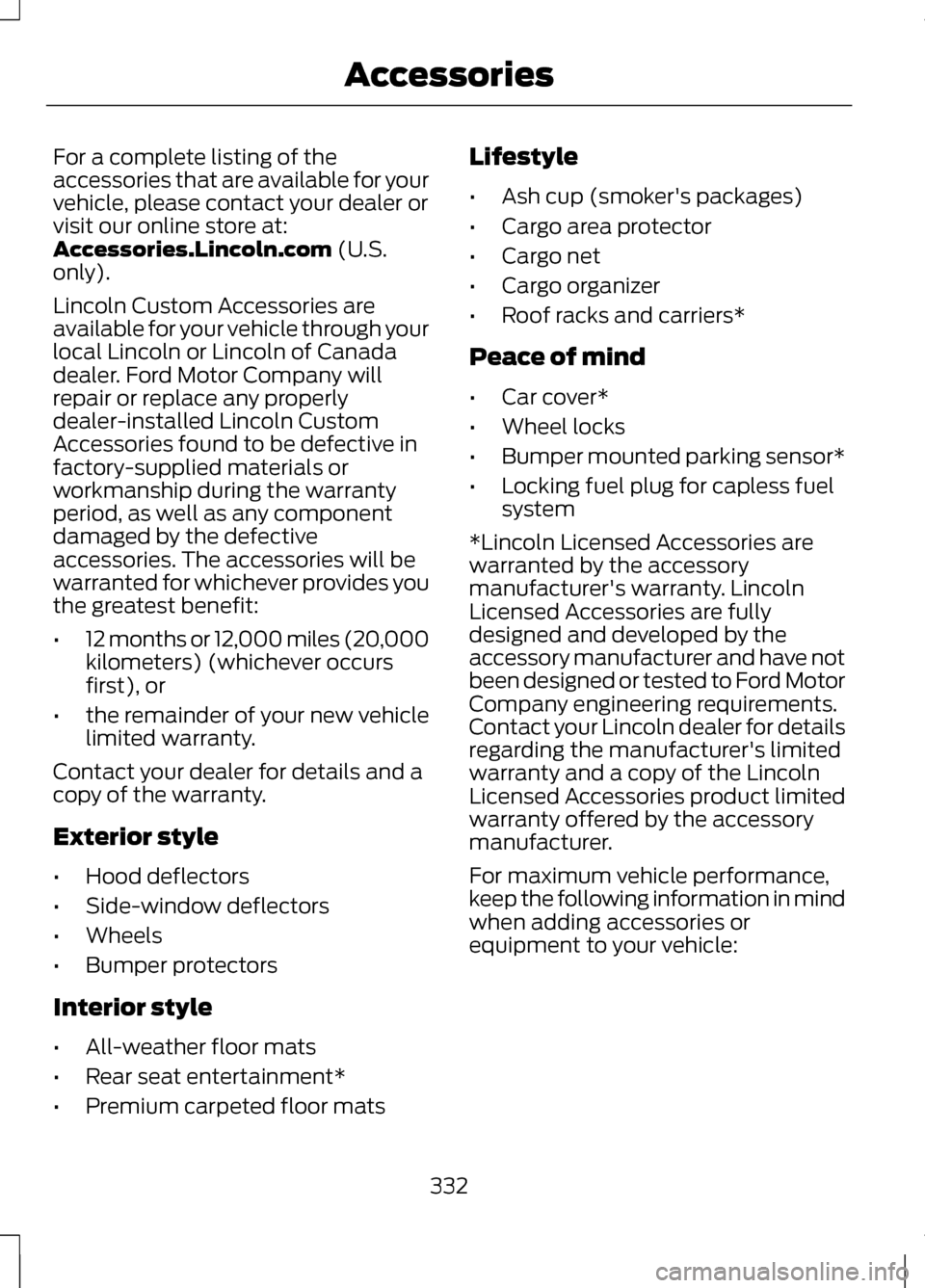

For a complete listing of the
accessories that are available for your
vehicle, please contact your dealer or
visit our online store at:
Accessories.Lincoln.com (U.S.
only).
Lincoln Custom Accessories are
available for your vehicle through your
local Lincoln or Lincoln of Canada
dealer. Ford Motor Company will
repair or replace any properly
dealer-installed Lincoln Custom
Accessories found to be defective in
factory-supplied materials or
workmanship during the warranty
period, as well as any component
damaged by the defective
accessories. The accessories will be
warranted for whichever provides you
the greatest benefit:
• 12 months or 12,000 miles (20,000
kilometers) (whichever occurs
first), or
• the remainder of your new vehicle
limited warranty.
Contact your dealer for details and a
copy of the warranty.
Exterior style
• Hood deflectors
• Side-window deflectors
• Wheels
• Bumper protectors
Interior style
• All-weather floor mats
• Rear seat entertainment*
• Premium carpeted floor mats Lifestyle
•
Ash cup (smoker's packages)
• Cargo area protector
• Cargo net
• Cargo organizer
• Roof racks and carriers*
Peace of mind
• Car cover*
• Wheel locks
• Bumper mounted parking sensor*
• Locking fuel plug for capless fuel
system
*Lincoln Licensed Accessories are
warranted by the accessory
manufacturer's warranty. Lincoln
Licensed Accessories are fully
designed and developed by the
accessory manufacturer and have not
been designed or tested to Ford Motor
Company engineering requirements.
Contact your Lincoln dealer for details
regarding the manufacturer's limited
warranty and a copy of the Lincoln
Licensed Accessories product limited
warranty offered by the accessory
manufacturer.
For maximum vehicle performance,
keep the following information in mind
when adding accessories or
equipment to your vehicle:
332
Accessories

•

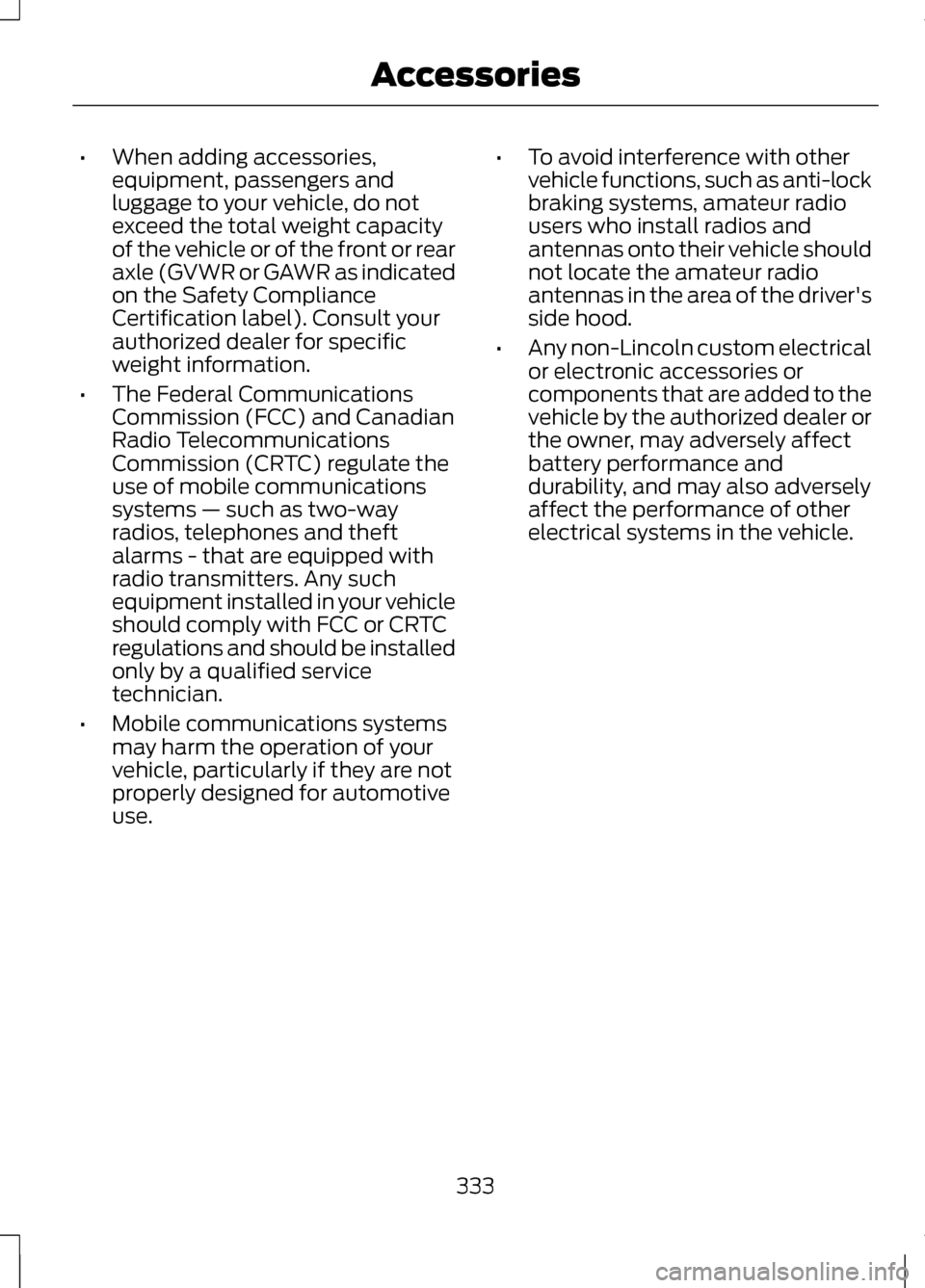

When adding accessories,
equipment, passengers and
luggage to your vehicle, do not
exceed the total weight capacity
of the vehicle or of the front or rear
axle (GVWR or GAWR as indicated
on the Safety Compliance
Certification label). Consult your
authorized dealer for specific
weight information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the
use of mobile communications
systems — such as two-way
radios, telephones and theft
alarms - that are equipped with
radio transmitters. Any such
equipment installed in your vehicle
should comply with FCC or CRTC
regulations and should be installed
only by a qualified service
technician.
• Mobile communications systems
may harm the operation of your
vehicle, particularly if they are not
properly designed for automotive
use. •
To avoid interference with other
vehicle functions, such as anti-lock
braking systems, amateur radio
users who install radios and
antennas onto their vehicle should
not locate the amateur radio
antennas in the area of the driver's
side hood.
• Any non-Lincoln custom electrical
or electronic accessories or
components that are added to the
vehicle by the authorized dealer or
the owner, may adversely affect
battery performance and
durability, and may also adversely
affect the performance of other
electrical systems in the vehicle.
333
Accessories

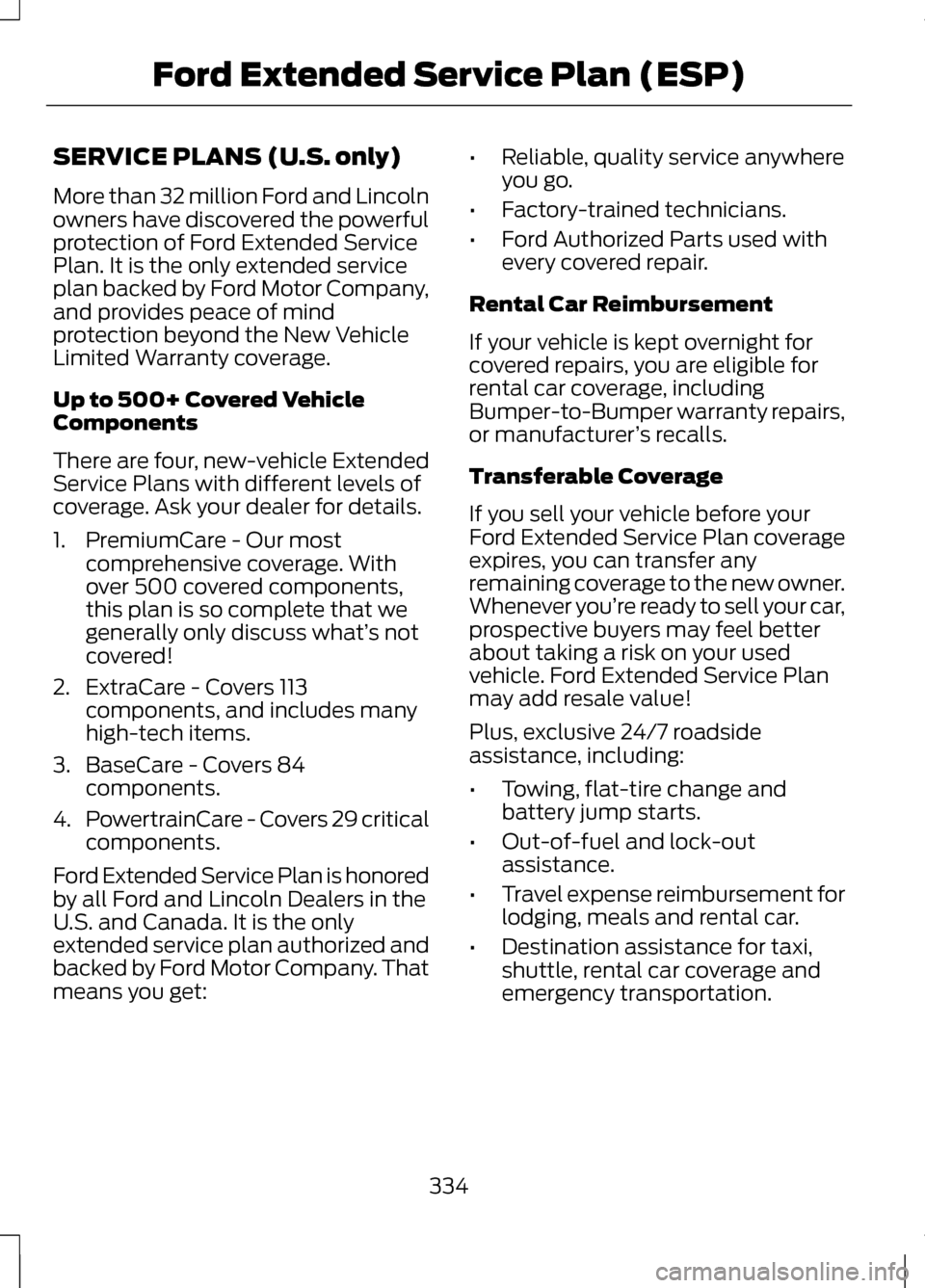

SERVICE PLANS (U.S. only)
More than 32 million Ford and Lincoln
owners have discovered the powerful
protection of Ford Extended Service
Plan. It is the only extended service
plan backed by Ford Motor Company,
and provides peace of mind
protection beyond the New Vehicle
Limited Warranty coverage.
Up to 500+ Covered Vehicle
Components
There are four, new-vehicle Extended
Service Plans with different levels of
coverage. Ask your dealer for details.
1. PremiumCare - Our most
comprehensive coverage. With
over 500 covered components,
this plan is so complete that we
generally only discuss what’ s not
covered!
2. ExtraCare - Covers 113 components, and includes many
high-tech items.
3. BaseCare - Covers 84 components.
4. PowertrainCare - Covers 29 critical
components.
Ford Extended Service Plan is honored
by all Ford and Lincoln Dealers in the
U.S. and Canada. It is the only
extended service plan authorized and
backed by Ford Motor Company. That
means you get: •
Reliable, quality service anywhere
you go.
• Factory-trained technicians.
• Ford Authorized Parts used with
every covered repair.
Rental Car Reimbursement
If your vehicle is kept overnight for
covered repairs, you are eligible for
rental car coverage, including
Bumper-to-Bumper warranty repairs,
or manufacturer ’s recalls.
Transferable Coverage
If you sell your vehicle before your
Ford Extended Service Plan coverage
expires, you can transfer any
remaining coverage to the new owner.
Whenever you’re ready to sell your car,
prospective buyers may feel better
about taking a risk on your used
vehicle. Ford Extended Service Plan
may add resale value!
Plus, exclusive 24/7 roadside
assistance, including:
• Towing, flat-tire change and
battery jump starts.
• Out-of-fuel and lock-out
assistance.
• Travel expense reimbursement for
lodging, meals and rental car.
• Destination assistance for taxi,
shuttle, rental car coverage and
emergency transportation.
334
Ford Extended Service Plan (ESP)

Ford Extended Service Plan Can
Quickly Pay for Itself
One service bill – the cost of parts and
labor – can easily exceed the price of
your Ford Extended Service Plan
Service Contract. With a Ford Extend
Service Plan, you minimize your risk
for unexpected repair bills and rising
repair costs.
Avoid the Rising Cost of Properly
Maintaining Your Vehicle!
Ford Extended Service Plan also
offers a Premium Maintenance Plan
that covers items that routinely wear
out.
The coverage is prepaid, so you never
have to worry about affording your
vehicle maintenance. It covers regular
checkups, routine inspections,
preventive care and replacement of
items that require periodic attention
for normal wear:
•
Wiper blades
• Spark plugs (except California)
• Clutch disc
• Brake pads and linings
• Shock absorbers
• Belts and hoses Contact your selling Ford or Lincoln
dealership today so they can
customize a Ford Extended Service
Plan that fits your driving lifestyle and
budget.
Interest Free Finance Options
Available
Take advantage of our installment
payment plan, just a 10% down
payment will provide you with an
affordable no interest, no-fee
payment opportunity.
For More Information
PROTECT YOURSELF FROM THE
RISING COST OF VEHICLE REPAIRS
WITH A FORD EXTENDED SERVICE
PLAN.
To learn more, call our Ford ESP
specialists at 800-367-3377, and
don't forget to ask about our interest
free payment program, allowing you
all the security and benefits Ford ESP
has to offer while paying over time.
your pre-approved with no credit
checks, no hassles!
Or, complete the information below
and mail to:
Ford ESP
P.O. Box 8072
Royal Oak, MI 48068-0039
Name (PLEASE PRINT)
APT.#
ADDRESS
335
Ford Extended Service Plan (ESP)

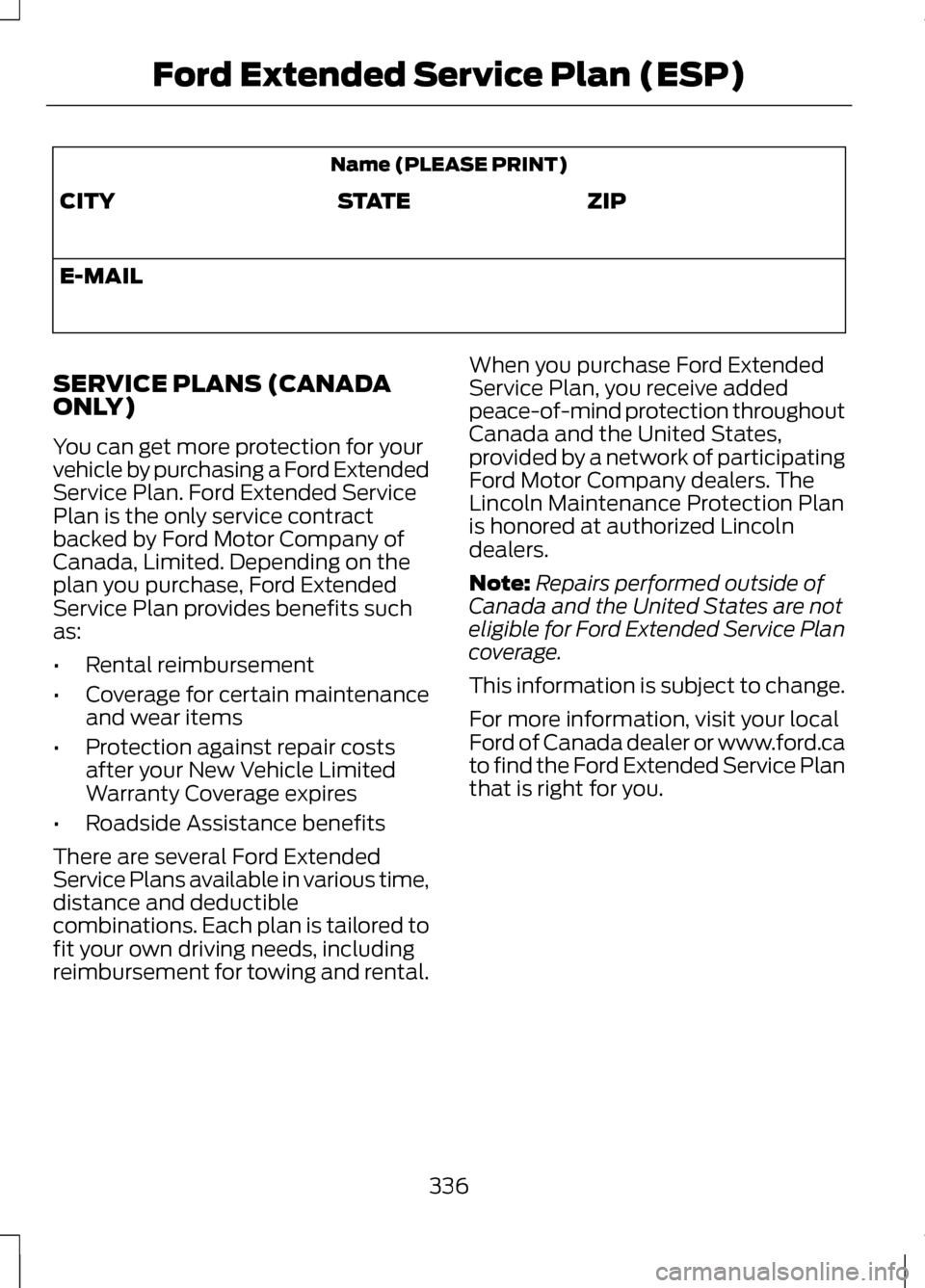

Name (PLEASE PRINT)
ZIP
STATE
CITY
E-MAIL
SERVICE PLANS (CANADA
ONLY)
You can get more protection for your
vehicle by purchasing a Ford Extended
Service Plan. Ford Extended Service
Plan is the only service contract
backed by Ford Motor Company of
Canada, Limited. Depending on the
plan you purchase, Ford Extended
Service Plan provides benefits such
as:
• Rental reimbursement
• Coverage for certain maintenance
and wear items
• Protection against repair costs
after your New Vehicle Limited
Warranty Coverage expires
• Roadside Assistance benefits
There are several Ford Extended
Service Plans available in various time,
distance and deductible
combinations. Each plan is tailored to
fit your own driving needs, including
reimbursement for towing and rental. When you purchase Ford Extended
Service Plan, you receive added
peace-of-mind protection throughout
Canada and the United States,
provided by a network of participating
Ford Motor Company dealers. The
Lincoln Maintenance Protection Plan
is honored at authorized Lincoln
dealers.
Note:
Repairs performed outside of
Canada and the United States are not
eligible for Ford Extended Service Plan
coverage.
This information is subject to change.
For more information, visit your local
Ford of Canada dealer or www.ford.ca
to find the Ford Extended Service Plan
that is right for you.
336
Ford Extended Service Plan (ESP)

GENERAL INFORMATION
WARNING
Driving while distracted can
result in loss of vehicle control,
accident and injury. Ford strongly
recommends that drivers use extreme
caution when using any device or
feature that may take their focus off
the road. Your primary responsibility
is the safe operation of the vehicle.
We recommend against the use of any
handheld device while driving,
encourage the use of voice-operated
systems when possible and that you
become aware of applicable state
and local laws that may affect use of
electronic devices while driving. Note:
Some features are not available
while the vehicle is moving.
Note: Your system is equipped with a
feature that allows you to access and
control audio features for 30 minutes
after the ignition has been turned off
(as long as no doors are opened).
This system uses a four-corner
strategy to provide quick access to
vehicle features and settings. The
comprehensive touchscreen provides
easy interaction with your cellular
phone, multimedia, climate control
and navigation system. The corners
display any active modes within those
menus, such as your phone being
connected or the climate
temperature. SETTINGS Press to select any of the following:
•
Clock
• Display
• Sound
• Vehicle
• Settings
• Help INFORMATION
Press to select any of the following:
• Services
• Travel Link
• Alerts
• Calendar
• Apps
PHONE
Press to select any of the following:
• Phone
• Quick Dial
• Phonebook
• History
• Messaging
• Settings
NAVIGATION
Press to select any of the following:
• My Home
• Favorites
• Previous Destinations
• Point of Interest
• Emergency
• Previous Starting Point
• Latitude/Longitude
337
MyLincoln Touch
™E142607 E142608
