LINCOLN MKZ 2014 Owners Manual

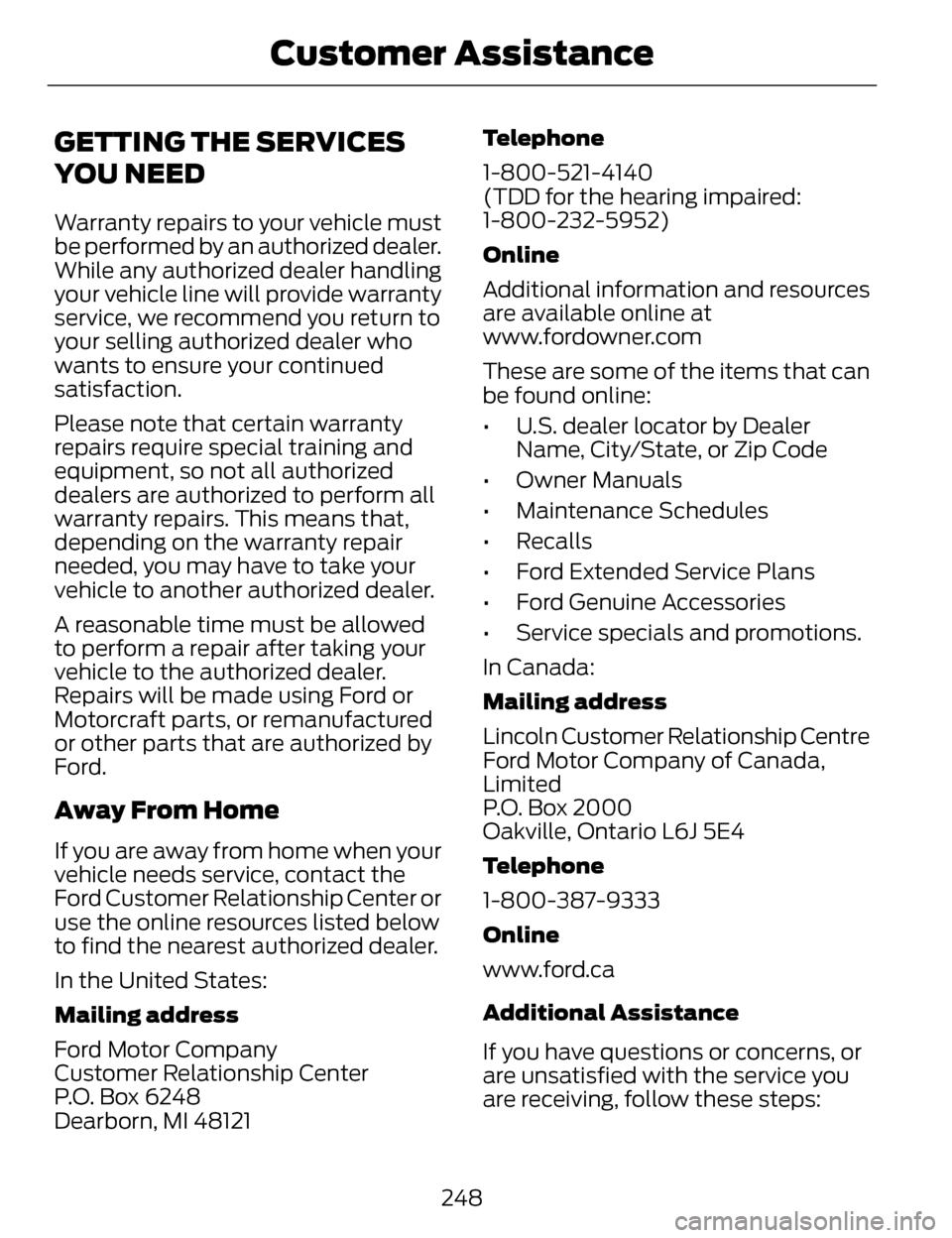

GETTING THE SERVICES
YOU NEED
Warranty repairs to your vehicle must
be performed by an authorized dealer.
While any authorized dealer handling
your vehicle line will provide warranty
service, we recommend you return to
your selling authorized dealer who
wants to ensure your continued
satisfaction.
Please note that certain warranty
repairs require special training and
equipment, so not all authorized
dealers are authorized to perform all
warranty repairs. This means that,
depending on the warranty repair
needed, you may have to take your
vehicle to another authorized dealer.
A reasonable time must be allowed
to perform a repair after taking your
vehicle to the authorized dealer.
Repairs will be made using Ford or
Motorcraft parts, or remanufactured
or other parts that are authorized by
Ford.
Away From Home
If you are away from home when your
vehicle needs service, contact the
Ford Customer Relationship Center or
use the online resources listed below
to find the nearest authorized dealer.
In the United States:
Mailing address
Ford Motor Company
Customer Relationship Center
P.O. Box 6248
Dearborn, MI 48121Telephone
1-800-521-4140
(TDD for the hearing impaired:
1-800-232-5952)
Online
Additional information and resources
are available online at
www.fordowner.com
These are some of the items that can
be found online:
• U.S. dealer locator by Dealer
Name, City/State, or Zip Code
• Owner Manuals
• Maintenance Schedules
• Recalls
• Ford Extended Service Plans
• Ford Genuine Accessories
• Service specials and promotions.
In Canada:
Mailing address
Lincoln Customer Relationship Centre
Ford Motor Company of Canada,
Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
Telephone
1-800-387-9333
Online
www.ford.ca
Additional Assistance
If you have questions or concerns, or
are unsatisfied with the service you
are receiving, follow these steps:
248
Customer Assistance

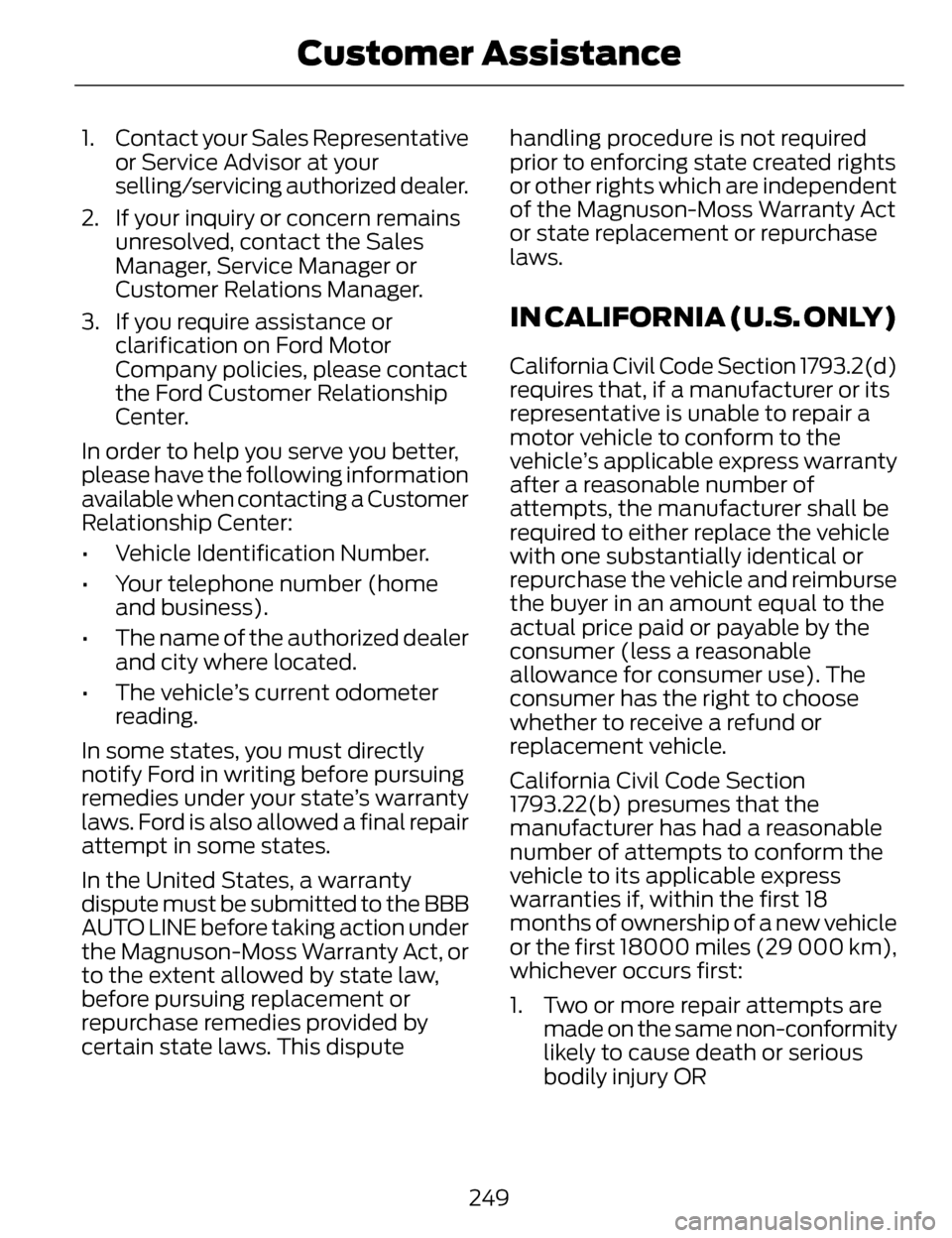

1. Contact your Sales Representativeor Service Advisor at your
selling/servicing authorized dealer.
2. If your inquiry or concern remains unresolved, contact the Sales
Manager, Service Manager or
Customer Relations Manager.
3. If you require assistance or clarification on Ford Motor
Company policies, please contact
the Ford Customer Relationship
Center.
In order to help you serve you better,
please have the following information
available when contacting a Customer
Relationship Center:
• Vehicle Identification Number.
• Your telephone number (home and business).
• The name of the authorized dealer and city where located.
• The vehicle’s current odometer reading.
In some states, you must directly
notify Ford in writing before pursuing
remedies under your state’s warranty
laws. Ford is also allowed a final repair
attempt in some states.
In the United States, a warranty
dispute must be submitted to the BBB
AUTO LINE before taking action under
the Magnuson-Moss Warranty Act, or
to the extent allowed by state law,
before pursuing replacement or
repurchase remedies provided by
certain state laws. This dispute handling procedure is not required
prior to enforcing state created rights
or other rights which are independent
of the Magnuson-Moss Warranty Act
or state replacement or repurchase
laws.
IN CALIFORNIA (U.S. ONLY)
California Civil Code Section 1793.2(d)
requires that, if a manufacturer or its
representative is unable to repair a
motor vehicle to conform to the
vehicle’s applicable express warranty
after a reasonable number of
attempts, the manufacturer shall be
required to either replace the vehicle
with one substantially identical or
repurchase the vehicle and reimburse
the buyer in an amount equal to the
actual price paid or payable by the
consumer (less a reasonable
allowance for consumer use). The
consumer has the right to choose
whether to receive a refund or
replacement vehicle.
California Civil Code Section
1793.22(b) presumes that the
manufacturer has had a reasonable
number of attempts to conform the
vehicle to its applicable express
warranties if, within the first 18
months of ownership of a new vehicle
or the first 18000 miles (29 000 km),
whichever occurs first:
1. Two or more repair attempts are
made on the same non-conformity
likely to cause death or serious
bodily injury OR
249
Customer Assistance

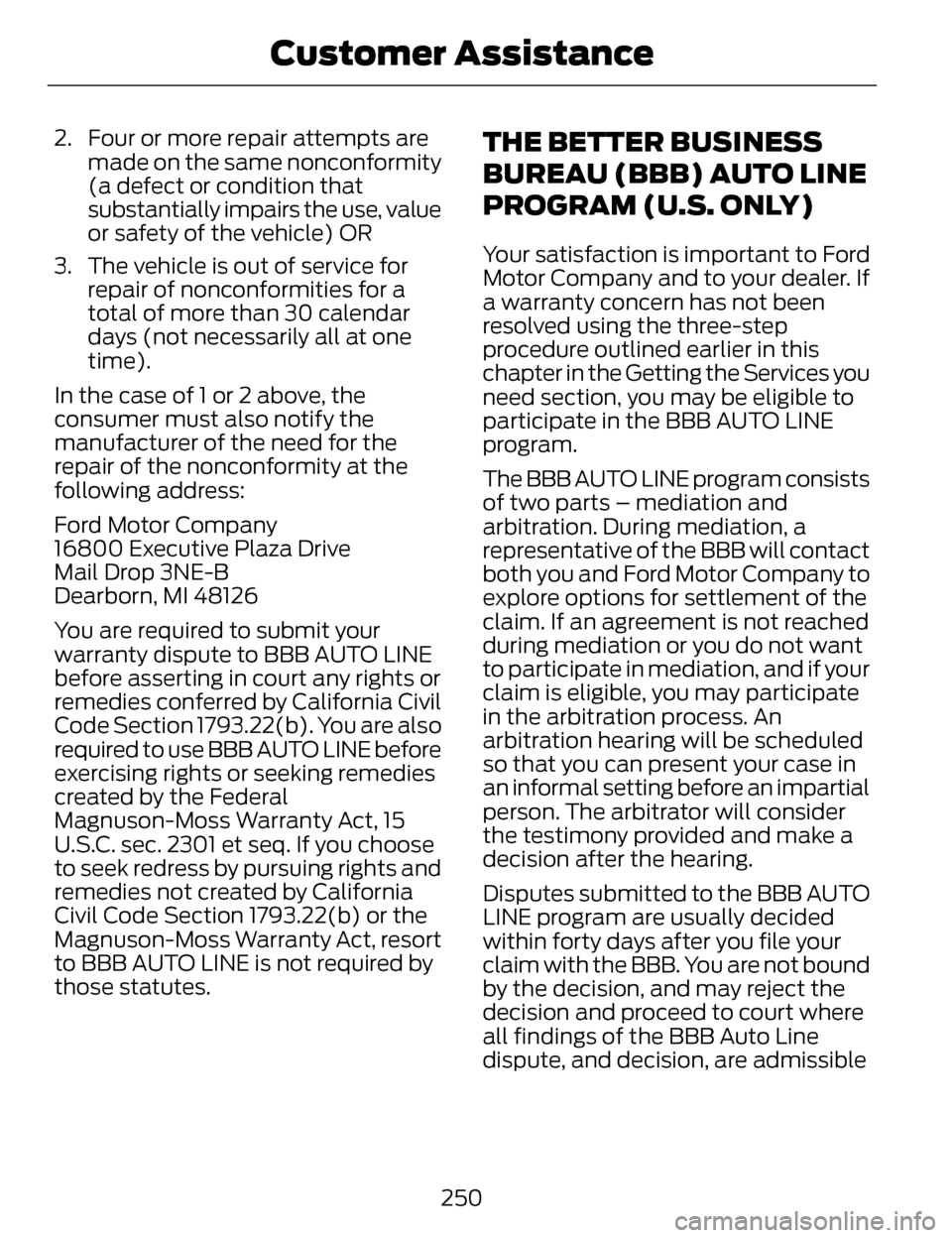

2. Four or more repair attempts aremade on the same nonconformity
(a defect or condition that
substantially impairs the use, value
or safety of the vehicle) OR
3. The vehicle is out of service for repair of nonconformities for a
total of more than 30 calendar
days (not necessarily all at one
time).
In the case of 1 or 2 above, the
consumer must also notify the
manufacturer of the need for the
repair of the nonconformity at the
following address:
Ford Motor Company
16800 Executive Plaza Drive
Mail Drop 3NE-B
Dearborn, MI 48126
You are required to submit your
warranty dispute to BBB AUTO LINE
before asserting in court any rights or
remedies conferred by California Civil
Code Section 1793.22(b). You are also
required to use BBB AUTO LINE before
exercising rights or seeking remedies
created by the Federal
Magnuson-Moss Warranty Act, 15
U.S.C. sec. 2301 et seq. If you choose
to seek redress by pursuing rights and
remedies not created by California
Civil Code Section 1793.22(b) or the
Magnuson-Moss Warranty Act, resort
to BBB AUTO LINE is not required by
those statutes.THE BETTER BUSINESS
BUREAU (BBB) AUTO LINE
PROGRAM (U.S. ONLY)
Your satisfaction is important to Ford
Motor Company and to your dealer. If
a warranty concern has not been
resolved using the three-step
procedure outlined earlier in this
chapter in the Getting the Services you
need section, you may be eligible to
participate in the BBB AUTO LINE
program.
The BBB AUTO LINE program consists
of two parts – mediation and
arbitration. During mediation, a
representative of the BBB will contact
both you and Ford Motor Company to
explore options for settlement of the
claim. If an agreement is not reached
during mediation or you do not want
to participate in mediation, and if your
claim is eligible, you may participate
in the arbitration process. An
arbitration hearing will be scheduled
so that you can present your case in
an informal setting before an impartial
person. The arbitrator will consider
the testimony provided and make a
decision after the hearing.
Disputes submitted to the BBB AUTO
LINE program are usually decided
within forty days after you file your
claim with the BBB. You are not bound
by the decision, and may reject the
decision and proceed to court where
all findings of the BBB Auto Line
dispute, and decision, are admissible
250
Customer Assistance

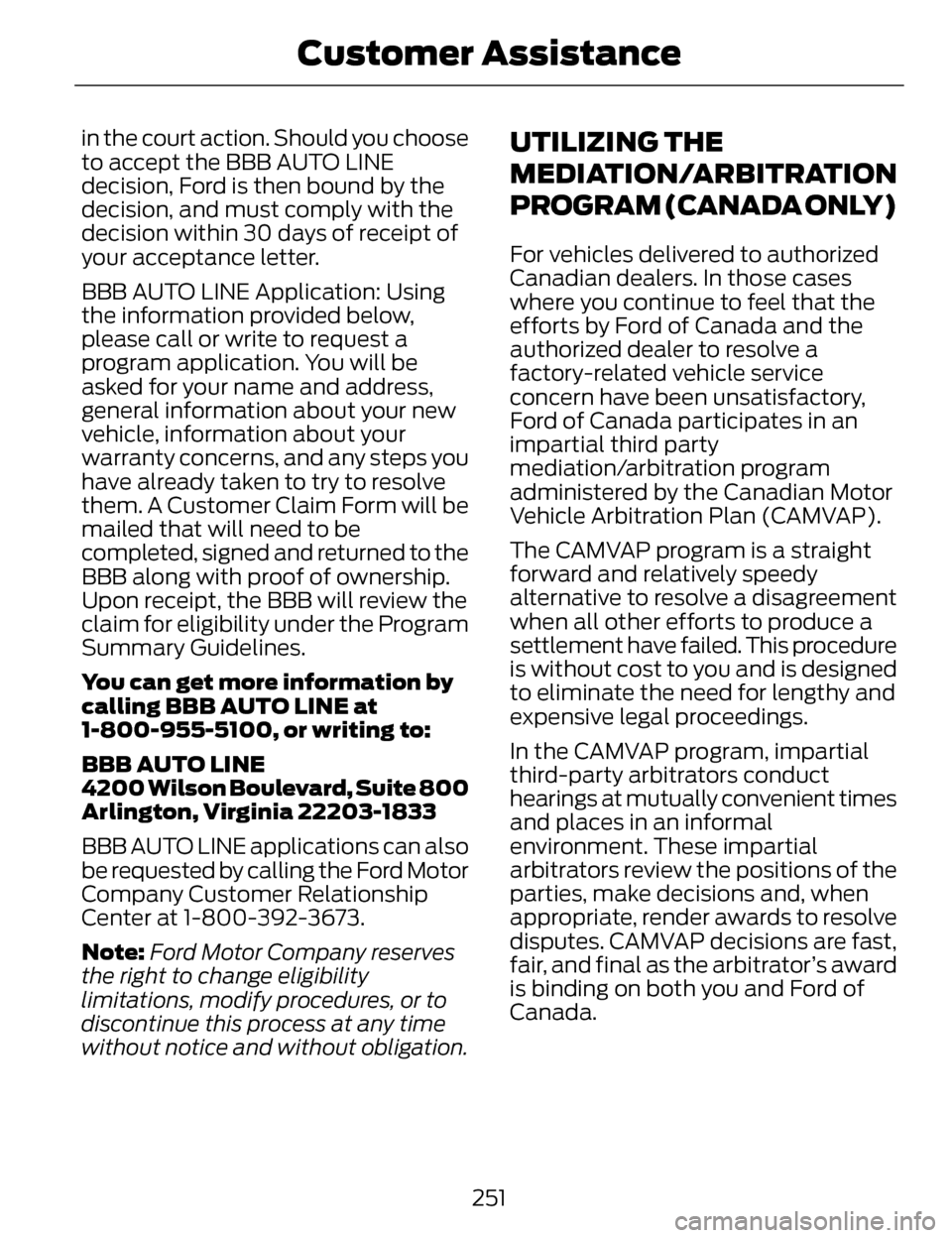

in the court action. Should you choose
to accept the BBB AUTO LINE
decision, Ford is then bound by the
decision, and must comply with the
decision within 30 days of receipt of
your acceptance letter.
BBB AUTO LINE Application: Using
the information provided below,
please call or write to request a
program application. You will be
asked for your name and address,
general information about your new
vehicle, information about your
warranty concerns, and any steps you
have already taken to try to resolve
them. A Customer Claim Form will be
mailed that will need to be
completed, signed and returned to the
BBB along with proof of ownership.
Upon receipt, the BBB will review the
claim for eligibility under the Program
Summary Guidelines.
You can get more information by
calling BBB AUTO LINE at
1-800-955-5100, or writing to:
BBB AUTO LINE
4200 Wilson Boulevard, Suite 800
Arlington, Virginia 22203-1833
BBB AUTO LINE applications can also
be requested by calling the Ford Motor
Company Customer Relationship
Center at 1-800-392-3673.
Note:Ford Motor Company reserves
the right to change eligibility
limitations, modify procedures, or to
discontinue this process at any time
without notice and without obligation.UTILIZING THE
MEDIATION/ARBITRATION
PROGRAM (CANADA ONLY)
For vehicles delivered to authorized
Canadian dealers. In those cases
where you continue to feel that the
efforts by Ford of Canada and the
authorized dealer to resolve a
factory-related vehicle service
concern have been unsatisfactory,
Ford of Canada participates in an
impartial third party
mediation/arbitration program
administered by the Canadian Motor
Vehicle Arbitration Plan (CAMVAP).
The CAMVAP program is a straight
forward and relatively speedy
alternative to resolve a disagreement
when all other efforts to produce a
settlement have failed. This procedure
is without cost to you and is designed
to eliminate the need for lengthy and
expensive legal proceedings.
In the CAMVAP program, impartial
third-party arbitrators conduct
hearings at mutually convenient times
and places in an informal
environment. These impartial
arbitrators review the positions of the
parties, make decisions and, when
appropriate, render awards to resolve
disputes. CAMVAP decisions are fast,
fair, and final as the arbitrator’s award
is binding on both you and Ford of
Canada.
251
Customer Assistance

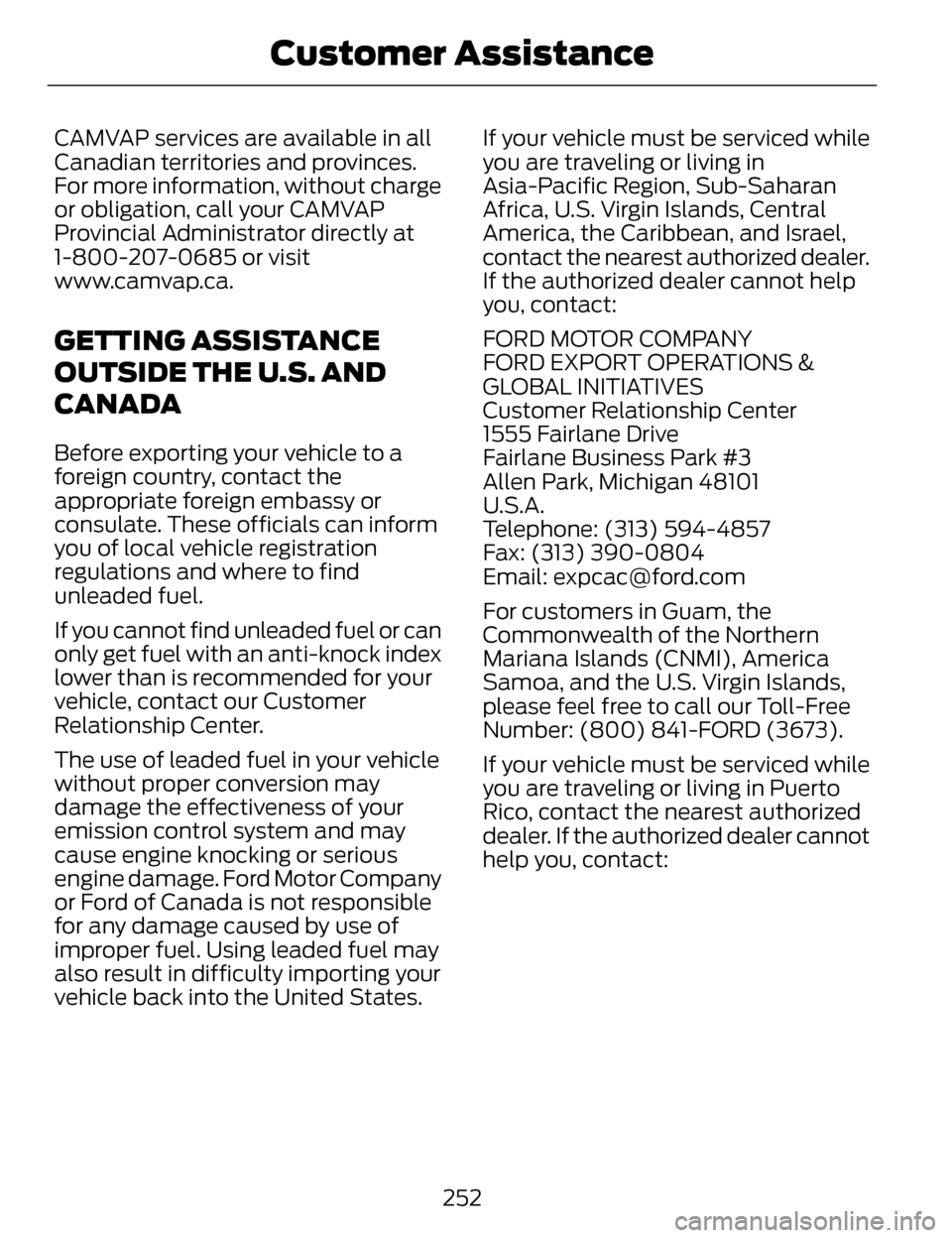

CAMVAP services are available in all
Canadian territories and provinces.
For more information, without charge
or obligation, call your CAMVAP
Provincial Administrator directly at
1-800-207-0685 or visit
www.camvap.ca.
GETTING ASSISTANCE
OUTSIDE THE U.S. AND
CANADA
Before exporting your vehicle to a
foreign country, contact the
appropriate foreign embassy or
consulate. These officials can inform
you of local vehicle registration
regulations and where to find
unleaded fuel.
If you cannot find unleaded fuel or can
only get fuel with an anti-knock index
lower than is recommended for your
vehicle, contact our Customer
Relationship Center.
The use of leaded fuel in your vehicle
without proper conversion may
damage the effectiveness of your
emission control system and may
cause engine knocking or serious
engine damage. Ford Motor Company
or Ford of Canada is not responsible
for any damage caused by use of
improper fuel. Using leaded fuel may
also result in difficulty importing your
vehicle back into the United States.If your vehicle must be serviced while
you are traveling or living in
Asia-Pacific Region, Sub-Saharan
Africa, U.S. Virgin Islands, Central
America, the Caribbean, and Israel,
contact the nearest authorized dealer.
If the authorized dealer cannot help
you, contact:

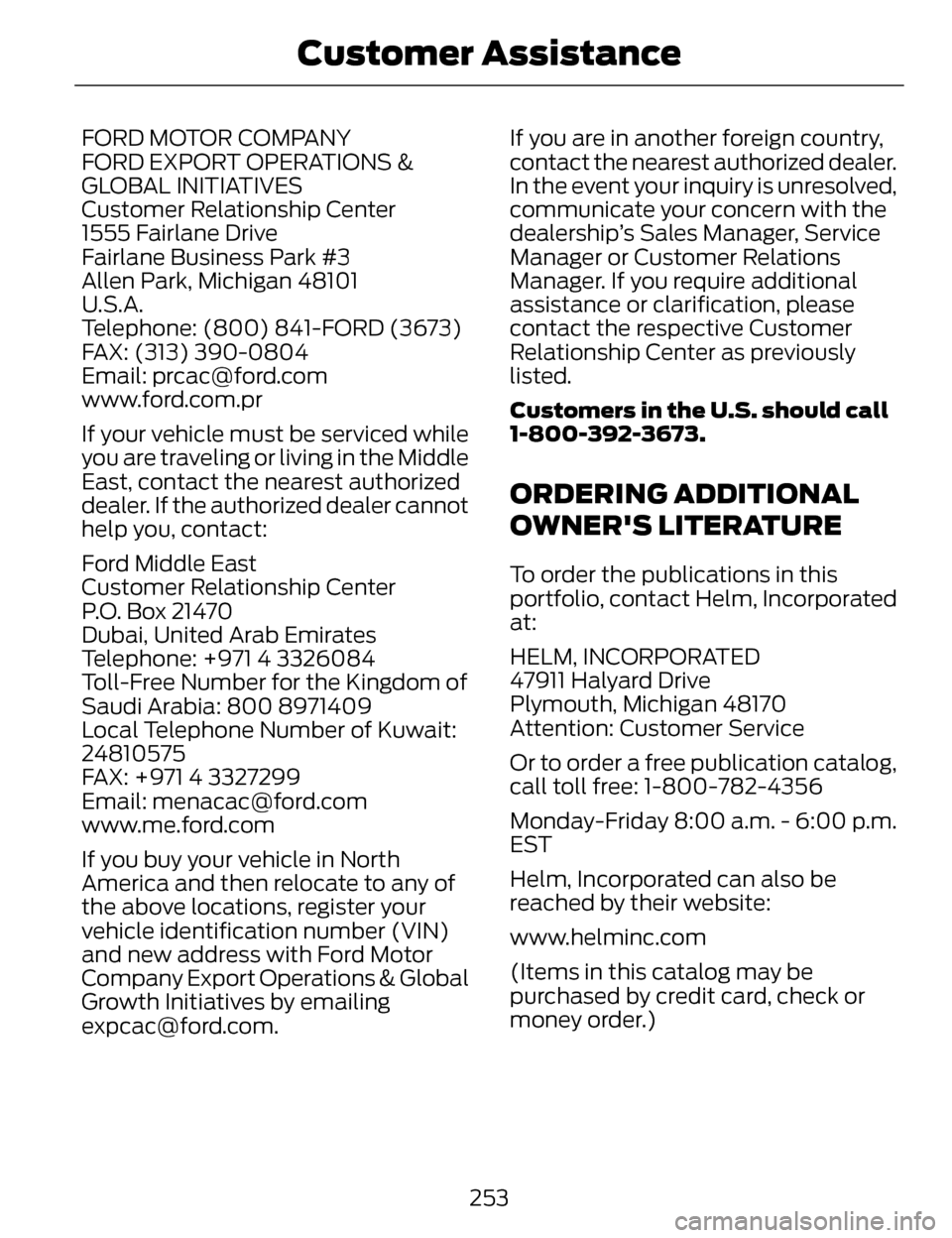

FORD MOTOR COMPANY
FORD EXPORT OPERATIONS &
GLOBAL INITIATIVES
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (313) 594-4857
Fax: (313) 390-0804
Email: expcac@for
d.com
For customers in Guam, the
Commonwealth of the Northern
Mariana Islands (CNMI), America
Samoa, and the U.S. Virgin Islands,
please feel free to call our Toll-Free
Number: (800) 841-FORD (3673).
If your vehicle must be serviced while
you are traveling or living in Puerto
Rico, contact the nearest authorized
dealer. If the authorized dealer cannot
help you, contact:
252
Customer Assistance

FORD MOTOR COMPANY
FORD EXPORT OPERATIONS &
GLOBAL INITIATIVES
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (800) 841-FORD (3673)
FAX: (313) 390-0804
Email: [email protected]
www.ford.com.pr
If your vehicle must be serviced while
you are traveling or living in the Middle
East, contact the nearest authorized
dealer. If the authorized dealer cannot
help you, contact:
Ford Middle East
Customer Relationship Center
P.O. Box 21470
Dubai, United Arab Emirates
Telephone: +971 4 3326084
Toll-Free Number for the Kingdom of
Saudi Arabia: 800 8971409
Local Telephone Number of Kuwait:
24810575
FAX: +971 4 3327299
Email: [email protected]
www.me.ford.com
If you buy your vehicle in North
America and then relocate to any of
the above locations, register your
vehicle identification number (VIN)
and new address with Ford Motor
Company Export Operations & Global
Growth Initiatives by emailing
[email protected]. If you are in another foreign country,
contact the nearest authorized dealer.
In the event your inquiry is unresolved,
communicate your concern with the
dealership’s Sales Manager, Service
Manager or Customer Relations
Manager. If you require additional
assistance or clarification, please
contact the respective Customer
Relationship Center as previously
listed.
Customers in the U.S. should call
1-800-392-3673.
ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this
portfolio, contact Helm, Incorporated
at:
HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service
Or to order a free publication catalog,
call toll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m.
EST
Helm, Incorporated can also be
reached by their website:
www.helminc.com
(Items in this catalog may be
purchased by credit card, check or
money order.)
253
Customer Assistance

Obtaining a French Owner’s
Manual
French Owner’s Manual can be
obtained from your authorized dealer
or by contacting Helm, Incorporated
using the contact information listed
previously in this section.
REPORTING SAFETY
DEFECTS (U.S. ONLY)
E142557
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying Ford Motor Company.If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or Ford Motor Company.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator
1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY
DEFECTS (CANADA ONLY)
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Transport
Canada.
Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
254
Customer Assistance

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one
that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe
wire damage and could start a fire.
E142430
If electrical components in the vehicle
are not working, a fuse may have
blown. Blown fuses are identified by
a broken wire within the fuse. Check
the appropriate fuses before replacing
any electrical components.
Standard Fuse Amperage Rating and Color
Color J-type fuses
M-type fuses
Dual micro
fuses
Micro fuses
Fuse rating
-
-
Ta n
Ta n
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
255
Fuses

FUSE SPECIFICATION
CHART
Power Distribution Box
WARNINGS
Always disconnect the battery
before servicing high-current
fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling
fluid reservoirs.
The power distribution box is in the
engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V
Battery (page 281).
E144783
256
Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Not used (spare)
25A31
Starter relay
-
2
Autowipers
15A
13
Blower motor relay
-
4
Power point 3 - Back of console
20A
35
Not used
-
6
Powertrain control module - vehicle
power 1
20A
17
Powertrain control module - vehicle
power 2
20A
18
Powertrain control module relay
-
9
Power point 1 - driver front
20A
310
Powertrain control module - vehicle
power 4
15A
211
Powertrain control module - vehicle
power 3
15A
212
Powertrain control module - vehicle
power 5
10A
213
Powertrain control module - vehicle
power 6
10A
214
Run/start relay
-
15
Power point 2 - console
20A
316
Not used
-
17
Powertrain control module - keep
alive power
10A
118
257
Fuses
