ASSEMBLY (CYLINDER BLOCK) 1 C
3. Check the side clearance of each connecting rod
without the cap installed.
Side clearance:
0.11—0.262 mm (0.0043—0.0103 in)
Maximum: 0.30 mm (0.012 in)
If the clearance exceeds the maximum, replace the
connecting rod.
76G01C-159
4. Apply a liberal amount of engine oil to the crank-
pin journal and connecting rod bearing.
5. Install the connecting rod cap with the alignment
marks aligned.
Tightening torque:
65—69 Nm (6.6—7.0 m-kg, 48—51 ft-lb)
86U01X-130
Oil jet
Install the oil jet into the cylinder block.
Tightening torque: 12—18 N-m
(1.2—1.8 m-kg, 104—156 in-lb)
76G01C-160
1C-67

1 C ASSEMBLY (INJECTION PUMP)
Injection Pump
1. Install the injection pump with the injection pump
brakcet.
Tightening torque:
37—52
N m
(3.8—5.3 m-kg, 27—38 ft-lb)
Note
If the injection pump bracket and the injection
pump are separated, injection timing adjust-
ment is necessary after installing the timing
belt.
2. Connect the CSD water hose and fuel hoses.
Injection Pipe
1. Check that no dirt or other foreign material is on
the pipe coupling.
2. Install the fuel injection pipes.
Tightening torque:
25—29 Nm (2.5—3.0 m-kg, 18—22 ft-lb)
76G01C-186
m.«JL
Qja .

^ }
No.3 Engine Mount and Idler
Install the No.3 engine mount and idler.
Tightening torque:
37—52
N
m (3.8—5.3 m-kg, 27—38 ft-lb)
76G01C-187
1C—80

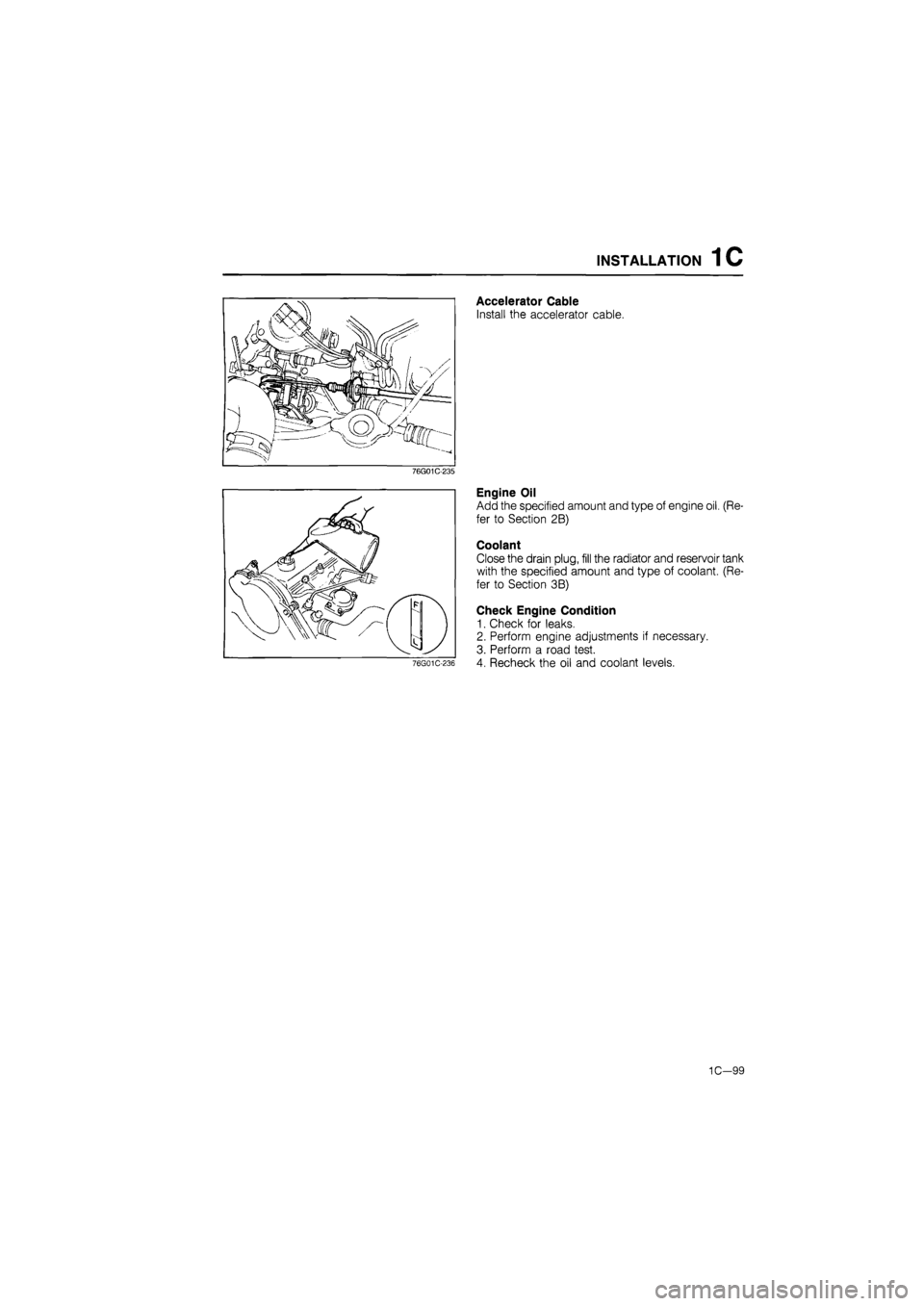

INSTALLATION 1C
Accelerator Cable
Install the accelerator cable.
76G01C-235
76G01C-236
Engine Oil
Add the specified amount and type of engine oil. (Re-
fer to Section 2B)
Coolant
Close the drain plug, fill the radiator and reservoir tank
with the specified amount and type of coolant. (Re-
fer to Section 3B)
Check Engine Condition
1. Check for leaks.
2. Perform engine adjustments if necessary.
3. Perform a road test.
4. Recheck the oil and coolant levels.
1C—99

INSPECTION, ENGINE OIL 2A
86U02X-004
INSPECTION
ENGINE OIL
1. Be sure the vehicle is on level ground.
2. Warm up the engine to normal operating temper-
ature and stop it.
3. Wait for five minutes.
4. Remove the oil level gauge and check the oil lev-
el and condition.
5. Add or replace oil if necessary.
Note
The distance between the L and F marks on
the level gauge represents 1.0 liter (1.06 US
qt, 0.88 Imp qt).
OIL PRESSURE
1. Remove the oil pressure switch.
69G02A-006
76G02A-005
86U02X-006
2. Screw the SST into the pressure switch installa-
tion hole.
3. Warm up the engine to normal operating tem-
perature.
4. Run the engine at 3,000 rpm, and note the gauge
reading.
Oil pressure:
343—441 kPa
(3.5—4.5 kg/cm2, 50—64 psi)...DOHC 2g4 392 kPa
(3.0—4.0 kg/cm2, 43—57 psi)...SOHC
5. If the pressure is not as specified, check for the
cause, and repair if necessary.
(Refer to Troubleshooting Guide.)
ENGINE OIL
REPLACEMENT
1. Warm up the engine to the normal operating tem-
perature and stop it.
2. Remove the oil filler cap and the oil pan drain plug.
3. Drain the oil into a suitable container.
Warning
Be careful when draining, the oil is very hot.
2A-5

2A OIL FILTER, OIL COOLER
j
F

k
4

4. Install the drain plug and a new gasket.
5. Refill the engine with the specified type and amount
of oil.
6. Refit the oil filler cap.
Oil pan capacity:
3.6 liters (3.8 US qt, 3.2 Imp qt)
7. Recheck the oil level after the engine has been run.
76G02A-006
TbJ
r
86U02X-008
76G02A-007
0
A
if \ lO
/O
f \ 11 • V jJ
VJ f .fa,-
n D
©
76G02A-008
OIL FILTER
REPLACEMENT
1. Remove the oil filter with a suitable wrench.
2. Use a clean rag to wipe off the mounting surface
on the engine.
3. Apply a small amount of engine oil to the rubber
seal of the new filter.
Warning
Be careful that the engine and filter are very
hot.
4. (DOHC)
Install the oil filter until the rubber seal contacts the
base and then tighten the filter
1
and
1
/6 turn with
a wrench.
(SOHC)
Install the oil filter and tighten it by hand only. Do
not use a wrench.
5. Start the engine and inspect around the filter seal
for leaks.
6. Check the oil level and add oil if necessary.
Oil filter capacity:
0.20 liters (0.21 US qt, 0.18 Imp qt)...DOHC
0.30 liters (0.32 US qt, 0.26 Imp qt)...SOHC

OIL
COOLER

(DOHC, 12-valve,
ECE
8-valve)

REMOVAL AND INSTALLATION
Remove in the sequence shown in the figure.
Install in the reverse order of removal.
1. Water hose
2. Oil filter
3. Nut
4. Oil cooler
Nut tightening torque:
29—39
N
m (3.0—4.0 m-kg, 22—29 ft-lb)
2A-6

INSPECTION 2B
A
76G02B-006
INSPECTION
ENGINE OIL
1. Be sure the vehicle is on level ground.
2. Warm up the engine to normal operating temper-
ature and stop it.
3. Wait for five minutes.
4. Remove the oil level gauge and check the oil lev-
el and condition.
5. Add or replace oil if necessary.
Note
The distance between the L and F marks on
the level gauge represents 1.2 liters (1.26 US
qt, 1.05 Imp qt).
OIL PRESSURE
1. Disconnect the oil hose (vacuum pump—cylinder
block).
76G02B-007
2. Set the SST as shown.
3. Remove the vacuum pump drive belt to prevent
heat damage to bearing.
4. Warm up the engine to normal operating tem-
perature.
76G02B-008
5. Run the engine first at 1,000 rpm, then at 3,000
rpm and note the gauge reading.
Standard oil pressure kPa (kg/cm2, psi)

1,000 rpm 147-245 (1.5-2.5, 21-36)
3,000
rpm
343—441 (3.5-4.5, 50—64)

6. If the pressure is not as specified, check for the
cause, and repair if necessary.
(Refer to Troubleshooting Guide.)
76G02B-009
2B—5

2B
ENGINE OIL, OIL
FILTER
86U02X-006
76G02B-010
86U02X-008
ENGINE OIL
REPLACEMENT
1. Warm up the engine to the normal operating tem-
perature and stop it.
2. Remove the oil filler cap and the oil pan drain plug.
3. Drain the oil into a suitable container.
Warning
Be careful when draining, the oil is very hot.
4. Install the drain plug and a new gasket.
Tightening torque:
29—41 N-m (3.0—4.2 m-kg, 22—30 ft-lb)
5. Refill the engine with the specified type and amount
of oil.
6. Refit the oil filler cap.
Oil pan capacity:
5.0 liters (5.3 US qt, 4.4 Imp qt)
7. Recheck the oil level after the engine has been run.

OIL
FILTER
REPLACEMENT
1. Remove the oil filter with a suitable wrench.
2. Use a clean rag to wipe off the mounting surface
on the engine.
3. Apply a coat of engine oil to the filter rubber seal.
4. Install the oil filter until the rubber seal contacts the
oil cooler by hand. Then tighten it a 7/6 turn fur-
ther with a band type wrench.
5. Start the engine and inspect around the filter seal
for leaks.
6. Check the oil level and add oil if necessary.
Oil filter capacity:
0.50 liters (0.52 US qt, 0.44 Imp qt)
76G02B-011
2B—6

OIL
COOLER AND
OIL
FILTER BODY 2B

OIL
COOLER AND
OIL
FILTER BODY
REMOVAL
1. Disconnect the battery negative cable.
2. Drain the engine oil and coolant.
3. Remove in the sequence shown in the figure.
76G02B-012
76G02B-013
1. Idler pulley
2. Water hose
3. Connector bolt
4. Oil cooler
5. Oil filter
6. Oil filter cover
7. Oil filter body
8. Plug
9. Pressure spring
10. Plunger control
11. Relief valve spring
12. Steel ball
INSPECTION
1. Inspect the oil cooler body for cracks or corrod-
ed. If necessary replace it.
2. Check the valves for damage or scoring if neces-
sary replace it.
3. Measure free length of each valve spring. If neces-
sary replace it.
Free length
Relief valve spring: 45.5 mm (1.79 in)
Pressure spring : 54.6 mm (2.15 in)
76G02B-014
2B-7

2B
OIL
COOLER AND
OIL
FILTER BODY
76G02B-015
76G02B-016
INSTALLATION
1. Apply a coat of engine oil to the valve holes.
2. Install the relief valve spring and pressure spring.
Tightening torque:
20—29 Nm (2.0—3.0 m-kg, 14—22 ft-lb)
3. Clean the contact surfaces of the cylinder block
and oil filter body.
4. Install new O-rings and apply a coat of engine oil.
5. Install the oil filter body.
Tightening torque:
Bolt A: 8—11 N-m
(80—110 cm-kg, 69—95 in-lb)
Bolt B: 37—52 N-m
(3.8—5.3 m-kg, 27—38 ft-lb)
76G02B-017
6. Apply a coat of engine oil to the O-rings.
7. Install the oil cooler with new O-ring on the con-
nector bolt.
Tightening torque:
25—34 N-m (2.5—3.5 m-kg, 18—25 ft-lb)
8. Connect the water hoses.
9. Install the oil filter cover.
Tightening torque:
8—11 N-m (80—110 cm-kg, 69—95 in-lb)
10. Install the oil filter. (Refer to page 2B—6)
11. Install the idler pulley.
Tightening torque:
19—26 N-m (1.9—2.6 m-kg, 14—19 ft-lb)
12. Install the Comprex supercharger drive belt and
adjust the belt deflection. (Refer to page 1C—7)
13. Add specified amount of coolant and engine oil.
14. Check for leaks.
76G02B-018
2B—8

COOLANT 3A
76G03A-016
69G03A-006
COOLANT
INSPECTION
Coolant Level (Engine cold)
1. Check that the coolant level is near the radiator inlet
port.
2. Check that the coolant level in the coolant reser-
voir is between the FULL and LOW marks.
Add coolant if necessary.
Warning
a) Never remove the radiator cap while the en-
gine is hot.
b)Wrap a thick cloth around the cap when
removing it.
Coolant Quality
1. Check that there is no build-up of rust or scales
around the radiator cap or radiator filler neck.
2. Check that coolant is free from oil.
3. Replace the coolant, if necessary.
Coolant Leakage
1. Connect a tester and SST to the radiator inlet port.
2. Apply 103 kPa (1.05 kg/cm2, 15 psi) pressure
to the system.
3. Check that the pressure is held.
If not, check for coolant leakage.
Warning
When removing either the radiator cap or the
tester, loosen it slowly until the pressure in
the radiator is released, and then remove it.
86U03X-005
REPLACEMENT
1. Remove the radiator cap and loosen the drain plug.
2. Drain the coolant into a suitable container.
Warning
a) Never open the radiator cap while the en-
gine is hot.
b)Wrap a thick cloth around the cap when
loosening.
c) Use caution when draining hot coolant.
86U03X-006
3A-5
