MERCEDES-BENZ C-CLASS COUPE 2015 Owners Manual

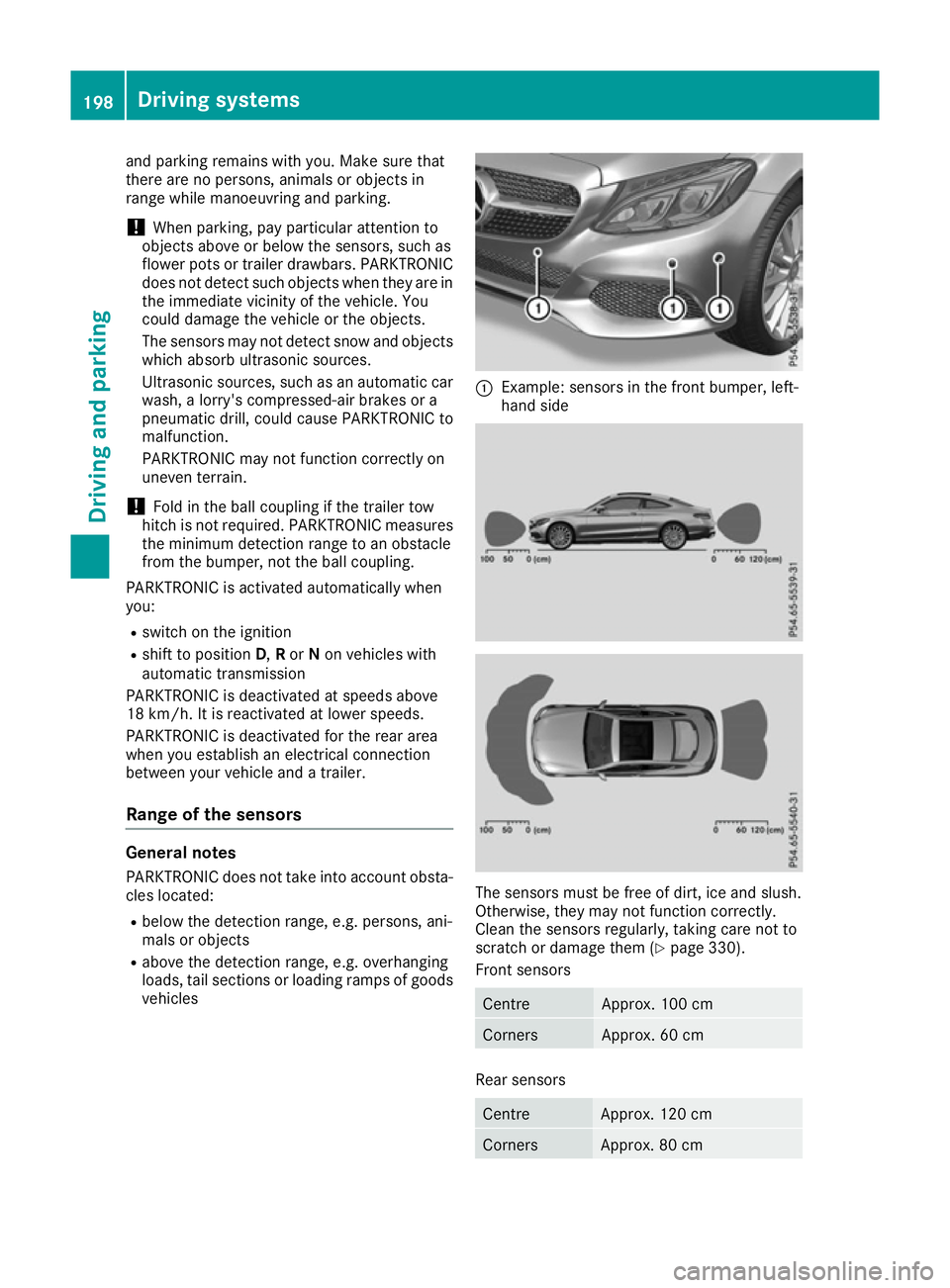

and parking remains with you. Mak
esure that
there are no persons, animals or object sin
range while manoeuvrin gand parking.
! When parking
,pay particular attention to
object sabov eorb elow th esensors, suc has
flowe rpotsort railer drawbars. PARKTRONIC
does no tdetect suc hobject swhen they are in
th ei mmediat evicinit yoft hevehicle .You
coul ddamage th evehicle or th eobjects.
The sensor smay no tdetect snow and objects
whic habsor bultrasonic sources.
Ultrasonic sources ,suc hasana utomatic car
wash, alorry's compressed-air brakes or a
pneumatic drill ,coul dc aus ePARKTRONIC to
malfunction.
PARKTRONIC may no tfunction correctly on
uneven terrain.
! Fol
dint heball coupling if th etrailer tow
hitch is no trequired. PARKTRONIC measures
th em inimum detection range to an obstacle
from th ebumper, no tthe ball coupling.
PARKTRONIC is activated automatically when
you: R switch on th eignition
R shif ttop osition D,Ror Non vehicle swith
automatic transmission
PARKTRONIC is deactivate datspeeds above
18 km/h. It is reactivate datlower speeds.
PARKTRONIC is deactivate dfor th erear area
when you establish an electrical connection
between your vehicle and atrailer.
Range of th esensors General notes
PARKTRONIC does no ttak eintoa ccoun tobsta-
cle slocated:
R below th edetection range, e.g .persons, ani-
mals or objects
R abov ethe detection range, e.g .overhanging
loads, tail sections or loadin gramps of goods
vehicles :
Example :sensor sinthefron tbumper, left-
han dside The sensor
smust be free of dirt ,ice and slush.
Otherwise, they may no tfunction correctly.
Clean th esensor sregularly, taking car enotto
scratch or damage them (Y page 330).
Fron tsensors Centre Approx
.100 cm Corners Approx
.60cm Rear sensors
Centre Approx
.120 cm Corners Approx
.80cm 198
Driving systemsDriving and parking

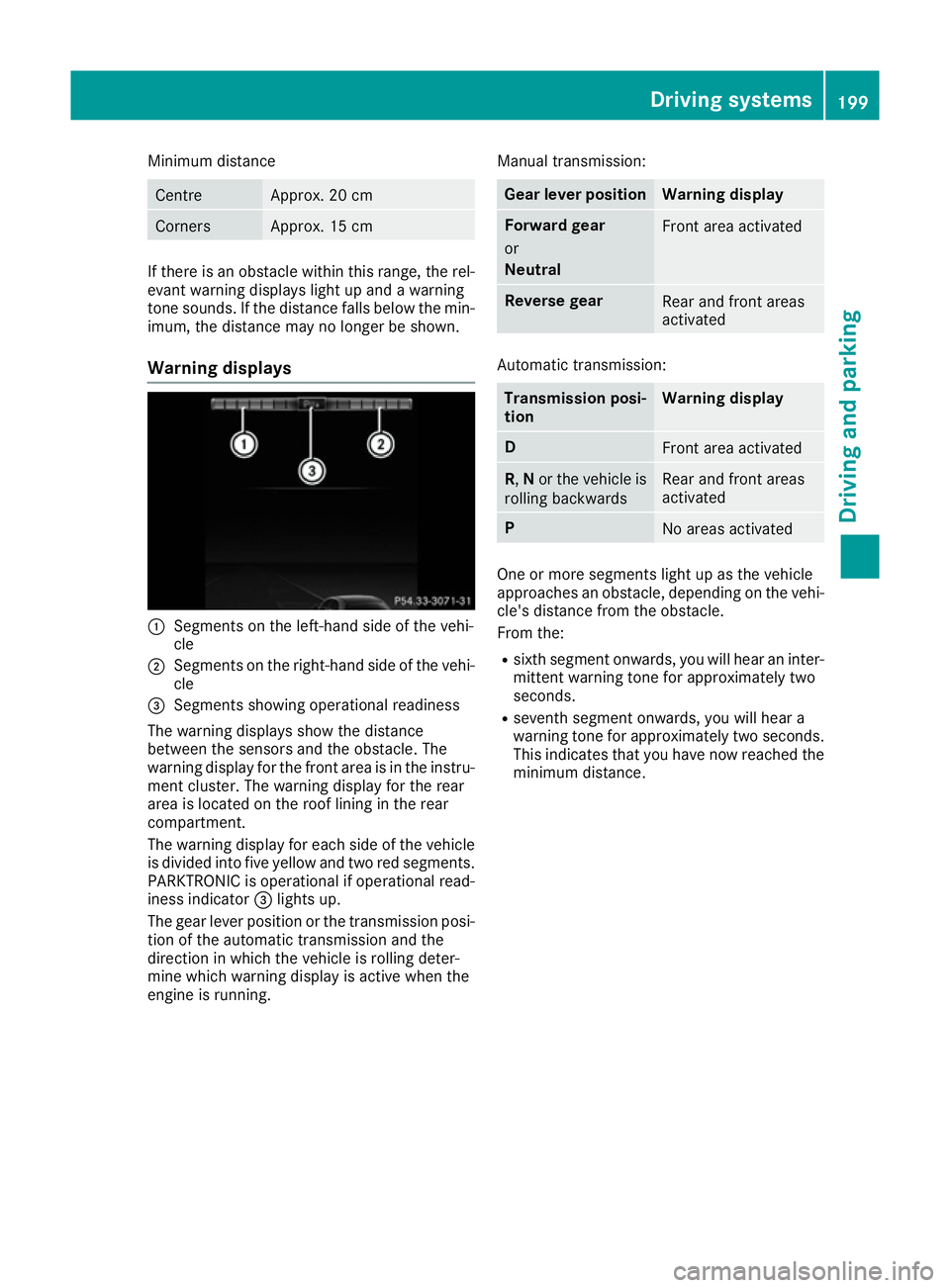

Minimum distance
Centre Approx. 20 cm
Corners Approx. 15 cm
If there is an obstacle within this range, the rel-
evant warning displaysl ight up andawarning
tone sounds. If the distance falls below the min- imum, the distance may no longer be shown.
Warning displays :
Segmentsont he left-hand side of the vehi-
cle
; Segmentsont he right-hand side of the vehi-
cle
= Segmentss howing operational readiness
The warning displayss how the distance
between the sensors and the obstacle. The
warning display for the front area is in the instru- ment cluster. The warning display for the rear
area is located on the roof lining in the rear
compartment.
The warning display for each side of the vehicle
is divided into five yellow and two red segments.
PARKTRONIC is operational if operational read-
iness indicator =lights up.
The gear lever position or the transmission posi- tion of the automatic transmission and the
direction in which the vehicle is rolling deter-
mine which warning display is active when the
engine is running. Manual transmission: Gear lever position Warning display
Forward gear
or
Neutral
Front area activated
Reverse gear
Rear and front areas
activated
Automatic transmission:
Transmission posi-
tion Warning display
D
Front area activated
R,
Nor the vehicle is
rolling backwards Rear and front areas
activated
P
No areas activated
One or more segments light up as the vehicle
approaches an obstacle, depending on the vehi-
cle's distance from the obstacle.
From the:
R sixth segment onwards, you will hear an inter-
mittentw arning tone for approximately two
seconds.
R seventh segment onwards, you will hear a
warning tone for approximately two seconds.
This indicates that you have now reached the minimum distance. Driving systems
199Driving and parking Z

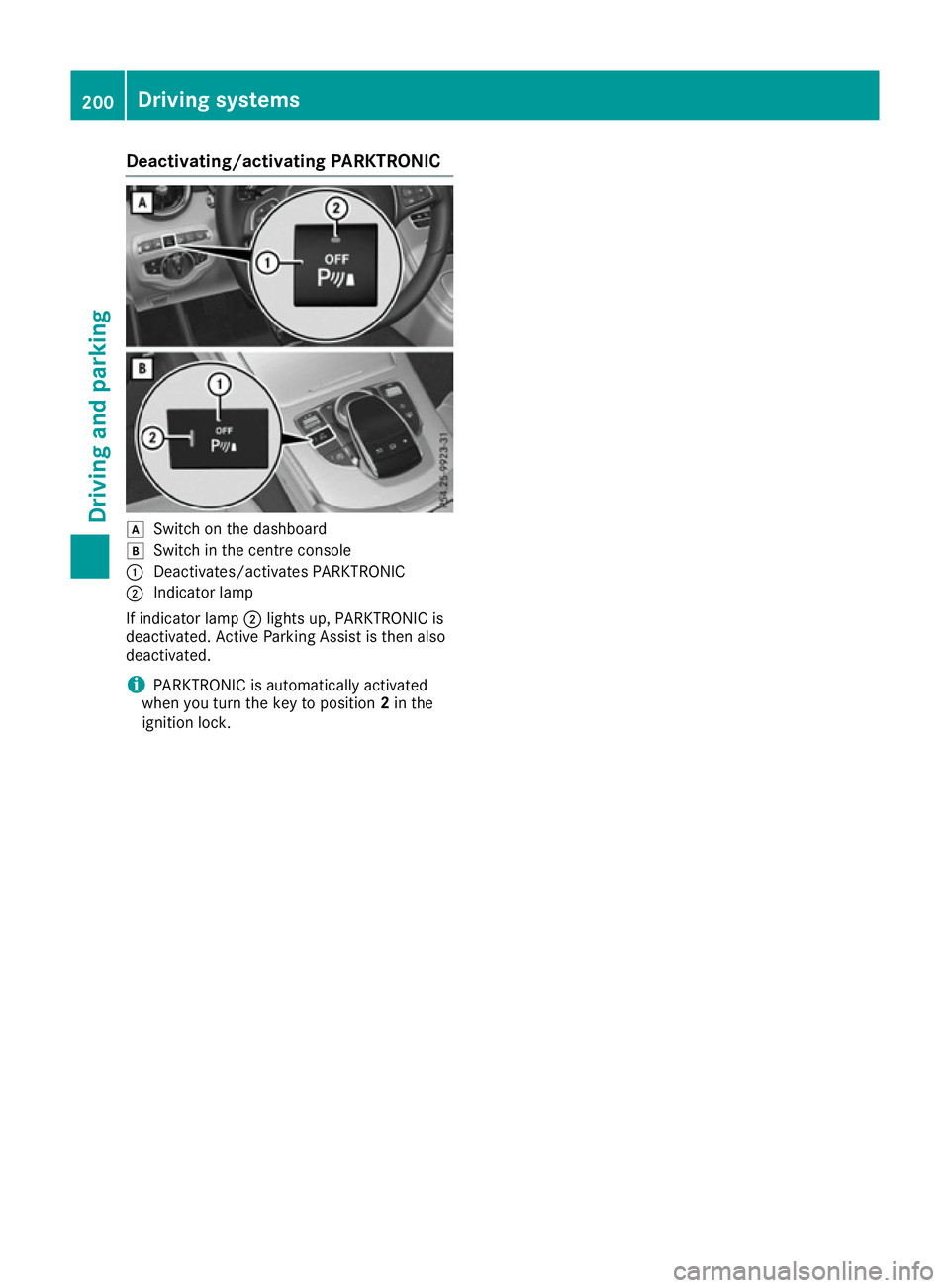

Deactivating/activating PARKTRONIC
d
Switc hont hedashboard
e Switc hinthecentre console
: Deactivates/activates PARKTRONIC
; Indicator lamp
If indicator lamp ;lights up, PARKTRONIC is
deactivated. Active Parking Assis tisthena lso
deactivated.
i PARKTRONIC is automatically activated
when you turn th ekeyto position 2in the
ignition lock. 200
Driving syste
msDriving andparking

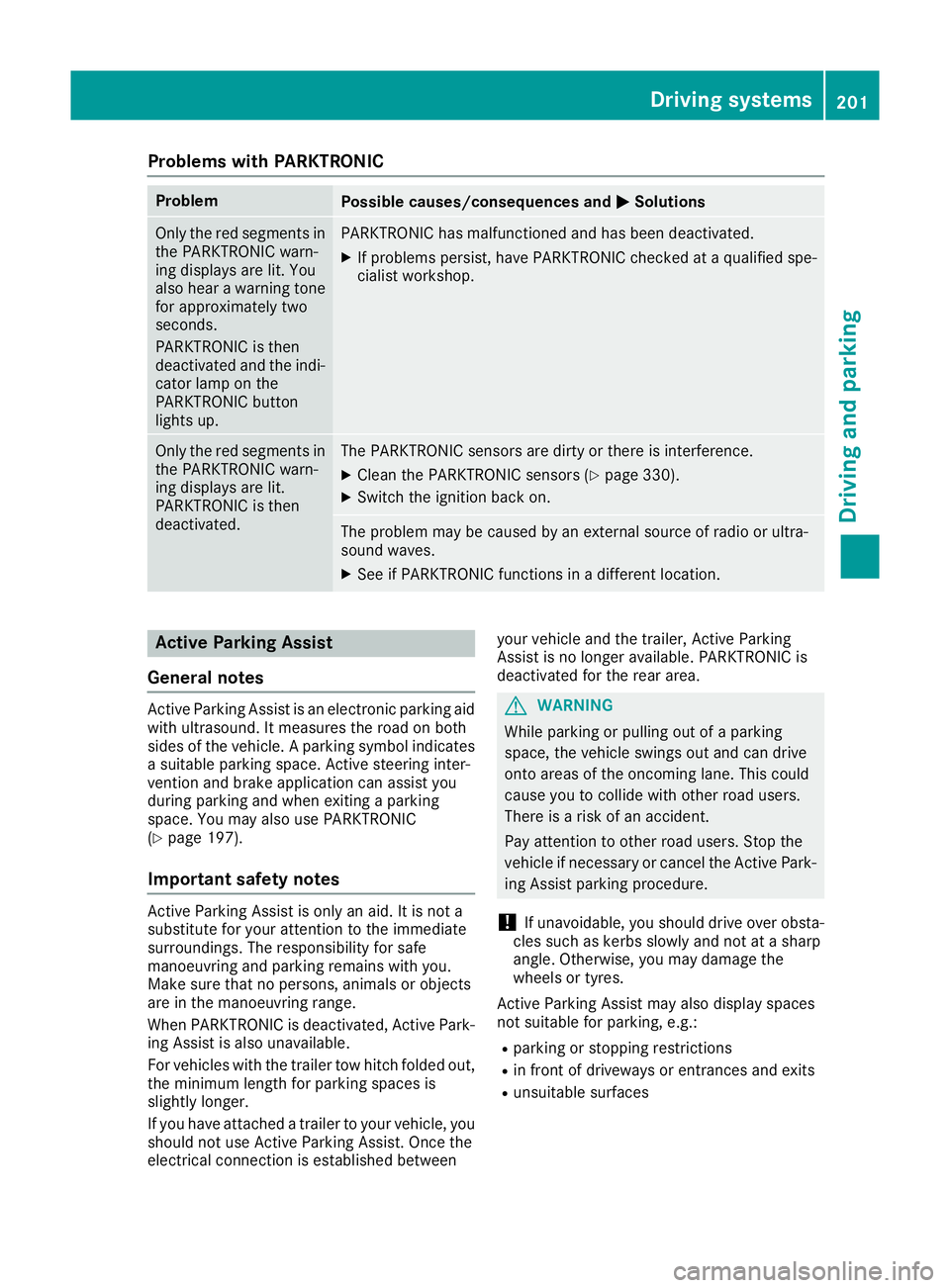

Problems with PARKTRONIC
Problem
Possible causes/consequences and
M
MSolutions Only the red segments in
the PARKTRONIC warn-
ing displaysa re lit. You
also hear awarning tone
for approximately two
seconds.
PARKTRONIC is then
deactivated and the indi-
cator lamp on the
PARKTRONIC button
lights up. PARKTRONIC has malfunctioned and has been deactivated.
X If problems persist, have PARKTRONIC checked at aqualified spe-
cialist workshop. Only the red segments in
the PARKTRONIC warn-
ing displaysa re lit.
PARKTRONIC is then
deactivated. The PARKTRONIC sensors are dirty or there is interference.
X
Clean the PARKTRONIC sensors (Y page 330).
X Switch the ignition back on. The problem may be caused by an external source of radio or ultra-
sound waves.
X See if PARKTRONIC functions in adifferent location. Active Parking Assist
General notes Active Parking Assist is an electronic parking aid
with ultrasound. It measures the road on both
sides of the vehicle. Aparking symbol indicates
as uitable parking space. Active steering inter-
vention and brake application can assist you
during parking and when exiting aparking
space. You may also use PARKTRONIC
(Y page 197).
Important safety notes Active Parking Assist is only an aid. It is not a
substitute for your attention to the immediate
surroundings. The responsibility for safe
manoeuvring and parking remains with you.
Make sure that no persons, animals or objects
are in the manoeuvring range.
When PARKTRONIC is deactivated, Active Park-
ing Assist is also unavailable.
For vehicles with the trailer tow hitch folded out,
the minimum length for parking spaces is
slightly longer.
If you have attached atrailer to your vehicle, you
should not use Active Parking Assist. Once the
electrical connection is established between your vehicle and the trailer, Active Parking
Assist is no longer available. PARKTRONIC is
deactivated for the rear area. G
WARNING
While parking or pulling out of aparking
space, the vehicle swings out and can drive
onto areas of the oncomingl ane. This could
cause you to collide with other road users.
There is arisk of an accident.
Pay attention to other road users. Stop the
vehicle if necessary or cancel the Active Park- ing Assist parking procedure.
! If unavoidable, you should drive over obsta-
cles such as kerbs slowly and not at asharp
angle. Otherwise, you may damage the
wheels or tyres.
Active Parking Assist may also display spaces
not suitable for parking, e.g.: R parking or stopping restrictions
R in front of driveways or entrances and exits
R unsuitable surfaces Driving systems
201Driving and parking Z

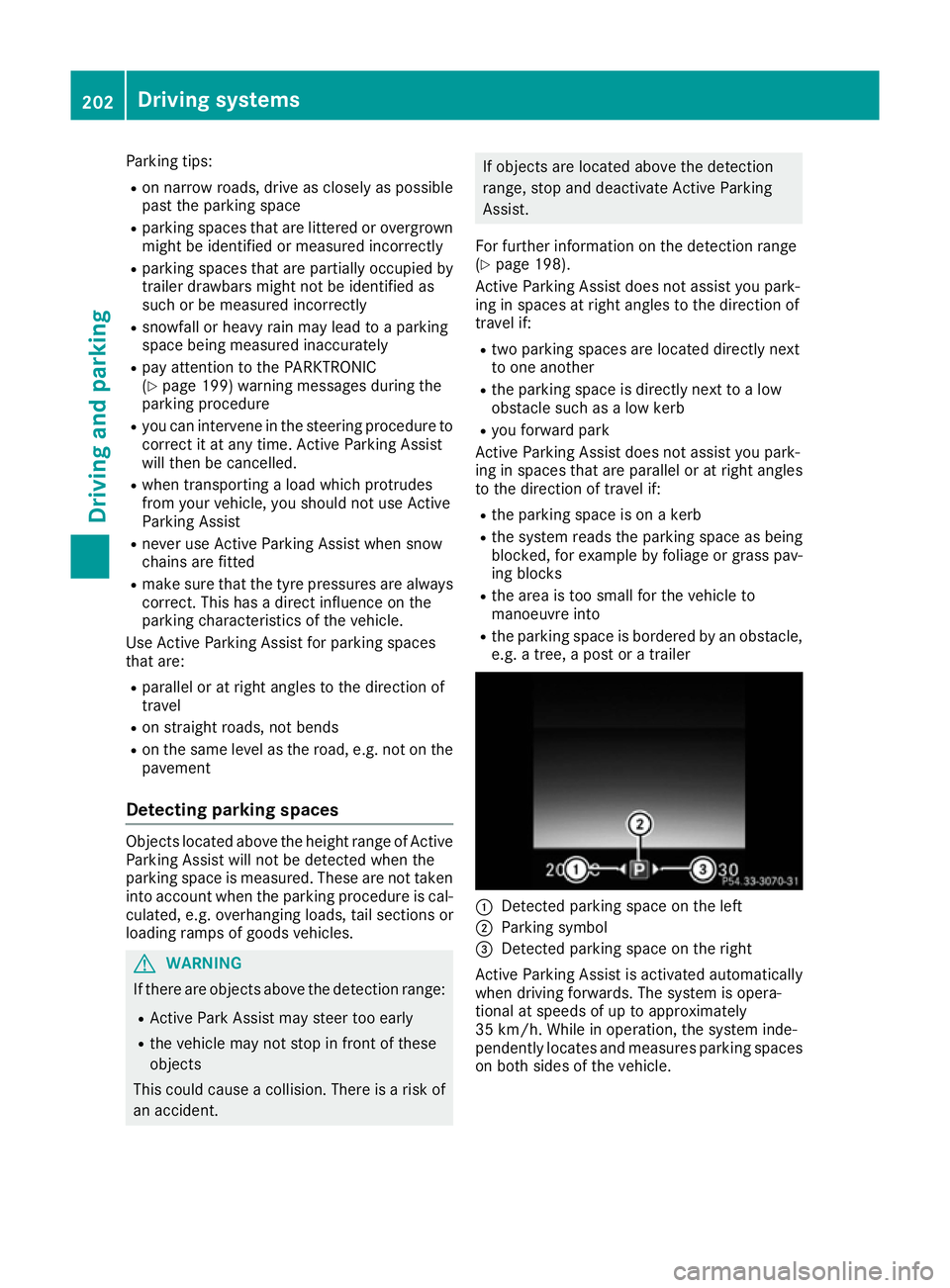

Parking tips:
R on narrow roads, drive as closely as possible
past the parking space
R parking spaces that are littered or overgrown
might be identified or measured incorrectly
R parking spaces that are partially occupied by
trailer drawbars might not be identified as
such or be measured incorrectly
R snowfall or heavy rain may lead to aparking
space being measured inaccurately
R pay attention to the PARKTRONIC
(Y page 199) warning messages during the
parking procedure
R you can intervene in the steerin gprocedure to
correc titata ny time. Active Parking Assist
will then be cancelled.
R when transportin gaload which protrudes
from your vehicle, you should not use Active
Parking Assist
R never use Active Parking Assist when snow
chains are fitted
R make sure that the tyre pressures are always
correct. This has adirect influenc eonthe
parking characteristics of the vehicle.
Use Active Parking Assist for parking spaces
that are:
R parallel or at right angles to the direction of
travel
R on straight roads, not bends
R on the same level as the road, e.g. not on the
pavement
Detecting parking spaces Object
slocated above the height range of Active
Parking Assist will not be detected when the
parking space is measured. These are not taken
into account when the parking procedure is cal- culated, e.g. overhangin gloads, tail sections or
loading ramps of goods vehicles. G
WARNING
If there are object sabove the detection range:
R Active Park Assist may steer too early
R the vehicle may not stop in frontoft hese
objects
This could cause acollision. There is arisk of
an accident. If object
sare located above the detection
range, stop and deactivate Active Parking
Assist.
For further information on the detection range
(Y page 198).
Active Parking Assist does not assist you park-
ing in spaces at right angles to the direction of
travel if:
R two parking spaces are located directly next
to one another
R the parking space is directly next to alow
obstacle such as alow kerb
R you forward park
Active Parking Assist does not assist you park-
ing in spaces that are parallel or at right angles
to the direction of travel if:
R the parking space is on akerb
R the system reads the parking space as being
blocked, for example by foliage or grass pav-
ing blocks
R the area is too small for the vehicle to
manoeuvre into
R the parking space is bordered by an obstacle,
e.g. atree, apost or atrailer :
Detected parking space on the left
; Parking symbol
= Detected parking space on the right
Active Parking Assist is activated automatically
when driving forwards. The system is opera-
tional at speeds of up to approximately
35 km/h. While in operation, the system inde-
pendently locates and measures parking spaces on both sides of the vehicle. 202
Driving systemsDriving and parking

Active Parking Assist will onl
ydetect parking
spaces:
R parallel or at right angle stothe direction of
travel
R tha tare parallel to the direction of travel and
ar eatl east1.5mw ide
R tha tare parallel to the direction of travel and
at leas t1.0ml onger tha nyourv ehicle
R tha tare at right angle stothe direction of
travel and at leas t1.0mw ider than your vehi-
cle
i Not
ethat Activ eParking Assist cannot
measure the size of aparking space if it is at
right angles to the direction of travel. You will need to judge whether your vehicle will fit in
the parking space.
When drivin gatspeeds below 30 km/h, you will
see parking symbol ;asas tatus indicator in
the instrumen tcluster. When aparking space
has been detected, an arrow towards the right or the left also appears. Activ eParking Assist only
displays parking spaces on the front-passenger
side as standard. Parking spaces on the driver's side are displayed as soon as the turn signal onthe driver's side is activated. When parking on
the driver's side, this must remain activated
until you confirm the use of Activ eParking Assist
by pressing the abutton on the multifunc-
tion steerin gwheel. The system automatically
determines whether the parking space is paral-
lel or at right angles to the direction of travel.
Ap arking space is displayed while you are driv-
ing past it, and until you are approximately 15 m
away fro mit.
Parking G
WARNING
If you leave the vehicle when it is only being
braked by Activ eParking Assist it could roll
away if:
R there is amalfunction in the system or in
the voltage supply.
R the electrical system in the engin ecom-
partment, the battery or the fuses are tam-
pered with.
R the battery is disconnected.
R the vehicle is accelerated, e.g. by avehicle
occupant. There is
arisk of an accident.
Before leavin gthe vehicle, always secur eit
against rollin gaway.
i Vehicles with automatic transmission:if
PARKTRONIC detect sobstacles, Activ ePark-
ing Assist brakes automatically durin gthe
parking process. You are responsible for brak- ing in good time.
X Stop the vehicle when the parking symbol
shows the desired parking space in the instru-
men tcluster.
X Vehicles with manua ltra nsmission: shift
to reverse gear.
Vehicles with automatic transmission:
shift int oposition R.
The Start Start Park ParkAssist?
Assist? Yes:
Yes:OK
OKNo:
No:%
message appears in the multifunction display.
X To cancel th eprocedure: press the %
button on the multifunction steerin gwheel or
pull away.
or
X To park using Active Parking Assist: press
the a button on the multifunction steering
wheel.
The Park Assist active Accelerate Park Assist active Accelerate
and brake
and brake Observe surroundings
Observe surroundings mes-
sage appears in the multifunction display.
X Release the multifunction steerin gwheel.
X Revers ethe vehicle, being ready to brak eat
all times. When reversing, drive at aspeed
below 10 km/h .Otherwise, Activ eParking
Assist will be cancelled.
Vehicles with automatic transmission:
Activ eParking Assist brakes the vehicle to a
standstill when the vehicle approaches the
rear border of the parking space.
Manoeuvrin gmay be require dintightparking
spaces.
X Vehicles with manua ltra nsmission: stop
as soon as PARKTRONIC sound sthe contin-
uous warnin gtone, if not before.
Manoeuvrin gmay be require dintightparking
spaces.
Vehicles with automatic transmission: the
Park Assist active Select D Park Assist active Select D Observe
Observe
surroundings
surroundings message appears in the multi-
function display.
Vehicles with manua ltra nsmission: the
Park Park Assist
Assist active
activeEngage
Engageforward
forward gear
gear Driving systems
203Driving and parking Z

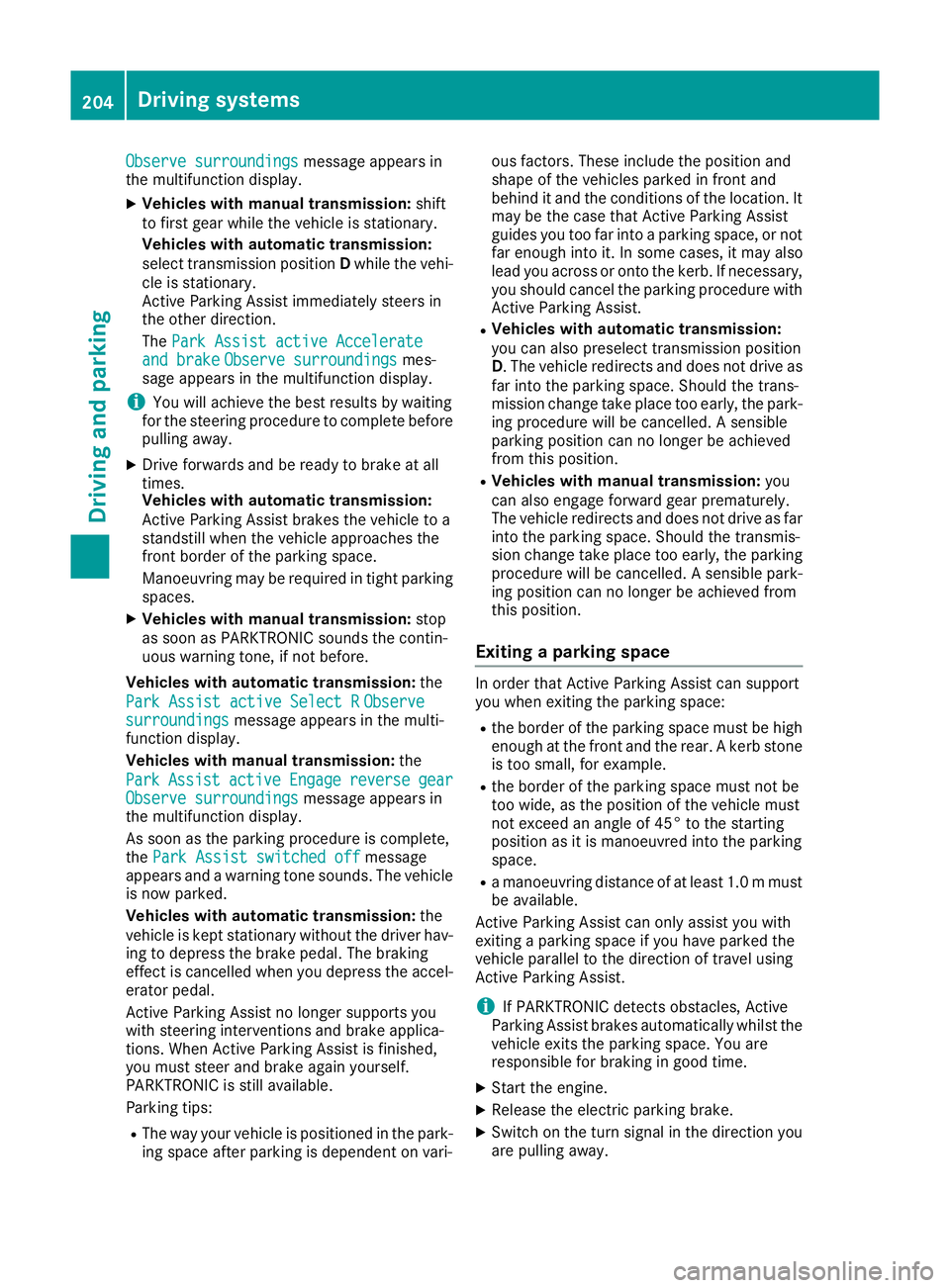

Observe surroundings
Observe surroundings
message appears in
the multifunction display.
X Vehicles with manual transmission: shift
to first gear while the vehicle is stationary.
Vehicles with automatic transmission:
select transmission position Dwhile the vehi-
cle is stationary.
Active Parking Assist immediately steers in
the other direction.
The Park Assist active Accelerate Park Assist active Accelerate
and brake
and brake Observe surroundings
Observe surroundings mes-
sage appears in the multifunction display.
i You will achieve the best results by waiting
for the steering procedure to complete before
pulling away.
X Drive forwards and be ready to brake at all
times.
Vehicles with automatic transmission:
Active Parking Assist brakes the vehicle to a
standstill when the vehicle approaches the
front border of the parking space.
Manoeuvring may be required in tight parking
spaces.
X Vehicles with manual transmission: stop
as soon as PARKTRONIC sounds the contin-
uous warning tone, if not before.
Vehicles with automatic transmission: the
Park Assist active Select R
Park Assist active Select R Observe Observe
surroundings
surroundings message appears in the multi-
function display.
Vehicles with manual transmission: the
Park Park Assist
Assist active
activeEngage
Engagereverse
reverse gear
gear
Observe surroundings
Observe surroundings message appears in
the multifunction display.
As soon as the parking procedure is complete,
the Park Assist switched off
Park Assist switched off message
appears and awarning tone sounds. The vehicle
is now parked.
Vehicles with automatic transmission: the
vehicle is kept stationary without the driver hav- ing to depress the brake pedal.T he braking
effect is cancelled when you depress the accel-
erator pedal.
Active Parking Assist no longer supports you
with steering interventions and brake applica-
tions. When Active Parking Assist is finished,
you must steer and brake againy ourself.
PARKTRONIC is still available.
Parking tips:
R The way your vehicle is positioned in the park-
ing space after parking is dependent on vari- ous factors. These include the position and
shape of the vehicles parked in front and
behind it and the conditions of the location. It
may be the case that Active Parking Assist
guidesy ou too far into aparking space, or not
far enough into it. In some cases, it may also
lead you across or onto the kerb. If necessary, you should cancel the parking procedure withActive Parking Assist.
R Vehicles with automatic transmission:
you can also preselect transmission position
D.T he vehicle redirects and does not drive as
far into the parking space. Should the trans-
mission change take place too early,t he park-
ing procedure will be cancelled. Asensible
parking position can no longer be achieved
from this position.
R Vehicles with manual transmission: you
can also engage forward gear prematurely.
The vehicle redirects and does not drive as far
into the parking space. Should the transmis-
sion change take place too early,t he parking
procedure will be cancelled. Asensible park-
ing position can no longer be achieved from
this position.
Exiting aparking space In order that Active Parking Assist can support
you when exiting the parking space:
R the border of the parking space must be high
enough at the front and the rear. Akerb stone
is too small, for example.
R the border of the parking space must not be
too wide, as the position of the vehicle must
not exceed an angle of 45° to the starting
position as it is manoeuvred into the parking
space.
R am anoeuvring distance of at least 1.0 mmust
be available.
Activ eParking Assist can only assis tyou with
exiting aparking spac eifyou have parked the
vehicle parallel to th edirection of travel using
Activ eParking Assist.
i If PARKTRONIC detect
sobstacles, Active
Parking Assist brakes automaticall ywhils tthe
vehicle exits th eparking space. You are
responsible for braking in good time.
X Start th eengine.
X Releas ethe electric parking brake.
X Switch on th eturns ignal in th edirection you
are pullin gaway. 204
Driving systemsDriving and pa
rking

X

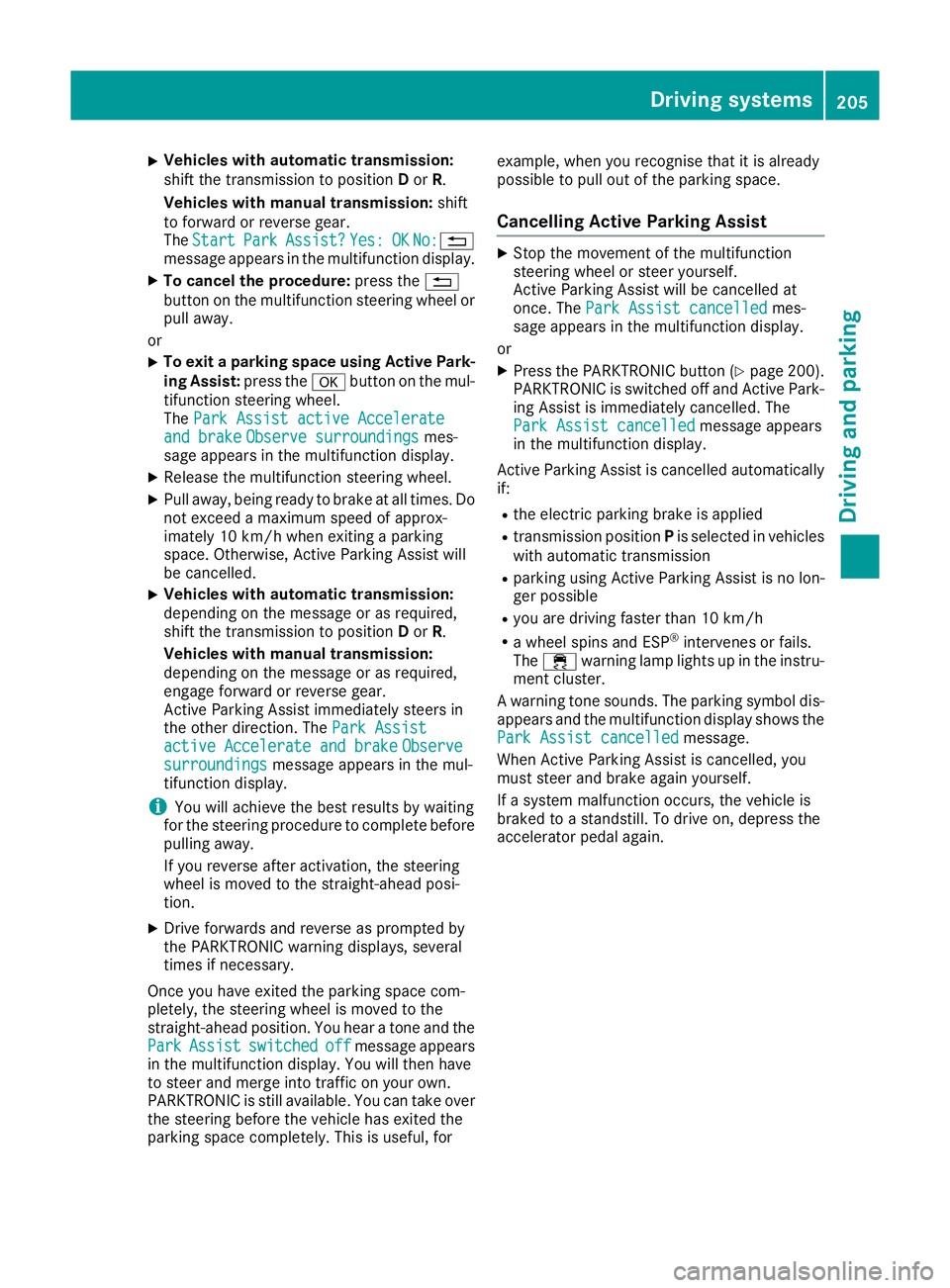

Vehicles with automatic transmission:
shift the transmissio
ntoposition Dor R.
Vehicles with manual transmission: shift
to forward or reverse gear.
The Start Start Park
ParkAssist?
Assist? Yes:
Yes:OK
OKNo:
No: %
message appears in the multifunction display.
X To cance lthe procedure: press the%
button on the multifunction steering wheel or pull away.
or
X To exit
aparkin gspac eusing Active Park-
in gA ssis t:press the abutton on the mul-
tifunction steering wheel.
The ParkAssist active Accelerate
Par kAssist active Accelerate
and brake
and brake Observesurroundings
Observ esurroundings mes-
sage appears in the multifunction display.
X Releas ethe multifunction steering wheel.
X Pull away ,being ready to brake at al ltimes. Do
not excee damaximum speed of approx-
imately 10 km/h when exiting aparking
space. Otherwise, Active Parking Assist will
be cancelled.
X Vehicles with automatic transmission:
depending on the message or as required,
shift the transmissio ntoposition Dor R.
Vehicles with manual transmission:
depending on the message or as required,
engage forward or reverse gear.
Active Parking Assist immediately steers in
the othe rdirection. The ParkAssist
Par kAssist
active Accelerat eand brake
active Accelerat eand brake Observe Observe
surroundings
surroundings message appears in the mul-
tifunction display.
i Yo
uw illa chieve the bes tresults by waiting
for the steering procedure to complete before
pulling away.
If yo ureverse afte ractivation, the steering
wheel is move dtothe straight-ahea dposi-
tion.
X Drive forward sand reverse as prompte dby
the PARKTRONIC warning displays, several
time sifn ecessary.
Once yo uhavee xited the parking space com-
pletely, the steering wheel is move dtothe
straight-ahea dposition. Yo uhearat one and the
Park Park Assist
Assist switched
switched off
offmessage appears
in the multifunction display .You will then have
to stee rand merg einto traffic on your own.
PARKTRONIC is stil lavailable .You can take over
the steering before the vehicl ehasexited the
parking space completely .Thisisu seful, for example, when yo
urecognis ethat it is already
possible to pull ou tofthe parking space.
Cancellin gActive Parking Assist X
Stop the movement of the multifunction
steering wheel or stee ryourself.
Active Parking Assist will be cancelled at
once. The ParkAssist cancelled
Par kAssist cancelled mes-
sage appears in the multifunction display.
or X Press the PARKTRONIC button (Y page 200).
PARKTRONIC is switche doff and Active Park-
ing Assist is immediately cancelled. The
Par kAssist cancelled
Par kAssist cancelled message appears
in the multifunction display.
Active Parking Assist is cancelled automatically if:
R the electri cparking brake is applied
R transmissio nposition Pis selected in vehicles
with automatic transmission
R parking using Active Parking Assist is no lon-
ger possible
R youa re driving faster tha n10km/h
R aw heel spins and ESP ®
intervene sorfails.
The ÷ warning lamp lights up in the instru-
ment cluster.
Aw arning tone sounds. The parking symbo ldis-
appears and the multifunction display shows the
Par kAssist cancelled
Par kAssist cancelled message.
Whe nActive Parking Assist is cancelled, you
mus tstee rand brake agai nyourself.
If as ystem malfunction occurs, the vehicl eis
braked to astandstill. To drive on, depres sthe
accelerato rpedal again. Driving systems
205Driving and parking Z

Reversin
gcamera
General notes Reversing camera
:is an optical parking and
manoeuvring aid. It shows the are abehind your
vehicl ewithg uide lines in the multimedi asys-
tem.
The are abehind the vehicl eisdisplayed as a
mirror image, as in the rear-vie wmirror.
i The text shown in the multimedi
asystem
depends on the languag esetting. The follow-
ing are examples of reversing camera mes-
sages in the multimedi asystem.
Important safety notes The reversing camera is only an aid. It is not a
substitute for your attention to the immediate
surroundings. The responsibility for safe
manoeuvring and parking remains with you.
Make sure that there are no persons ,animal sor
objects in rang ewhile manoeuvring and parking.
Unde rthe following circumstances, the revers-
ing camera will not function, or will function in a limite dmanner:
R if the boo tlid is open
R in heavy rain, snow or fog
R at nigh torinv ery dark places
R if the camera is exposed to very bright light
R if the are aislitby fluorescent bulb sorLED
lighting (the display may flicker)
R if there is asudde nchange in temperature,
e.g. when driving into aheated garag einwin-
ter R
if the camera lens is dirty or obstructed.
Observe the notes on cleaning
(Y page 330)
R if the rea rofyourv ehicl eisd amaged. In this
case, have the camera position and setting
checke dataq ualified specialist workshop.
The field of visio nand othe rfunctions of the
reversing camera may be restricte ddueto addi-
tiona laccessorie sonthe rea rofthe vehicl e(e.g.
licence plate holder ,bicycl erack).
i The reversing camera is protected from rain-
drops and dust by means of aflap. Whe nthe
reversing camera is activated, this fla popens.
The fla pcloses agai nwhen:
R youh avef inishe dthe manoeuvring process
R yous witch off the engine
R youo pent he boot
See the notes on cleaning (Y page 330).
For technical reasons ,the fla pmay remain
ope nbriefl yafterthe reversing camera has
bee ndeactivated.
Activating/deactivatin gthe reversing
camera X
To activate: make sure that the key is in
position 2in the ignition lock.
X Make sure that the Activation byRgear
Activation by Rgear
function is selected in the multimedi asystem
(se ethe separate operating instructions).
X Engag ereverse gear.
The reversing camera fla popens. The multi-
media system shows the are abehind the vehi-
cle with guid elines.
The image from the reversing camera is avail- able throughout the manoeuvring process.
X To switc
hthe functio nmode for vehicles
with trailer tow hitch: using the controller,
select symbol :for the "Reverse parking" 206
Driving systemsDriving and parking

function or symbol
;for "Coupling up a
trailer".
The symbol of the selected function is high-
lighted.
To deactivate: the reversing camera deacti-
vates if you shift the transmission to Por after
driving forwards ashort distance.
Multimedi adisplay The reversing camera may show
adistorted view
of obstacles or show them incorrectly or not at
all .O bstacles are not show nbythe reversing
camera in the following locations:
R very close to the rear bumper
R under the rear bumper
R in the area immediately above the handl eon
the boot lid
! Objects not at ground leve
lmay appear to
be further away than they actually are, e.g.:
R the bumper of aparked vehicle
R the drawbar of atrailer
R the bal lcoupling of atrailer tow hitch
R the rear section of an HGV
R as lanted post
Use the guidelines only for orientation.
Approach objects no further than the bottom- most guideline. :
Yellow guide line at adistance of approx-
imately 4.0 mfrom the rear of the vehicle
; White guide line without turning the steering
wheel, vehicl ewidth including the exterior
mirrors (static)
= Yellow guide line for the vehicl ewidth
including the exterior mirrors, for current
steering whee langle (dynamic)
? Yellow lane marking the course the tyres will
take at the current steering whee langle
(dynamic) A
Yellow guide line at adistance of approx-
imately 1.0 mfrom the rear of the vehicle
B Vehicle centre axis (locating aid)
C Bumper
D Red guide line at adistance of approximately
0.30 mfrom the rear of the vehicle
The guide lines are show nwhen the transmis-
sion is in position R.
The distance specifications only apply to
objects that are at ground level. :
Front warning display
; Additional PARKTRONIC measurement
operational readiness indicator
= Rea rwarning display
Vehicles with PARKTRONIC: when
PARKTRONIC is operational (Y page199) ,addi-
tional measurement operational readiness indi-
cator ;appears in the multimedi asystem dis-
play. If the PARKTRONIC warning display sare
active or light up, warning displays :and =
are als oactive or light up correspondingl yinthe
multimedi asyste mdisplay. Driving systems
207Driving and parking Z
