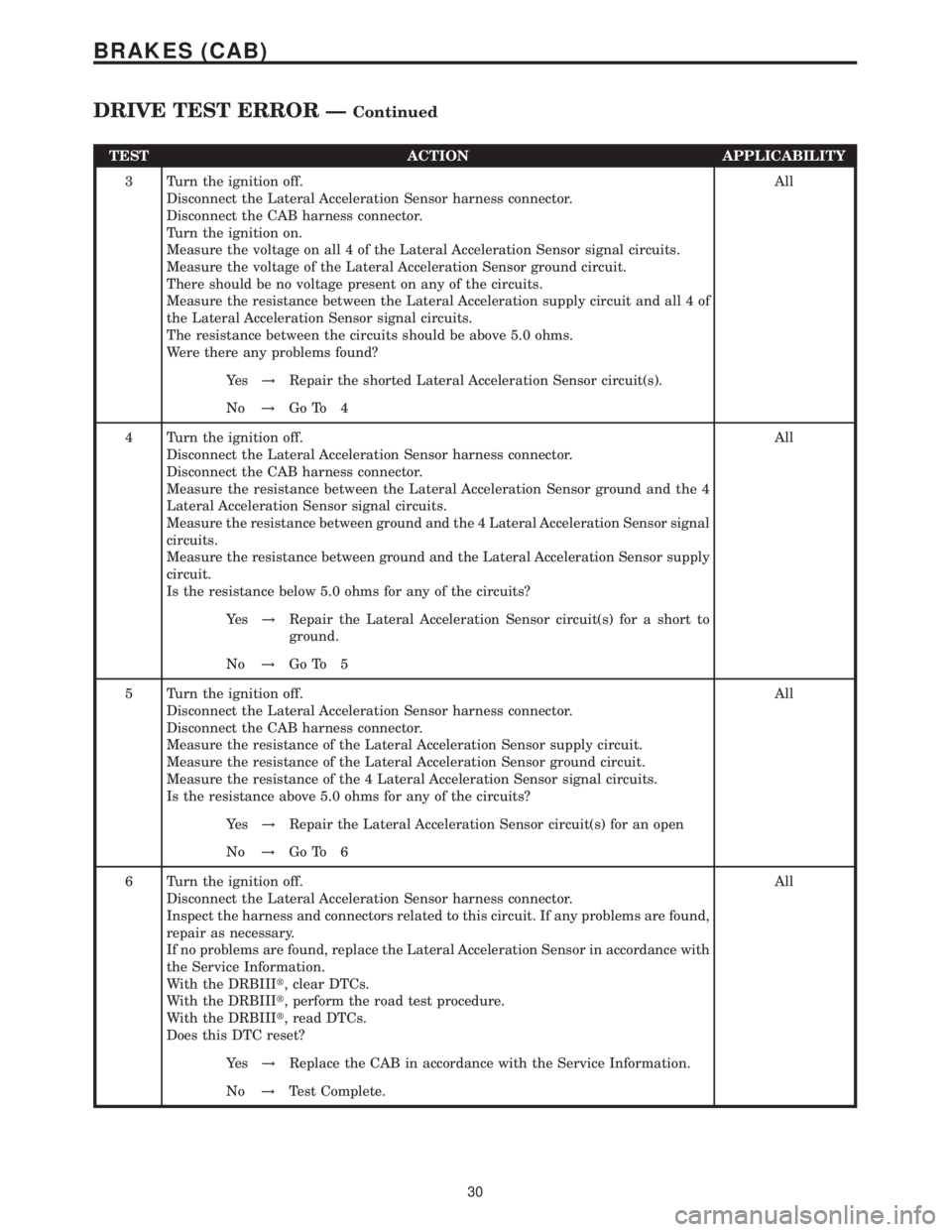

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage on all 4 of the Lateral Acceleration Sensor signal circuits.
Measure the voltage of the Lateral Acceleration Sensor ground circuit.
There should be no voltage present on any of the circuits.
Measure the resistance between the Lateral Acceleration supply circuit and all 4 of
the Lateral Acceleration Sensor signal circuits.
The resistance between the circuits should be above 5.0 ohms.
Were there any problems found?All
Ye s!Repair the shorted Lateral Acceleration Sensor circuit(s).
No!Go To 4
4 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance between the Lateral Acceleration Sensor ground and the 4
Lateral Acceleration Sensor signal circuits.
Measure the resistance between ground and the 4 Lateral Acceleration Sensor signal
circuits.
Measure the resistance between ground and the Lateral Acceleration Sensor supply
circuit.
Is the resistance below 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for a short to
ground.
No!Go To 5
5 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance of the Lateral Acceleration Sensor supply circuit.
Measure the resistance of the Lateral Acceleration Sensor ground circuit.
Measure the resistance of the 4 Lateral Acceleration Sensor signal circuits.
Is the resistance above 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for an open
No!Go To 6
6 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Inspect the harness and connectors related to this circuit. If any problems are found,
repair as necessary.
If no problems are found, replace the Lateral Acceleration Sensor in accordance with
the Service Information.
With the DRBIIIt, clear DTCs.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Replace the CAB in accordance with the Service Information.
No!Test Complete.
30
BRAKES (CAB)
DRIVE TEST ERROR ÐContinued

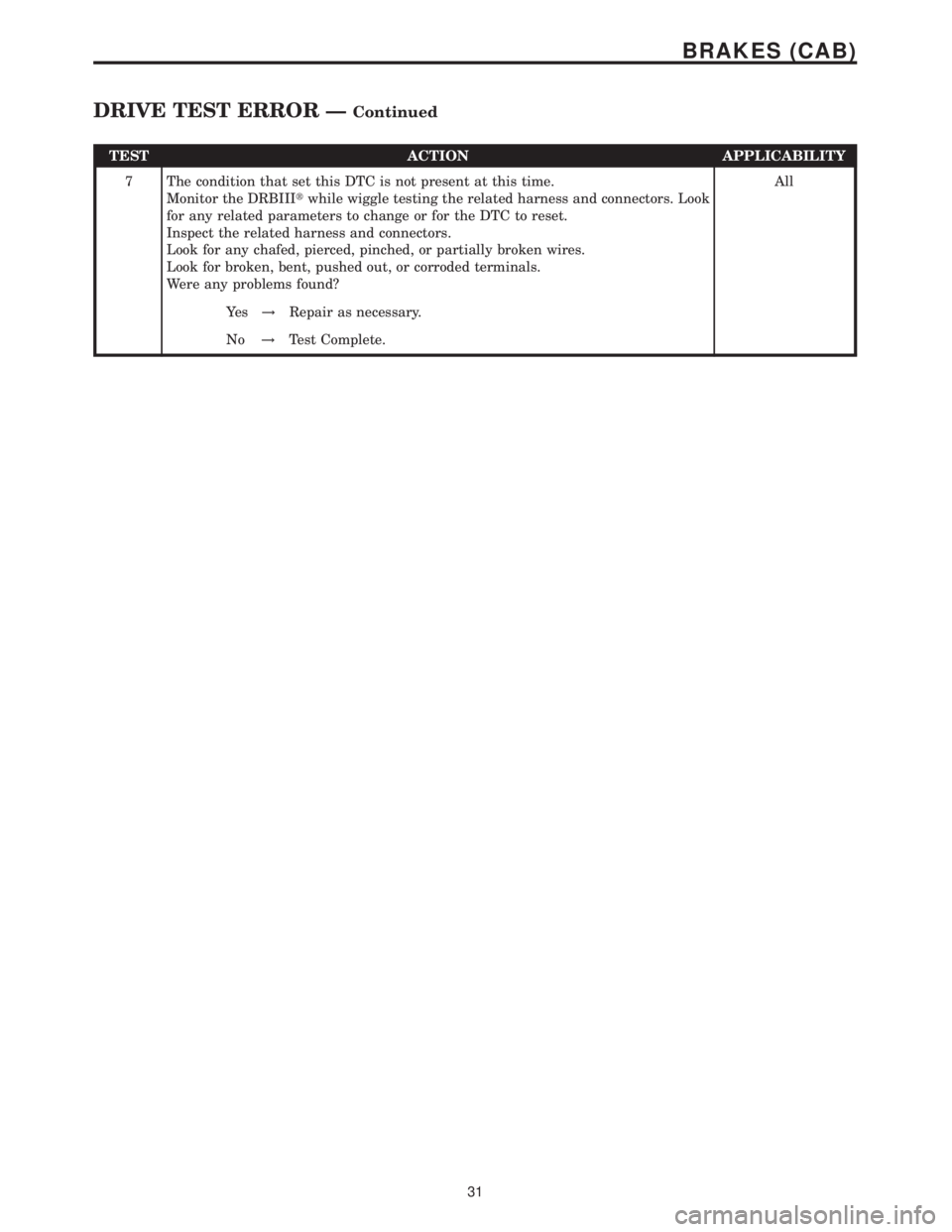

TEST ACTION APPLICABILITY

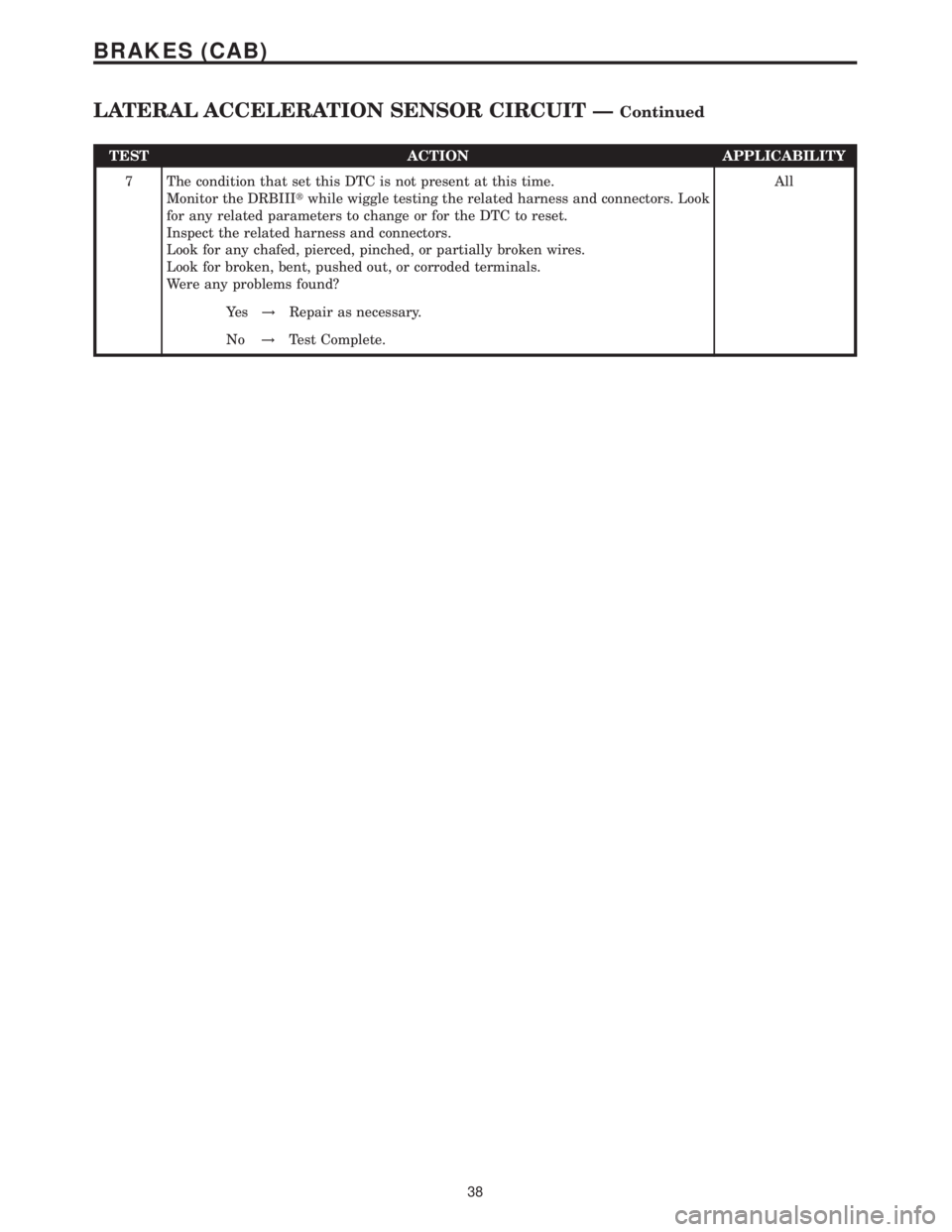

7 The condition that set this DTC is not present at this time.
Monitor the DRBIIItwhile wiggle testing the related harness and connectors. Look
for any related parameters to change or for the DTC to reset.
Inspect the related harness and connectors.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
No!Test Complete.
31
BRAKES (CAB)
DRIVE TEST ERROR ÐContinued

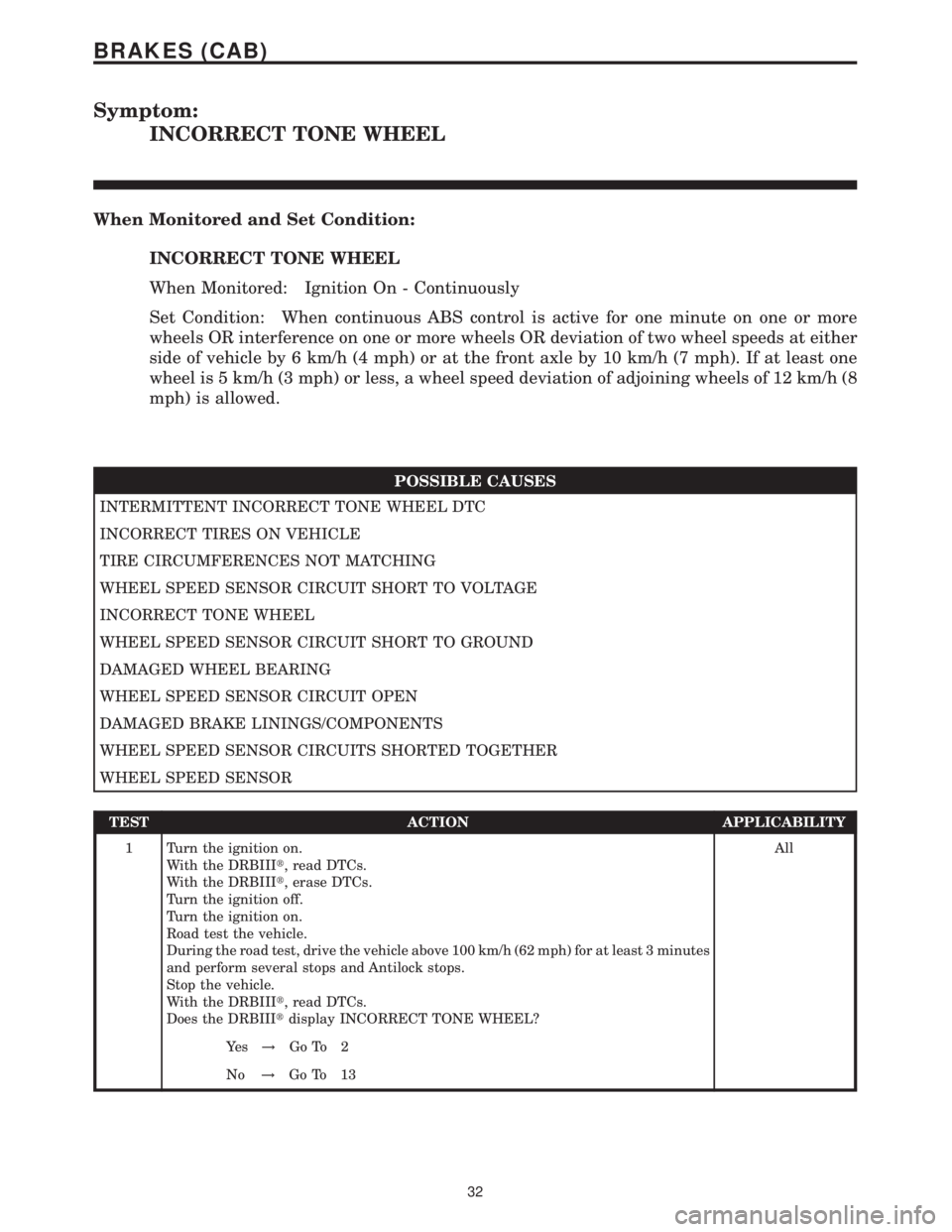

Symptom:
INCORRECT TONE WHEEL
When Monitored and Set Condition:
INCORRECT TONE WHEEL
When Monitored: Ignition On - Continuously
Set Condition: When continuous ABS control is active for one minute on one or more
wheels OR interference on one or more wheels OR deviation of two wheel speeds at either
side of vehicle by 6 km/h (4 mph) or at the front axle by 10 km/h (7 mph). If at least one
wheel is 5 km/h (3 mph) or less, a wheel speed deviation of adjoining wheels of 12 km/h (8
mph) is allowed.
POSSIBLE CAUSES
INTERMITTENT INCORRECT TONE WHEEL DTC
INCORRECT TIRES ON VEHICLE
TIRE CIRCUMFERENCES NOT MATCHING
WHEEL SPEED SENSOR CIRCUIT SHORT TO VOLTAGE
INCORRECT TONE WHEEL
WHEEL SPEED SENSOR CIRCUIT SHORT TO GROUND
DAMAGED WHEEL BEARING
WHEEL SPEED SENSOR CIRCUIT OPEN
DAMAGED BRAKE LININGS/COMPONENTS
WHEEL SPEED SENSOR CIRCUITS SHORTED TOGETHER
WHEEL SPEED SENSOR
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, read DTCs.
With the DRBIIIt, erase DTCs.
Turn the ignition off.
Turn the ignition on.
Road test the vehicle.
During the road test, drive the vehicle above 100 km/h (62 mph) for at least 3 minutes
and perform several stops and Antilock stops.
Stop the vehicle.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay INCORRECT TONE WHEEL?All
Ye s!Go To 2
No!Go To 13
32
BRAKES (CAB)

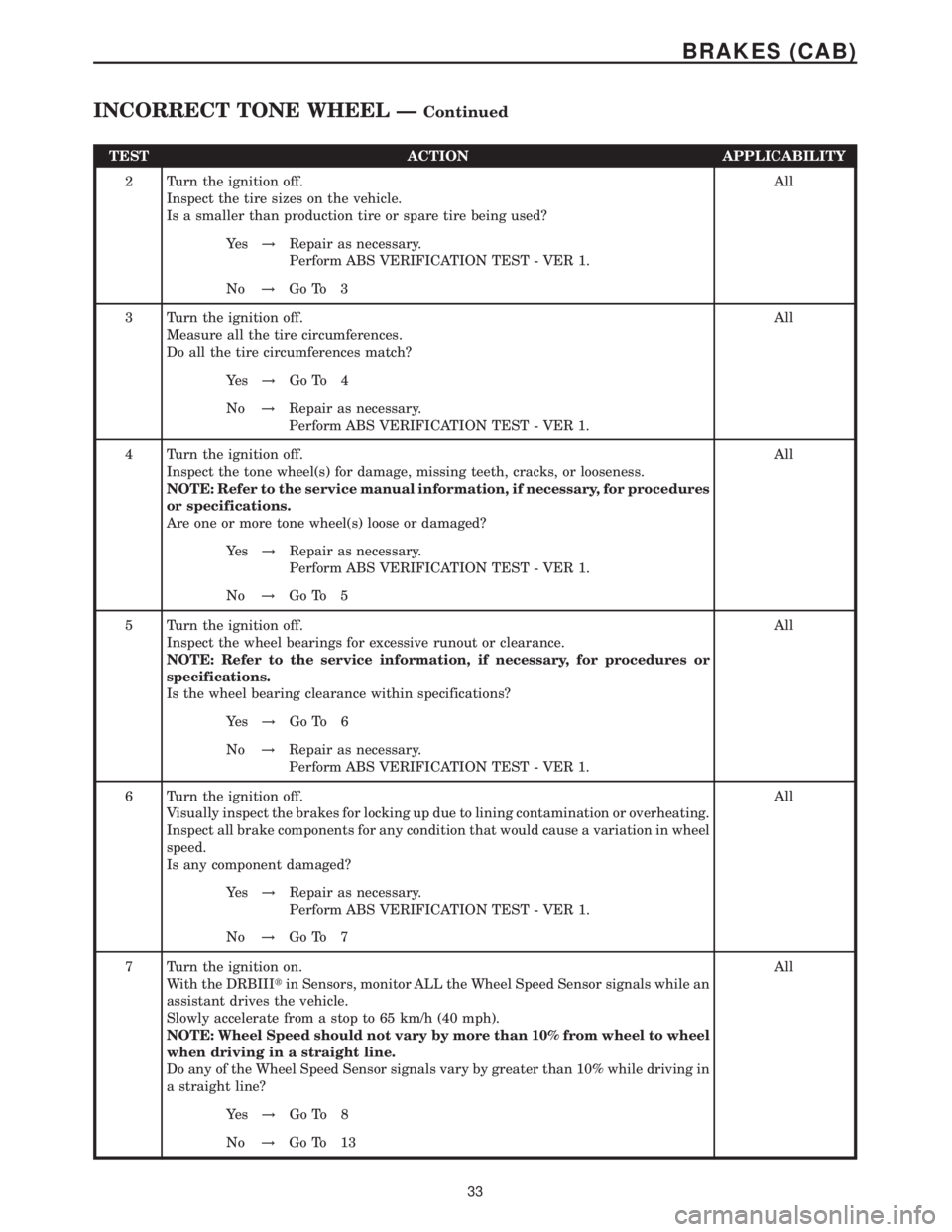

TEST ACTION APPLICABILITY
2 Turn the ignition off.
Inspect the tire sizes on the vehicle.
Is a smaller than production tire or spare tire being used?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 3
3 Turn the ignition off.
Measure all the tire circumferences.
Do all the tire circumferences match?All
Ye s!Go To 4
No!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Inspect the tone wheel(s) for damage, missing teeth, cracks, or looseness.
NOTE: Refer to the service manual information, if necessary, for procedures
or specifications.
Are one or more tone wheel(s) loose or damaged?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 5
5 Turn the ignition off.
Inspect the wheel bearings for excessive runout or clearance.
NOTE: Refer to the service information, if necessary, for procedures or
specifications.
Is the wheel bearing clearance within specifications?All
Ye s!Go To 6
No!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
6 Turn the ignition off.
Visually inspect the brakes for locking up due to lining contamination or overheating.
Inspect all brake components for any condition that would cause a variation in wheel
speed.
Is any component damaged?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 7
7 Turn the ignition on.
With the DRBIIItin Sensors, monitor ALL the Wheel Speed Sensor signals while an
assistant drives the vehicle.
Slowly accelerate from a stop to 65 km/h (40 mph).
NOTE: Wheel Speed should not vary by more than 10% from wheel to wheel
when driving in a straight line.
Do any of the Wheel Speed Sensor signals vary by greater than 10% while driving in
a straight line?All
Ye s!Go To 8
No!Go To 13
33
BRAKES (CAB)
INCORRECT TONE WHEEL ÐContinued

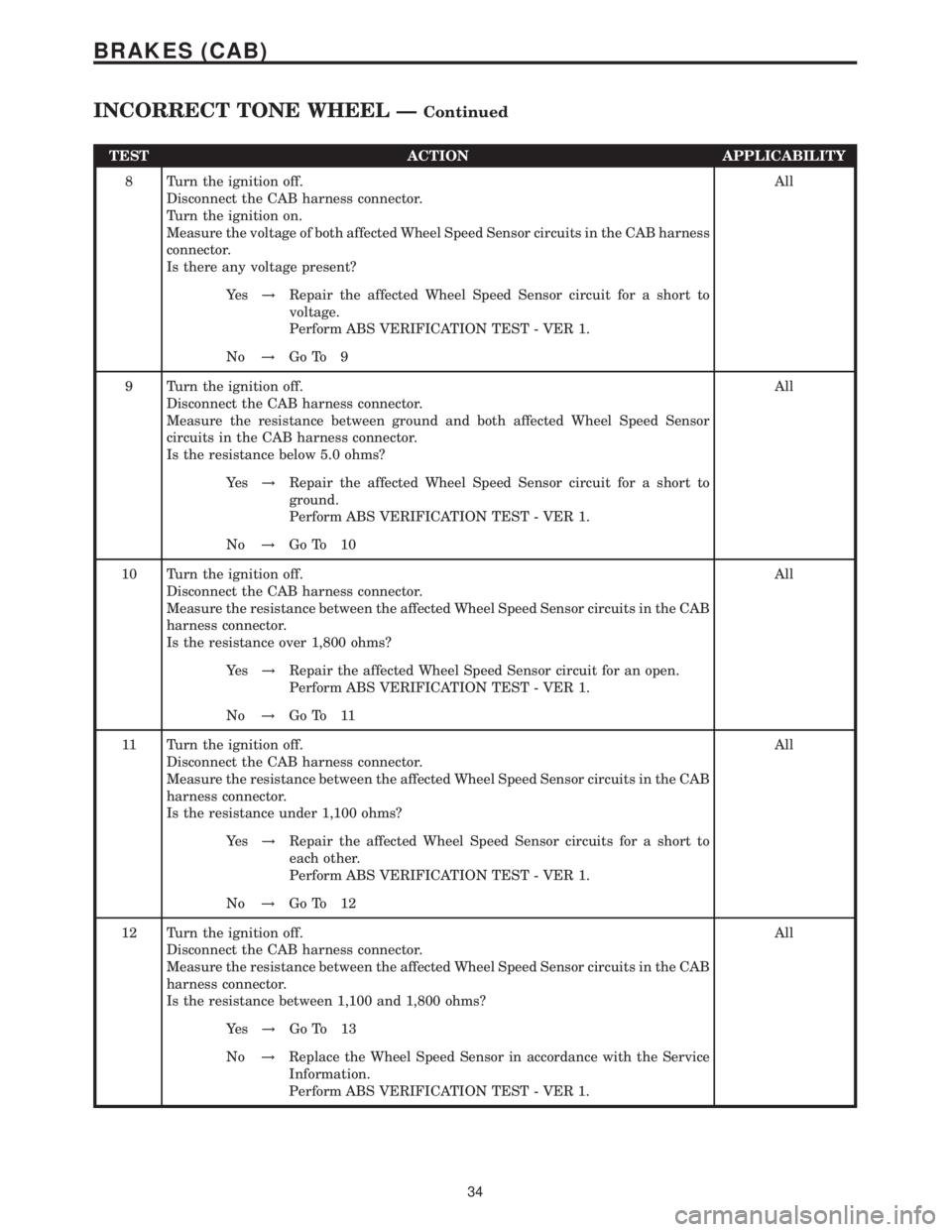

TEST ACTION APPLICABILITY
8 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage of both affected Wheel Speed Sensor circuits in the CAB harness
connector.
Is there any voltage present?All
Ye s!Repair the affected Wheel Speed Sensor circuit for a short to
voltage.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 9
9 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between ground and both affected Wheel Speed Sensor
circuits in the CAB harness connector.
Is the resistance below 5.0 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuit for a short to
ground.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 10
10 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance over 1,800 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 11
11 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance under 1,100 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuits for a short to
each other.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 12
12 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance between 1,100 and 1,800 ohms?All
Ye s!Go To 13
No!Replace the Wheel Speed Sensor in accordance with the Service
Information.
Perform ABS VERIFICATION TEST - VER 1.
34
BRAKES (CAB)
INCORRECT TONE WHEEL ÐContinued

TEST ACTION APPLICABILITY

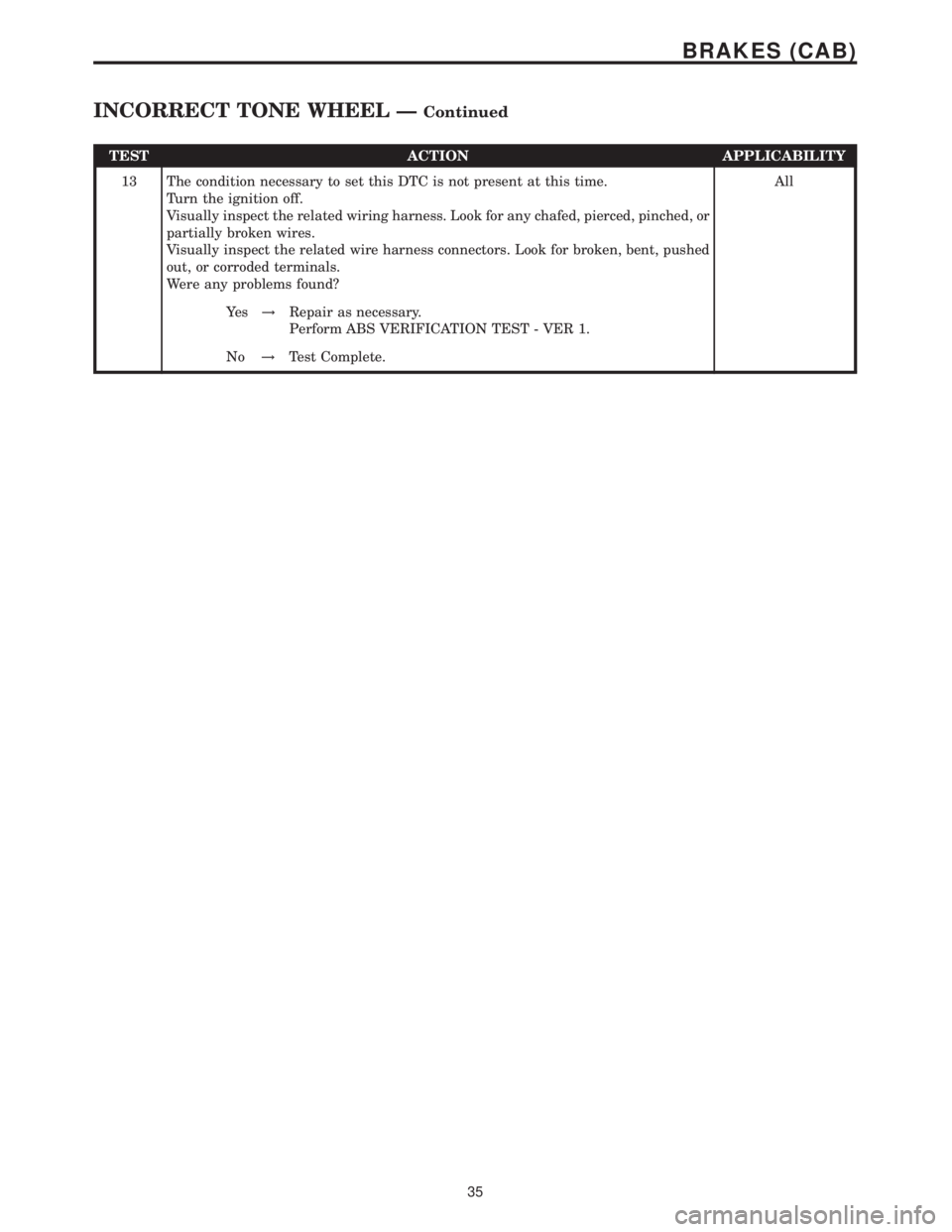

13 The condition necessary to set this DTC is not present at this time.
Turn the ignition off.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wire harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Test Complete.
35
BRAKES (CAB)
INCORRECT TONE WHEEL ÐContinued

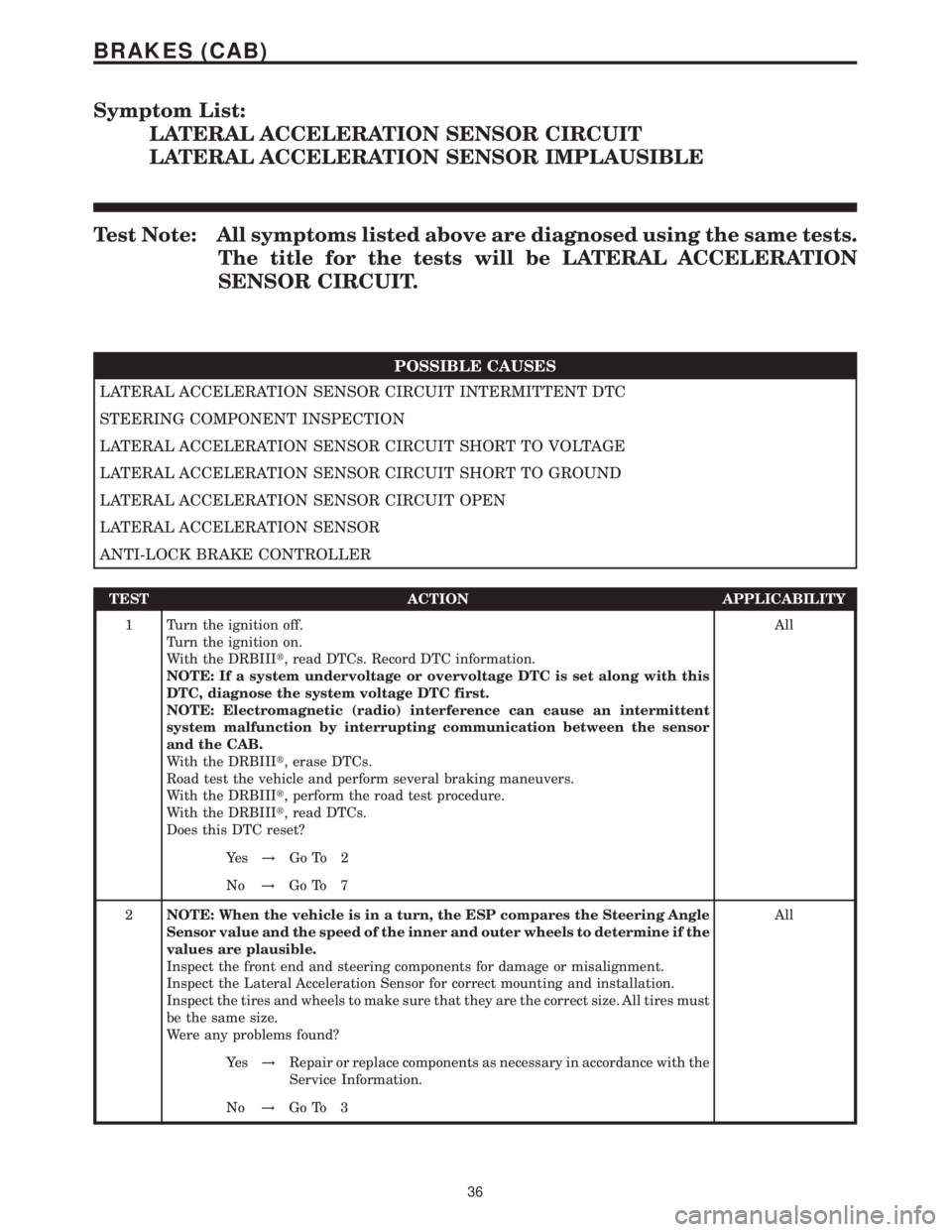

Symptom List:
LATERAL ACCELERATION SENSOR CIRCUIT
LATERAL ACCELERATION SENSOR IMPLAUSIBLE
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be LATERAL ACCELERATION
SENSOR CIRCUIT.
POSSIBLE CAUSES
LATERAL ACCELERATION SENSOR CIRCUIT INTERMITTENT DTC
STEERING COMPONENT INSPECTION
LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO VOLTAGE
LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO GROUND
LATERAL ACCELERATION SENSOR CIRCUIT OPEN
LATERAL ACCELERATION SENSOR
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs. Record DTC information.
NOTE: If a system undervoltage or overvoltage DTC is set along with this
DTC, diagnose the system voltage DTC first.
NOTE: Electromagnetic (radio) interference can cause an intermittent
system malfunction by interrupting communication between the sensor
and the CAB.
With the DRBIIIt, erase DTCs.
Road test the vehicle and perform several braking maneuvers.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Go To 2
No!Go To 7
2NOTE: When the vehicle is in a turn, the ESP compares the Steering Angle
Sensor value and the speed of the inner and outer wheels to determine if the
values are plausible.
Inspect the front end and steering components for damage or misalignment.
Inspect the Lateral Acceleration Sensor for correct mounting and installation.
Inspect the tires and wheels to make sure that they are the correct size. All tires must
be the same size.
Were any problems found?All
Ye s!Repair or replace components as necessary in accordance with the
Service Information.
No!Go To 3
36
BRAKES (CAB)

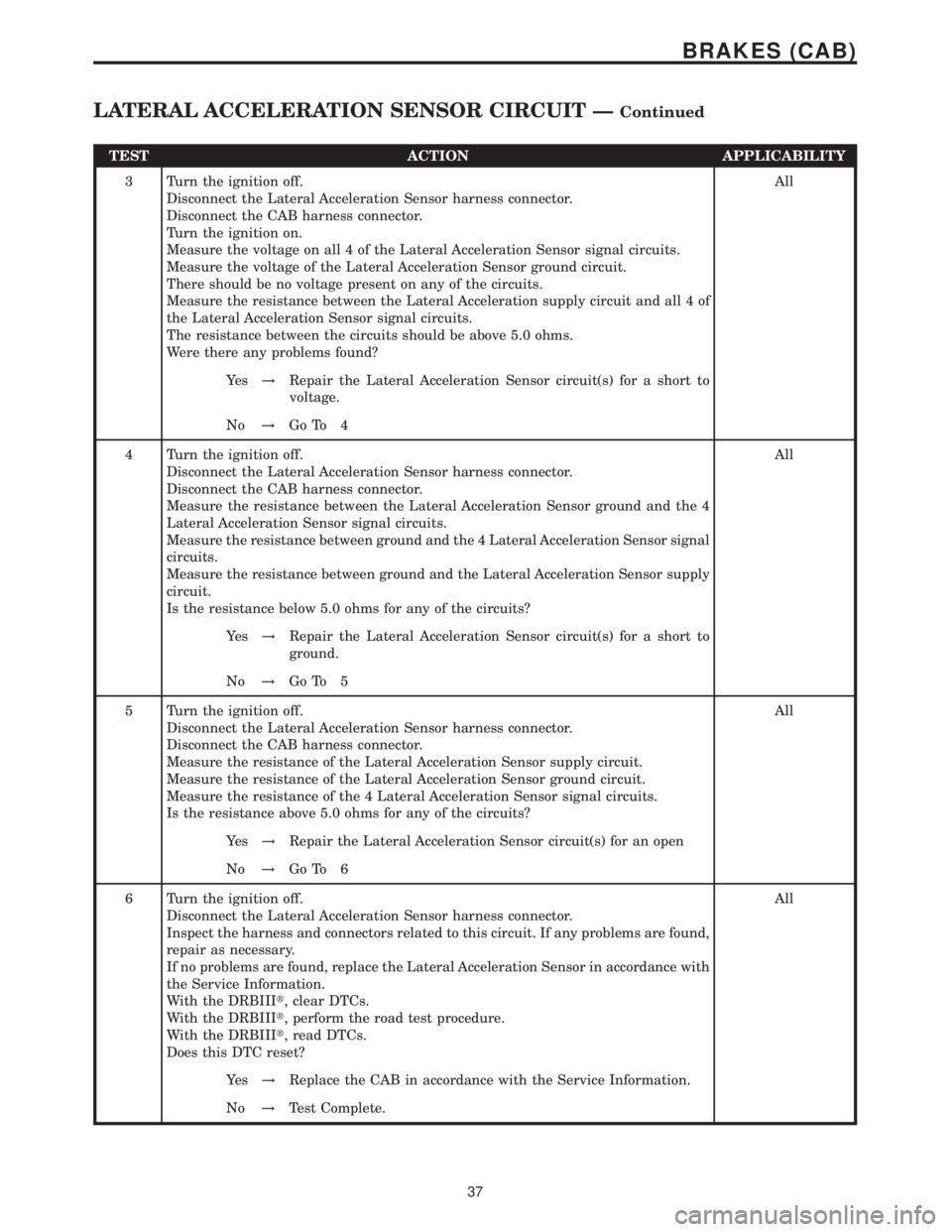

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage on all 4 of the Lateral Acceleration Sensor signal circuits.
Measure the voltage of the Lateral Acceleration Sensor ground circuit.
There should be no voltage present on any of the circuits.
Measure the resistance between the Lateral Acceleration supply circuit and all 4 of
the Lateral Acceleration Sensor signal circuits.
The resistance between the circuits should be above 5.0 ohms.
Were there any problems found?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for a short to
voltage.
No!Go To 4
4 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance between the Lateral Acceleration Sensor ground and the 4
Lateral Acceleration Sensor signal circuits.
Measure the resistance between ground and the 4 Lateral Acceleration Sensor signal
circuits.
Measure the resistance between ground and the Lateral Acceleration Sensor supply
circuit.
Is the resistance below 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for a short to
ground.
No!Go To 5
5 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance of the Lateral Acceleration Sensor supply circuit.
Measure the resistance of the Lateral Acceleration Sensor ground circuit.
Measure the resistance of the 4 Lateral Acceleration Sensor signal circuits.
Is the resistance above 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for an open
No!Go To 6
6 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Inspect the harness and connectors related to this circuit. If any problems are found,
repair as necessary.
If no problems are found, replace the Lateral Acceleration Sensor in accordance with
the Service Information.
With the DRBIIIt, clear DTCs.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Replace the CAB in accordance with the Service Information.
No!Test Complete.
37
BRAKES (CAB)
LATERAL ACCELERATION SENSOR CIRCUIT ÐContinued

TEST ACTION APPLICABILITY
7 The condition that set this DTC is not present at this time.
Monitor the DRBIIItwhile wiggle testing the related harness and connectors. Look
for any related parameters to change or for the DTC to reset.
Inspect the related harness and connectors.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
No!Test Complete.
38
BRAKES (CAB)
LATERAL ACCELERATION SENSOR CIRCUIT ÐContinued

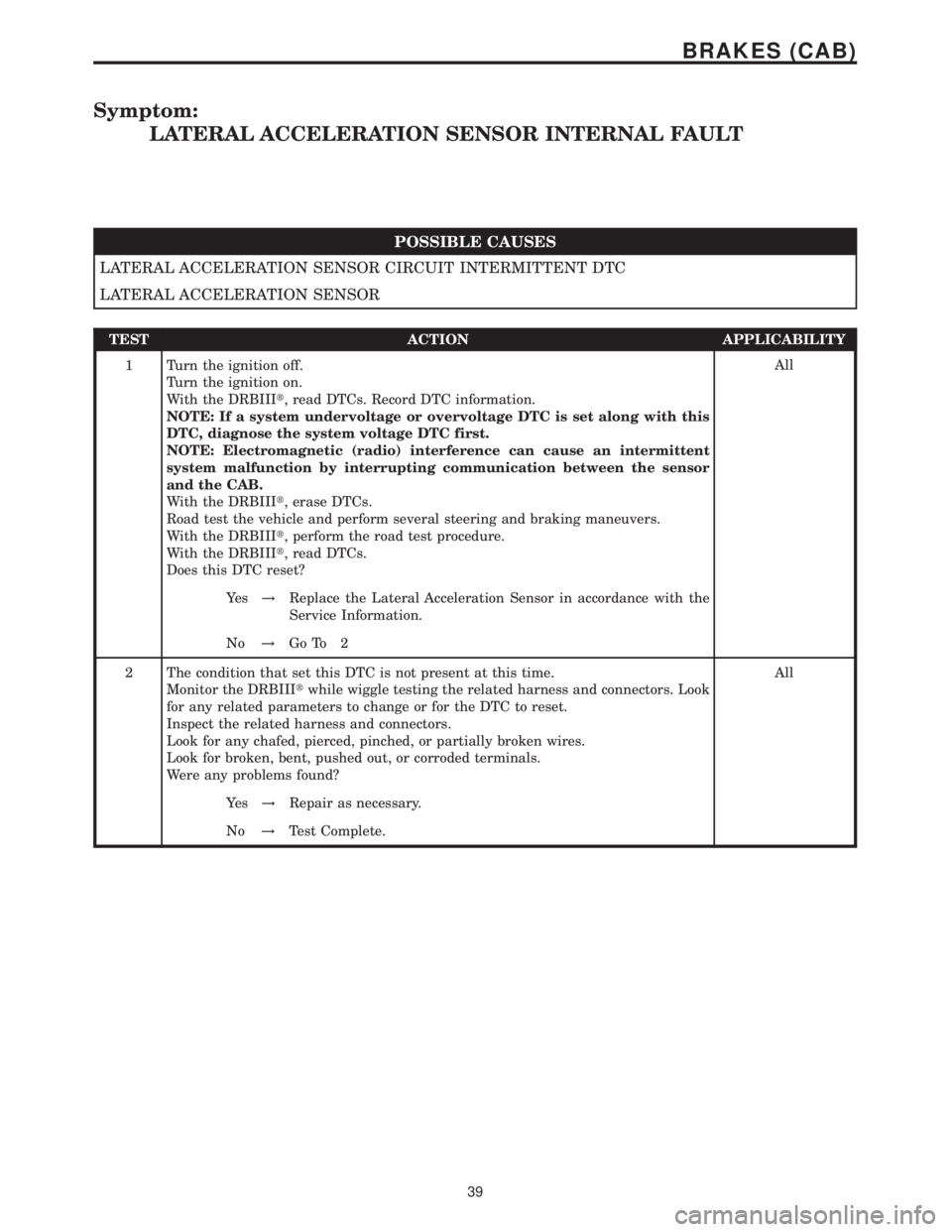

Symptom:
LATERAL ACCELERATION SENSOR INTERNAL FAULT
POSSIBLE CAUSES
LATERAL ACCELERATION SENSOR CIRCUIT INTERMITTENT DTC
LATERAL ACCELERATION SENSOR
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs. Record DTC information.
NOTE: If a system undervoltage or overvoltage DTC is set along with this
DTC, diagnose the system voltage DTC first.
NOTE: Electromagnetic (radio) interference can cause an intermittent
system malfunction by interrupting communication between the sensor
and the CAB.
With the DRBIIIt, erase DTCs.
Road test the vehicle and perform several steering and braking maneuvers.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Replace the Lateral Acceleration Sensor in accordance with the
Service Information.
No!Go To 2
2 The condition that set this DTC is not present at this time.
Monitor the DRBIIItwhile wiggle testing the related harness and connectors. Look
for any related parameters to change or for the DTC to reset.
Inspect the related harness and connectors.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
No!Test Complete.
39
BRAKES (CAB)
